Page 1361 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011
Transmission/Transaxle Cooling - Transmission Cooling
Diagnosi s and Tes ti ng
Principles of Operation
For a detail ed descripti on of the aut omati c transmis s ion cool ing

Publi s hed: 11-May-2011
Transmission/Transaxle Cooling - Transmission Cooling
Diagnosi s and Tes ti ng
Principles of Operation
For a detail ed descripti on of the aut omati c transmis s ion cool ing s ys tem, refer t o t he relevant Descripti on and Operat ions ect ion i n t he works hop manual .REFER to: Trans mi ss i on Cool ing (307-02 Trans mi ss ion/Transaxle Cool ing, Descripti on and Operat ion).
Inspection and Verification
1. Verify t he cus t omer concern.1.
2. Vis ually ins pect for s ys tem int egrit y and obvi ous s igns of mechanical damage.2.
Visual Inspection
Mechanical
Feed and ret urn t ubesConnect ions t o the aut omati c t ransmis s ion and t he automat ic t rans mis s ion flui d cool erAutomat ic trans mi ss i on fl uid l evel
3. If an obvious cause for an obs erved or report ed concern is found, correct t he caus e (if pos s ible) beforeproceeding t o t he next s t ep3.
4. If t he caus e is not vis ually evi dent , verify t he sympt om and refer t o t he Sympt om Chart.4.
Symptom Chart
ConditionPossible CauseAction
Over heat ing of t heautomat ict rans mis s ion
Obs truct ion i n t he automat ict rans mis s ion fluid cool erFl us h out t he automat ic t rans mi ss ion fl ui d cool er wit hnew aut omati c t rans mis s ion fluidIf t he fl ushi ng is uns ucces sful, ins t al l a new cooler.REFER t o: Transmis s ion Flui d Cooler - I6 3.2L Petrol(307-02 Trans mi ss i on/Trans axl e Cooling, Removal andIns tall ati on) /Trans mi s si on Fluid Cool er - TD4 2.2L Di es el (307-02Trans mi s si on/Trans axl e Cooli ng, Removal andIns tall ati on).
Over heat ing of t heautomat ict rans mis s ion
Obs truct ion i n t he automat ict rans mis s ion fluid tubesFl us h out t he automat ic t rans mi ss ion fl ui d cool er tubeswit h new automat ic t rans mi ss i on fl ui dIf t he fl ushi ng is uns ucces sful ins tall new aut omati ct rans mi ss i on fl ui d cooler tubes
Loss of aut omati ct rans mis s ion flui dConnect ions to the aut omati ct rans mis s ion and t he automat ict rans mis s ion fluid cool er
Check t he int egrit y of tubes , connect ions and s ealsCheck t he torque of t he t ube fi xi ngs.REFER t o: Specificati ons (307-02Trans mi s si on/Trans axl e Cooli ng, Speci fi cat ions ).
Loss of aut omati ct rans mis s ion flui dLeak at aut omati c t ransmis s ion fluidcool erCheck t he int egrit y of tubes , connect ions and s ealsCheck t he torque of t he t ube fi xi ngs.REFER t o: Specificati ons (307-02Trans mi s si on/Trans axl e Cooli ng, Speci fi cat ions ).Check for aut omat ic trans mi s si on fl uid contami nat ionof t he engine cool ant. Inst all new cooler as required.REFER t o: Transmis s ion Flui d Cooler - I6 3.2L Petrol(307-02 Trans mi ss i on/Trans axl e Cooling, Removal andIns tall ati on) /Trans mi s si on Fluid Cool er - TD4 2.2L Di es el (307-02Trans mi s si on/Trans axl e Cooli ng, Removal andIns tall ati on).

Page 1362 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011

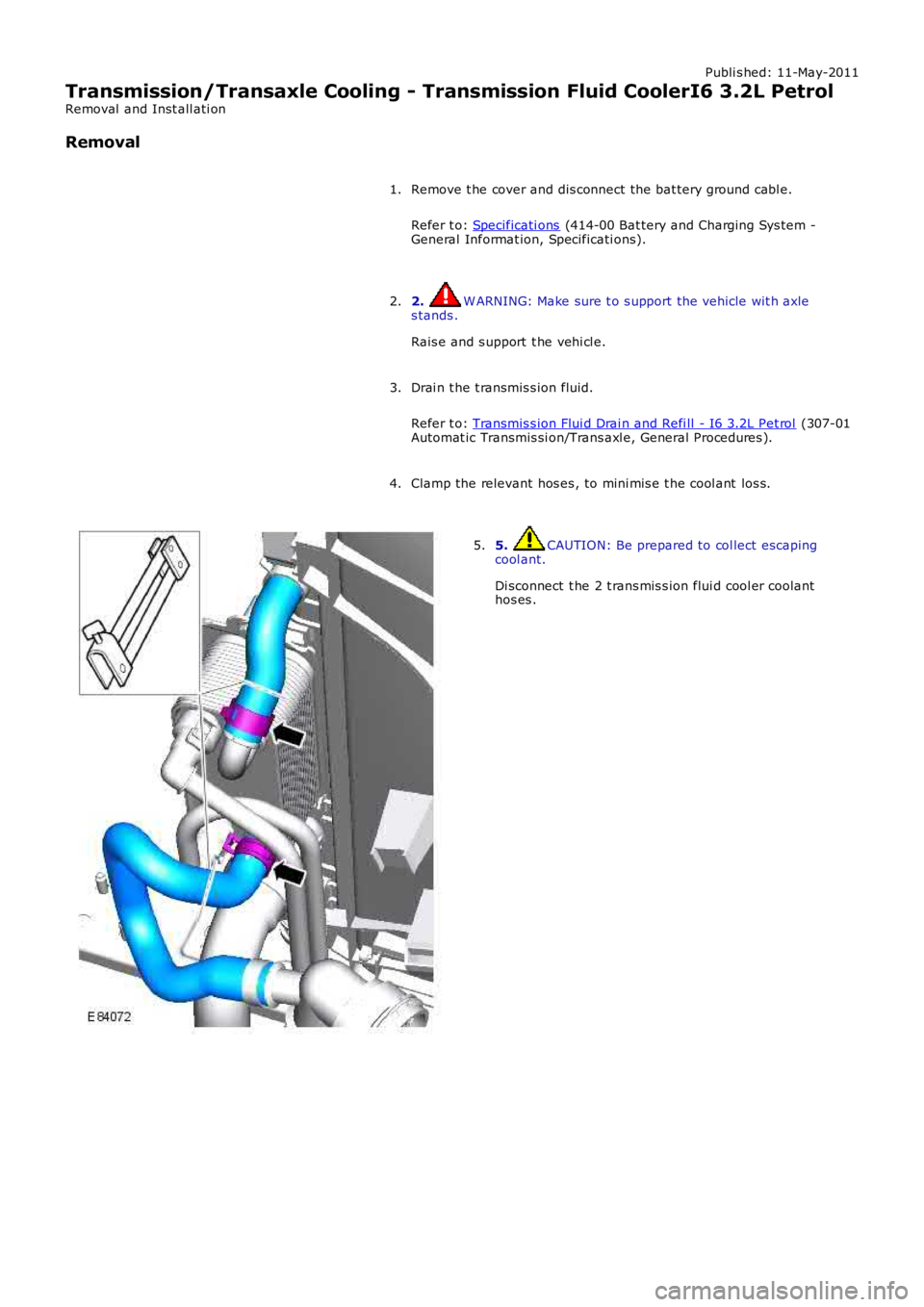

Transmission/Transaxle Cooling - Transmission Fluid CoolerI6 3.2L Petrol
Removal and Inst all ati on
Removal
Remove t he cover and dis connect the bat tery ground cabl e.
Ref

Page 1363 of 3229

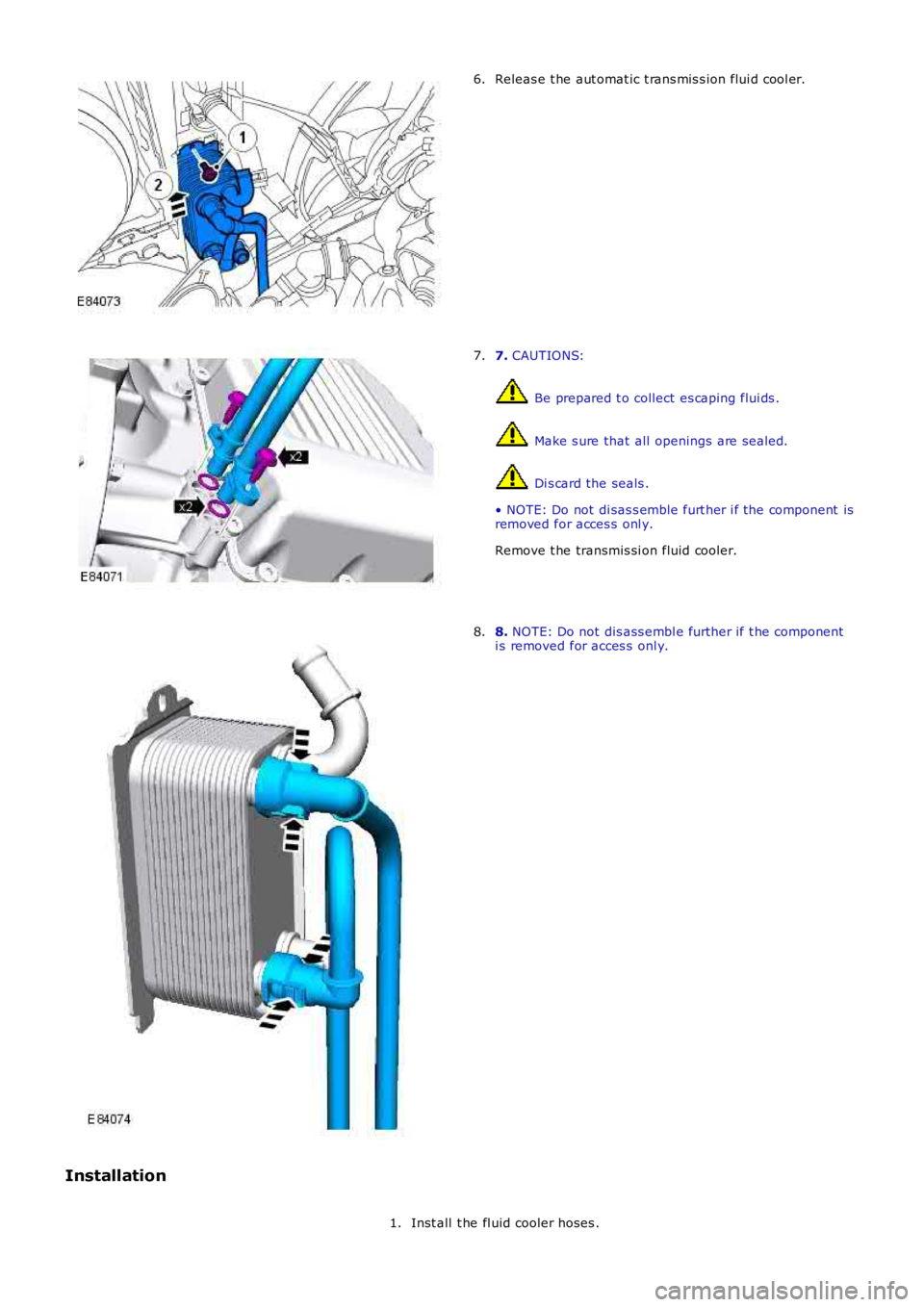

LAND ROVER FRELANDER 2 2006 Repair Manual Releas e t he aut omat ic t rans mis s ion flui d cool er.6.
7. CAUTIONS:
Be prepared t o collect es caping flui ds .
Make s ure that all openings are sealed.
Di s card the seals .
• NOTE: Do n

Page 1364 of 3229

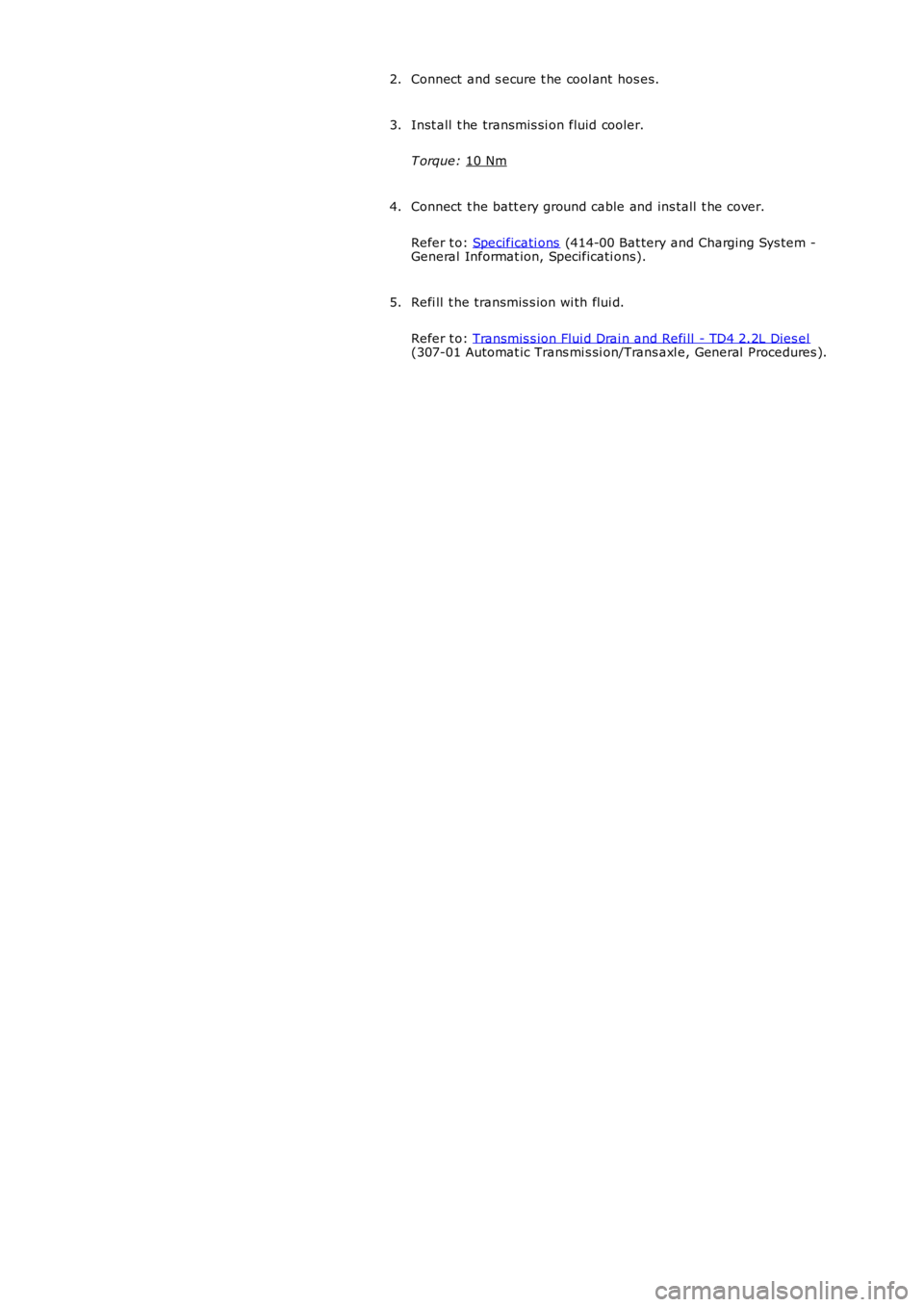

LAND ROVER FRELANDER 2 2006 Repair Manual Connect and s ecure t he cool ant hos es.
2.
Inst all t he transmis si on fluid cooler.
T orque: 10 Nm 3.
Connect t he batt ery ground cable and ins tall t he cover.
Refer t o: Specificati ons

Page 1365 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011
Transmission/Transaxle Cooling - Transmission Fluid CoolerTD4 2.2L Diesel
Removal and Inst all ati on
Removal
Remove t he cover and dis connect the bat tery ground cabl e.
Re

Page 1366 of 3229

Page 1367 of 3229

Page 1368 of 3229

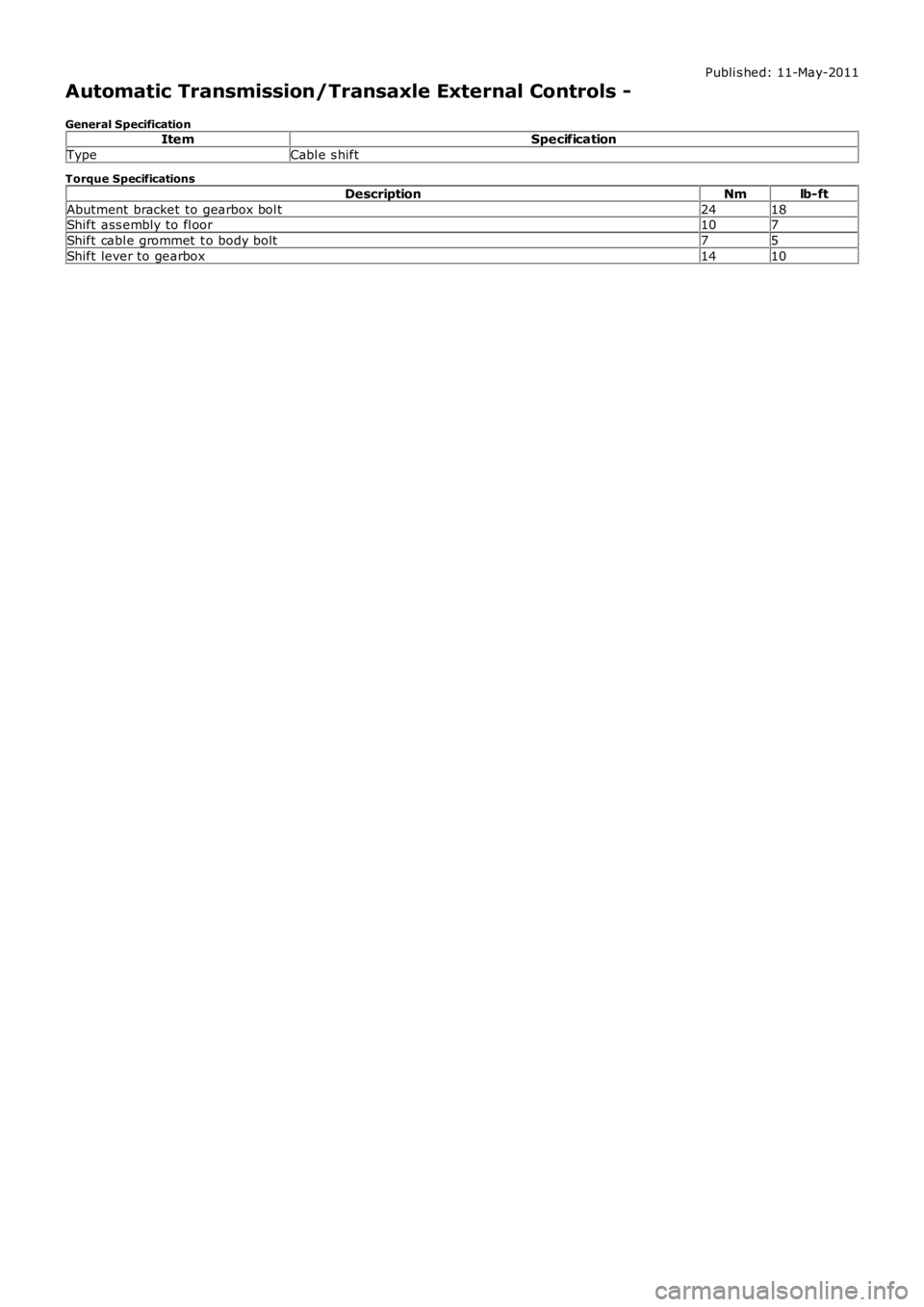

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011
Automatic Transmission/Transaxle External Controls -
General SpecificationItemSpecification
TypeCabl e s hift
Torque Specifications
DescriptionNmlb-ft
Abutment bracket to gea
