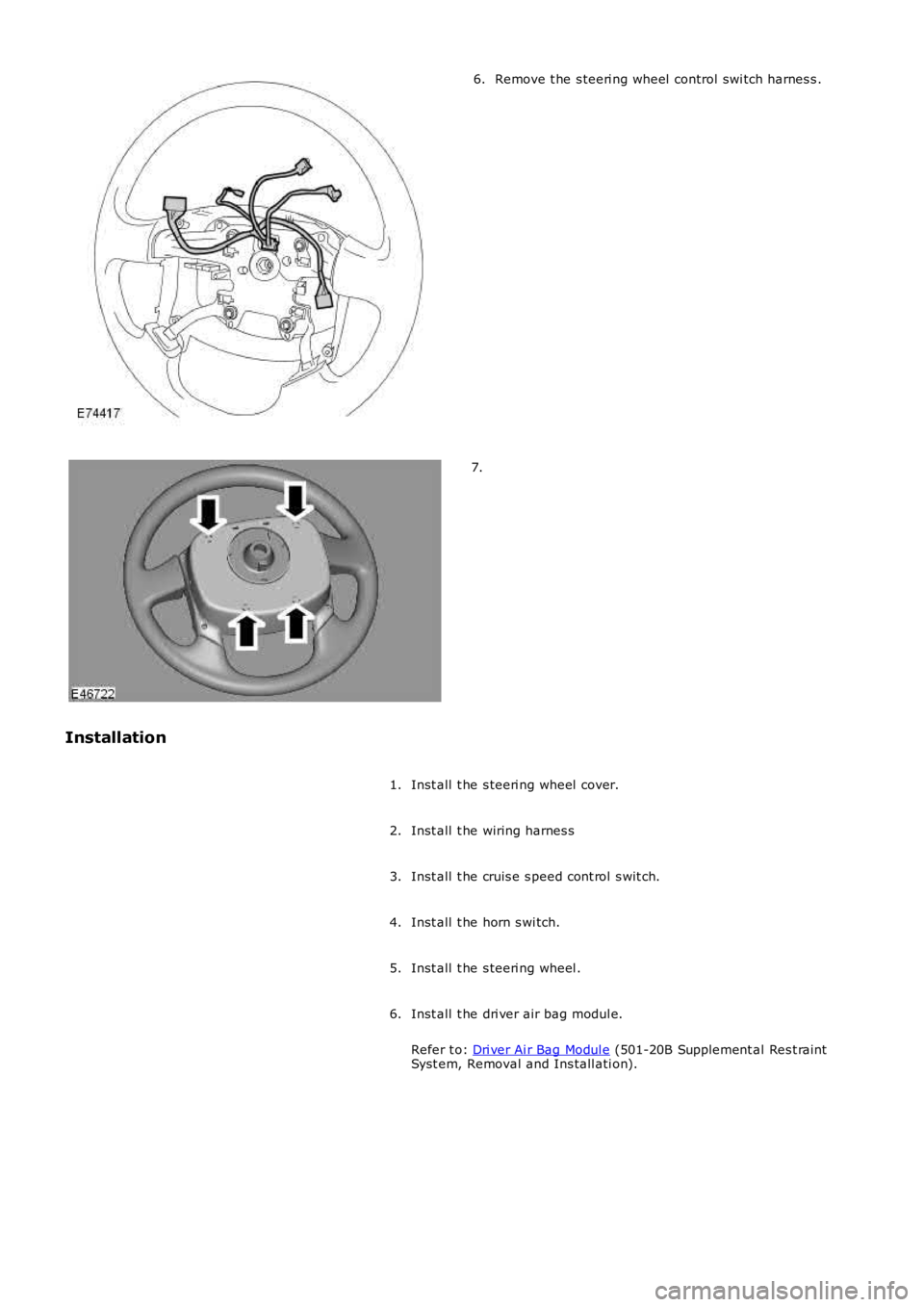

Page 577 of 3229
Remove t he s teeri ng wheel control swi tch harnes s .6.
7.
Installation
Inst all t he s teeri ng wheel cover.1.
Inst all t he wiring harnes s2.
Inst all t he cruis e s peed cont rol s wit ch.3.
Inst all t he horn s wi tch.4.
Inst all t he s teeri ng wheel .5.
Inst all t he dri ver air bag modul e.
Refer t o: Dri ver Ai r Bag Modul e (501-20B Supplement al Res t raintSyst em, Removal and Ins tall ati on).
6.

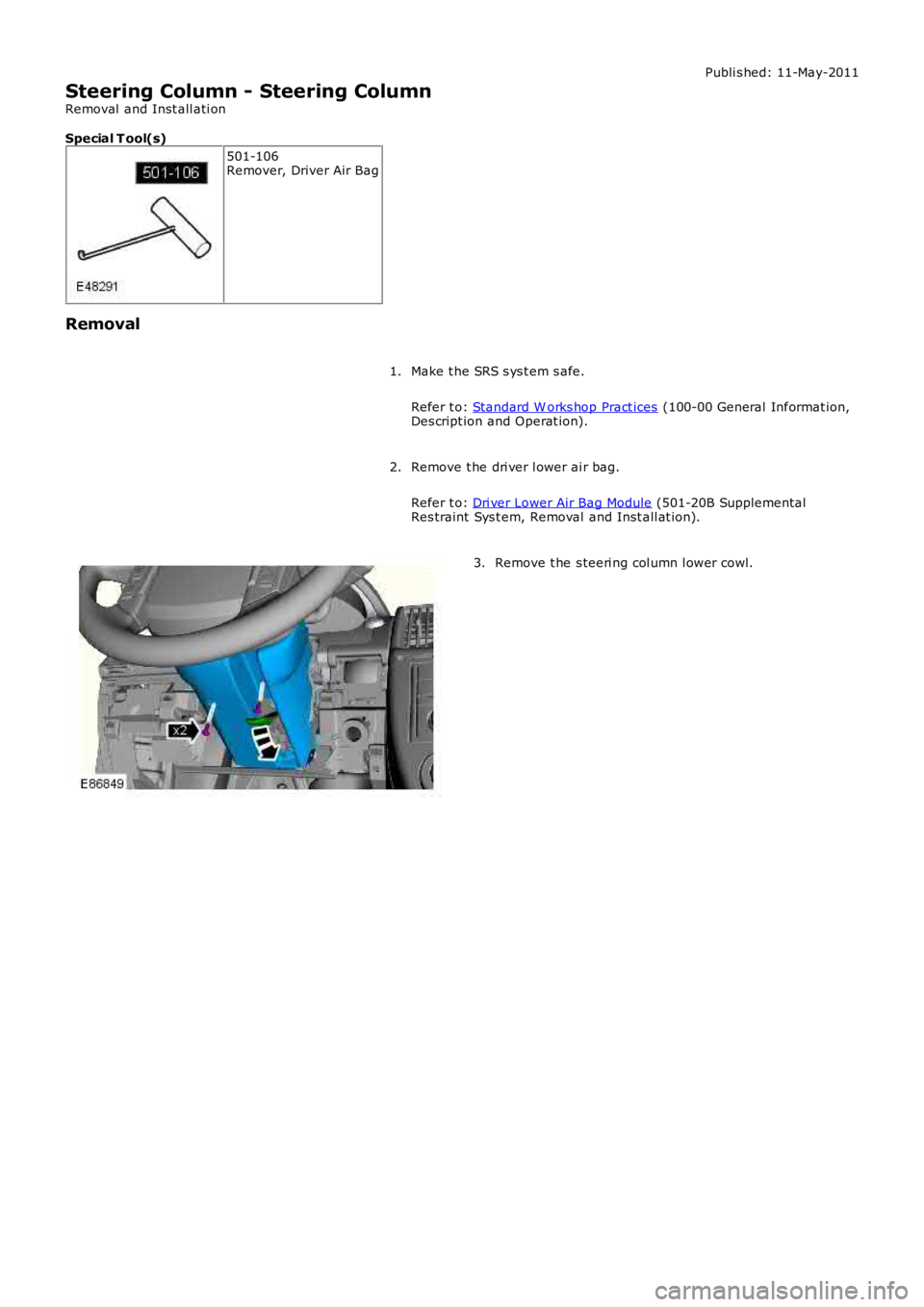

Page 578 of 3229
Publi s hed: 11-May-2011
Steering Column - Steering Column
Removal and Inst all ati on
Special T ool(s)
501-106Remover, Driver Air Bag
Removal
Make t he SRS s ys t em s afe.
Refer t o: Standard W orks hop Pract ices (100-00 General Informat ion,Des cript ion and Operat ion).
1.
Remove t he dri ver l ower ai r bag.
Refer t o: Dri ver Lower Air Bag Module (501-20B SupplementalRes traint Sys t em, Removal and Inst all at ion).
2.
Remove t he s teeri ng col umn l ower cowl.3.

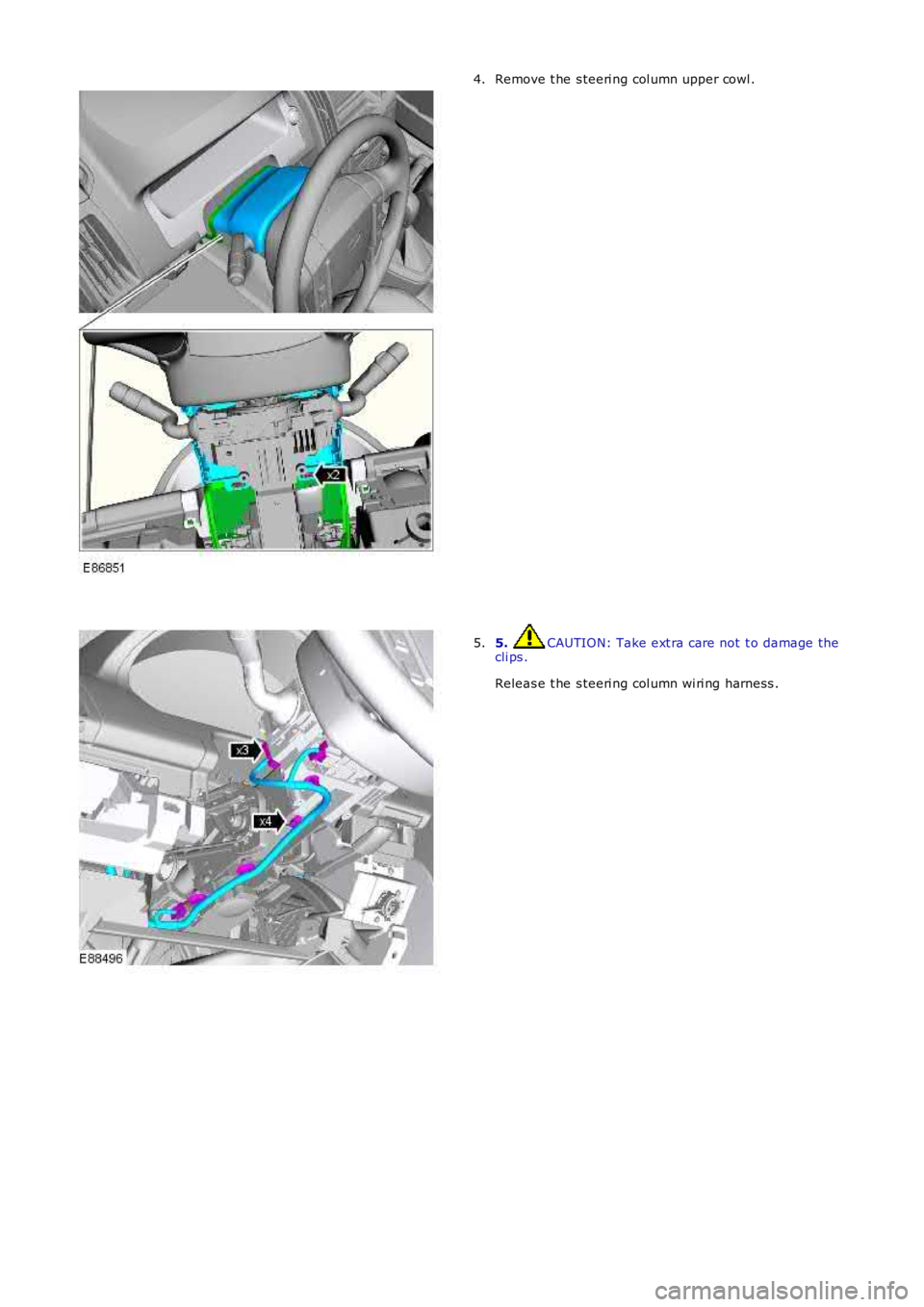

Page 579 of 3229
Remove t he s teeri ng col umn upper cowl .4.
5. CAUTION: Take ext ra care not t o damage thecli ps .
Releas e t he s teeri ng col umn wi ri ng harness .
5.

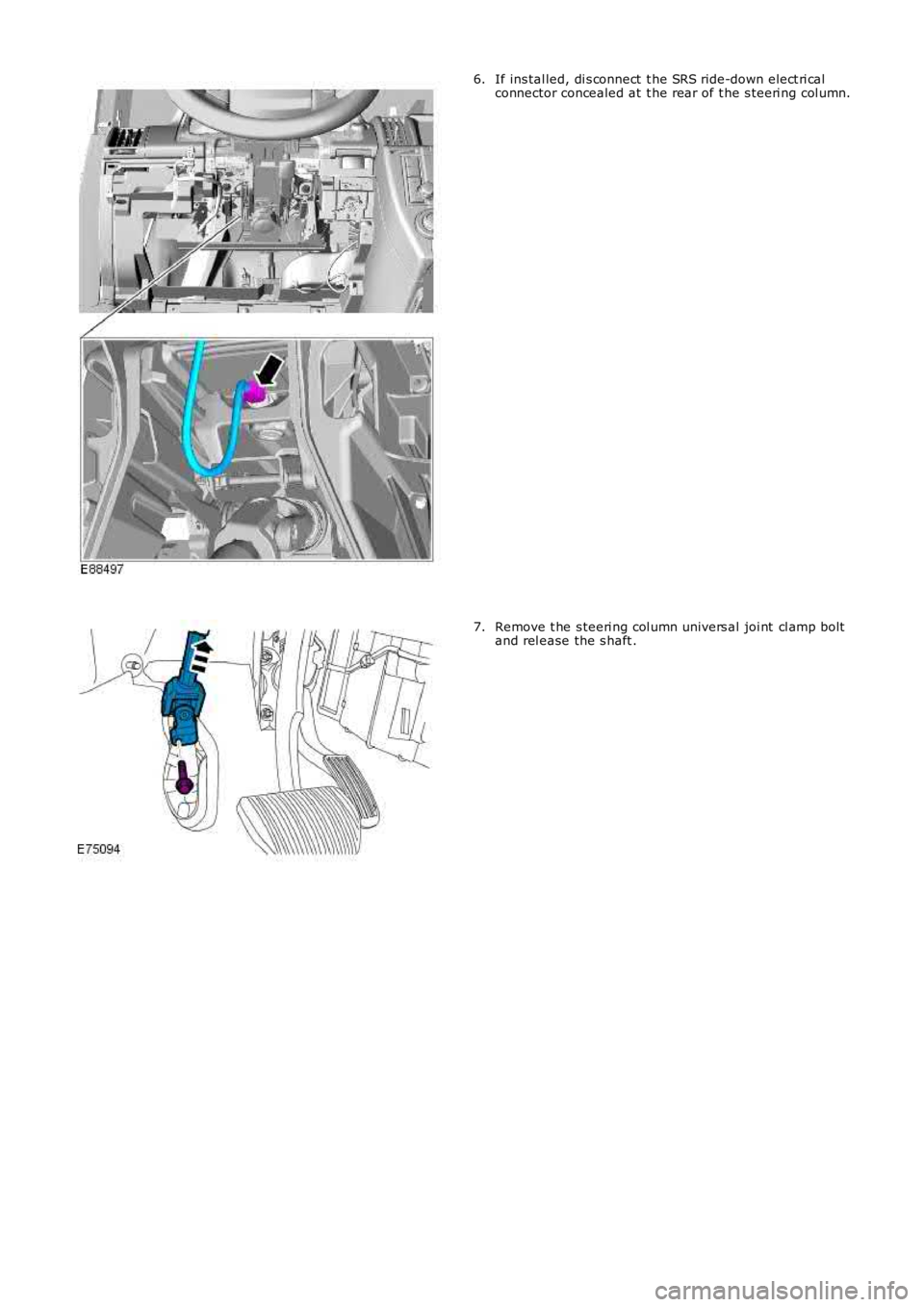

Page 580 of 3229
If ins tal led, di s connect t he SRS ride-down el ect ri calconnector concealed at t he rear of t he s teeri ng col umn.6.
Remove t he s teeri ng col umn univers al joi nt cl amp boltand rel ease the s haft .7.

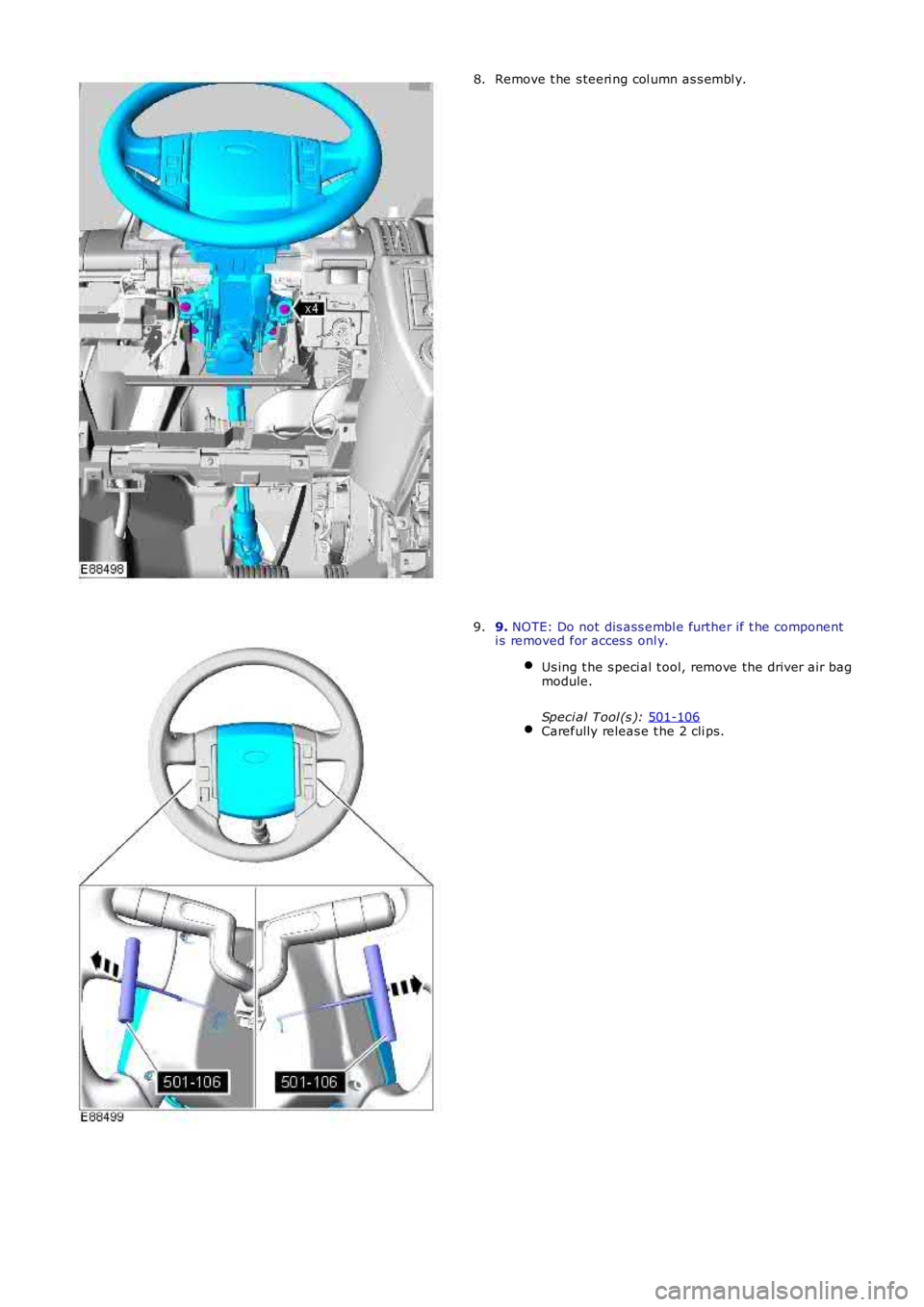

Page 581 of 3229
Remove t he s teeri ng col umn as s embl y.
8. 9.
NOTE: Do not dis ass embl e further if t he component
i s removed for acces s onl y.
Us ing t he s peci al t ool, remove the driver air bag
module.
Speci al Tool (s ): 501-106 Carefully releas e t he 2 cli ps.9.

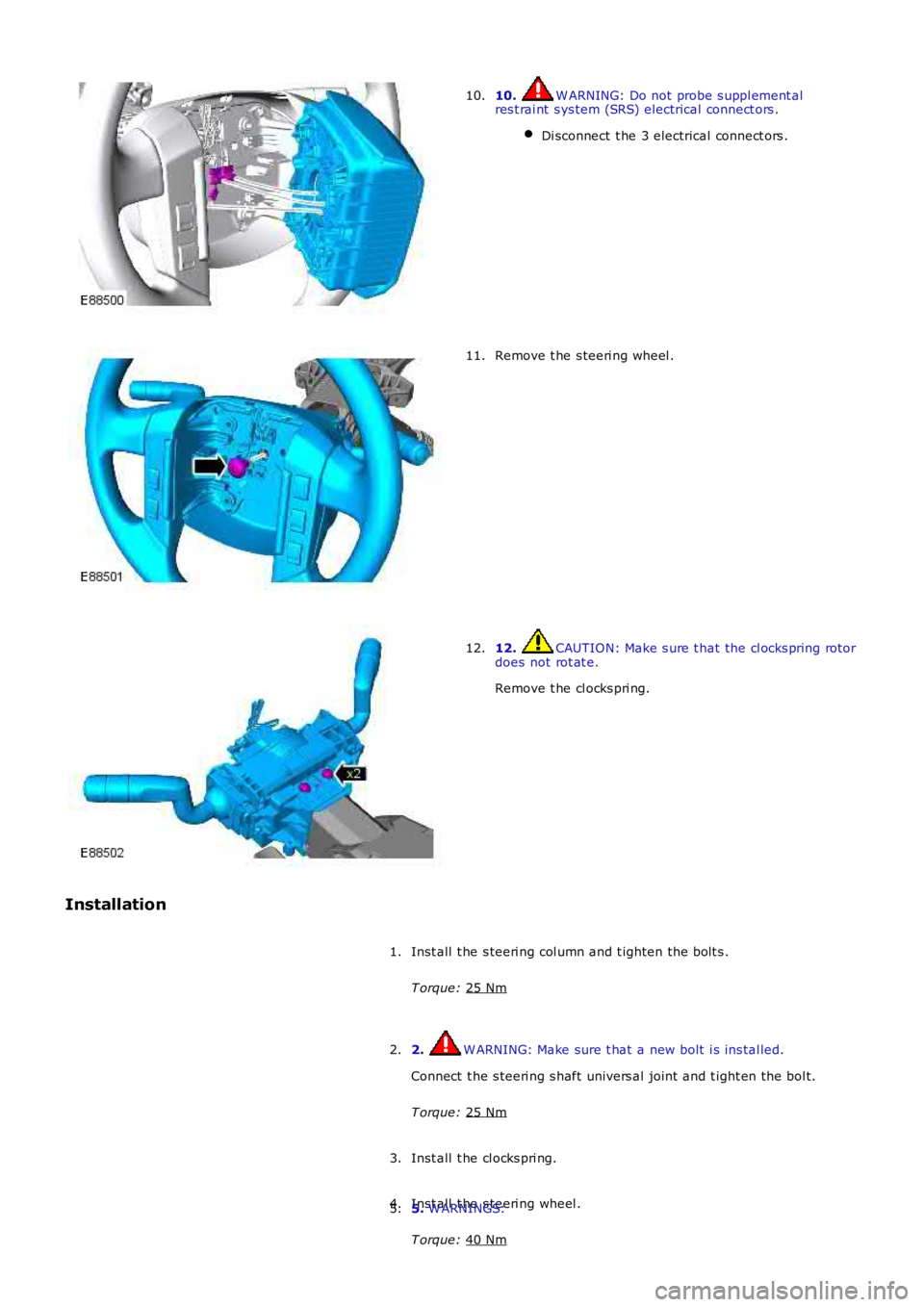

Page 582 of 3229
10. W ARNING: Do not probe s uppl ement al
res t rai nt s ys tem (SRS) electrical connect ors .
Di sconnect t he 3 electrical connect ors . 10.
Remove t he s teeri ng wheel .
11. 12. CAUTION: Make s ure t hat the cl ocks pring rotor
does not rot at e.
Remove t he cl ocks pri ng.
12.
Installation Inst all t he s teeri ng col umn and t ighten the bolt s .
T orque: 25 Nm 1.
2. W ARNING: Make sure t hat a new bolt i s ins tal led.
Connect t he s teeri ng s haft univers al joint and t ight en the bol t.
T orque: 25 Nm 2.
Inst all t he cl ocks pri ng.
3.
Inst all t he s teeri ng wheel .
T orque: 40 Nm 4.
5. W ARNINGS:
5.

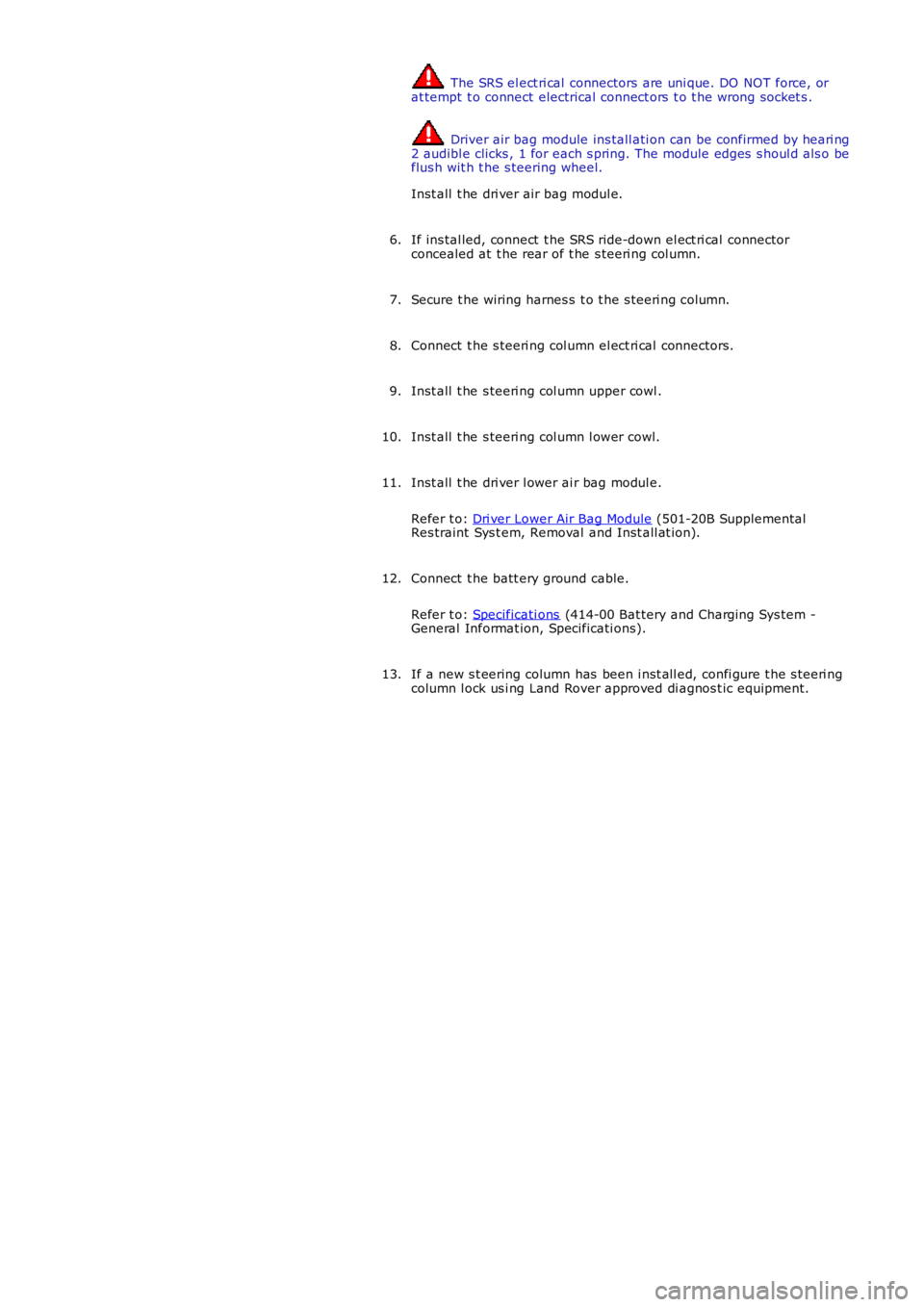

Page 583 of 3229

The SRS el ect ri cal connectors are uni que. DO NOT force, orat tempt t o connect electrical connect ors t o t he wrong socket s .
Driver air bag module ins tall ati on can be confirmed by heari ng2 audibl e clicks , 1 for each s pring. The module edges s houl d als o beflus h wit h t he s teering wheel.
Inst all t he dri ver air bag modul e.
If ins tal led, connect t he SRS ride-down el ect ri cal connectorconcealed at t he rear of t he s teeri ng col umn.6.
Secure t he wiring harnes s t o t he s teeri ng column.7.
Connect t he s teeri ng col umn el ect ri cal connectors.8.
Inst all t he s teeri ng col umn upper cowl .9.
Inst all t he s teeri ng col umn l ower cowl.10.
Inst all t he dri ver l ower ai r bag modul e.
Refer t o: Dri ver Lower Air Bag Module (501-20B SupplementalRes traint Sys t em, Removal and Inst all at ion).
11.
Connect t he batt ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -General Informat ion, Specificati ons).
12.
If a new s t eering column has been i nst all ed, confi gure t he s teeri ngcolumn l ock us i ng Land Rover approved di agnos t ic equipment.13.

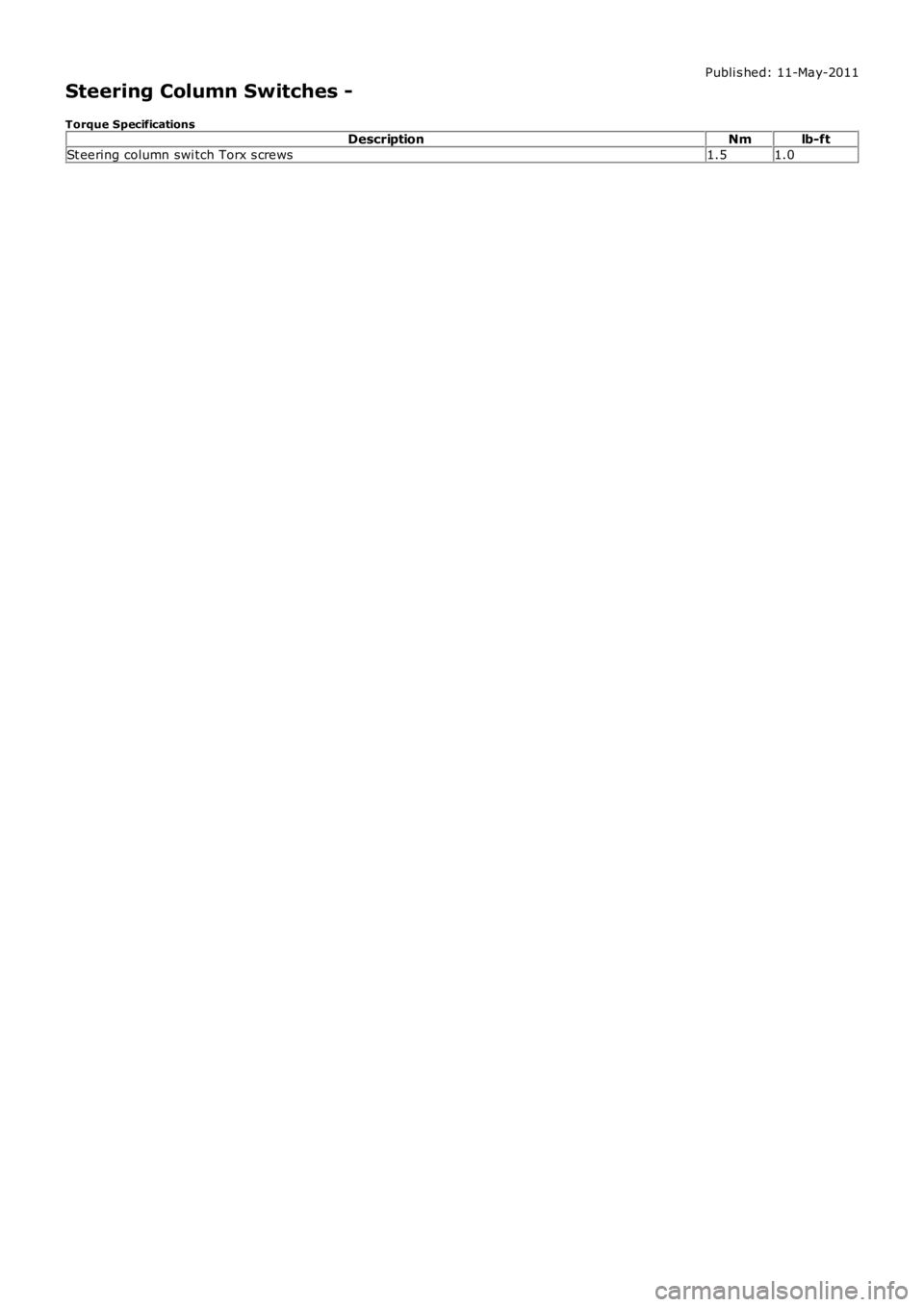

Page 584 of 3229
Publi s hed: 11-May-2011
Steering Column Switches -
Torque SpecificationsDescriptionNmlb-ft
St eering column swi tch Torx s crews1.51.0
