Page 2649 of 3229

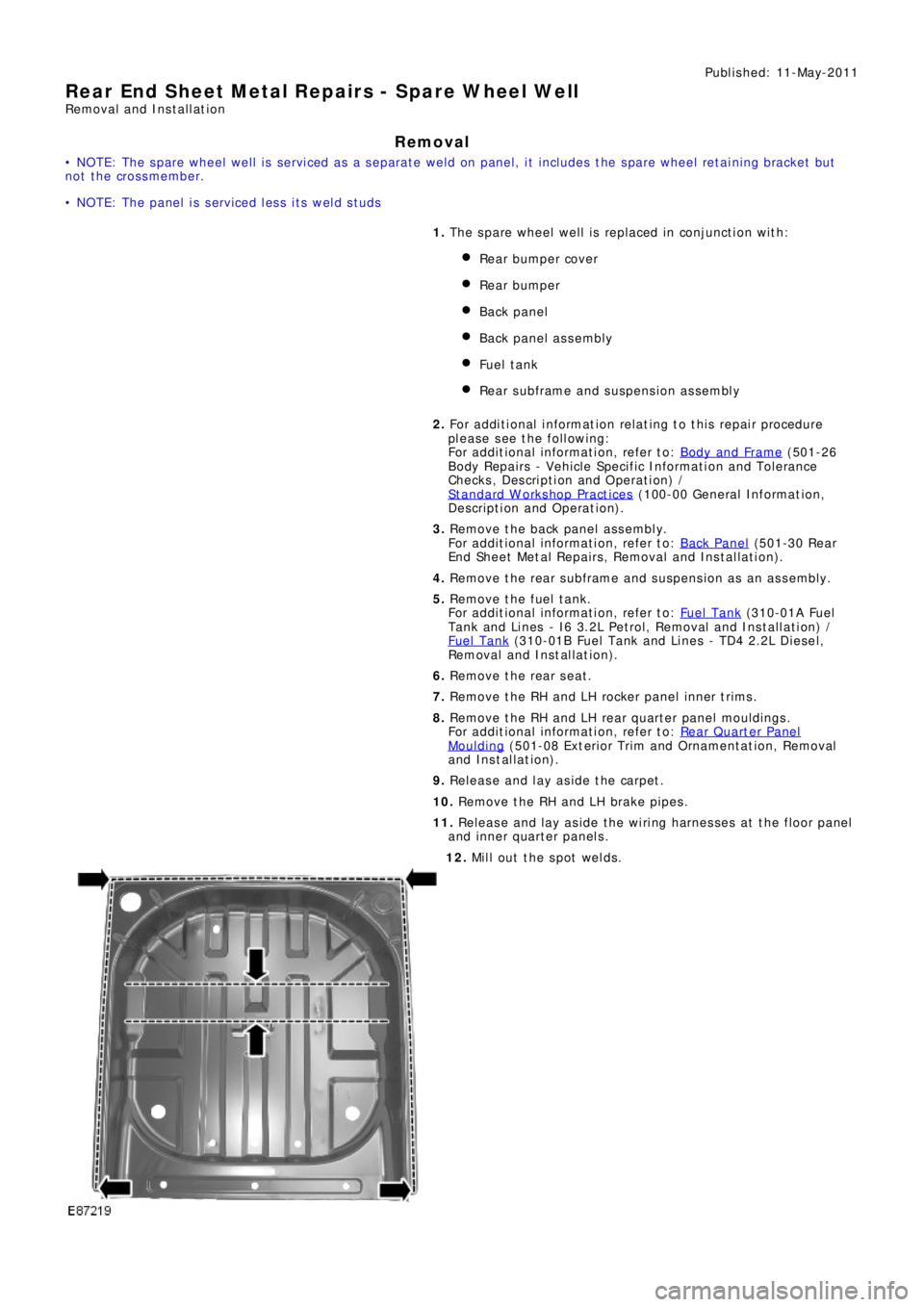

LAND ROVER FRELANDER 2 2006 Repair Manual Publ is hed: 11-May-2011 Rear End Sheet Metal Repairs - Spare Wheel Well Removal and Installation Removal • NOTE: The spare wheel well is serviced as a separate weld on panel, it includes the spare

Page 2650 of 3229

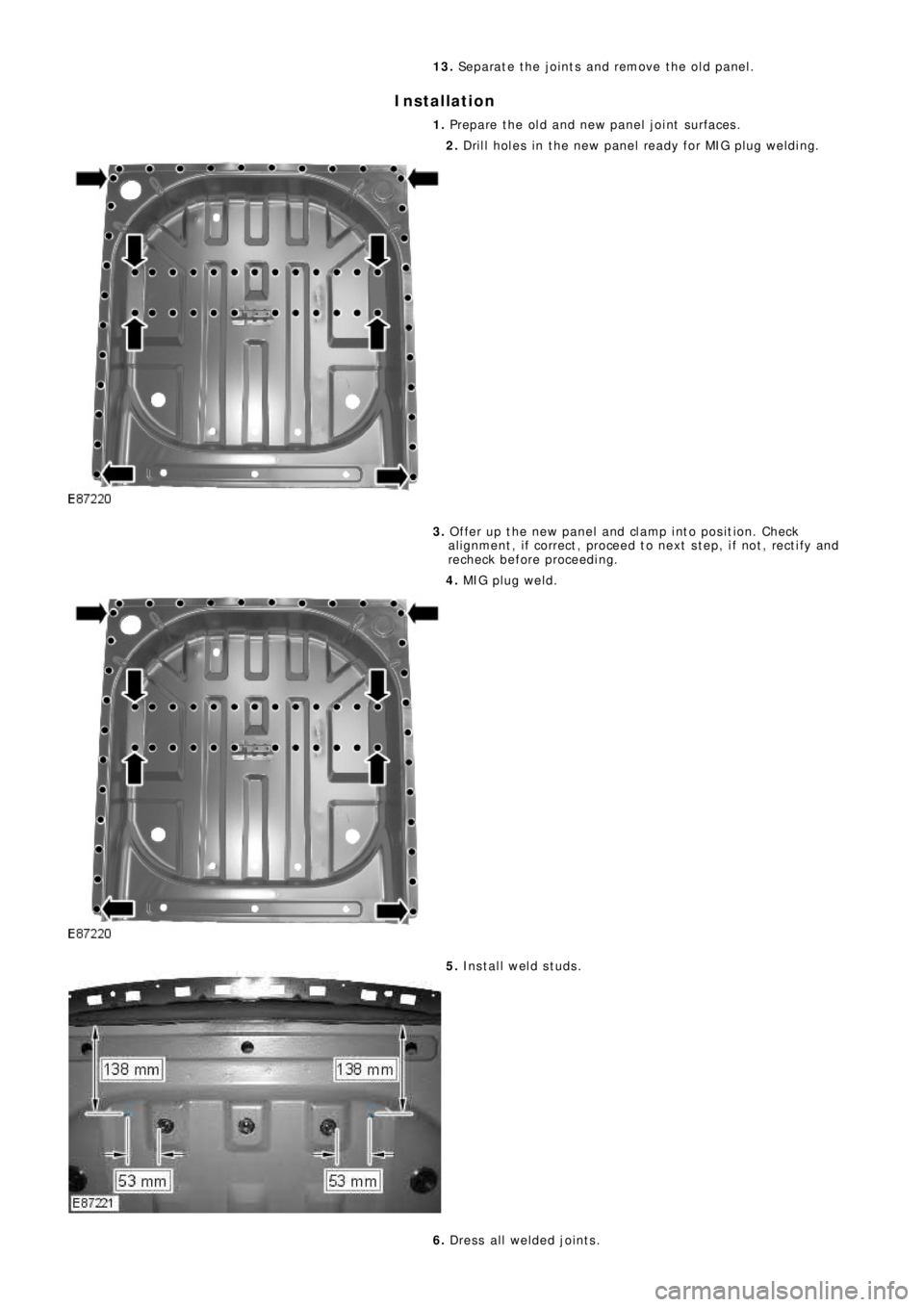

LAND ROVER FRELANDER 2 2006 Repair Manual 13. Separate the joints and remove the old panel. Installation 1. Prepare the old and new panel joint surfaces. 2. Drill holes in the new panel ready for MIG plug welding. 3. Offer up the new panel an

Page 2651 of 3229

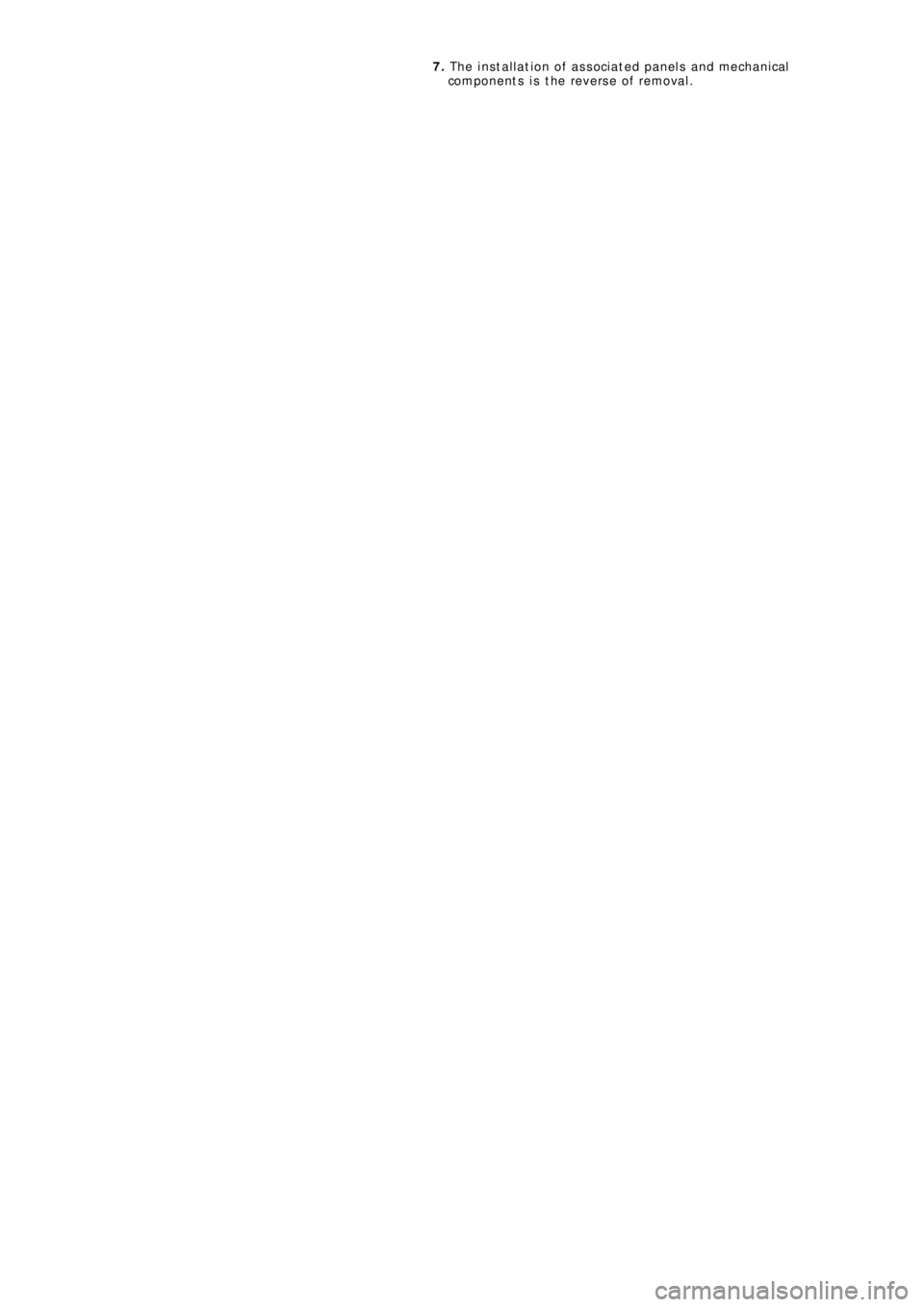

LAND ROVER FRELANDER 2 2006 Repair Manual 7. The installation of associated panels and mechanical components is the reverse of removal.

Page 2652 of 3229

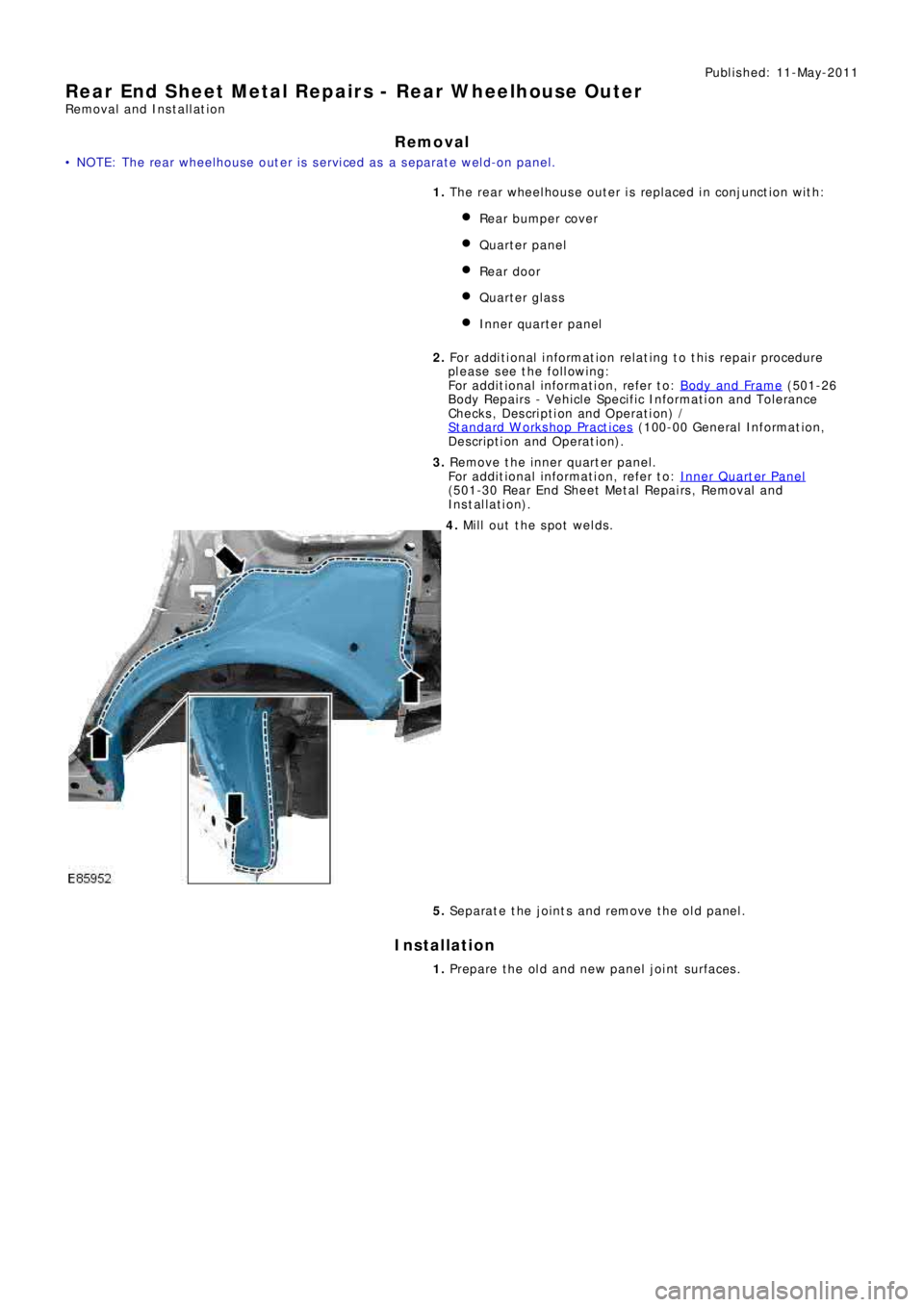

LAND ROVER FRELANDER 2 2006 Repair Manual Publ is hed: 11-May-2011 Rear End Sheet Metal Repairs - Rear Wheelhouse Outer Removal and Installation Removal • NOTE: The rear wheelhouse outer is serviced as a separate weld-on panel. 1. The rear

Page 2653 of 3229

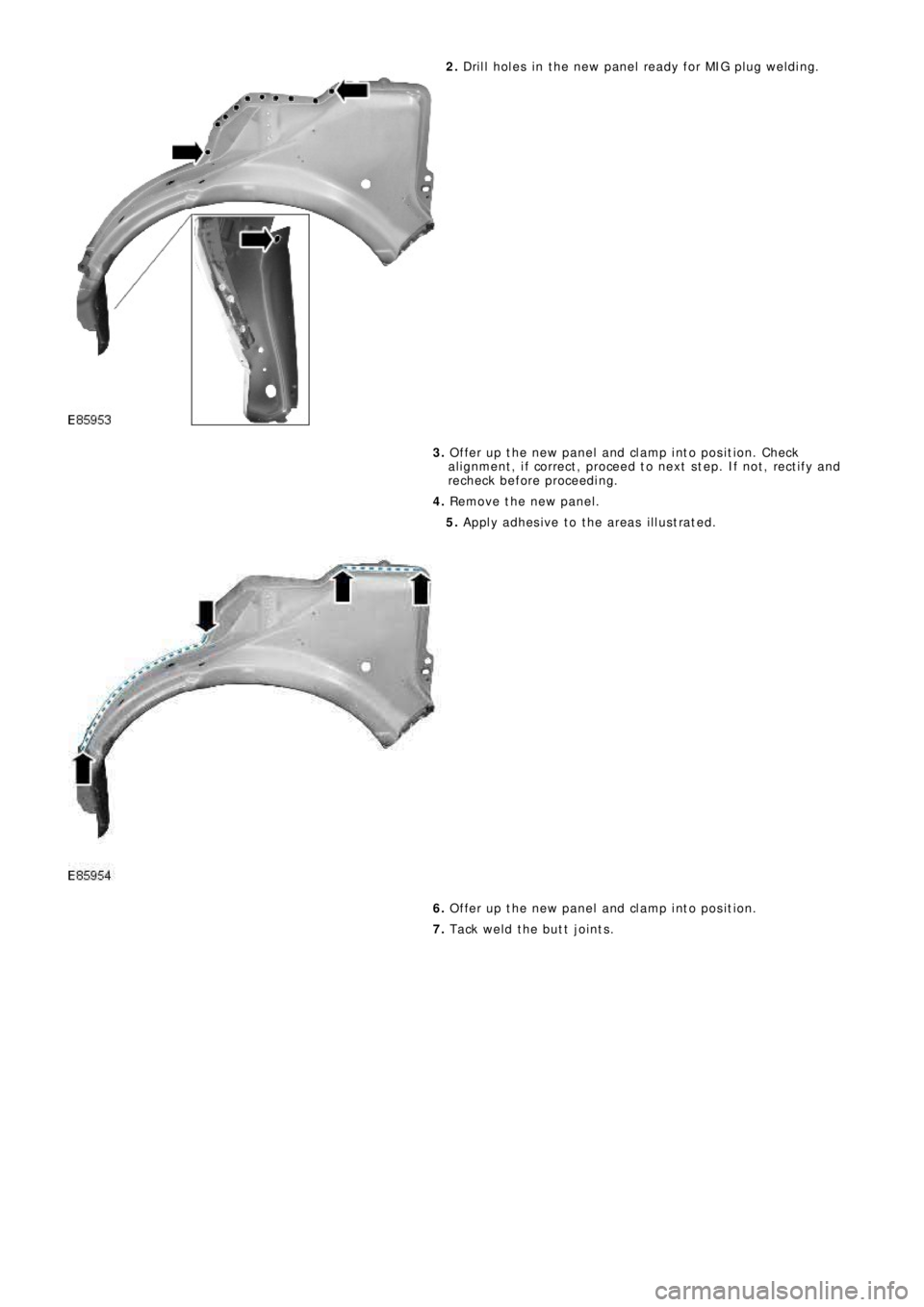

LAND ROVER FRELANDER 2 2006 Repair Manual 2. Drill holes in the new panel ready for MIG plug welding. 3. Offer up the new panel and clamp into position. Check alignment, if correct, proceed to next step. If not, rectify and recheck before pro

Page 2654 of 3229

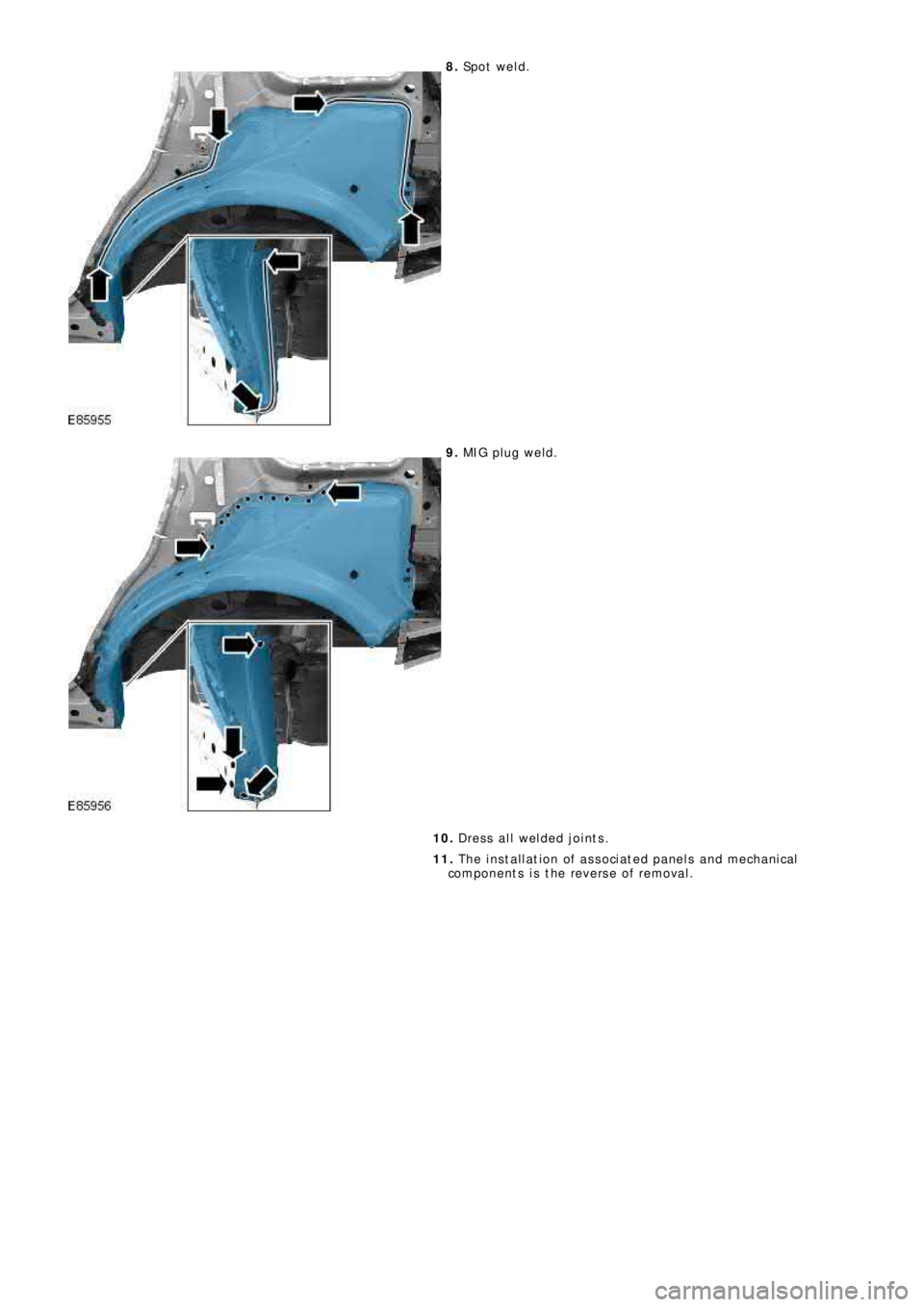

LAND ROVER FRELANDER 2 2006 Repair Manual 8. Sp o t w e l d . 9. MIG pl ug we l d. 10. Dress all welded joints. 11. The installation of associated panels and mechanical components is the reverse of removal.

Page 2655 of 3229

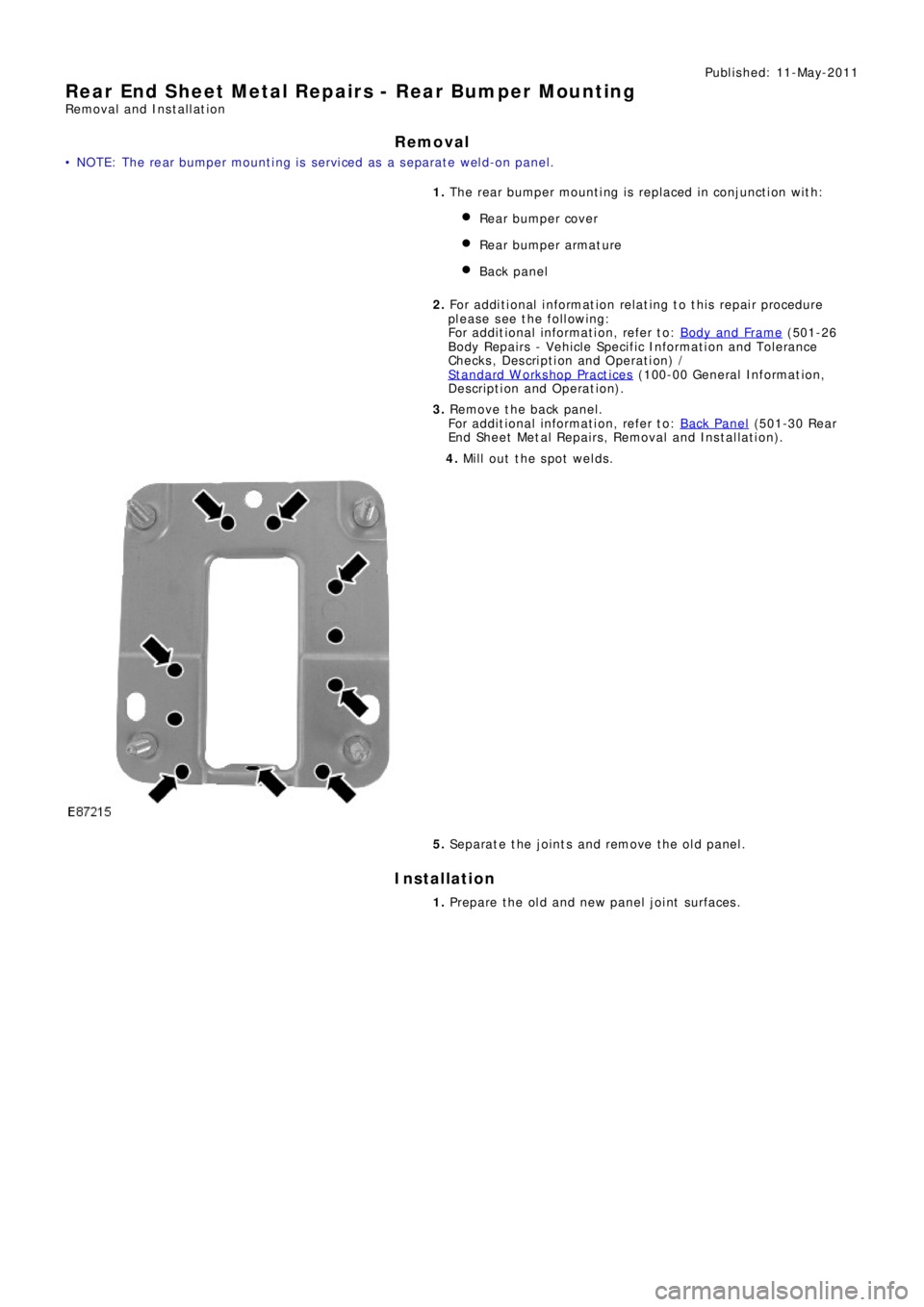

LAND ROVER FRELANDER 2 2006 Repair Manual Publ is hed: 11-May-2011 Rear End Sheet Metal Repairs - Rear Bumper Mounting Removal and Installation Removal • NOTE: The rear bumper mount ing i s s ervi ced as a s eparat e wel d-on panel. 1. Th

Page 2656 of 3229

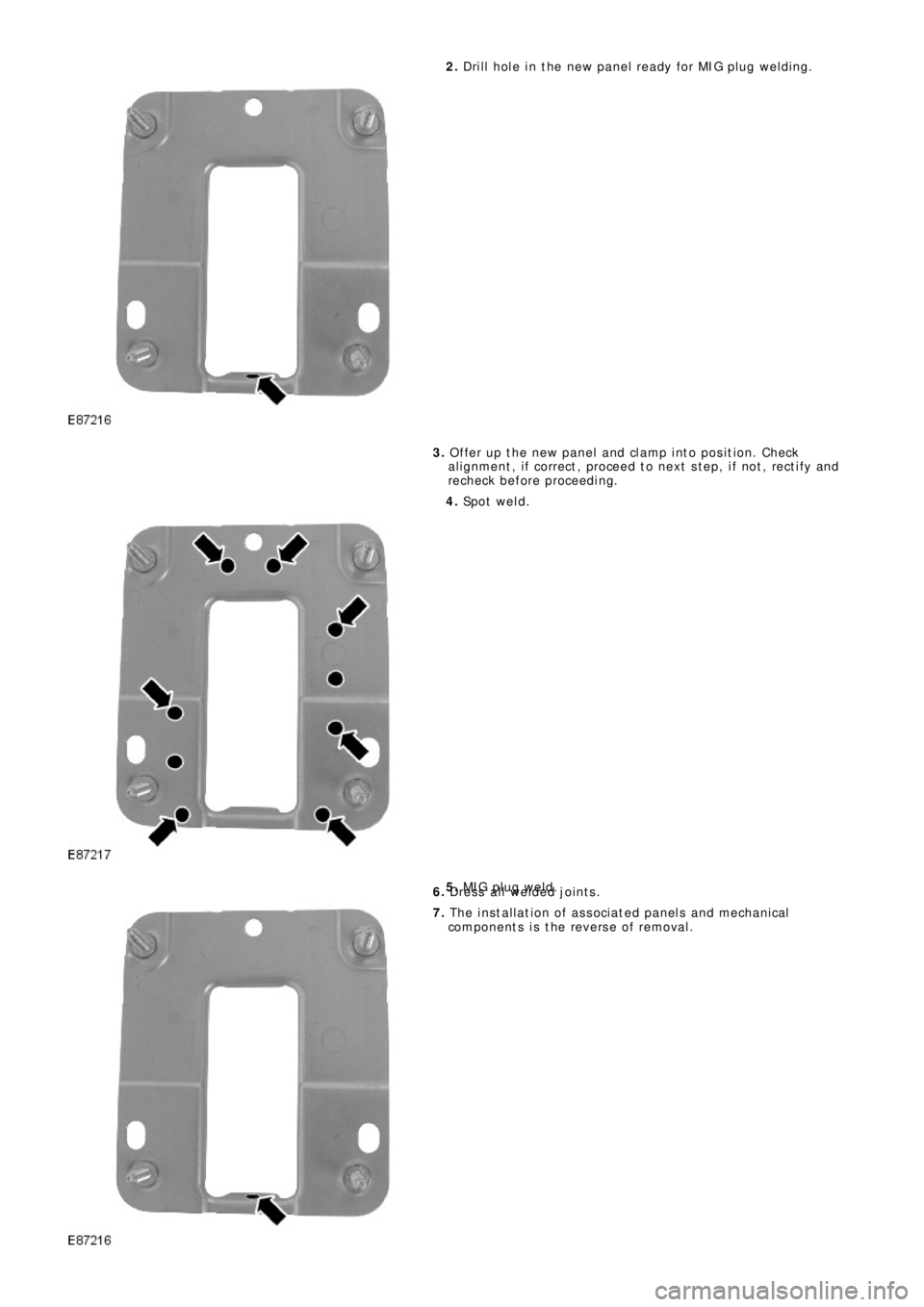

LAND ROVER FRELANDER 2 2006 Repair Manual 2. Drill hole in the new panel ready for MIG plug welding. 3. Offer up the new panel and clamp into position. Check al ignment , i f correct , proceed t o next s t ep, i f not , rect i fy and recheck
