Page 193 of 3229

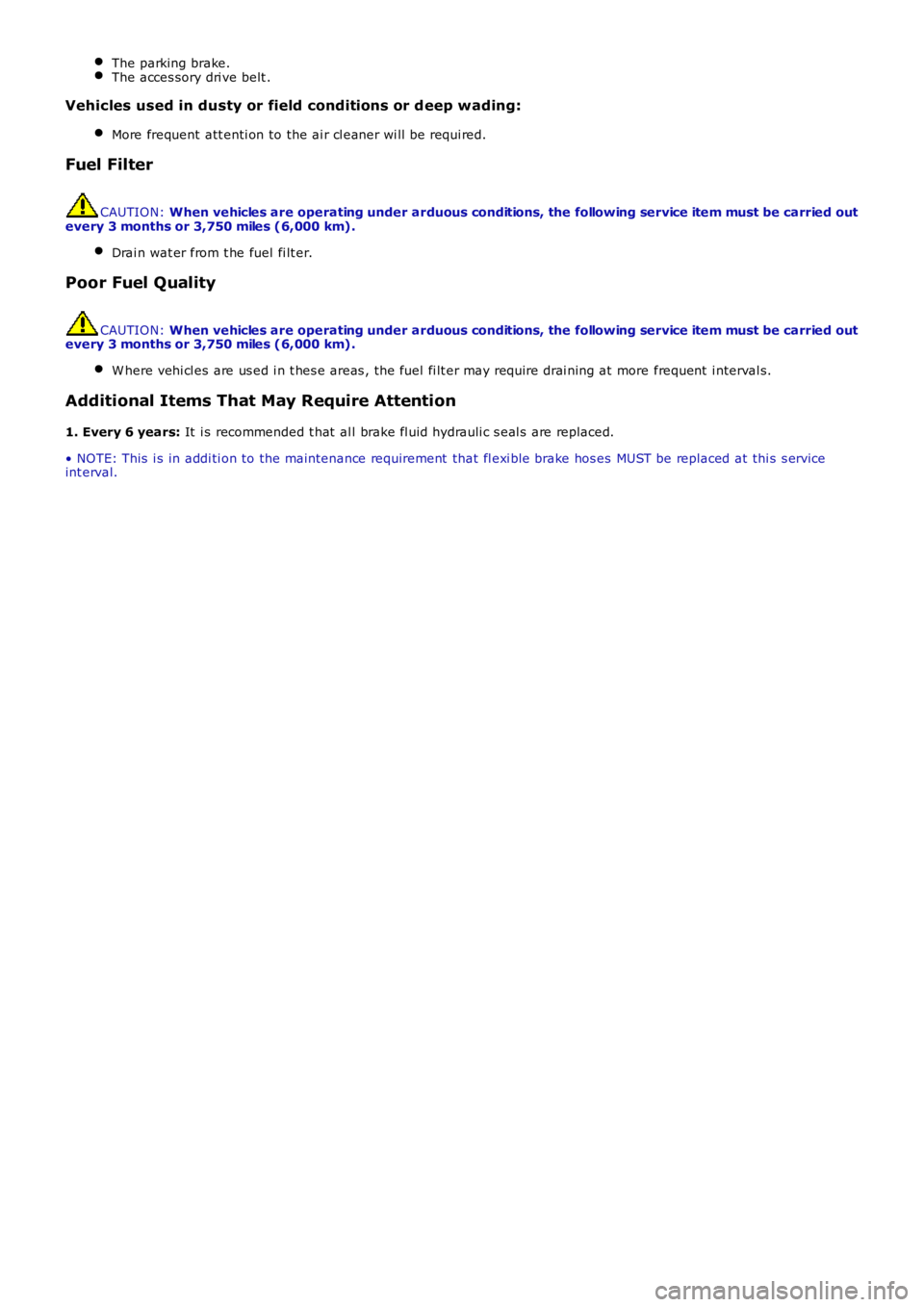

LAND ROVER FRELANDER 2 2006 Repair Manual The parking brake.
The acces sory dri ve belt .
Vehicles used in dusty or field conditions or d eep wading:
More frequent att enti on to the ai r cl eaner wi ll be requi red. Fuel Filter
CAUTION:
Whe

Page 194 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publ is hed: 08-Dec-2011

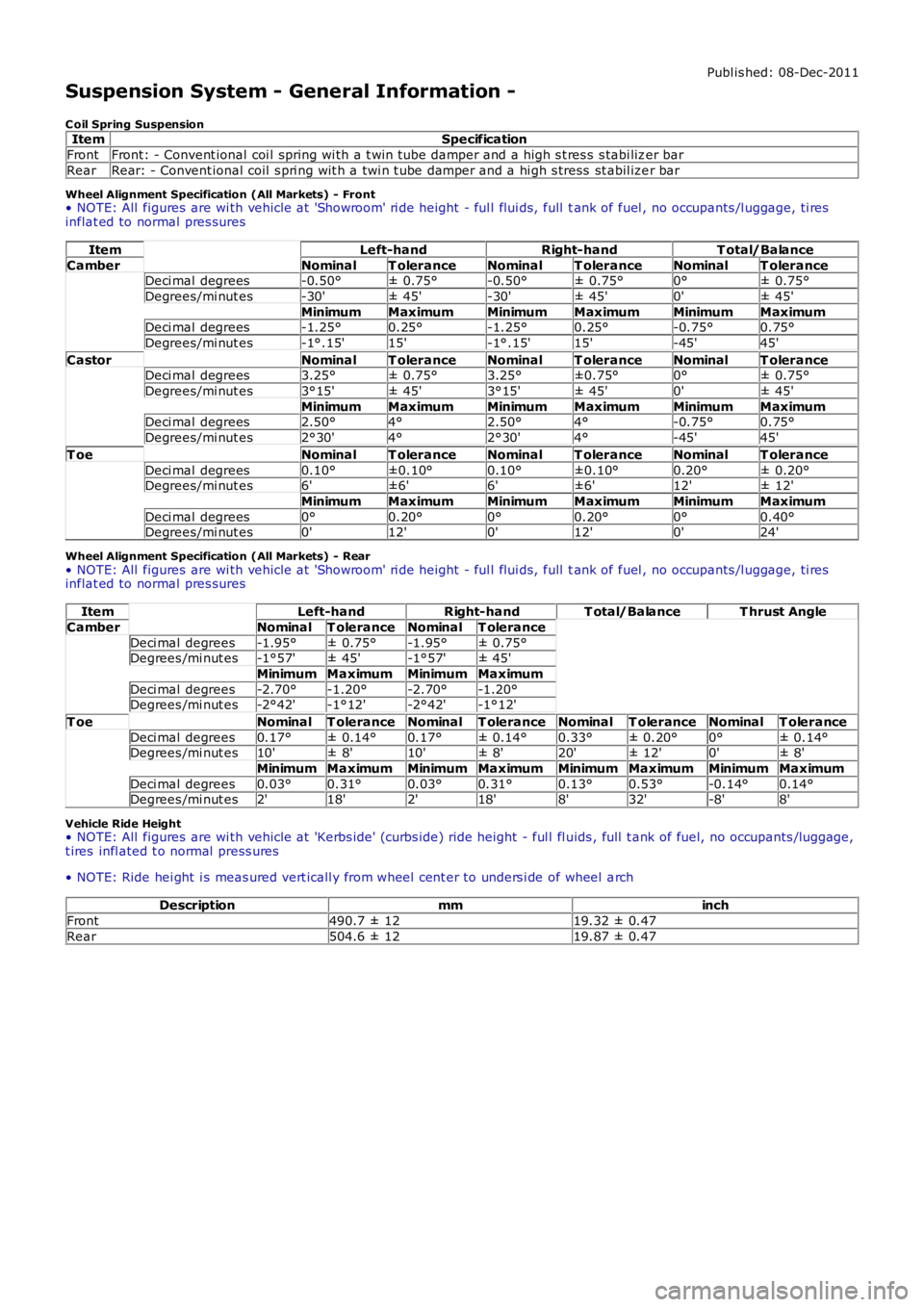

Suspension System - General Information -
C oil Spring SuspensionItemSpecification
FrontFront: - Convent ional coi l spring wi th a t win tube damper and a high s t res s s t

Publ is hed: 08-Dec-2011
Suspension System - General Information -
C oil Spring SuspensionItemSpecification
FrontFront: - Convent ional coi l spring wi th a t win tube damper and a high s t res s s tabi lizer bar
RearRear: - Convent ional coil s pri ng wit h a twi n t ube damper and a hi gh s tress st abil izer bar
Wheel Alignment Specification (All Markets) - Front• NOTE: All figures are wi th vehicle at 'Showroom' ri de height - ful l flui ds, full tank of fuel , no occupants /l uggage, ti resinflat ed to normal pres sures
ItemLeft-handRight-handT otal/Balance
CamberNominalT oleranceNominalT oleranceNominalT oleranceDeci mal degrees-0.50°± 0.75°-0.50°± 0.75°0°± 0.75°
Degrees/mi nut es-30'± 45'-30'± 45'0'± 45'
MinimumMaximumMinimumMaximumMinimumMaximumDeci mal degrees-1.25°0.25°-1.25°0.25°-0.75°0.75°
Degrees/mi nut es-1°.15'15'-1°.15'15'-45'45'
CastorNominalT oleranceNominalT oleranceNominalT oleranceDeci mal degrees3.25°± 0.75°3.25°±0.75°0°± 0.75°
Degrees/mi nut es3°15'± 45'3°15'± 45'0'± 45'
MinimumMaximumMinimumMaximumMinimumMaximumDeci mal degrees2.50°4°2.50°4°-0.75°0.75°
Degrees/mi nut es2°30'4°2°30'4°-45'45'
T oeNominalT oleranceNominalT oleranceNominalT olerance
Deci mal degrees0.10°±0.10°0.10°±0.10°0.20°± 0.20°Degrees/mi nut es6'±6'6'±6'12'± 12'
MinimumMaximumMinimumMaximumMinimumMaximum
Deci mal degrees0°0.20°0°0.20°0°0.40°Degrees/mi nut es0'12'0'12'0'24'
Wheel Alignment Specification (All Markets) - Rear• NOTE: All figures are wi th vehicle at 'Showroom' ri de height - ful l flui ds, full tank of fuel , no occupants /l uggage, ti resinflat ed to normal pres sures
ItemLeft-handRight-handT otal/BalanceT hrust Angle
CamberNominalT oleranceNominalT olerance
Deci mal degrees-1.95°± 0.75°-1.95°± 0.75°Degrees /mi nut es-1°57'± 45'-1°57'± 45'
MinimumMaximumMinimumMaximum
Deci mal degrees-2.70°-1.20°-2.70°-1.20°Degrees /mi nut es-2°42'-1°12'-2°42'-1°12'
T oeNominalT oleranceNominalT oleranceNominalT oleranceNominalT olerance
Deci mal degrees0.17°± 0.14°0.17°± 0.14°0.33°± 0.20°0°± 0.14°Degrees /mi nut es10'± 8'10'± 8'20'± 12'0'± 8'
MinimumMaximumMinimumMaximumMinimumMaximumMinimumMaximum
Deci mal degrees0.03°0.31°0.03°0.31°0.13°0.53°-0.14°0.14°Degrees /mi nut es2'18'2'18'8'32'-8'8'
Vehicle Ride Height• NOTE: All figures are wi th vehicle at 'Kerbs ide' (curbs ide) ride height - ful l fl uids , full t ank of fuel, no occupants /luggage,t ires infl ated t o normal press ures
• NOTE: Ride hei ght i s meas ured vert icall y from wheel cent er to unders i de of wheel arch
Descriptionmminch
Front490.7 ± 1219.32 ± 0.47
Rear504.6 ± 1219.87 ± 0.47

Page 195 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011
Suspension System - General Information - Suspension System
Diagnosi s and Tes ti ng
Principles of Operation
For a detail ed descripti on of the sus pens i on sys t em, refer

Publi s hed: 11-May-2011
Suspension System - General Information - Suspension System
Diagnosi s and Tes ti ng
Principles of Operation
For a detail ed descripti on of the sus pens i on sys t em, refer t o t he rel evant Des cript ion and Operat ion s ecti on in theworks hop manual . REFER to:
Front Sus pensi on (204-01 Front Sus pensi on, Des cri pti on and Operati on),Rear Sus pens ion (204-02 Rear Suspens ion, Descri pti on and Operat ion),Ride and Handli ng Opti mizati on (204-06 Ride and Handli ng Opti mizat ion, Descri pti on and Operat ion).
Inspection and Verification
1. Verify t he cus t omer concern.1.
2. Vis ually ins pect for obvious s igns of damage.2.
Visual InspectionMechanical
Damaged t iresW heel bearing(s)Loose or damaged front or rear s uspens ion component sLoose, damaged or mis s ing s us pens ion fas tener(s )Incorrect spring(s ) i ns t alledDamaged or s aggi ng spring(s )Damaged or leaking s hock abs orber(s )Damaged or leaking s t rut (s )W orn or damaged s us pensi on bushi ng(s )Loose, worn or damaged s t eering sys tem componentsDamaged axle component s
3. If an obvious cause for an obs erved or report ed concern is found, correct t he caus e (if pos s ible) beforeproceeding t o t he next s t ep.3.
4. If t he caus e is not vis ually evi dent , verify t he sympt om and refer t o t he Sympt om Chart.4.
Symptom Chart
SymptomPossible CauseAction
CrabbingIncorrect rear thrus t angleFront or rear s uspens ioncomponent sDrive axle damaged
CHECK t he rear toe adjust ment.REFER to: Speci fi cat ions (204-00 Suspens ion Syst em - GeneralInformat ion, Specificati ons) /Four-W heel Al ignment (204-00 Sus pens i on Sys t em - GeneralInformat ion, General Procedures ).INSPECT t he front and rear s us pensi on s yst ems . REPAIR orINSTALL new s us pens ion component s as neces s ary. INSTALL a newrear dri ve axl e/di fferenti al as necess ary
Drift/Pul lUnequal t ire pres s ureIncorrect wheel ali gnmentTiresUnevenl y loaded oroverloaded vehi cleDamaged s teeri ngcomponent sBrake drag
CHECK and ADJUST the t ire pres s ures . INSPECT t he ti re forexces si ve wear.REFER to: Speci fi cat ions (204-04 W heels and Ti res , Specificati ons ).CHECK and ADJUST the wheel ali gnment .REFER to: Four-W heel Al ignment (204-00 Sus pensi on Syst em -General Informat ion, General Procedures ).CHECK and ADJUST the t ire pres s ures . INSPECT t he ti re forexces si ve wear.REFER to: Speci fi cat ions (204-04 W heels and Ti res , Specificati ons ).NOTIFY the cus tomer of incorrect vehicle l oadi ng. CHECK thes teeri ng s ys t em.REFER to: St eering Sys tem (211-00 St eeri ng Sys t em - GeneralInformat ion, Diagnosi s and Test ing).CHECK t he brakes .REFER to: Brake Sys tem (206-00 Brake Syst em - GeneralInformat ion, Diagnosi s and Test ing).Front Bott omi ng orRidi ng LowCoil s pri ngsCHECK t he ri de hei ght. INSTALL new springs as neces s ary.REFER to: Spri ng (204-01 Front Sus pensi on, Removal andIns t al lat ion) /Rear Shock Absorber (204-02 Rear Sus pensi on, Removal andIns t al lat ion).
Incorrect Ti re W earIncorrect ti re press ure(rapid center rib or i nnerand outer edge wear)Exces s ive front or rear toe(rapid inner or out er edgewear)Exces s ive negat ive orposi ti ve camber (rapi dinner or out er edge wear)Tires out of bal ance (ti rescupped or dis hed)
CHECK and ADJUST the t ire pres s ure. INSPECT t he t ire forexces si ve wear.REFER to: Speci fi cat ions (204-04 W heels and Ti res , Specificati ons ).CHECK and ADJUST the wheel ali gnment .REFER to: Four-W heel Al ignment (204-00 Sus pensi on Syst em -General Informat ion, General Procedures ).BALANCE the wheels /ti res

Page 196 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011

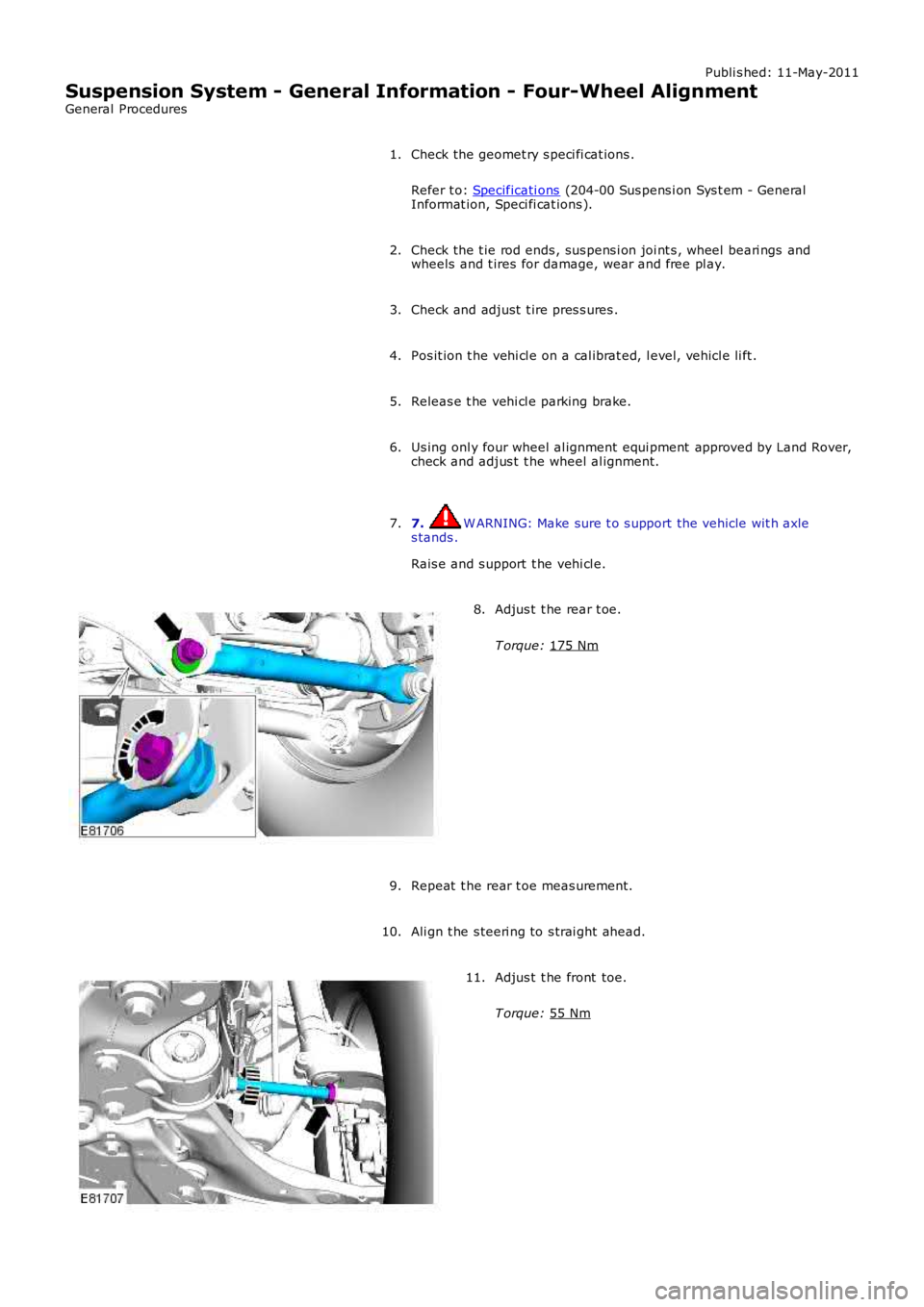

Suspension System - General Information - Four-Wheel Alignment
General Procedures
Check the geomet ry s peci fi cat ions .
Refer t o: Specificati ons (204-00 Sus pens i on Sys

Page 197 of 3229

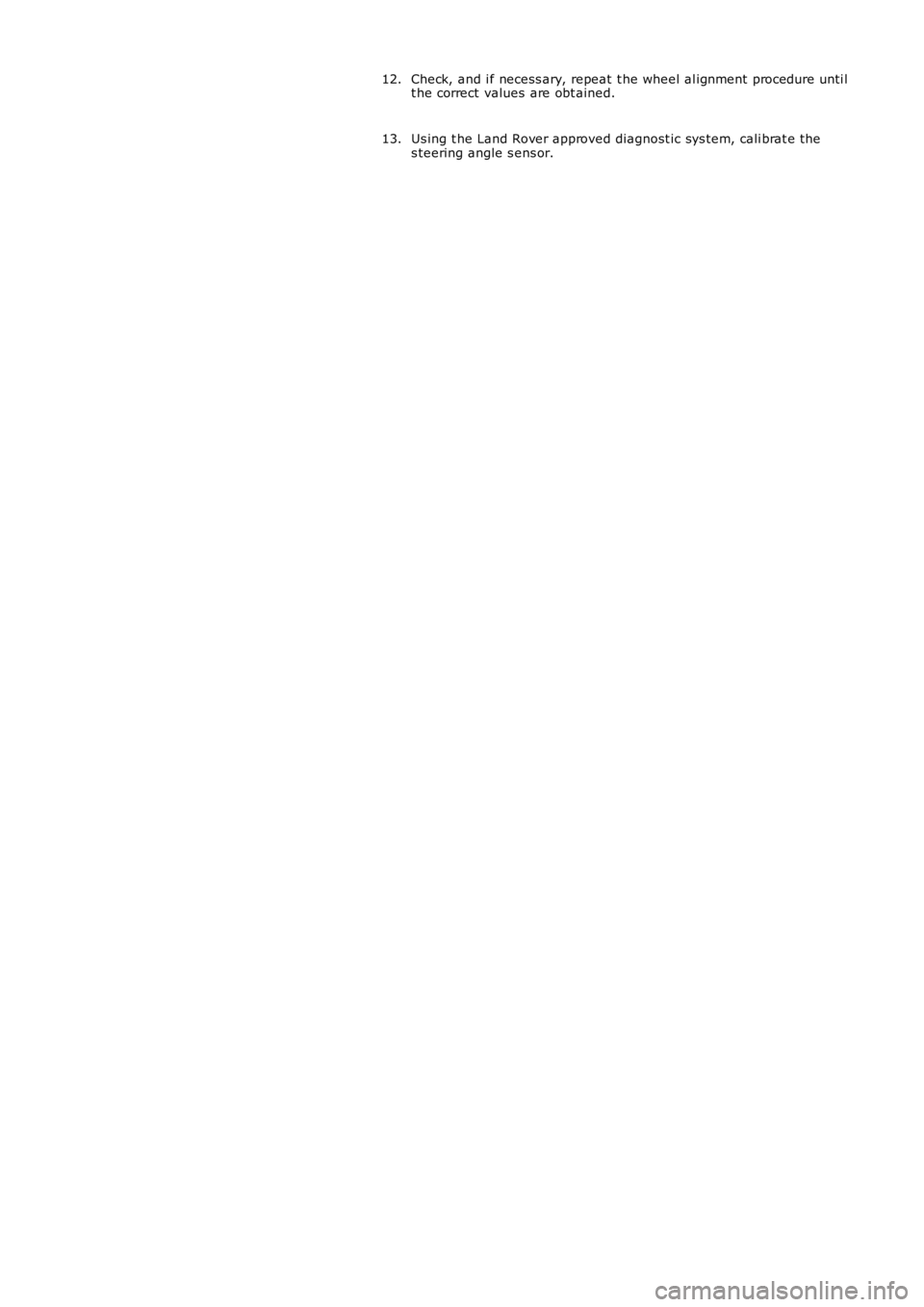

LAND ROVER FRELANDER 2 2006 Repair Manual Check, and i f necess ary, repeat t he wheel al ignment procedure unti lt he correct values are obt ained.12.
Us ing t he Land Rover approved diagnost ic sys tem, cali brat e thes teering angle s ens

Page 198 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011

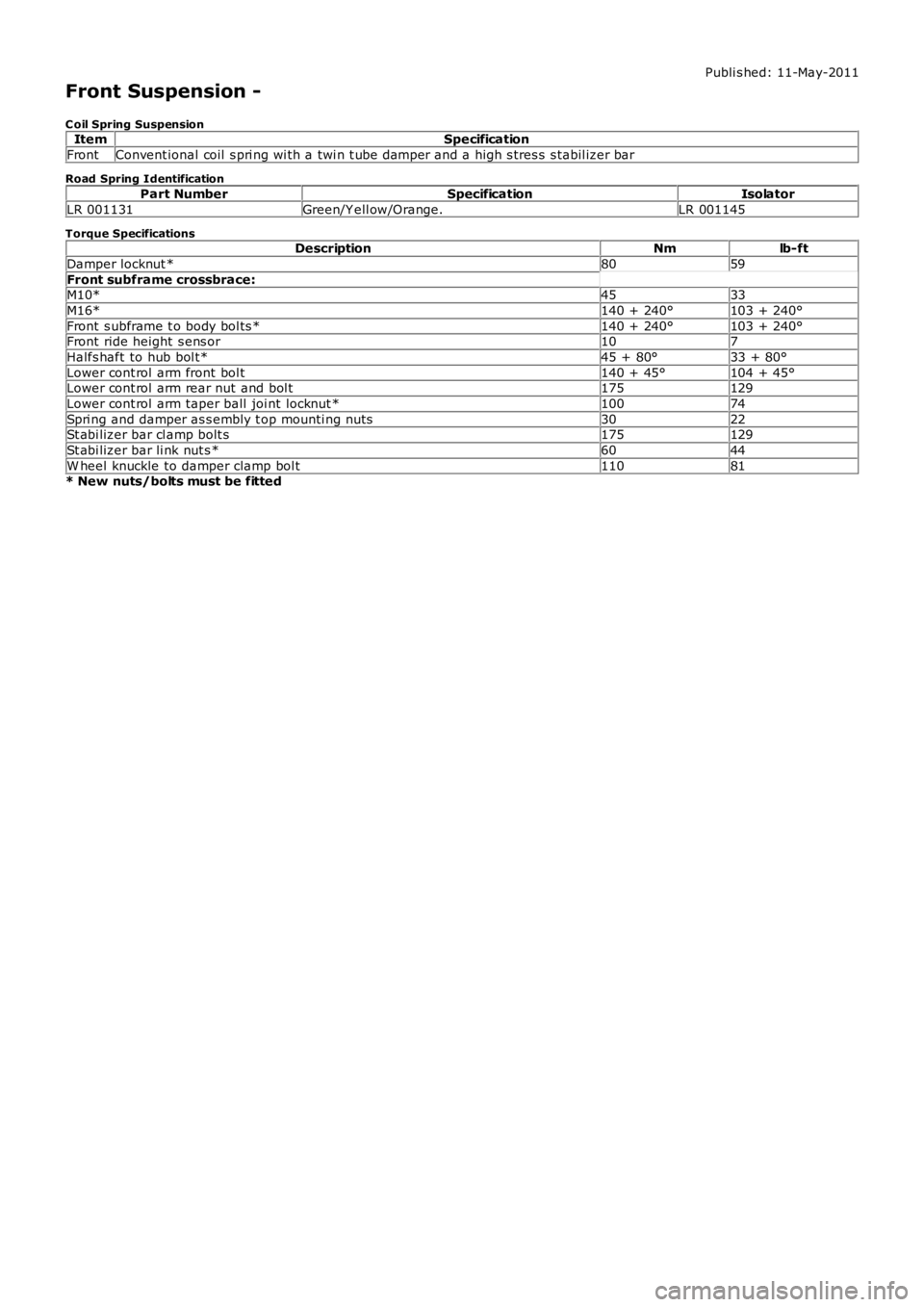

Front Suspension -
C oil Spring SuspensionItemSpecification
FrontConvent ional coil s pri ng wi th a twi n t ube damper and a high s tres s s tabil izer bar
Road Spring Ident

Page 199 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011

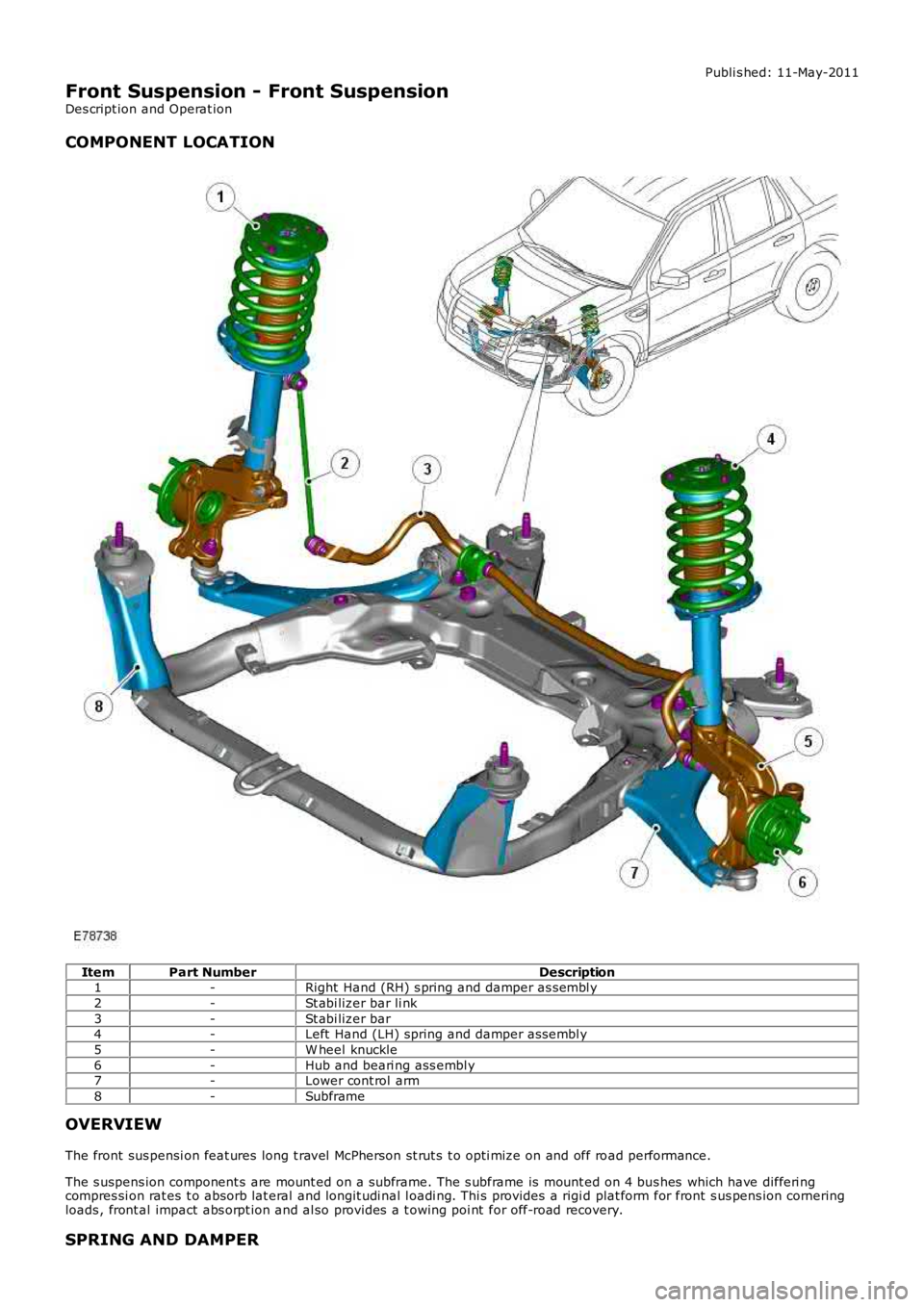

Front Suspension - Front Suspension
Des cript ion and Operat ion
COMPONENT LOCATION
ItemPart NumberDescription1-Right Hand (RH) s pring and damper as sembl y
2-St abi lizer b

Page 200 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual ItemPart NumberDescription
1-Boot2-Bolt s - Top mount (3 off)
3-Upper t op mount plat e
4-Lower t op mount plat e5-Bump was her
6-Top mount bearing
7-Spring is olator8-Spring
9-Spring Is olat or
10-Da

ItemPart NumberDescription
1-Boot2-Bolt s - Top mount (3 off)
3-Upper t op mount plat e
4-Lower t op mount plat e5-Bump was her
6-Top mount bearing
7-Spring is olator8-Spring
9-Spring Is olat or
10-Damper body11-Spring seat
12-Damper pi s ton rod
13-Locknut14-Spring ai d
The s pring and damper as s embl y i s a t win tube des ign wi th the convent ional coil s pring located on a welded s pri ng s eat ont he damper t ube. The l ower end of t he damper body l ocat es in the wheel knuckle whi ch is cl amped wit h a bolt .
The damper funct ions by rest ricti ng the flow of hydraul ic fluid through internal gall eri es wit hin t he damper. The damper rodmoves axi all y wit hin t he damper, i ts movement l imi ted by the flow of flui d t hrough the gal leri es, provi di ng damping ofundul ati ons i n t he t errai n. The damper rod is s ealed at i ts exi t poi nt from t he damper body t o mai ntain the flui d wit hin theunit and t o prevent the i ngres s of dirt and mois ture. The seal als o i ncorporat es a wiper to keep t he rod cl ean.
The damper rod i s located t hrough a central hol e in the top mount as sembl y. The rod i s threaded at i ts out er end. As elf-locking nut s ecures the t op mount t o t he damper rod. A s pring ai d i s fi tt ed t o t he damper rod t o prevent the t opmount cont act ing t he t op of the damper duri ng ful l s us pens ion compress ion and al s o as si st s t he s uspens ion t une. A bootis fi tt ed between t he damper body and t he t op mount and protects the damper pis t on rod from damage.
The coi l s pring fit t ed differs wit h vehi cl e s peci fi cat ion. Each s pring i s col our coded to identi fy i ts rat ing and fit mentrequirements .
The coi l s pring i s l ocated in a spring s eat which i s an int egral part of the damper body and cont ains a spring i sol at or. Thedesi gn of the spring s eat prevent s t he s pring rotat ing. The s pring has a li near rate compres s ion and i s i ncli ned to count ercorneri ng forces . The oppos it e end of t he coi l spring i s als o l ocat ed in a s pring isolator whi ch is fit ted i n t he t op mountas sembl y. Bot h s pri ng is olat ors are made from rubber and prevent any nois e produced during damper and s pri ngcompres si on/extens ion from bei ng t rans mit ted to t he vehicle body.
The t op mount is fit ted wit h a t op mount bearing whi ch is l ocat ed between t he 2 t op mount plat es and the damper rod. As elf locking nut s ecures the damper rod to the t op mount. The t op mount bearing reduces s t eering resi s tance bypreventi ng the s pring from 'wi ndi ng' up when t he s teering i n t urned. The t op mount att aches t o a st rengt hened t urret ont he chas s is wi th 3 int egral st uds and s elf-locking nut s.
Two brackets are welded t o t he damper body. One bracket provides for t he att achment of t he s tabil izer li nk. The s econdbracket provi des for t he att achment of t he brake hose and wheel s peed s ens or cabl e. This bracket als o pos it ively locat est he damper i nto t he wheel knuckle and i ts locat ion i s cri ti cal t o cont rol li ng the vehicle trim height.
