Page 441 of 3229

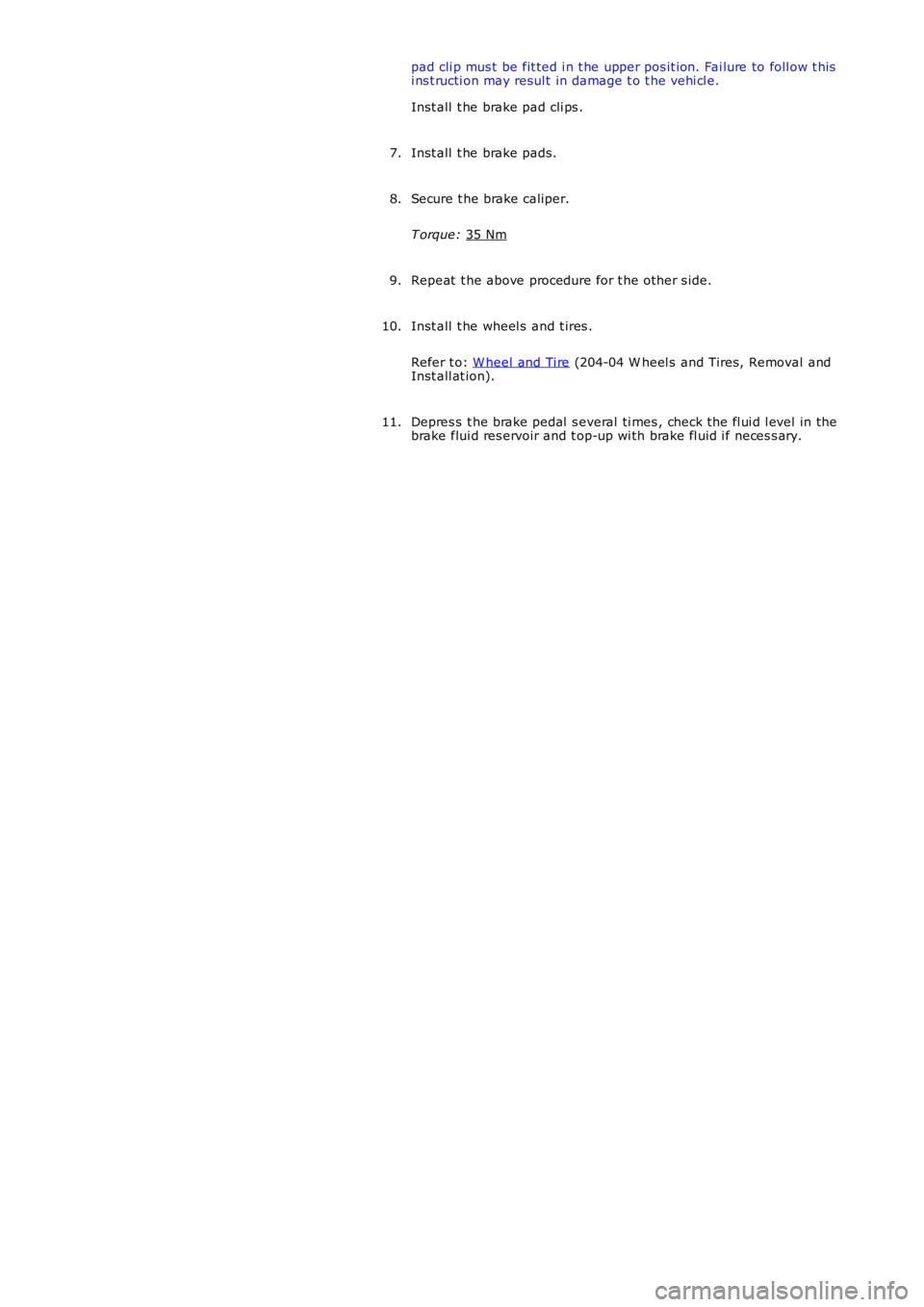

LAND ROVER FRELANDER 2 2006 Repair Manual pad cli p mus t be fit ted i n t he upper pos it ion. Fai lure to foll ow t his i ns t ructi on may resul t in damage t o t he vehi cl e. Inst all t he brake pad cli ps . Inst all t he brake pads. 7

Page 442 of 3229

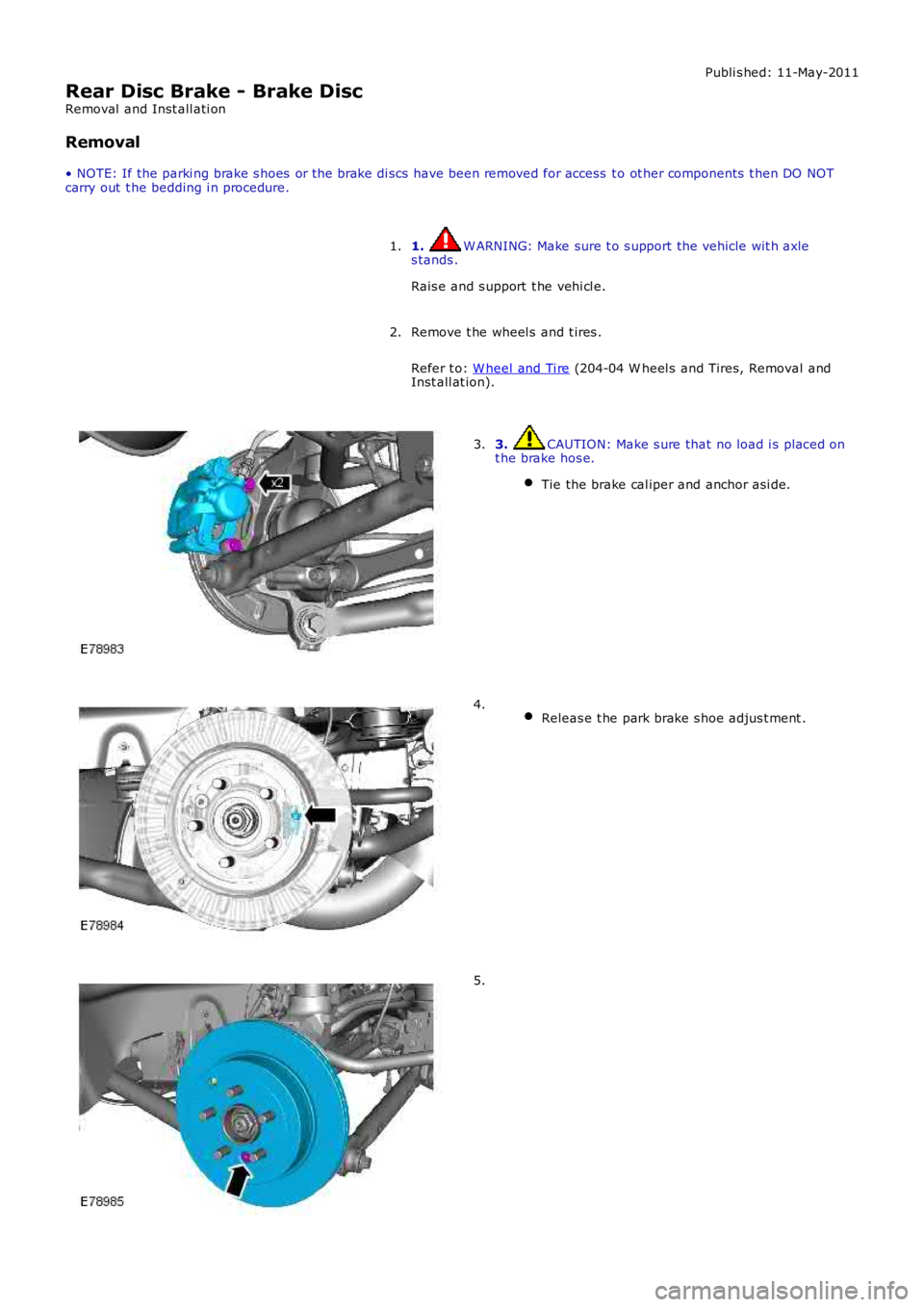

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Rear Disc Brake - Brake Disc Removal and Inst all ati on Removal • NOTE: If the parki ng brake s hoes or t he brake di scs have been removed for access to ot her compone

Page 443 of 3229

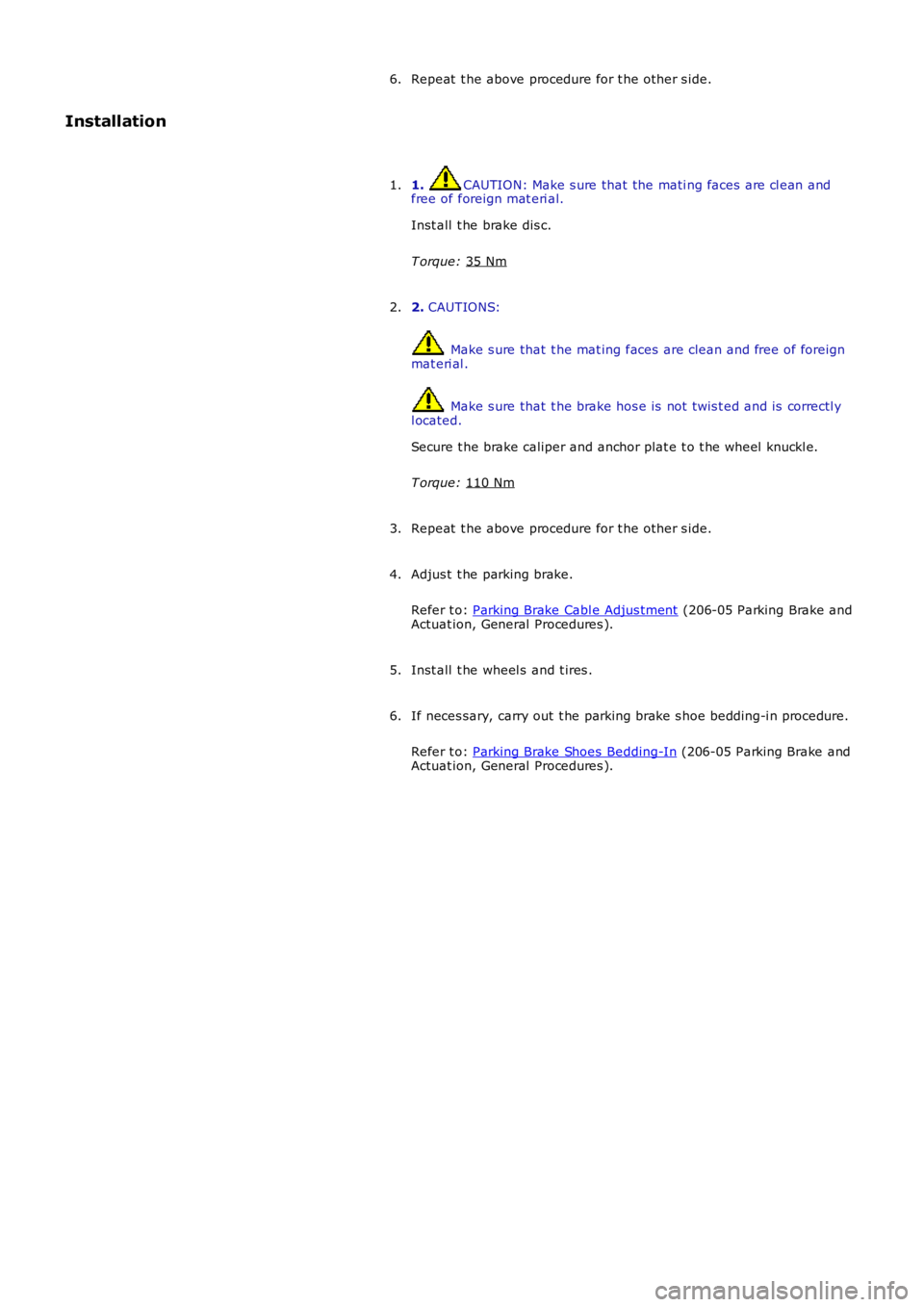

LAND ROVER FRELANDER 2 2006 Repair Manual Repeat t he above procedure for t he other s ide. 6. Installation 1. CAUTION: Make s ure that the mati ng faces are cl ean and free of foreign mat eri al. Inst all t he brake dis c. T orque: 35 Nm

Page 444 of 3229

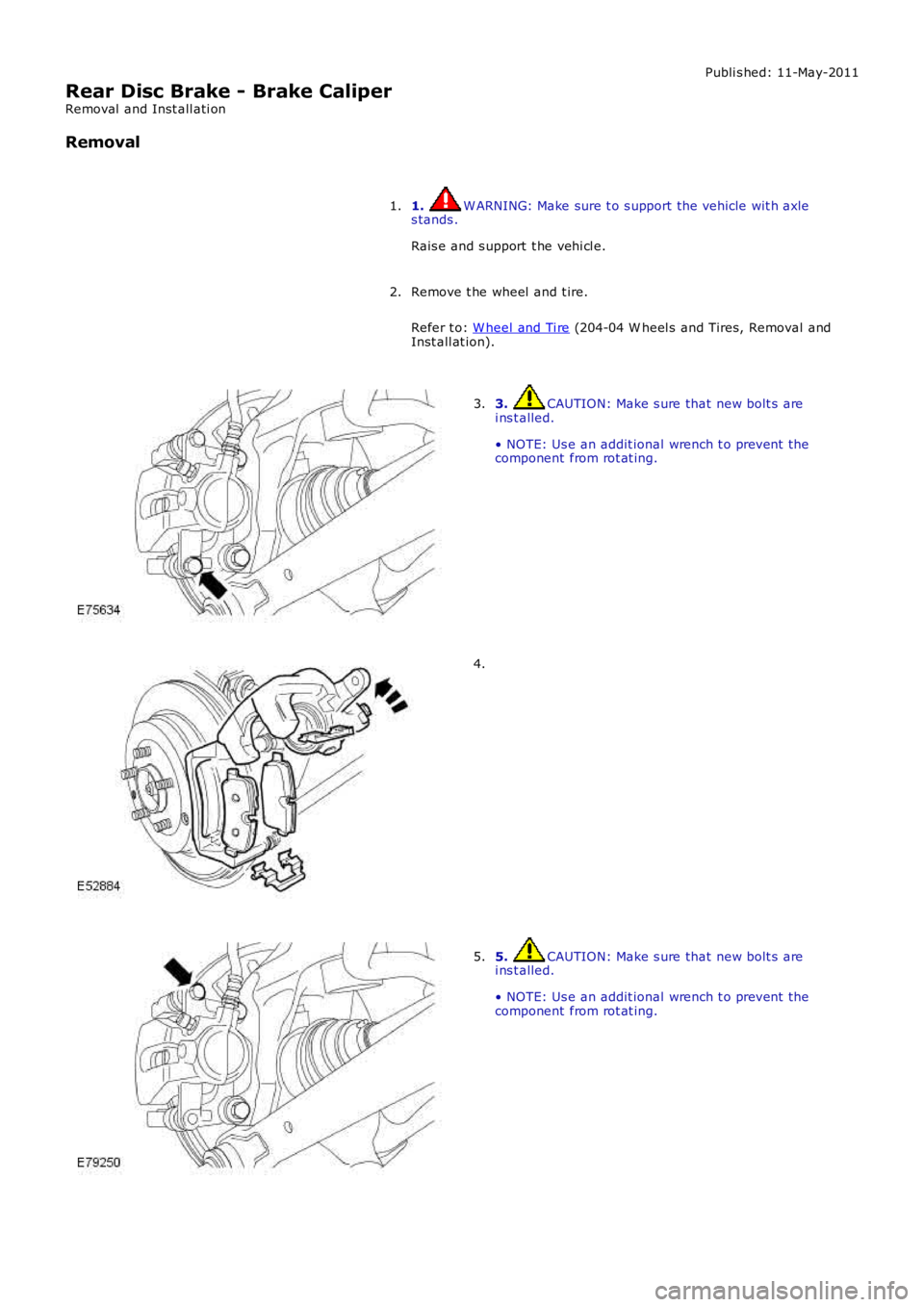

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Rear Disc Brake - Brake Caliper Removal and Inst all ati on Removal 1. W ARNING: Make sure t o s upport the vehicle wit h axles tands . Rais e and s upport t he vehi cl e. 1

Page 445 of 3229

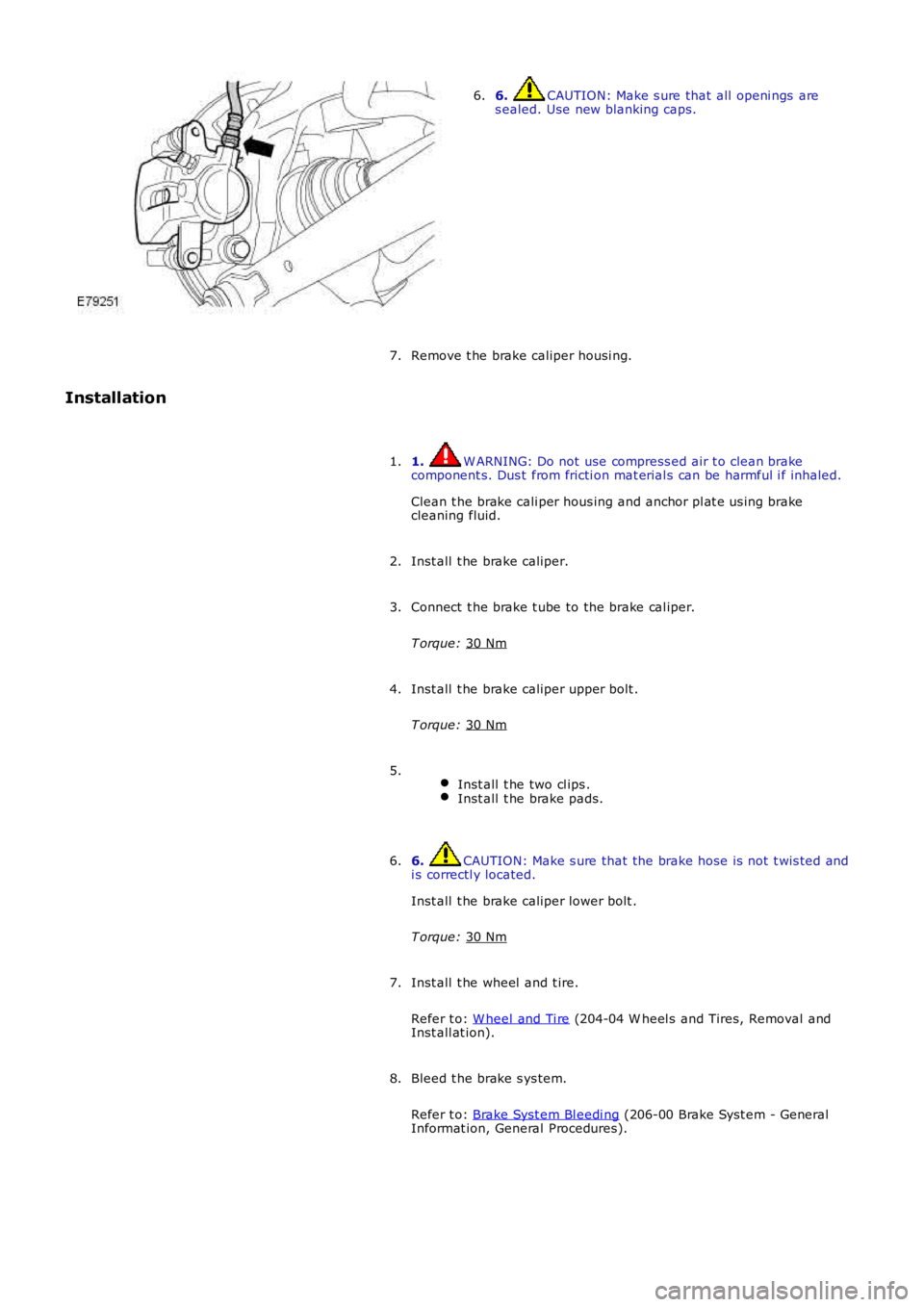

LAND ROVER FRELANDER 2 2006 Repair Manual 6. CAUTION: Make s ure that all openi ngs are s ealed. Use new blanking caps. 6. Remove t he brake caliper housi ng. 7. Installation 1. W ARNING: Do not use compress ed air t o clean brake compone

Page 446 of 3229

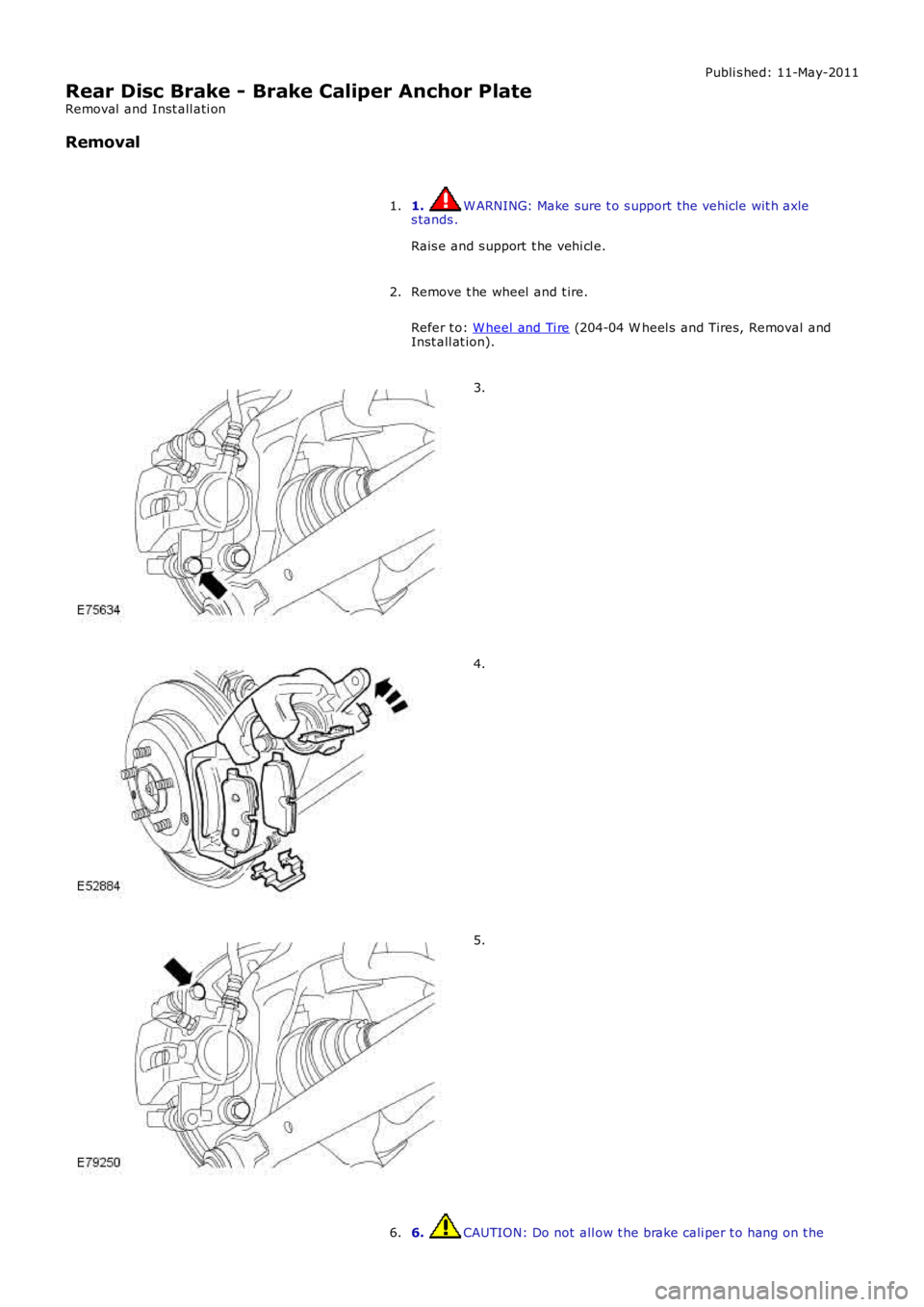

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Rear Disc Brake - Brake Caliper Anchor Plate Removal and Inst all ati on Removal 1. W ARNING: Make sure t o s upport the vehicle wit h axles tands . Rais e and s upport t he

Page 447 of 3229

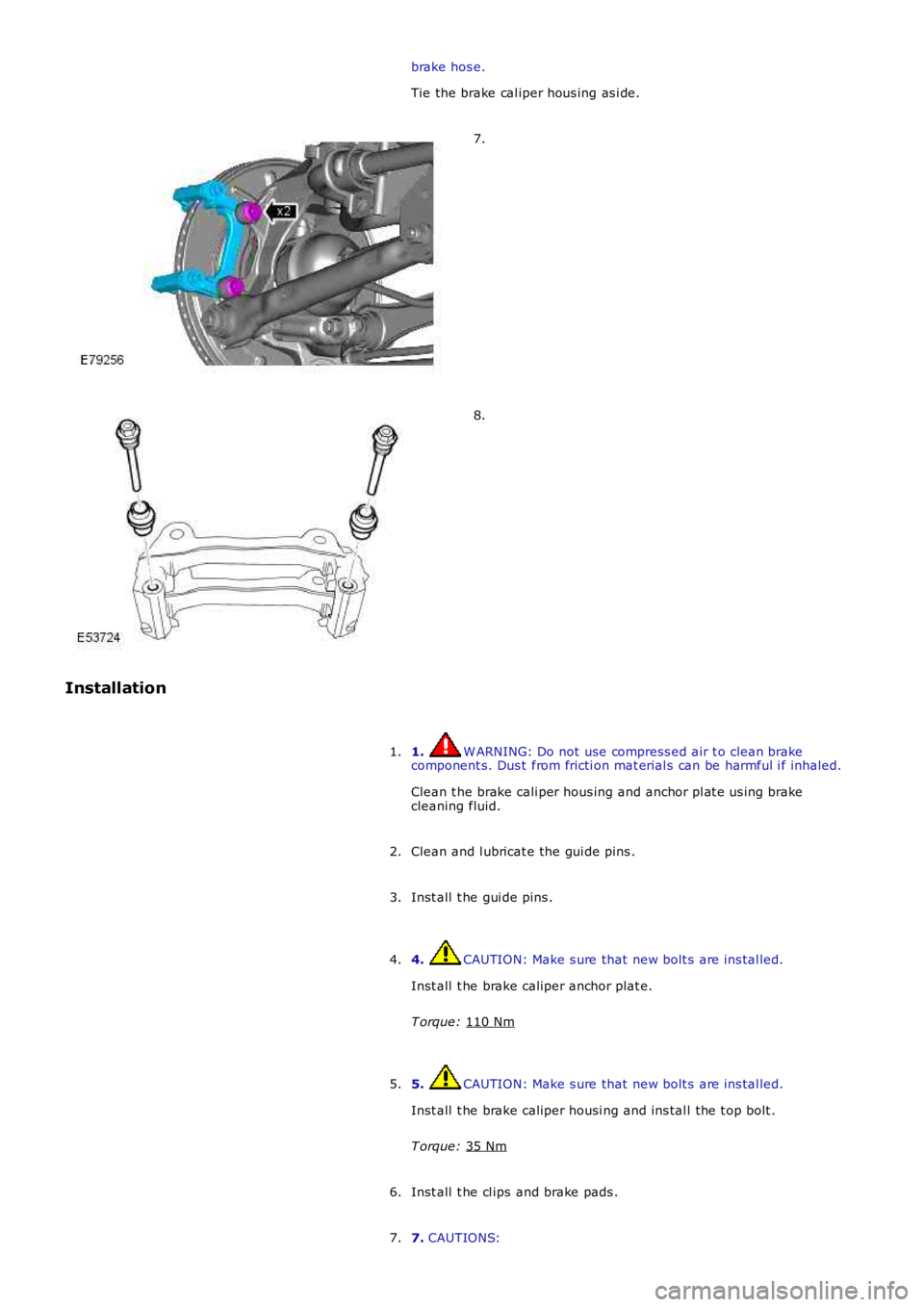

LAND ROVER FRELANDER 2 2006 Repair Manual brake hos e. Tie the brake cal iper hous ing as i de. 7. 8. Installation 1. W ARNING: Do not use compress ed air t o clean brake component s. Dus t from fricti on mat erial s can be harmful i f inha

Page 448 of 3229

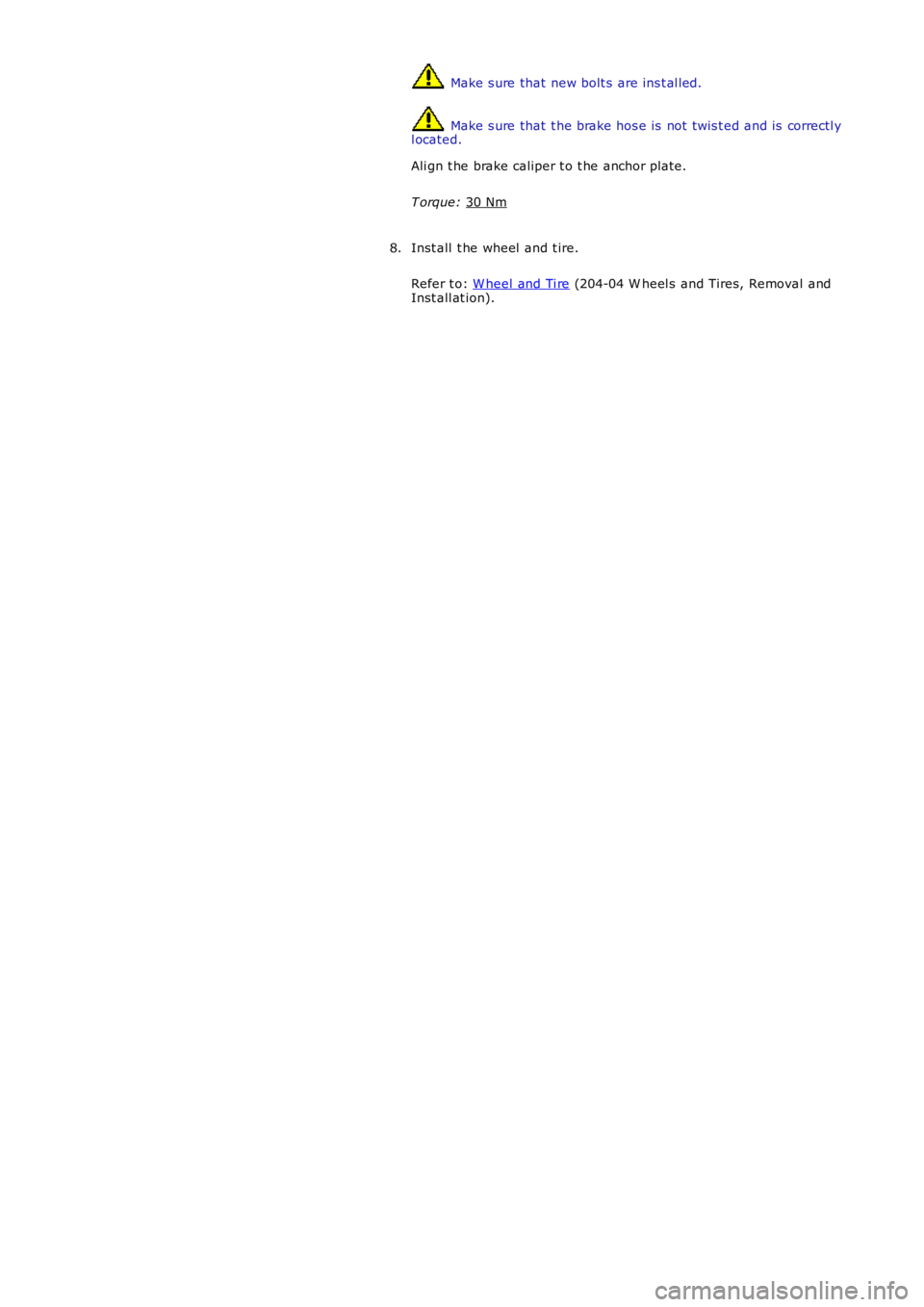

LAND ROVER FRELANDER 2 2006 Repair Manual Make s ure that new bolt s are ins t al led. Make s ure that t he brake hos e is not t wis t ed and is correctl y l ocated. Ali gn t he brake caliper t o t he anchor plate. T orque: 30 Nm Ins
