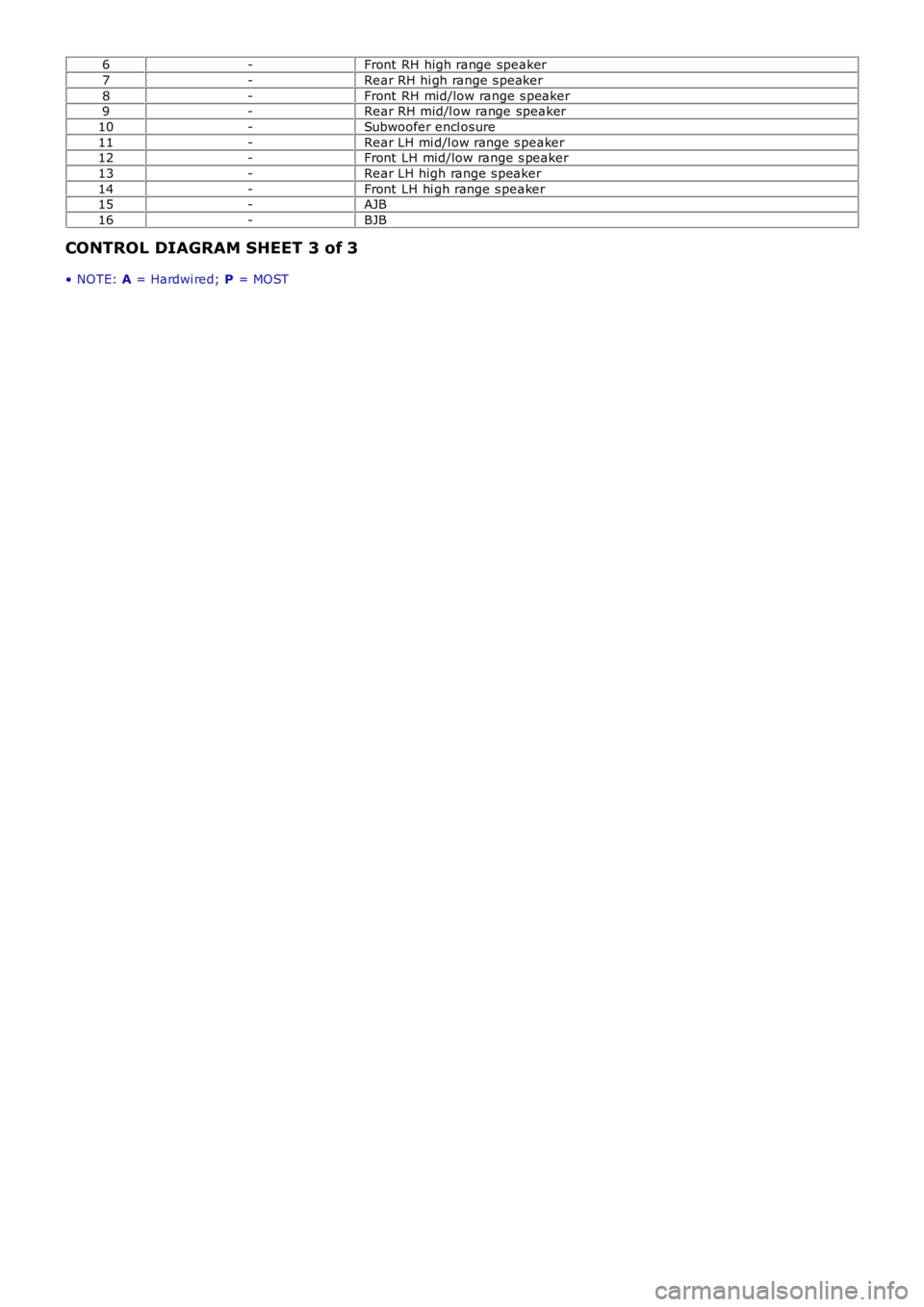

6-Front RH high range speaker
7-Rear RH hi gh range s peaker
8-Front RH mid/low range s peaker9-Rear RH mid/l ow range speaker
10-Subwoofer encl osure
11-Rear LH mi d/l ow range s peaker12-Front LH mid/low range s peaker
13-Rear LH high range s peaker
14-Front LH hi gh range s peaker15-AJB
16-BJB
CONTROL DIAGRAM SHEET 3 of 3
• NOTE: A = Hardwi red; P = MOST
Page 1882 of 3229

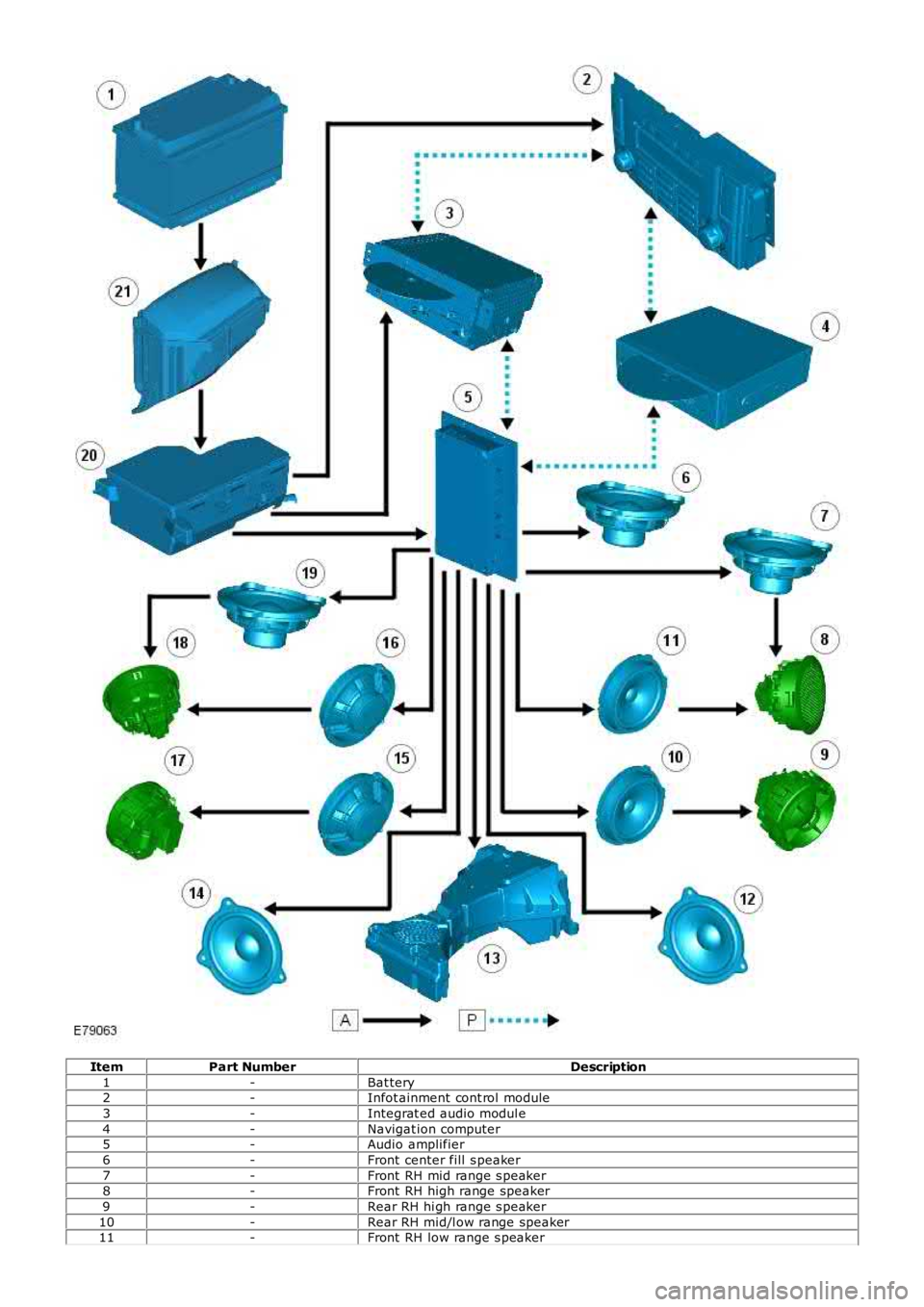

ItemPart NumberDescription
1-Bat tery2-Infot ainment cont rol module
3-Integrat ed audio modul e
4-Navigat ion computer5-Audio amplifier
6-Front center fill s peaker
7-Front RH mid range s peaker8-Front RH high range speaker
9-Rear RH hi gh range s peaker
10-Rear RH mid/l ow range speaker11-Front RH low range s peaker
Page 1883 of 3229

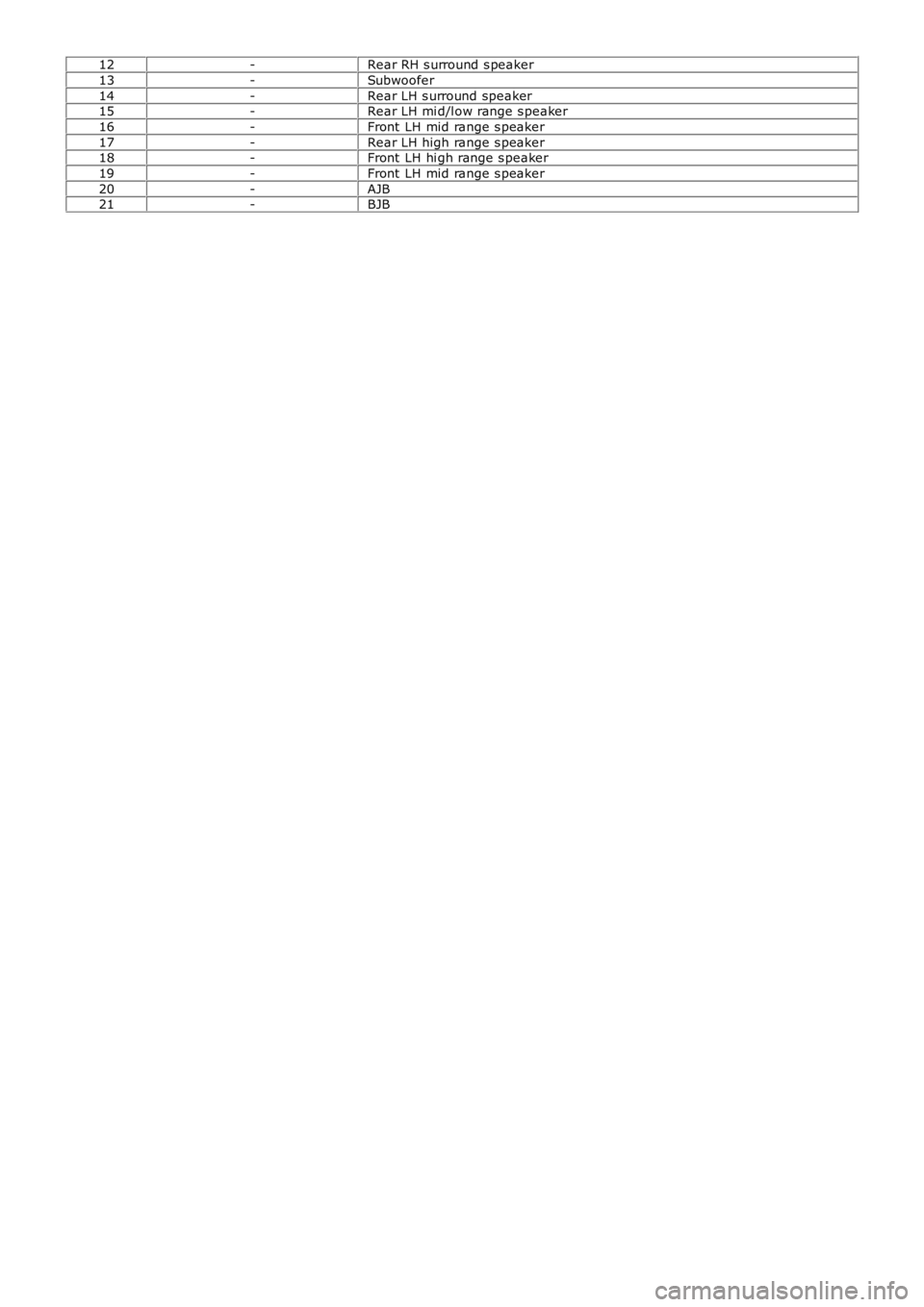

12-Rear RH s urround s peaker
13-Subwoofer
14-Rear LH s urround speaker15-Rear LH mi d/l ow range s peaker
16-Front LH mid range s peaker
17-Rear LH high range s peaker18-Front LH hi gh range s peaker
19-Front LH mid range s peaker
20-AJB21-BJB
Page 1884 of 3229
Publi s hed: 11-May-2011
Information and Entertainment System - Cellular Phone
Des cript ion and Operat ion

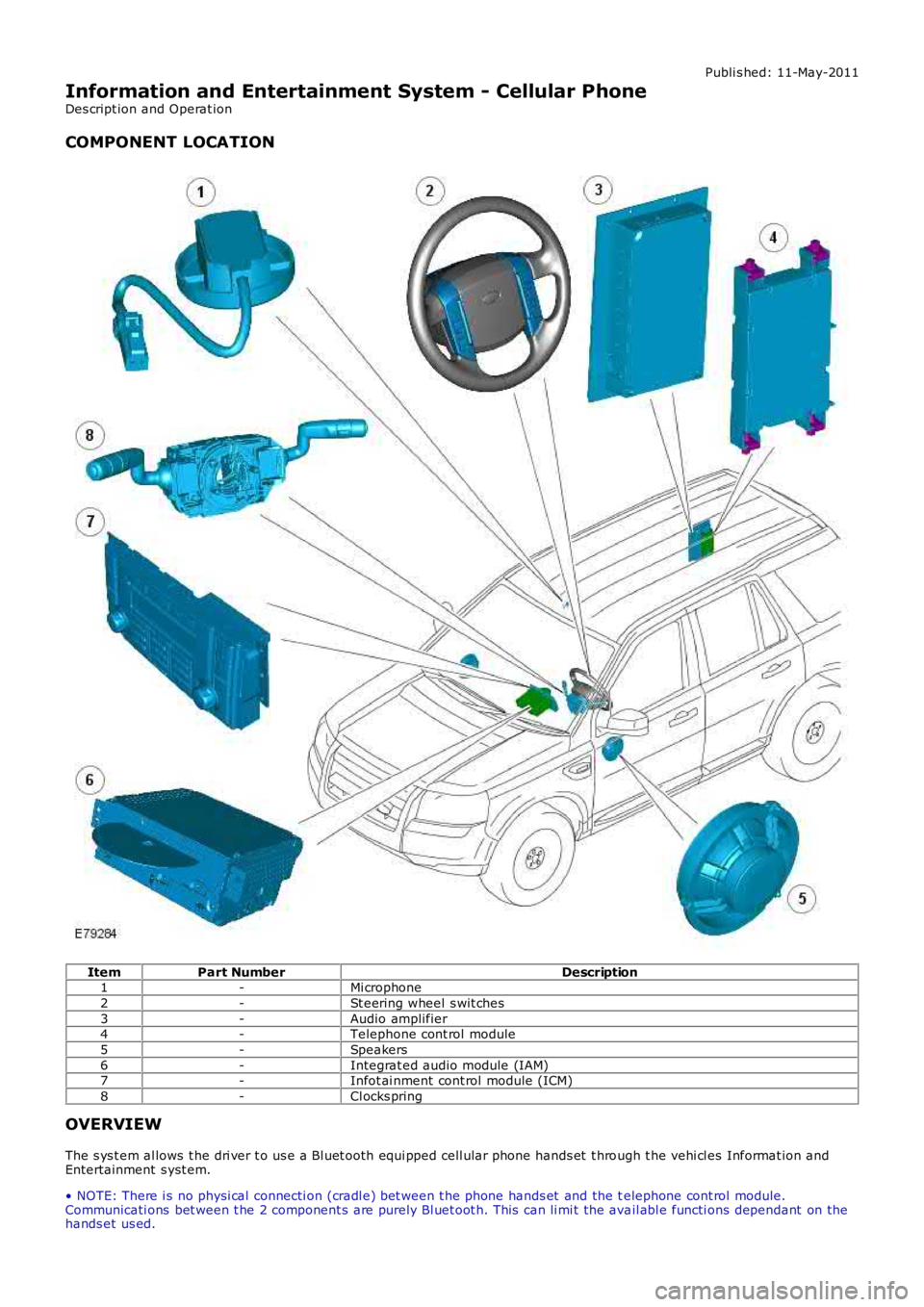

COMPONENT LOCATION
ItemPart NumberDescription1-Mi crophone
2-St eering wheel s wit ches
3-Audio amplifier4-Telephone cont rol module
5-Speakers
6-Integrat ed audio module (IAM)7-Infot ai nment cont rol module (ICM)
8-Cl ocks pring
OVERVIEW
The s ys t em al lows t he dri ver t o us e a Bl uet ooth equi pped cell ular phone hands et t hrough t he vehi cl es Informat ion andEntertainment s yst em.
• NOTE: There i s no physi cal connecti on (cradl e) bet ween t he phone hands et and the telephone cont rol module.Communicati ons bet ween t he 2 component s are purely Bl uet oot h. This can li mi t the avail abl e functi ons dependant on thehands et us ed.
Page 1885 of 3229

The cel lul ar phone s yst em compris es the foll owing component s:
Telephone control modul eMicrophone
Phone di ali ng is achieved usi ng one of the foll owing met hods :
Dial ing a number us ing t he ICP keypadSelecti ng a number from t he hands ets phonebook vi a t he ICMSelecti ng from t he hands et s cal l regis t er vi a the ICM
The Telephone control modul e i s connected t o t he Informat ion and Ent ert ai nment sys t em on t he MOST ring. This al lowsaudi o and control s i gnals to be rout ed to and from t he t el ephone control modul e. The t elephone cont rol module has anint egral Bluetoot h antenna.
Telephone hands et s mus t be paired wi th the t elephone cont rol module before t hey can be us ed wi th the vehicle s ys t em.Up t o five t elephone hands et s can be paired wi th t he vehicle, but onl y one t el ephone can us ed at a t ime.
PHONE MODULE
The t el ephone control modul e is locat ed i n the rear RH s ide of t he l oads pace. The phone modul e i s connect ed on t he MOSTri ng t o t he res t of the ent ert ai nment sys t em.
MICROPHONE
The mi crophone i s located i n t he overhead cons ole whi ch surrounds the front i nterior lamp. The mi crophone i s hardwi red t ot he IAM.
CONTROL SWITCHES
Page 1886 of 3229

ItemPart NumberDescription
1-Ans wer call or dial s wit ch2-End or reject call s wit ch
3-Menu next but t on
4-Menu previ ous but tonThe s teeri ng wheel mount ed t el ephone control swi tches are locat ed on t he RH s i de of the s t eering wheel. The s wi tches area resi s ti ve ladder t ype which return a different volt age t o t he ICM in res pons e t o different s wi tches being pres s ed.For addit ional informat ion, refer t o: Steeri ng Column Swit ches (211-05 Steering Column Swit ches , Descri pti on andOperat ion).
The fol lowing table det ail s the cell ular phone st eeri ng wheel s wit ch functi ons.
SwitchFunctionsModeChange audi o s ource no change to di s pl ay. (Als o changes ICM di s pl ay to match s ource)
|<< >>|Scrol l through phonebook down / Up (W hile Dis play i s in Phone mode)
Send keyLas t 10 dialed cal ls , init iat e call, accept call (W hil e Di spl ay is i n Phone mode)ICM Control Swi tches
ItemPart NumberDescription
1-Call s t atus i con
2-Paired t el ephone name3-Cl ock
4-Telephone mode butt on
5-MENU but t on6-EXIT butt on
7-ENTER butt on
8-Keypad9-On or off or vol ume butt on
Acces s ing t he cel lular phone s ys t em from t he ICM allows the us er various opti ons depending on the Bl uet ooth versi on oft he phone.
TELEPHONE VOICE CONTROL
The vehi cl e s yst em is able to us e any voice t ags which are s tored in the mobi le t elephone. There is no voice di al ingfeat ure of t he cel lul ar t elephone sys t em.
Voice dial ing i s acces sed vi a a l ong pres s of the RH rot ary ENTER but ton. The ICM dis plays t hat Voi ce tag di al ing i s inprogres s and an audibl e prompt i s generated from t h e t elephone control modul e. Aft er the prompt the handset wai tss everal s econds for the voice command.
Page 1887 of 3229
PRINCIPLES OF OPERATION

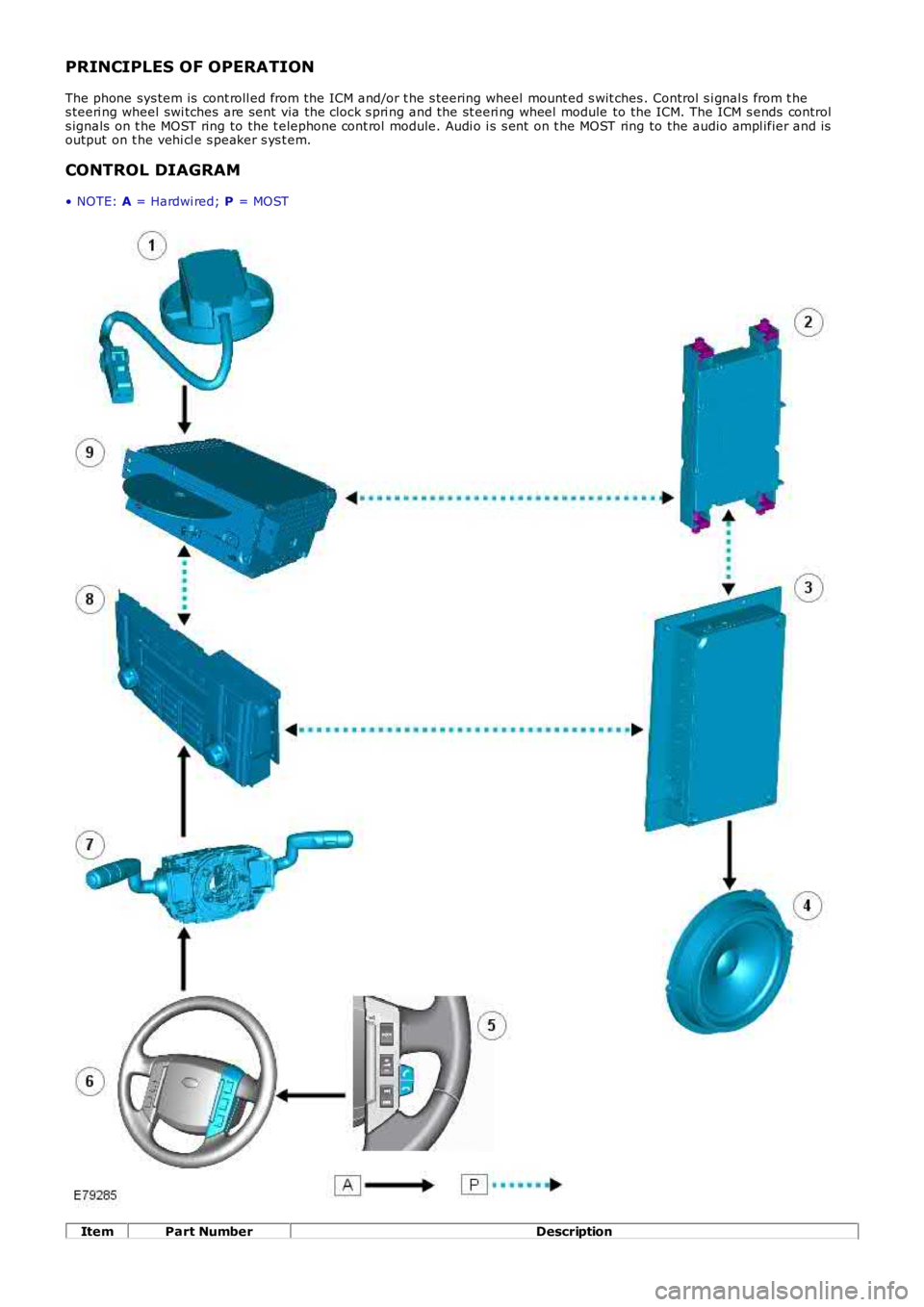

The phone sys tem is cont roll ed from the ICM and/or t he s teering wheel mount ed s wit ches . Control s i gnal s from t hes teeri ng wheel swi tches are sent via the clock s pri ng and the st eeri ng wheel module to the ICM. The ICM s ends controls ignals on t he MOST ring to the t elephone cont rol module. Audi o i s s ent on t he MOST ring to the audio ampl ifier and isoutput on t he vehi cl e s peaker s ys t em.
CONTROL DIAGRAM
• NOTE: A = Hardwi red; P = MOST
ItemPart NumberDescription

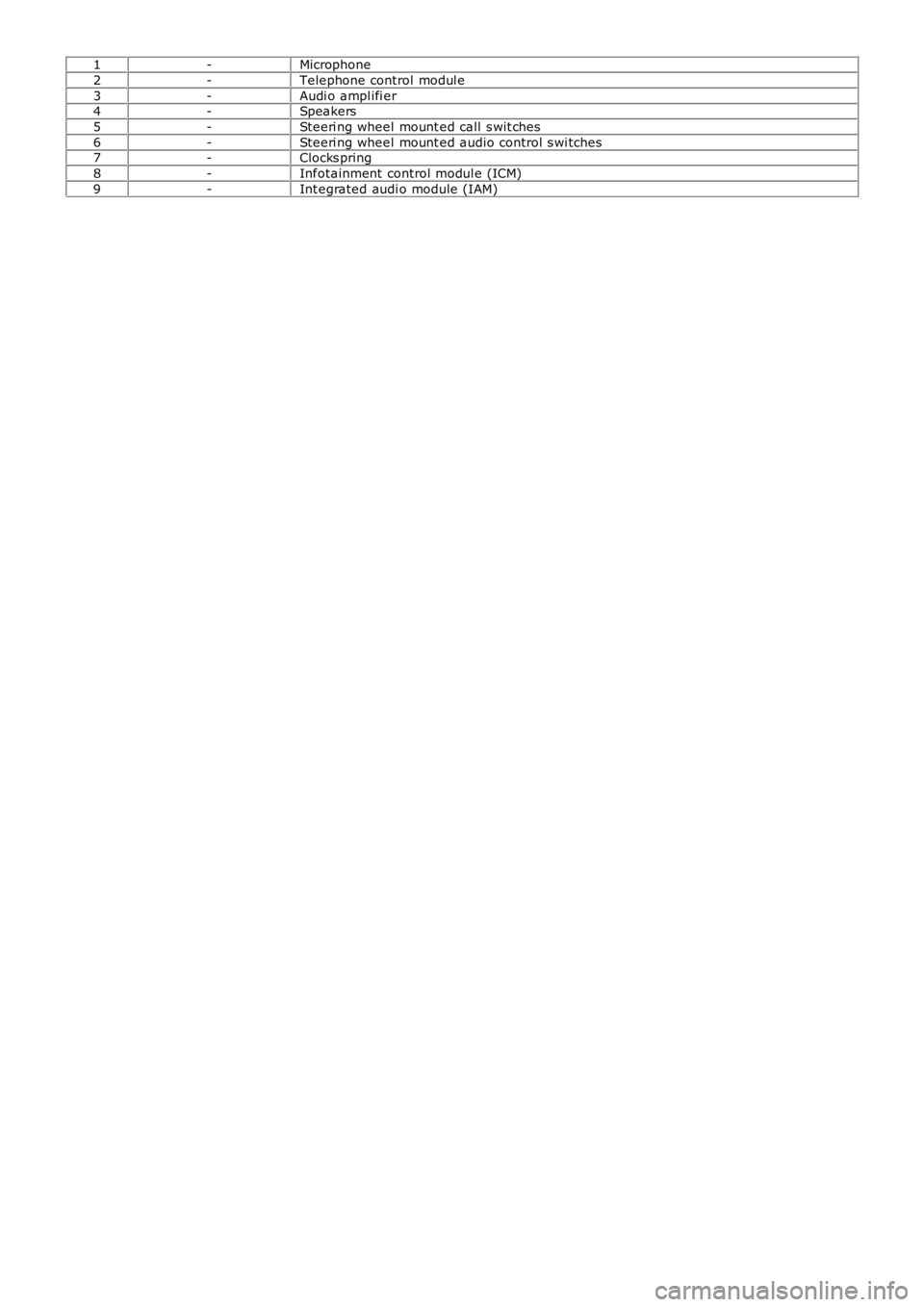

Page 1888 of 3229
1-Microphone
2-Telephone control modul e
3-Audi o ampl ifi er4-Speakers
5-Steeri ng wheel mount ed call s wit ches
6-Steeri ng wheel mount ed audio control s wi tches7-Clocks pring
8-Infotainment control modul e (ICM)
9-Int egrated audi o module (IAM)
