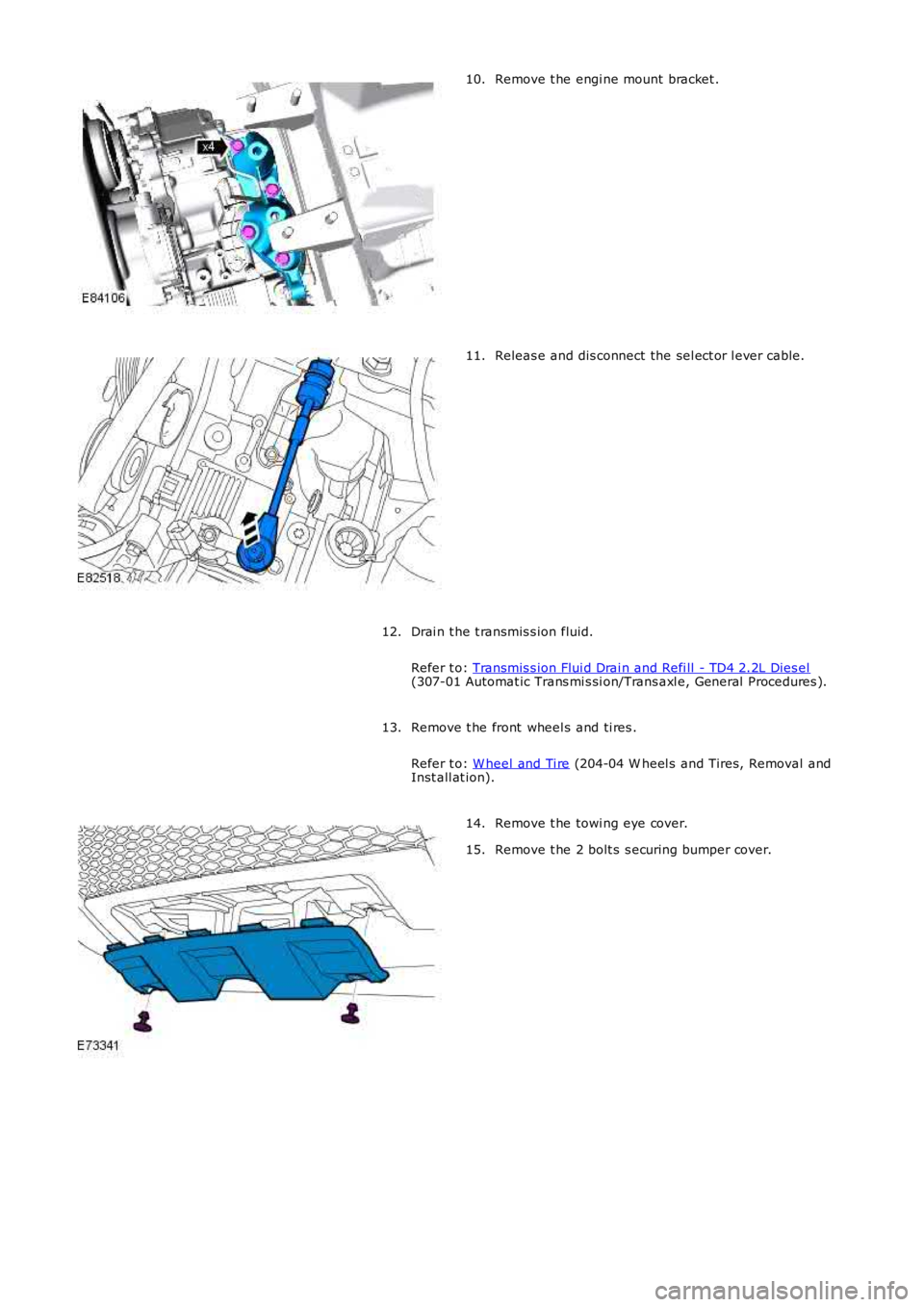

Remove t he engi ne mount bracket .
10. Releas e and dis connect the sel ect or l ever cable.
11.
Drai n t he t ransmis s ion fluid.
Refer t o: Transmis s ion Flui d Drai n and Refi ll - TD4 2.2L Dies el (307-01 Automat ic Trans mi s si on/Trans axl e, General Procedures ).
12.
Remove t he front wheel s and ti res .
Refer t o: W heel and Ti re (204-04 W heel s and Tires, Removal and
Inst all at ion).
13. Remove t he towi ng eye cover.
14.
Remove t he 2 bolt s s ecuring bumper cover.
15.
Page 1338 of 3229

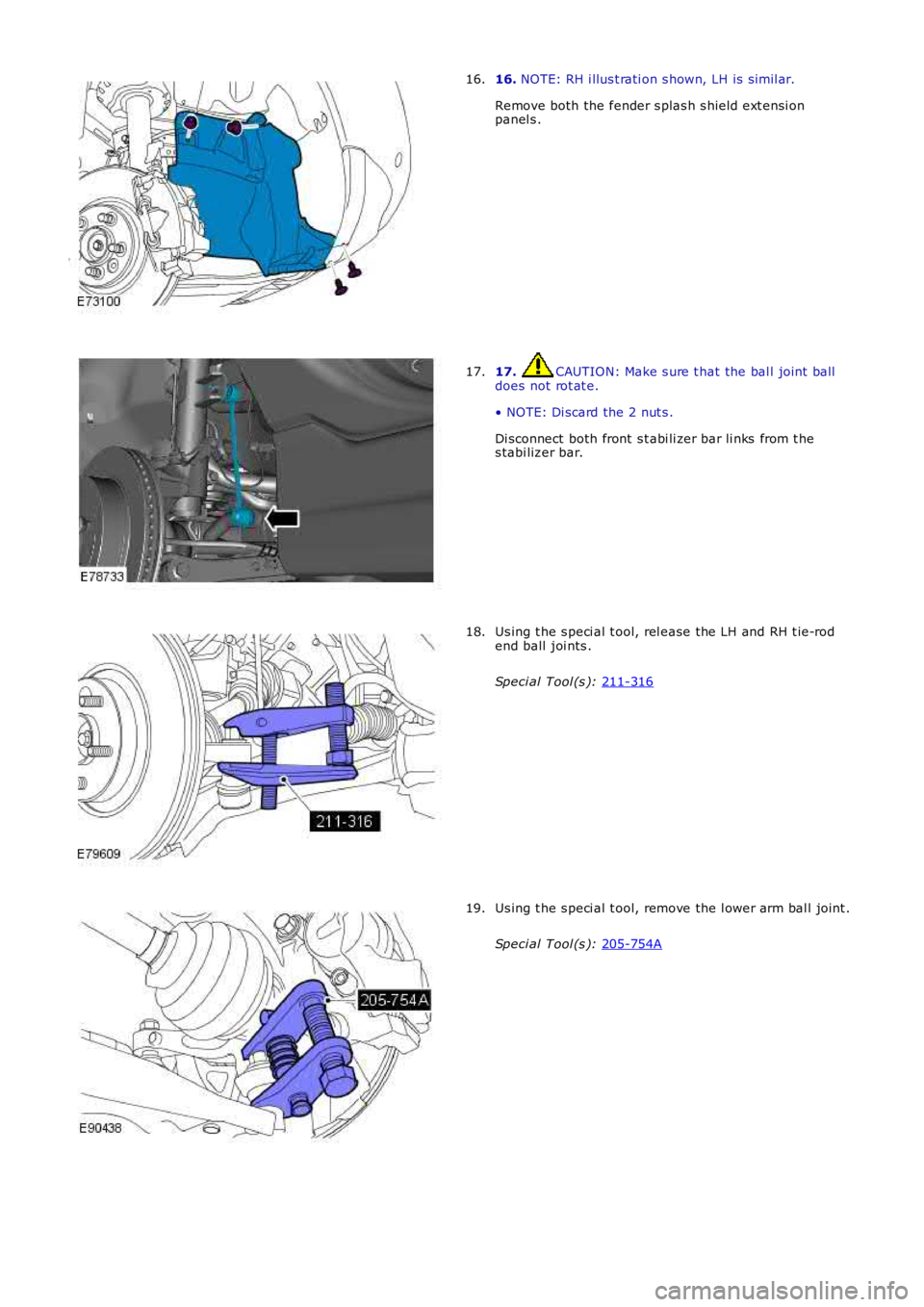

16.
NOTE: RH i llus t rati on s hown, LH is s imil ar.
Remove both the fender s plas h s hield ext ensi on
panel s .
16. 17. CAUTION: Make s ure t hat the bal l joint ball
does not rot at e.
• NOTE: Di scard the 2 nut s .
Di sconnect both front s t abi li zer bar li nks from t he
s tabi lizer bar.
17. Us ing t he s peci al t ool, rel ease the LH and RH t ie-rod
end ball joi nts .
Speci al Tool (s ): 211-316 18.
Us ing t he s peci al t ool, remove the l ower arm bal l joint .
Speci al Tool (s ): 205-754A 19.
Page 1339 of 3229

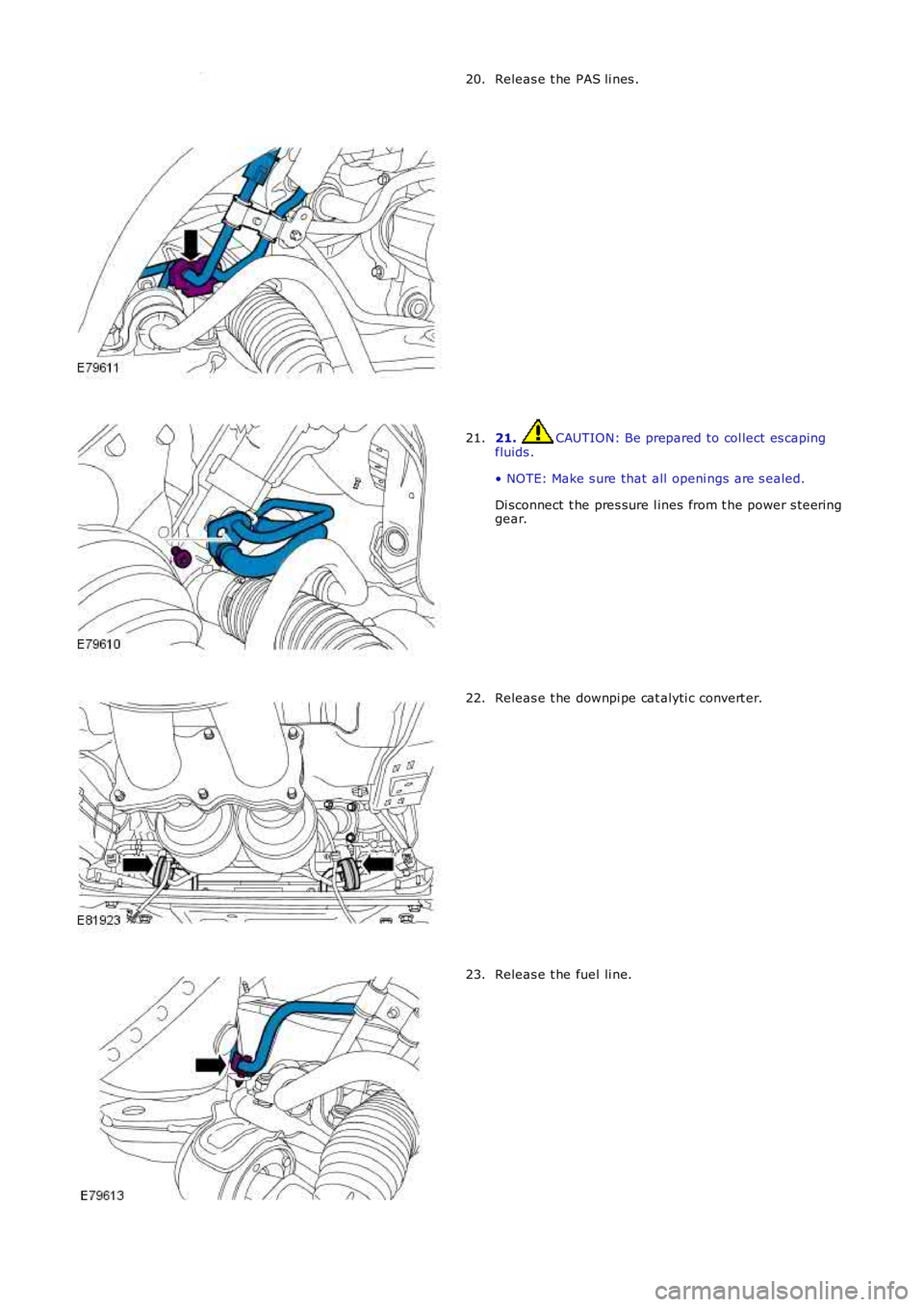

Releas e t he PAS li nes .
20. 21. CAUTION: Be prepared to col lect es caping
fluids .
• NOTE: Make s ure that all openi ngs are s ealed.
Di sconnect t he pres sure l ines from t he power s teeri ng
gear.
21. Releas e t he downpi pe cat alyti c convert er.
22. Releas e t he fuel li ne.
23.
Page 1340 of 3229

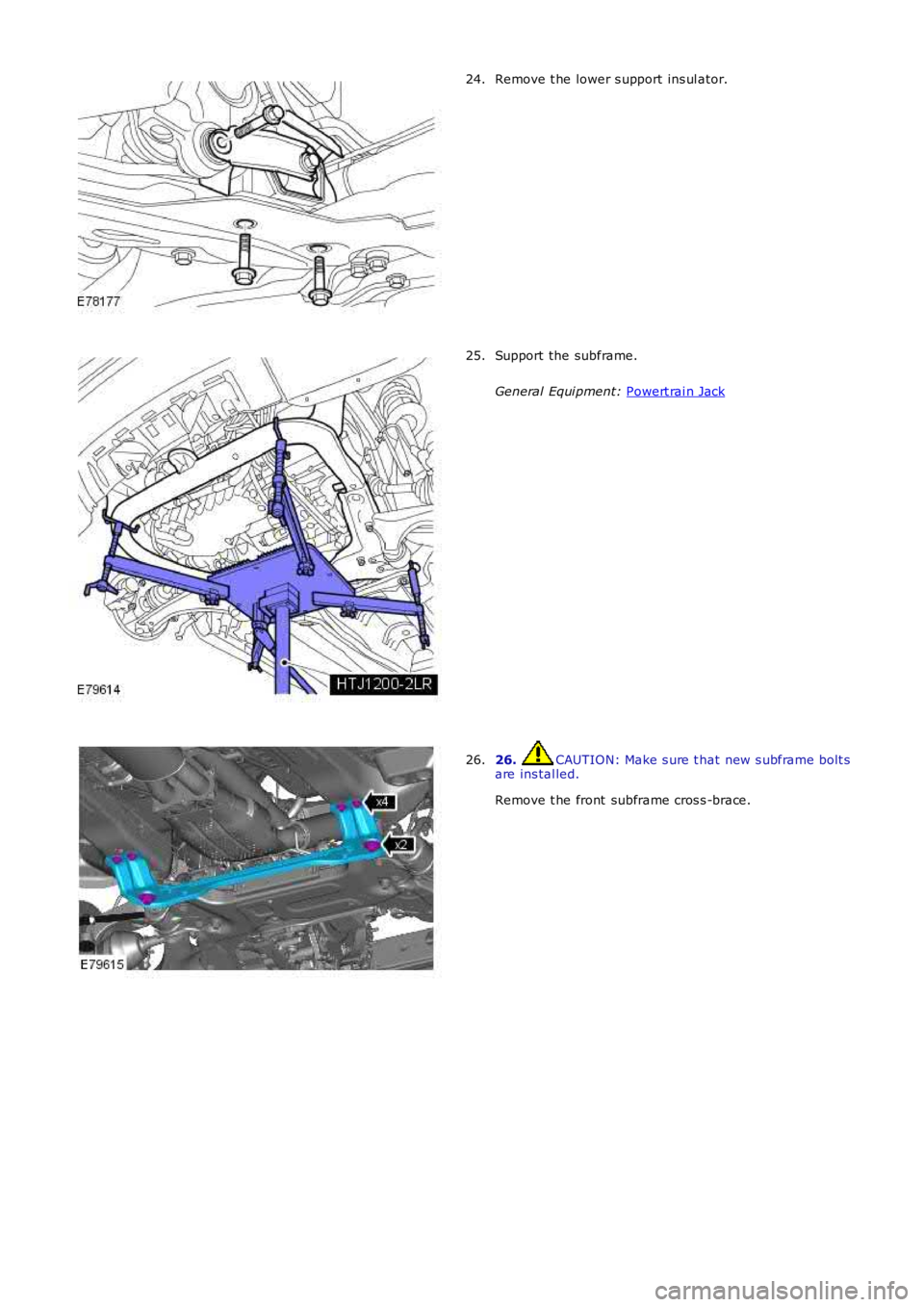

Remove t he lower s upport ins ul ator.
24. Support the subframe.
General Equi pment: Powert rai n Jack 25.
26. CAUTION: Make s ure t hat new s ubframe bolt s
are ins tal led.
Remove t he front subframe cros s -brace.
26.
Page 1341 of 3229

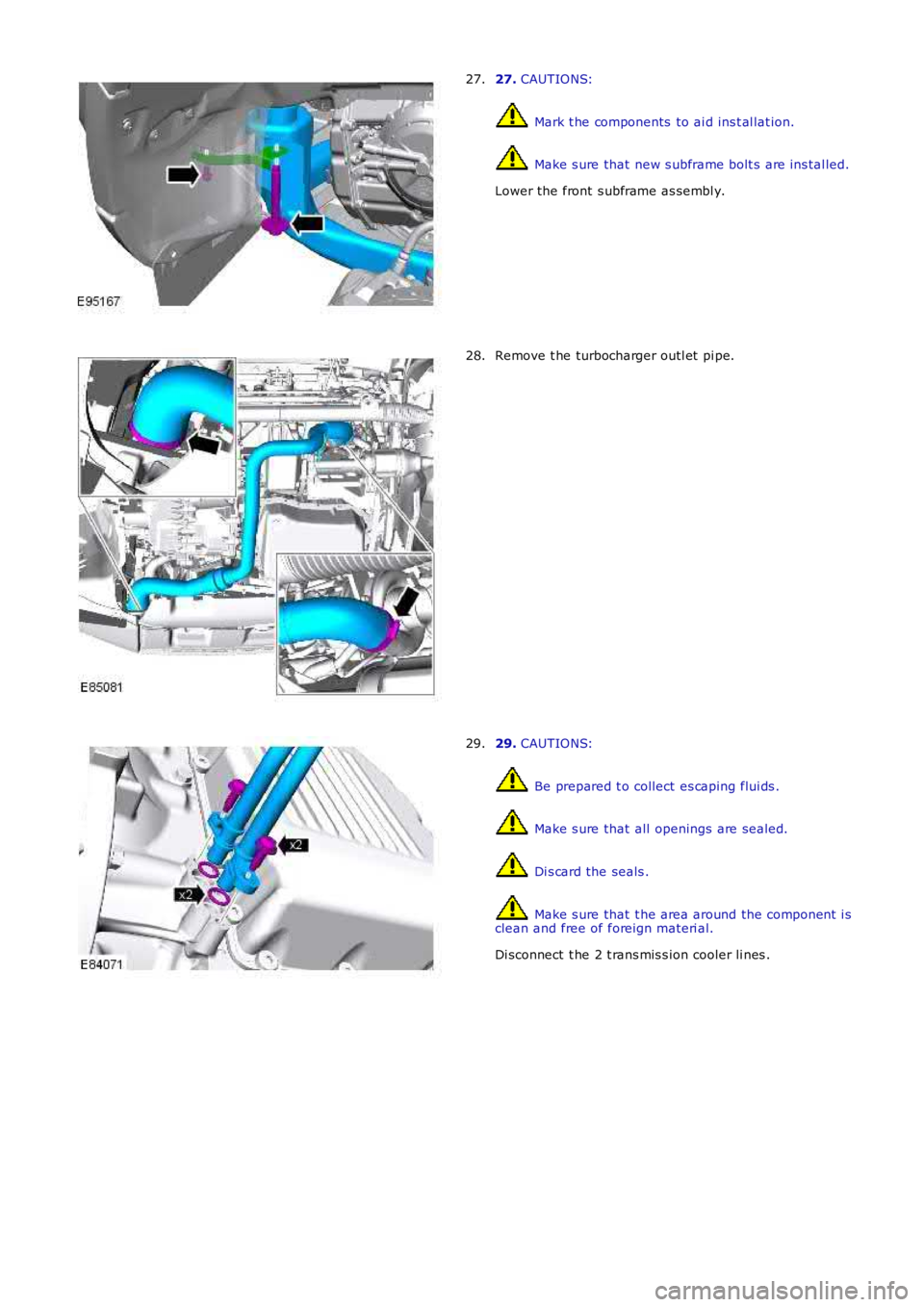

27.
CAUTIONS: Mark t he components to ai d ins t al lat ion.
Make s ure that new s ubframe bolt s are ins tal led.
Lower the front s ubframe as sembl y.
27. Remove t he turbocharger outl et pi pe.
28. 29.
CAUTIONS: Be prepared t o collect es caping flui ds .
Make s ure that all openings are sealed.
Di s card the seals .
Make s ure that t he area around the component i s
clean and free of foreign materi al.
Di sconnect t he 2 t rans mis s ion cooler li nes .
29.
Page 1342 of 3229
Releas e t he LH halfshaft.
30. Releas e t he RH halfs haft.
31. Remove t he acces s cover.
32.
Page 1343 of 3229
33.

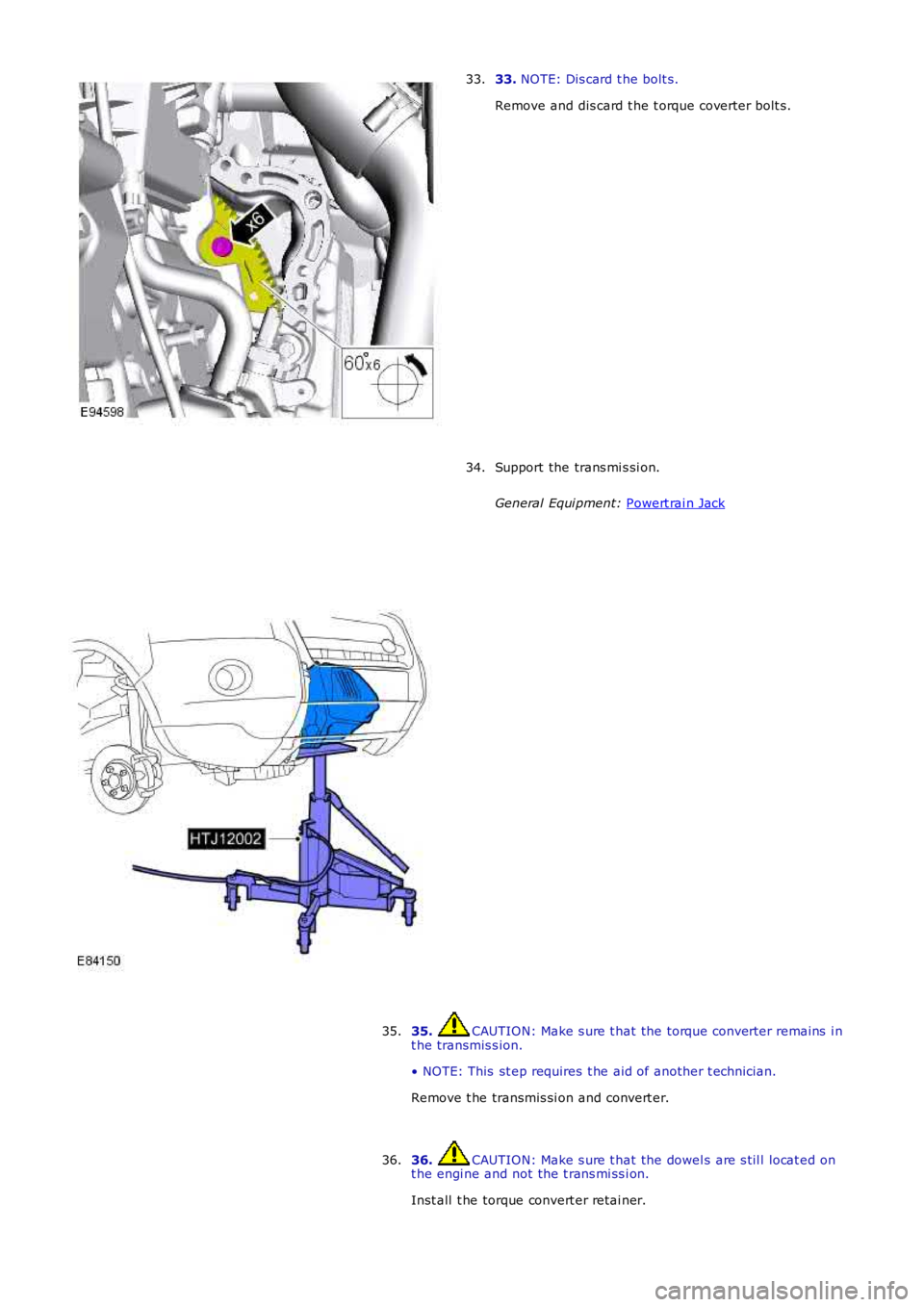

NOTE: Dis card t he bolt s.
Remove and dis card t he t orque coverter bolt s.
33. Support the trans mi s si on.
General Equi pment: Powert rai n Jack 34.
35. CAUTION: Make s ure t hat the torque converter remains i n
t he transmis s ion.
• NOTE: This st ep requires t he aid of another t echnician.
Remove t he transmis si on and convert er.
35.
36. CAUTION: Make s ure t hat the dowel s are s t il l locat ed on
t he engi ne and not the t rans mi ss i on.
Inst all t he torque convert er retai ner.
36.
Page 1344 of 3229

Publi s hed: 11-May-2011

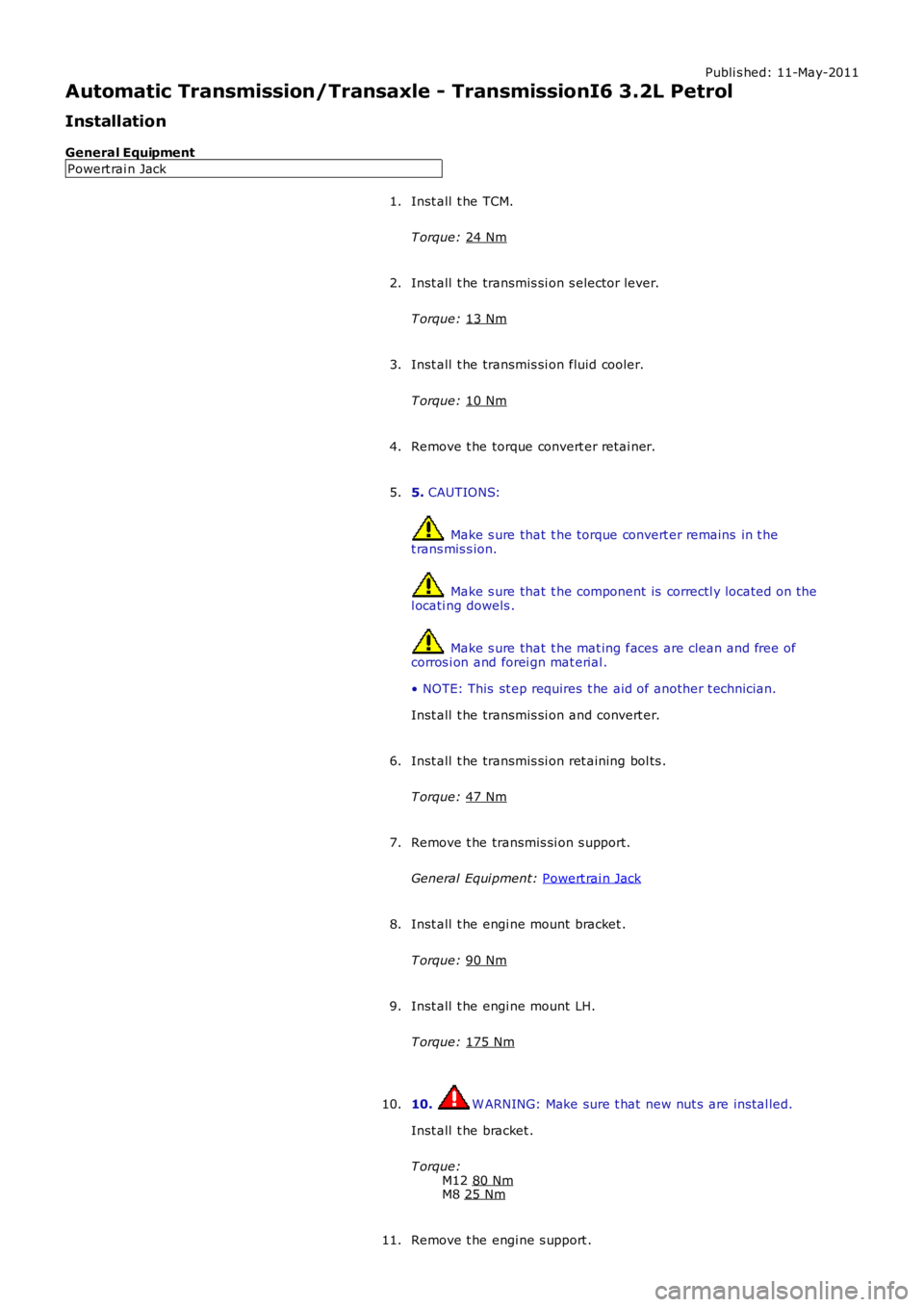

Automatic Transmission/Transaxle - TransmissionI6 3.2L Petrol
Installation
General Equipment Powert rai n Jack
Inst all t he TCM.
T orque: 24 Nm 1.
Inst all t he transmis si on s elector lever.
T orque: 13 Nm 2.
Inst all t he transmis si on fluid cooler.
T orque: 10 Nm 3.
Remove t he torque convert er retai ner.
4.
5. CAUTIONS: Make s ure that t he torque convert er remains in t he
t rans mis s ion. Make s ure that t he component is correctl y located on t he
l ocati ng dowels . Make s ure that t he mat ing faces are clean and free of
corros i on and forei gn mat erial .
• NOTE: This st ep requires t he aid of another t echnician.
Inst all t he transmis si on and convert er.
5.
Inst all t he transmis si on ret aining bol ts .
T orque: 47 Nm 6.
Remove t he transmis si on s upport.
General Equi pment: Powert rai n Jack 7.
Inst all t he engi ne mount bracket .
T orque: 90 Nm 8.
Inst all t he engi ne mount LH.
T orque: 175 Nm 9.
10. W ARNING: Make sure t hat new nut s are ins tal led.
Inst all t he bracket .
T orque: M12 80 Nm M8
25 Nm 10.
Remove t he engi ne s upport .
11.
