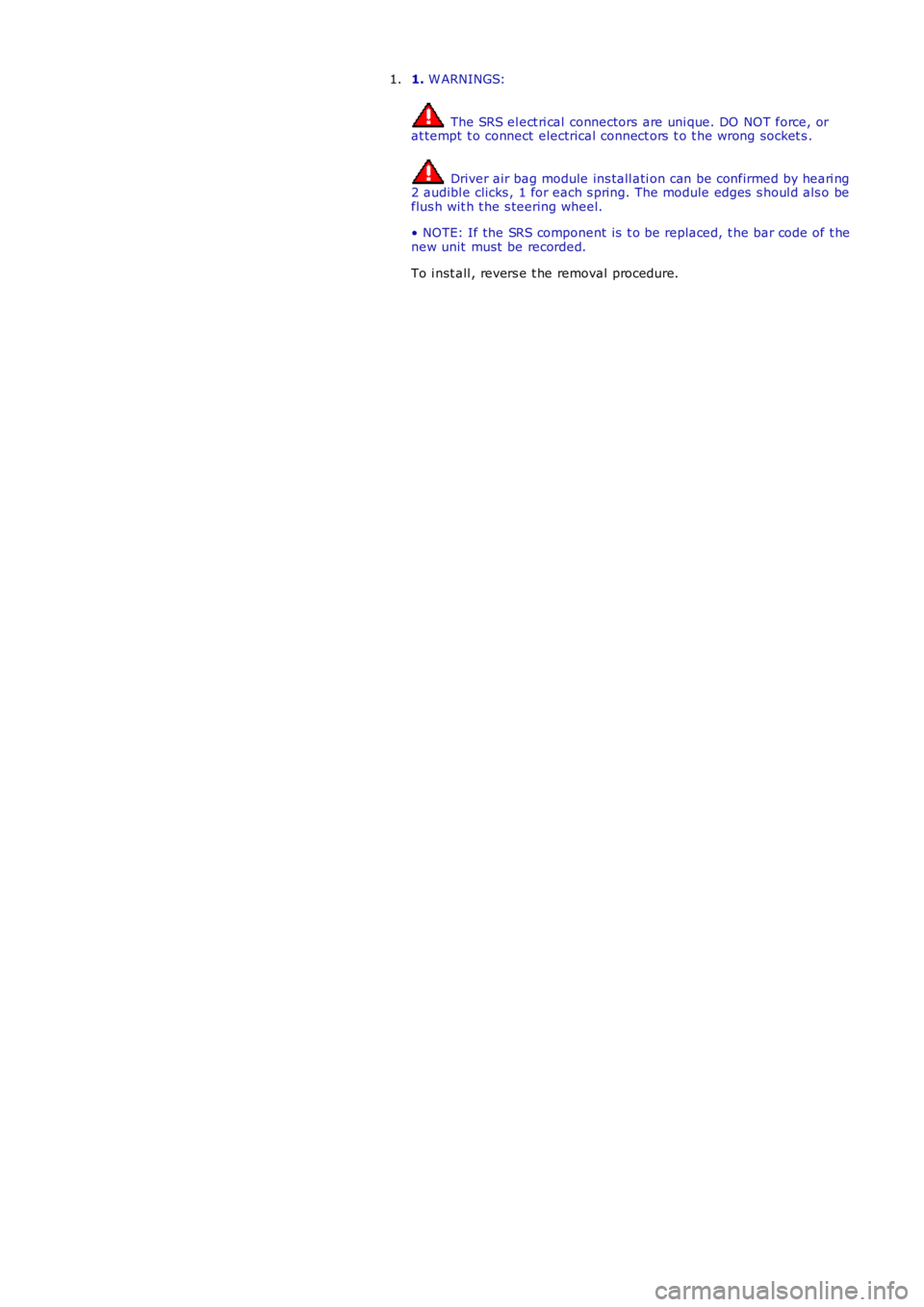

1. W ARNINGS:
The SRS el ect ri cal connectors are uni que. DO NOT force, orat tempt t o connect electrical connect ors t o t he wrong socket s .
Driver air bag module ins tall ati on can be confirmed by heari ng2 audibl e clicks , 1 for each s pring. The module edges s houl d als o beflus h wit h t he s teering wheel.
• NOTE: If the SRS component is t o be replaced, t he bar code of t henew unit must be recorded.
To i nst all , revers e t he removal procedure.
1.
Page 2490 of 3229
Publi s hed: 11-May-2011

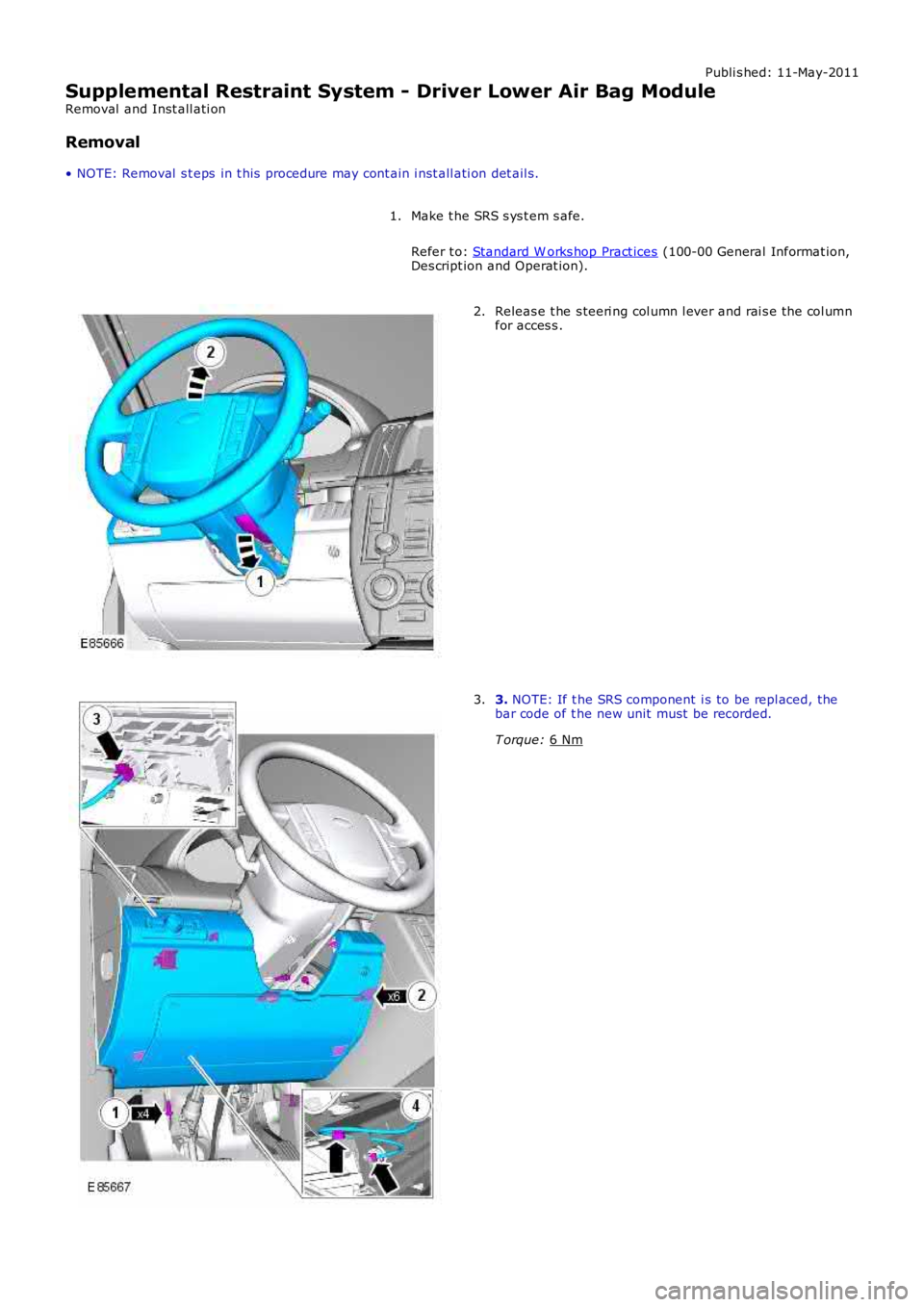

Supplemental Restraint System - Driver Lower Air Bag Module
Removal and Inst all ati on
Removal
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.
Make t he SRS s ys t em s afe.
Refer t o: Standard W orks hop Pract ices (100-00 General Informat ion,
Des cript ion and Operat ion).
1. Releas e t he s teeri ng col umn l ever and rai s e the col umn
for acces s .
2. 3.
NOTE: If t he SRS component i s to be repl aced, the
bar code of t he new unit must be recorded.
T orque: 6 Nm 3.
Page 2491 of 3229

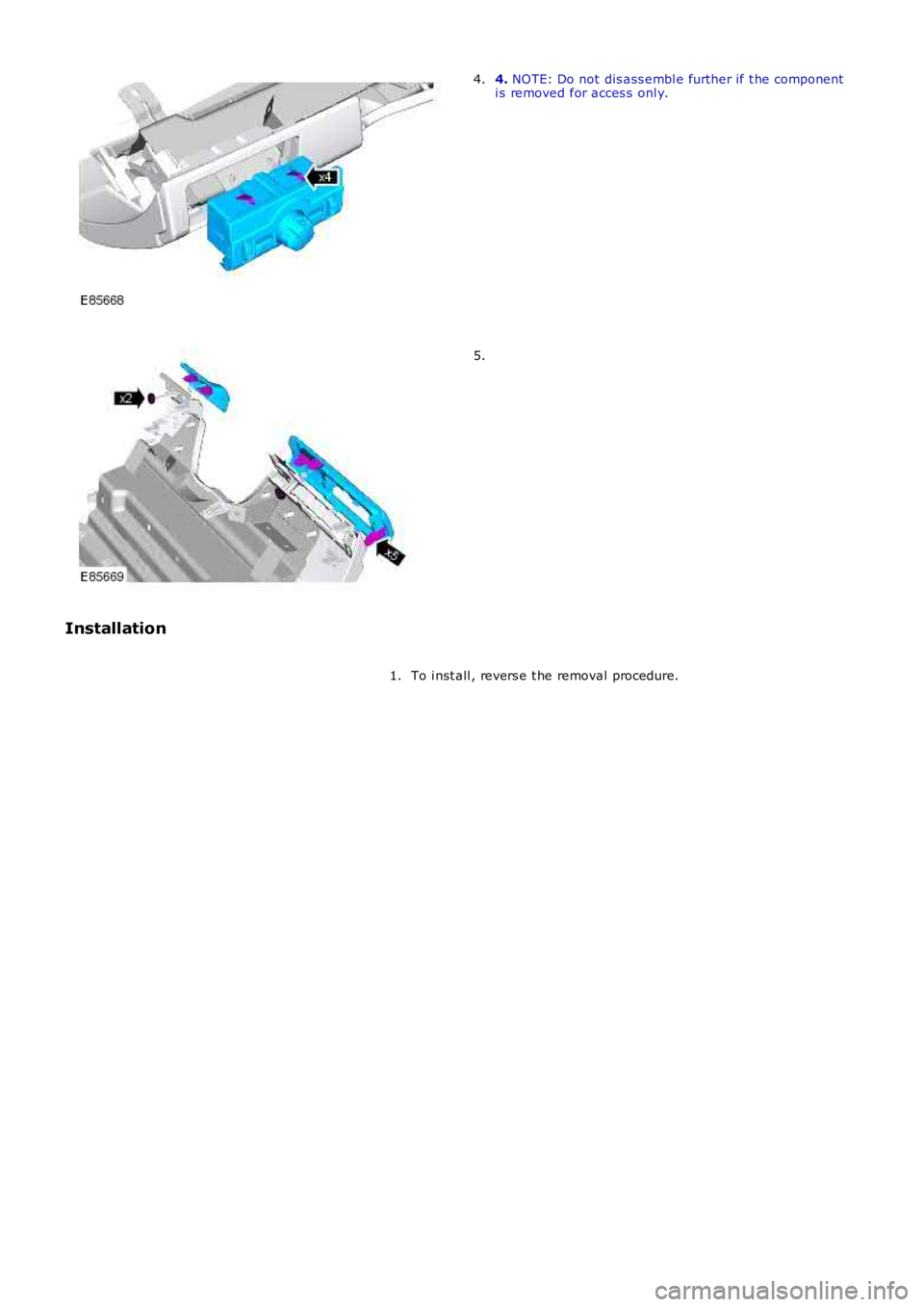

4. NOTE: Do not dis ass embl e further if t he componenti s removed for acces s onl y.4.
5.
Installation
To i nst all , revers e t he removal procedure.1.
Page 2492 of 3229
Publi s hed: 11-May-2011

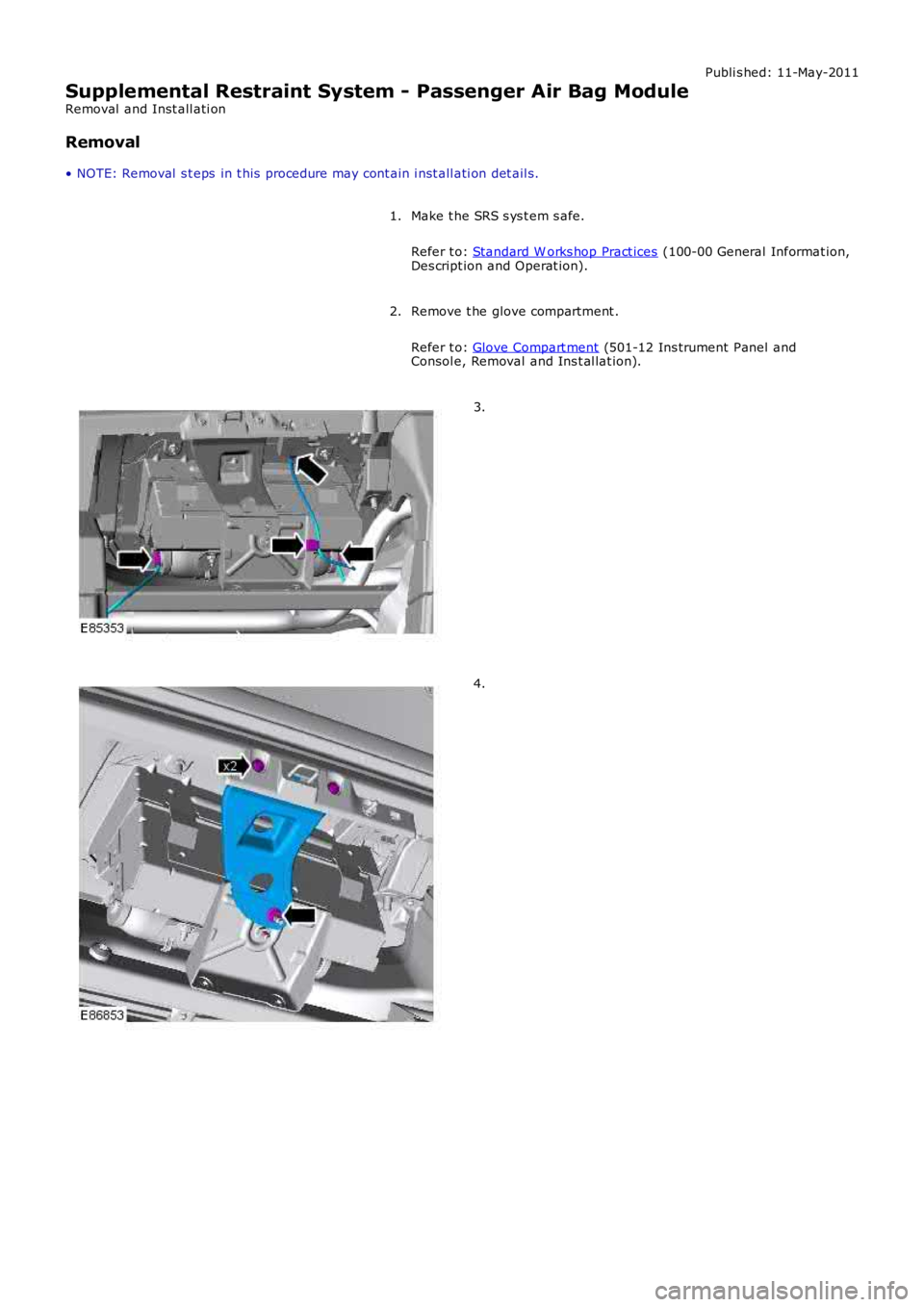

Supplemental Restraint System - Passenger Air Bag Module
Removal and Inst all ati on
Removal
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.
Make t he SRS s ys t em s afe.
Refer t o: Standard W orks hop Pract ices (100-00 General Informat ion,Des cript ion and Operat ion).
1.
Remove t he glove compartment .
Refer t o: Glove Compart ment (501-12 Ins trument Panel andConsol e, Removal and Ins t al lat ion).
2.
3.
4.
Page 2493 of 3229

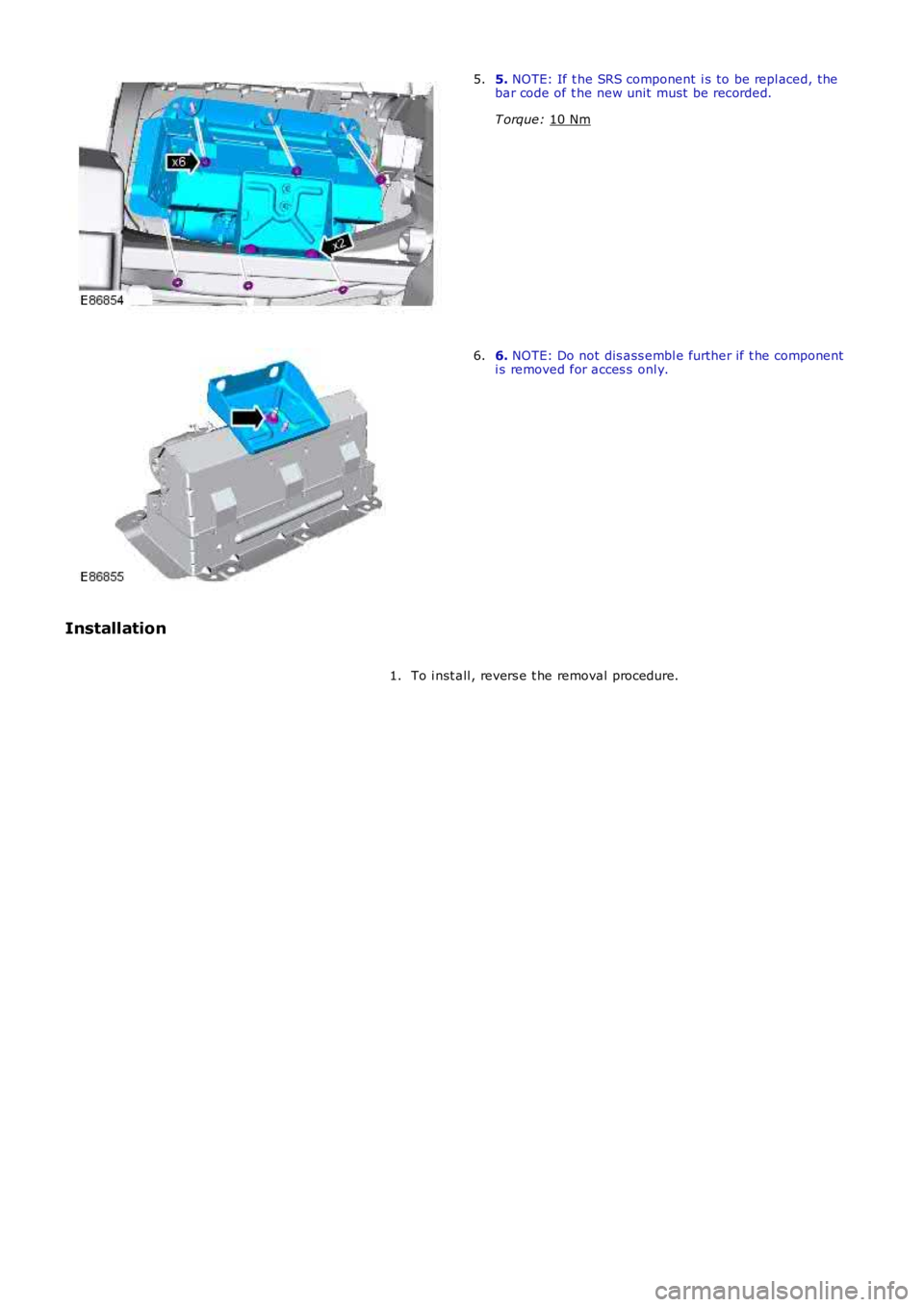

5.
NOTE: If t he SRS component i s to be repl aced, the
bar code of t he new unit must be recorded.
T orque: 10 Nm 5.
6.
NOTE: Do not dis ass embl e further if t he component
i s removed for acces s onl y.
6.
Installation To i nst all , revers e t he removal procedure.
1.
Page 2494 of 3229
Publi s hed: 11-May-2011

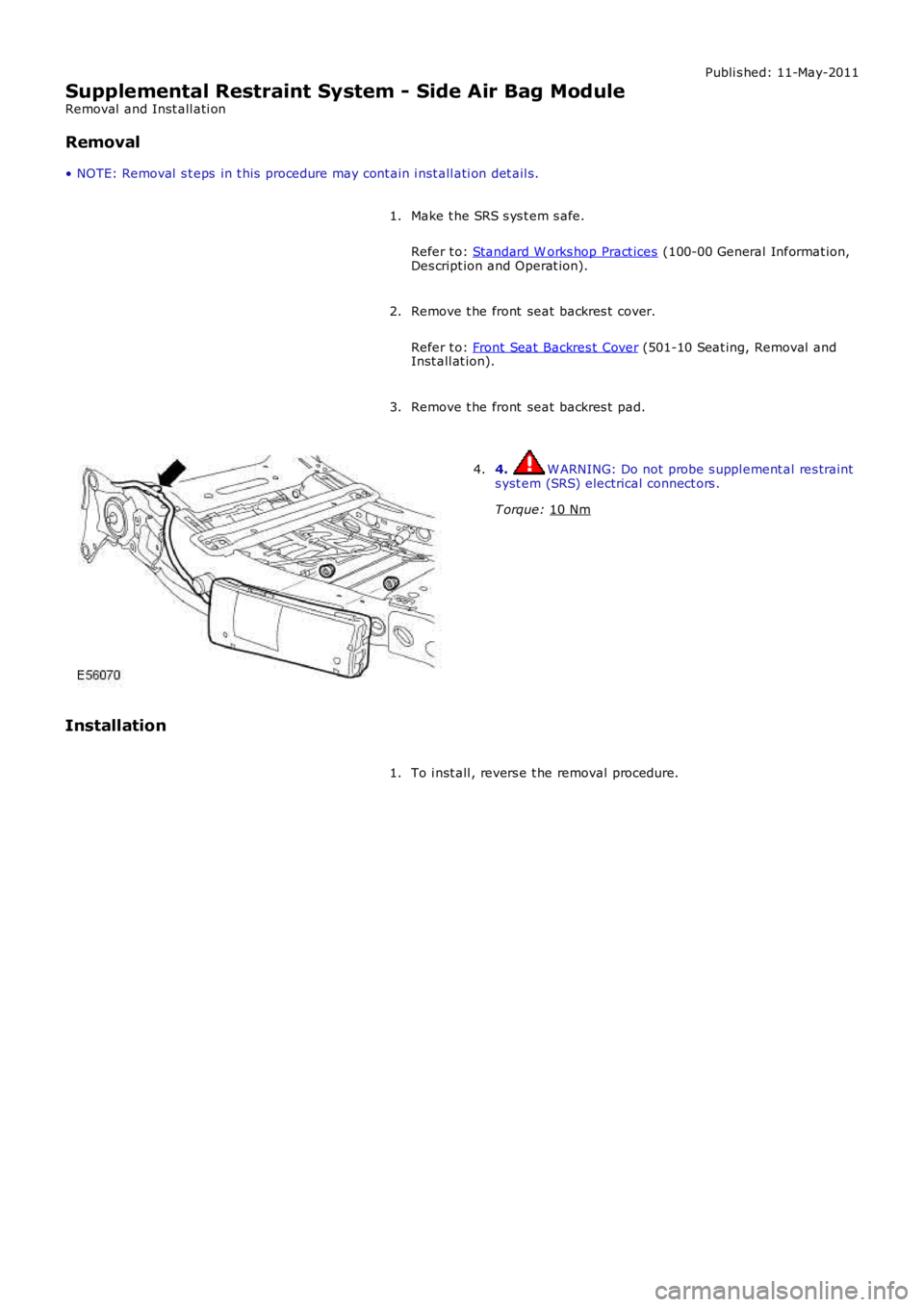

Supplemental Restraint System - Side Air Bag Module
Removal and Inst all ati on
Removal
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.
Make t he SRS s ys t em s afe.
Refer t o: Standard W orks hop Pract ices (100-00 General Informat ion,
Des cript ion and Operat ion).
1.
Remove t he front seat backres t cover.
Refer t o: Front Seat Backres t Cover (501-10 Seat ing, Removal and
Inst all at ion).
2.
Remove t he front seat backres t pad.
3. 4. W ARNING: Do not probe s uppl ement al res traint
s yst em (SRS) electrical connect ors .
T orque: 10 Nm 4.
Installation To i nst all , revers e t he removal procedure.
1.
Page 2495 of 3229
Publi s hed: 11-May-2011

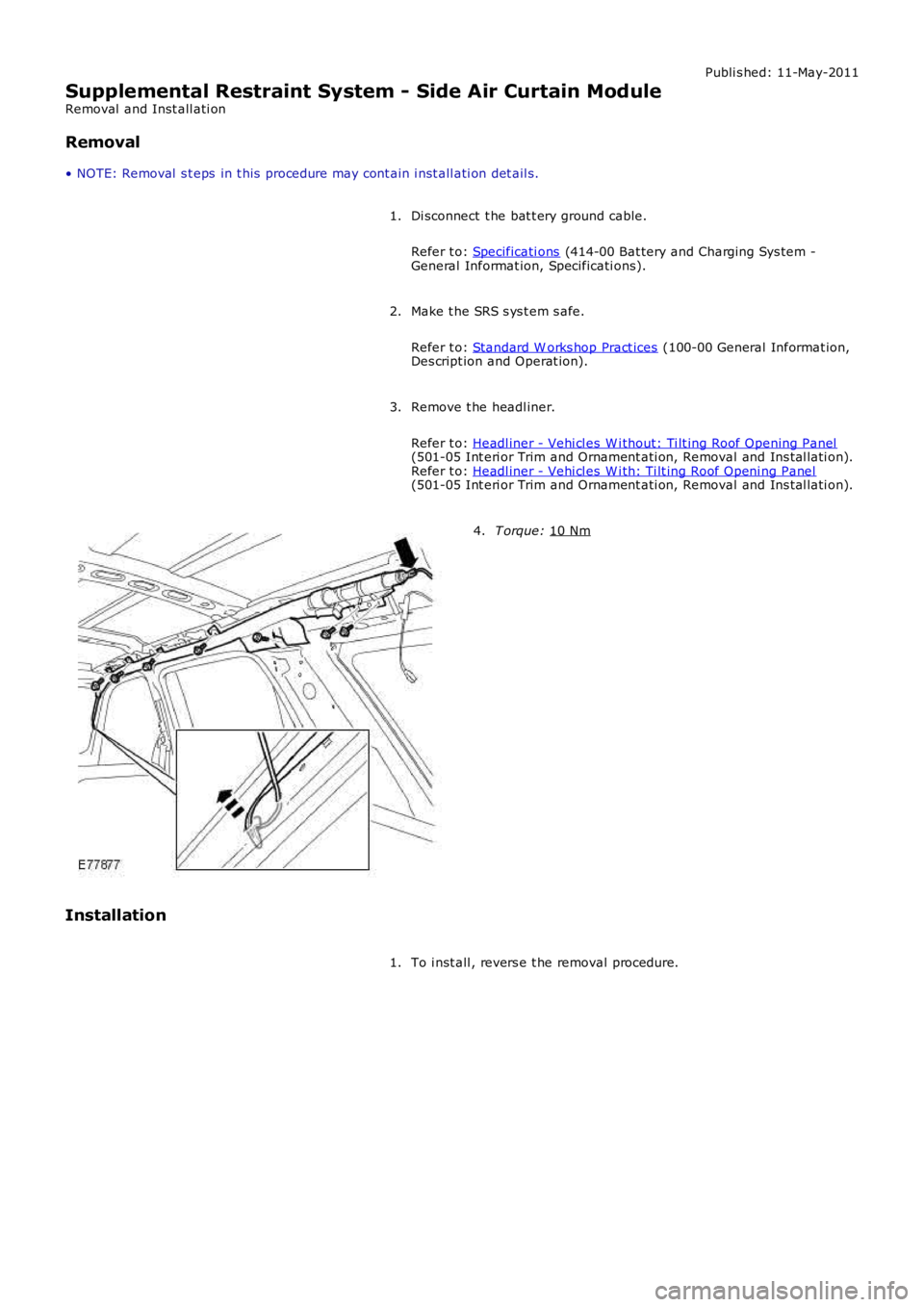

Supplemental Restraint System - Side Air Curtain Module
Removal and Inst all ati on
Removal
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.
Di sconnect t he bat t ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -
General Informat ion, Specificati ons).
1.
Make t he SRS s ys t em s afe.
Refer t o: Standard W orks hop Pract ices (100-00 General Informat ion,
Des cript ion and Operat ion).
2.
Remove t he headl iner.
Refer t o: Headl iner - Vehi cl es W i thout: Ti lt ing Roof Opening Panel (501-05 Int eri or Trim and Ornament ati on, Removal and Ins tal lati on).
Refer t o: Headl iner - Vehi cl es W i th: Ti lt ing Roof Openi ng Panel (501-05 Int eri or Trim and Ornament ati on, Removal and Ins tal lati on).
3. T orque:
10 Nm 4.
Installation To i nst all , revers e t he removal procedure.
1.
Page 2496 of 3229
Publi s hed: 11-May-2011

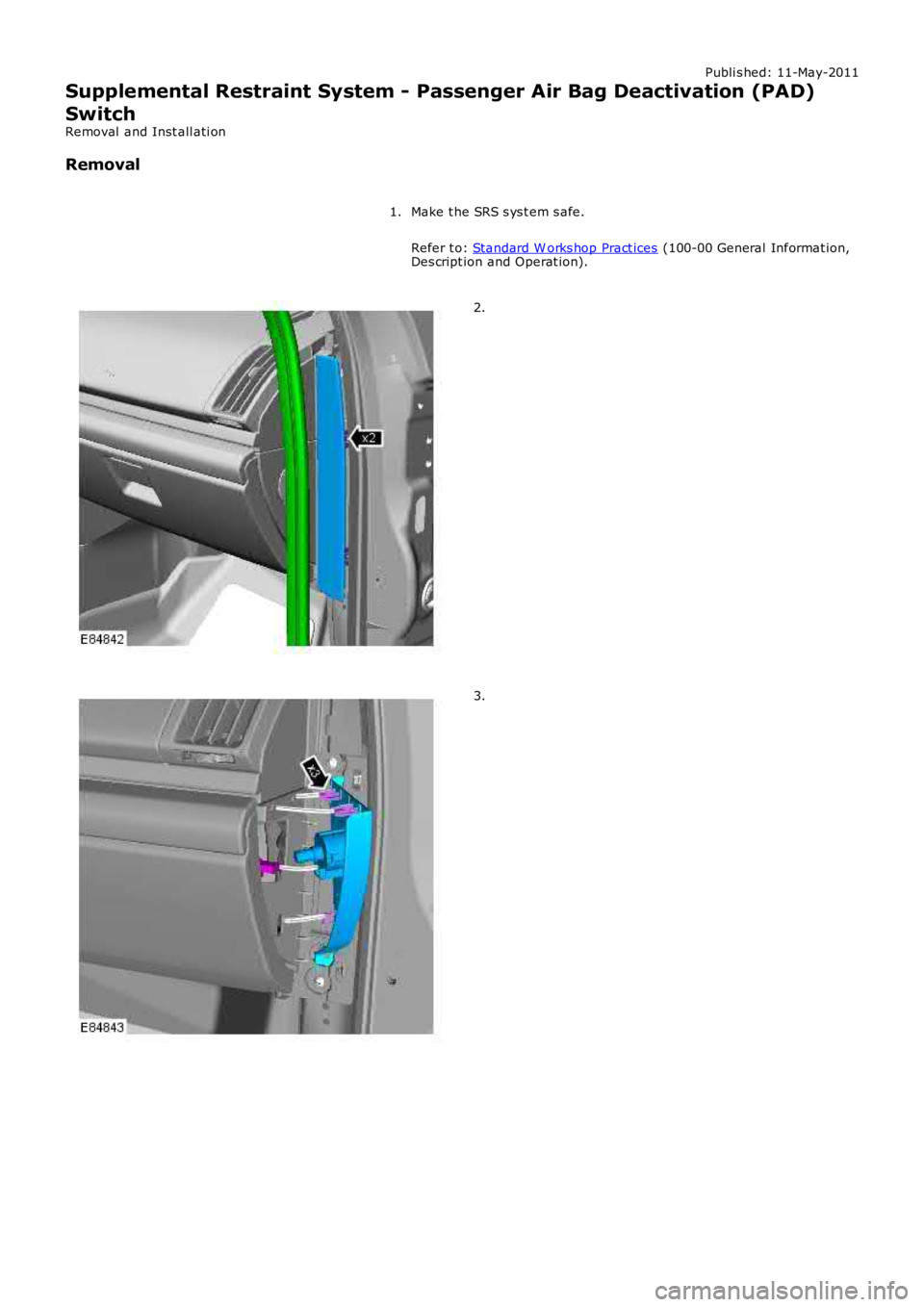

Supplemental Restraint System - Passenger Air Bag Deactivation (PAD)
Switch
Removal and Inst all ati on
Removal
Make t he SRS s ys t em s afe.
Refer t o: Standard W orks hop Pract ices (100-00 General Informat ion,Des cript ion and Operat ion).
1.
2.
3.
