Stage 1:Stage 2:

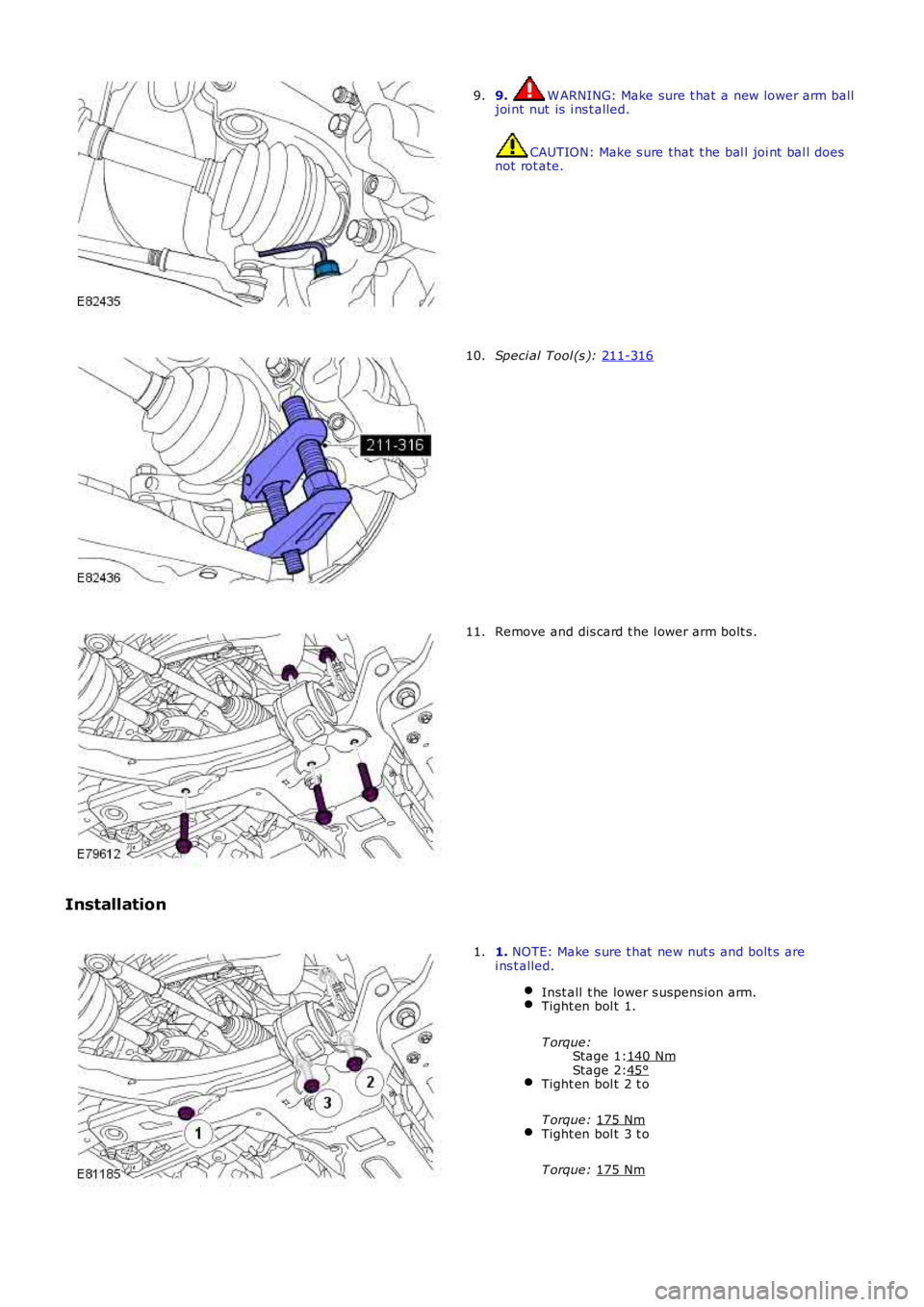

9. W ARNING: Make sure t hat a new lower arm balljoi nt nut is i ns t alled.
CAUTION: Make s ure that t he bal l joi nt bal l doesnot rot ate.
9.
Speci al Tool (s ): 211-31610.
Remove and dis card t he l ower arm bolt s .11.
Installation
1. NOTE: Make s ure t hat new nut s and bolt s arei ns t alled.
Inst all t he lower s uspens ion arm.Tight en bol t 1.
T orque:140 Nm45°Tight en bol t 2 t o
T orque: 175 NmTight en bol t 3 t o
T orque: 175 Nm
1.
Page 210 of 3229

Stage 1:Stage 2:

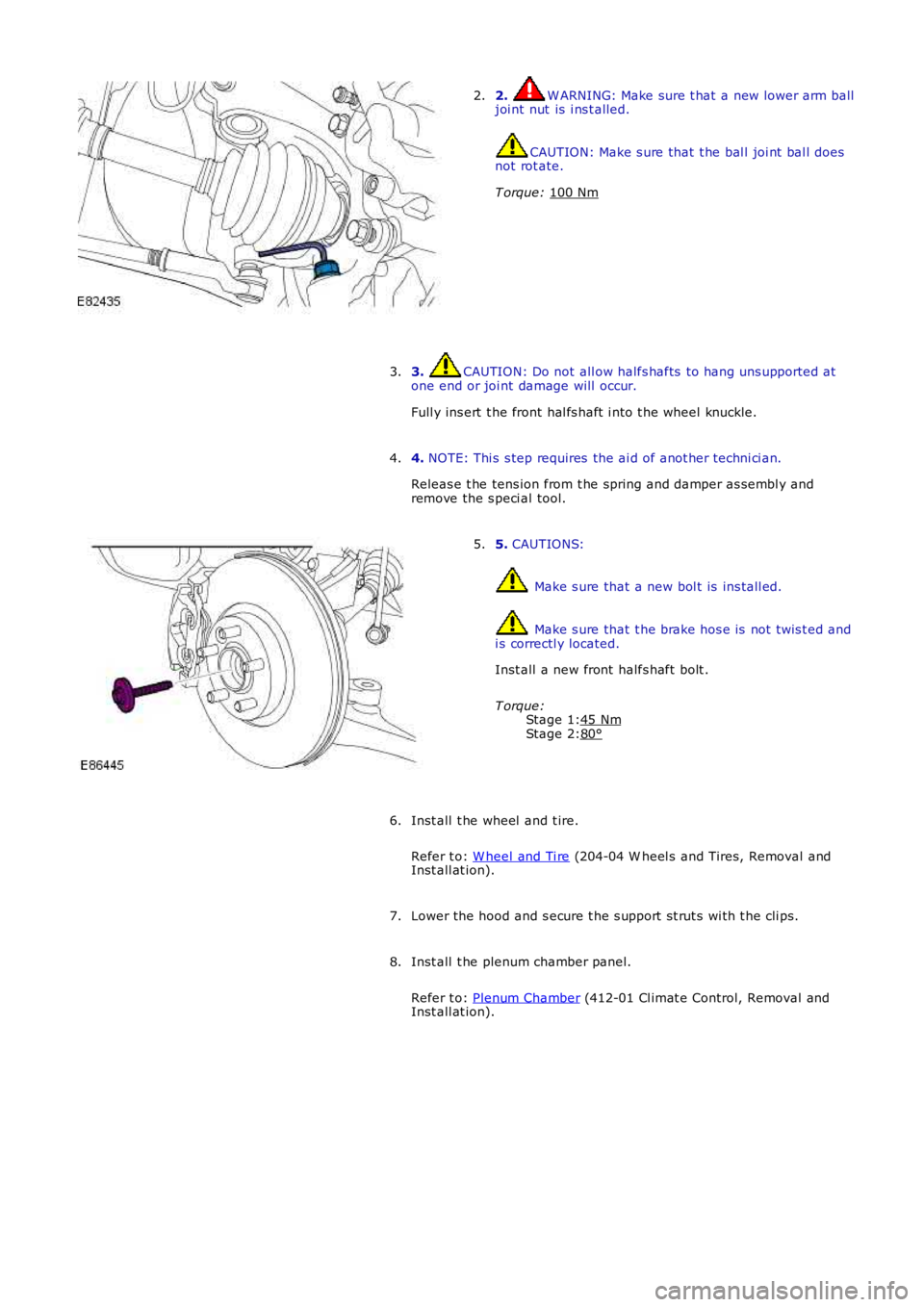

2. W ARNING: Make sure t hat a new lower arm balljoi nt nut is i ns t alled.
CAUTION: Make s ure that t he bal l joi nt bal l doesnot rot ate.
T orque: 100 Nm
2.
3. CAUTION: Do not all ow halfs hafts to hang uns upported atone end or joi nt damage will occur.
Full y ins ert t he front hal fs haft i nto t he wheel knuckle.
3.
4. NOTE: Thi s s tep requires the ai d of anot her techni ci an.
Releas e t he tens ion from t he spring and damper as sembl y andremove the s peci al tool.
4.
5. CAUTIONS:
Make s ure that a new bol t is ins tall ed.
Make s ure that t he brake hos e is not t wis t ed andi s correctl y located.
Inst all a new front halfs haft bolt .
T orque:45 Nm80°
5.
Inst all t he wheel and t ire.
Refer t o: W heel and Ti re (204-04 W heel s and Tires, Removal andInst all at ion).
6.
Lower the hood and s ecure t he s upport st rut s wi th t he cli ps.7.
Inst all t he plenum chamber panel.
Refer t o: Plenum Chamber (412-01 Cl imat e Control, Removal andInst all at ion).
8.
Page 211 of 3229

Publi s hed: 11-May-2011
Front Suspension - Front Stabilizer Bar
Removal and Inst all ati on

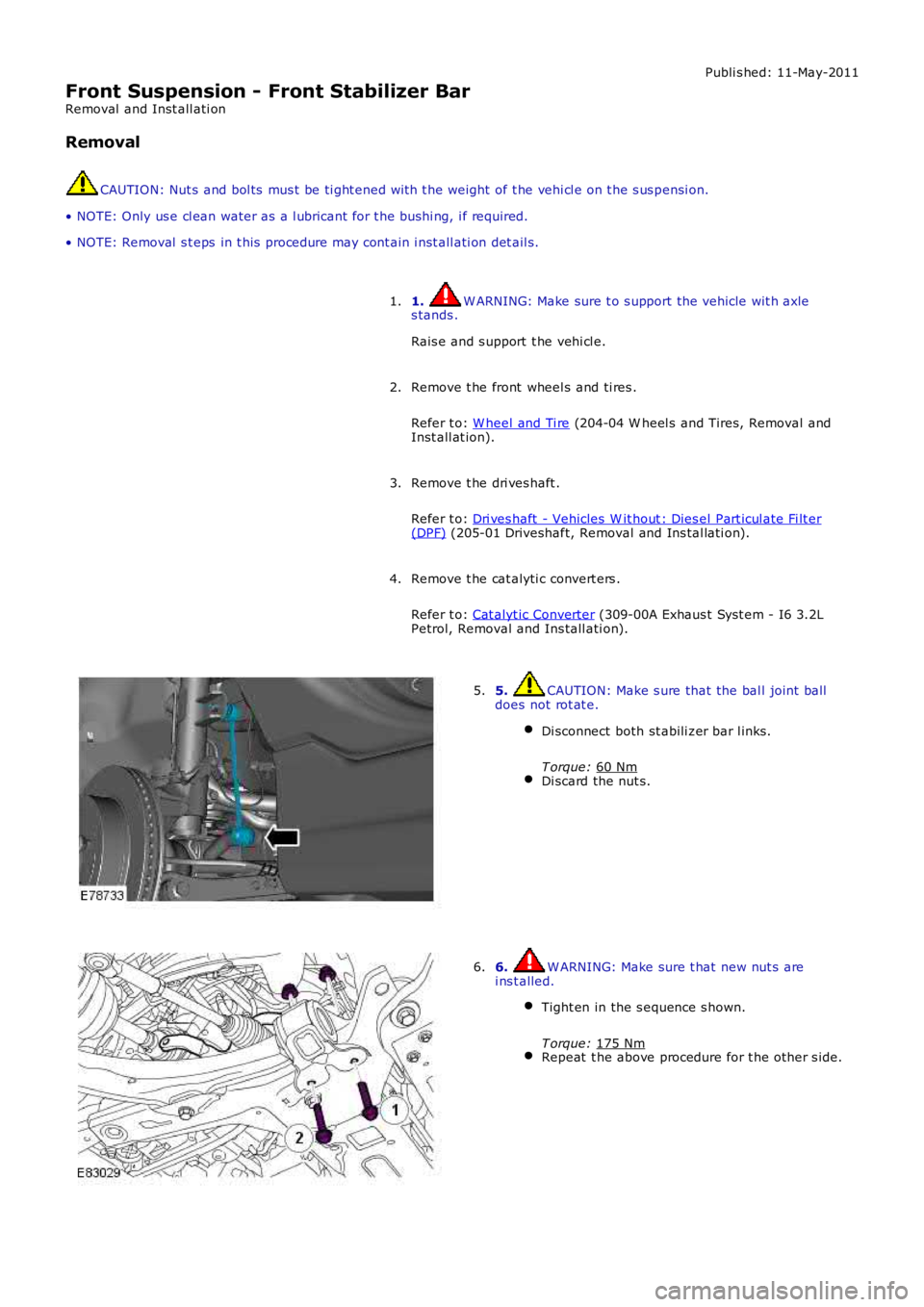

Removal CAUTION: Nut s and bol ts mus t be ti ght ened wit h t he weight of t he vehi cl e on t he s us p
ensi on.
• NOTE: Only us e cl ean water as a l ubricant for t he bushi ng, i f required.
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.
1. W ARNING: Make sure t o s upport the vehicle wit h axle
s tands .
Rais e and s upport t he vehi cl e.
1.
Remove t he front wheel s and ti res .
Refer t o: W heel and Ti re (204-04 W heel s and Tires, Removal and
Inst all at ion).
2.
Remove t he dri ves haft .
Refer t o: Dri ves haft - Vehicles W it hout : Dies el Part icul ate Fi lt er (DPF) (205-01 Driveshaft, Removal and Ins tal lati on).
3.
Remove t he cat alyti c convert ers .
Refer t o: Cat alyt ic Converter (309-00A Exhaus t Syst em - I6 3.2L
Petrol, Removal and Ins tall ati on).
4. 5. CAUTION: Make s ure that the bal l joint ball
does not rot at e.
Di sconnect both st abili zer bar l inks.
T orque: 60 Nm Di scard the nut s.5.
6. W ARNING: Make sure t hat new nut s are
i ns t alled.
Tight en in the s equence s hown.
T orque: 175 Nm Repeat t he above procedure for t he other s ide.6.
Page 212 of 3229
7. NOTE: Do not dis ass embl e further if t he componenti s removed for acces s onl y.
Remove t he s tabil izer bar bus hings.
7.
Installation
1. CAUTION: Nut s and bol ts mus t be ti ght ened wit h t he weightof t he vehi cl e on t he s us pensi on.
To i nst all , revers e t he removal procedure.
1.
Page 213 of 3229
Publi s hed: 11-May-2011
Front Suspension - Front Stabilizer Bar Bushing
Removal and Inst all ati on
Removal

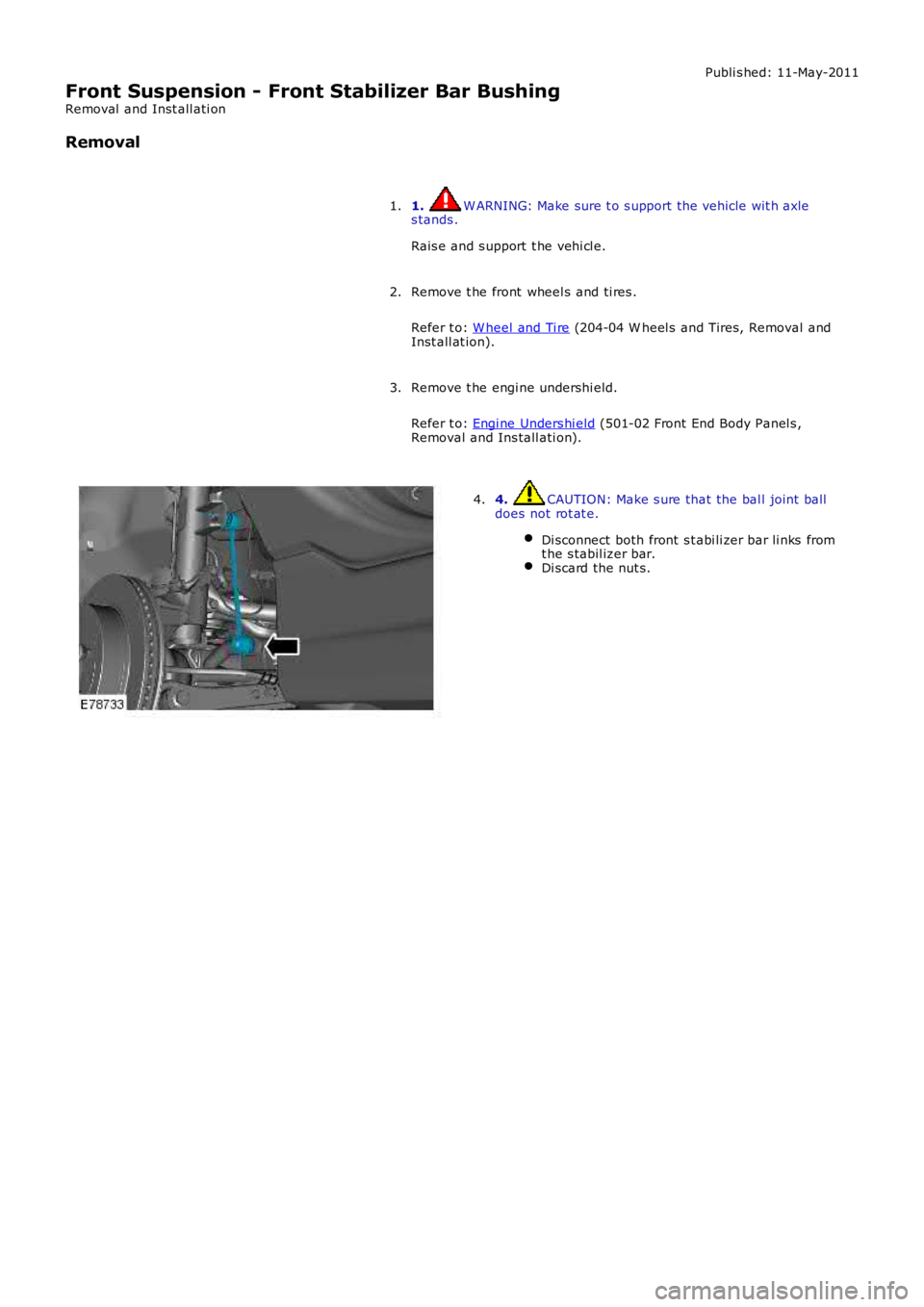

1. W ARNING: Make sure t o s upport the vehicle wit h axles tands .
Rais e and s upport t he vehi cl e.
1.
Remove t he front wheel s and ti res .
Refer t o: W heel and Ti re (204-04 W heel s and Tires, Removal andInst all at ion).
2.
Remove t he engi ne undershi eld.
Refer t o: Engi ne Unders hi eld (501-02 Front End Body Panel s ,Removal and Ins tall ati on).
3.
4. CAUTION: Make s ure that the bal l joint balldoes not rot at e.
Di sconnect both front s t abi li zer bar li nks fromt he s tabil izer bar.Di scard the nut s.
4.
Page 214 of 3229

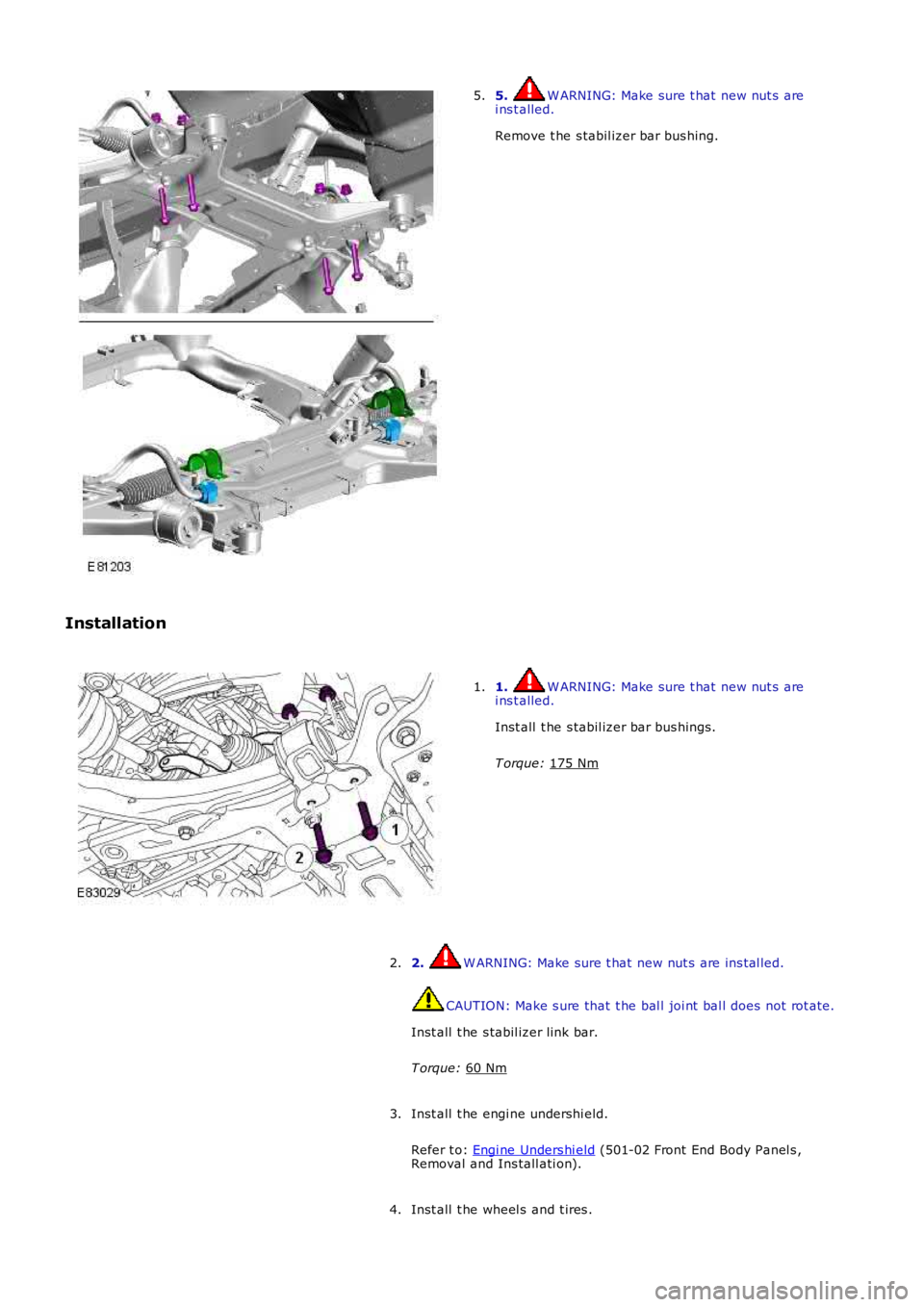

5. W ARNING: Make sure t hat new nut s are
i ns t alled.
Remove t he s tabil izer bar bus hing.
5.
Installation 1. W ARNING: Make sure t hat new nut s are
i ns t alled.
Inst all t he s tabil izer bar bus hings.
T orque: 175 Nm 1.
2. W ARNING: Make sure t hat new nut s are ins tal led.
CAUTION: Make s ure that t he bal l joi nt bal l does not rot ate.
Inst all t he s tabil izer link bar.
T orque: 60 Nm 2.
Inst all t he engi ne undershi eld.
Refer t o: Engi ne Unders hi eld (501-02 Front End Body Panel s ,
Removal and Ins tall ati on).
3.
Inst all t he wheel s and t ires .
4.
Page 215 of 3229

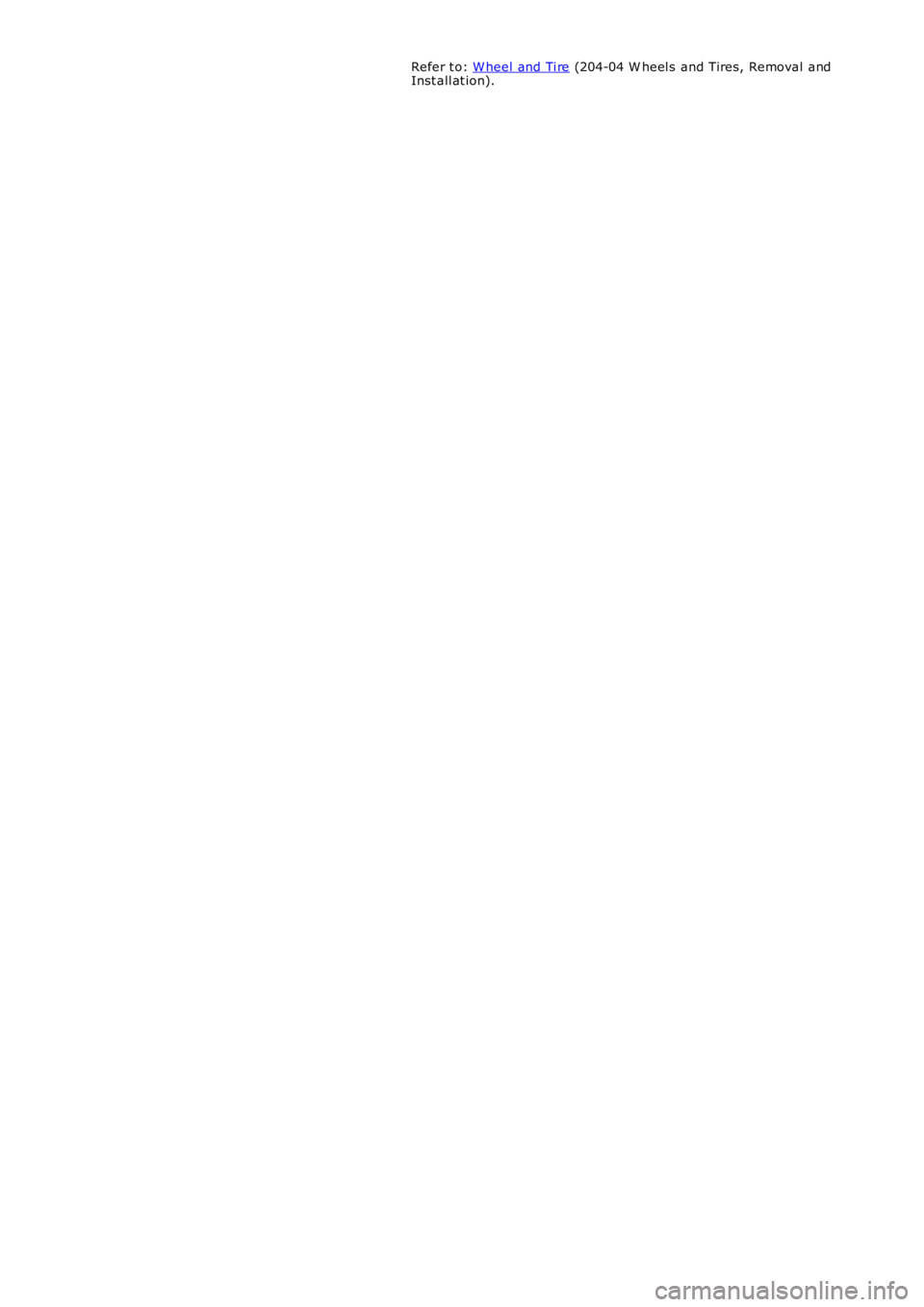

Refer t o: W heel and Ti re (204-04 W heel s and Tires, Removal andInst all at ion).
Page 216 of 3229
Publi s hed: 11-May-2011
Front Suspension - Front Stabilizer Bar Link
Removal and Inst all ati on
Removal
1. W ARNING: Do not work on or under a vehi cle s upported onl y
by a jack. Al ways support t he vehi cl e on s afet y s tands .
Rais e and s upport t he vehi cl e.
1.
Remove t he front wheel .
Refer t o: W heel and Ti re (204-04 W heel s and Tires, Removal and
Inst all at ion).
2. 3. W ARNING: Make sure t hat new nut s are
i ns t alled. CAUTION: Us e an Al len key t o prevent the bal l
joi nt rot ati ng whils t removi ng t he nut .
T orque: 60 Nm 3.
Installation To i nst all , revers e t he removal procedure.
1.
