Page 1049 of 3229

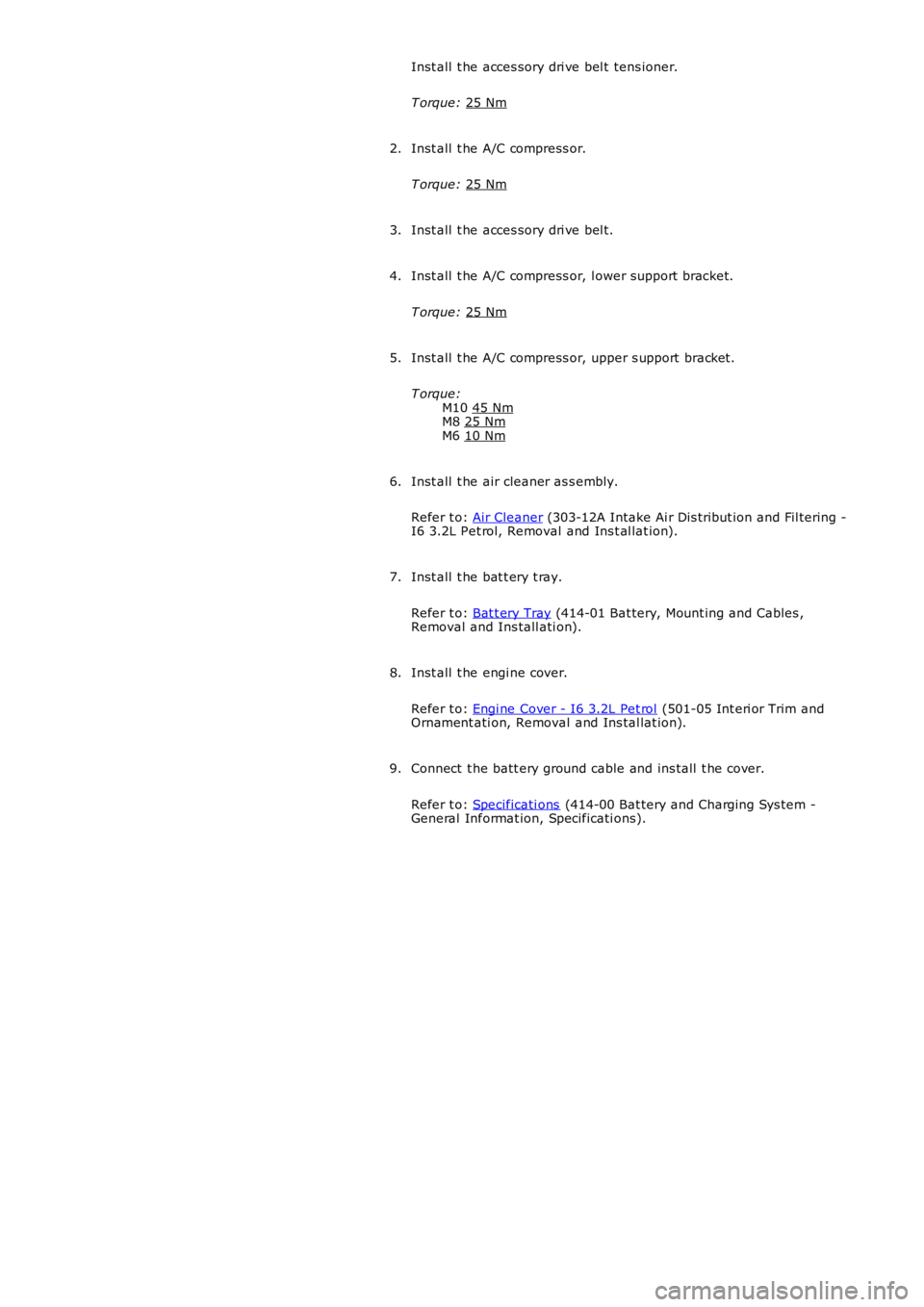

LAND ROVER FRELANDER 2 2006 Repair Manual Inst all t he acces sory dri ve bel t tens ioner. T orque: 25 Nm Inst all t he A/C compress or. T orque: 25 Nm 2. Inst all t he acces sory dri ve bel t. 3. Inst all t he A/C compress or, l ower

Page 1050 of 3229

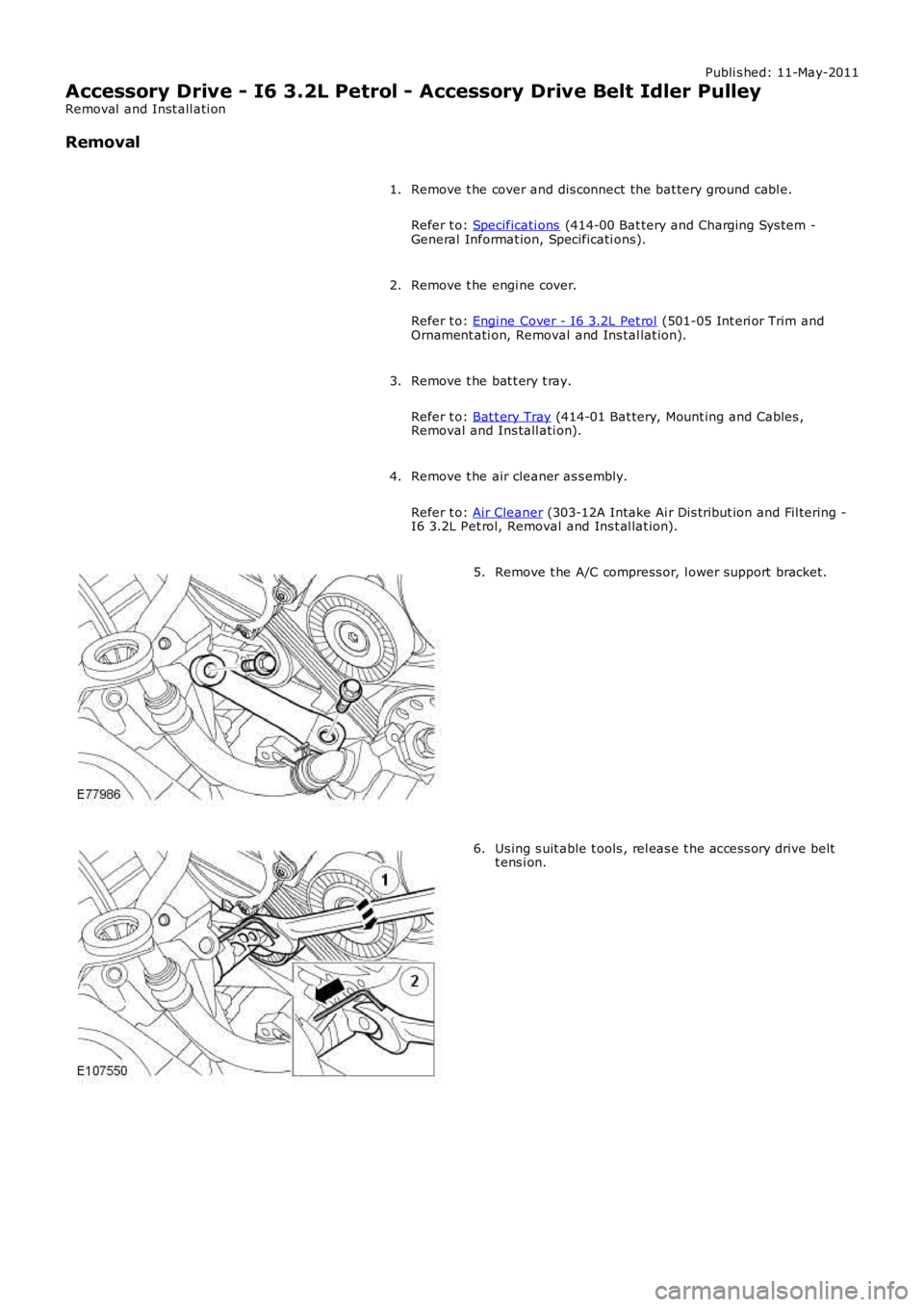

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Accessory Drive - I6 3.2L Petrol - Accessory Drive Belt Idler Pulley Removal and Inst all ati on Removal Remove t he cover and dis connect the bat tery ground cabl e. Refer t

Page 1051 of 3229

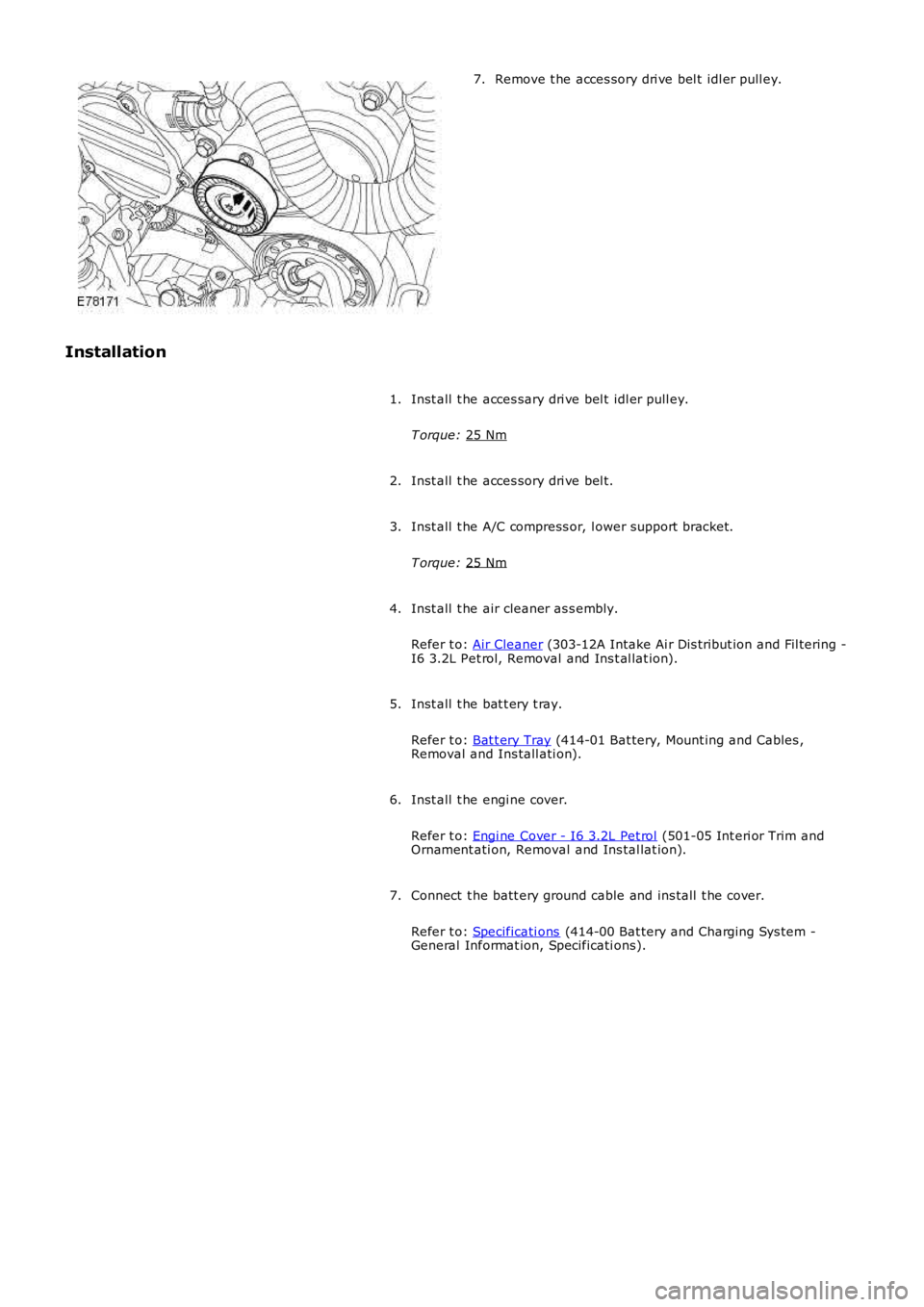

LAND ROVER FRELANDER 2 2006 Repair Manual Remove t he acces sory dri ve bel t idl er pull ey. 7. Installation Inst all t he acces sary dri ve bel t idl er pull ey. T orque: 25 Nm 1. Inst all t he acces sory dri ve bel t. 2. Inst all t he

Page 1052 of 3229

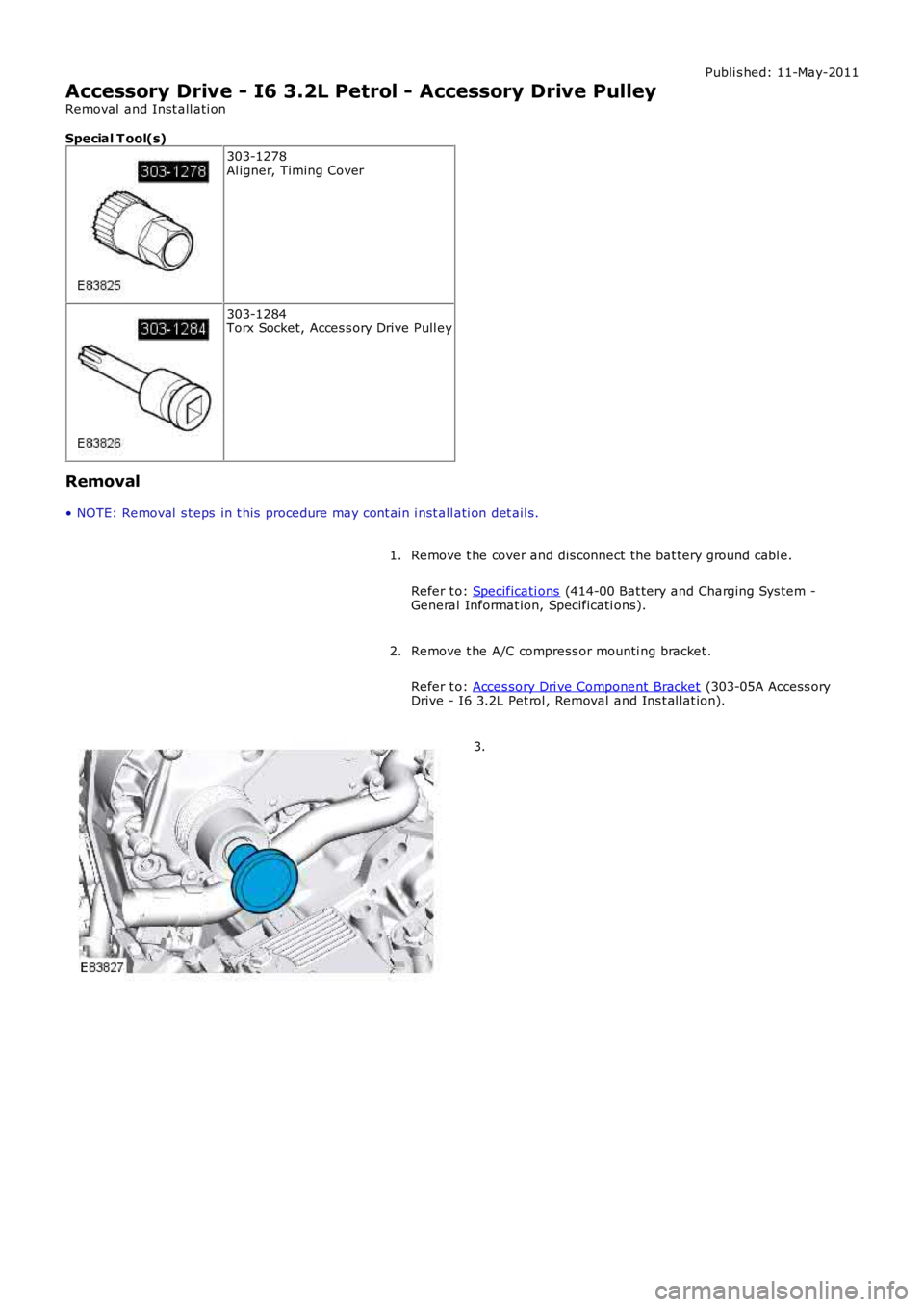

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Accessory Drive - I6 3.2L Petrol - Accessory Drive Pulley Removal and Inst all ati on Special T ool(s) 303-1278Al igner, Timing Cover 303-1284Torx Socket, Acces s ory Drive P

Page 1053 of 3229

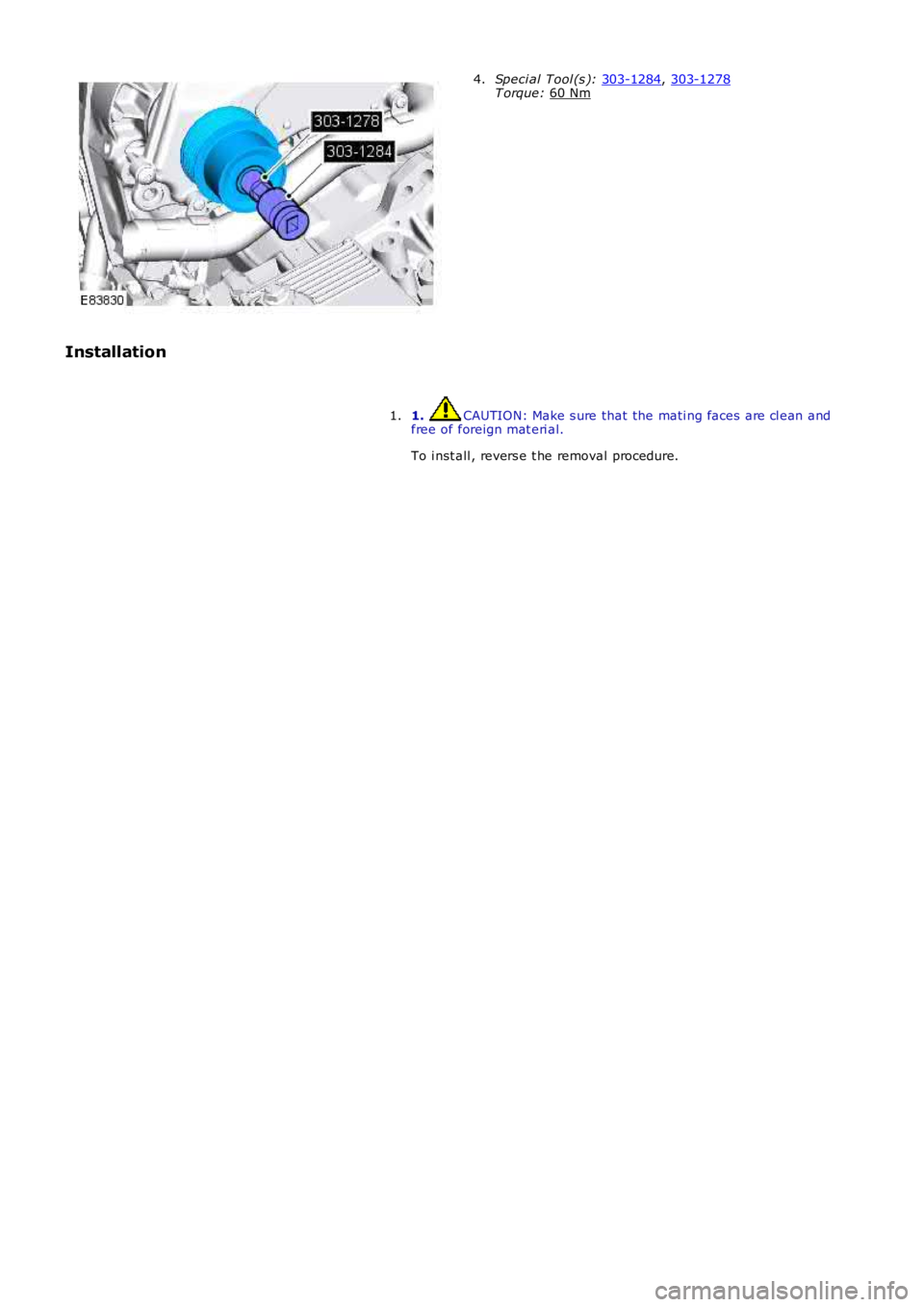

LAND ROVER FRELANDER 2 2006 Repair Manual Speci al Tool (s ): 303-1284 , 303-1278 T orque: 60 Nm 4. Installation 1. CAUTION: Make s ure that the mati ng faces are cl ean and free of foreign mat eri al. To i nst all , revers e t he removal

Page 1054 of 3229

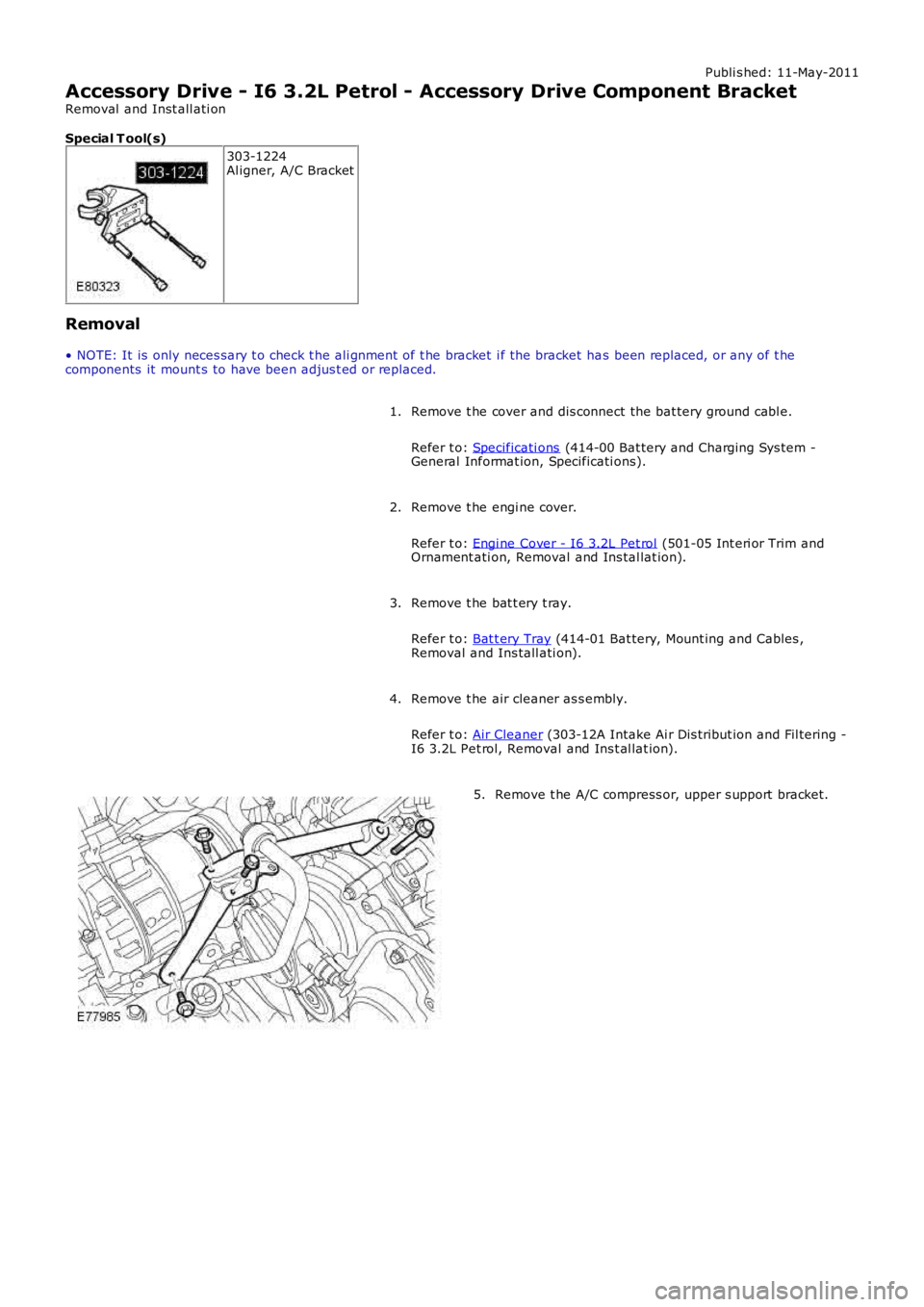

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Accessory Drive - I6 3.2L Petrol - Accessory Drive Component Bracket Removal and Inst all ati on Special T ool(s) 303-1224Al igner, A/C Bracket Removal • NOTE: It is only

Page 1055 of 3229

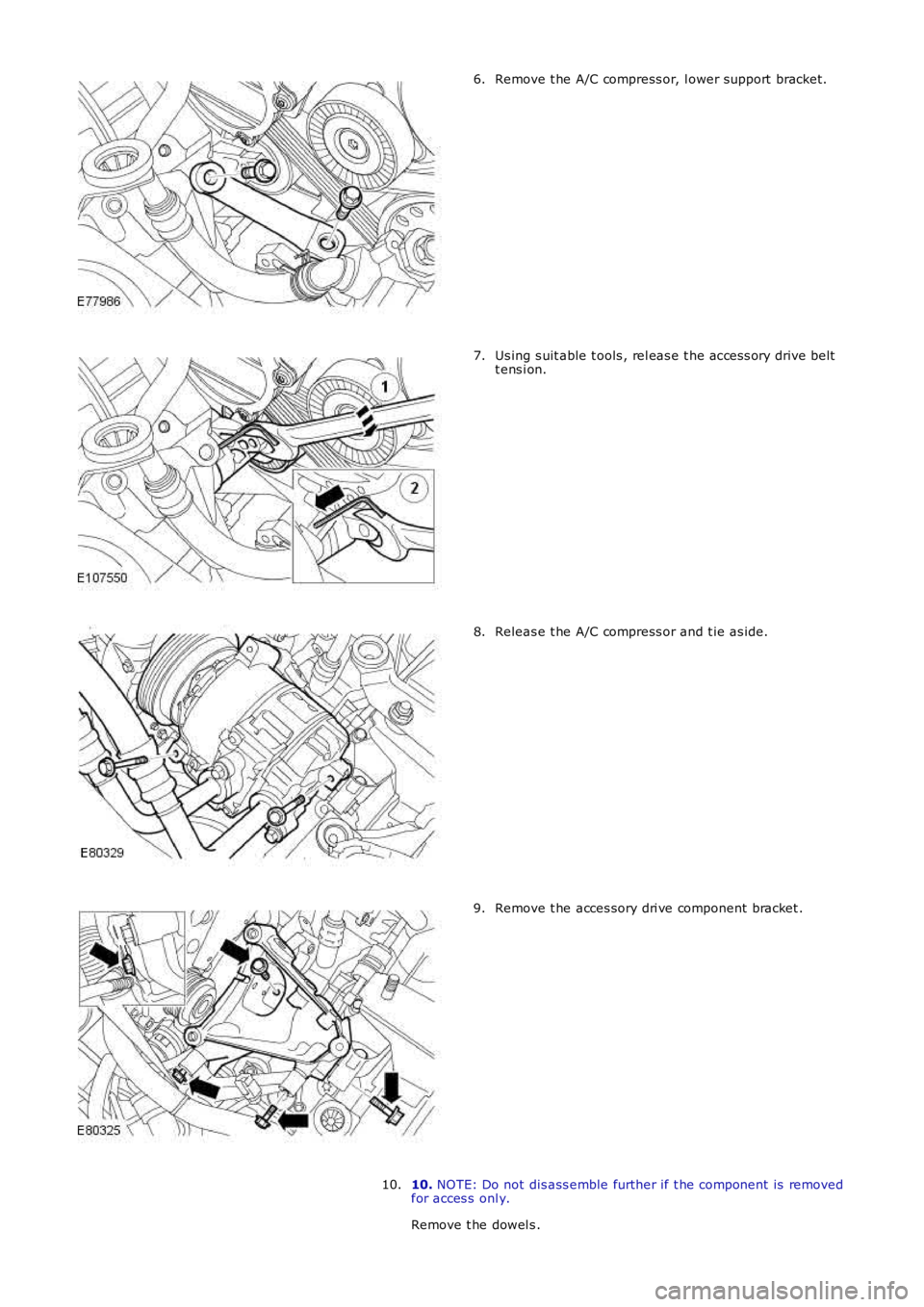

LAND ROVER FRELANDER 2 2006 Repair Manual Remove t he A/C compress or, l ower support bracket.6. Us ing s uit able t ools , rel eas e t he acces s ory drive beltt ens i on.7. Releas e t he A/C compress or and t ie as ide.8. Remove t he acces

Page 1056 of 3229

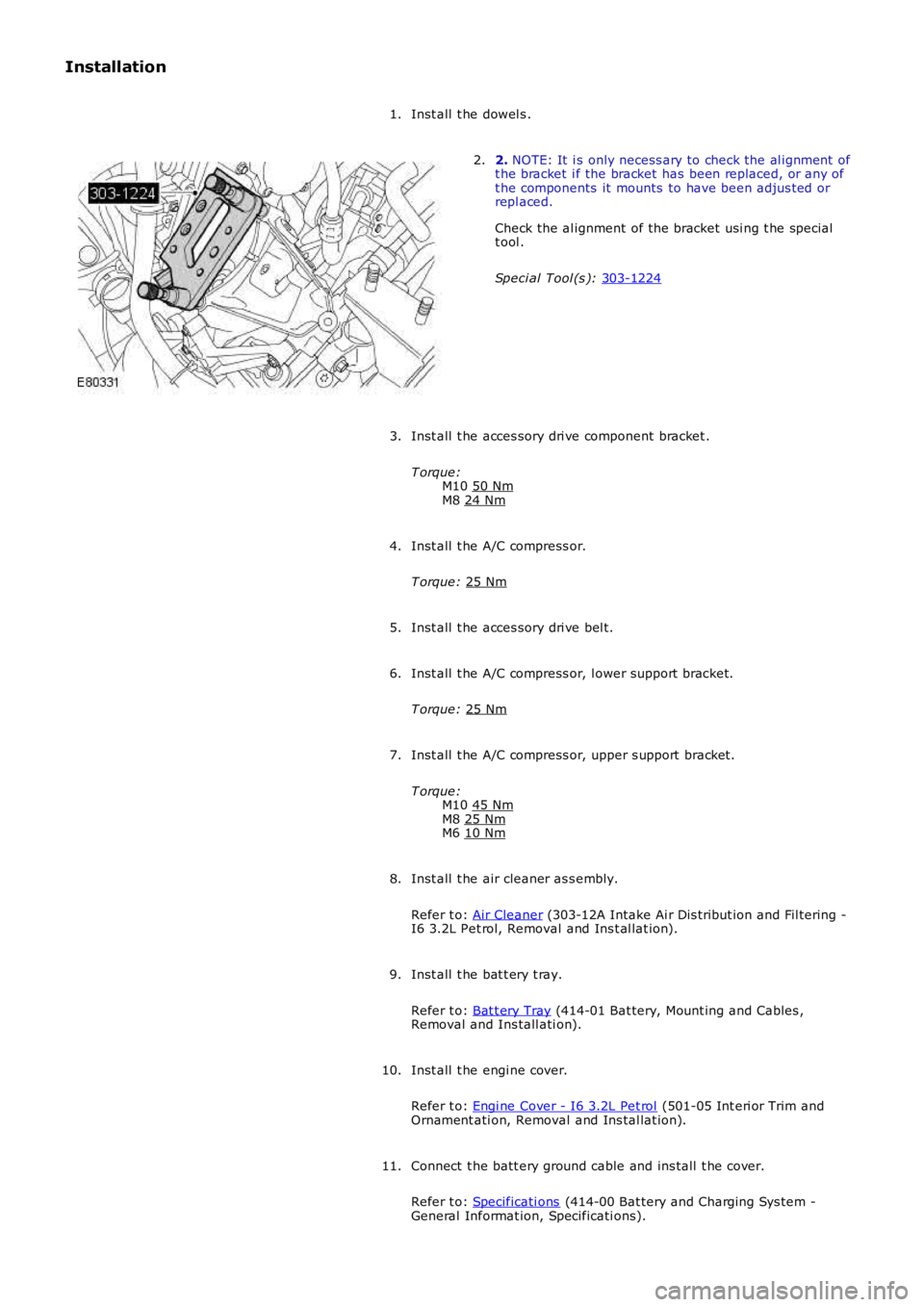

LAND ROVER FRELANDER 2 2006 Repair Manual Installation Inst all t he dowel s . 1. 2. NOTE: It i s only necess ary to check the al ignment of t he bracket i f the bracket has been replaced, or any of t he components it mounts to have
