Page 2145 of 3229

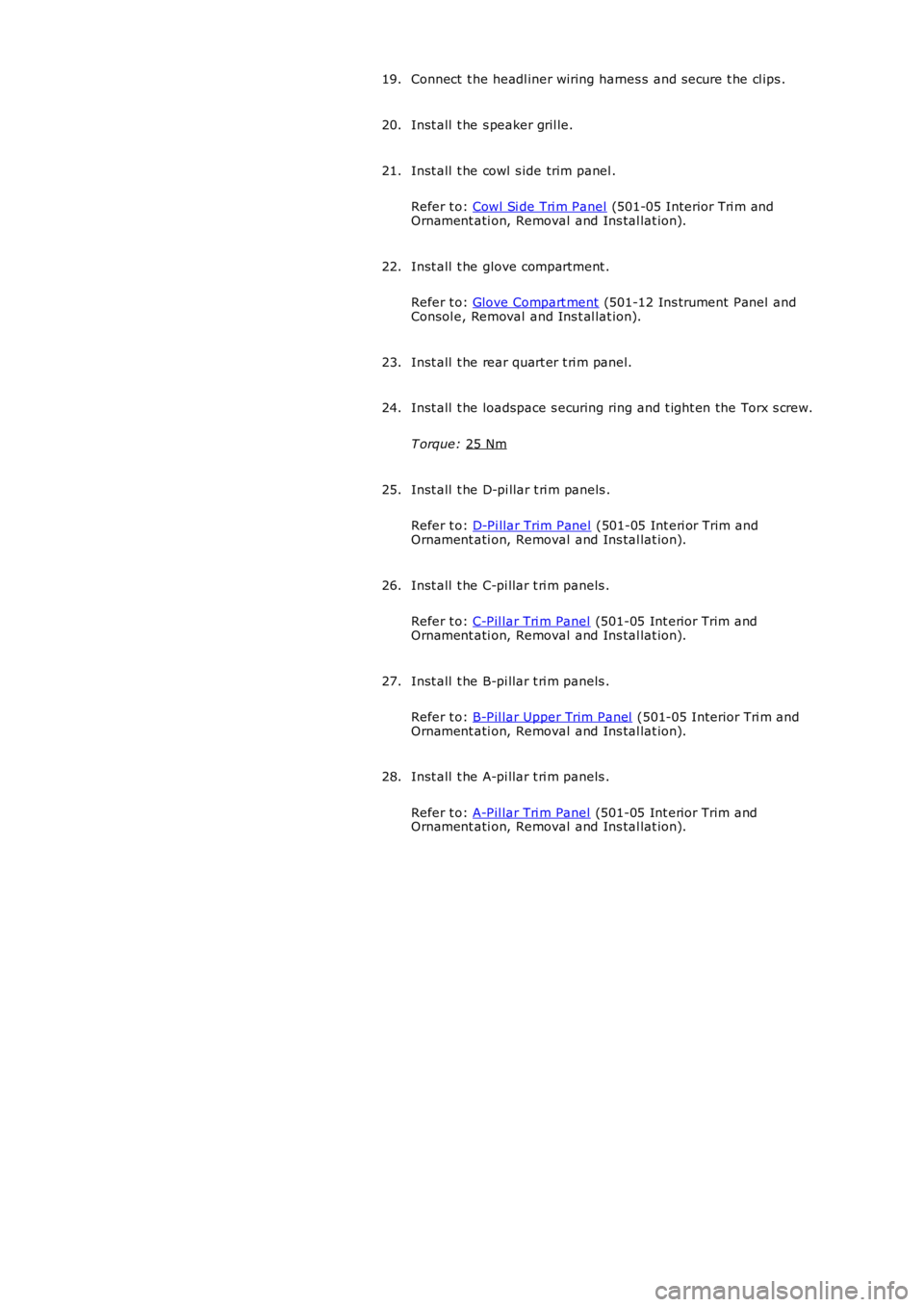

LAND ROVER FRELANDER 2 2006 Repair Manual Connect t he headl iner wiring harnes s and s ecure t he cl ips . 19. Inst all t he s peaker gril le. 20. Inst all t he cowl s ide trim panel . Refer t o: Cowl Si de Tri m Panel (501-05 Interio

Page 2146 of 3229

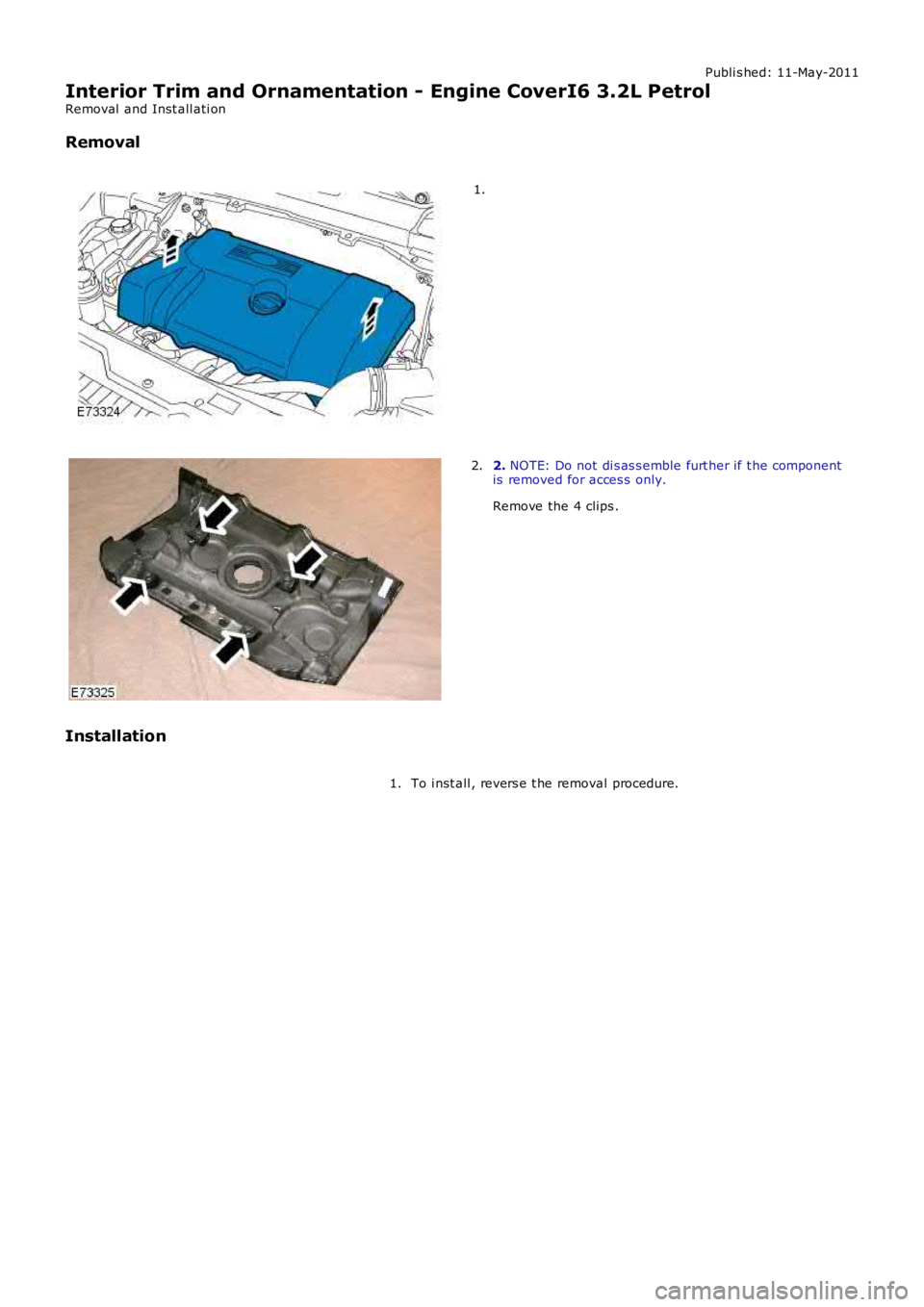

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Interior Trim and Ornamentation - Engine CoverI6 3.2L Petrol Removal and Inst all ati on Removal 1. 2. NOTE: Do not di s as s emble furt her if t he componentis removed for

Page 2147 of 3229

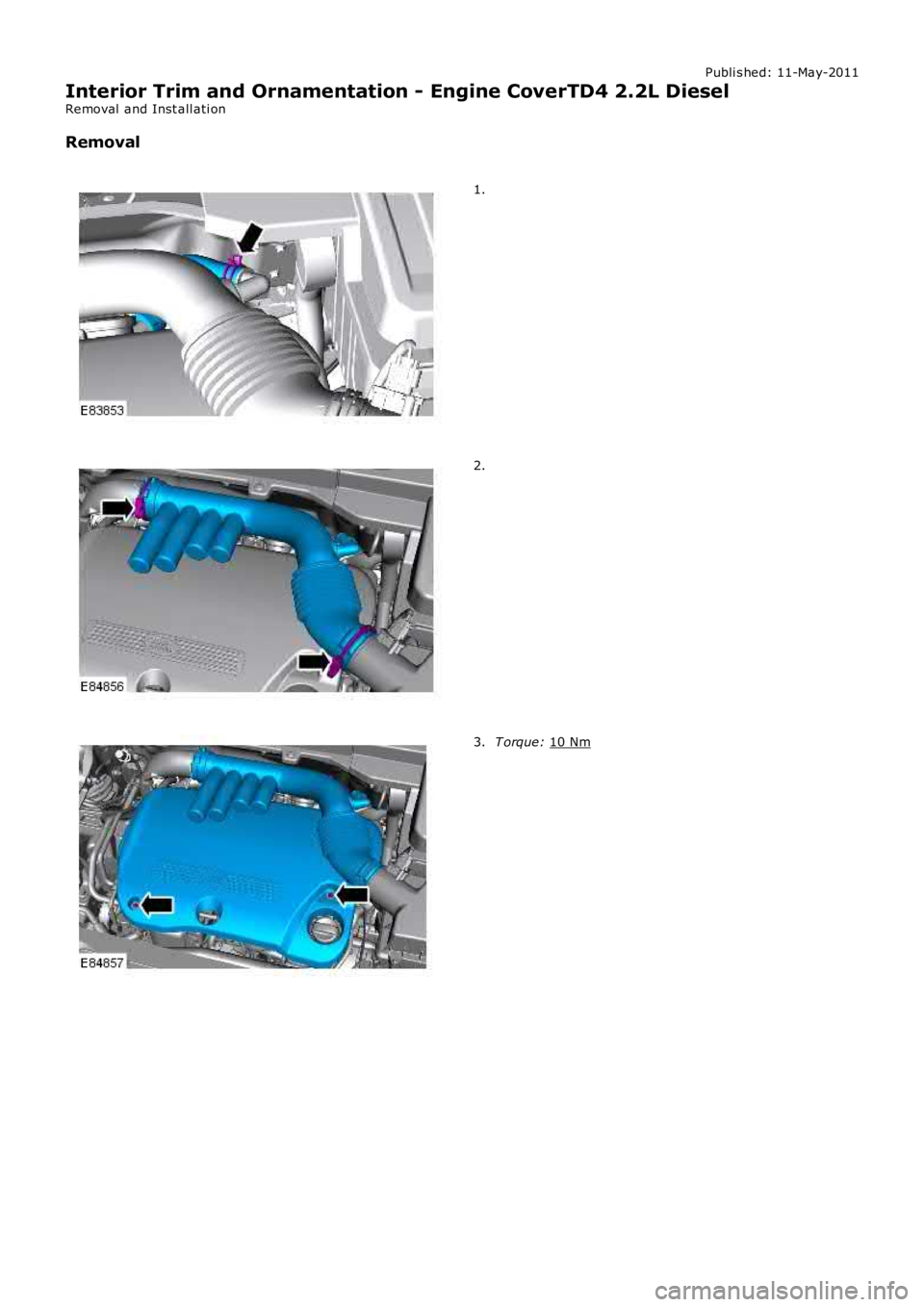

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Interior Trim and Ornamentation - Engine CoverTD4 2.2L Diesel Removal and Inst all ati on Removal 1. 2. T orque: 10 Nm 3.

Page 2148 of 3229

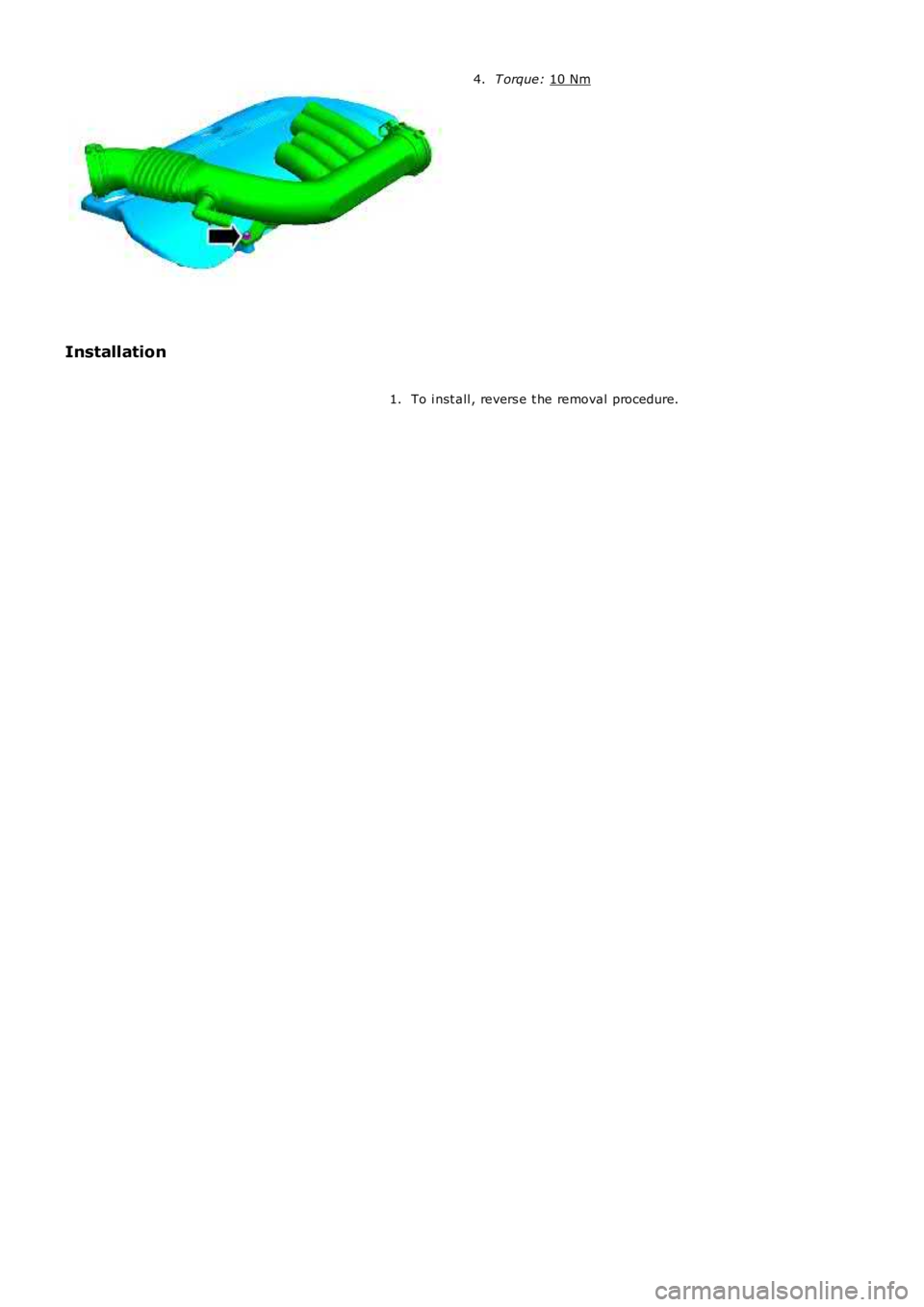

LAND ROVER FRELANDER 2 2006 Repair Manual T orque: 10 Nm 4. Installation To i nst all , revers e t he removal procedure. 1.

Page 2149 of 3229

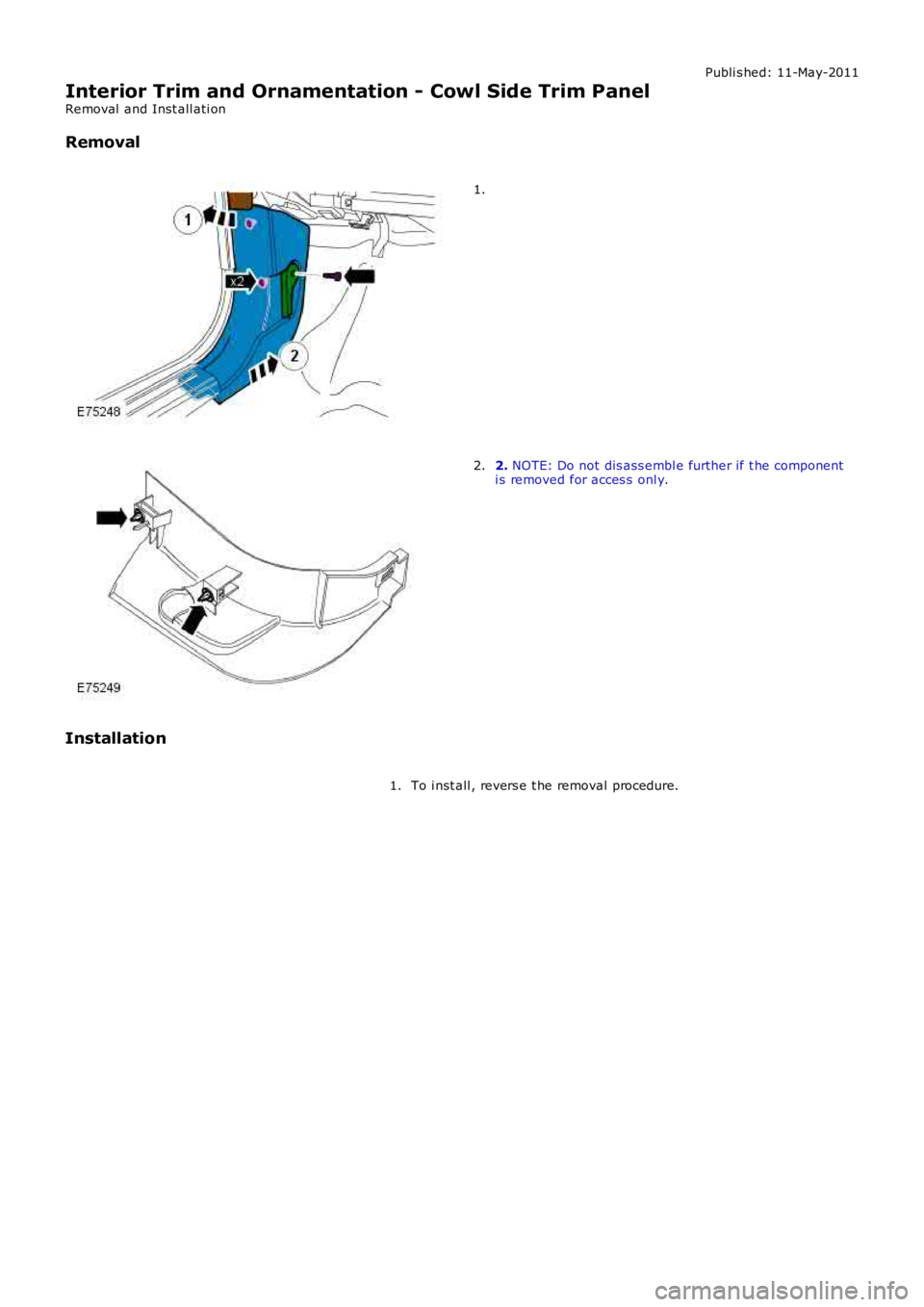

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Interior Trim and Ornamentation - Cowl Side Trim Panel Removal and Inst all ati on Removal 1. 2. NOTE: Do not dis ass embl e further if t he component i s removed for acces

Page 2150 of 3229

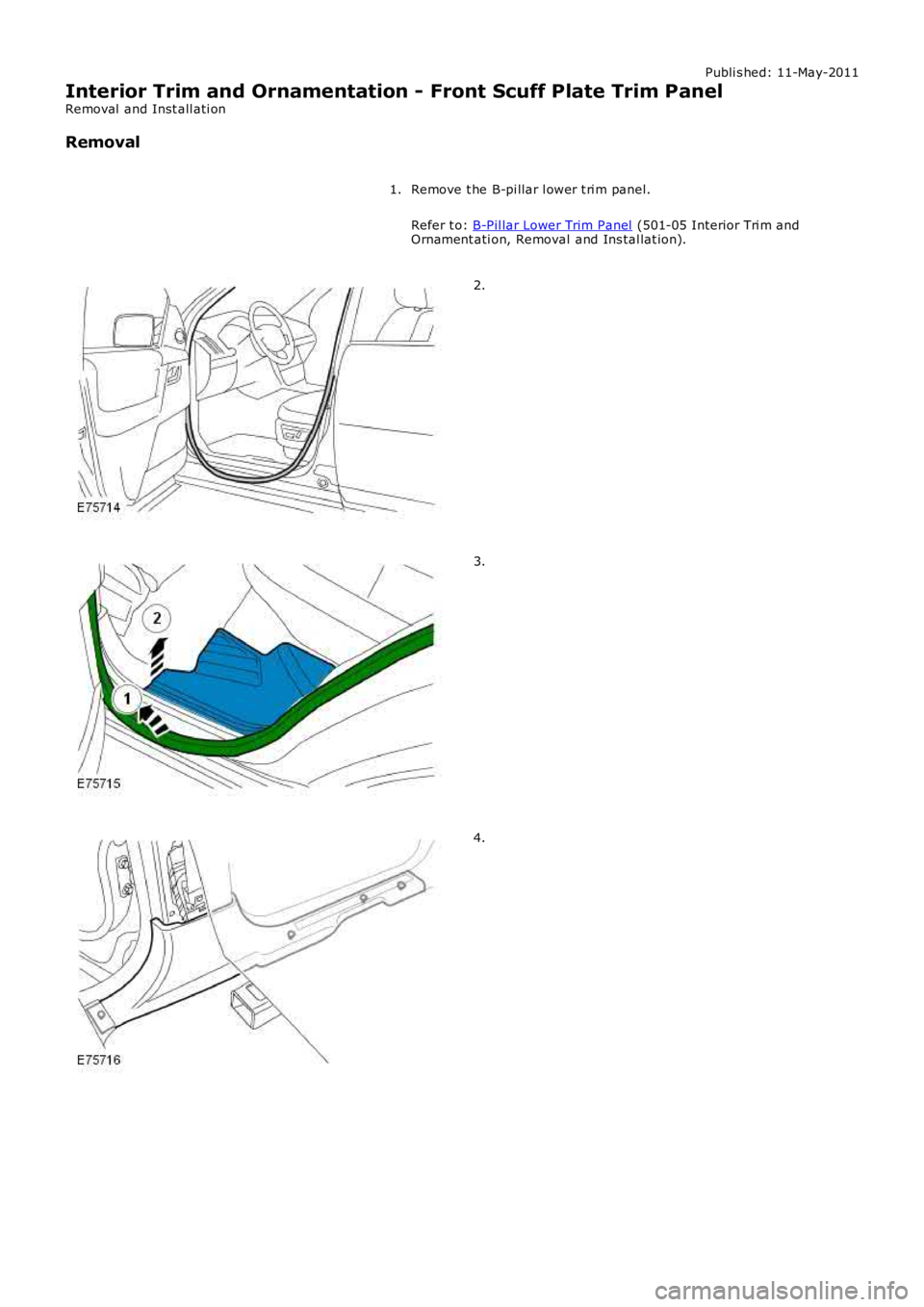

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Interior Trim and Ornamentation - Front Scuff Plate Trim Panel Removal and Inst all ati on Removal Remove t he B-pi llar l ower t ri m panel. Refer t o: B-Pil lar Lower Trim

Page 2151 of 3229

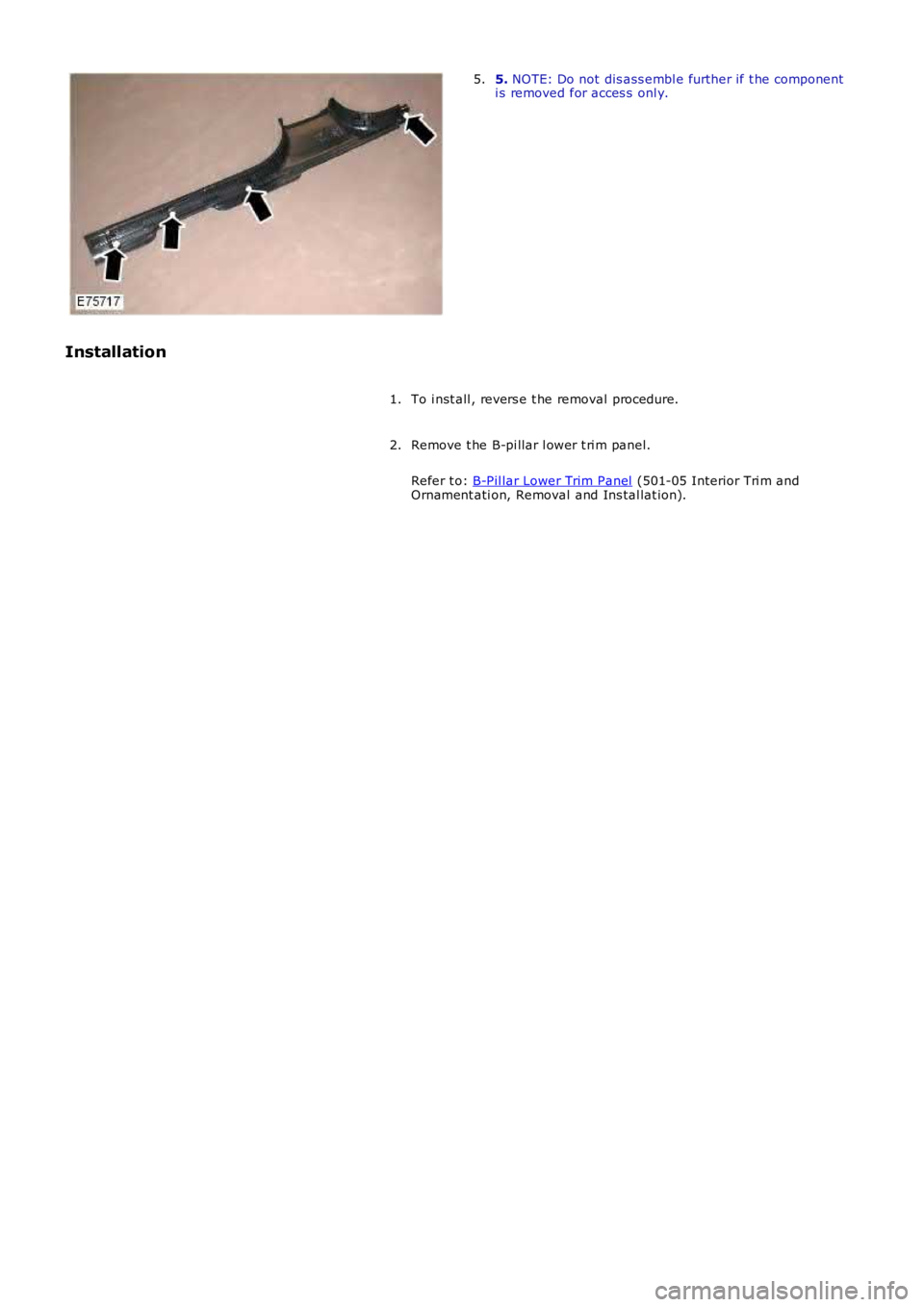

LAND ROVER FRELANDER 2 2006 Repair Manual 5. NOTE: Do not dis ass embl e further if t he componenti s removed for acces s onl y.5. Installation To i nst all , revers e t he removal procedure.1. Remove t he B-pi llar l ower t ri m panel. Refe

Page 2152 of 3229

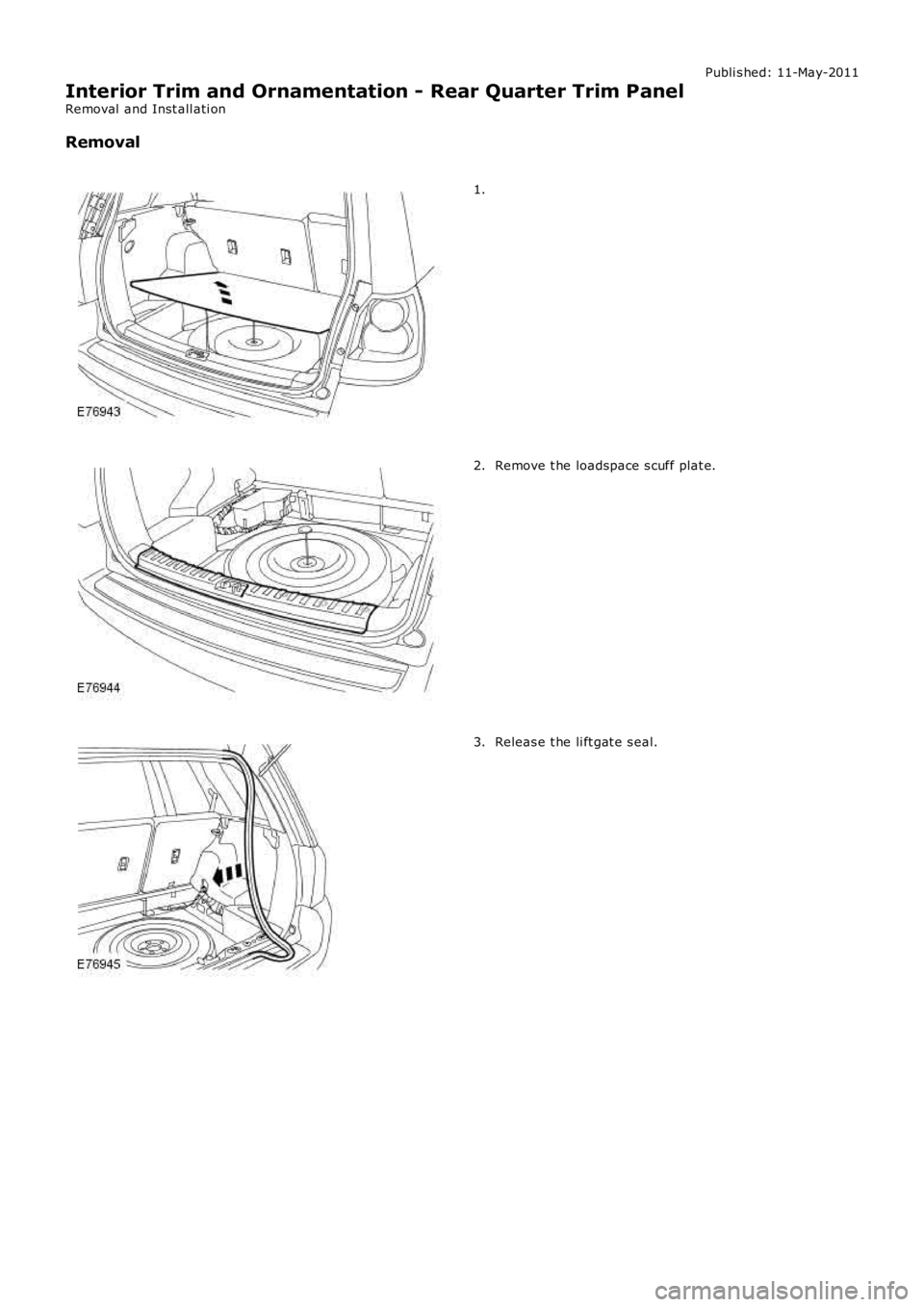

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Interior Trim and Ornamentation - Rear Quarter Trim Panel Removal and Inst all ati on Removal 1. Remove t he loadspace s cuff plat e.2. Releas e t he li ft gat e s eal.3.
