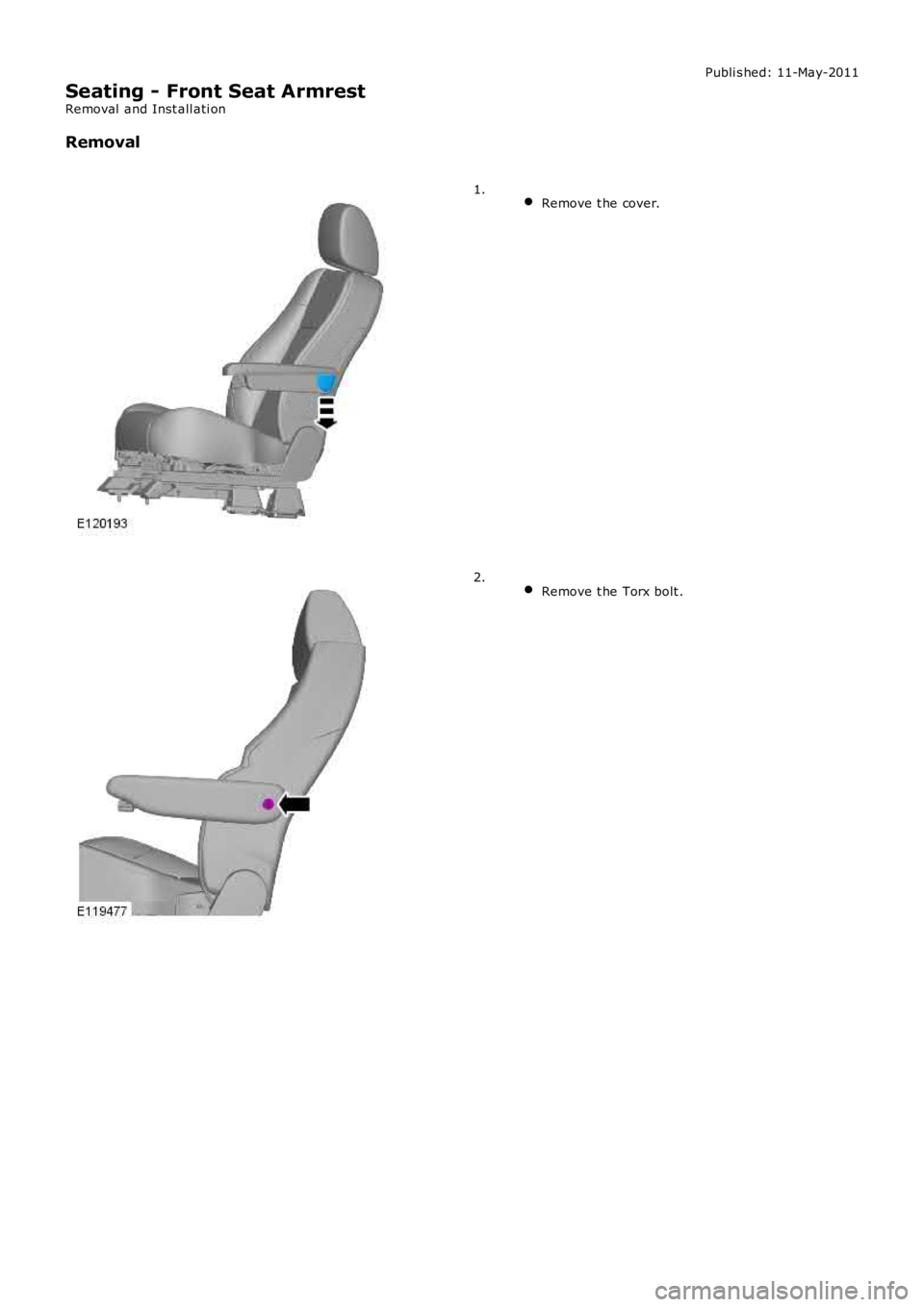

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Seating - Front Seat Armrest Removal and Inst all ati on Removal Remove t he cover.1. Remove t he Torx bolt .2.

Page 2210 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual 3. CAUTION: Make s ure that the seat armres t s loti s correctl y ali gned before removing t he s eat armres t .Fail ure t o fol low thi s ins truct ion may res ult i n damaget o t he vehi cl e. Ra

Page 2211 of 3229

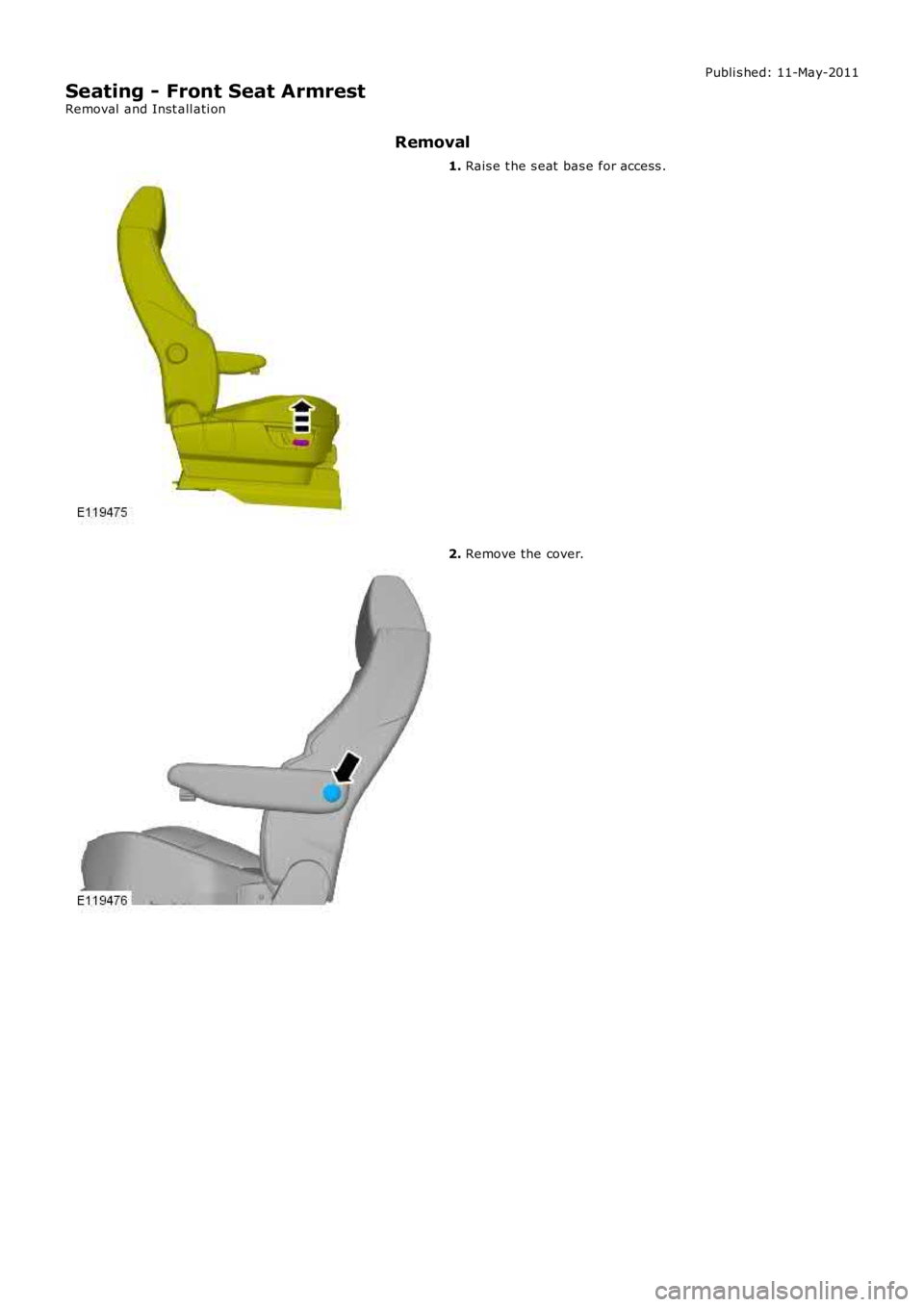

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Seating - Front Seat Armrest Removal and Inst all ati on Removal 1. Rais e t he s eat bas e for access . 2. Remove the cover.

Page 2212 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual 3. Remove the Torx bolt . 4. CAUTION: Make s ure that the seat armres t s lot iscorrect ly al igned before removing t he s eat armrest . Failure t ofol low thi s ins truct ion may res ult i n damage

Page 2213 of 3229

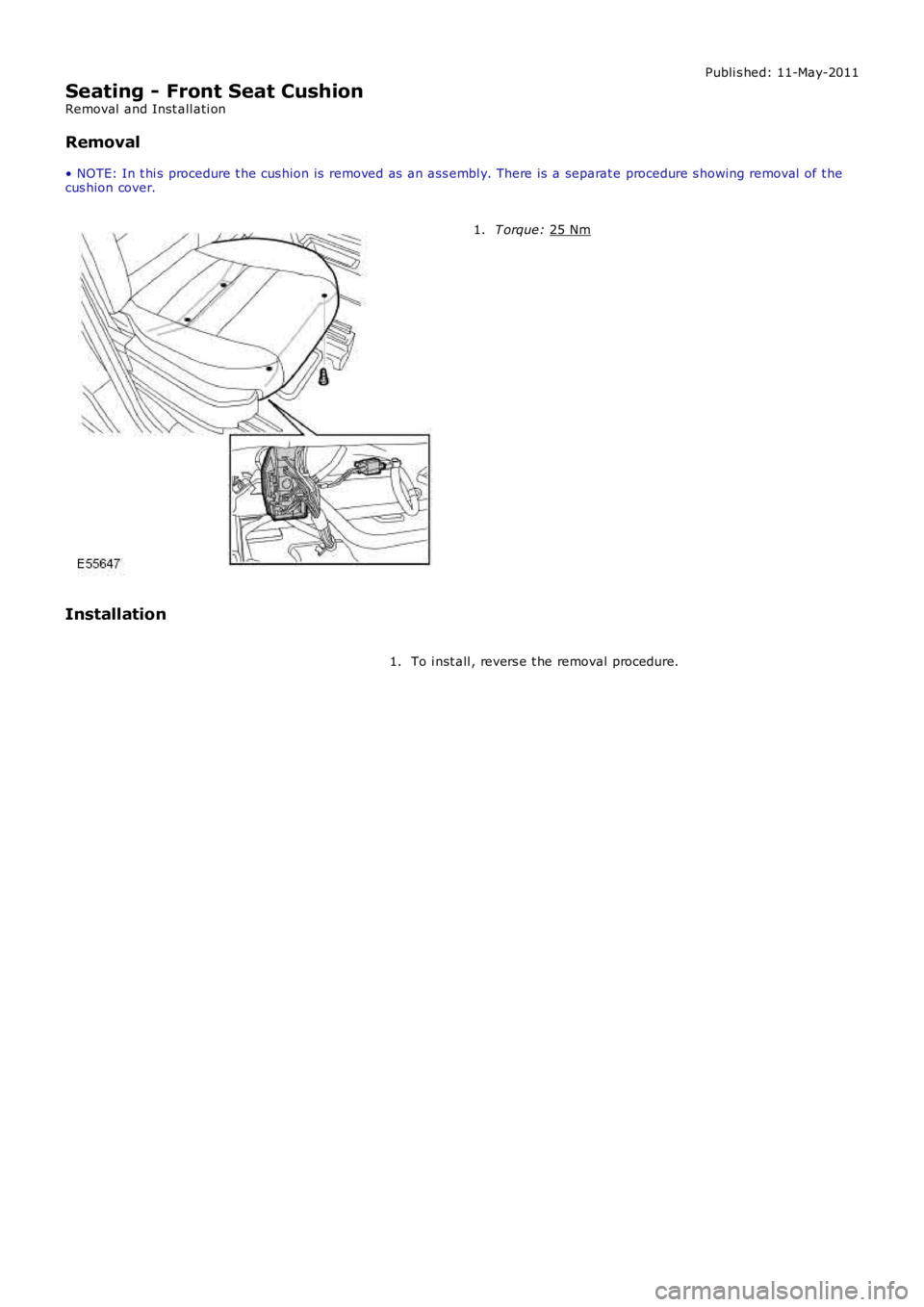

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Seating - Front Seat Cushion Removal and Inst all ati on Removal • NOTE: In t hi s procedure t he cus hion is removed as an ass embl y. There is a separat e procedure

Page 2214 of 3229

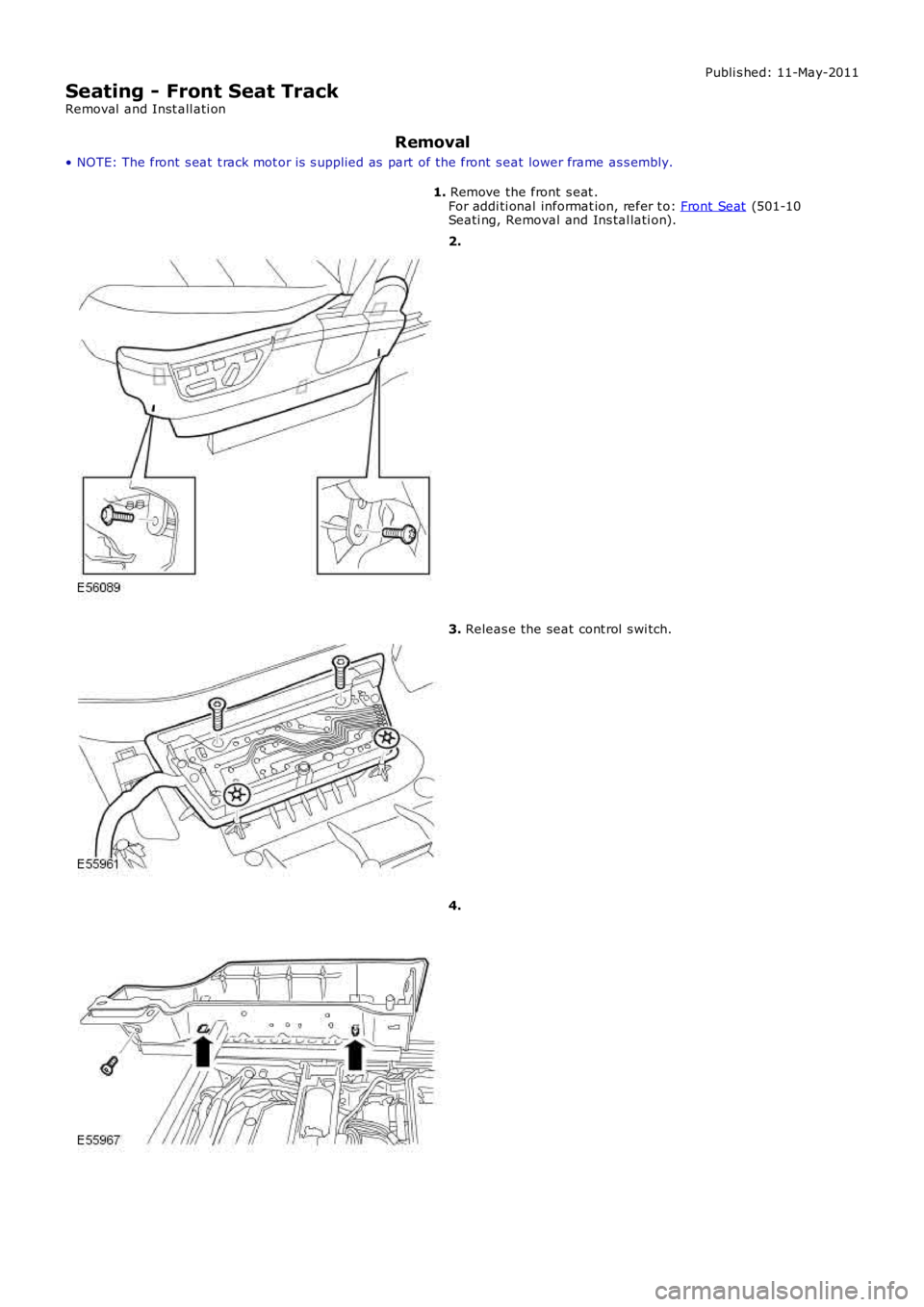

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Seating - Front Seat Track Removal and Inst all ati on Removal • NOTE: The front s eat t rack mot or is s upplied as part of the front s eat lower frame as s embly. 1.

Page 2215 of 3229

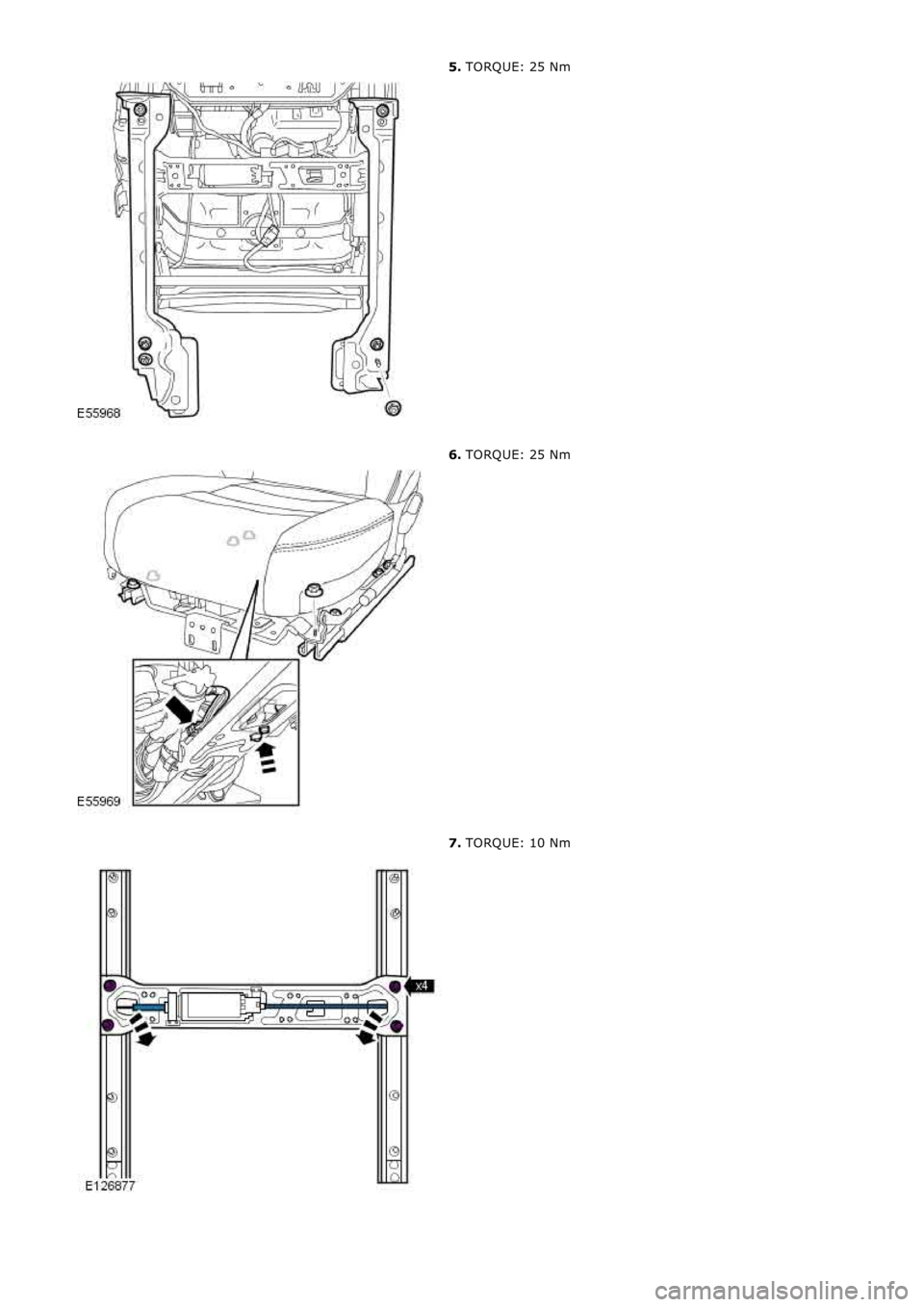

LAND ROVER FRELANDER 2 2006 Repair Manual 5. TORQUE: 25 Nm 6. TORQUE: 25 Nm 7. TORQUE: 10 Nm

Page 2216 of 3229

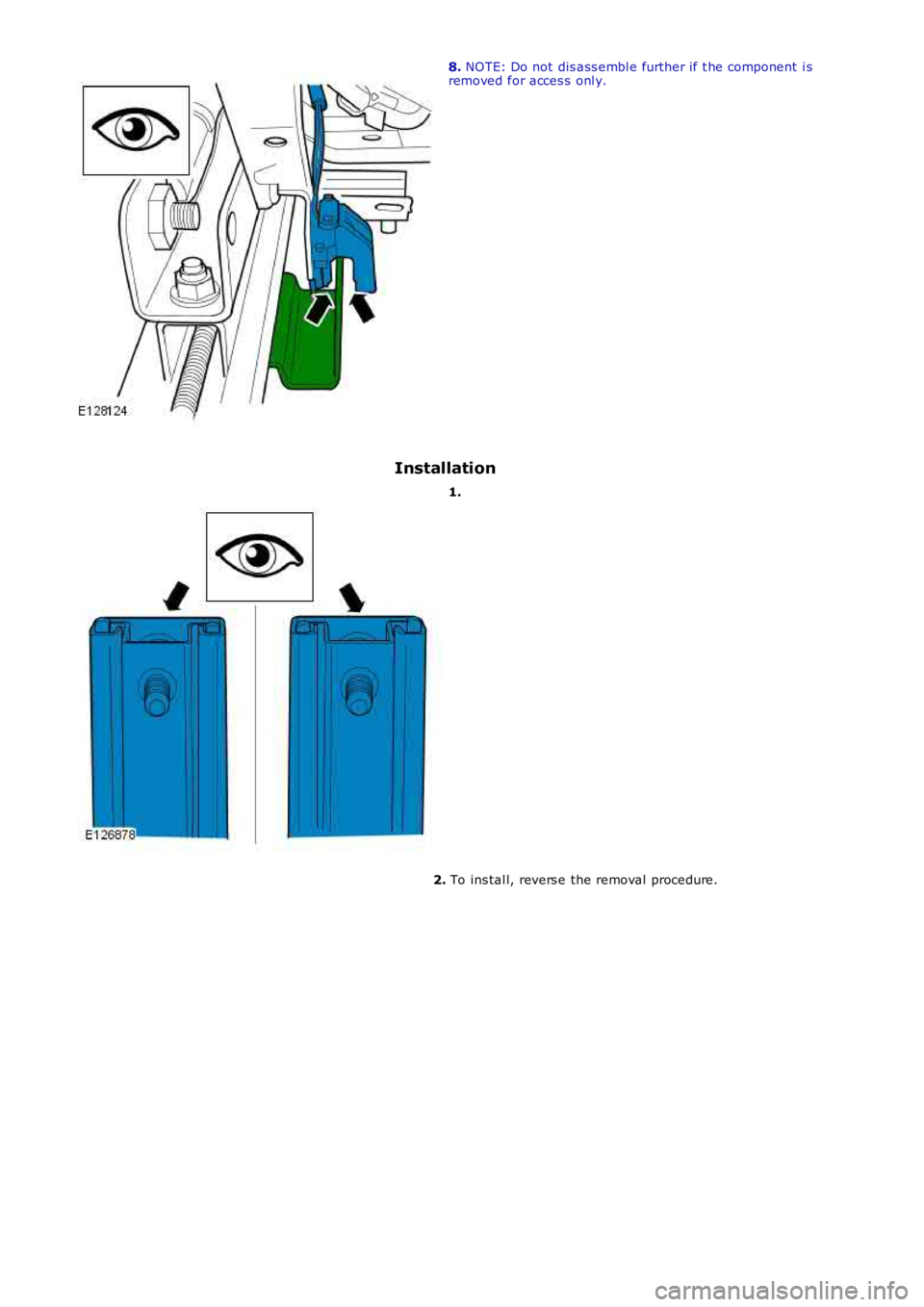

LAND ROVER FRELANDER 2 2006 Repair Manual 8. NOTE: Do not dis ass embl e further if t he component i sremoved for acces s onl y. Installation 1. 2. To ins tal l, revers e the removal procedure.
