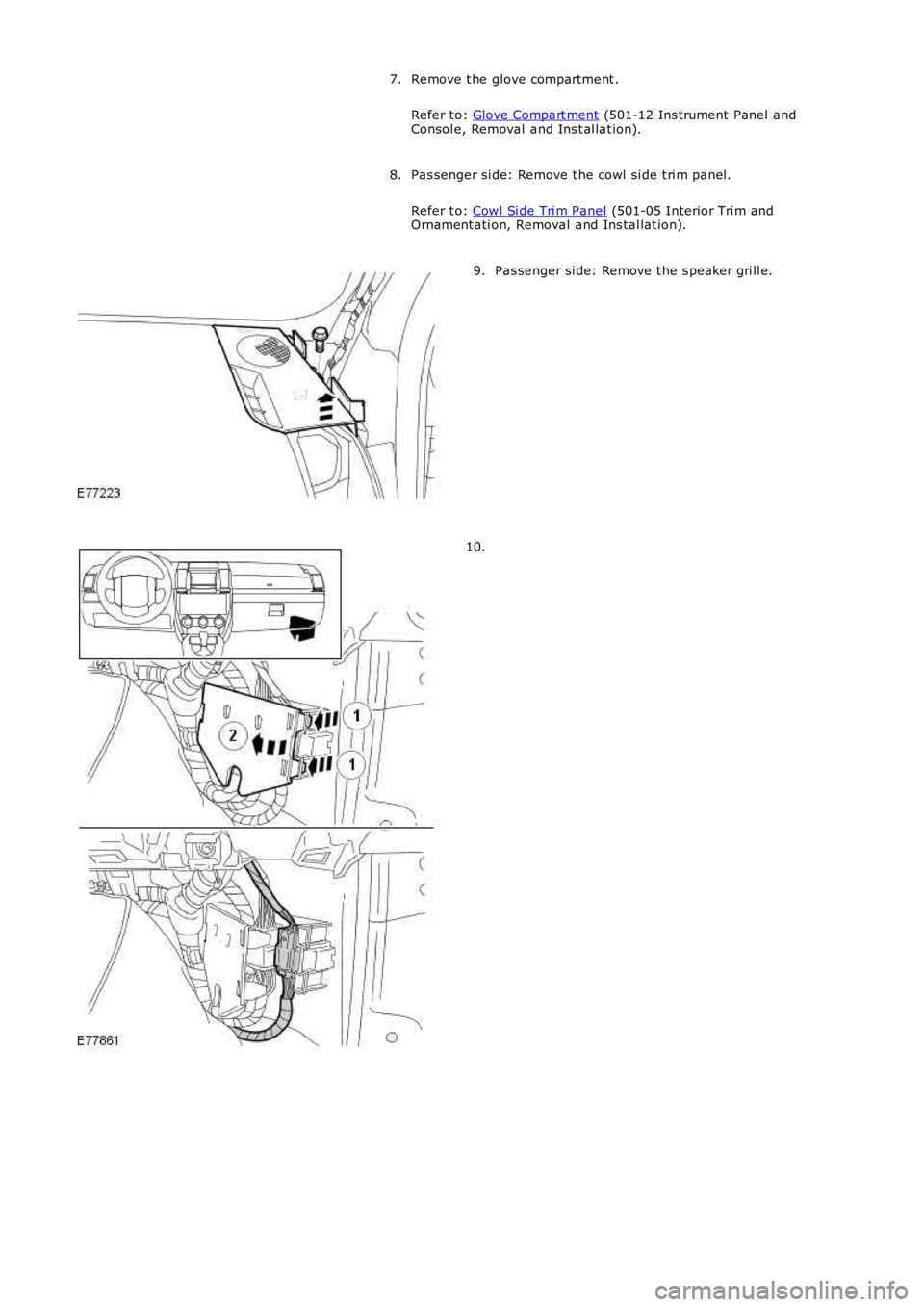

LAND ROVER FRELANDER 2 2006 Repair Manual Remove t he glove compartment . Refer t o: Glove Compart ment (501-12 Ins trument Panel and Consol e, Removal and Ins t al lat ion). 7. Pas senger si de: Remove t he cowl si de t ri m panel. Refer t

Page 2138 of 3229

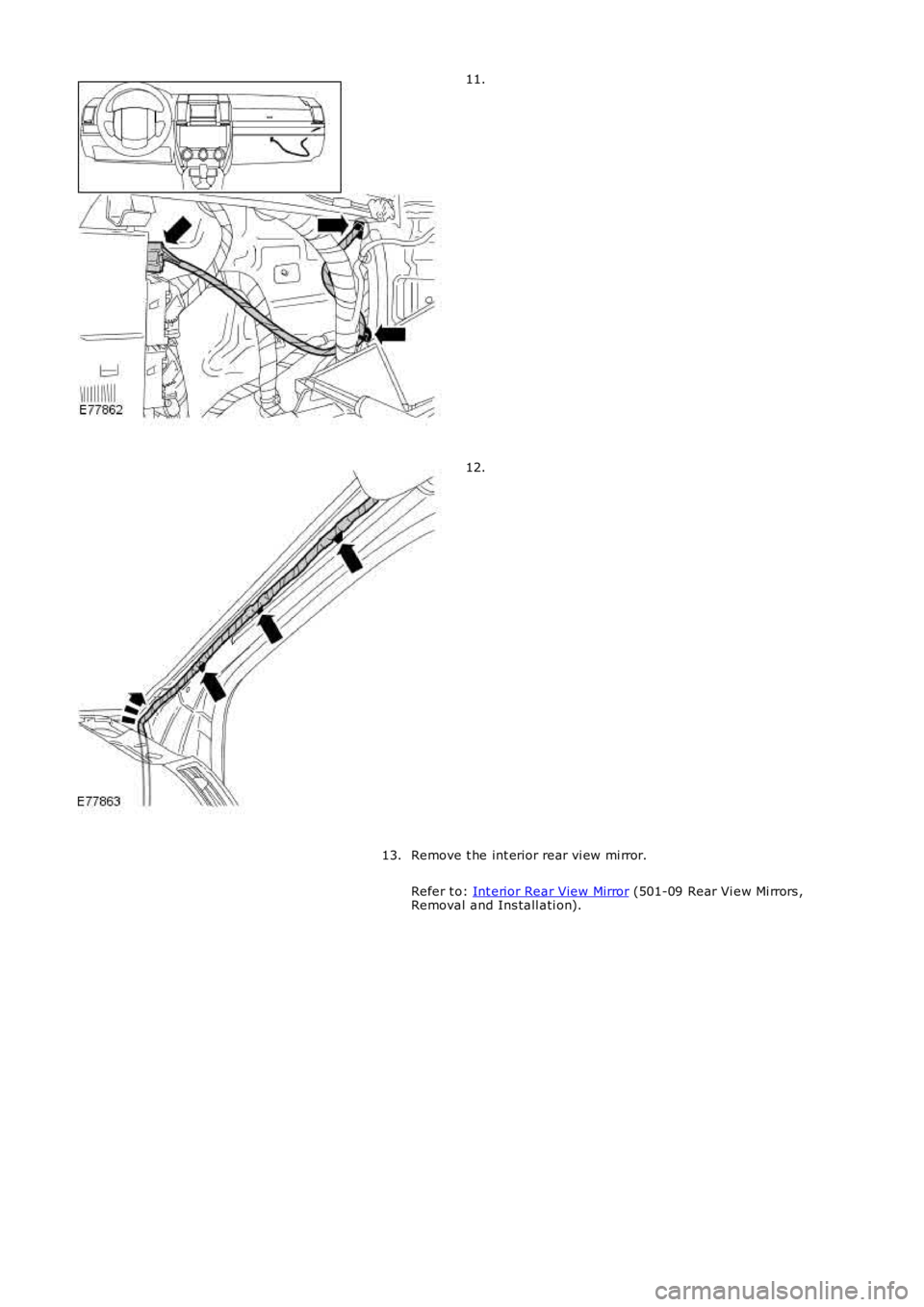

LAND ROVER FRELANDER 2 2006 Repair Manual 11. 12. Remove t he int erior rear vi ew mi rror. Refer t o: Int erior Rear View Mirror (501-09 Rear Vi ew Mi rrors , Removal and Ins tall ati on). 13.

Page 2139 of 3229

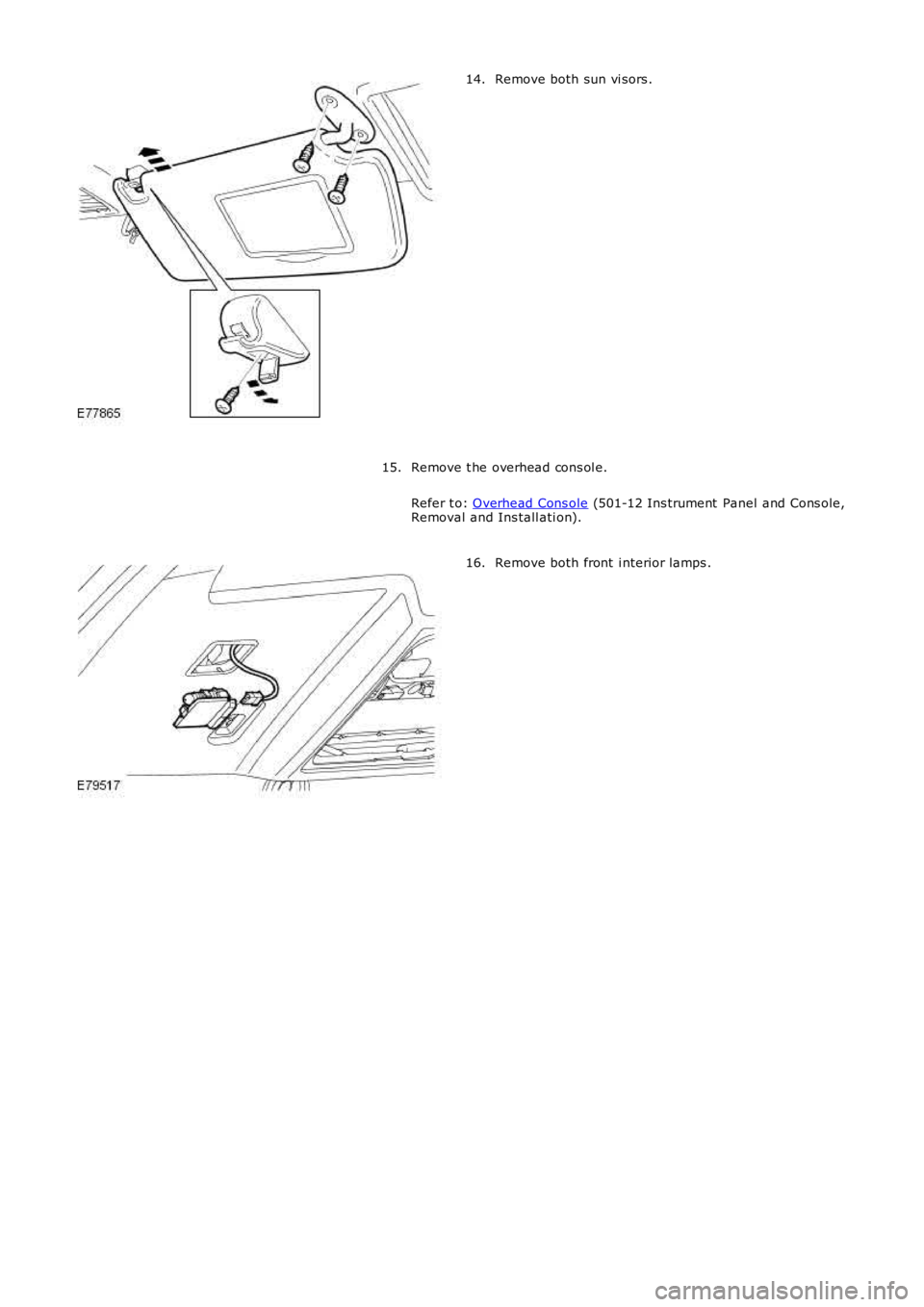

LAND ROVER FRELANDER 2 2006 Repair Manual Remove both sun vi sors . 14. Remove t he overhead cons ol e. Refer t o: Overhead Cons ole (501-12 Ins trument Panel and Cons ole, Removal and Ins tall ati on). 15. Remove both front i nterior lam

Page 2140 of 3229

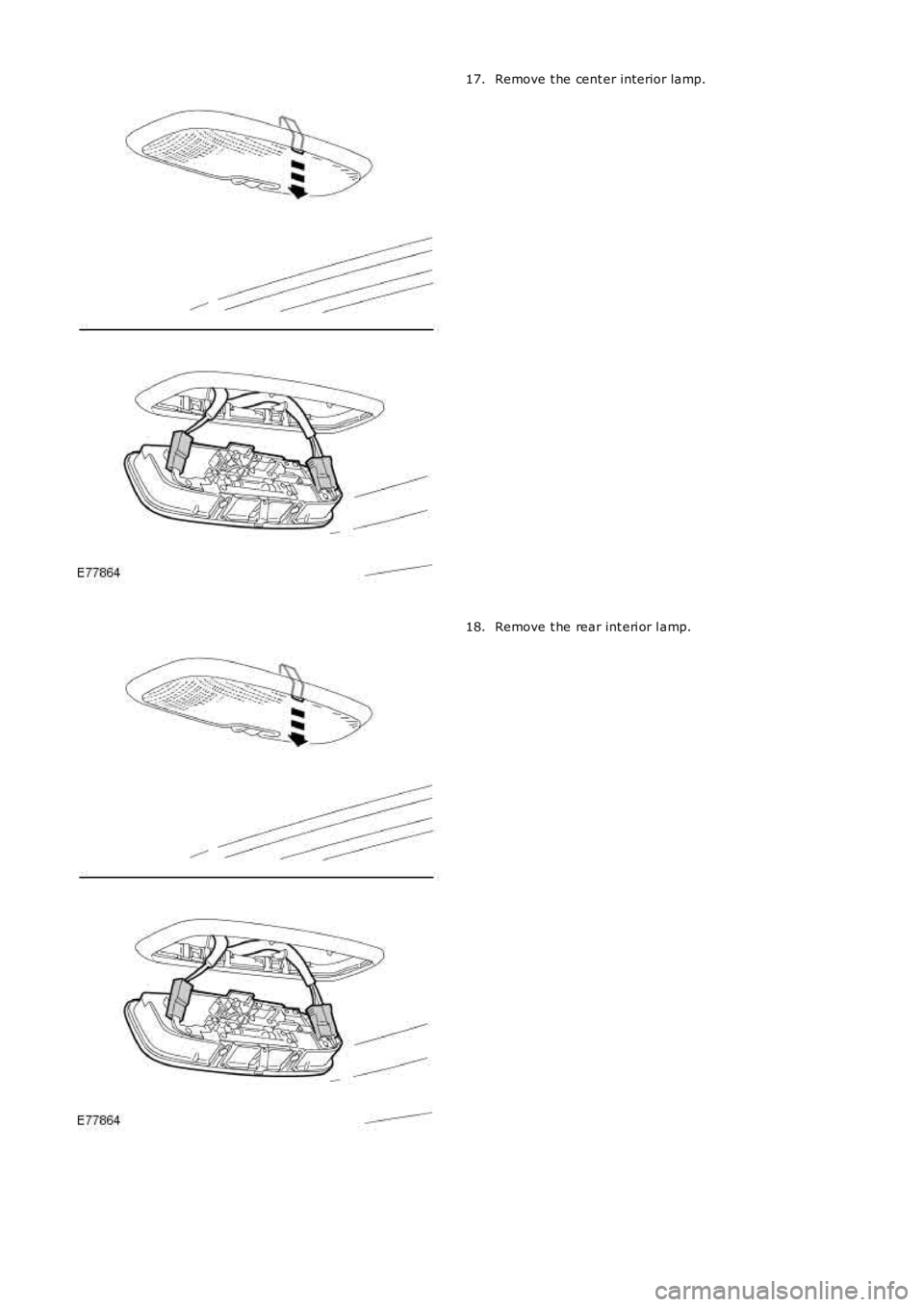

LAND ROVER FRELANDER 2 2006 Repair Manual Remove t he cent er interior lamp. 17. Remove t he rear int eri or l amp. 18.

Page 2141 of 3229

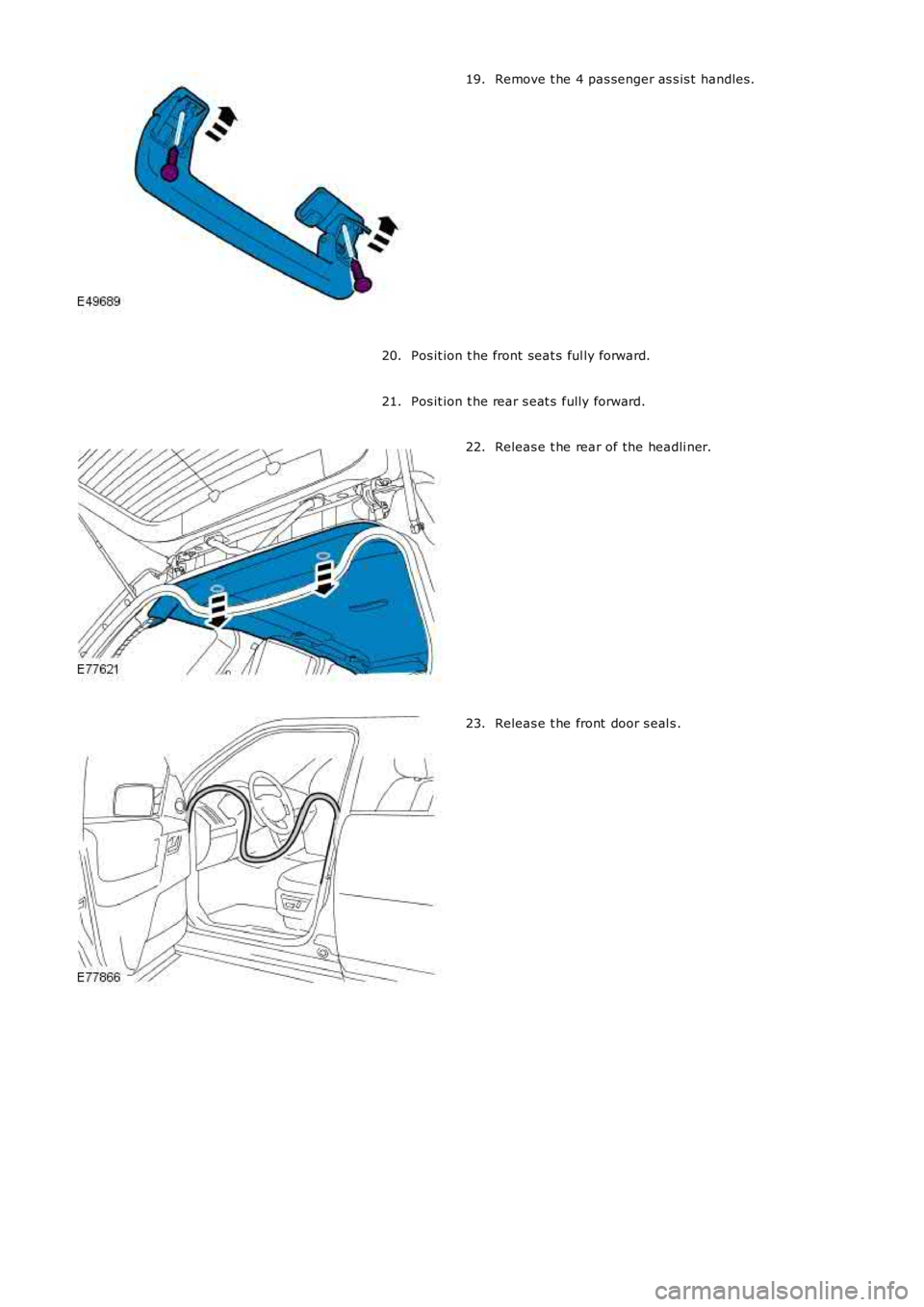

LAND ROVER FRELANDER 2 2006 Repair Manual Remove t he 4 pas senger as s is t handles . 19. Pos it ion t he front seat s ful ly forward. 20. Pos it ion t he rear s eat s fully forward. 21. Releas e t he rear of the headli ner. 22. Releas e t

Page 2142 of 3229

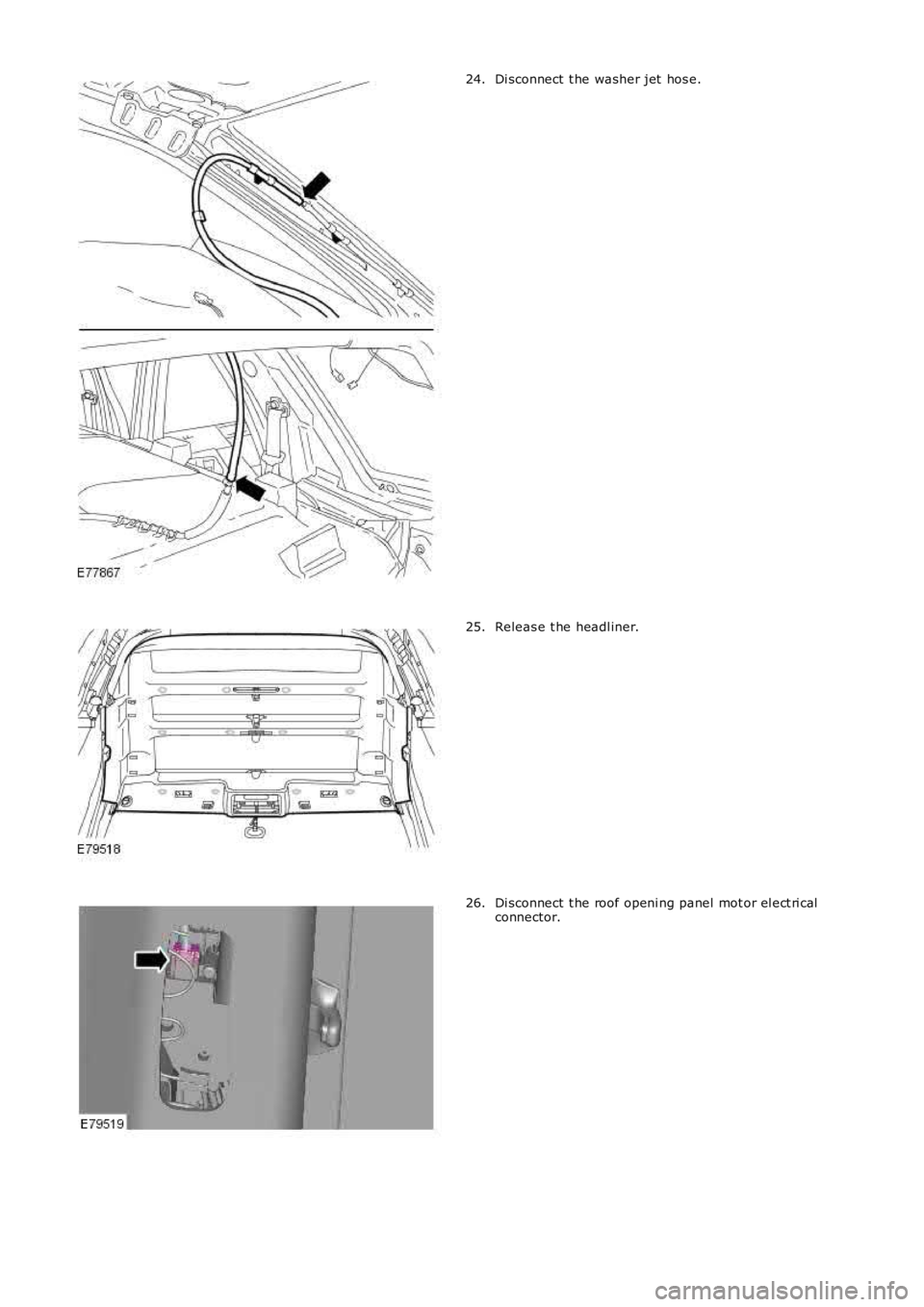

LAND ROVER FRELANDER 2 2006 Repair Manual Di sconnect t he washer jet hos e. 24. Releas e t he headl iner. 25. Di sconnect t he roof openi ng panel mot or el ect ri cal connector. 26.

Page 2143 of 3229

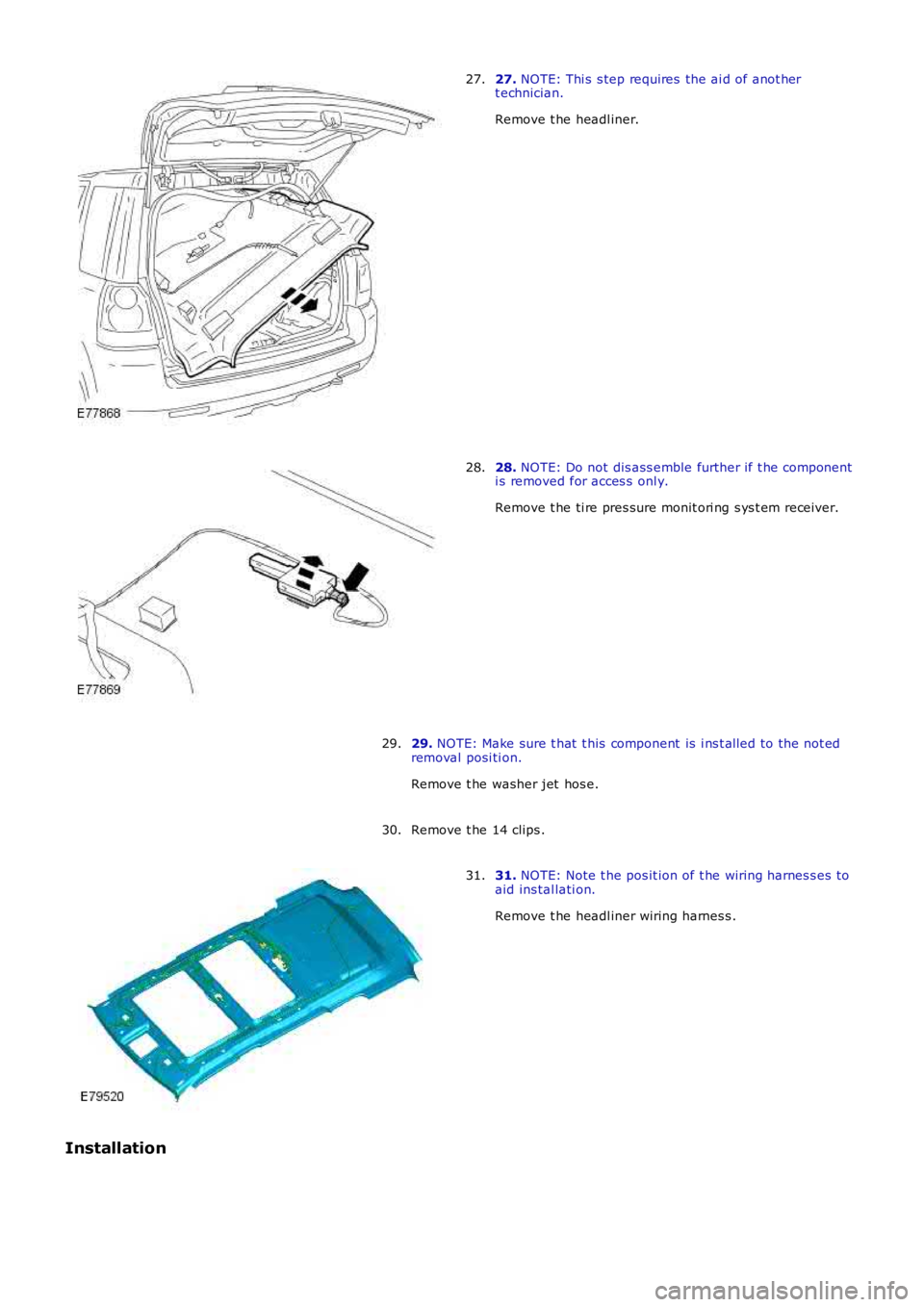

LAND ROVER FRELANDER 2 2006 Repair Manual 27. NOTE: Thi s s tep requires the ai d of anot her t echnician. Remove t he headl iner. 27. 28. NOTE: Do not dis ass emble further if t he component i s removed for acces s onl y. Remove t he ti

Page 2144 of 3229

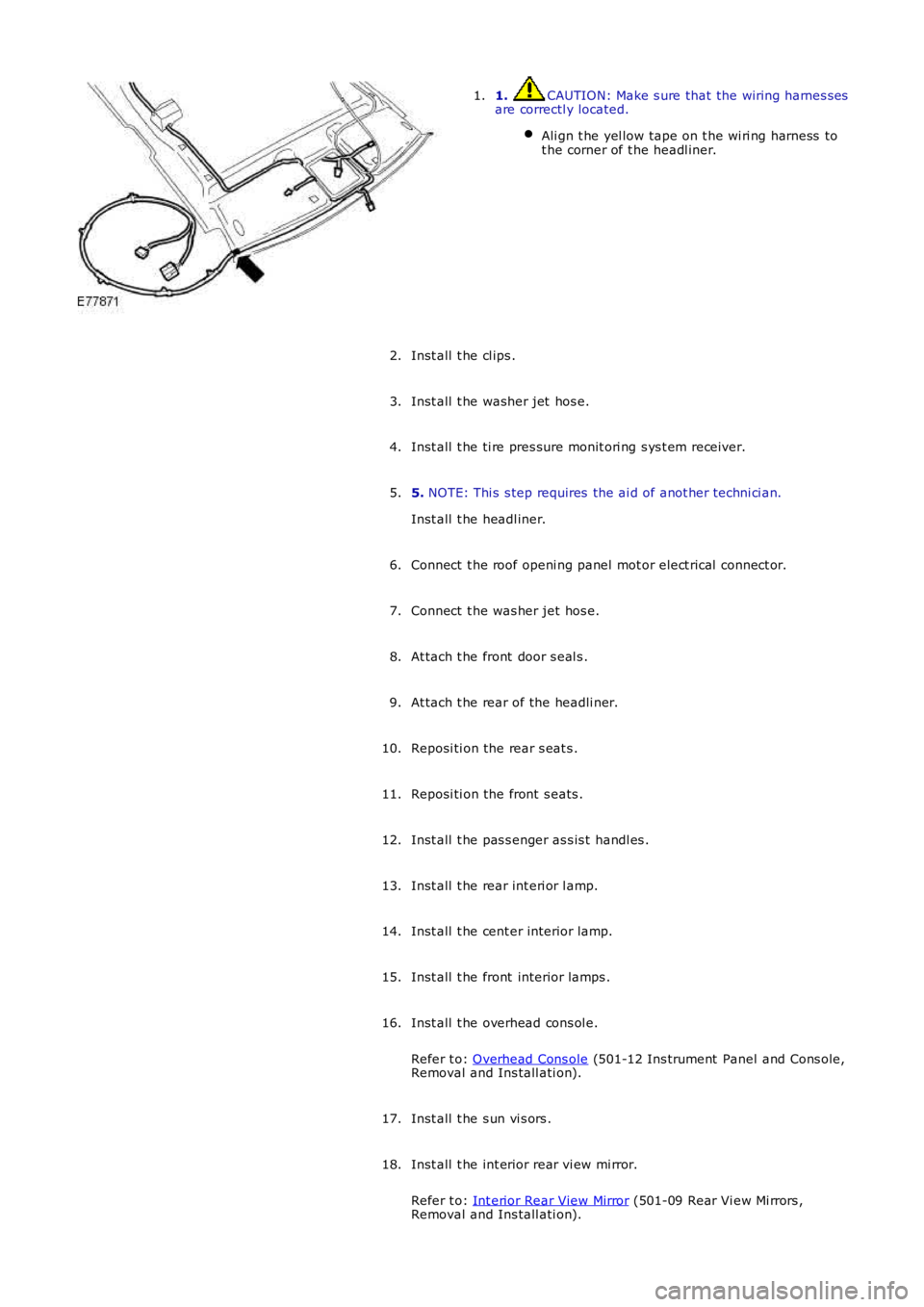

LAND ROVER FRELANDER 2 2006 Repair Manual 1. CAUTION: Make s ure that the wiring harnes s es are correctl y located. Ali gn t he yel low tape on t he wi ri ng harness to t he corner of t he headl iner. 1. Inst all t he cl ips . 2. Inst all
