LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011
Generator and Regulator - GeneratorTD4 2.2L Diesel

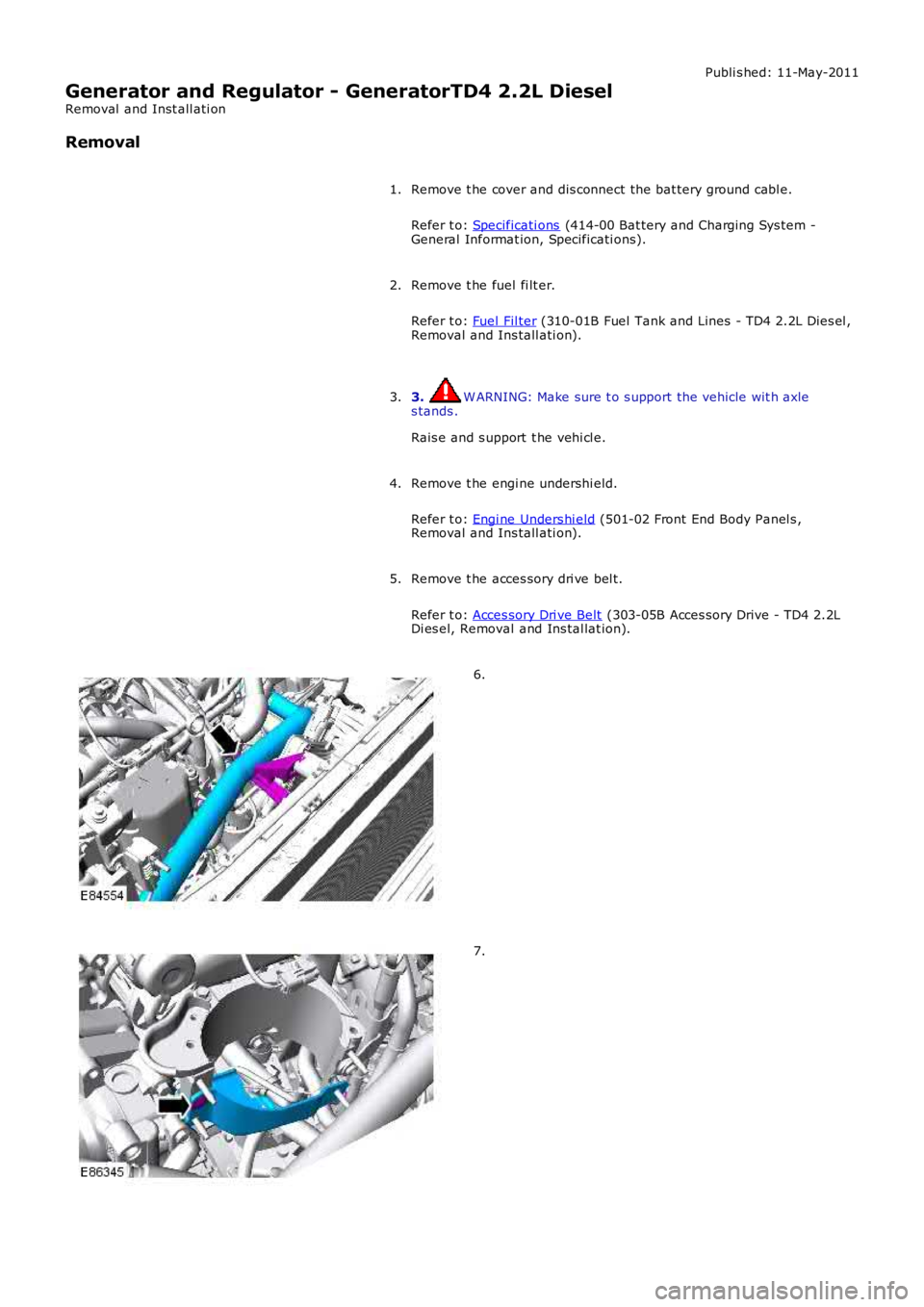

Removal and Inst all ati on
Removal
Remove t he cover and dis connect the bat tery ground cabl e.
Refer t o: Specificati o

Page 1850 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual 8.
9.
10.

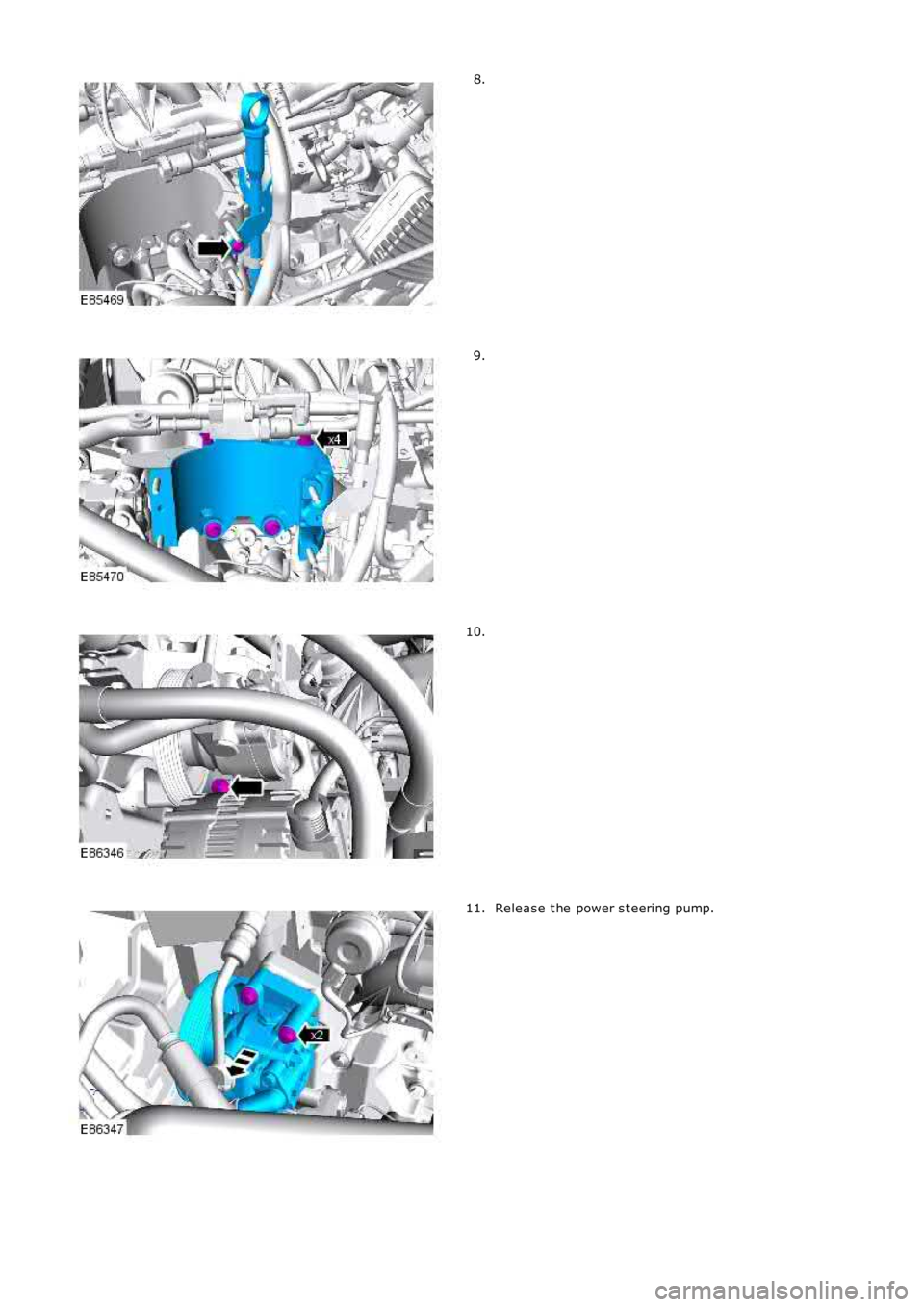

Releas e t he power s t eering pump.
11.

Page 1851 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual 12. W ARNING: Power s teering fluid is ext remely
flammable. Make s ure that power st eeri ng fl ui d i s not
s pil t over t he engi ne and that t he power st eering fl ui d
res ervoi r cap i s s

Page 1852 of 3229

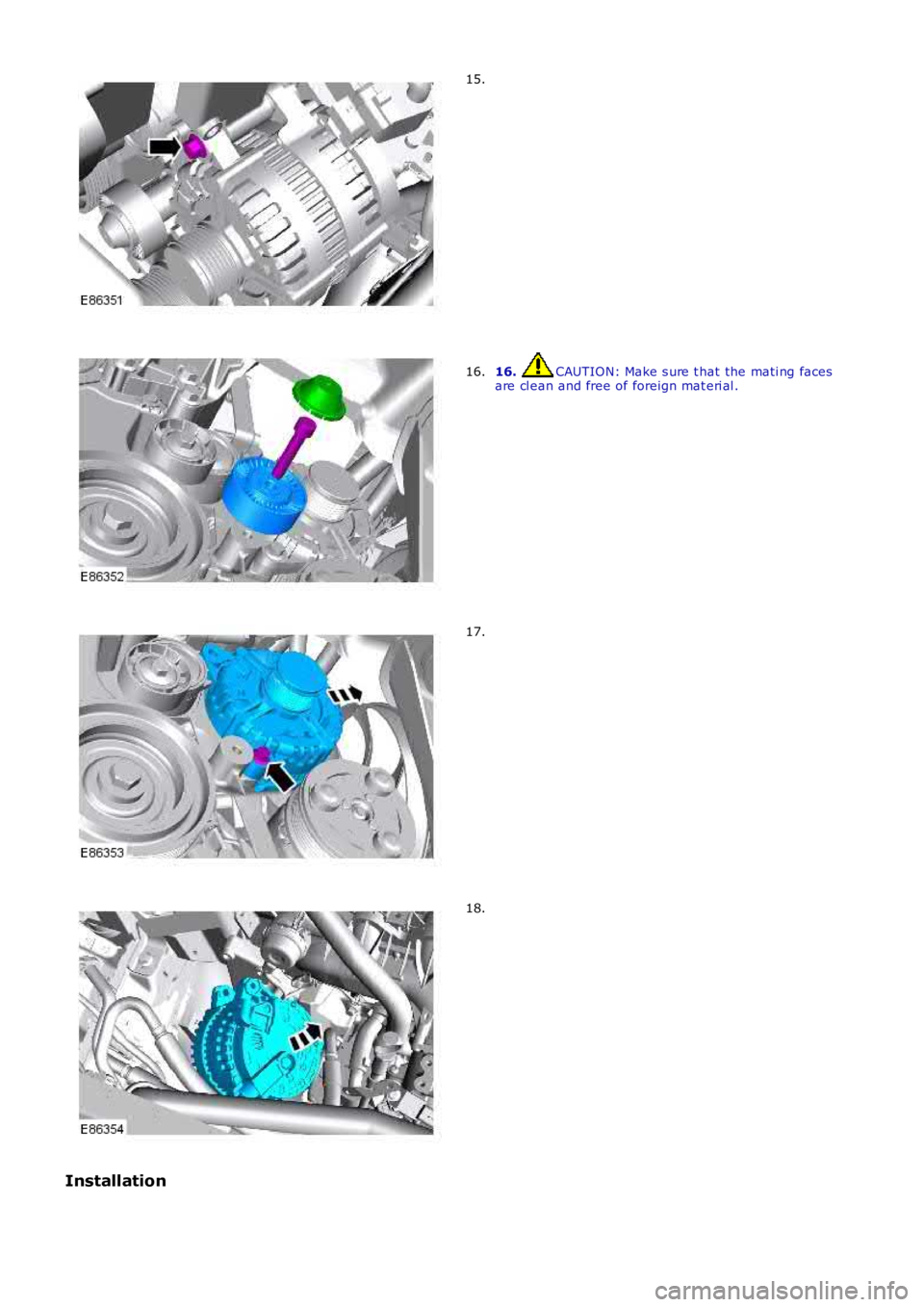

LAND ROVER FRELANDER 2 2006 Repair Manual 15.
16. CAUTION: Make s ure t hat the mati ng faces
are cl ean and free of foreign mat eri al .
16. 17.
18.
Installation

Page 1853 of 3229

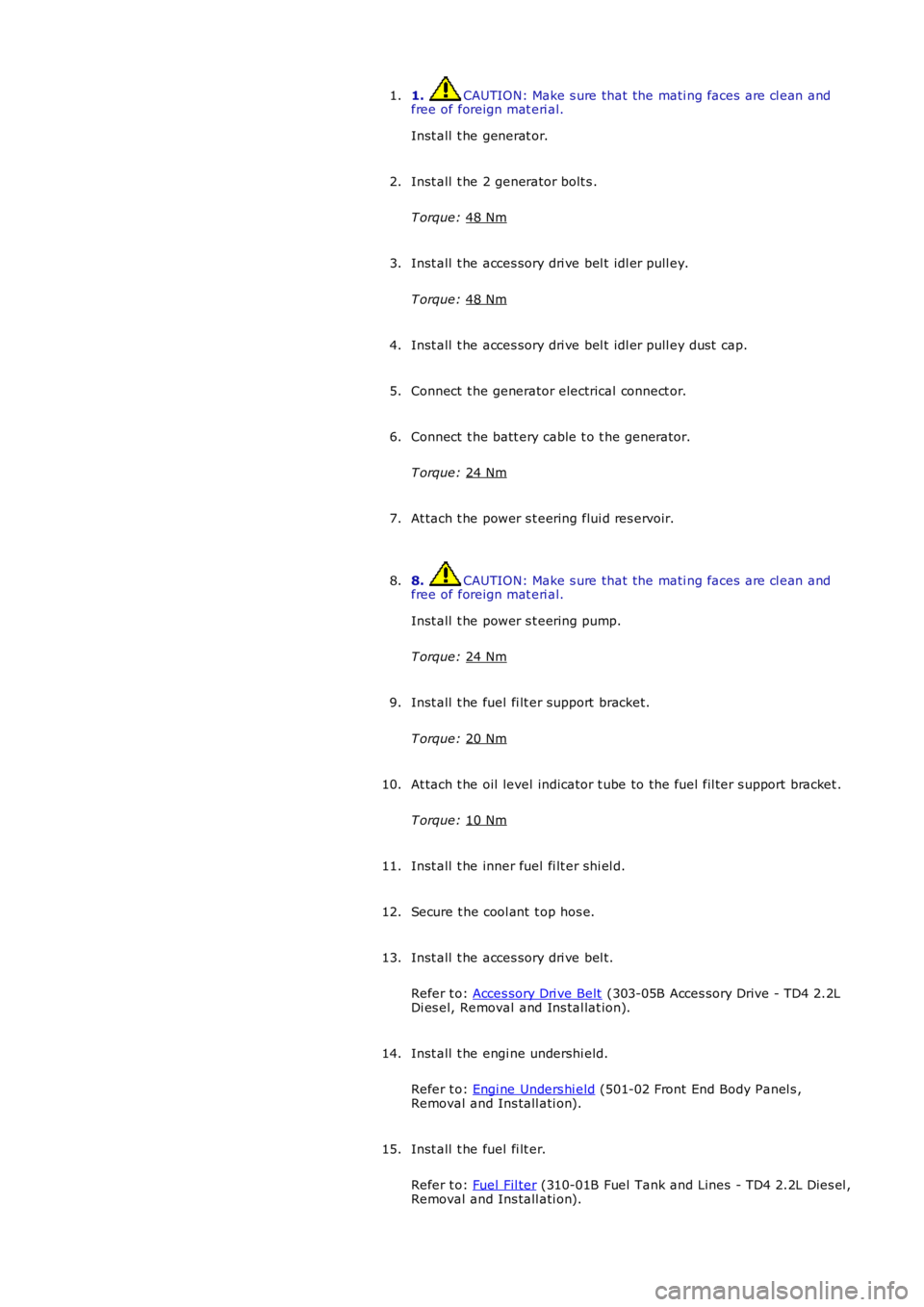

LAND ROVER FRELANDER 2 2006 Repair Manual 1. CAUTION: Make s ure that the mati ng faces are cl ean and
free of foreign mat eri al.
Inst all t he generat or.
1.
Inst all t he 2 generator bolt s .
T orque: 48 Nm 2.
Inst all t he acces sory

Page 1854 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011
Information and Entertainment System - General Information - Cellular
Phone
Diagnosi s and Tes ti ng
Principles of Operation
For a detail ed descripti on of the Cel lular Pho

Publi s hed: 11-May-2011
Information and Entertainment System - General Information - Cellular
Phone
Diagnosi s and Tes ti ng
Principles of Operation
For a detail ed descripti on of the Cel lular Phone s ys t ems , refer t o t he rel evant Des cript ion and Operat ion s ecti on in theworks hop manual . REFER to: Cell ular Phone (415-01 Informati on and Ent ert ainment Syst em, Des cript ion and Operat ion).
Inspection and Verification
CAUTION: Di agnos is by s ubs ti tut ion from a donor vehicle is NO T acceptabl e. Subs ti tut ion of cont rol modules doesnot guarant ee confirmat ion of a faul t, and may als o caus e addit ional fault s i n t he vehi cl e being t est ed and/or t he donorvehi cl e.
1. Verify t he cus t omer concern.1.
2. Vis ually ins pect for obvious s igns of mechani cal or electrical damage and sys tem integrit y.2.
Visual InspectionMechanicalElectrical
Mi crophoneBluet oot h ant ennaEl ect ri cal connect orsW iring harnes s for damage or corros ionFus es
3. If an obvious cause for an obs erved or report ed concern is found, correct t he caus e (if pos s ible) beforeproceeding t o t he next s t ep.3.
4. If t he caus e is not vis ually evi dent , verify t he concern and refer t o t he Sympt om Chart, alt ernat ively check forDi agnos ti c Trouble Codes (DTCs) and refer t o rel evant DTC Index.4.
Symptom Chart
SymptomAction
Unable t o pairGO t o Pinpoint Test A.
Not Auto Connecti ngGO t o Pinpoint Test B.
No Audio to 3rd PartyGO t o Pinpoint Test C.
No Audio from 3rd Part yGO t o Pinpoint Test D.
No AudioGO t o Pinpoint Test E.
DTC Index
• NOTE: If the control modul e or a component i s s us pect and the vehicle remains under manufacturer warrant y, refer t o theW arranty Pol icy and Procedures manual (s ect ion B1.2), or determine i f any pri or approval programme is in operat ion, pri ort o the ins tall ati on of a new module/component.
• NOTE: Generic scan t ool s may not read the codes li st ed, or may read only fi ve digit codes . Mat ch the five di git s from t hes can tool to the firs t fi ve di git s of the seven digi t code l is ted to ident ify t he faul t (t he las t t wo digi ts gi ve ext rainformat ion read by the manufact urer-approved diagnost ic s ys tem).
• NOTE: W hen performing volt age or res is t ance t est s , always use a digi tal mult imeter (DMM) accurat e t o t hree deci malplaces and wit h a current cal ibrat ion cert ificate. W hen tes ti ng res i st ance, always take the res is tance of the DMM l eads i ntoaccount.
• NOTE: Check and recti fy bas ic faul ts before beginni ng diagnos t ic rout ines i nvol vi ng pinpoint t es t s.
• NOTE: If DTCs are recorded and, aft er performi ng the pi npoi nt tes ts , a fault is not present , an int ermi tt ent concern maybe t he caus e. Always check for loose connect ions and corroded terminals .
For a compl ete lis t of all Di agnos ti c Trouble Codes (DTCs) t hat could be logged on this vehicle, pleas e refer to Sect ion100-00.
REFER to: Di agnos ti c Trouble Code (DTC) Index - DTC: Cell ul ar Tel ephone Control Modul e (Bluetooth Tel ephone Module)(BPM) (100-00 General Informat ion, Des cript ion and Operat ion).
Pinpoint Tests
PINPOINT TEST A : UNABLE TO PAIR
T ESTCO NDIT IONSDET AILS/RESULT S/ACT IONS
A1: 'NO PHONE FIT T ED' DISPLAY

Page 1855 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual 1
1
1
1
1
1
1
1
• NOTE: Prior to cont inuing wi th any di agnos is , ens ure t hat the Cus tomer t elephone and level of s oft ware is i ncl uded ont he JLR approved l is t , the t elephone bat t

1
1
1
1
1
1
1
1
• NOTE: Prior to cont inuing wi th any di agnos is , ens ure t hat the Cus tomer t elephone and level of s oft ware is i ncl uded ont he JLR approved l is t , the t elephone bat tery is full y charged and in a s erviceabl e condi ti on, t he bluet oot h funct ion i sacti vat ed and t he tel ephone hands et is placed wit hin t he vehi cle cabin area.
Carry out checks to det ermi ne if 'No Phone Fit ted' is s hown on vehicle di s pl ay.
Is 'No Phone Fit ted' dis played?YesGO to A2.NoLocat e t he connect ed t elephone and i f not Cus t omer telephone, di sconnect from the sys tem.
A2: T ELEPHONE BLUET OOT H DEVICE SEARCHCarry out Bluetoot h devi ce search us i ng Cust omer hands et.
Is 'Land Rover' i dent ified i n Bl uet oot h device l is t?YesSelect device from li s t, t hen cont inue wi th di agnos is .GO t o A3.NoCarry out further Bluetoot h devi ce s earch, t o a maxi mum of 4 ti mes , wai ti ng approximat ely 20 s econdsbetween s earches. If 'Land Rover' st il l not i dent ified i n Bl uet oot h device l is t, s et igni ti on st atus toOFF, wai t approximat el y 30 s econds and s et ignit ion st atus t o ON. Carry out furt her Bl uet ooth devices earch, t o a maxi mum of 4 ti mes , wait ing approximat ely 20 seconds bet ween s earches . If 'Land Rover's ti ll not identi fi ed in Bl uetooth devi ce lis t , cont act your local i n market s upport for furt her as s is tance.
A3: T ELEPHONE HANDSET ERRORCheck for any error s hown on t he t elephone hands et when 'Land Rover' i s s elect ed from the Bl uetoothdevi ce li st .
W as an error i mmediat el y s hown on t he tel ephone handset ?YesW ai t approxi matel y 10 s econds t hen re-at t empt sel ect ion, to a maximum of 4 t imes , wait ingapproximat el y 10 s econds bet ween each at tempt . If error s ti ll being di spl ayed, cont act your local i nmarket s upport for as s is tance.NoEnter PIN '2121' t hen cont inue wi th diagnos i s.GO t o A4.A4: PIN ENT RY ST AT US
Check for s uccess ful PIN entry.
W as PIN ent ry s ucces s ful?YesGO to A5.NoW ai t approxi matel y 10 s econds t hen re-at t empt PIN ent ry, t o a maximum of 4 t imes, wai ti ngapproximat el y 10 s econds bet ween each at tempt . If PIN ent ry i s s ti ll un-s ucces s ful, contact your l ocalin market s upport for as si st ance.A5: 'NO PHONE FIT T ED' DISPLAY
Carry out checks to det ermi ne if 'No Phone Fit ted' is s t ill s hown on vehicle di s pl ay.
Is 'No Phone Fit ted' s ti ll dis played?YesFrom the telephone hands et, s elect t he connect opt ion for the 'Land Rover' device identi fi ed in theBluet oot h device li s t. If 'No Phone Fit ted' is st il l di s pl ayed, s uspect a t elephone hands et fault . Carryout Pinpoi nt tes t again us ing known good t elephone hands et .NoThe t el ephone i s paired and connect ed t o t he s ys t em. No further acti on is requi red for thi s s ymptom.
PINPOINT TEST B : NOT AUTOMATICALLY CONNECTING
T ESTCONDIT IONSDET AILS/RESULT S/ACT IONS
B1: BLUET OOT H MODULE PAIRED DEVICE LIST
• NOTE: Prior to cont inuing wi th any di agnos is , ens ure t hat the Cus tomer t elephone and level of s oft ware is i ncl uded ont he JLR approved l is t , the t elephone bat tery is full y charged and in a s erviceabl e condi ti on, t he bluet oot h and aut oconnect functi ons are acti vat ed and t he tel ephone handset i s placed wit hin t he vehicle cabin area.
Carry out checks to det ermi ne if t he Cus tomer t elephone is s hown in the Bl uetooth Modul e paireddevi ce li st .
Is the Cus tomer t elephone in t he Bl uet oot h Module pai red device l is t?YesGO to B2.NoCarry out Unabl e t o Pair Pinpoint Test .GO t o A.B2: CUST OMER HANDSET PAIRED DEVICE LIST
Carry out checks to det ermi ne if t he Bl uet oot h Module is s hown i n t he Cus t omer tel ephone paireddevi ce li st .Is the Bl uet ooth Modul e in the Cus tomer t elephone pai red device l is t?YesGO to B3.NoCarry out Unabl e t o Pair Pinpoint Test .GO t o A.
B3: CUST OMER T ELEPHONE IN POSIT ION 1
Carry out checks to det ermi ne if t he Cus tomer t elephone is i n posi ti on 1 i n t he Bluetoot h Modulepaired devi ce lis t .
Is the Cus tomer t elephone in pos it ion 1?YesGO to B4.NoAdvi s e Cust omer t hat aut o connecti on wil l onl y be att empt ed wit h t he devi ce that is shown inposi ti on 1 i n Bluet oot h Module pai red device l is t.
B4: CHECK FOR DT C B1A56-13

Page 1856 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual 1
1
1
1
1
1
1
1
Us ing Manufacturer approved di agnos ti c s ys t em, check for DTC B1A56-13.
Is DTC B1A56-13 logged?YesCarry out remedial acti ons as out li ned in DTC Index. If s ymptom remai ns

1
1
1
1
1
1
1
1
Us ing Manufacturer approved di agnos ti c s ys t em, check for DTC B1A56-13.
Is DTC B1A56-13 logged?YesCarry out remedial acti ons as out li ned in DTC Index. If s ymptom remai ns, contact your l ocal inmarket s upport for as s is tance.NoGO to B5.B5: BLUET OOT H CONNECT ION
Carry out checks to det ermi ne if Bl uet ooth connect ion i con is s hown on Cus tomer Bl uet ootht el ephone s creen but s hows 'No Phone Fit ted' on vehi cle s creen.Is Bluetooth connect ion icon s hown on the Cus t omer hands et but 'No Phone Fi tt ed' di spl ayed on vehi cl es creen?YesGO to B9.NoGO to B6.B6: 'LAND ROVER' AUT HORISAT ION
• NOTE: Some hands et s may require operator int erventi on to manual ly aut horis e connect ion.
Carry out checks to det ermi ne if 'Land Rover' i s authori sed in t he Cus tomer Bluet ooth t elephonedevi ce li st menu.
Is 'Land Rover' aut horis ed i n the Cus t omer Bluetooth tel ephone device li s t menu?YesGO to B7.NoAdvi s e cus t omer that 'Land Rover' needs t o be aut horis ed i n t he Cus t omer Bluetoot h tel ephonedevi ce li st menu, or operator i nterventi on may be required to manual ly authoris e connecti on.
B7: SEARCH FOR DEVICES SCREEN
Select the s earch for devices butt on on t he vehicle di spl ay.
Does pres si ng t he search for devi ces but ton bring up the s earching s creen on t he vehicle di spl ay?YesContact your l ocal in market s upport for ass i st ance.NoGO to B8.B8: CYCLE IGNIT ION AND CHECK SEARCH FOR DEVICES SCREEN
Lock vehicle (wai t 60s ) before unlocki ng and t urning Ignit ion s tat us back to O N.
Does pres si ng t he search for devi ces but ton bring up the s earching s creen on t he vehicle di spl ay?YesNo furt her acti on required for t his Sympt om. Poss ibl e int ermi tent faul t.NoContact your l ocal in market s upport for ass i st ance.B9: PAIRED DEVICE
Check Cus t omer t elephone pai red device l is t t o es tabli sh which devi ce the Cus t omer telephone isconnected t o.Is the Cus tomer t elephone connect ed t o t he vehi cl e?YesLock vehicle (wai t 60s ) before unlocki ng and t urning Ignit ion s tat us back to O N. If Not Automat icall yConnecti ng, contact you local in market support for as s is t ance.NoUs ing t he Cus tomer t el ephone controls , dis connect from t he current ly connect ed devi ce and del et efrom pai red device l is t. Lock vehi cl e (wait for 60s ) before unl ocking and turni ng Igi ti on s tat us to ON.If Not Aut omati cal ly Connect ing, cont act your local i n market s upport for as s is t ance.
PINPOINT TEST C : NO AUDIO TO THIRD PARTY
T EST CONDIT IONSDET AILS/RESULT S/ACT IONS
C1: MICROPHONE DIAGNOST IC T ROUBLE CO DES (DT CS)• NOTE: Prior to cont inuing wi th any di agnos is , ens ure t hat the Cus tomer t elephone and level of s oft ware is i ncl uded ont he JLR approved l is t , the t elephone bat tery is full y charged and in a s erviceabl e condi ti on, t he t elephone is placed wi thint he vehi cl e cabi n area and is connect ed to the vehicle vi a bluet oot h.
Us ing t he Manufacturer approved diagnost ic sys tem, check for any logged mi crophone DTCs i nAudio Front Control modul e.
Is DTC B1D79-01 logged?YesCarry out diagnos is of el ect ri cal failure as advis ed in Act ion column of DTC Index.NoContact your l ocal in market s upport for ass i st ance.
PINPOINT TEST D : NO AUDIO FROM THIRD PARTY
T EST CONDIT IO NSDET AILS/RESULT S/ACT IONS
D1: ' IN CALL' DISPLAY
• NOTE: Prior to cont inuing wi th any di agnos is , ens ure t hat the Cus tomer t elephone and level of s oft ware is i ncl uded ont he JLR approved l is t , the t elephone bat tery is full y charged and in a s erviceabl e condi ti on, t he t elephone is placed wi thint he vehi cl e cabi n area and is connect ed to the vehicle vi a bluet oot h.Carry out checks t o determine i f 'In Call ' i s s hown on t he vehi cl e dis play.
Is vehi cl e dis play s howing 'In Call'?YesContact your l ocal in market s upport for as si s tance.NoCall has ended. No further act ion i s requi red for this sympt om.
PINPOINT TEST E : NO AUDIO
