Page 849 of 3229

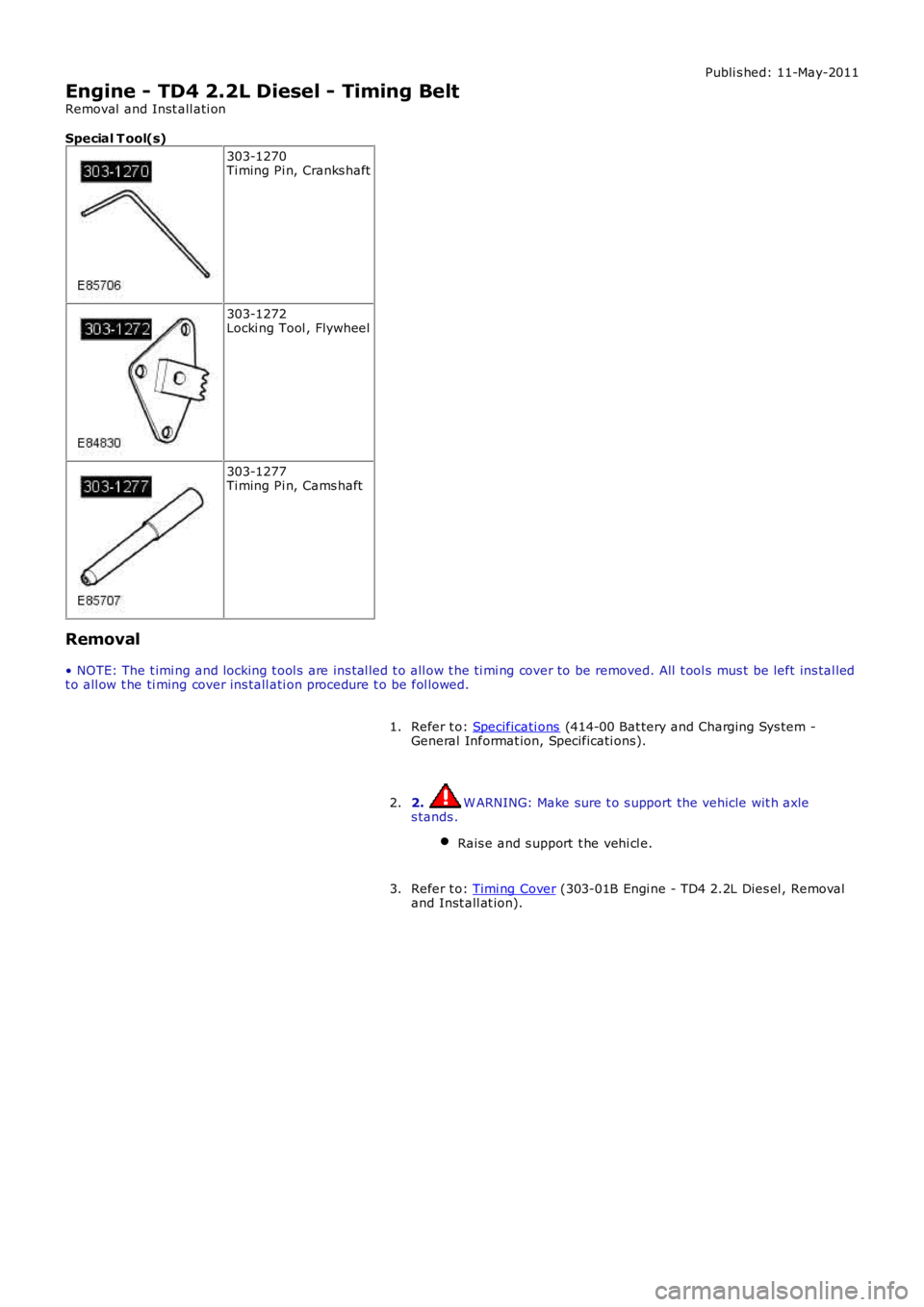

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Engine - TD4 2.2L Diesel - Timing Belt Removal and Inst all ati on Special T ool(s) 303-1270 Ti ming Pi n, Cranks haft 303-1272 Locki ng Tool , Flywheel 303-1277 Ti ming Pi n

Page 850 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Releas e t he ti ming bel t tens ion. Remove t he ti ming bel t.4. Check the condit ion of t he roll er and tens ioner. Check the condit ion of t he coolant pump. Inst all any of the above as n

Page 851 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual 2. CAUTIONS: The cranks haft or camshaft s mus t not be rot ated whil e t he t imi ng bel t is removed. Make s ure that t he ti mi ng bel t is not folded t o produce a l oop wit h a di ameter

Page 852 of 3229

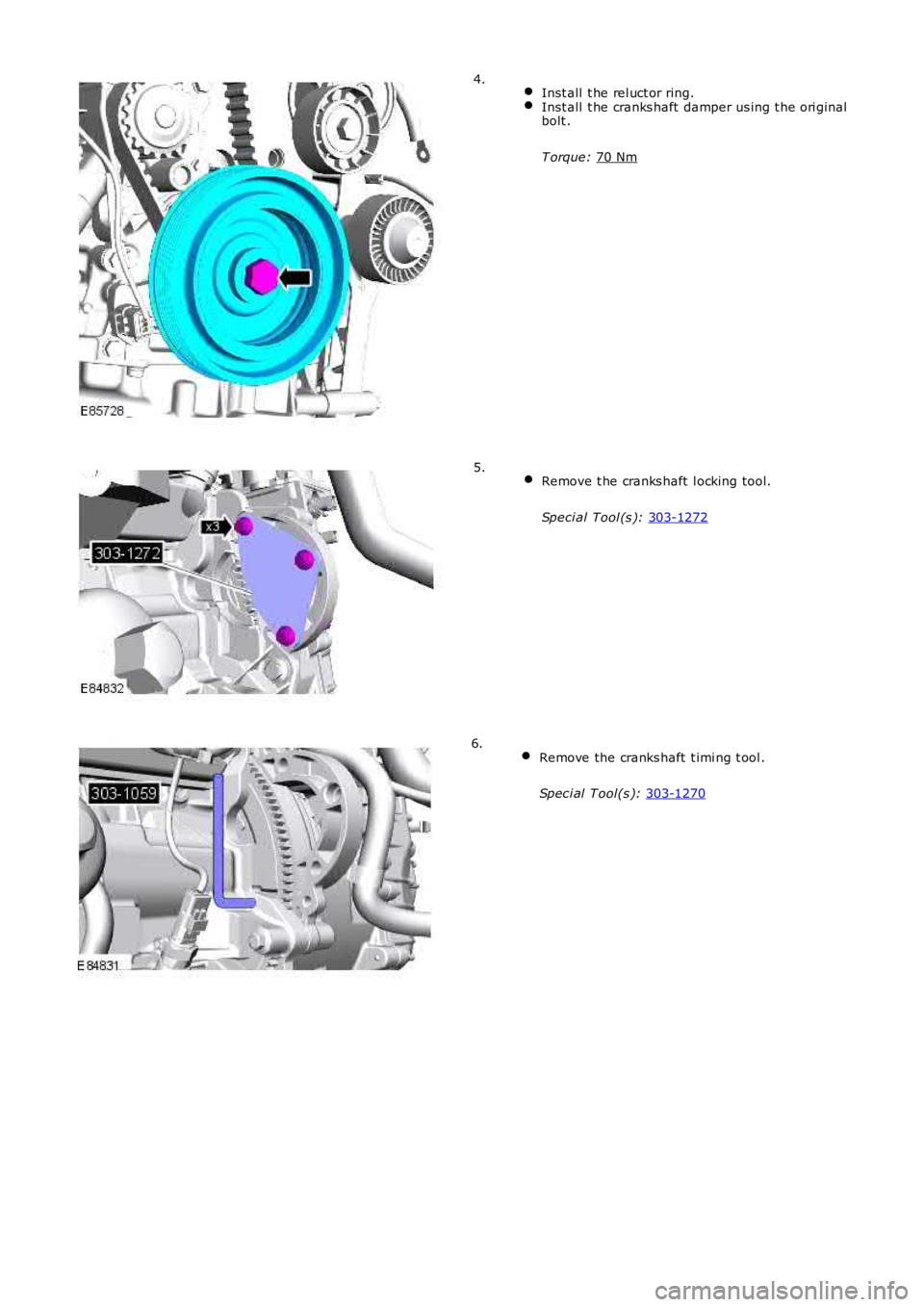

LAND ROVER FRELANDER 2 2006 Repair Manual Inst all t he rel uct or ring. Inst all t he cranks haft damper us ing t he ori gi nal bolt . T orque: 70 Nm 4. Remove t he cranks haft l ocking tool. Speci al Tool (s ): 303-1272 5. Remov

Page 853 of 3229

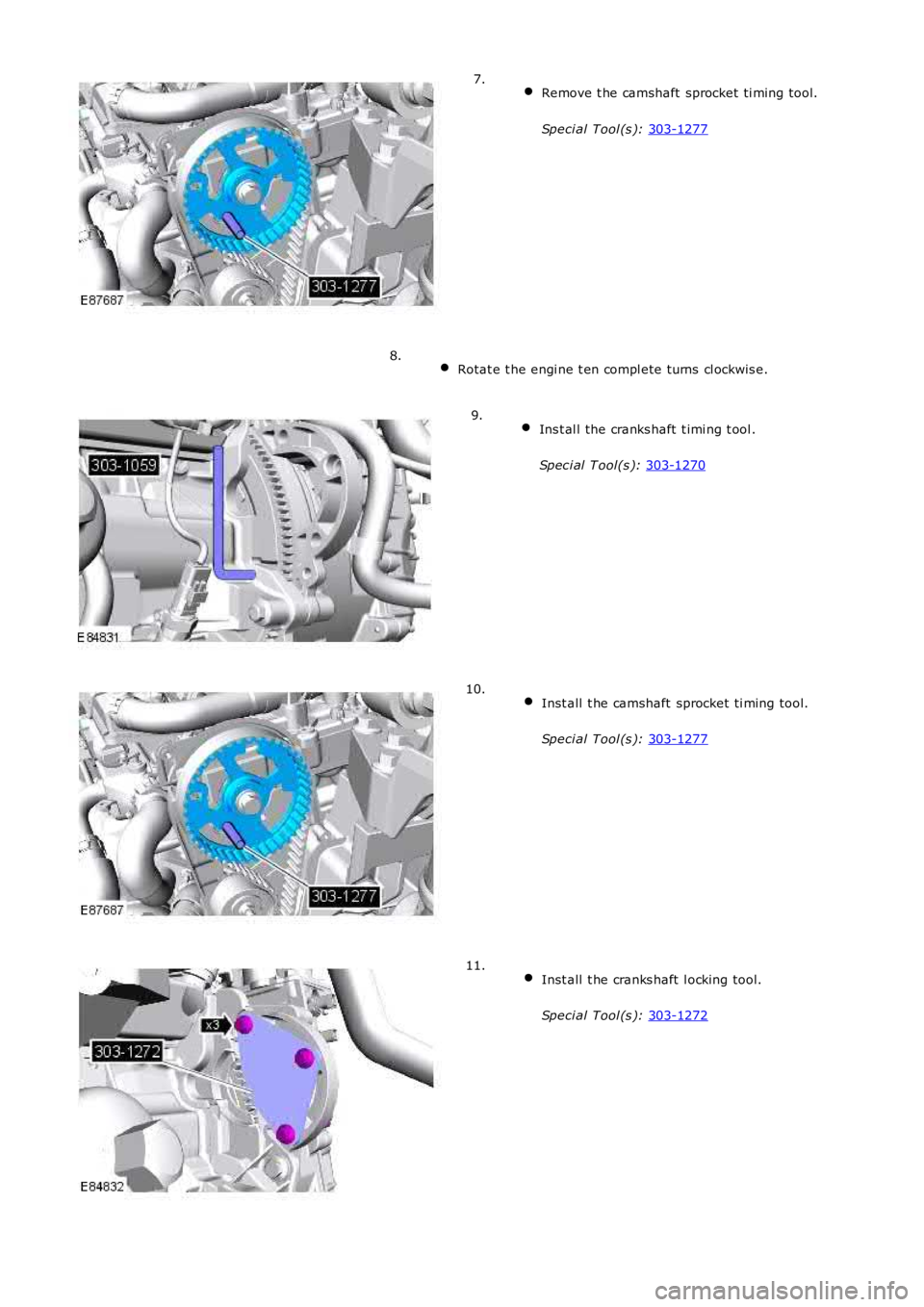

LAND ROVER FRELANDER 2 2006 Repair Manual Remove t he camshaft sprocket ti ming tool. Speci al Tool (s ): 303-1277 7. Rotat e t he engi ne t en compl ete turns cl ockwis e. 8. Ins t al l the cranks haft t imi ng t ool . Spec i al T

Page 854 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Loosen t he cranks haft damper bolt . 12. 13. CAUTION: If the point er pos i ti on is i ncorrect, repeat t he ti ming bel t tens ioning operat ion. Loosen t he t imi ng belt t ens i oner bolt .

Page 855 of 3229

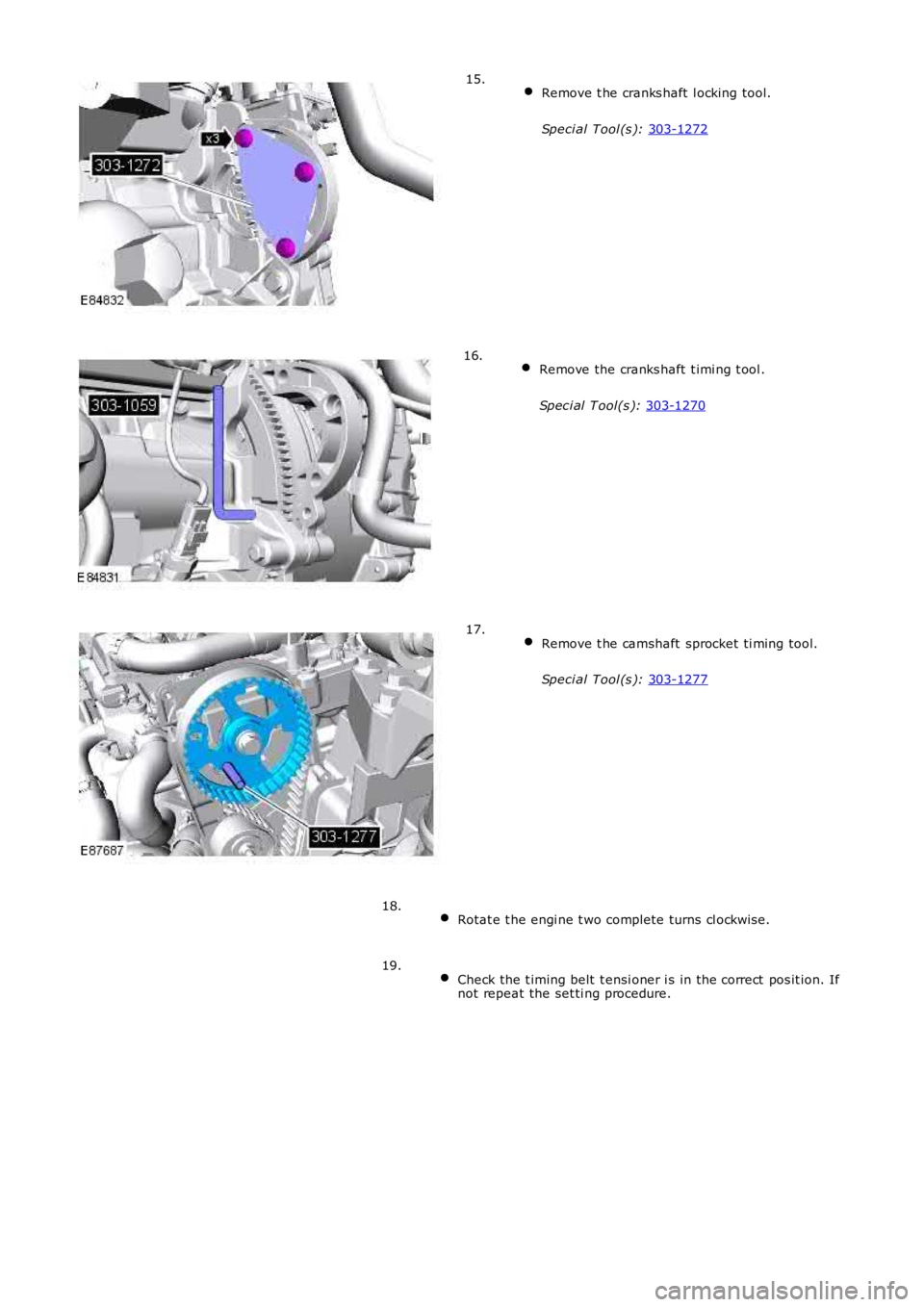

LAND ROVER FRELANDER 2 2006 Repair Manual Remove t he cranks haft l ocking tool. Speci al Tool (s ): 303-1272 15. Remove the cranks haft t imi ng t ool . Spec i al T ool(s ): 303-1270 16. Remove t he camshaft sprocket ti ming tool

Page 856 of 3229

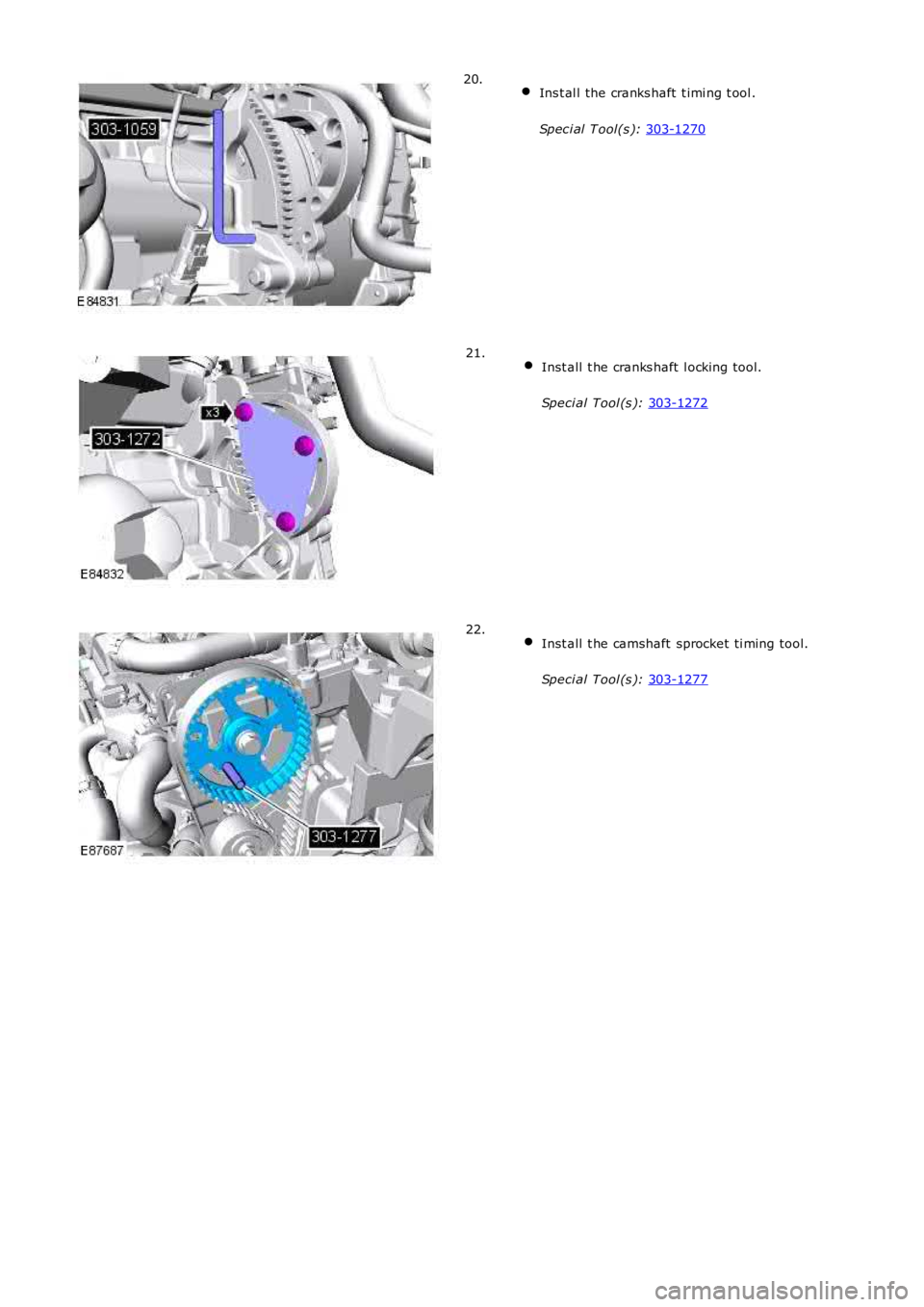

LAND ROVER FRELANDER 2 2006 Repair Manual Ins t al l the cranks haft t imi ng t ool . Spec i al T ool(s ): 303-1270 20. Inst all t he cranks haft l ocking tool. Speci al Tool (s ): 303-1272 21. Inst all t he camshaft sprocket ti
