LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Wiring Harnesses - Wiring Harness Repair General Procedures 1. For addit ional informati on, refer t o: W iring Harnes s (418-02W i ri ng Harnes ses , Des cript ion and Operat

Page 2026 of 3229

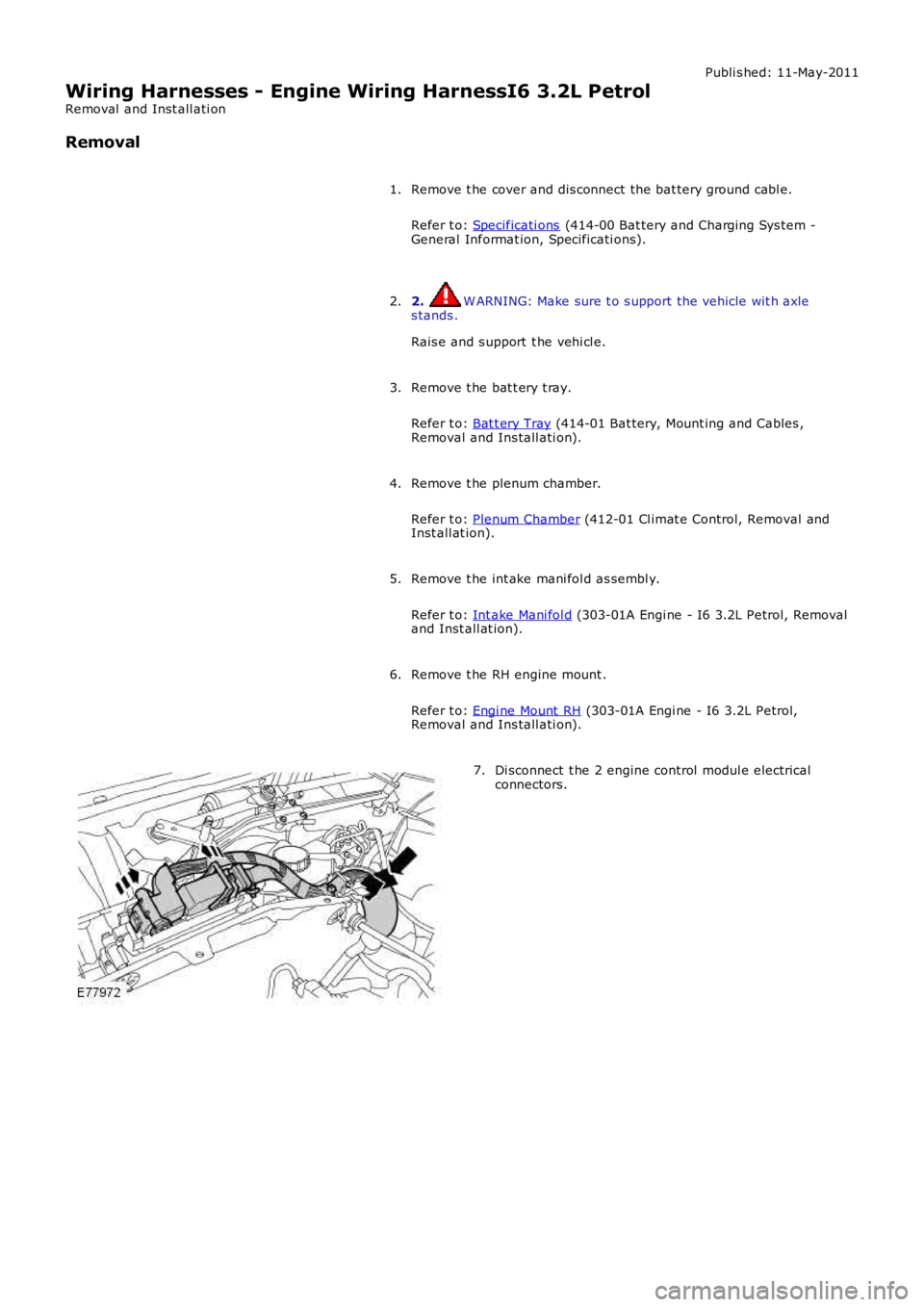

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Wiring Harnesses - Engine Wiring HarnessI6 3.2L Petrol Removal and Inst all ati on Removal Remove t he cover and dis connect the bat tery ground cabl e. Refer t o: Specificat

Page 2027 of 3229

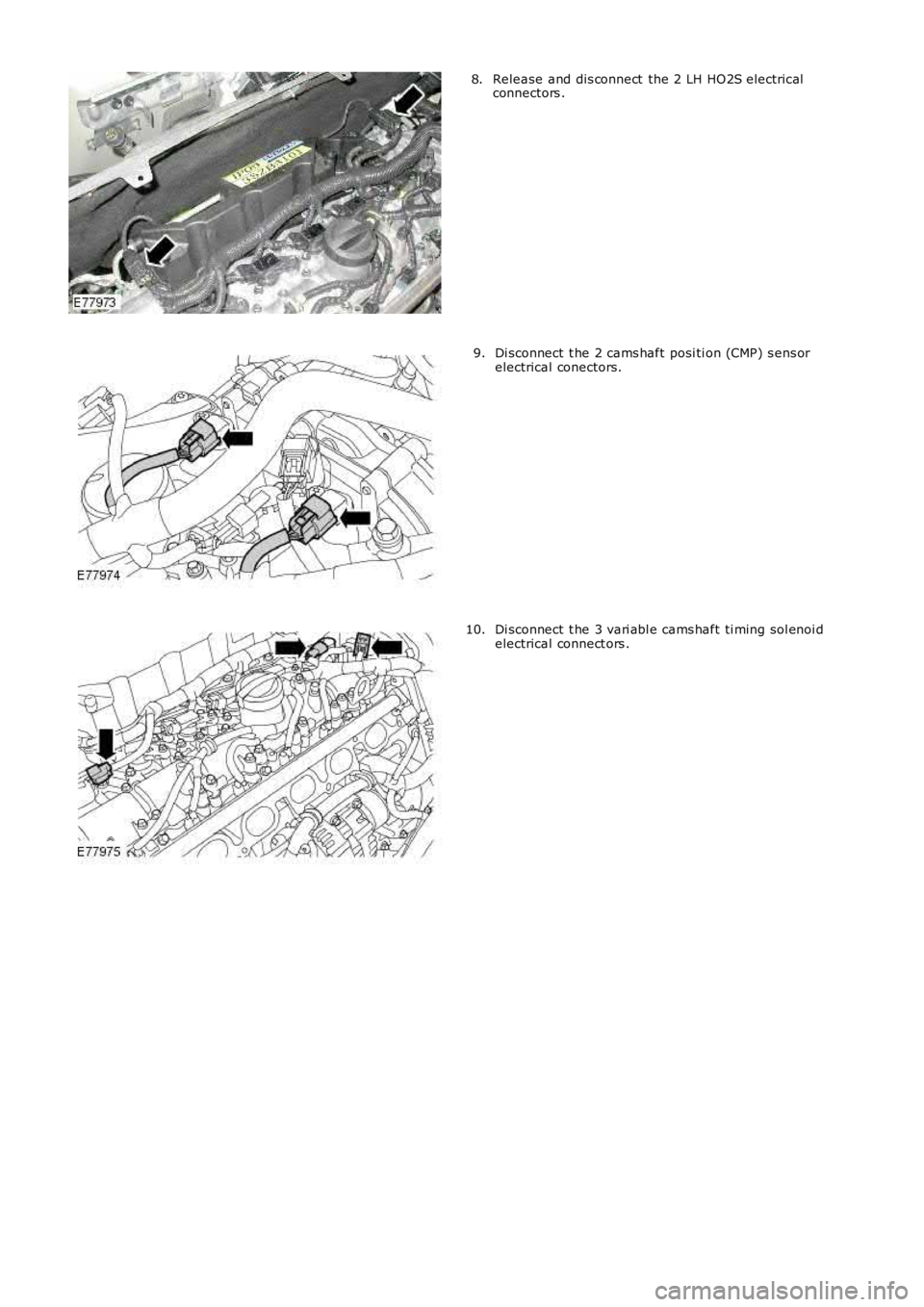

LAND ROVER FRELANDER 2 2006 Repair Manual Release and dis connect the 2 LH HO2S electricalconnectors .8. Di sconnect t he 2 cams haft posi ti on (CMP) s ens orelectrical conectors.9. Di sconnect t he 3 vari abl e cams haft ti ming sol enoi

Page 2028 of 3229

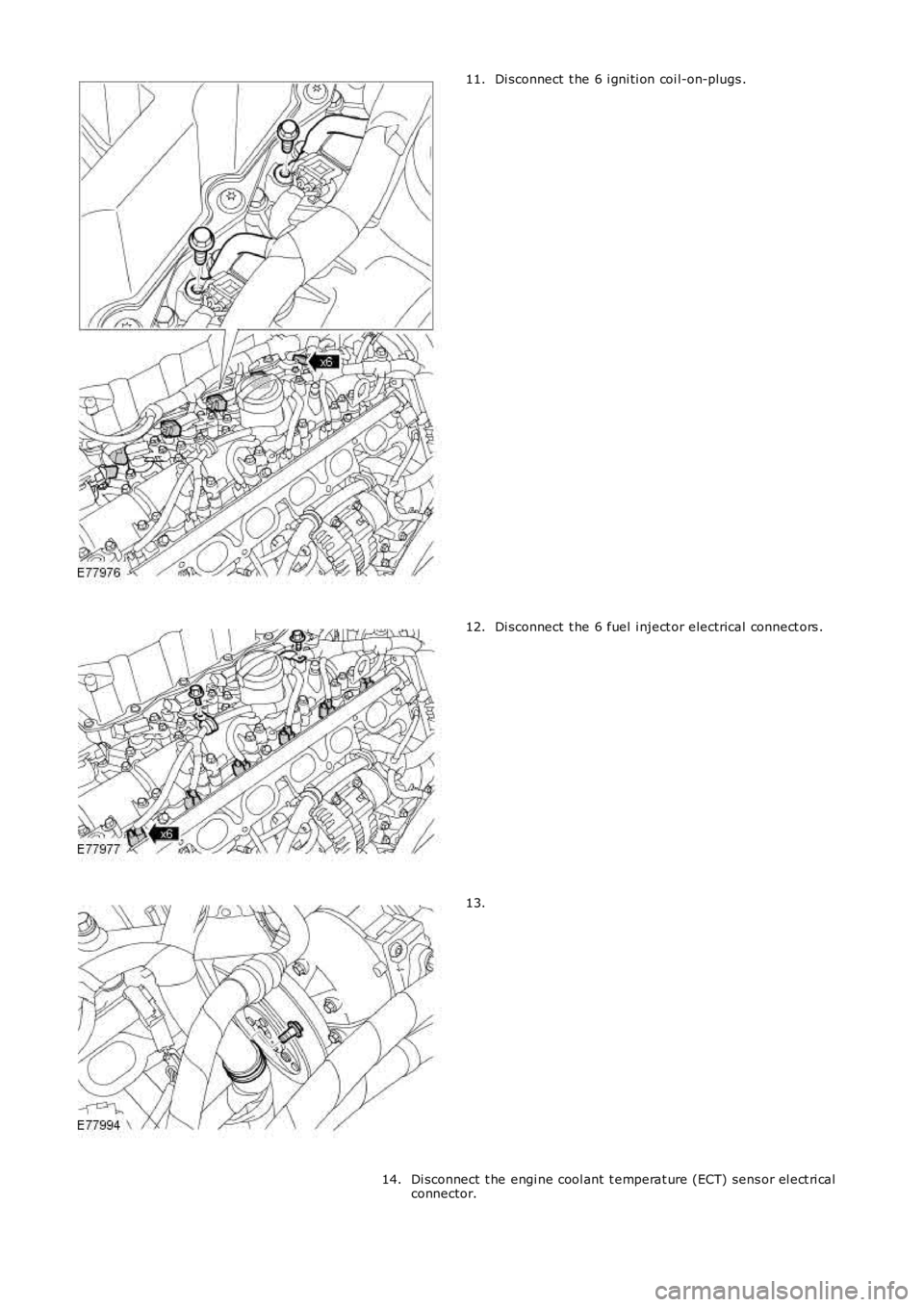

LAND ROVER FRELANDER 2 2006 Repair Manual Di sconnect t he 6 i gni ti on coi l-on-plugs .11. Di sconnect t he 6 fuel i nject or electrical connect ors .12. 13. Di sconnect t he engi ne cool ant t emperat ure (ECT) sens or el ect ri calco

Page 2029 of 3229

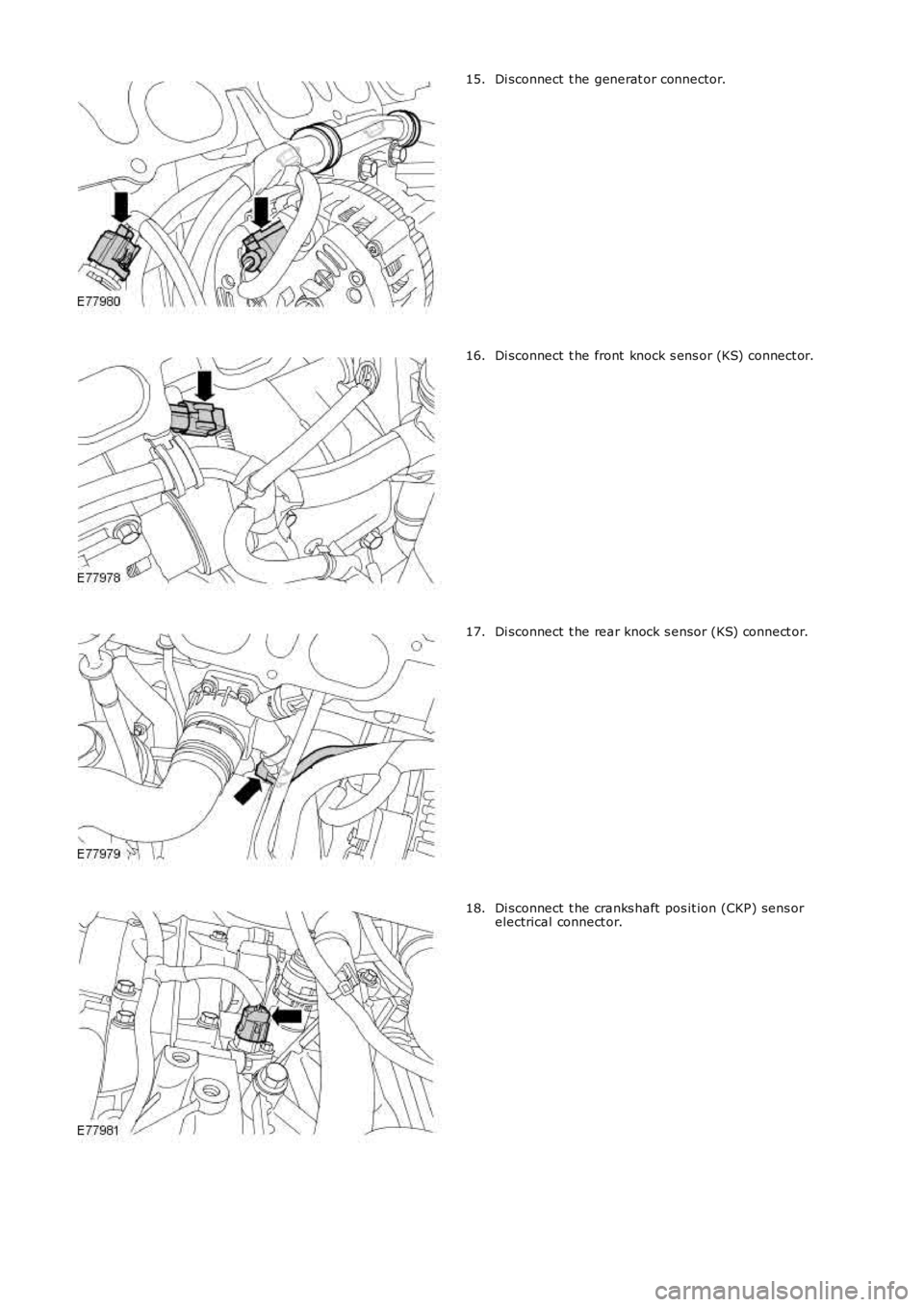

LAND ROVER FRELANDER 2 2006 Repair Manual Di sconnect t he generat or connector.15. Di sconnect t he front knock s ens or (KS) connect or.16. Di sconnect t he rear knock s ensor (KS) connect or.17. Di sconnect t he cranks haft pos it io

Page 2030 of 3229

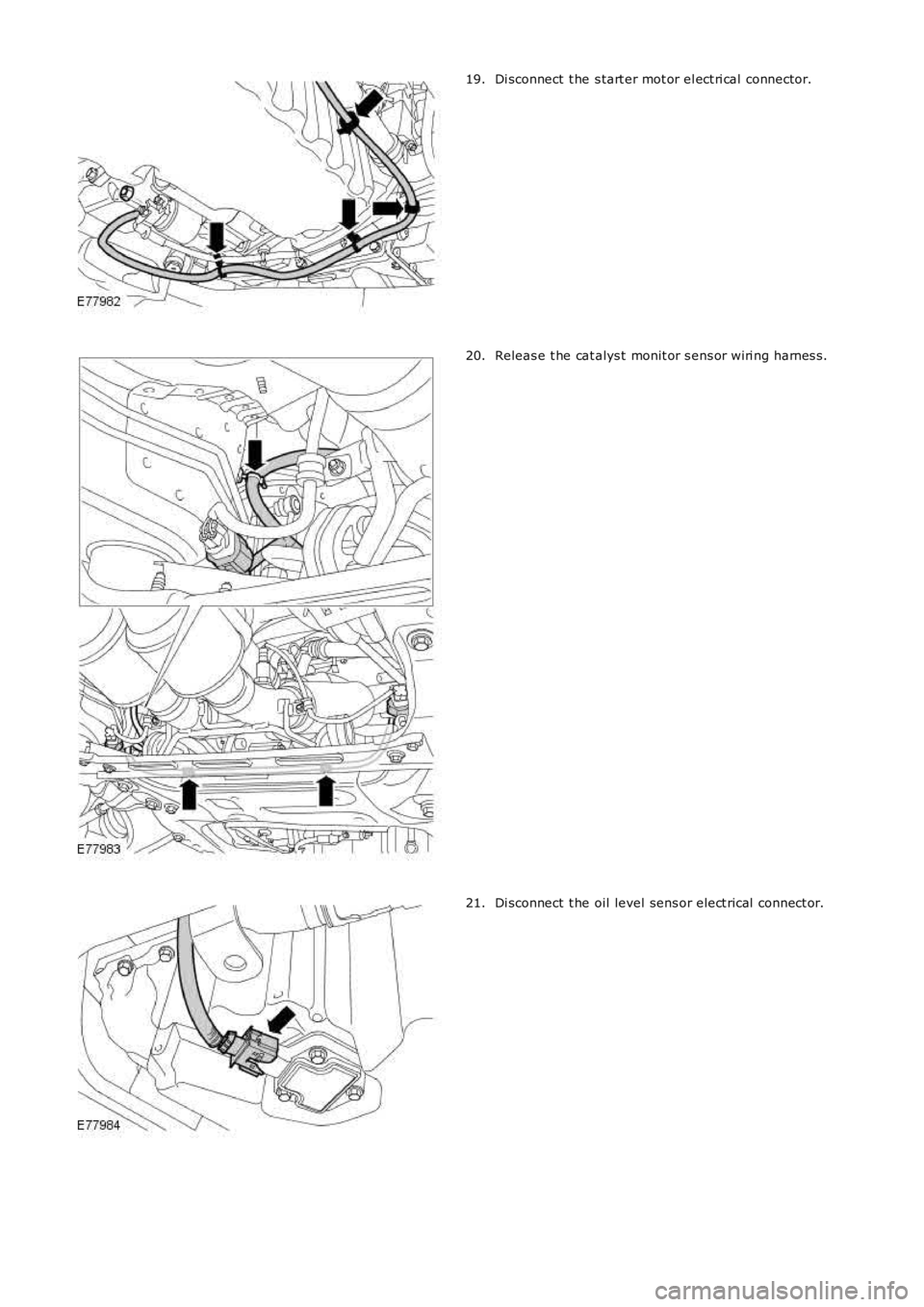

LAND ROVER FRELANDER 2 2006 Repair Manual Di sconnect t he s tart er mot or el ect ri cal connector.19. Releas e t he cat alys t monit or s ens or wiri ng harnes s.20. Di sconnect t he oil level sens or elect rical connect or.21.

Page 2031 of 3229

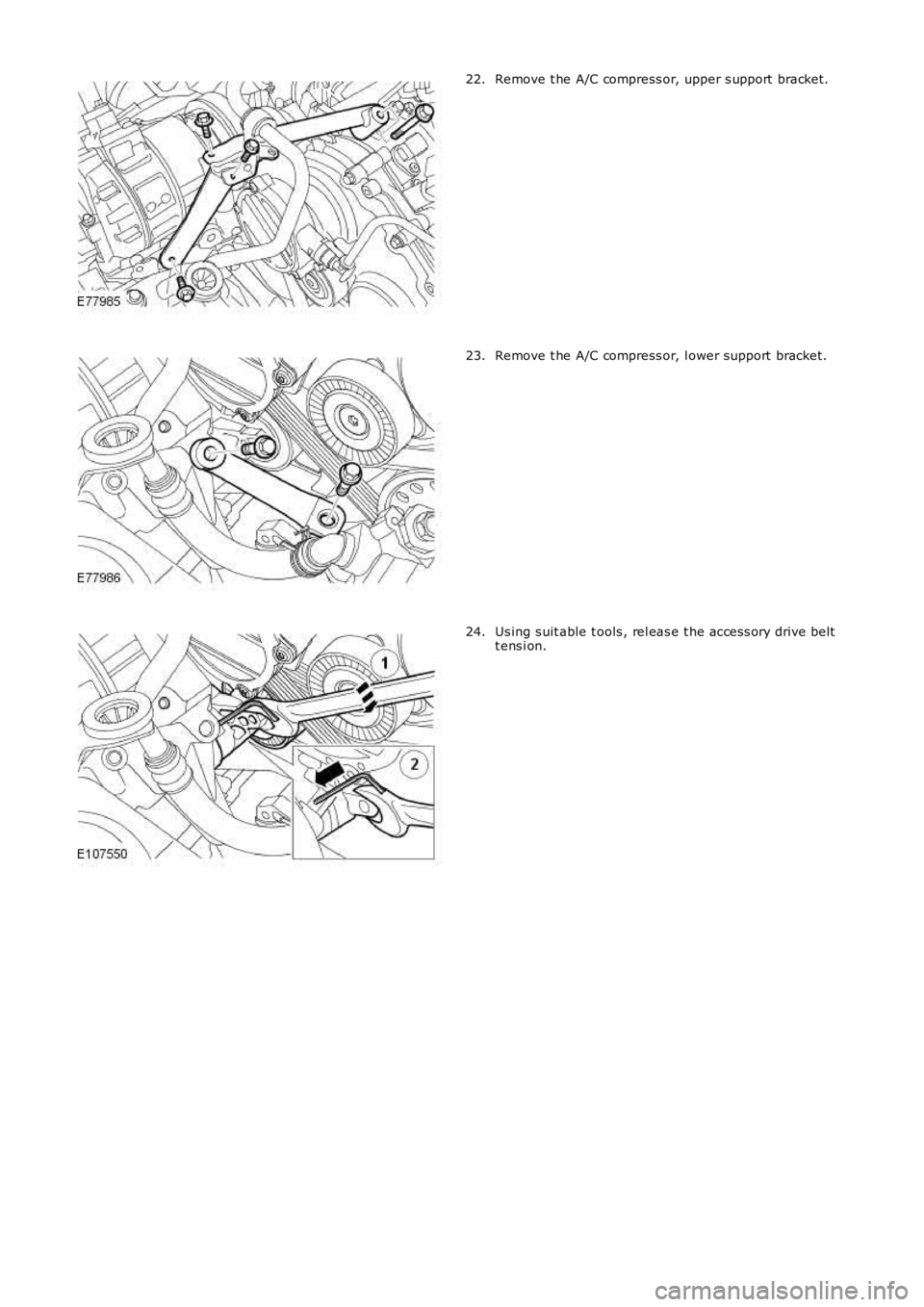

LAND ROVER FRELANDER 2 2006 Repair Manual Remove t he A/C compress or, upper s upport bracket.22. Remove t he A/C compress or, l ower support bracket.23. Us ing s uit able t ools , rel eas e t he acces s ory drive beltt ens i on.24.

Page 2032 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Releas e t he A/C compress or and posi ti on as ide.25. Di sconnect t he transmis si on electrical connect or.26. Releas e t he 3 ground cables .27.
