Page 385 of 3229

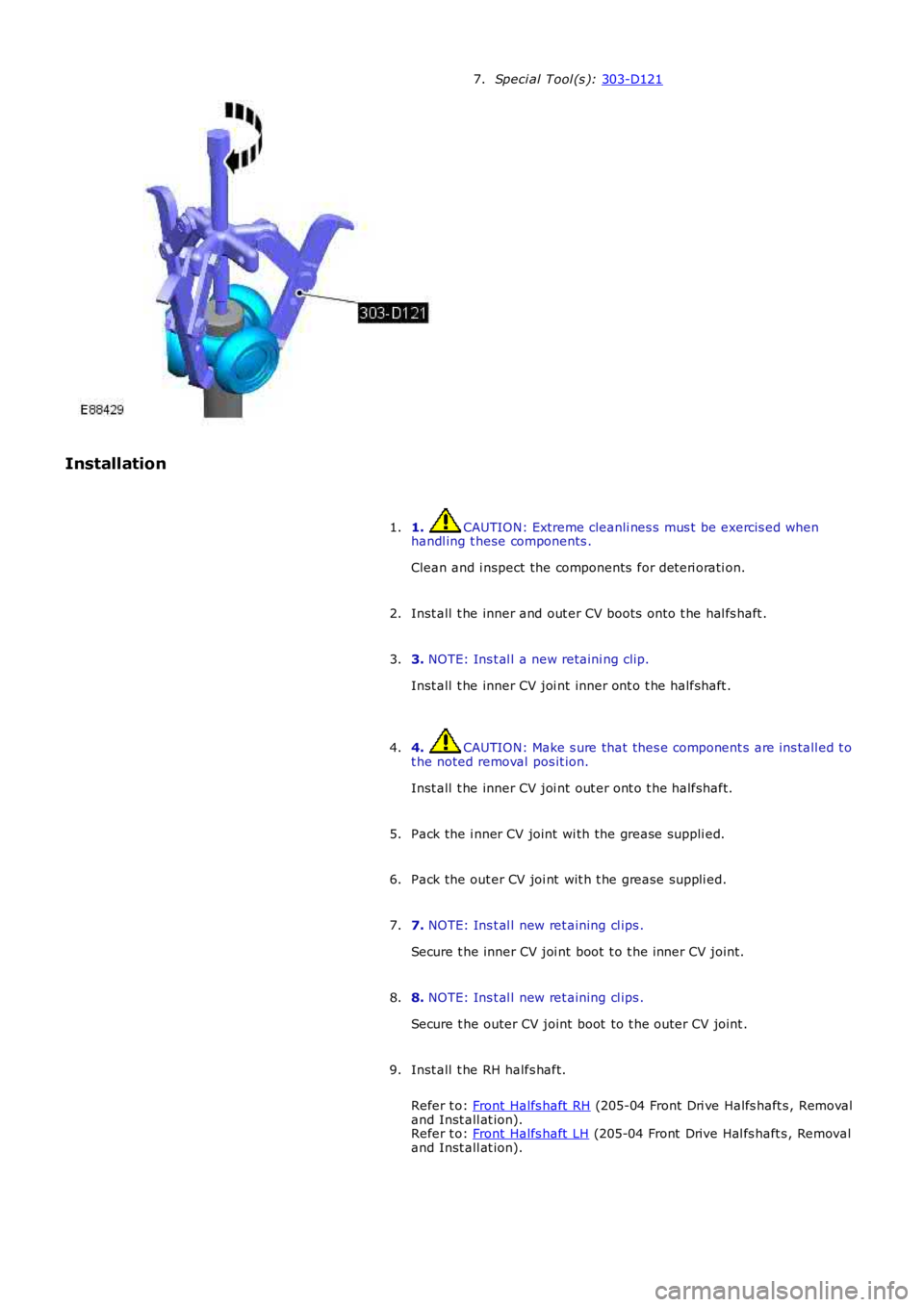

LAND ROVER FRELANDER 2 2006 Repair Manual Speci al Tool (s ): 303-D121 7. Installation 1. CAUTION: Extreme cleanli nes s mus t be exercis ed when handl ing t hese components . Clean and i nspect the components for det eri orati on. 1. In

Page 386 of 3229

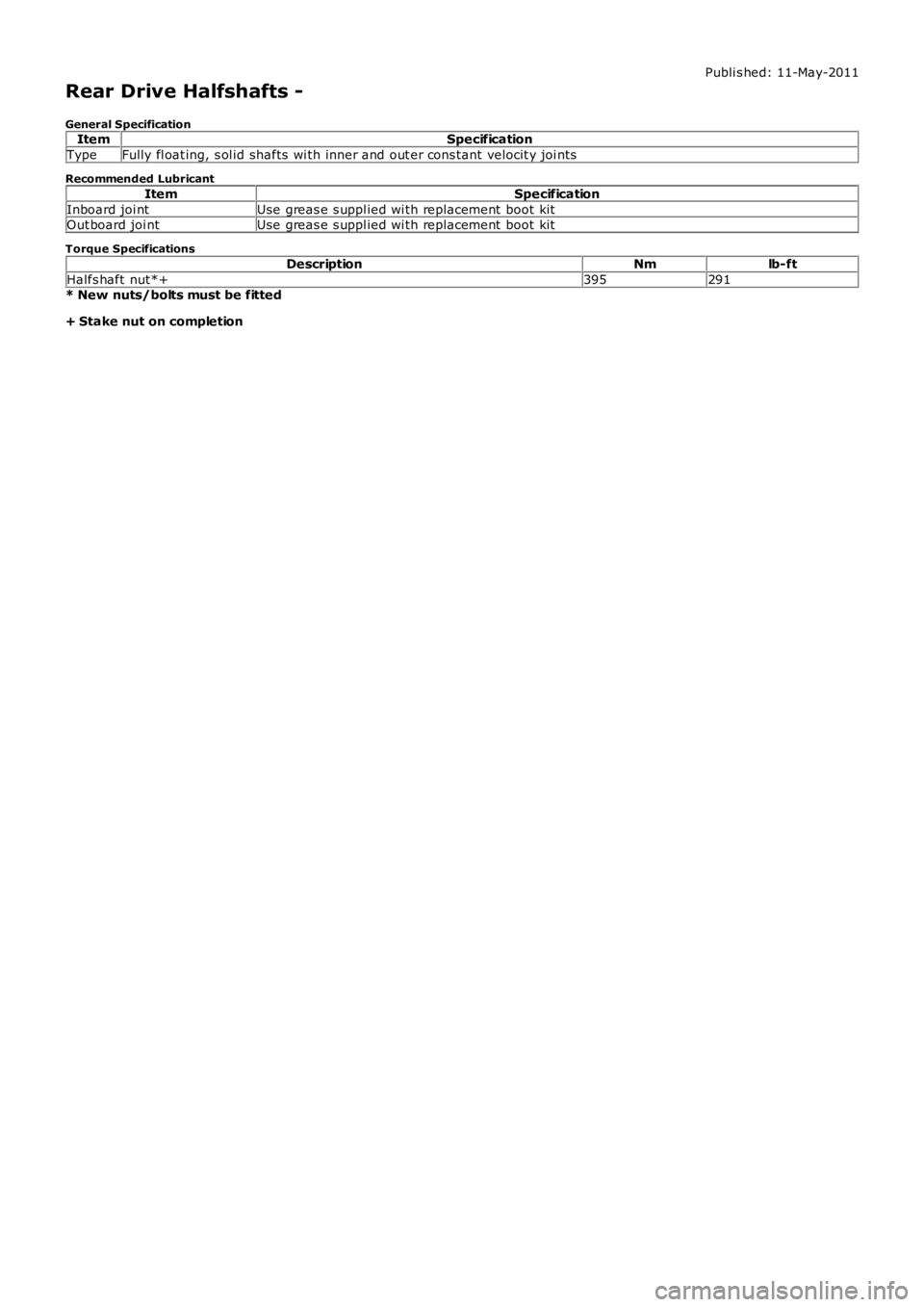

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Rear Drive Halfshafts - General SpecificationItemSpecification TypeFully fl oat ing, s ol id shafts wi th inner and out er cons tant velocit y joi nts Recommended Lubricant

Page 387 of 3229

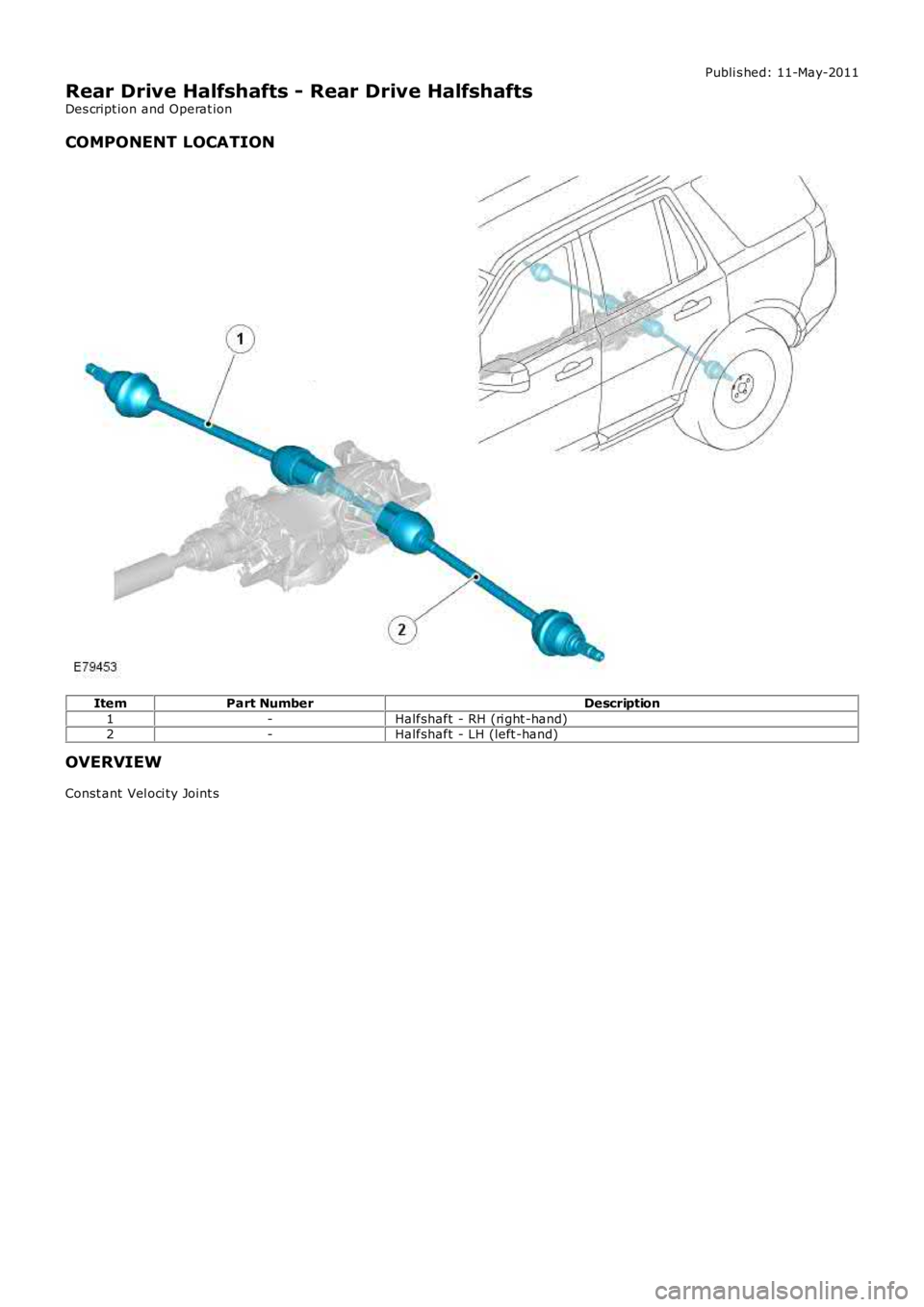

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Rear Drive Halfshafts - Rear Drive Halfshafts Des cript ion and Operat ion COMPONENT LOCATION ItemPart NumberDescription 1-Halfshaft - RH (ri ght -hand)2-Halfshaft - LH (left

Page 388 of 3229

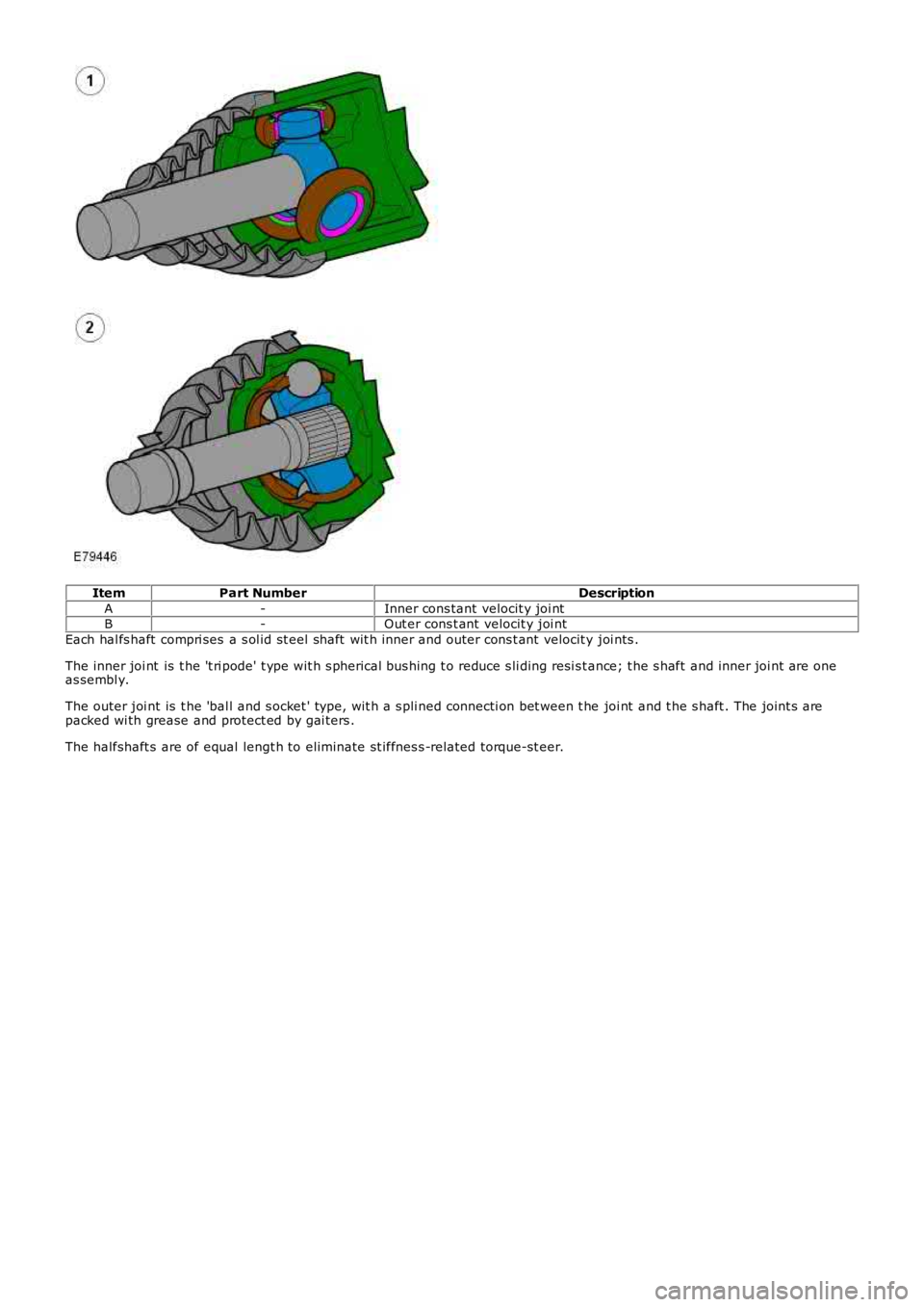

LAND ROVER FRELANDER 2 2006 Repair Manual ItemPart NumberDescription A-Inner cons tant velocit y joi ntB-Out er cons t ant velocit y joi nt Each hal fs haft compri ses a s ol id st eel shaft wit h inner and outer cons t ant velocit y jo

Page 389 of 3229

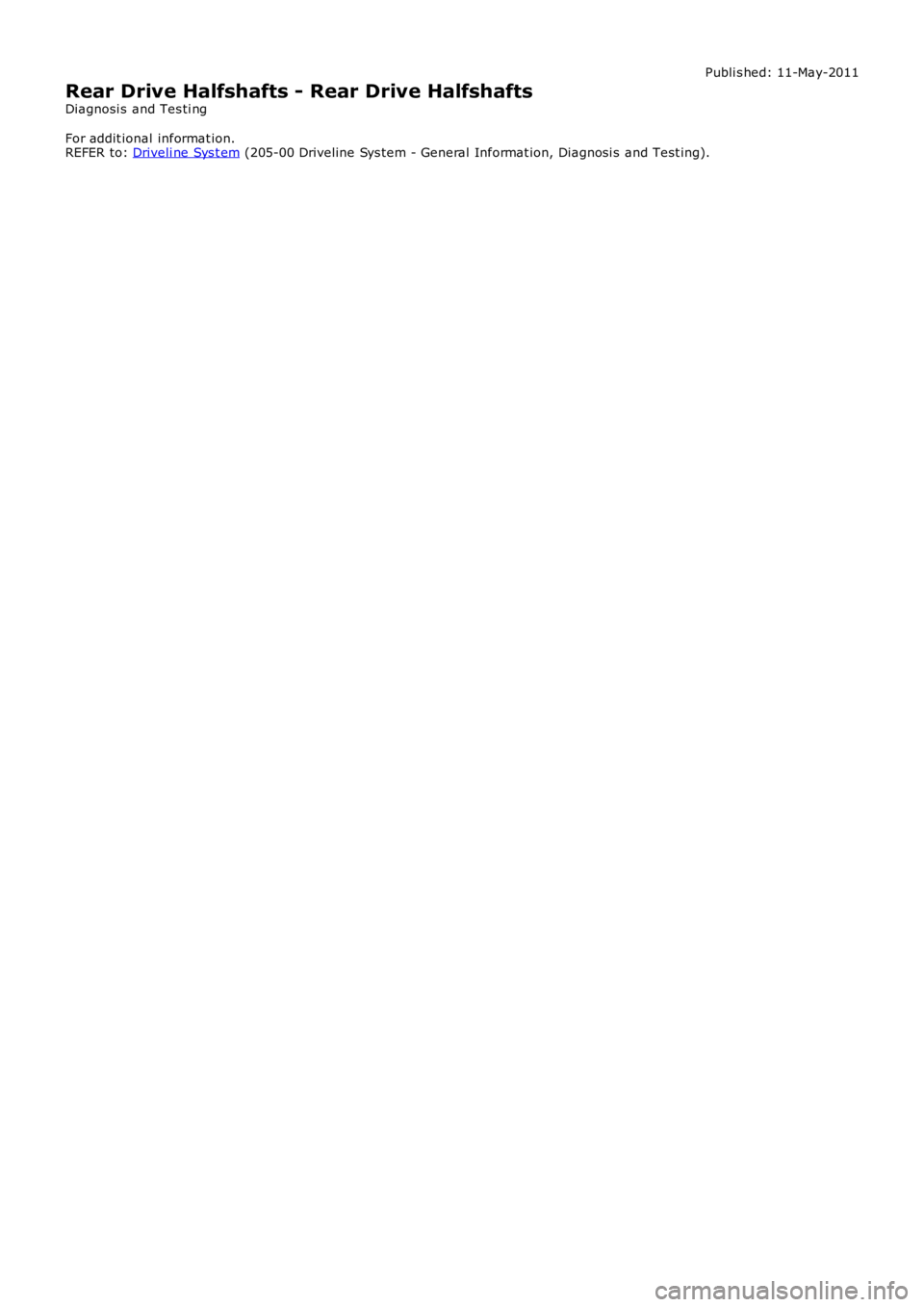

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Rear Drive Halfshafts - Rear Drive Halfshafts Diagnosi s and Tes ti ng For addit ional informat ion. REFER to: Driveli ne Sys t em (205-00 Driveline Sys tem - General Infor

Page 390 of 3229

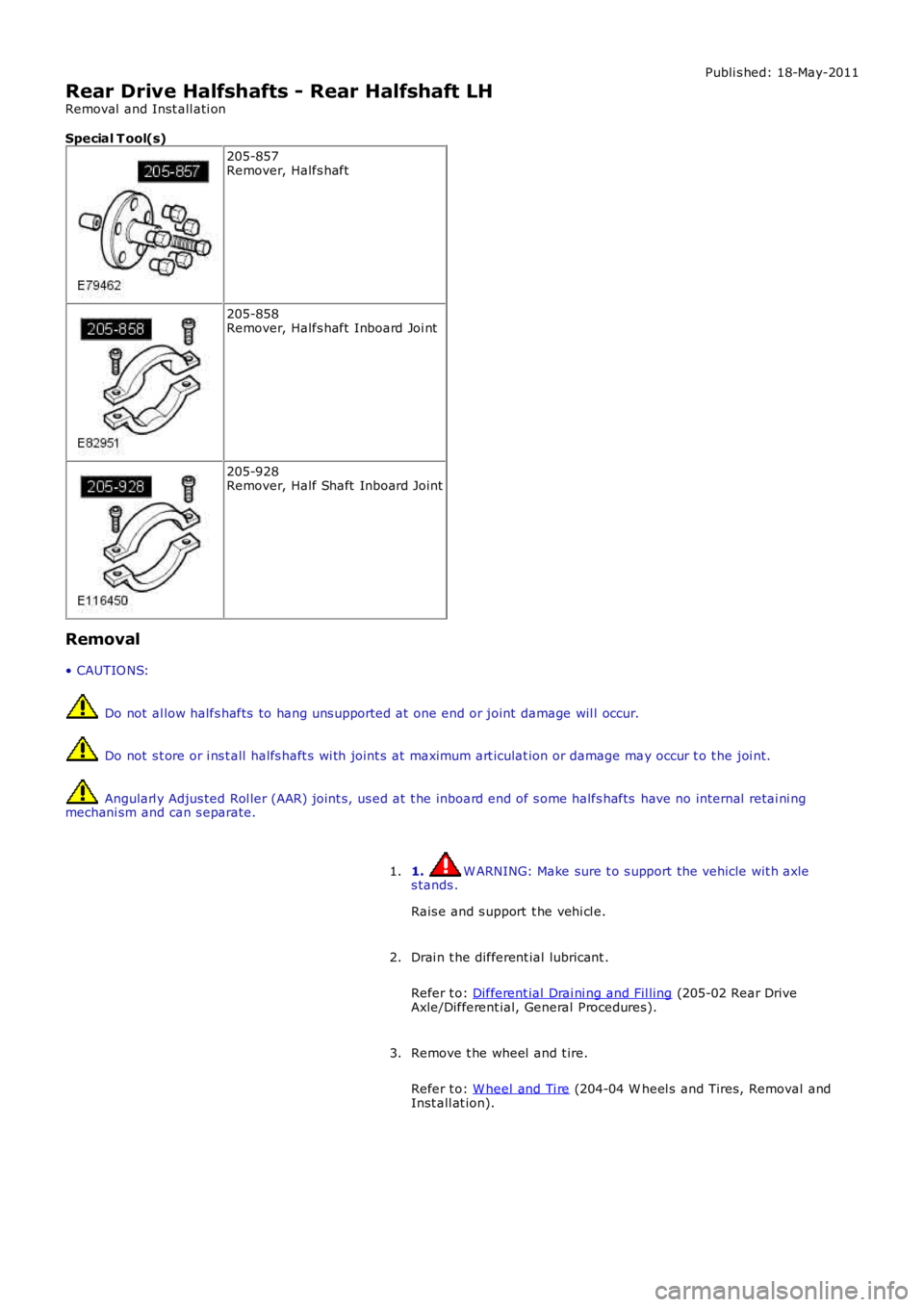

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 18-May-2011 Rear Drive Halfshafts - Rear Halfshaft LH Removal and Inst all ati on Special T ool(s) 205-857Remover, Halfs haft 205-858Remover, Halfs haft Inboard Joi nt 205-928Remover, Ha

Page 391 of 3229

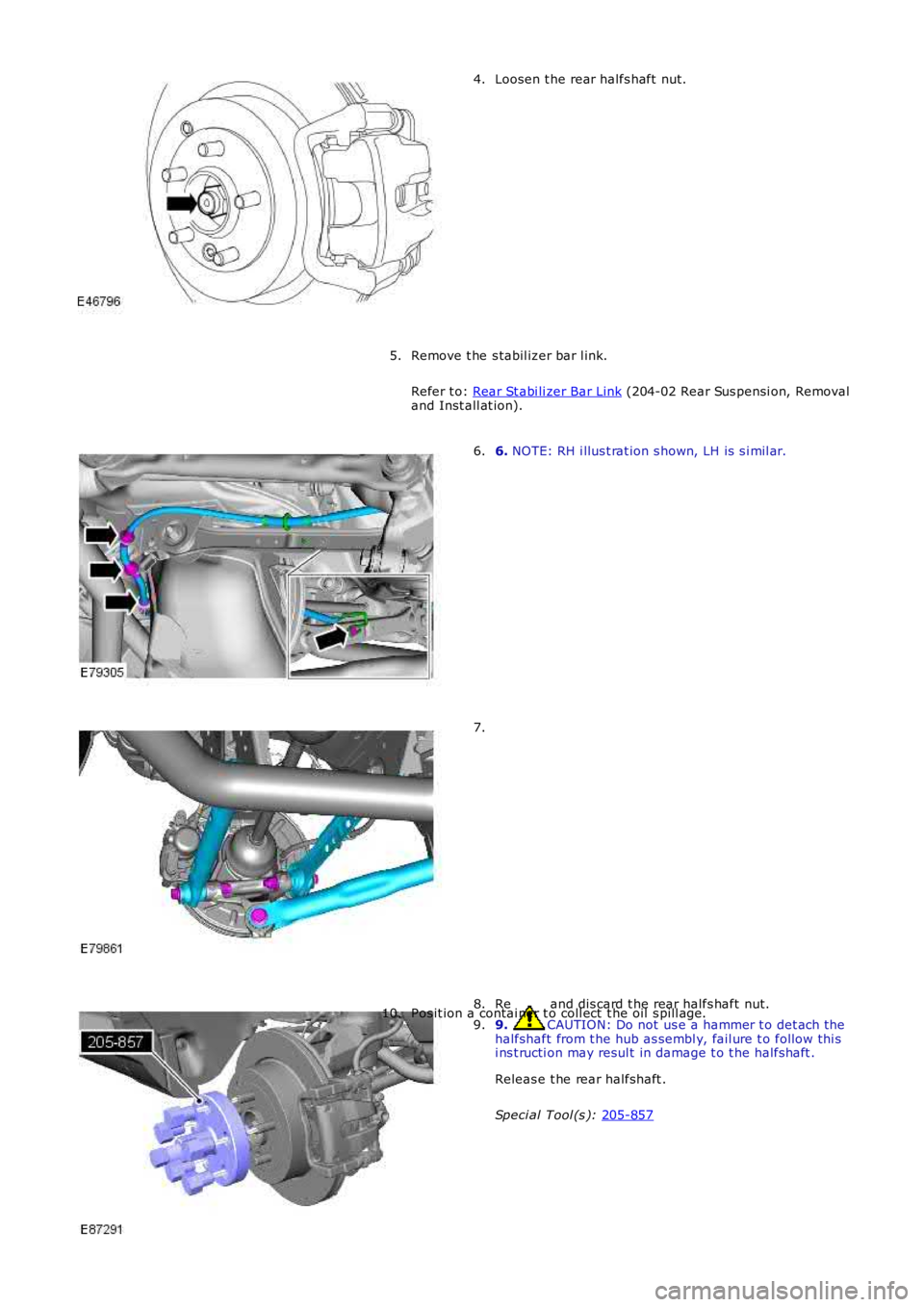

LAND ROVER FRELANDER 2 2006 Repair Manual Loosen t he rear halfs haft nut. 4. Remove t he s tabil izer bar l ink. Refer t o: Rear St abi li zer Bar Link (204-02 Rear Sus pensi on, Removal and Inst all at ion). 5. 6. NOTE: RH i llus t rat i

Page 392 of 3229

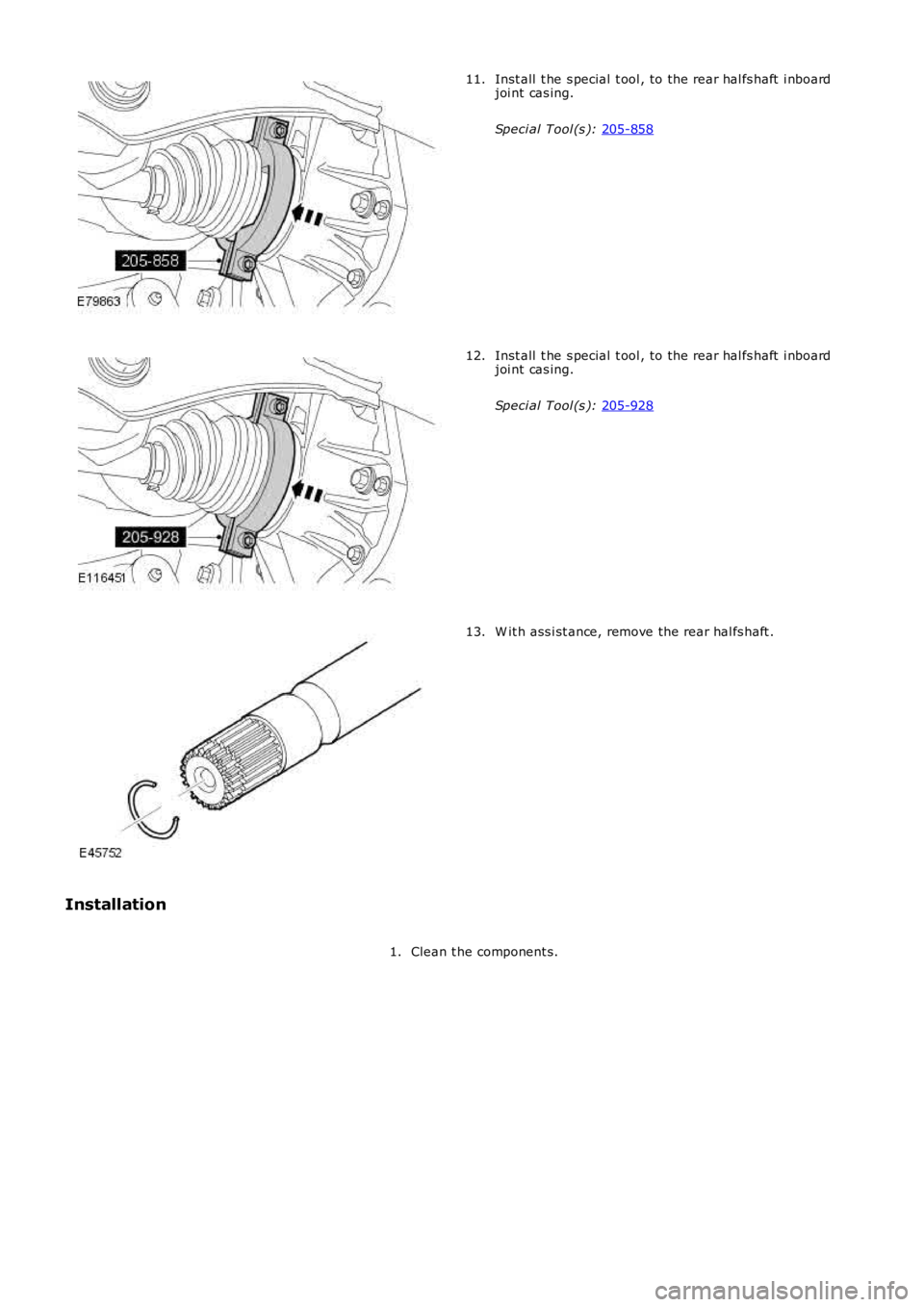

LAND ROVER FRELANDER 2 2006 Repair Manual Inst all t he s pecial t ool , to the rear hal fs haft i nboard joi nt cas ing. Speci al Tool (s ): 205-858 11. Inst all t he s pecial t ool , to the rear hal fs haft i nboard joi nt cas ing. S
