Page 265 of 3229

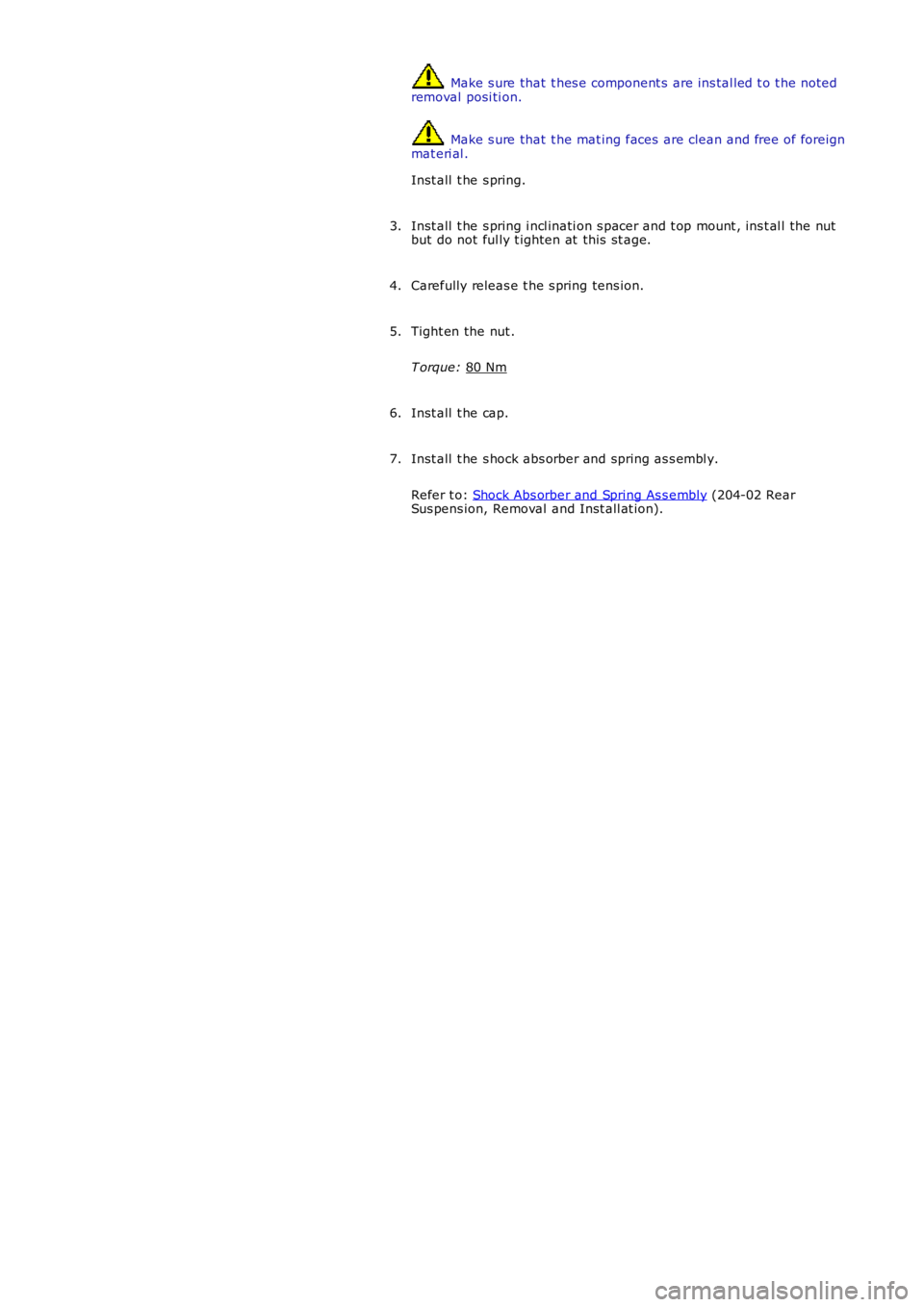

Make s ure that t hes e component s are ins tal led t o t he noted
removal posi ti on. Make s ure that t he mat ing faces are clean and free of foreign
mat eri al .
Inst all t he s pring.
Inst all t he s pring i ncl inati on s pacer and t op mount , ins t al l the nut
but do not ful ly t ighten at this st age.
3.
Carefully releas e t he s pring tens ion.
4.
Tight en the nut .
T orque: 80 Nm 5.
Inst all t he cap.
6.
Inst all t he s hock abs orber and spring as s embl y.
Refer t o: Shock Abs orber and Spring As s embly (204-02 Rear
Sus pens ion, Removal and Inst all at ion).
7.
Page 266 of 3229
Publi s hed: 11-May-2011

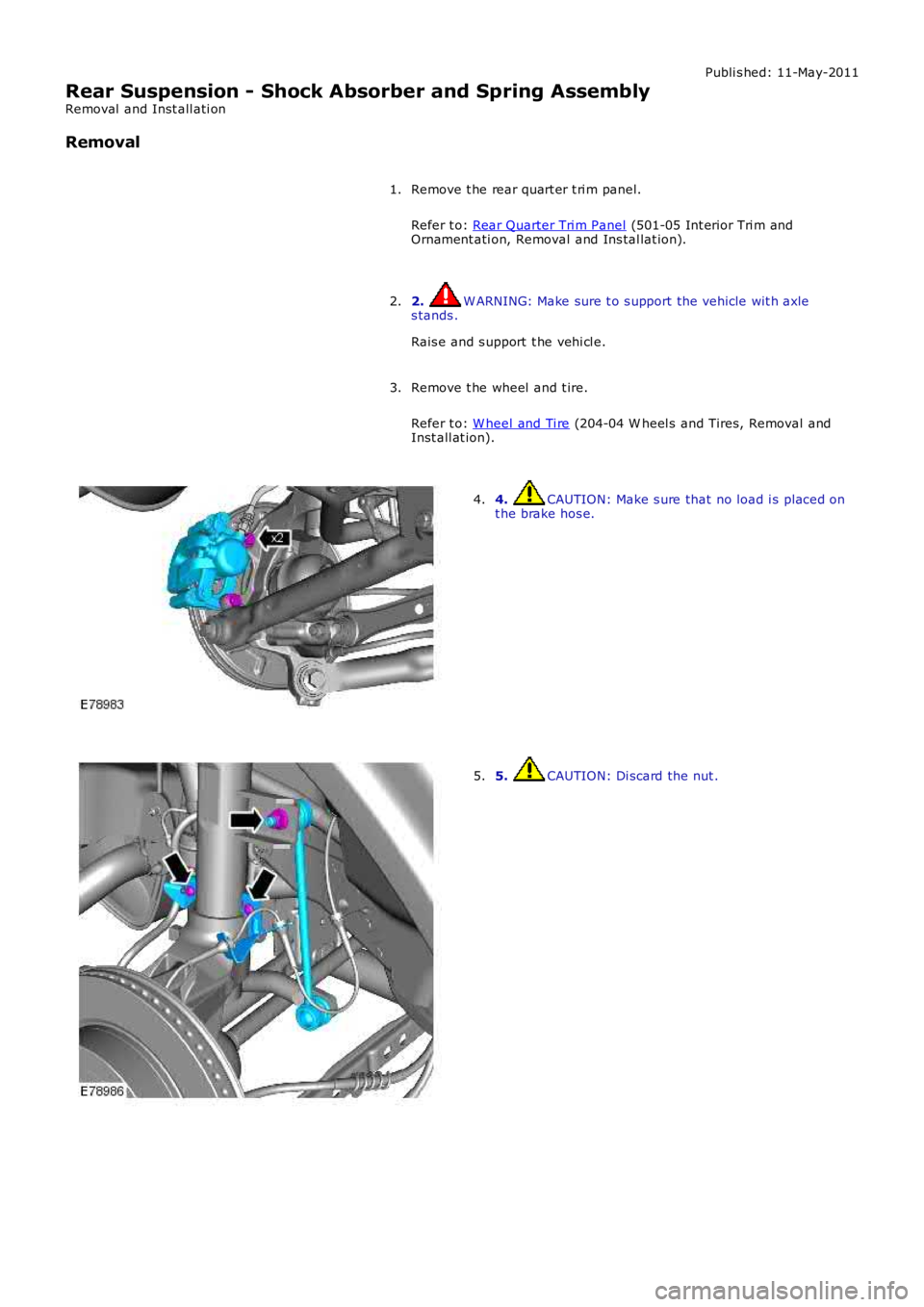

Rear Suspension - Shock Absorber and Spring Assembly
Removal and Inst all ati on
Removal
Remove t he rear quart er t ri m panel.
Refer t o: Rear Quarter Tri m Panel (501-05 Int erior Tri m andOrnament ati on, Removal and Ins tal lat ion).
1.
2. W ARNING: Make sure t o s upport the vehicle wit h axles tands .
Rais e and s upport t he vehi cl e.
2.
Remove t he wheel and t ire.
Refer t o: W heel and Ti re (204-04 W heel s and Tires, Removal andInst all at ion).
3.
4. CAUTION: Make s ure that no load i s placed ont he brake hos e.4.
5. CAUTION: Di scard the nut .5.
Page 267 of 3229
Remove and dis card t he bolt from the rear wheelknuckle.6.
7.
8.
9. CAUTION: Make s ure that no component scatch.9.
Page 268 of 3229

10.

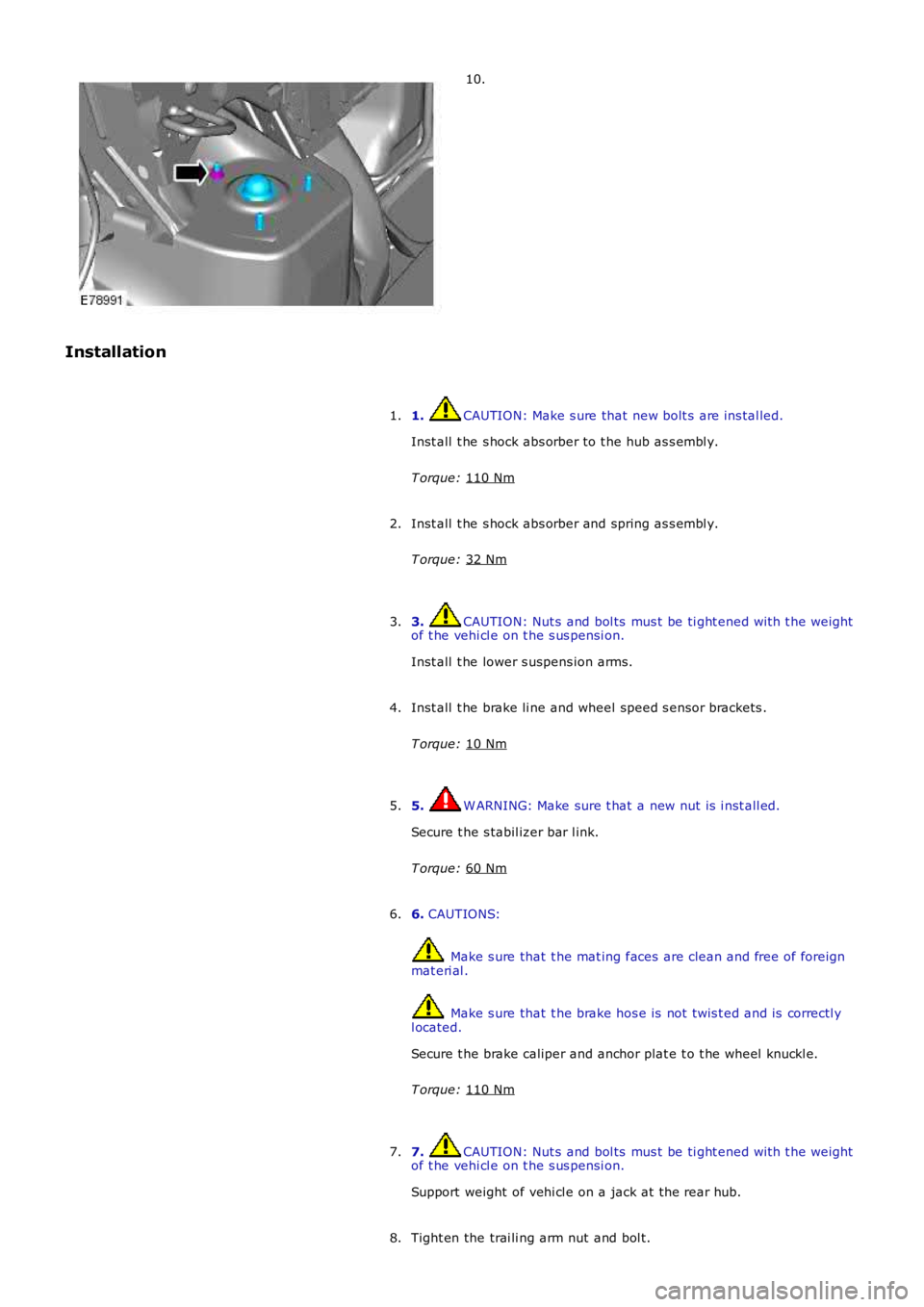

Installation 1. CAUTION: Make s ure that new bolt s are ins tal led.
Inst all t he s hock abs orber to t he hub as s embl y.
T orque: 110 Nm 1.
Inst all t he s hock abs orber and spring as s embl y.
T orque: 32 Nm 2.
3. CAUTION: Nut s and bol ts mus t be ti ght ened wit h t he weight
of t he vehi cl e on t he s us pensi on.
Inst all t he lower s uspens ion arms.
3.
Inst all t he brake li ne and wheel speed s ensor brackets .
T orque: 10 Nm 4.
5. W ARNING: Make sure t hat a new nut is i nst all ed.
Secure t he s tabil izer bar l ink.
T orque: 60 Nm 5.
6. CAUTIONS: Make s ure that t he mat ing faces are clean and free of foreign
mat eri al . Make s ure that t he brake hos e is not t wis t ed and is correctl y
l ocated.
Secure t he brake caliper and anchor plat e t o t he wheel knuckl e.
T orque: 110 Nm 6.
7. CAUTION: Nut s and bol ts mus t be ti ght ened wit h t he weight
of t he vehi cl e on t he s us pensi on.
Support weight of vehi cl e on a jack at the rear hub.
7.
Tight en the trai li ng arm nut and bol t.
8.
Page 269 of 3229

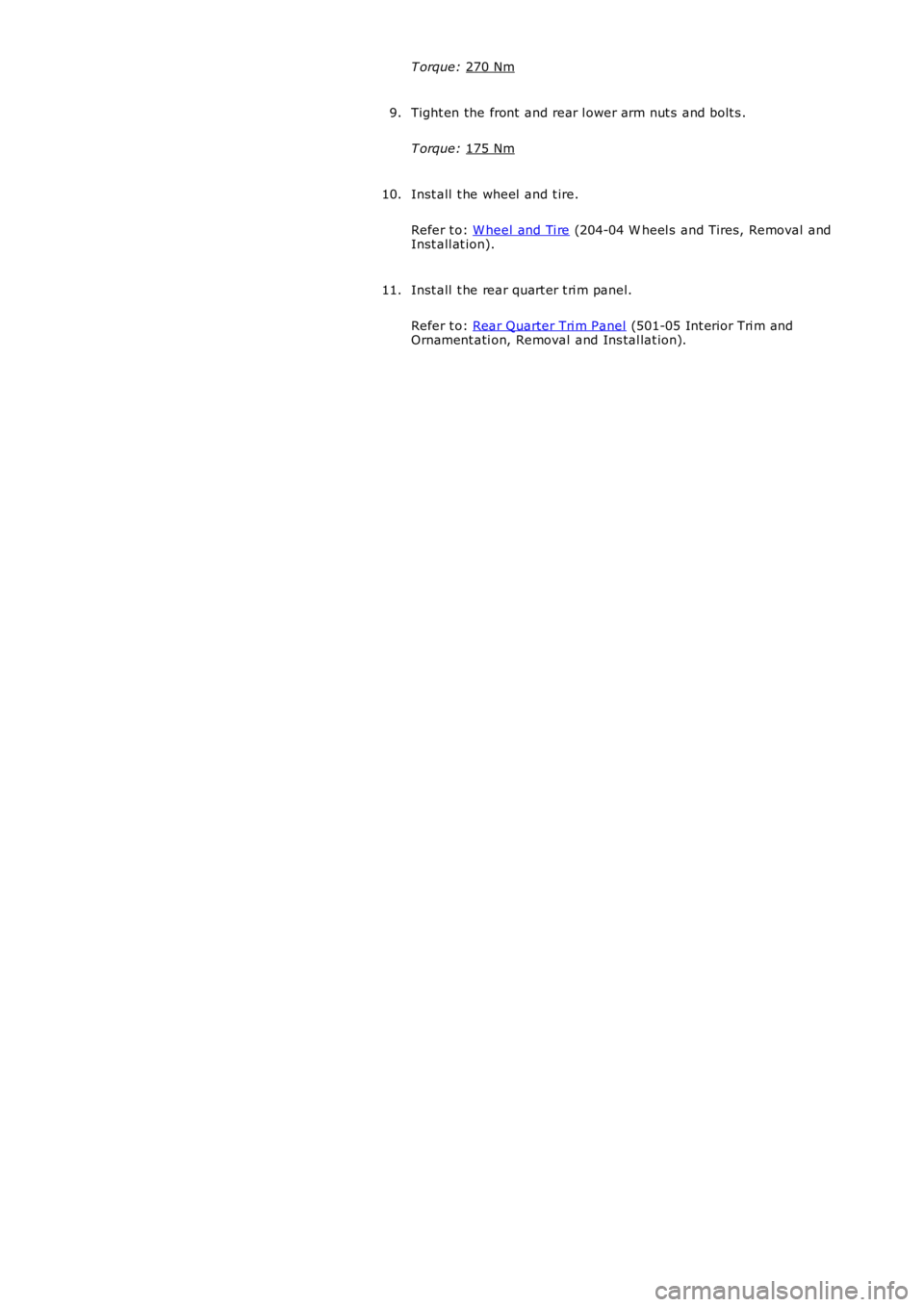

T orque:
270 Nm Tight en the front and rear l ower arm nut s and bolt s .
T orque: 175 Nm 9.
Inst all t he wheel and t ire.
Refer t o: W heel and Ti re (204-04 W heel s and Tires, Removal and
Inst all at ion).
10.
Inst all t he rear quart er t ri m panel.
Refer t o: Rear Quarter Tri m Panel (501-05 Int erior Tri m and
Ornament ati on, Removal and Ins tal lat ion).
11.
Page 270 of 3229
Publi s hed: 11-May-2011

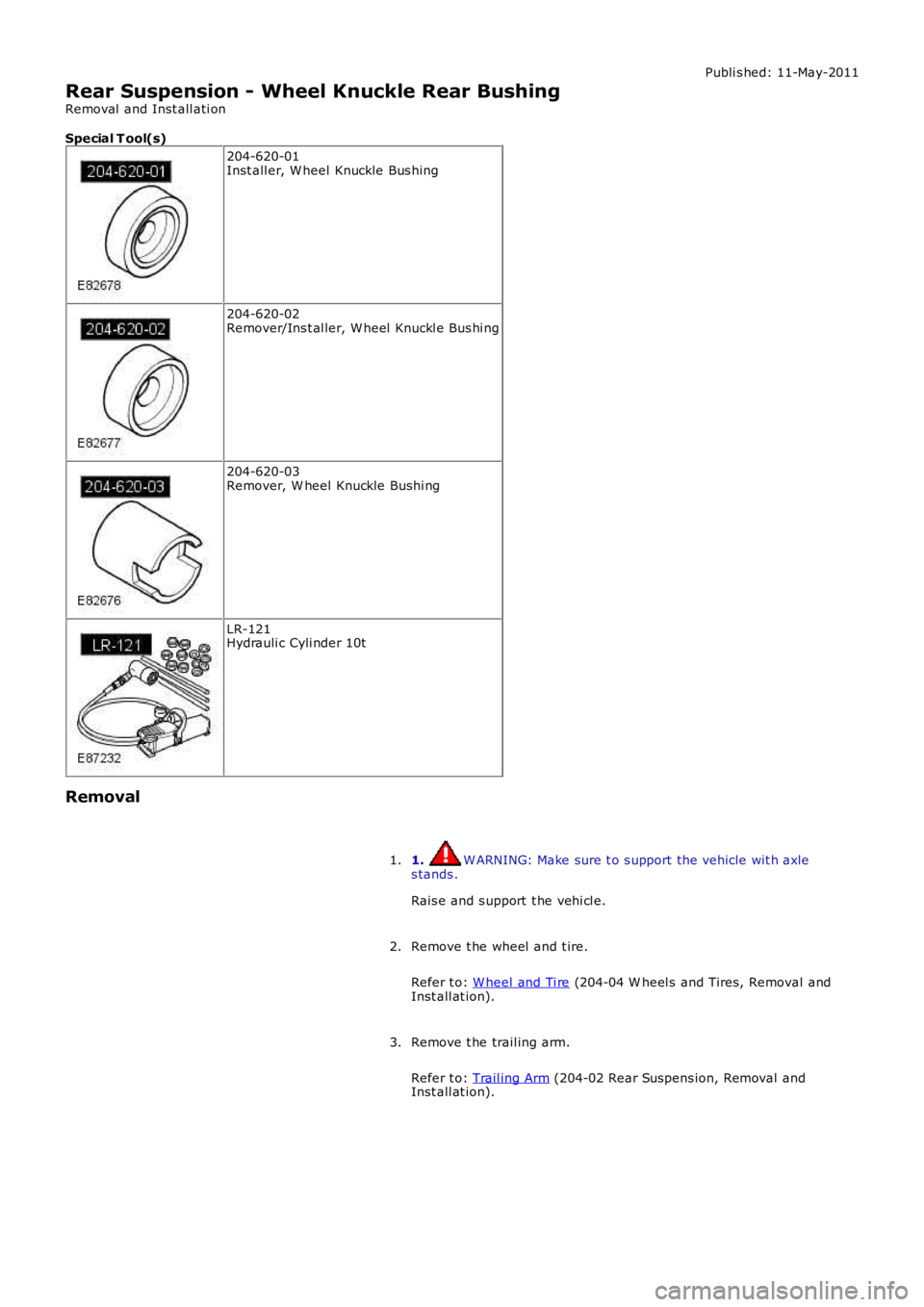

Rear Suspension - Wheel Knuckle Rear Bushing
Removal and Inst all ati on
Special T ool(s)
204-620-01Inst all er, W heel Knuckle Bus hing
204-620-02Remover/Ins t al ler, W heel Knuckl e Bus hi ng
204-620-03Remover, W heel Knuckle Bushi ng
LR-121Hydrauli c Cyli nder 10t
Removal
1. W ARNING: Make sure t o s upport the vehicle wit h axles tands .
Rais e and s upport t he vehi cl e.
1.
Remove t he wheel and t ire.
Refer t o: W heel and Ti re (204-04 W heel s and Tires, Removal andInst all at ion).
2.
Remove t he trail ing arm.
Refer t o: Trail ing Arm (204-02 Rear Suspens ion, Removal andInst all at ion).
3.
Page 271 of 3229

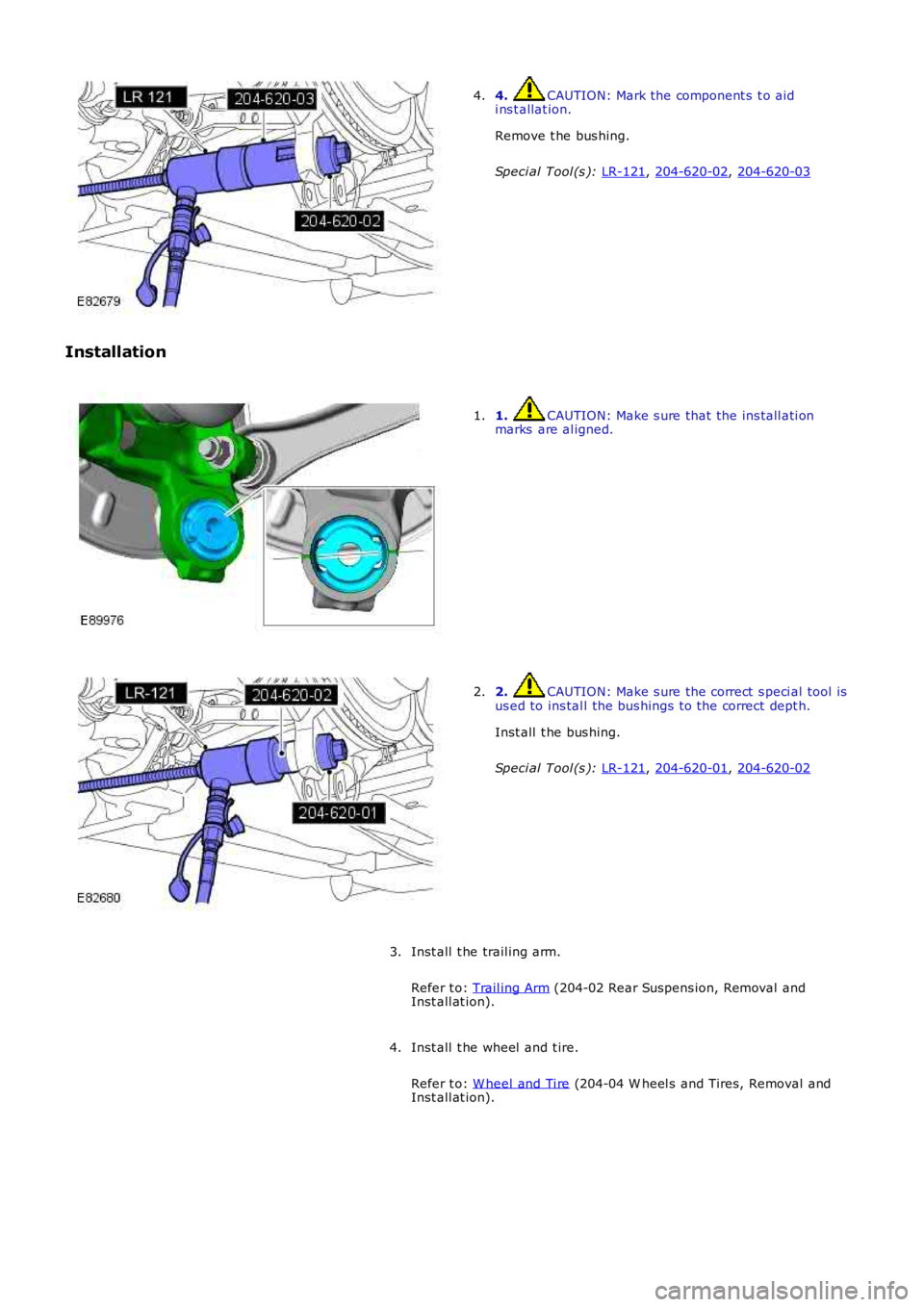

4. CAUTION: Mark the component s t o aid
i ns t allat ion.
Remove t he bus hing.
Speci al Tool (s ): LR-121 ,
204-620-02 ,
204-620-03 4.
Installation 1. CAUTION: Make s ure that the ins tall ati on
marks are al igned.
1. 2. CAUTION: Make s ure the correct s peci al tool is
us ed to ins tal l the bus hings to the correct dept h.
Inst all t he bus hing.
Speci al Tool (s ): LR-121 ,
204-620-01 ,
204-620-02 2.
Inst all t he trail ing arm.
Refer t o: Trail ing Arm (204-02 Rear Suspens ion, Removal and
Inst all at ion).
3.
Inst all t he wheel and t ire.
Refer t o: W heel and Ti re (204-04 W heel s and Tires, Removal and
Inst all at ion).
4.
Page 272 of 3229

Publi s hed: 11-May-2011

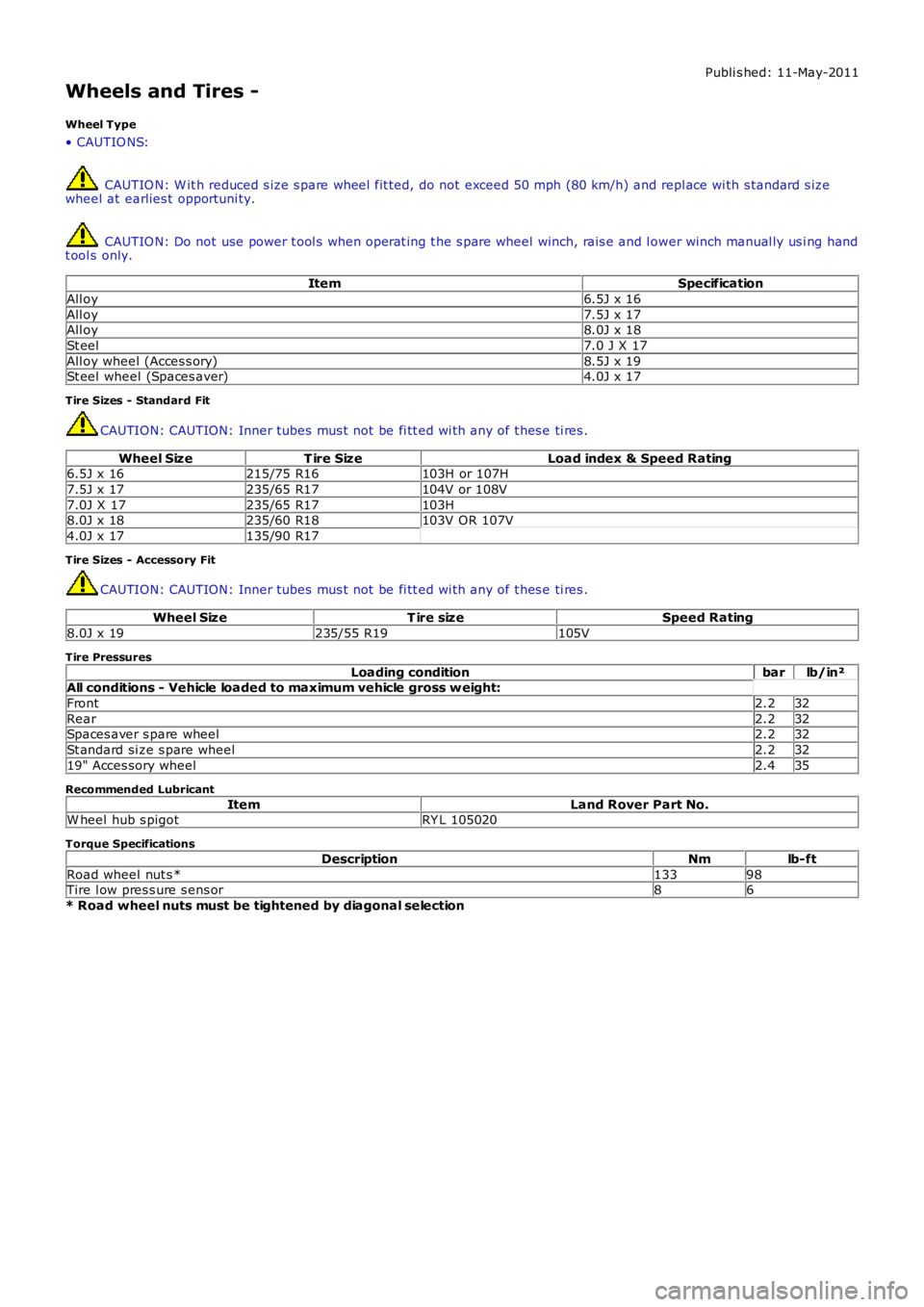

Wheels and Tires -
Wheel Type
• CAUTIO NS:
CAUTIO N: W it h reduced s ize s pare wheel fit ted, do not exceed 50 mph (80 km/h) and repl ace wi th s tandard s izewheel at earlies t opportuni ty.
CAUTIO N: Do not use power t ool s when operat ing t he s pare wheel winch, rais e and l ower winch manual ly us i ng handt ool s only.
ItemSpecification
All oy6.5J x 16
All oy7.5J x 17All oy8.0J x 18
St eel7.0 J X 17
All oy wheel (Acces s ory)8.5J x 19St eel wheel (Spaces aver)4.0J x 17
Tire Sizes - Standard Fit
CAUTION: CAUTION: Inner tubes mus t not be fi tt ed wi th any of t hes e ti res .
Wheel SizeT ire SizeLoad index & Speed Rating6.5J x 16215/75 R16103H or 107H
7.5J x 17235/65 R17104V or 108V
7.0J X 17235/65 R17103H8.0J x 18235/60 R18103V OR 107V
4.0J x 17135/90 R17
Tire Sizes - Accessory Fit
CAUTION: CAUTION: Inner tubes mus t not be fi tt ed wi th any of t hes e ti res .
Wheel SizeT ire sizeSpeed Rating
8.0J x 19235/55 R19105V
Tire Pressures
Loading conditionbarlb/in²All conditions - Vehicle loaded to maximum vehicle gross w eight:
Front2.232
Rear2.232Spaces aver s pare wheel2.232
St andard si ze s pare wheel2.232
19" Acces sory wheel2.435
Recommended Lubricant
ItemLand Rover Part No.W heel hub s pigotRY L 105020
Torque Specifications
DescriptionNmlb-ft
Road wheel nut s *13398Tire l ow pres s ure s ens or86
* Road wheel nuts must be tightened by diagonal selection
