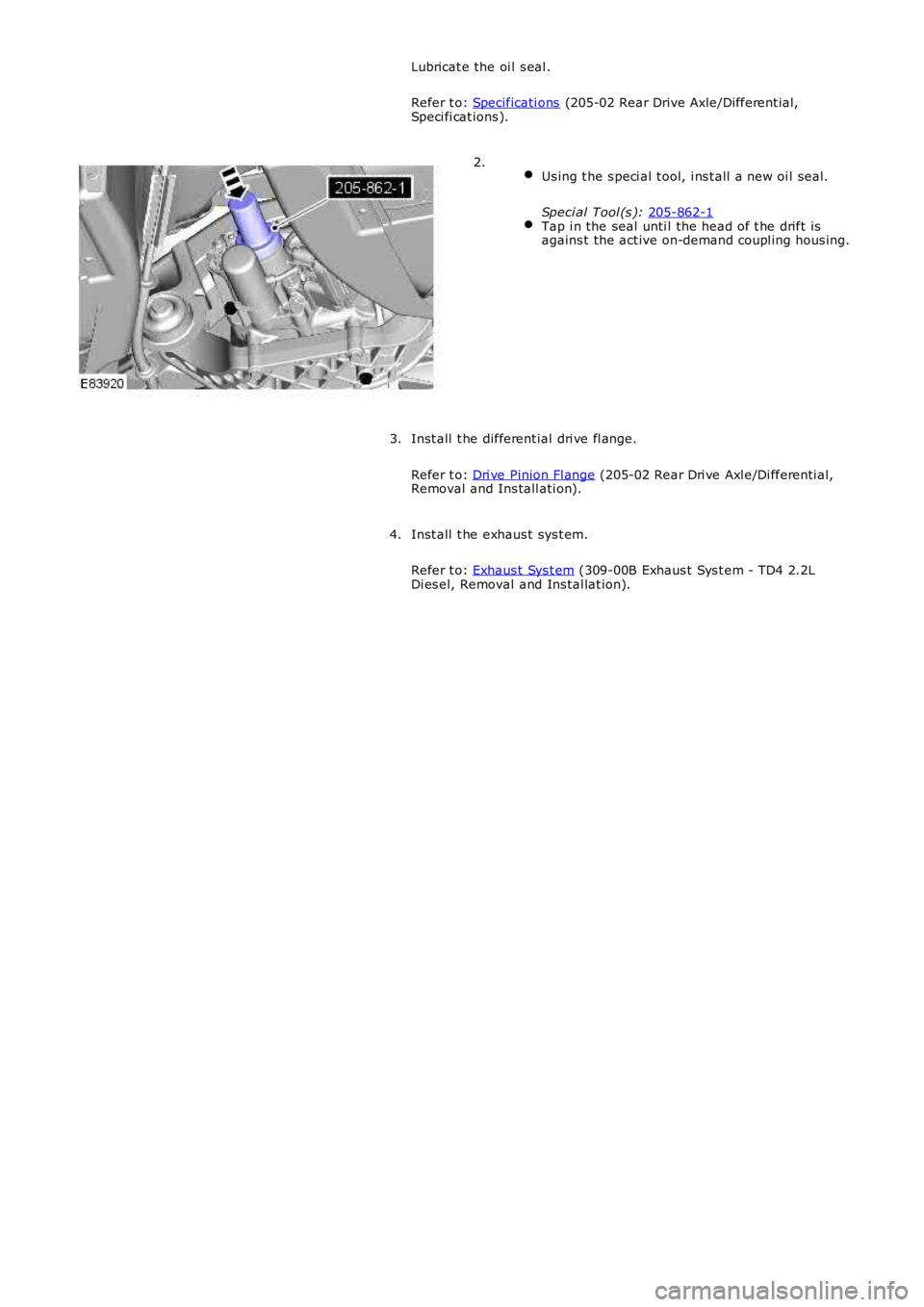

LAND ROVER FRELANDER 2 2006 Repair Manual Lubricat e the oi l s eal . Refer t o: Specificati ons (205-02 Rear Drive Axle/Different ial, Speci fi cat ions ). Us ing t he s peci al t ool, i ns t all a new oi l seal. Speci al Tool (s ): 205

Page 338 of 3229

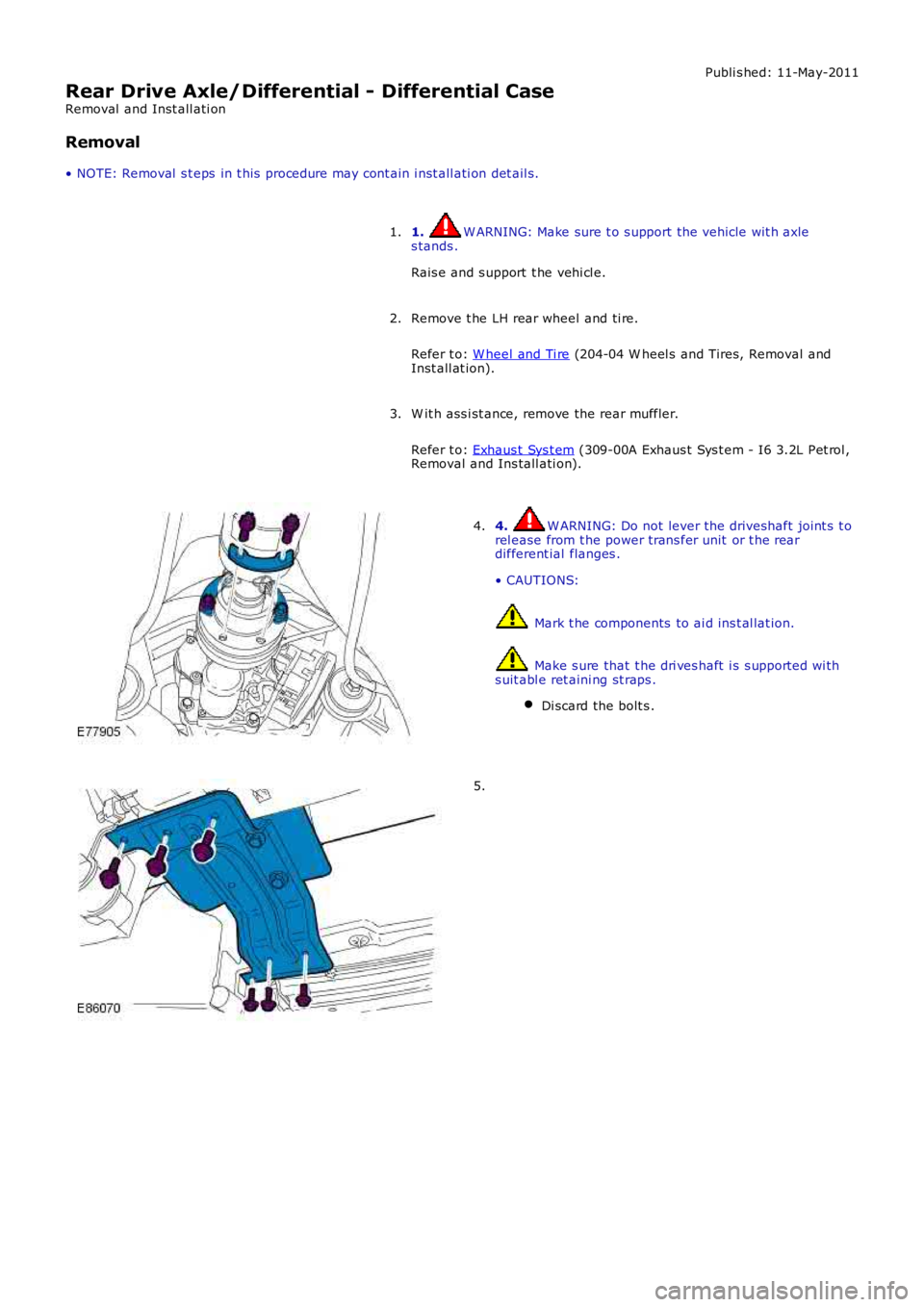

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Rear Drive Axle/Differential - Differential Case Removal and Inst all ati on Removal • NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.

Page 339 of 3229

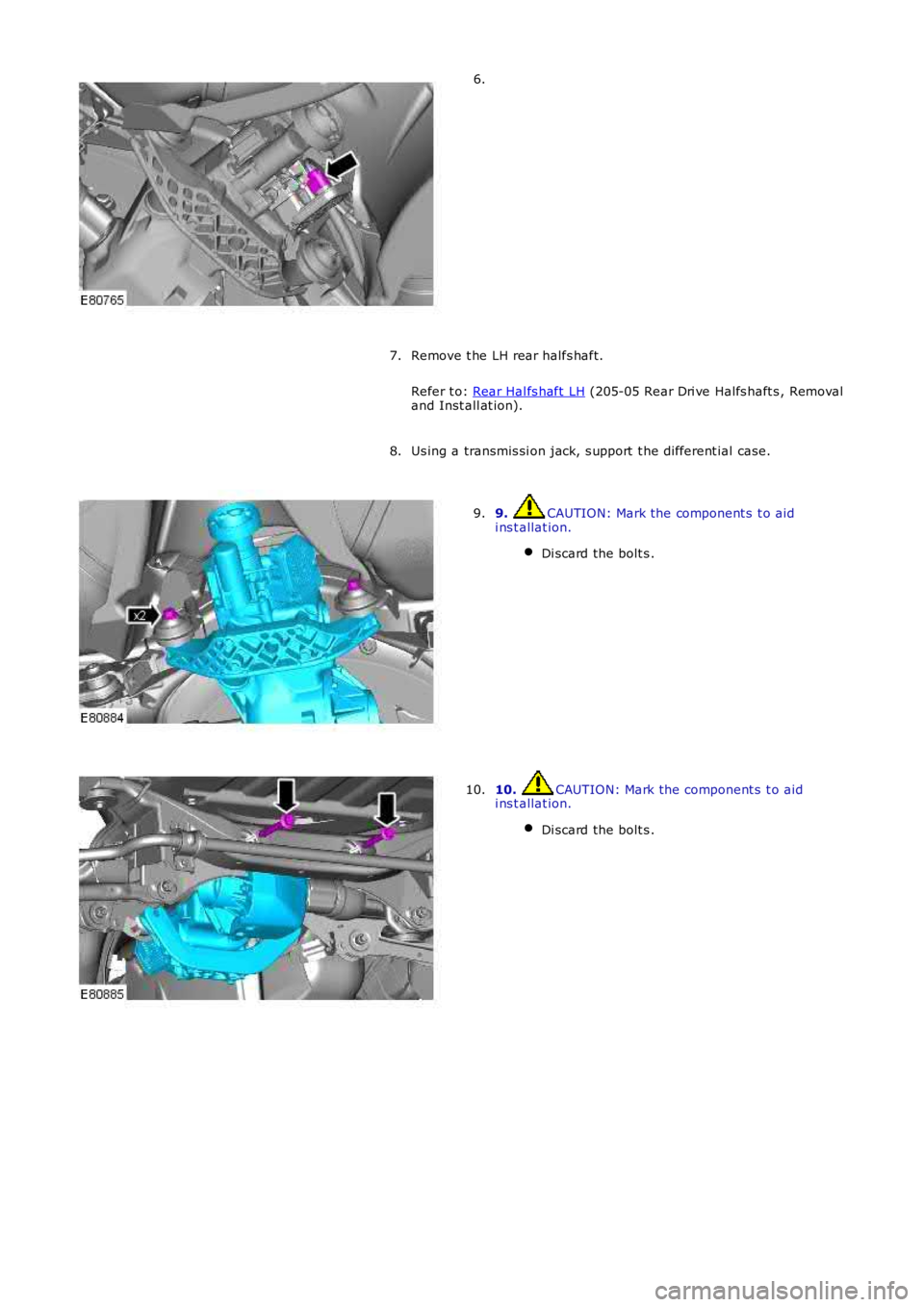

LAND ROVER FRELANDER 2 2006 Repair Manual 6. Remove t he LH rear halfs haft. Refer t o: Rear Hal fs haft LH (205-05 Rear Dri ve Halfs haft s , Removaland Inst all at ion). 7. Us ing a transmis si on jack, s upport t he different ial case.8

Page 340 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Carefully releas e t he RH i nboard halfs haft joint fromt he different ial and ti e as ide.11. 12. Carefully lower and remove t he different ial case.13. 14. NOTE: Do not dis ass emble further if

Page 341 of 3229

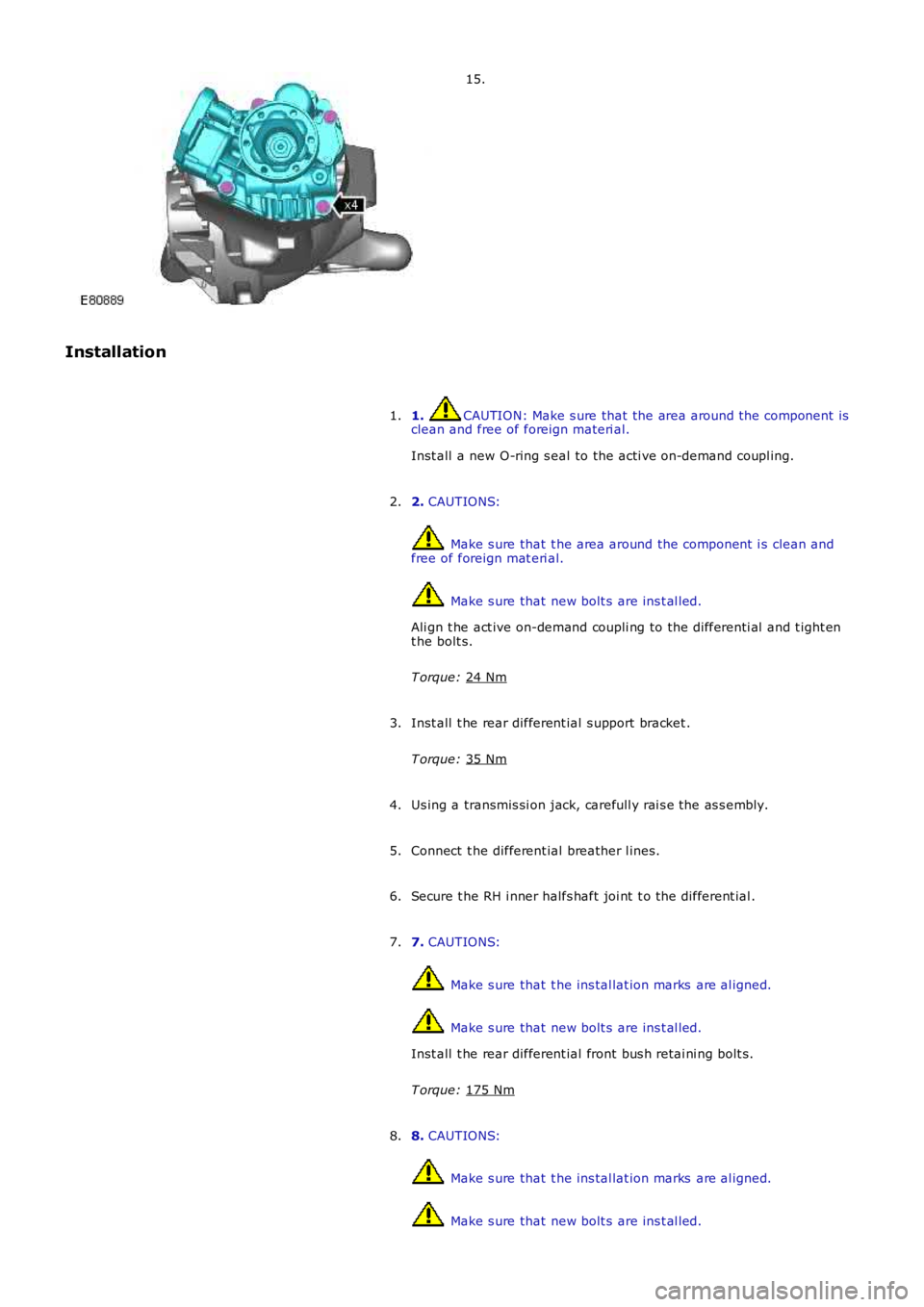

LAND ROVER FRELANDER 2 2006 Repair Manual 15. Installation 1. CAUTION: Make s ure that the area around t he component is clean and free of foreign materi al. Inst all a new O-ring s eal to the acti ve on-demand coupl ing. 1. 2. CAUTIONS:

Page 342 of 3229

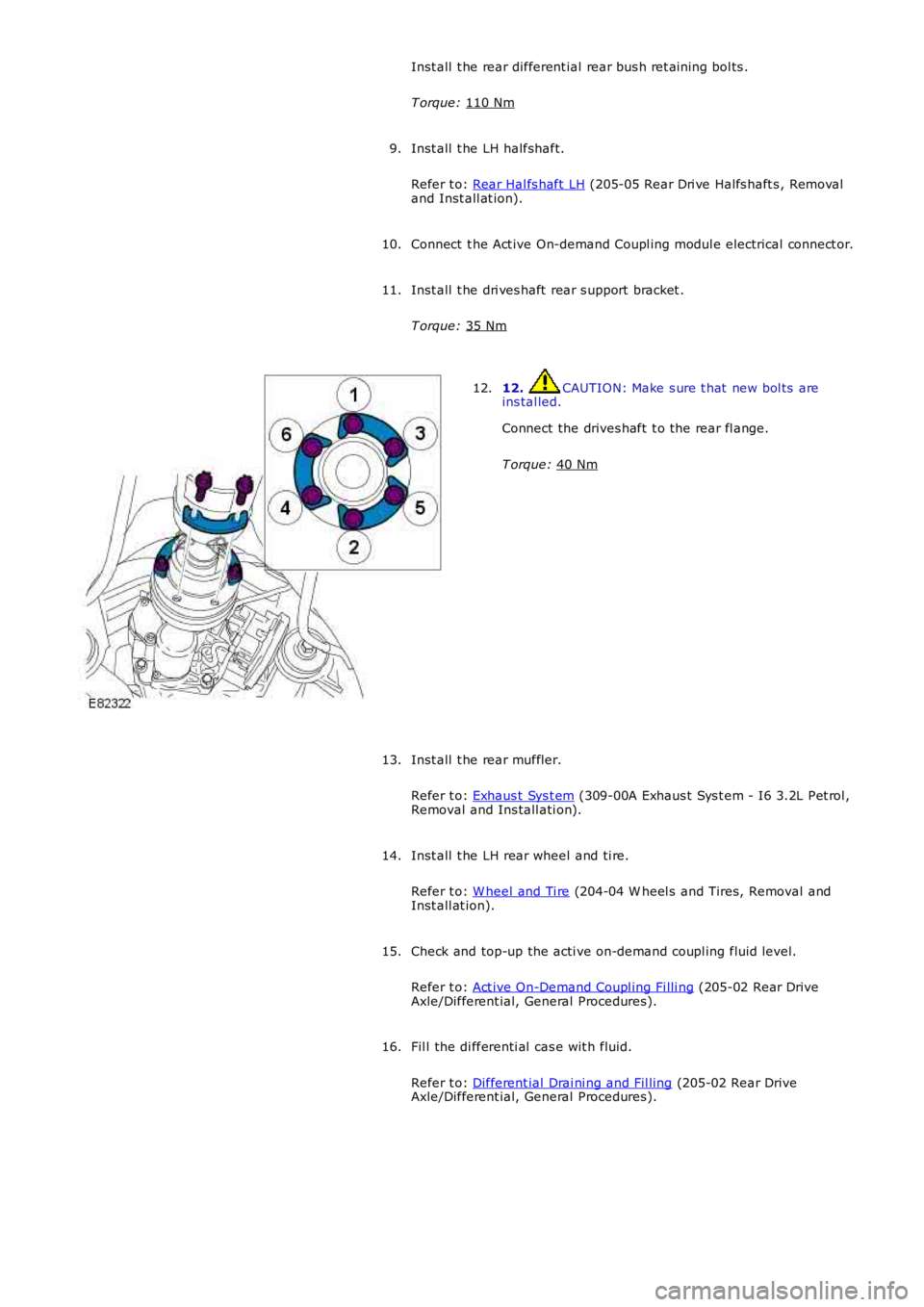

LAND ROVER FRELANDER 2 2006 Repair Manual Inst all t he rear different ial rear bus h ret aining bol ts . T orque: 110 Nm Inst all t he LH halfshaft. Refer t o: Rear Hal fs haft LH (205-05 Rear Dri ve Halfs haft s , Removal and Inst all

Page 343 of 3229

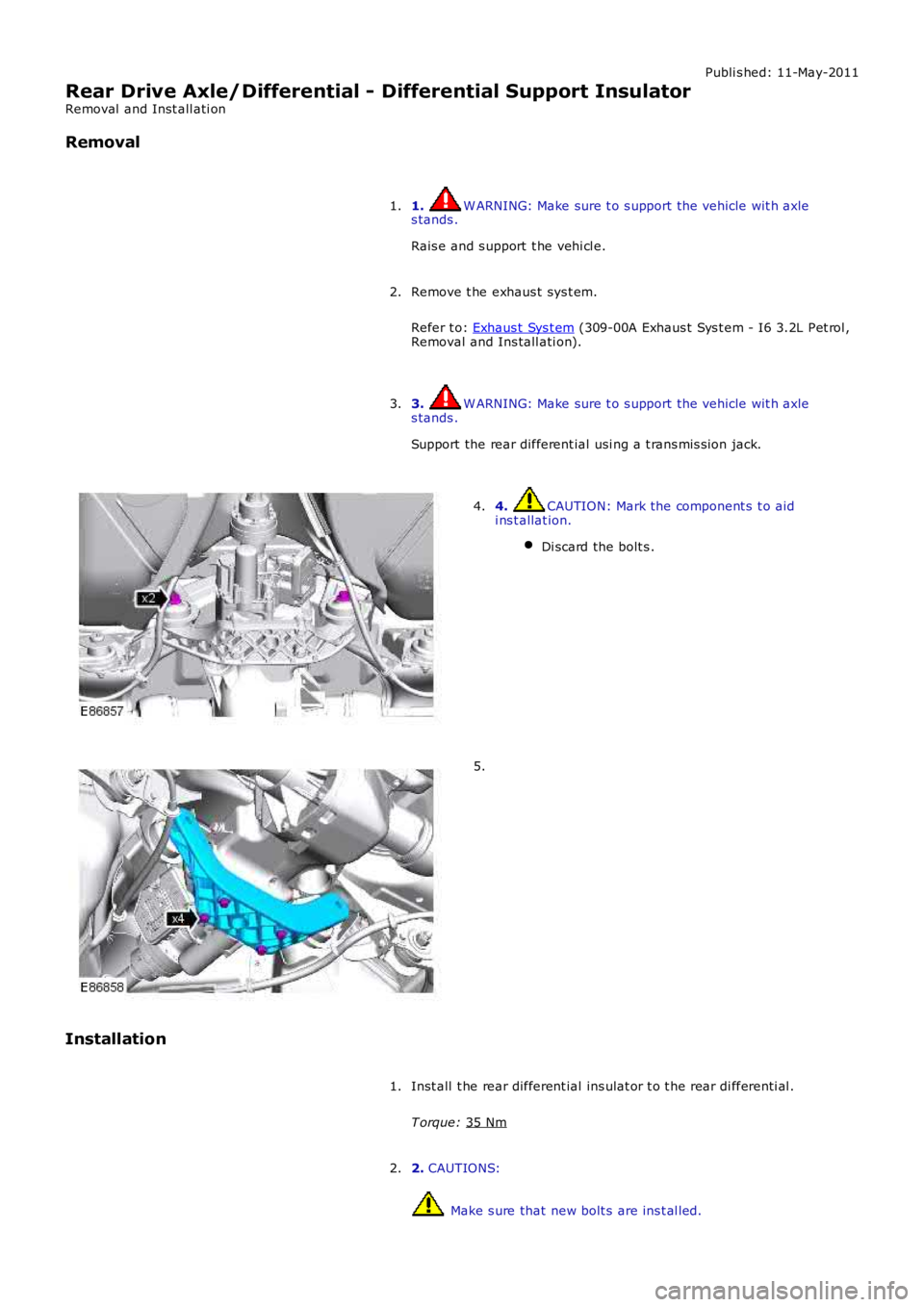

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Rear Drive Axle/Differential - Differential Support Insulator Removal and Inst all ati on Removal 1. W ARNING: Make sure t o s upport the vehicle wit h axle s tands . Rais e

Page 344 of 3229

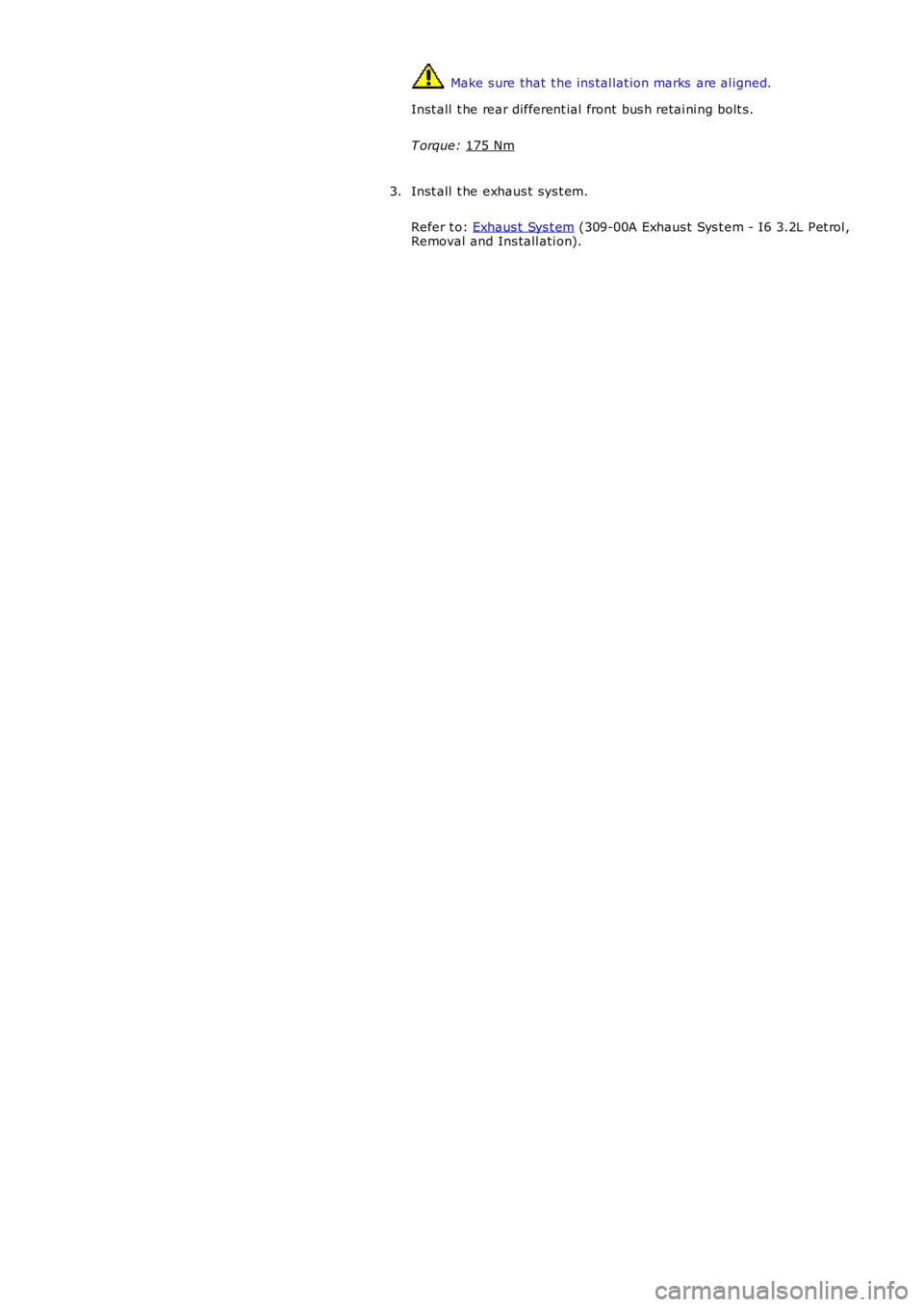

LAND ROVER FRELANDER 2 2006 Repair Manual Make s ure that t he ins tal lat ion marks are al igned. Inst all t he rear different ial front bus h retai ni ng bolt s. T orque: 175 Nm Inst all t he exhaus t sys t em. Refer t o: Exhaus t Sy
