Page 2129 of 3229

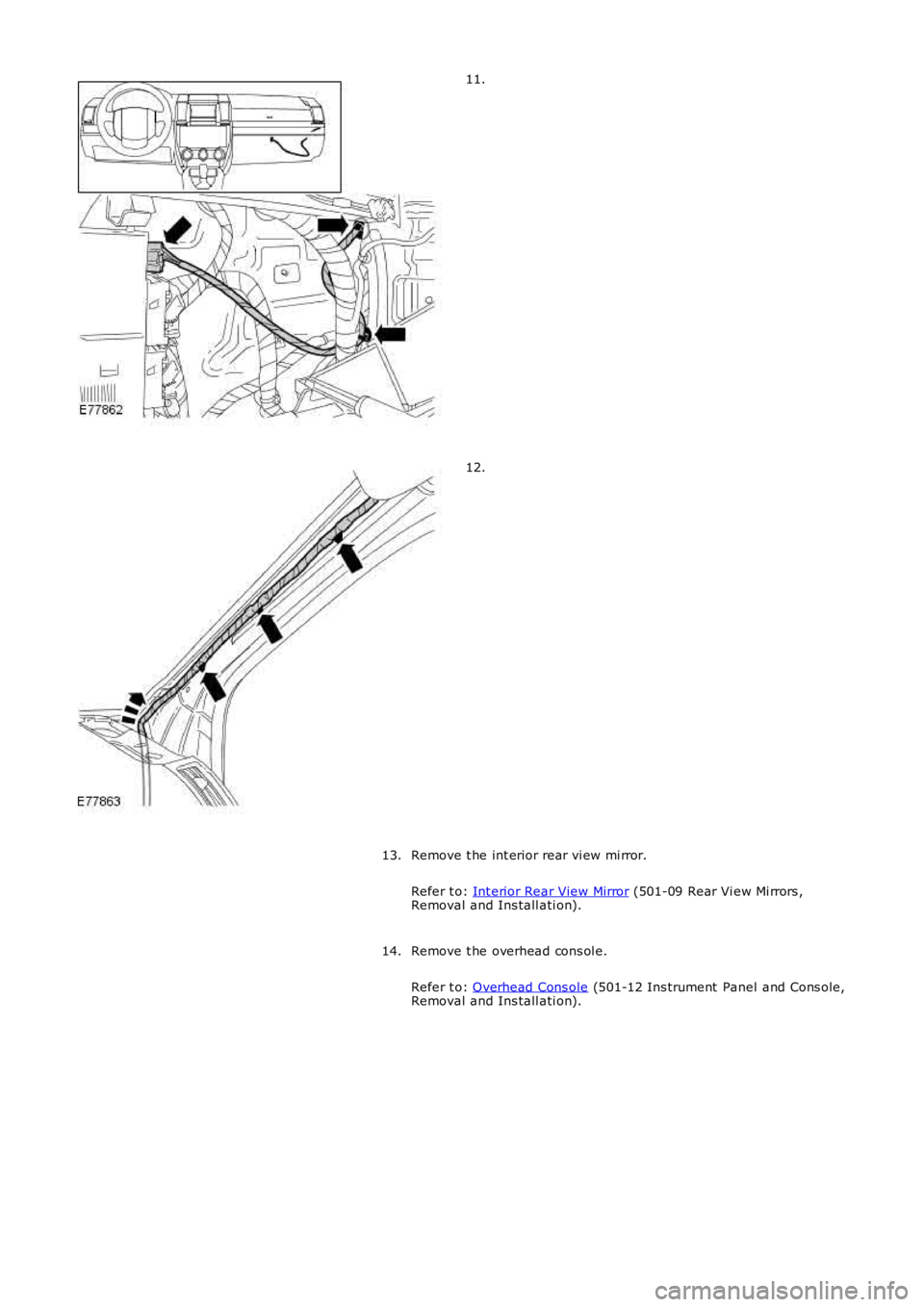

LAND ROVER FRELANDER 2 2006 Repair Manual 11. 12. Remove t he int erior rear vi ew mi rror. Refer t o: Int erior Rear View Mirror (501-09 Rear Vi ew Mi rrors ,Removal and Ins tall ati on). 13. Remove t he overhead cons ol e. Refer t o: Overhe

Page 2130 of 3229

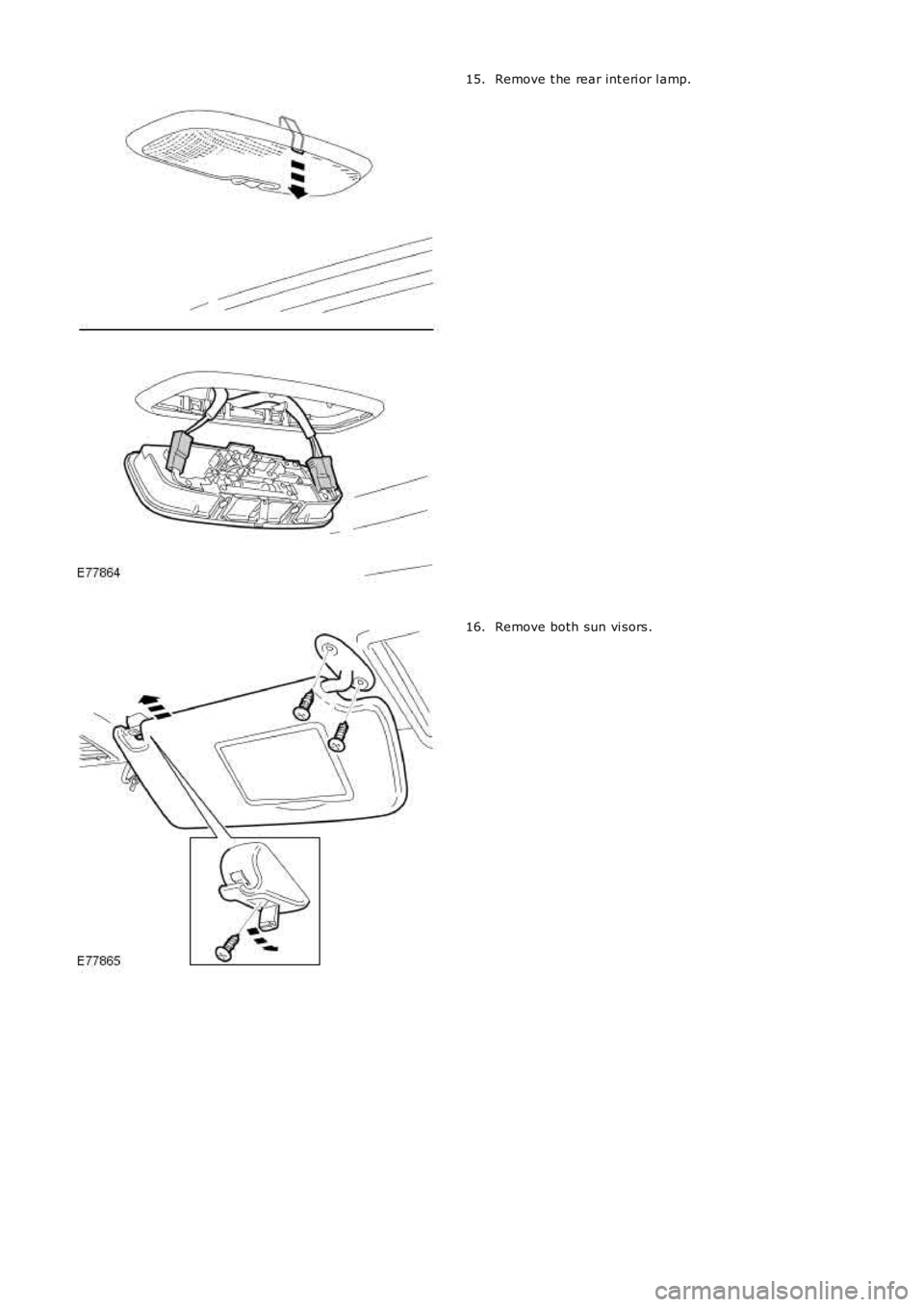

LAND ROVER FRELANDER 2 2006 Repair Manual Remove t he rear int eri or l amp.15. Remove both sun vi sors .16.

Page 2131 of 3229

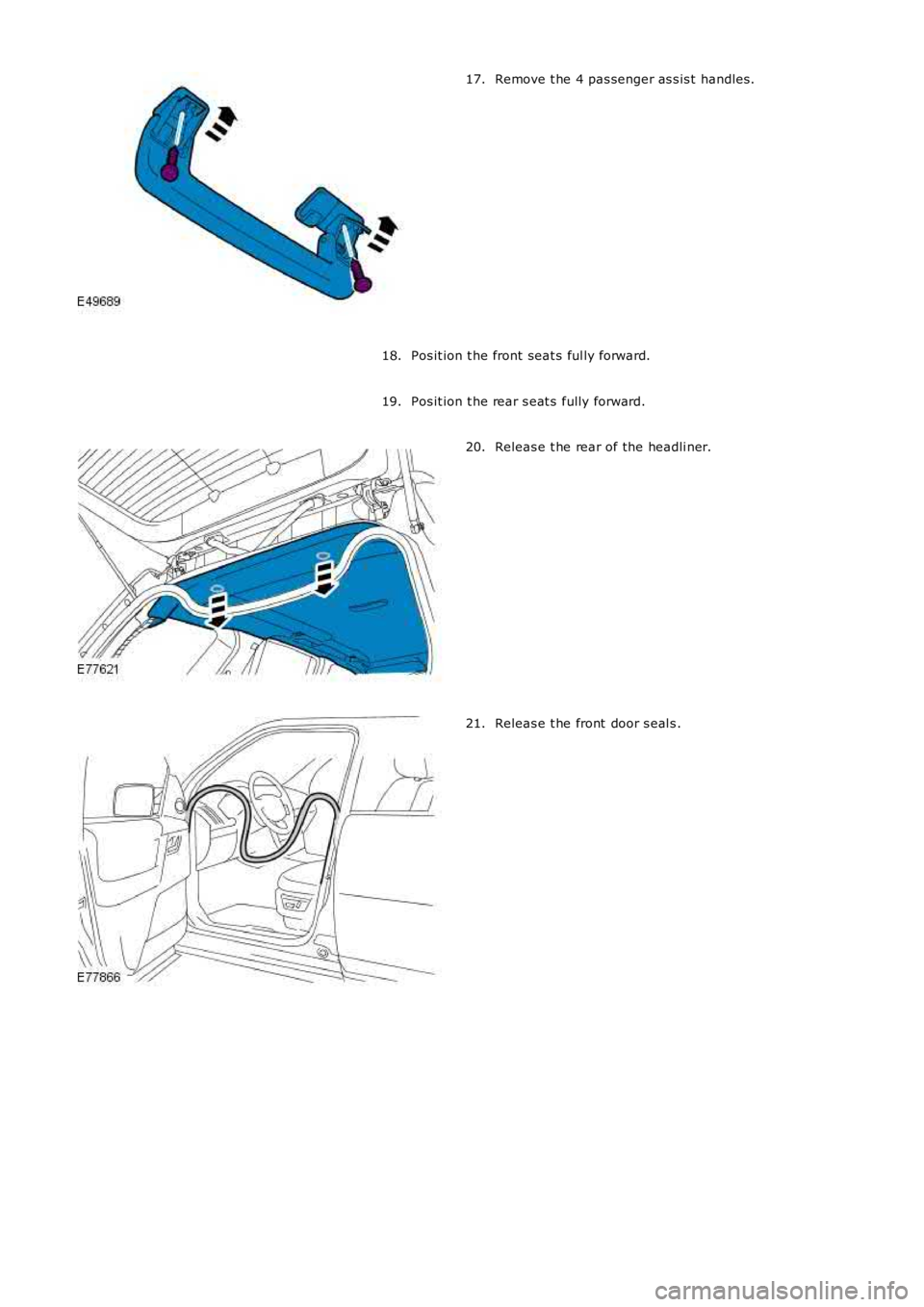

LAND ROVER FRELANDER 2 2006 Repair Manual Remove t he 4 pas senger as s is t handles .17. Pos it ion t he front seat s ful ly forward.18. Pos it ion t he rear s eat s fully forward.19. Releas e t he rear of the headli ner.20. Releas e t he

Page 2132 of 3229

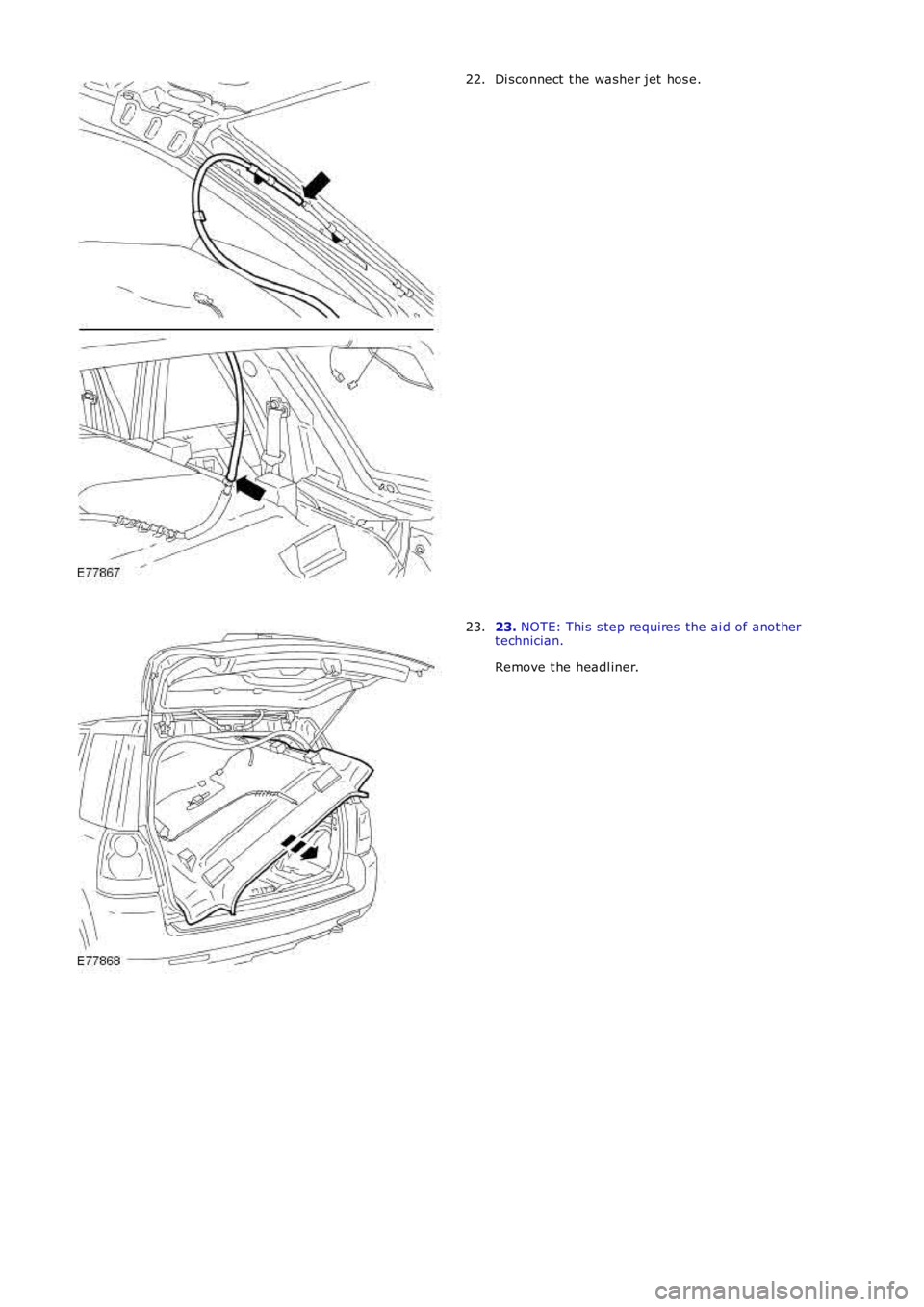

LAND ROVER FRELANDER 2 2006 Repair Manual Di sconnect t he washer jet hos e.22. 23. NOTE: Thi s s tep requires the ai d of anot hert echnician. Remove t he headl iner. 23.

Page 2133 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual 24. NOTE: Do not dis ass emble further if t he componenti s removed for acces s onl y. Remove t he ti re pres sure monit ori ng s ys t em receiver. 24. 25. NOTE: Make sure t hat t his component is

Page 2134 of 3229

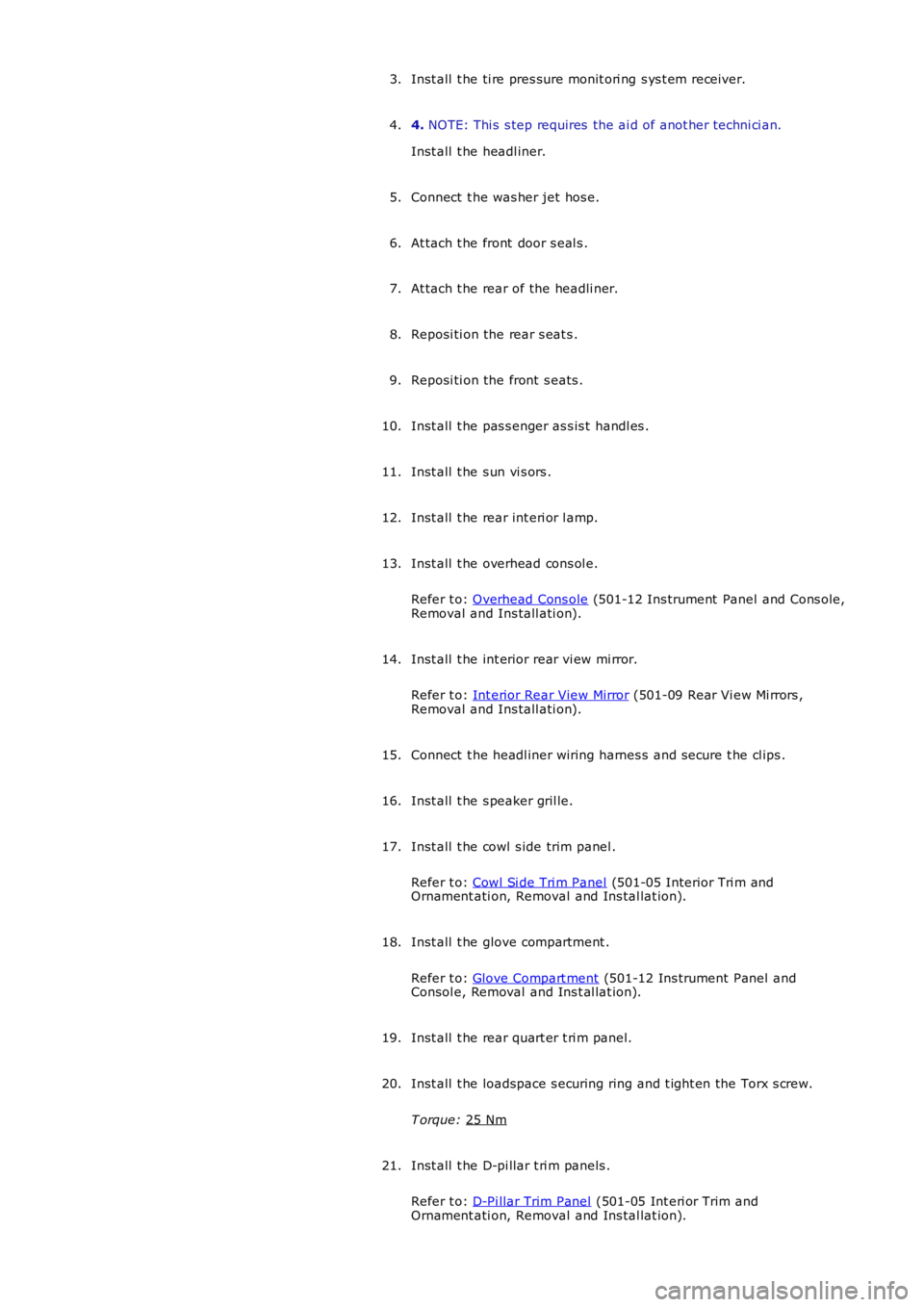

LAND ROVER FRELANDER 2 2006 Repair Manual Inst all t he ti re pres sure monit ori ng s ys t em receiver. 3. 4. NOTE: Thi s s tep requires the ai d of anot her techni ci an. Inst all t he headl iner. 4. Connect t he was her jet hos e. 5.

Page 2135 of 3229

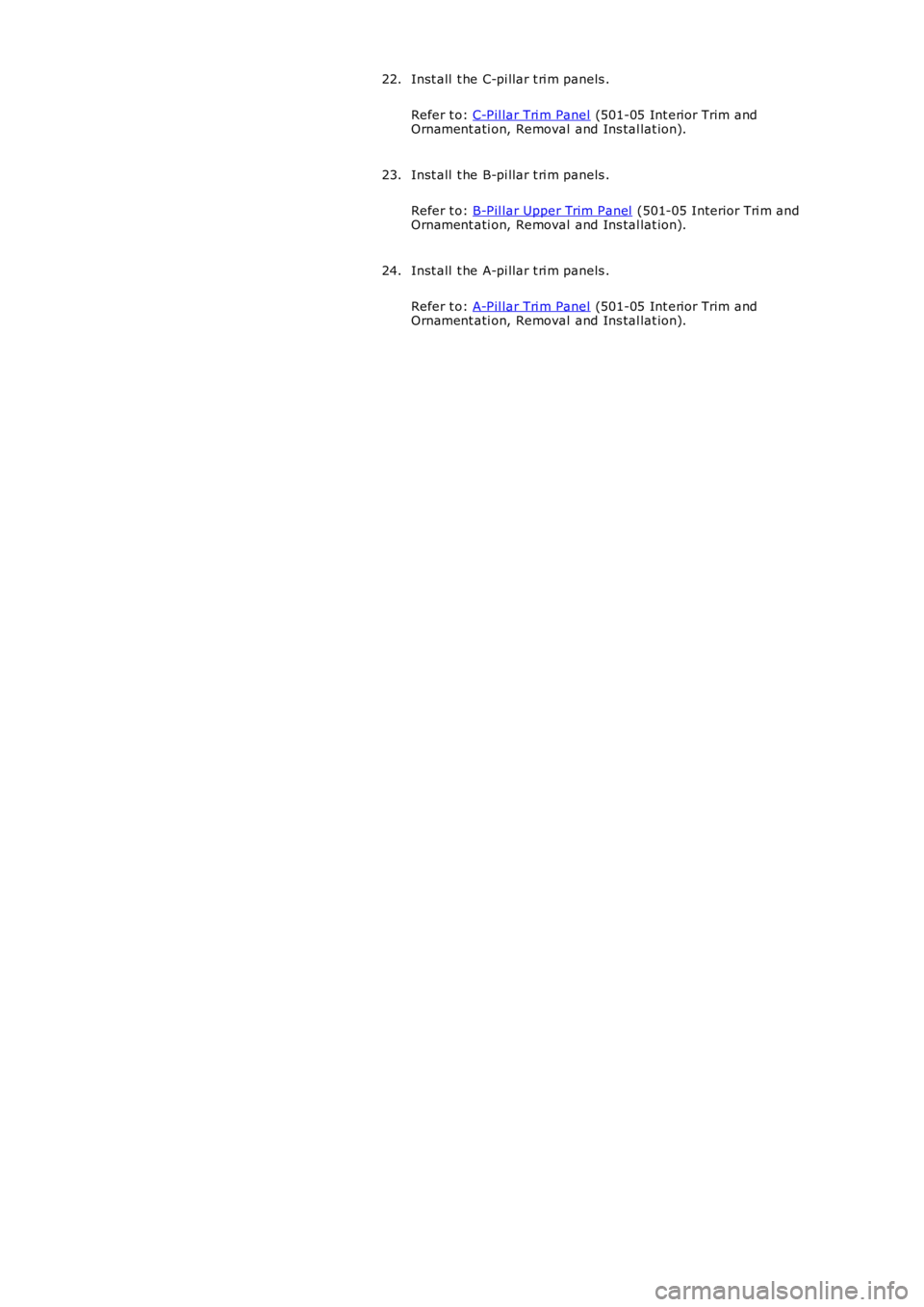

LAND ROVER FRELANDER 2 2006 Repair Manual Inst all t he C-pi llar t ri m panels . Refer t o: C-Pil lar Tri m Panel (501-05 Int erior Trim andOrnament ati on, Removal and Ins tal lat ion). 22. Inst all t he B-pi llar t ri m panels . Refer t

Page 2136 of 3229

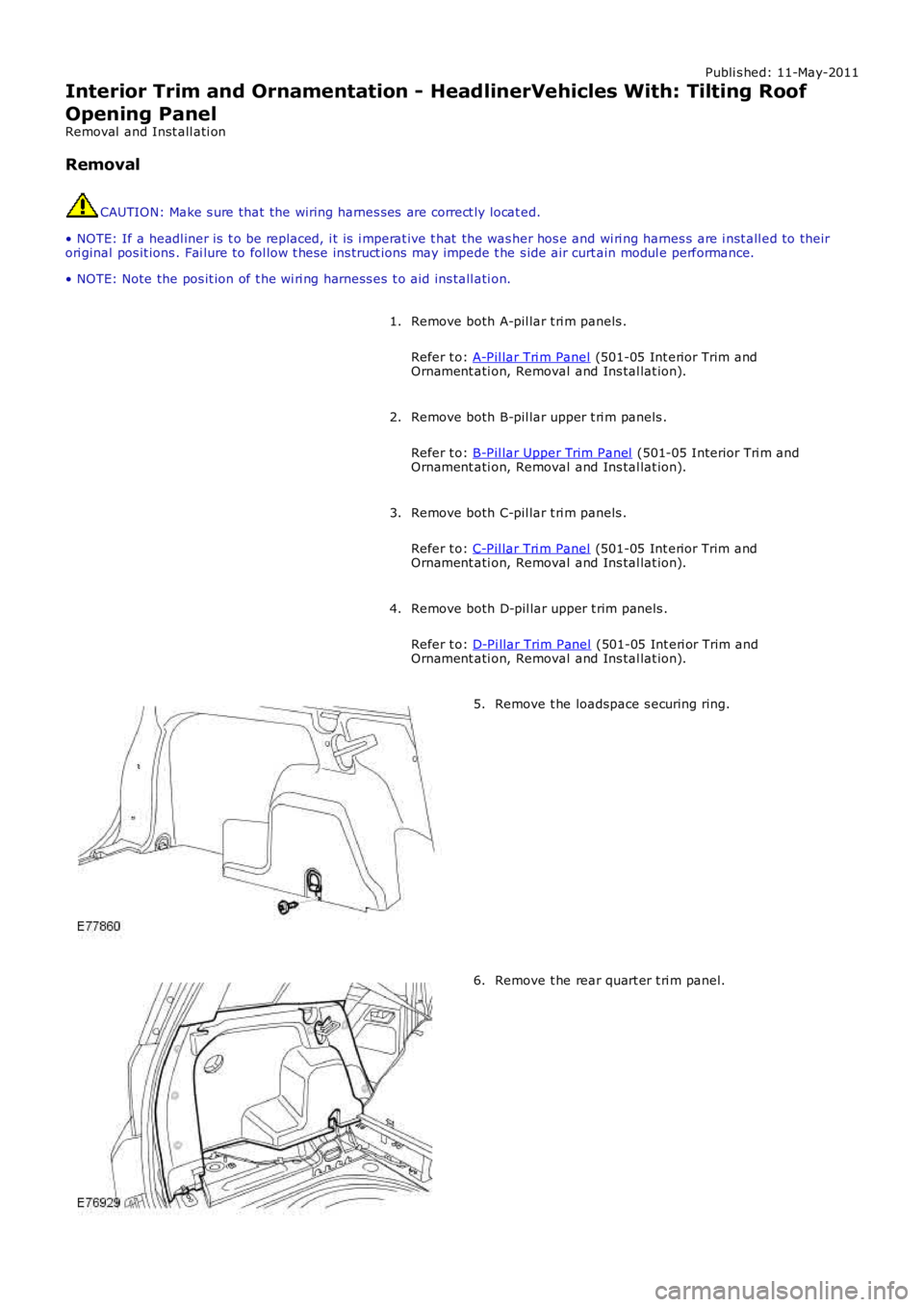

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Interior Trim and Ornamentation - HeadlinerVehicles With: Tilting Roof Opening Panel Removal and Inst all ati on Removal CAUTION: Make s ure that the wiring harnes s es are
