Page 2153 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual 4.
5.
Releas e t he rear door s eal.6.

Page 2154 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual 7.

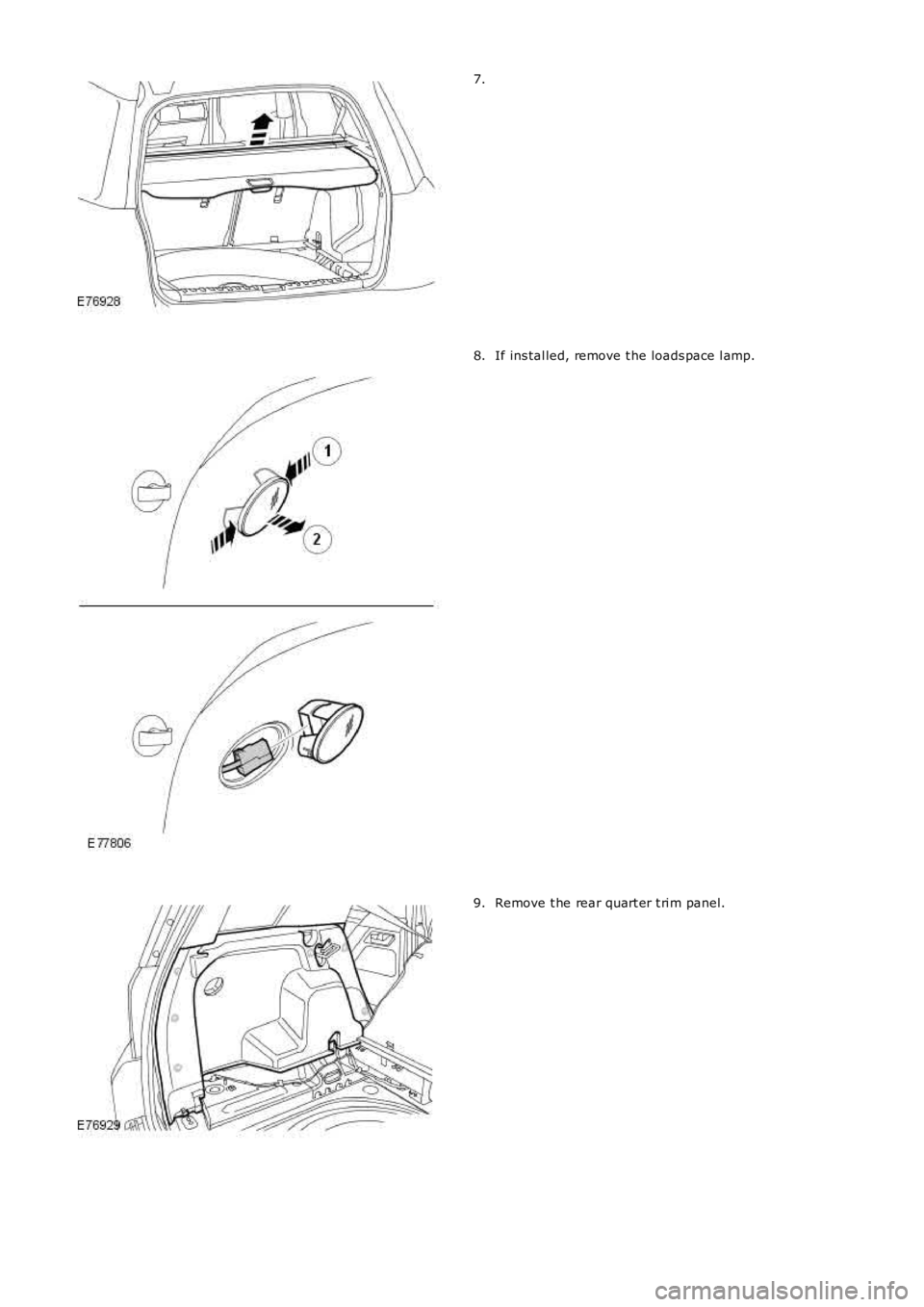

If ins tal led, remove t he loads pace l amp.8.
Remove t he rear quart er t ri m panel.9.

Page 2155 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual 10.
NOTE: Do not dis ass emble further if t he component
i s removed for acces s onl y.

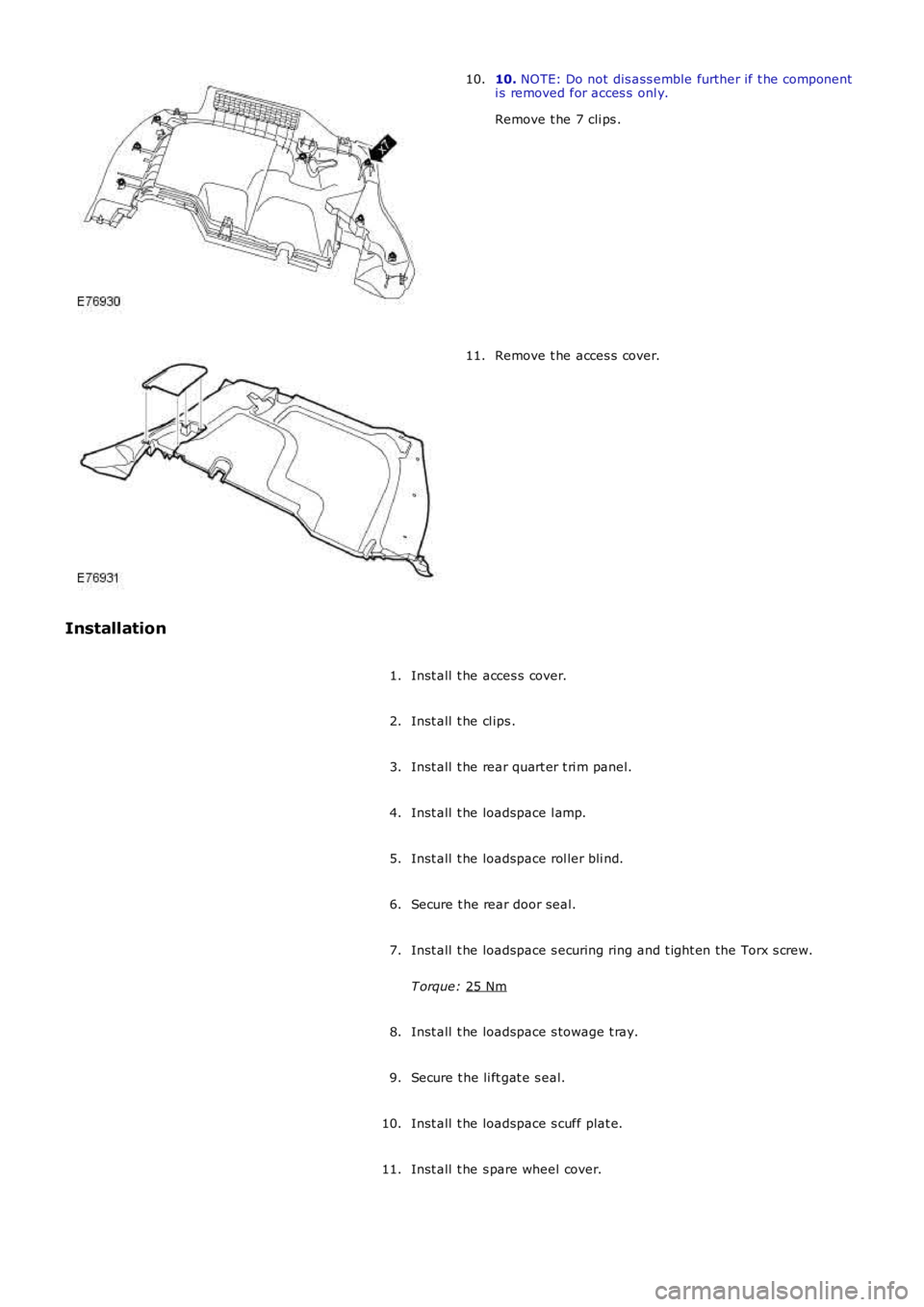

Remove t he 7 cli ps .
10. Remove t he acces s cover.
11.
Installation Inst all t he acces s cover.
1.
Inst a

Page 2156 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011
Exterior Trim and Ornamentation -

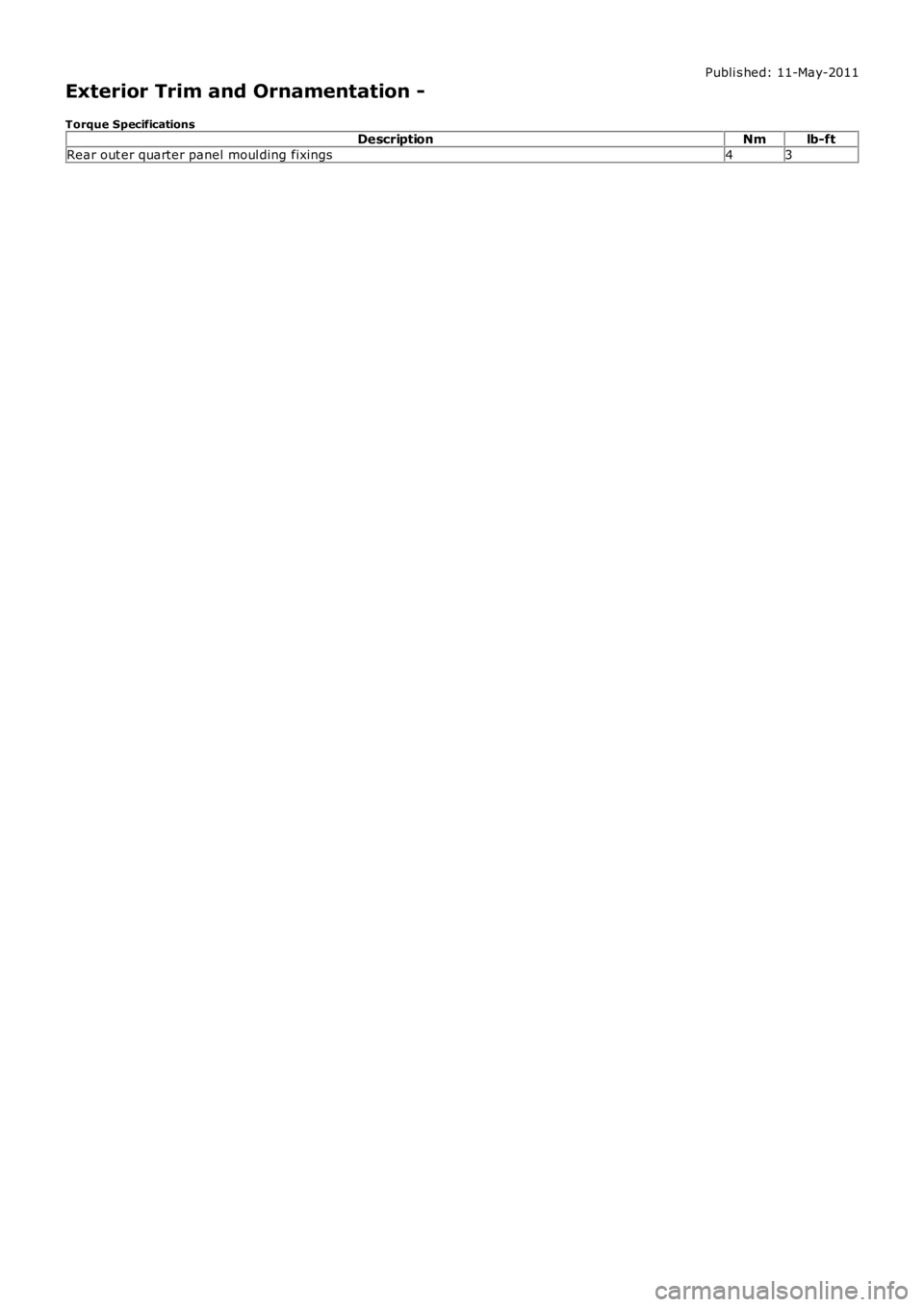

Torque SpecificationsDescriptionNmlb-ft
Rear out er quarter panel moul ding fixings43

Page 2157 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011
Exterior Trim and Ornamentation - Rear Quarter Panel Moulding

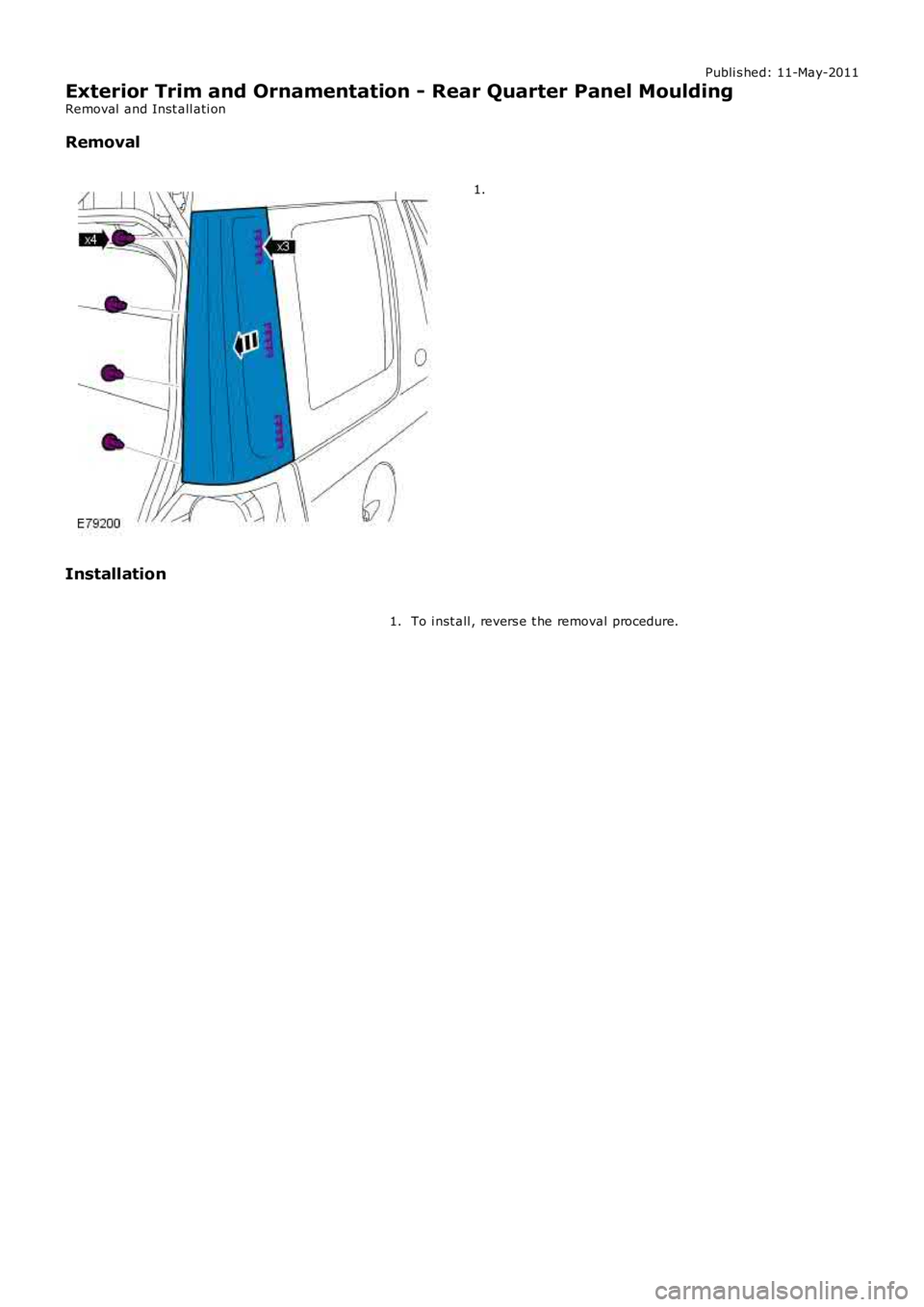

Removal and Inst all ati on
Removal 1.
Installation To i nst all , revers e t he removal procedure.
1.

Page 2158 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011

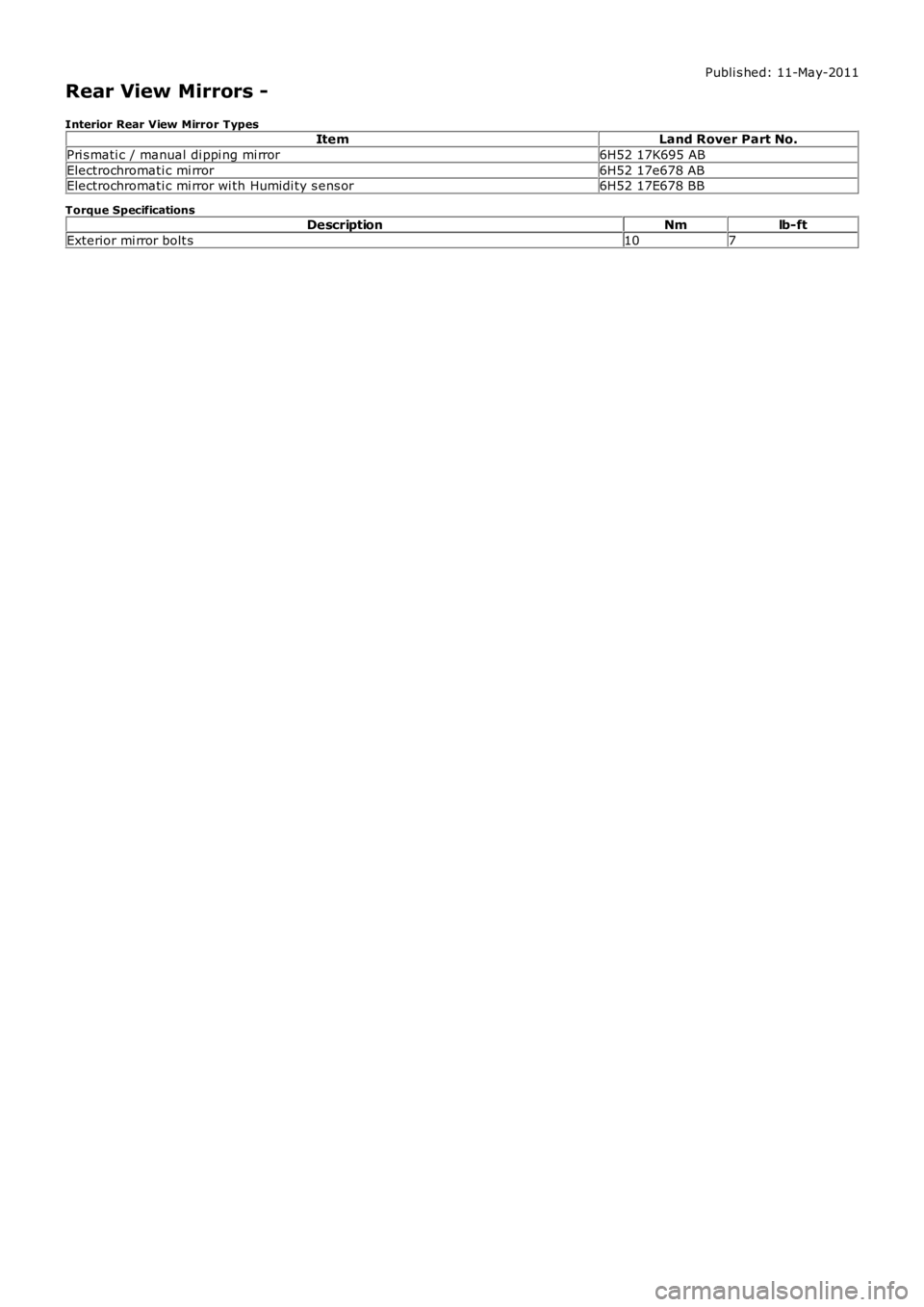

Rear View Mirrors -
Interior Rear View Mirror TypesItemLand Rover Part No.
Pri s mati c / manual di ppi ng mi rror6H52 17K695 AB
Electrochromati c mi rror6H52 17e678 ABElectro

Page 2159 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011
Rear View Mirrors - Rear View Mirrors
Des cript ion and Operat ion

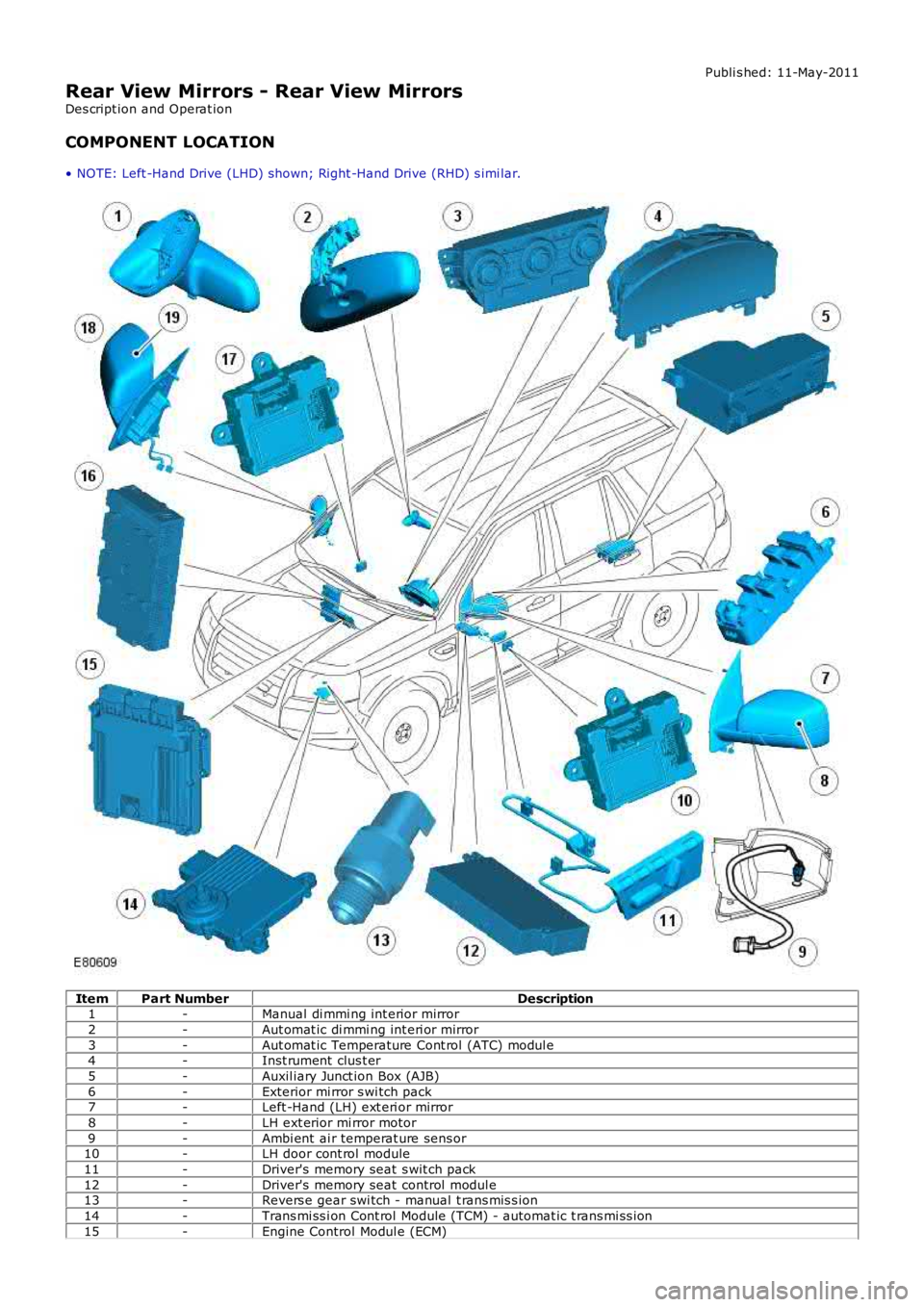

COMPONENT LOCATION
• NOTE: Left -Hand Drive (LHD) shown; Right -Hand Drive (RHD) s imi lar.
ItemPart Numbe

Page 2160 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual 16-Central Juncti on Box (CJB)
17-Ri ght -Hand (RH) door control modul e
18-RH ext eri or mirror19-RH ext eri or mirror mot or
OVERVIEW
The rear view mirrors compris e an int erior mi rror mount ed t

16-Central Juncti on Box (CJB)
17-Ri ght -Hand (RH) door control modul e
18-RH ext eri or mirror19-RH ext eri or mirror mot or
OVERVIEW
The rear view mirrors compris e an int erior mi rror mount ed t o t he winds hield, and an exterior mi rror mount ed on each frontdoor cheater.
For Japanes e s peci fi cat ion vehicles , a driver proximi ty mirror is ins tall ed on t he LH front corner of t he hood.
The t ypes of mi rrors and as s oci at ed operat ing funct ions ins tal led depend on t he specificati on and trim level of the vehicle.

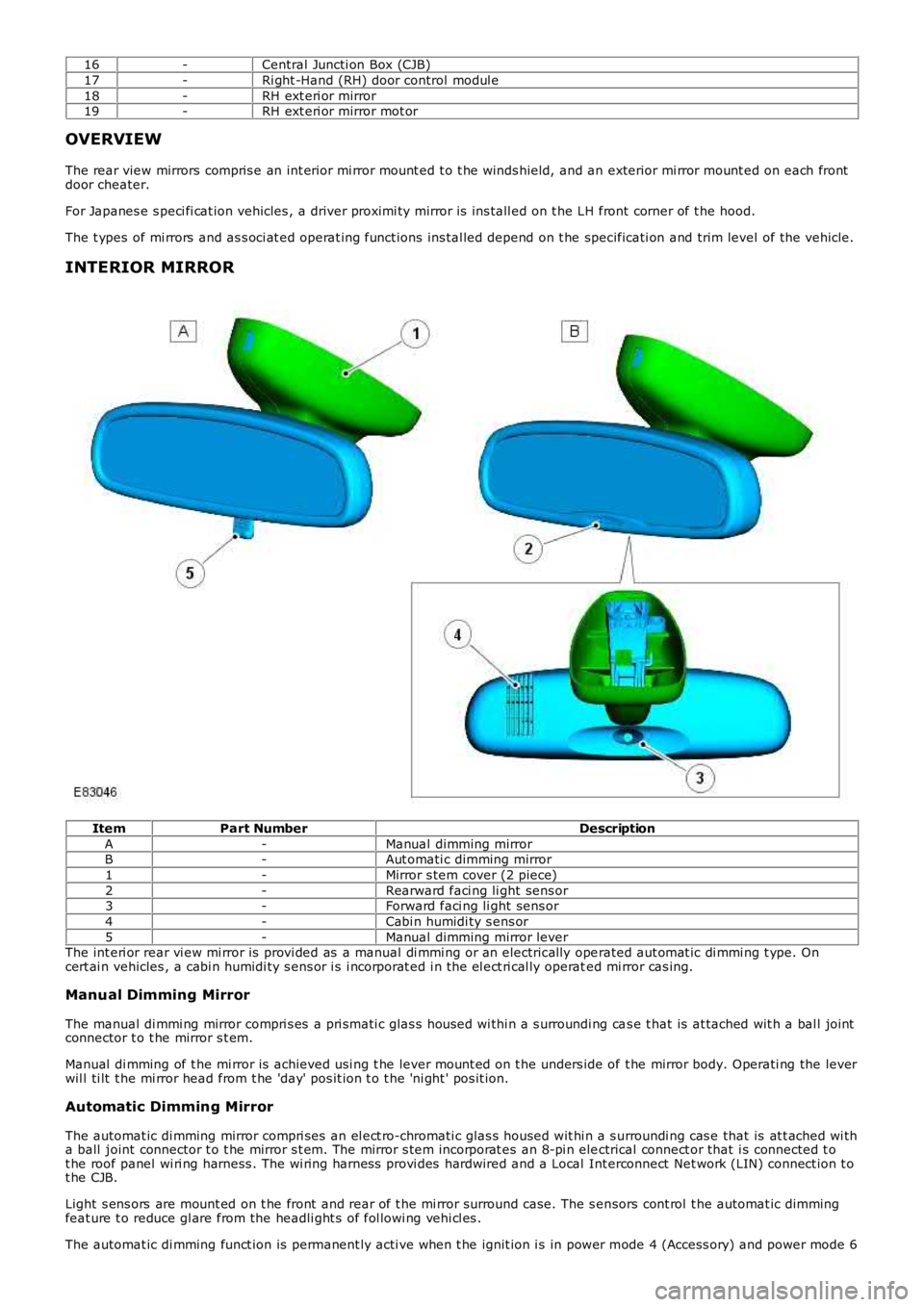

INTERIOR MIRROR
ItemPart NumberDescription
A-Manual dimming mirrorB-Aut omati c dimming mirror
1-Mirror s tem cover (2 piece)
2-Rearward faci ng li ght sens or3-Forward faci ng li ght sens or
4-Cabi n humidi ty s ens or
5-Manual dimming mirror leverThe int eri or rear vi ew mi rror is provi ded as a manual di mmi ng or an electrically operated aut omat ic di mmi ng t ype. Oncert ai n vehicles , a cabi n humidi ty s ens or i s i ncorporat ed i n the el ect ri cal ly operated mi rror cas ing.
Manual Dimming Mirror
The manual di mmi ng mirror compri s es a pri smati c glas s hous ed wi thi n a s urroundi ng cas e t hat is at tached wit h a bal l jointconnector t o t he mirror s t em.
Manual di mming of t he mi rror is achieved usi ng t he lever mount ed on t he unders ide of t he mirror body. Operati ng the leverwil l ti lt t he mi rror head from t he 'day' pos it ion t o t he 'ni ght ' pos it ion.
Automatic Dimming Mirror
The automat ic di mming mirror compri ses an el ect ro-chromati c glas s housed wit hi n a s urroundi ng cas e that is at t ached wi tha ball joint connector t o t he mirror s t em. The mirror s tem incorporat es an 8-pi n electrical connect or that i s connected t ot he roof panel wi ri ng harness . The wi ring harnes s provi des hardwired and a Local Interconnect Net work (LIN) connect ion t ot he CJB.
Light s ens ors are mount ed on t he front and rear of t he mi rror surround case. The s ensors cont rol t he automat ic dimmingfeat ure t o reduce gl are from the headli ght s of fol lowi ng vehi cl es .
The automat ic di mming funct ion is permanent ly acti ve when t he ignit ion i s in power mode 4 (Access ory) and power mode 6
