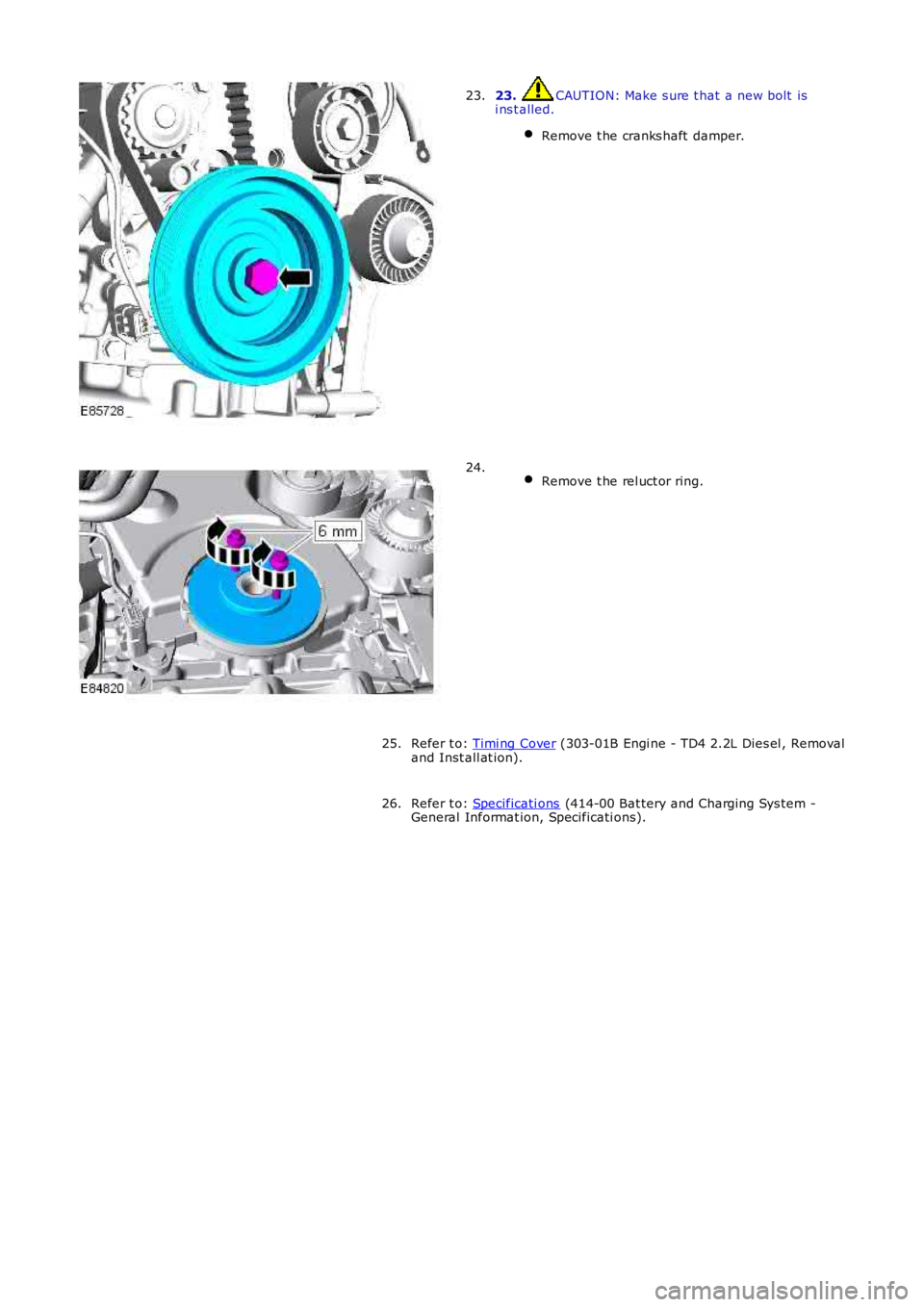

LAND ROVER FRELANDER 2 2006 Repair Manual 23. CAUTION: Make s ure t hat a new bolt is i ns t alled. Remove t he cranks haft damper. 23. Remove t he rel uct or ring. 24. Refer t o: Timi ng Cover (303-01B Engi ne - TD4 2.2L Dies el , Rem

Page 858 of 3229

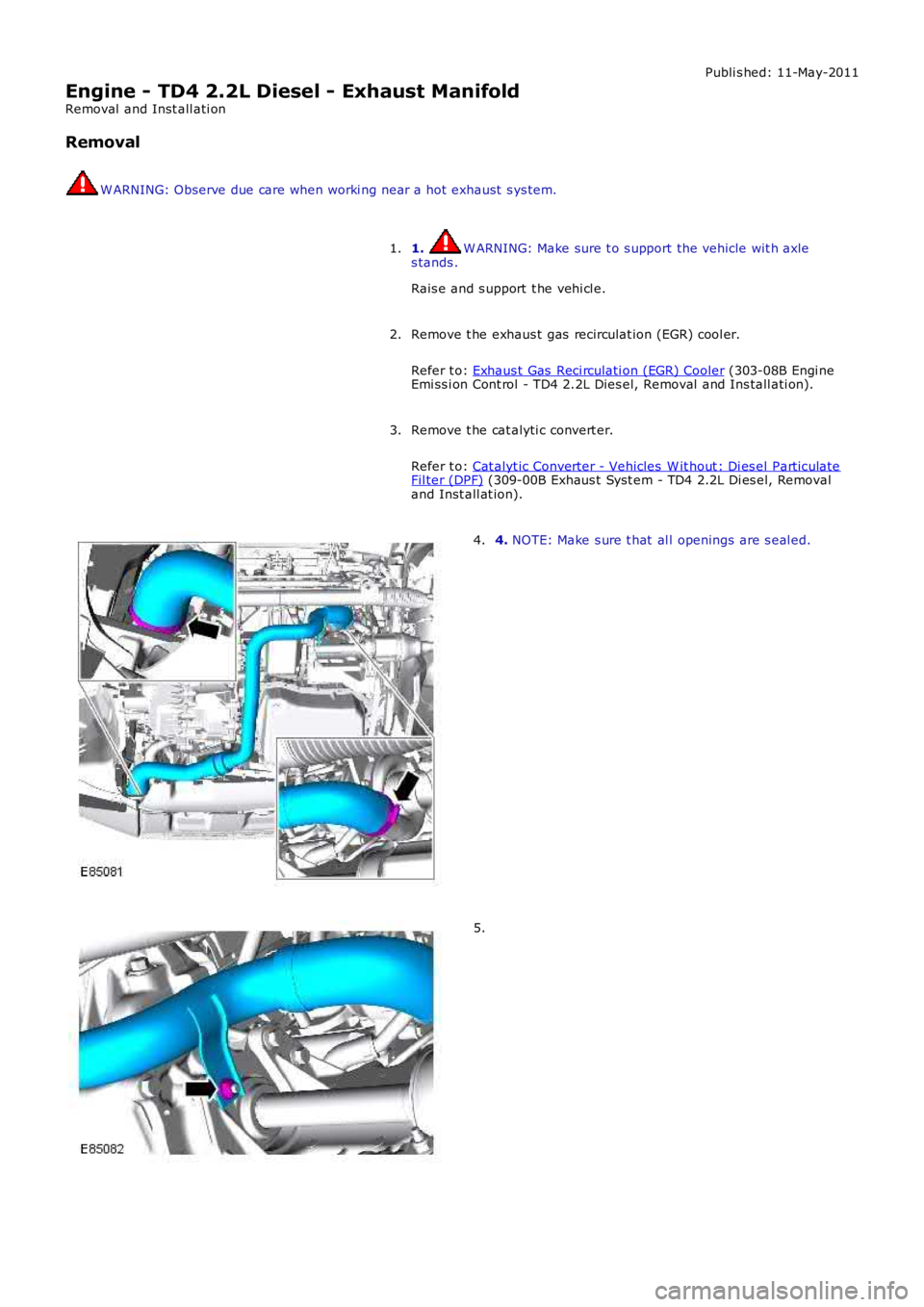

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Engine - TD4 2.2L Diesel - Exhaust Manifold Removal and Inst all ati on Removal W ARNING: Observe due care when worki ng near a hot exhaust s ys tem. 1. W ARNING: Make sure

Page 859 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual 6. CAUTIONS: Make s ure that t he area around the component i sclean and free of foreign materi al. Make s ure that all openings are sealed. Us e newblanking caps. 6. 7. 8. CAUTION: Make s ure t

Page 860 of 3229

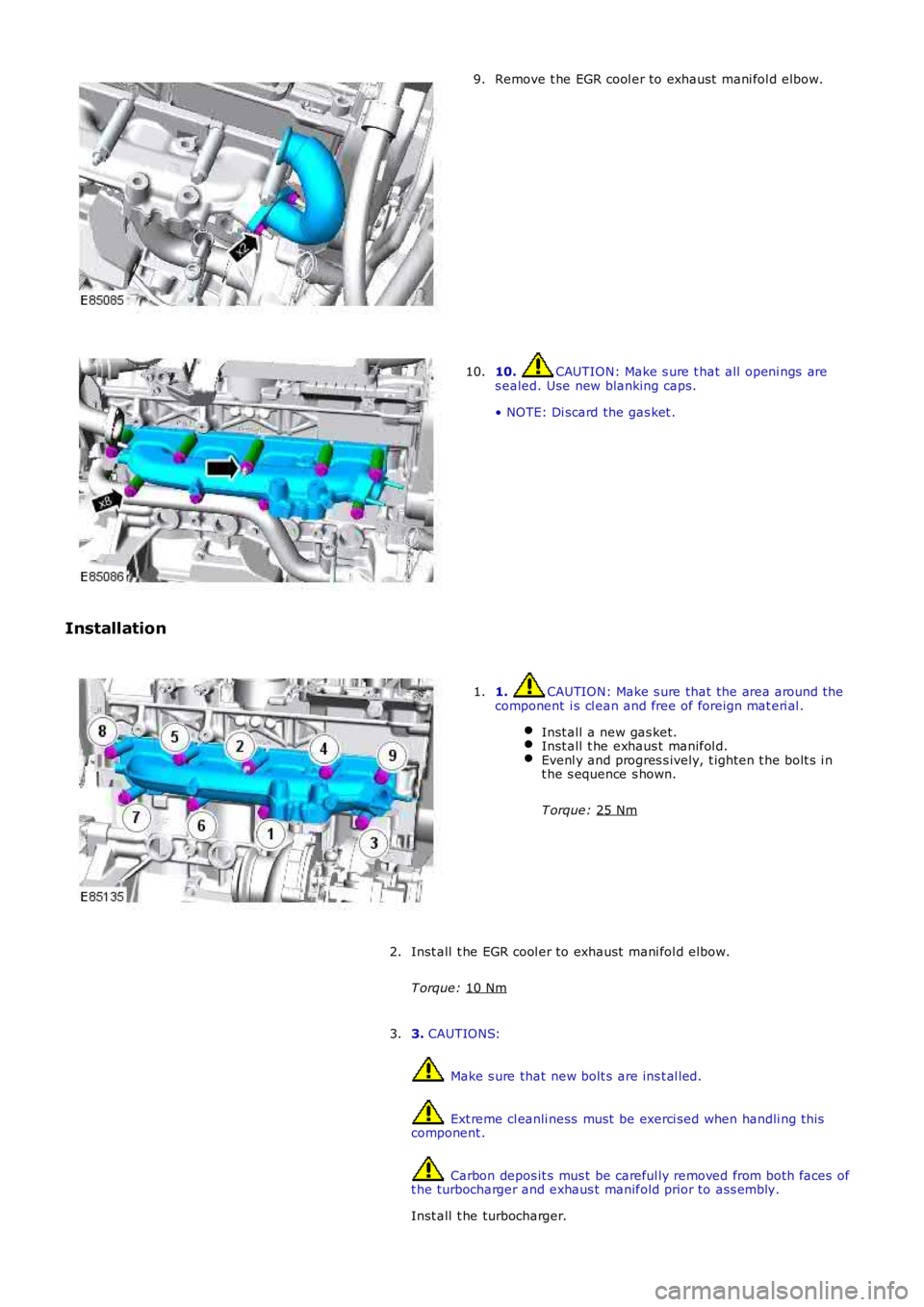

LAND ROVER FRELANDER 2 2006 Repair Manual Remove t he EGR cool er to exhaust mani fol d elbow. 9. 10. CAUTION: Make s ure t hat all openi ngs are s ealed. Use new blanking caps. • NOTE: Di scard the gas ket . 10. Installation 1. CAUTION

Page 861 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual T orque: 24 Nm Inst all t he turbocharger s upport bracket , but do not fully t ighten at t his st age. Tight en the support bracket to turbocharger bol t. T orque: 24 Nm Tight en the suppo

Page 862 of 3229

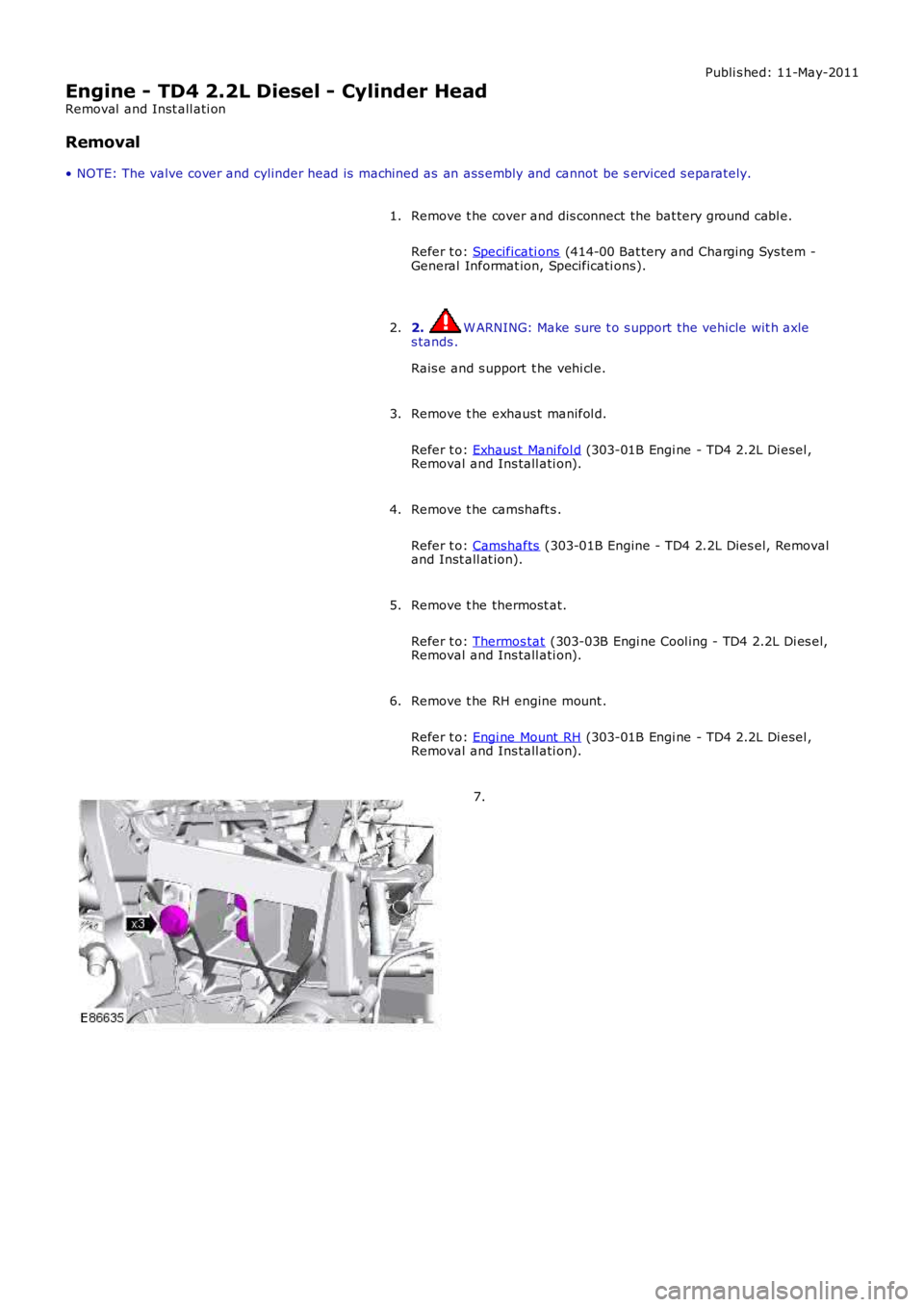

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Engine - TD4 2.2L Diesel - Cylinder Head Removal and Inst all ati on Removal • NOTE: The valve cover and cylinder head is machined as an ass embly and cannot be serviced

Page 863 of 3229

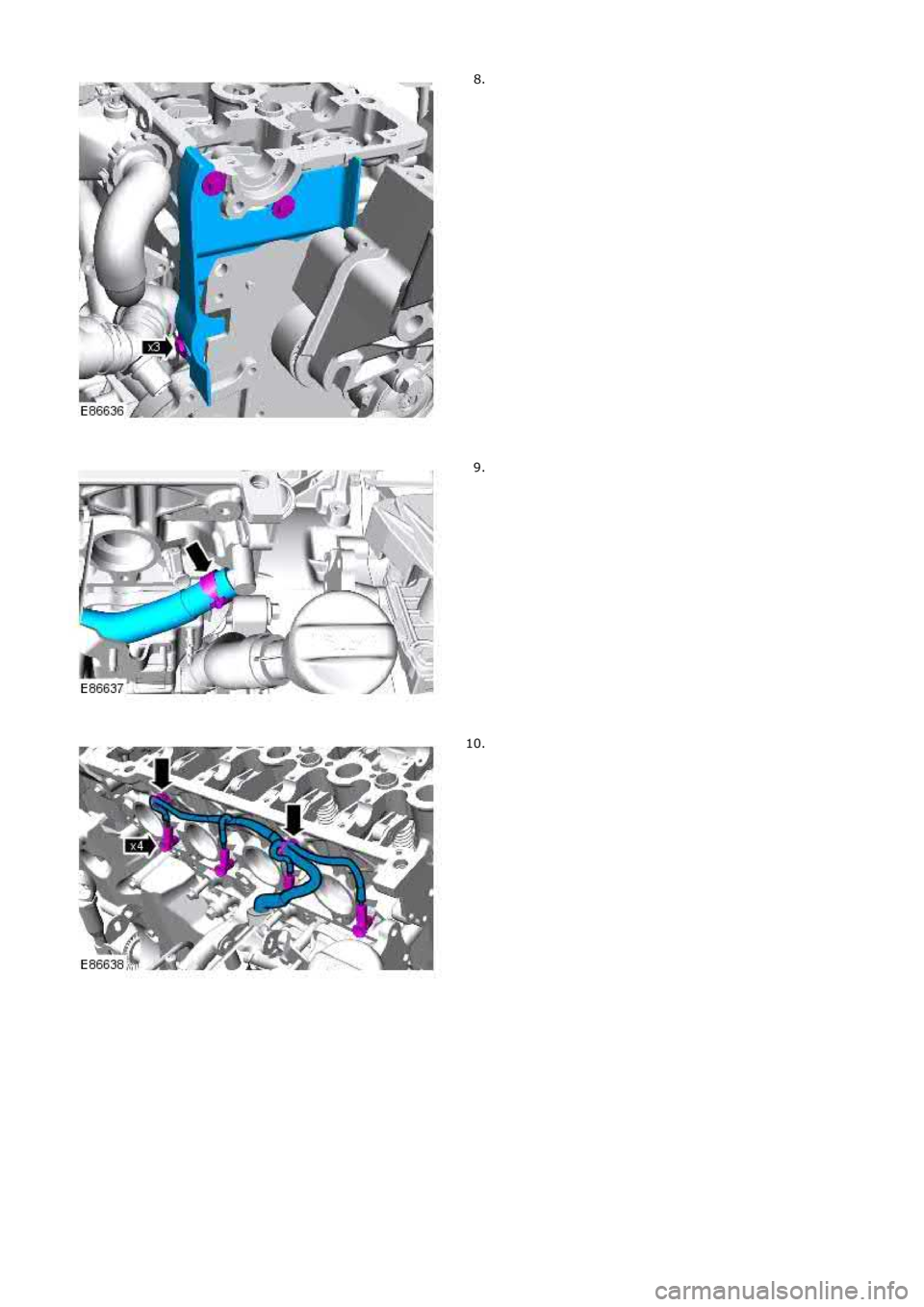

LAND ROVER FRELANDER 2 2006 Repair Manual 8. 9. 10.

Page 864 of 3229

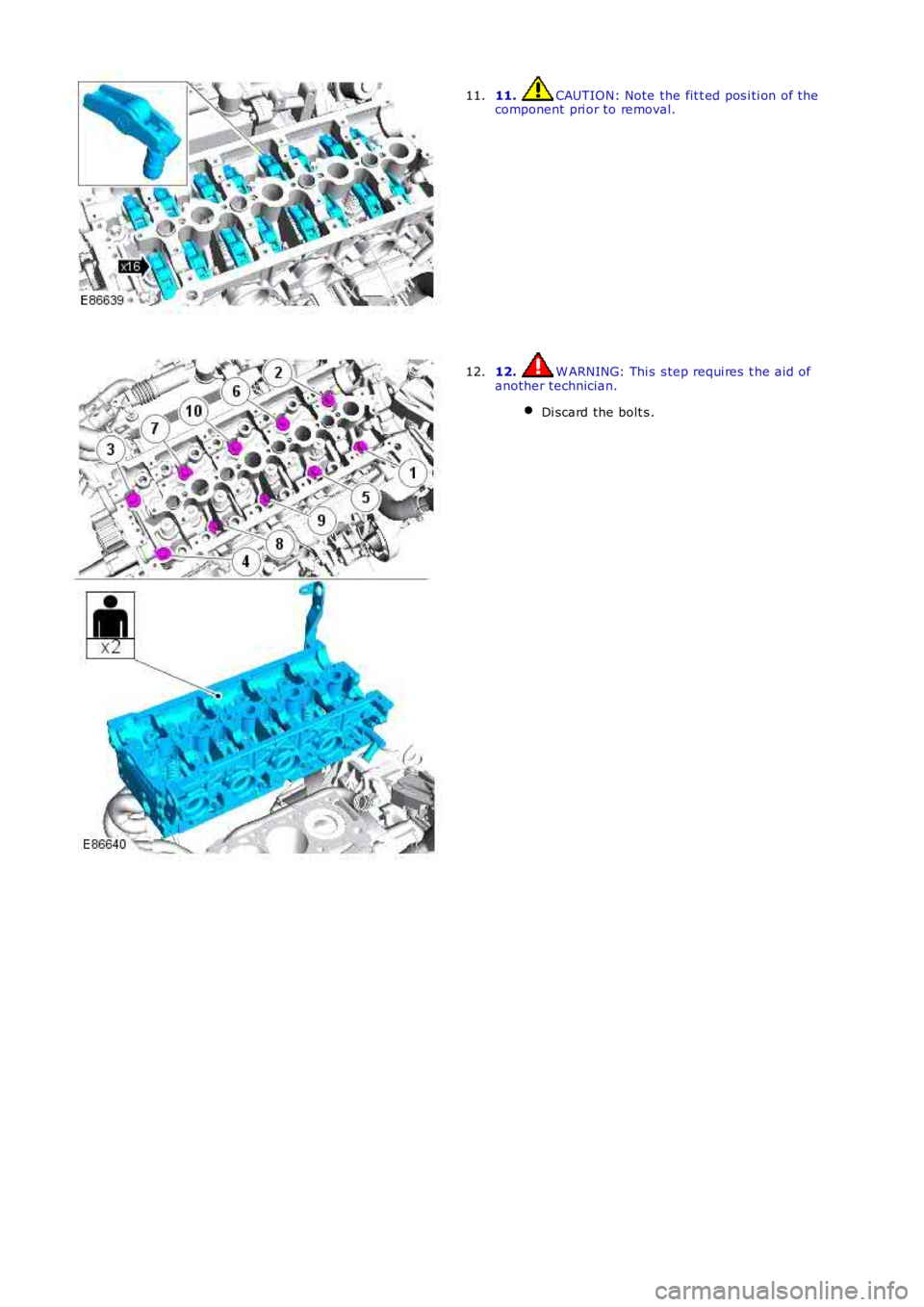

LAND ROVER FRELANDER 2 2006 Repair Manual 11. CAUTION: Note the fit t ed pos i ti on of thecomponent pri or to removal.11. 12. W ARNING: Thi s s tep requi res t he aid ofanother technician. Di scard the bolt s . 12.
