Page 2225 of 3229
Publi s hed: 11-May-2011

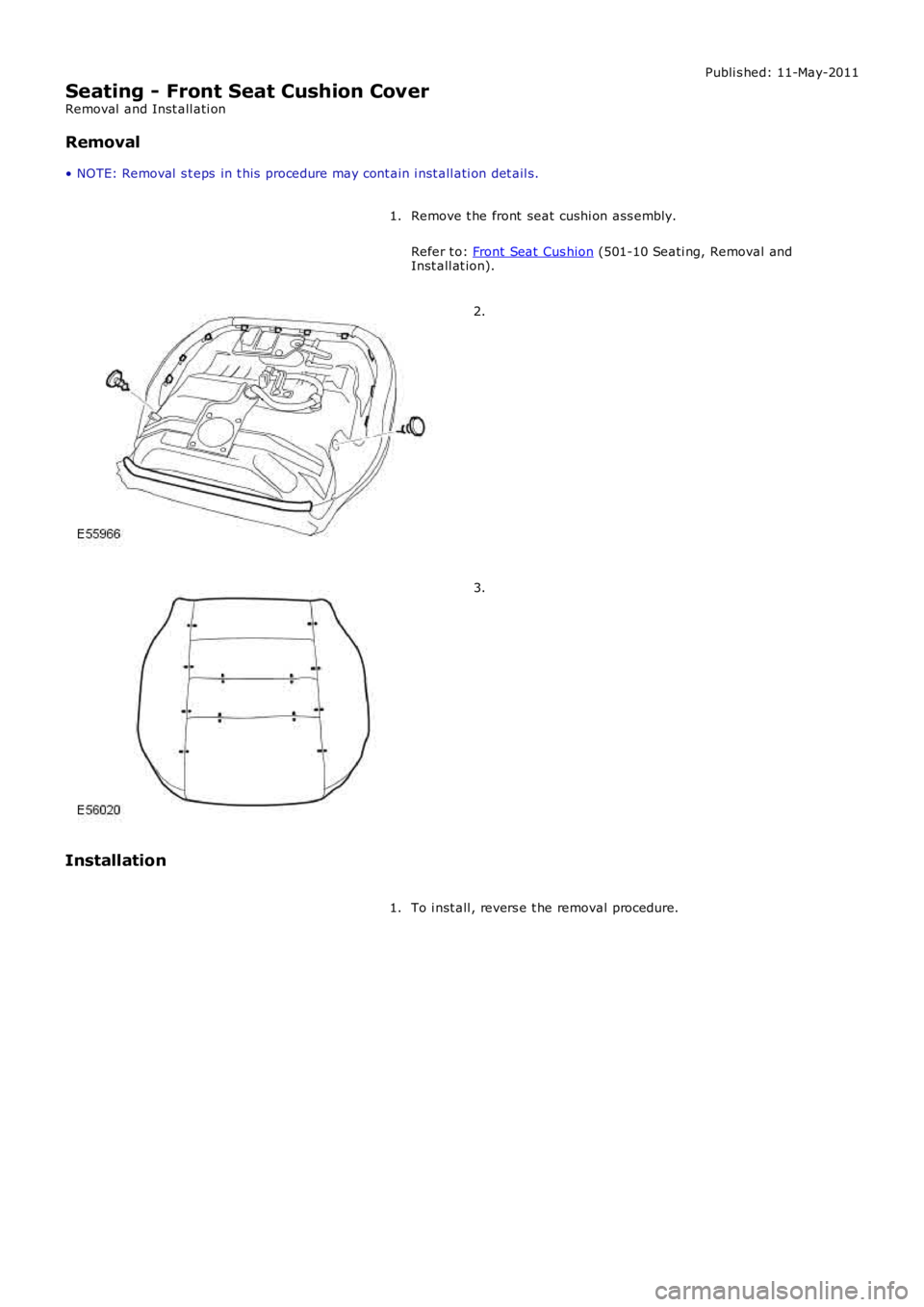

Seating - Front Seat Cushion Cover
Removal and Inst all ati on
Removal
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.
Remove t he front seat cushi on ass embly.
Refer t o: Front Seat Cus hion (501-10 Seati ng, Removal and
Inst all at ion).
1. 2.
3.
Installation To i nst all , revers e t he removal procedure.
1.
Page 2226 of 3229
Publi s hed: 11-May-2011

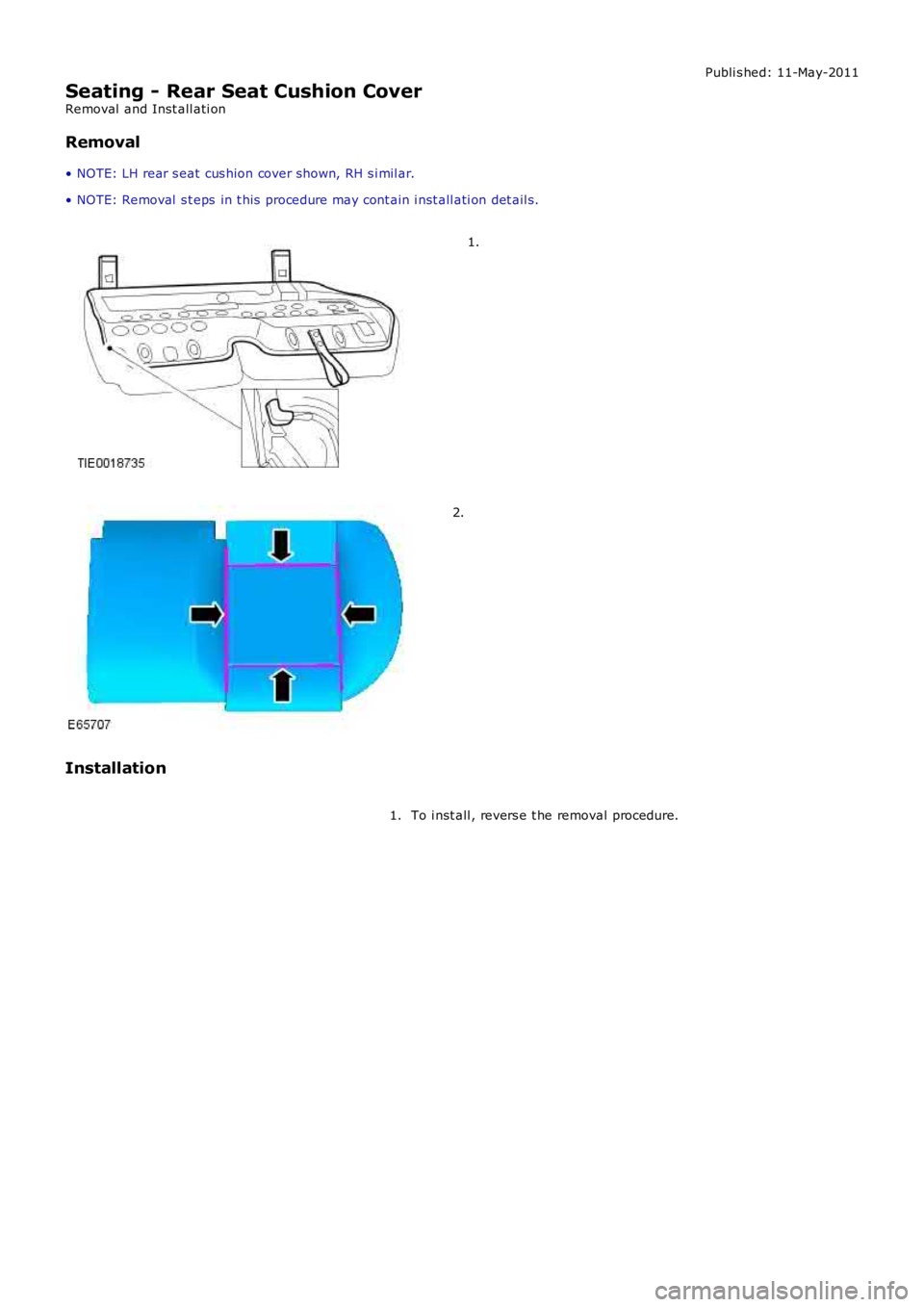

Seating - Rear Seat Cushion Cover
Removal and Inst all ati on
Removal
• NOTE: LH rear s eat cus hion cover shown, RH s i mil ar.
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.
1.
2.
Installation
To i nst all , revers e t he removal procedure.1.
Page 2227 of 3229
Publi s hed: 11-May-2011

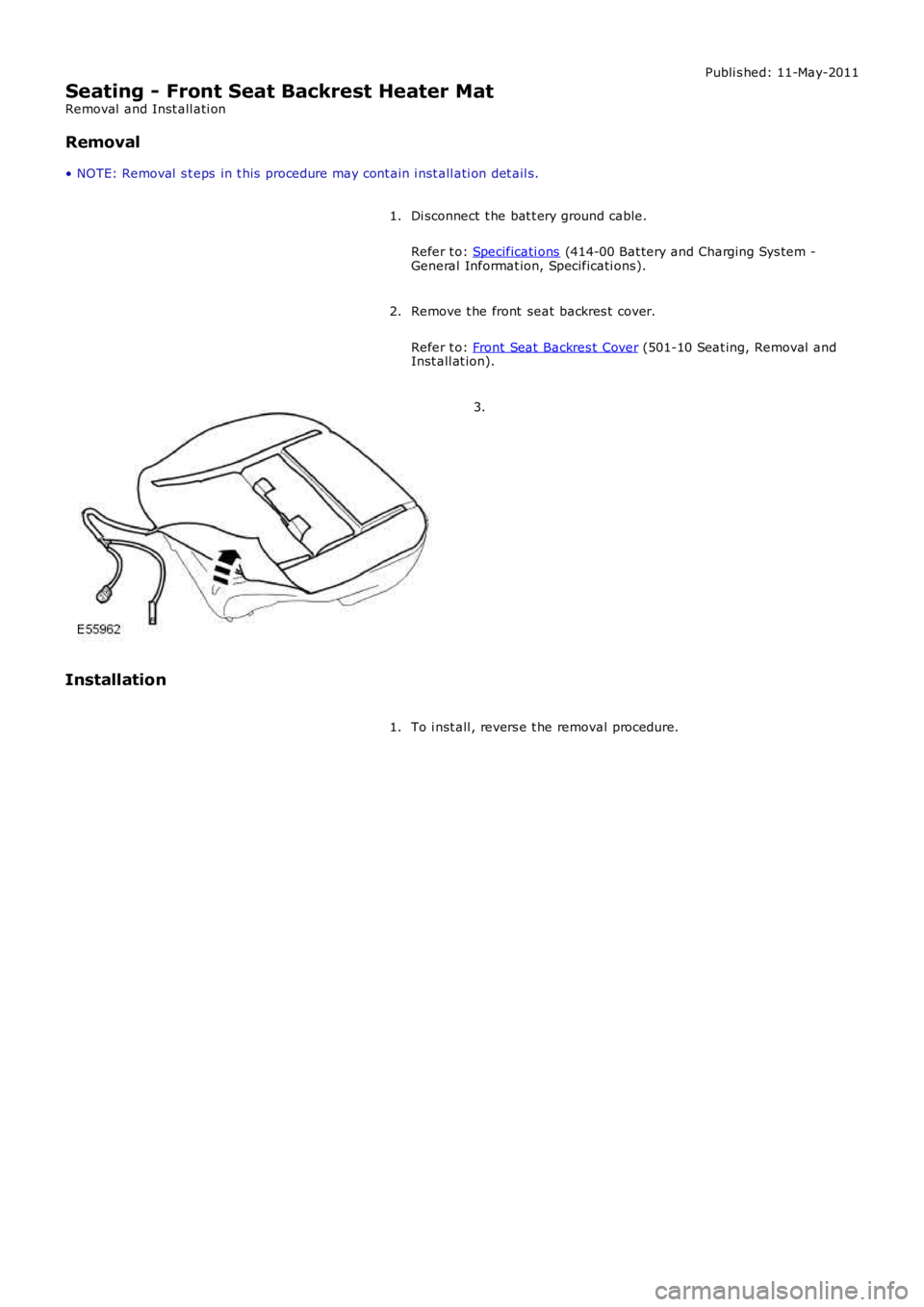

Seating - Front Seat Backrest Heater Mat
Removal and Inst all ati on
Removal
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.
Di sconnect t he bat t ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -General Informat ion, Specificati ons).
1.
Remove t he front seat backres t cover.
Refer t o: Front Seat Backres t Cover (501-10 Seat ing, Removal andInst all at ion).
2.
3.
Installation
To i nst all , revers e t he removal procedure.1.
Page 2228 of 3229
Publi s hed: 11-May-2011

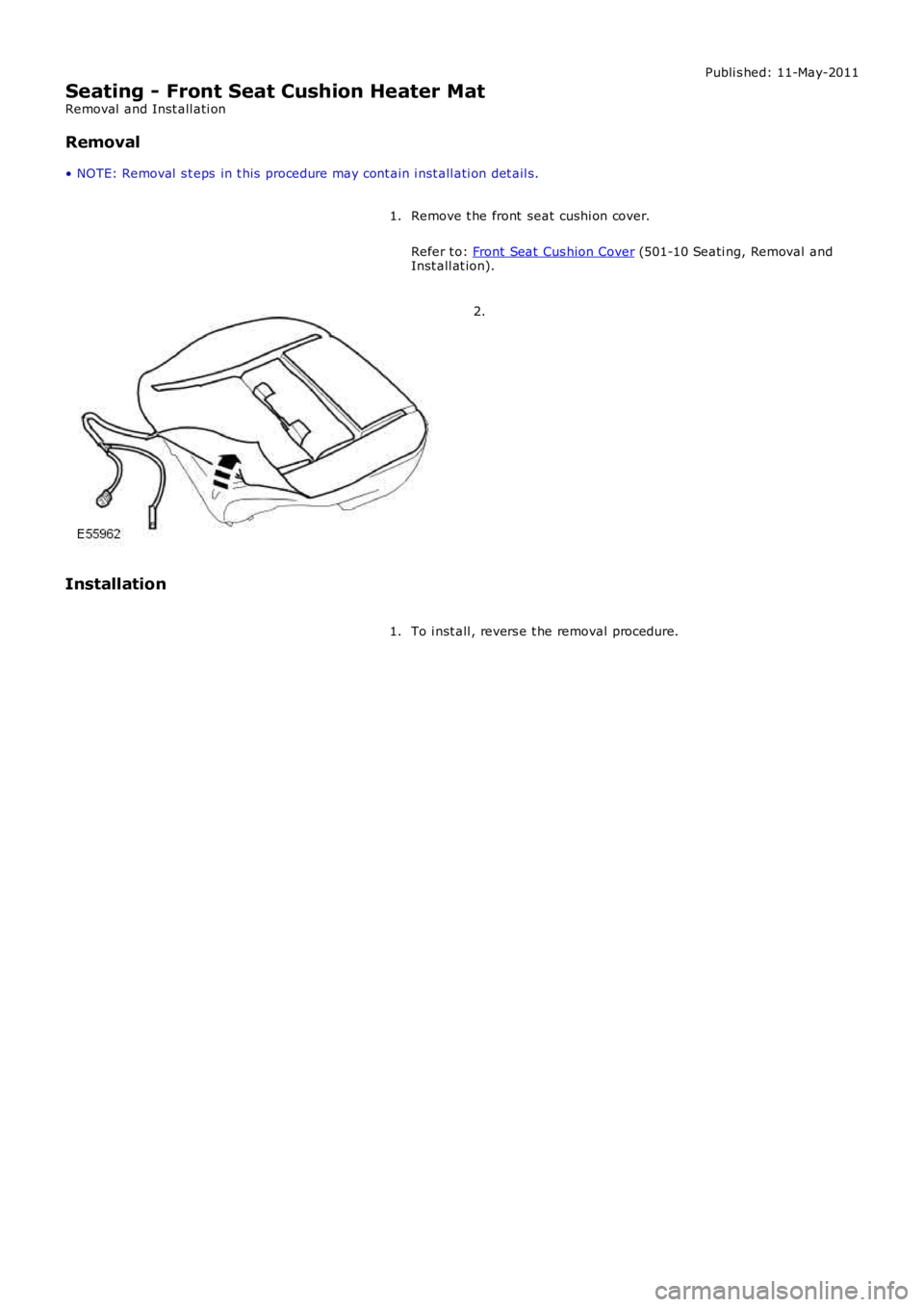

Seating - Front Seat Cushion Heater Mat
Removal and Inst all ati on
Removal
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.
Remove t he front seat cushi on cover.
Refer t o: Front Seat Cus hion Cover (501-10 Seati ng, Removal andInst all at ion).
1.
2.
Installation
To i nst all , revers e t he removal procedure.1.
Page 2229 of 3229
Publi s hed: 11-May-2011

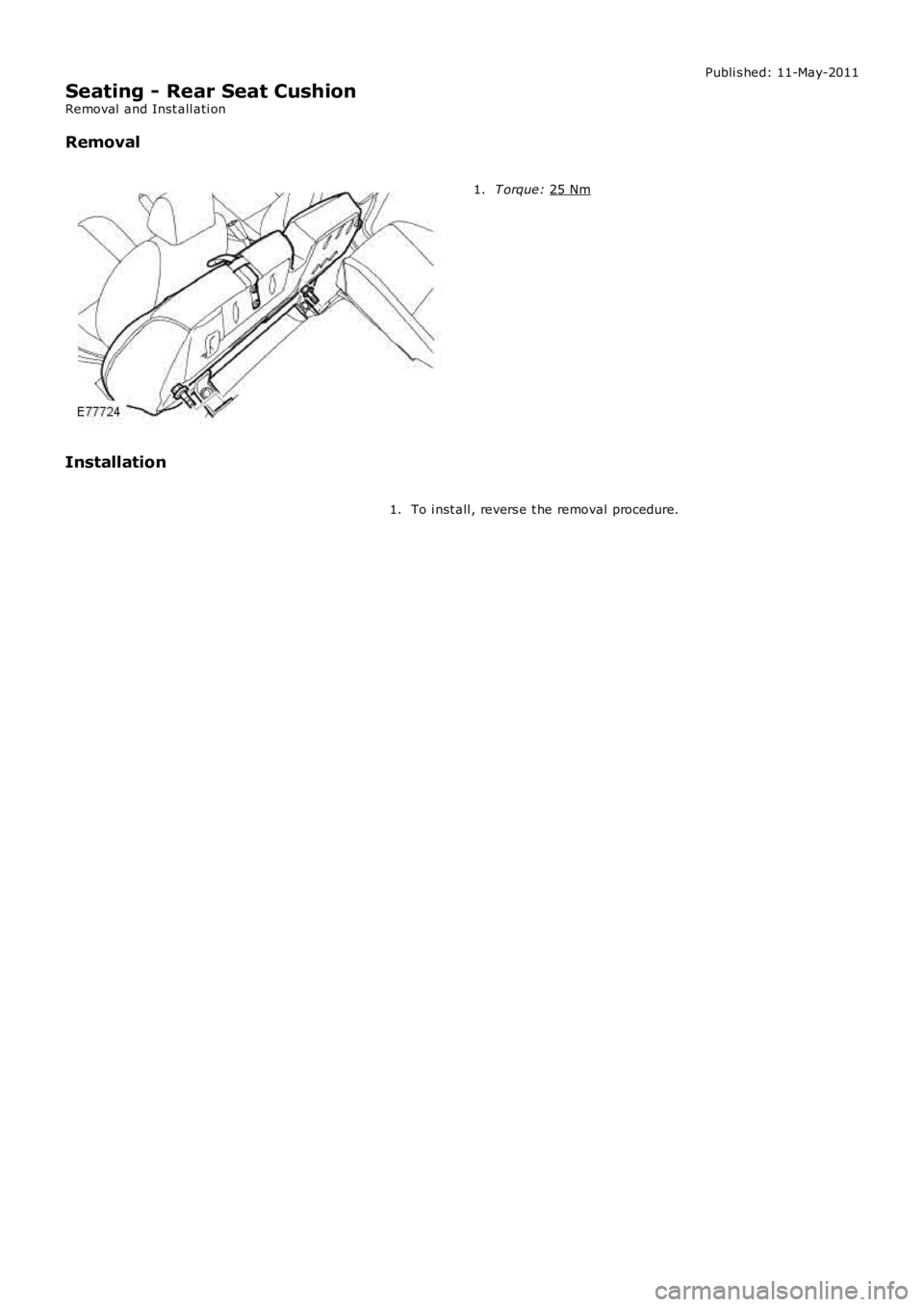

Seating - Rear Seat Cushion
Removal and Inst all ati on
Removal T orque:
25 Nm 1.
Installation To i nst all , revers e t he removal procedure.
1.
Page 2230 of 3229
Publi s hed: 11-May-2011

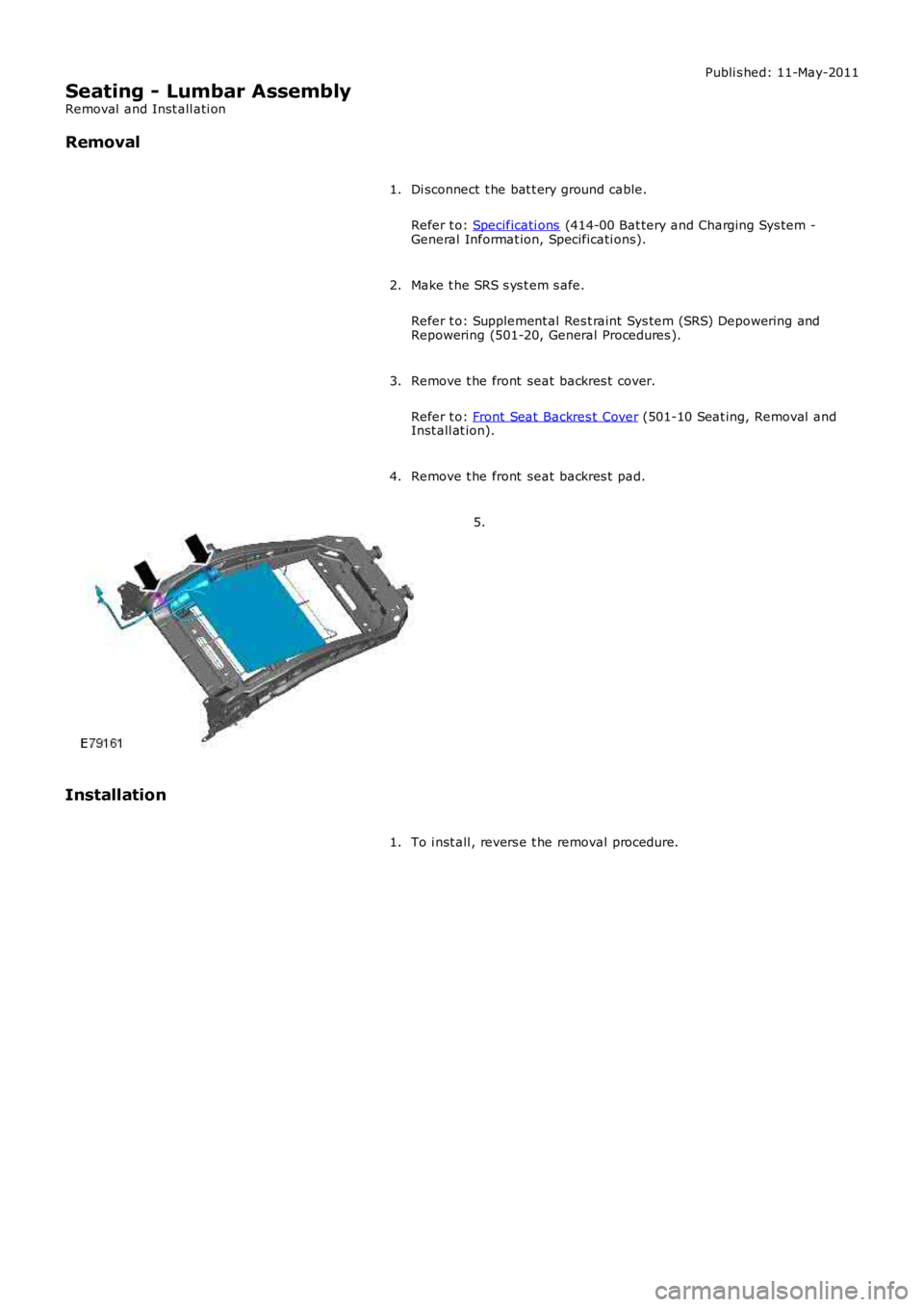

Seating - Lumbar Assembly
Removal and Inst all ati on
Removal
Di sconnect t he bat t ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -General Informat ion, Specificati ons).
1.
Make t he SRS s ys t em s afe.
Refer t o: Supplement al Res t raint Sys tem (SRS) Depowering andRepowering (501-20, General Procedures ).
2.
Remove t he front seat backres t cover.
Refer t o: Front Seat Backres t Cover (501-10 Seat ing, Removal andInst all at ion).
3.
Remove t he front seat backres t pad.4.
5.
Installation
To i nst all , revers e t he removal procedure.1.
Page 2231 of 3229
Publi s hed: 11-May-2011

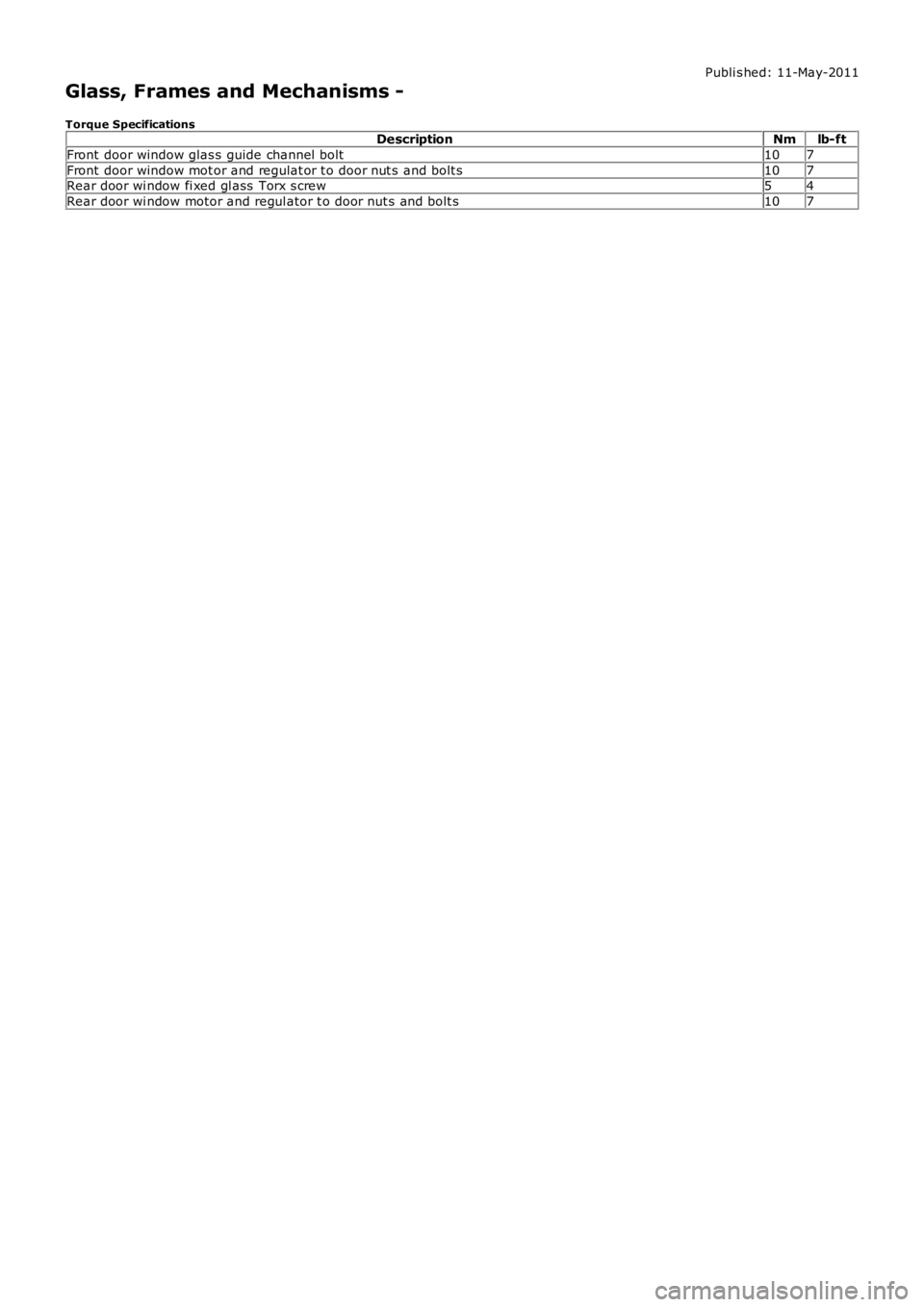

Glass, Frames and Mechanisms -
Torque SpecificationsDescriptionNmlb-ft
Front door window glas s guide channel bolt107
Front door window mot or and regulat or t o door nut s and bolt s107Rear door wi ndow fi xed gl ass Torx s crew54
Rear door wi ndow motor and regul ator t o door nut s and bolt s107
Page 2232 of 3229
Publi s hed: 11-May-2011

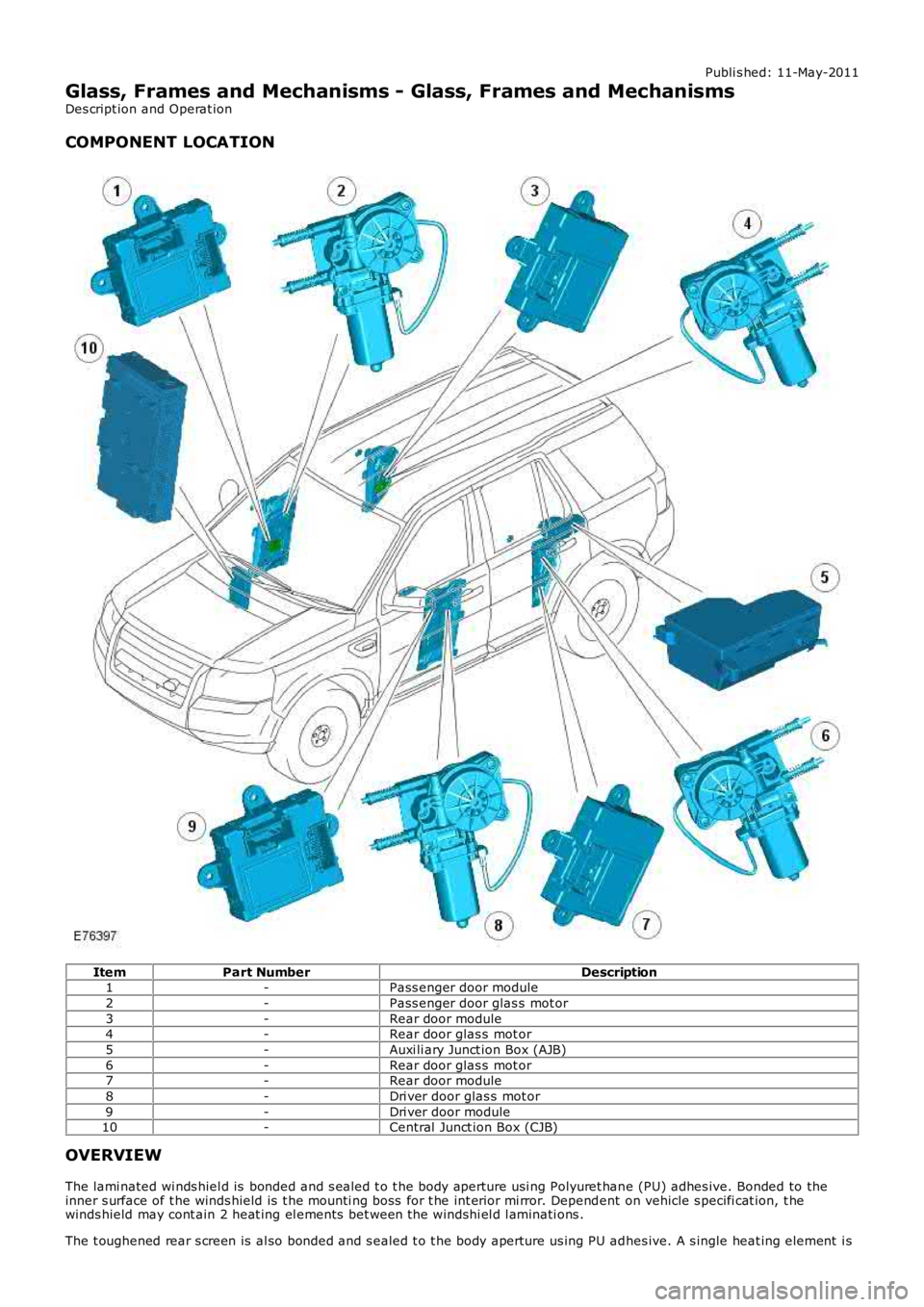

Glass, Frames and Mechanisms - Glass, Frames and Mechanisms
Des cript ion and Operat ion
COMPONENT LOCATION
ItemPart NumberDescription1-Pass enger door module
2-Pass enger door glas s mot or
3-Rear door module4-Rear door glas s mot or
5-Auxi li ary Junct ion Box (AJB)
6-Rear door glas s mot or7-Rear door module
8-Dri ver door glas s mot or
9-Dri ver door module10-Central Junct ion Box (CJB)
OVERVIEW
The lami nated wi nds hiel d is bonded and s ealed t o t he body aperture usi ng Polyuret hane (PU) adhes ive. Bonded to theinner s urface of t he winds hield is t he mounti ng boss for t he int erior mi rror. Dependent on vehicle s pecifi cat ion, t hewinds hield may cont ain 2 heat ing el ements bet ween the windshi el d l aminati ons .
The t oughened rear s creen is al so bonded and s ealed t o t he body aperture us ing PU adhes ive. A s ingle heat ing element i s
