Page 249 of 3229
Publi s hed: 11-May-2011

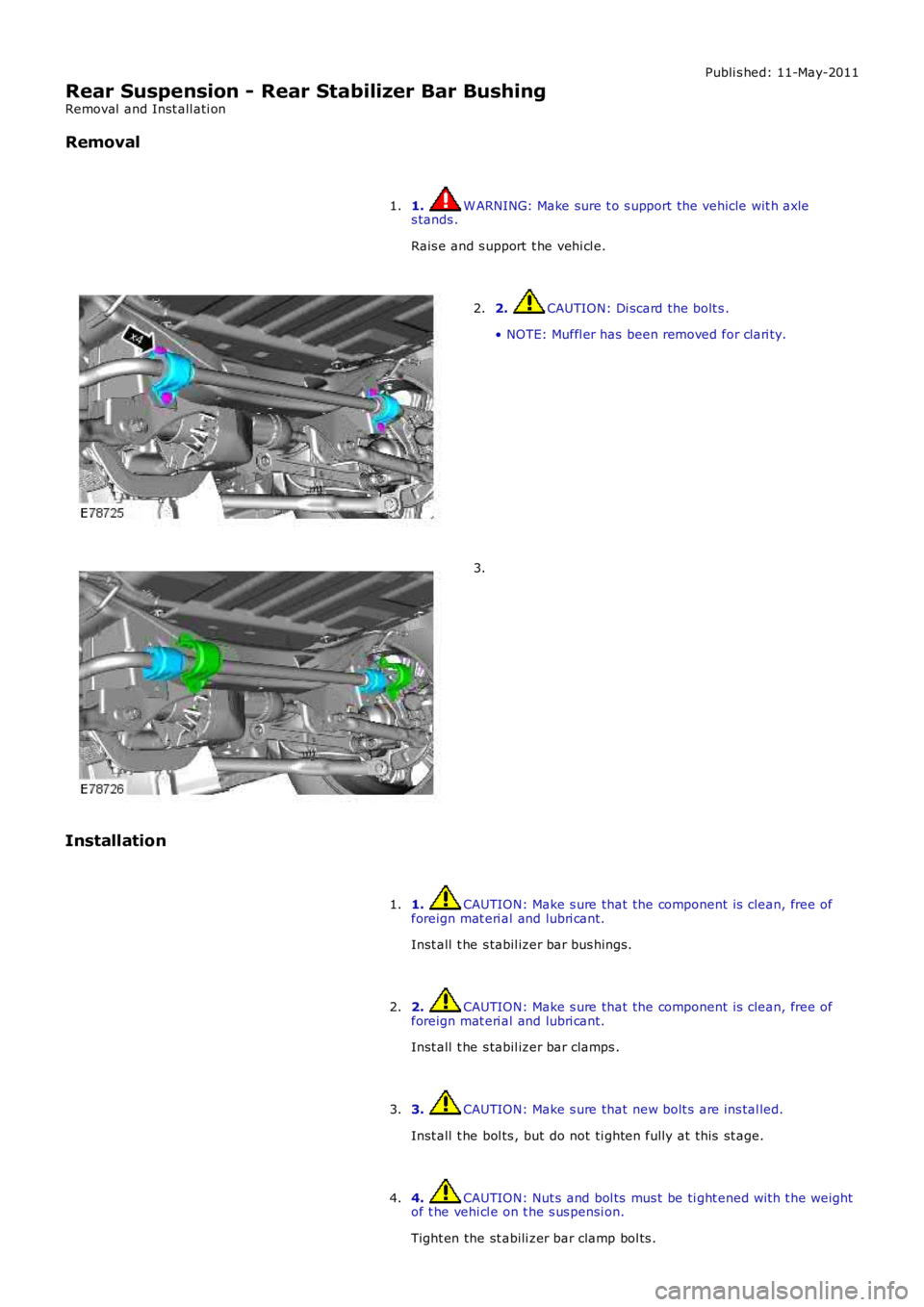

Rear Suspension - Rear Stabilizer Bar Bushing
Removal and Inst all ati on
Removal
1. W ARNING: Make sure t o s upport the vehicle wit h axles tands .
Rais e and s upport t he vehi cl e.
1.
2. CAUTION: Di scard the bolt s .
• NOTE: Muffl er has been removed for cl ari ty.
2.
3.
Installation
1. CAUTION: Make s ure that the component is clean, free offoreign mat eri al and lubri cant.
Inst all t he s tabil izer bar bus hings.
1.
2. CAUTION: Make s ure that the component is clean, free offoreign mat eri al and lubri cant.
Inst all t he s tabil izer bar clamps .
2.
3. CAUTION: Make s ure that new bolt s are ins tal led.
Inst all t he bol ts , but do not ti ghten fully at this st age.
3.
4. CAUTION: Nut s and bol ts mus t be ti ght ened wit h t he weightof t he vehi cl e on t he s us pensi on.
Tight en the st abili zer bar clamp bol ts .
4.
Page 250 of 3229
Publi s hed: 11-May-2011

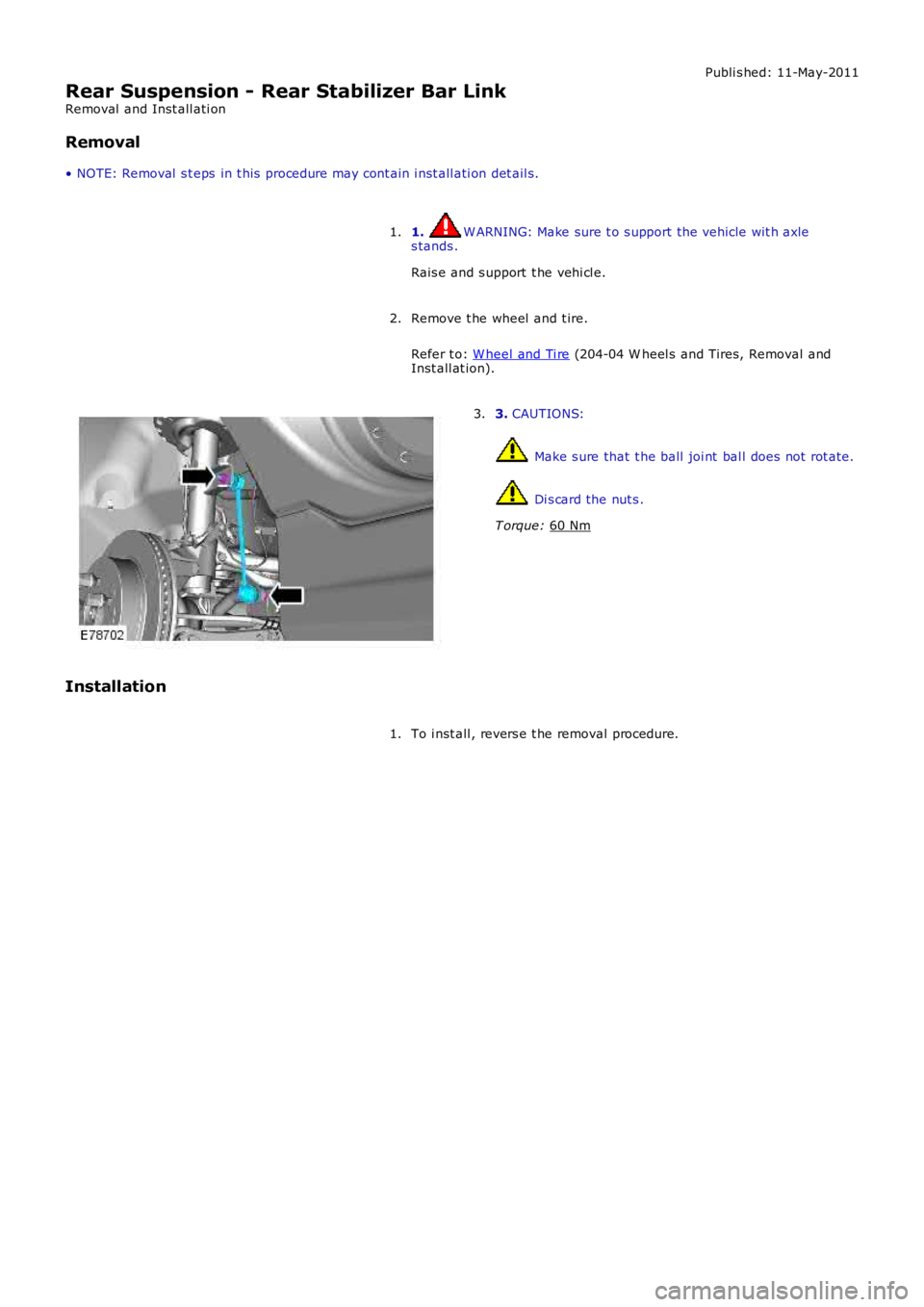

Rear Suspension - Rear Stabilizer Bar Link
Removal and Inst all ati on
Removal
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.
1. W ARNING: Make sure t o s upport the vehicle wit h axle
s tands .
Rais e and s upport t he vehi cl e.
1.
Remove t he wheel and t ire.
Refer t o: W heel and Ti re (204-04 W heel s and Tires, Removal and
Inst all at ion).
2. 3.
CAUTIONS: Make s ure that t he ball joi nt bal l does not rot ate.
Di s card the nut s .
T orque: 60 Nm 3.
Installation To i nst all , revers e t he removal procedure.
1.
Page 251 of 3229
Publi s hed: 18-May-2011

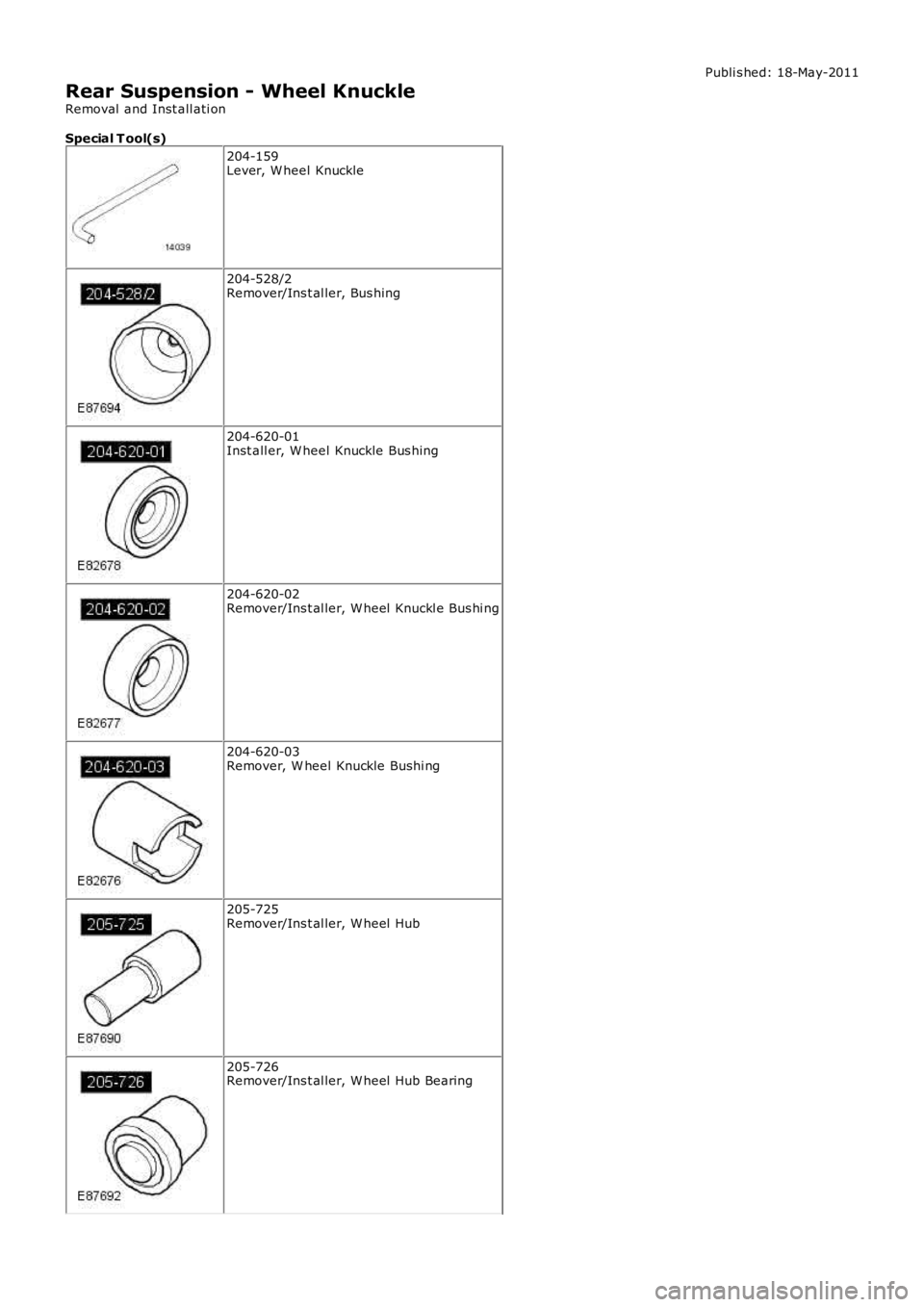

Rear Suspension - Wheel Knuckle
Removal and Inst all ati on
Special T ool(s)
204-159Lever, W heel Knuckle
204-528/2Remover/Ins t al ler, Bus hing
204-620-01Inst all er, W heel Knuckle Bus hing
204-620-02Remover/Ins t al ler, W heel Knuckl e Bus hi ng
204-620-03Remover, W heel Knuckle Bushi ng
205-725Remover/Ins t al ler, W heel Hub
205-726Remover/Ins t al ler, W heel Hub Bearing
Page 252 of 3229

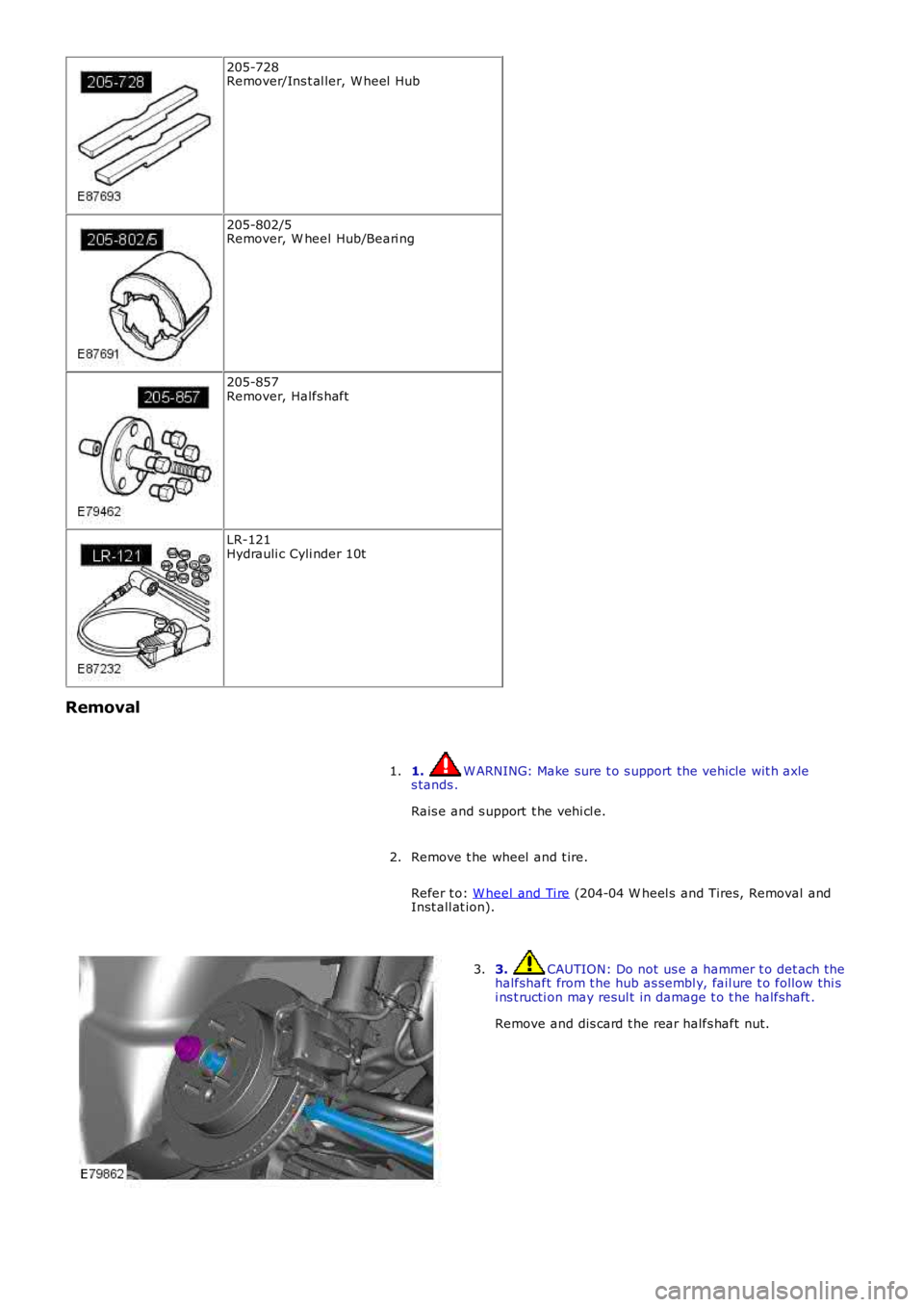

205-728Remover/Ins t al ler, W heel Hub
205-802/5Remover, W heel Hub/Beari ng
205-857Remover, Halfs haft
LR-121Hydrauli c Cyli nder 10t
Removal
1. W ARNING: Make sure t o s upport the vehicle wit h axles tands .
Rais e and s upport t he vehi cl e.
1.
Remove t he wheel and t ire.
Refer t o: W heel and Ti re (204-04 W heel s and Tires, Removal andInst all at ion).
2.
3. CAUTION: Do not us e a hammer t o det ach t hehalfshaft from t he hub as sembl y, fail ure t o follow thi si ns t ructi on may resul t in damage t o t he halfshaft .
Remove and dis card t he rear halfs haft nut.
3.
Page 253 of 3229

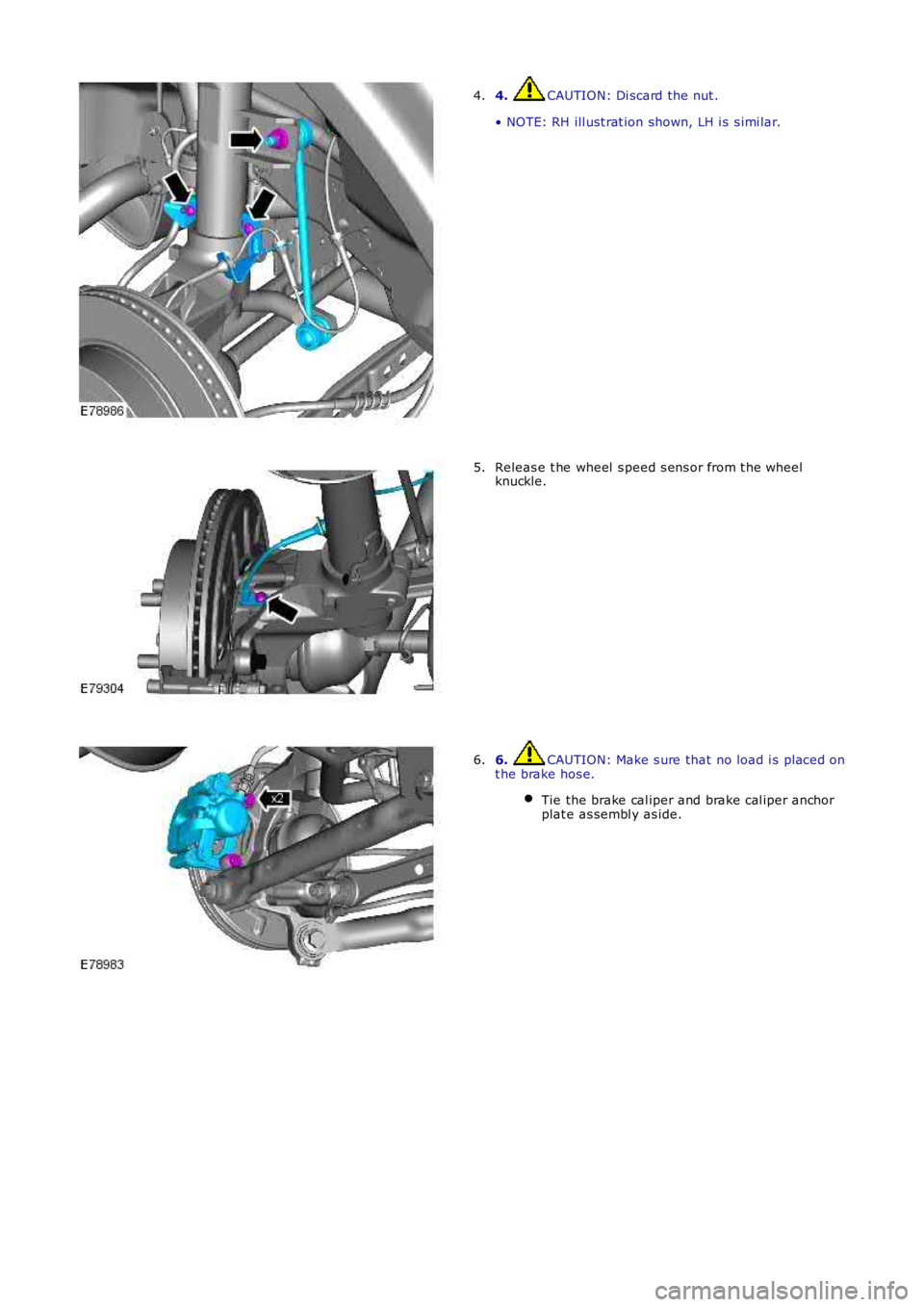

4. CAUTION: Di scard the nut .
• NOTE: RH ill ust rat ion shown, LH i s s imi lar.
4.
Releas e t he wheel s peed s ens or from t he wheelknuckle.5.
6. CAUTION: Make s ure that no load i s placed ont he brake hos e.
Tie the brake cal iper and brake cal iper anchorplat e as sembl y as ide.
6.
Page 254 of 3229

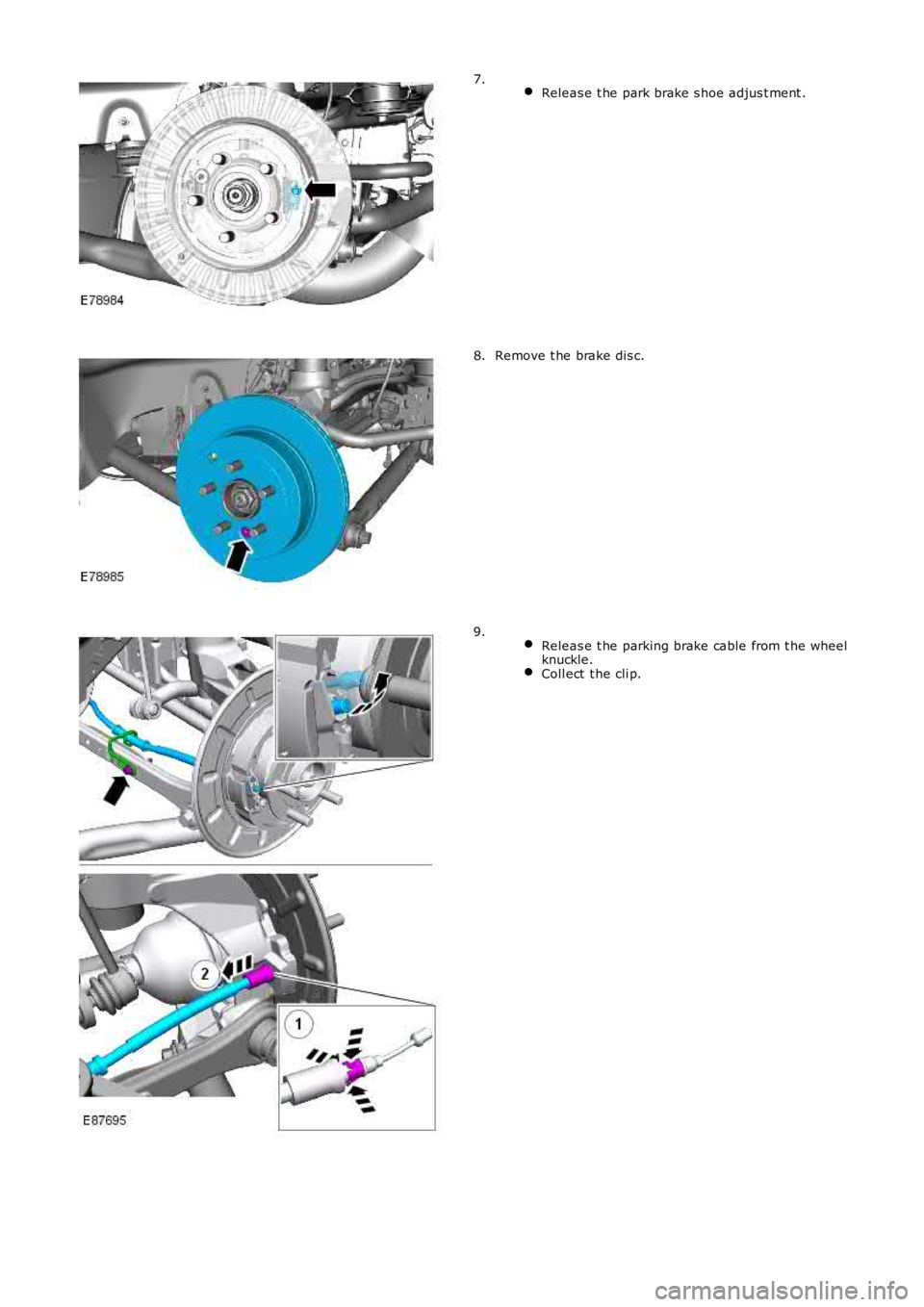

Releas e t he park brake s hoe adjus t ment .7.
Remove t he brake dis c.8.
Releas e t he parking brake cable from t he wheelknuckle.Coll ect t he cli p.
9.
Page 255 of 3229

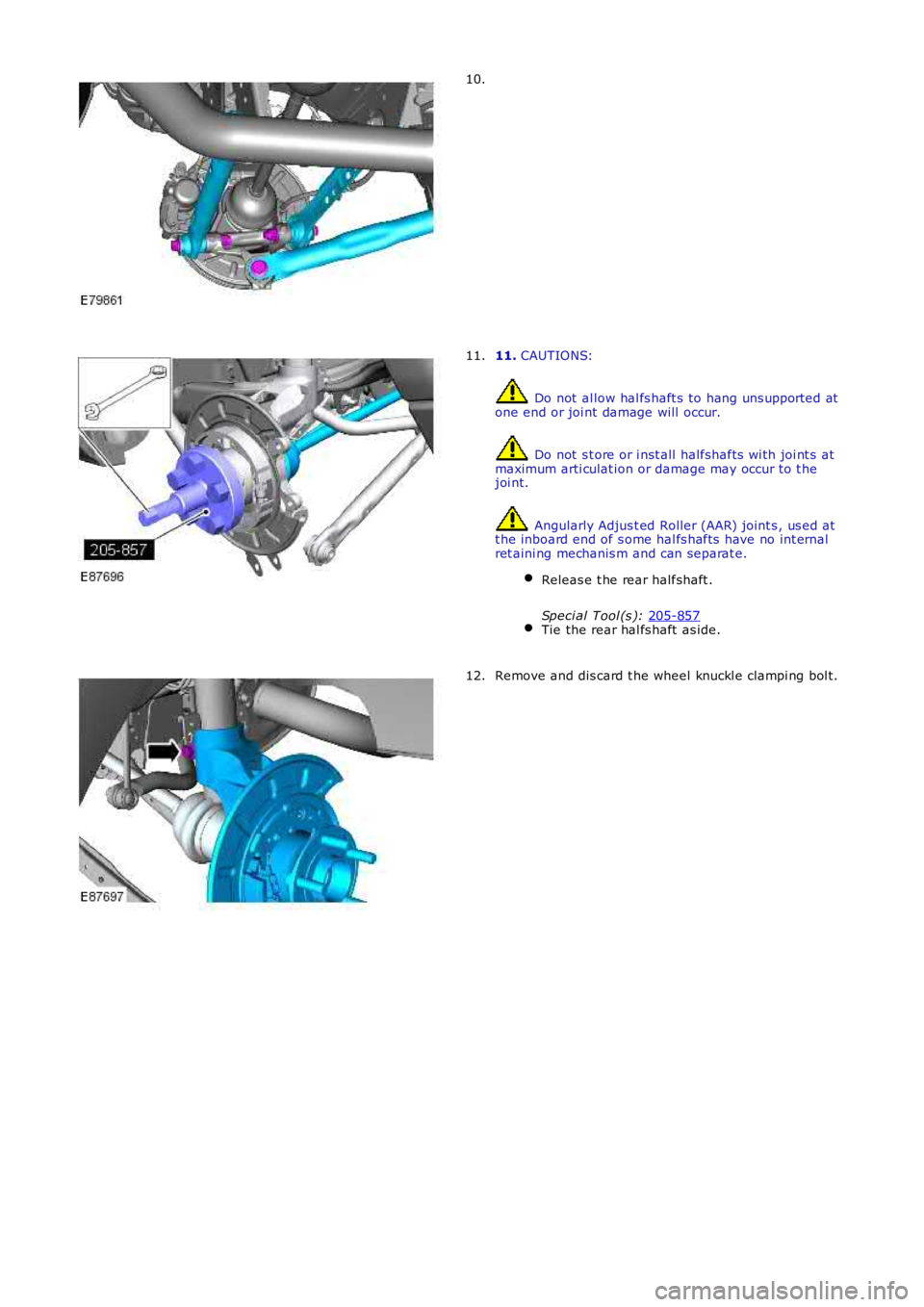

10.
11.
CAUTIONS: Do not al low hal fs haft s to hang uns upported at
one end or joi nt damage will occur. Do not s t ore or i nst all halfshafts wi th joi nt s at
maximum arti culat ion or damage may occur to t he
joi nt. Angularly Adjus t ed Roller (AAR) joint s , us ed at
t he inboard end of s ome hal fs haft s have no int ernal
ret aini ng mechanis m and can separat e.
Releas e t he rear halfshaft .
Speci al Tool (s ): 205-857 Tie the rear hal fs haft as ide.11.
Remove and dis card t he wheel knuckl e clampi ng bol t.
12.
Page 256 of 3229

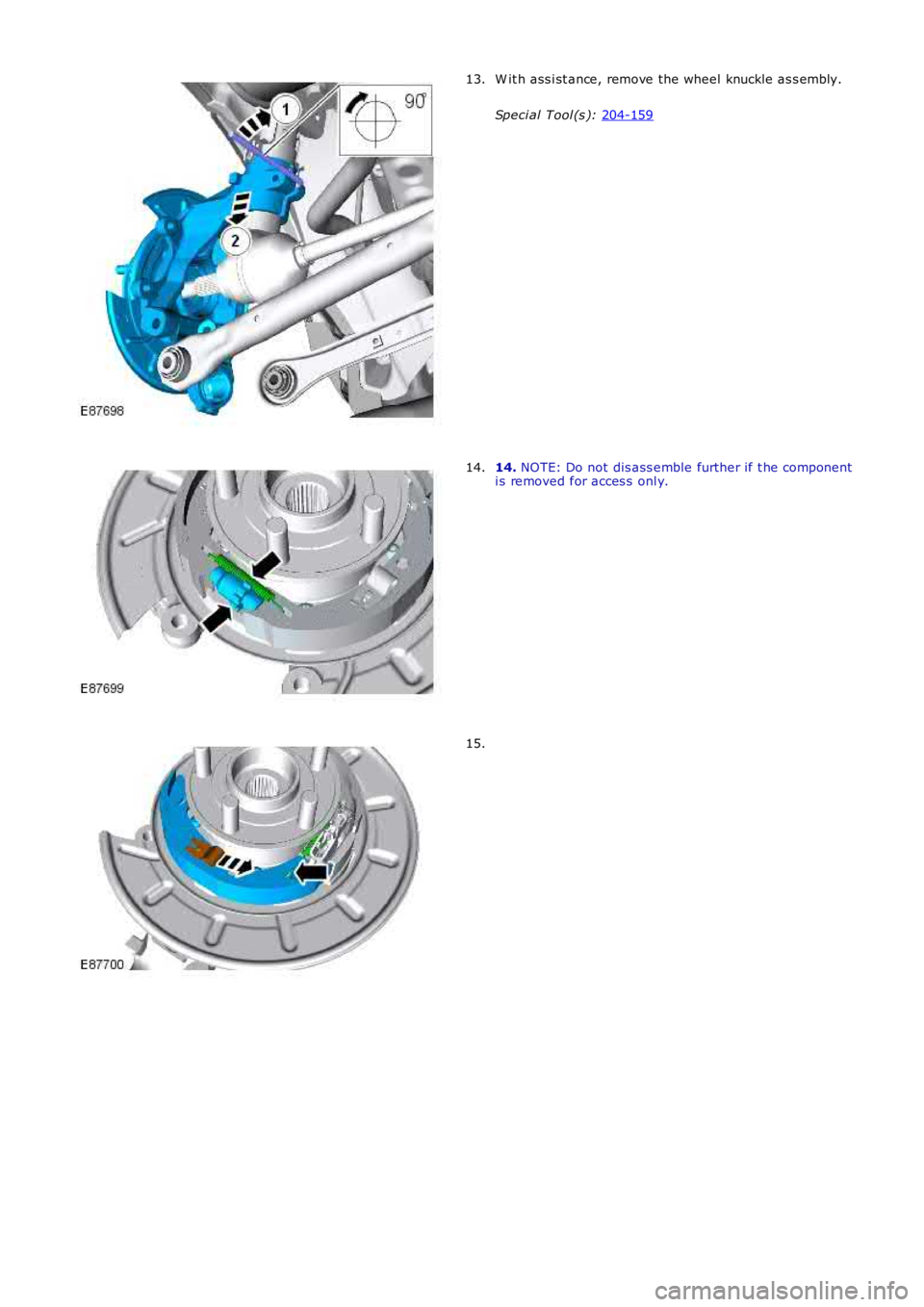

W it h ass i st ance, remove the wheel knuckle as s embly.
Speci al Tool (s ): 204-159 13.
14.
NOTE: Do not dis ass emble further if t he component
i s removed for acces s onl y.
14. 15.
