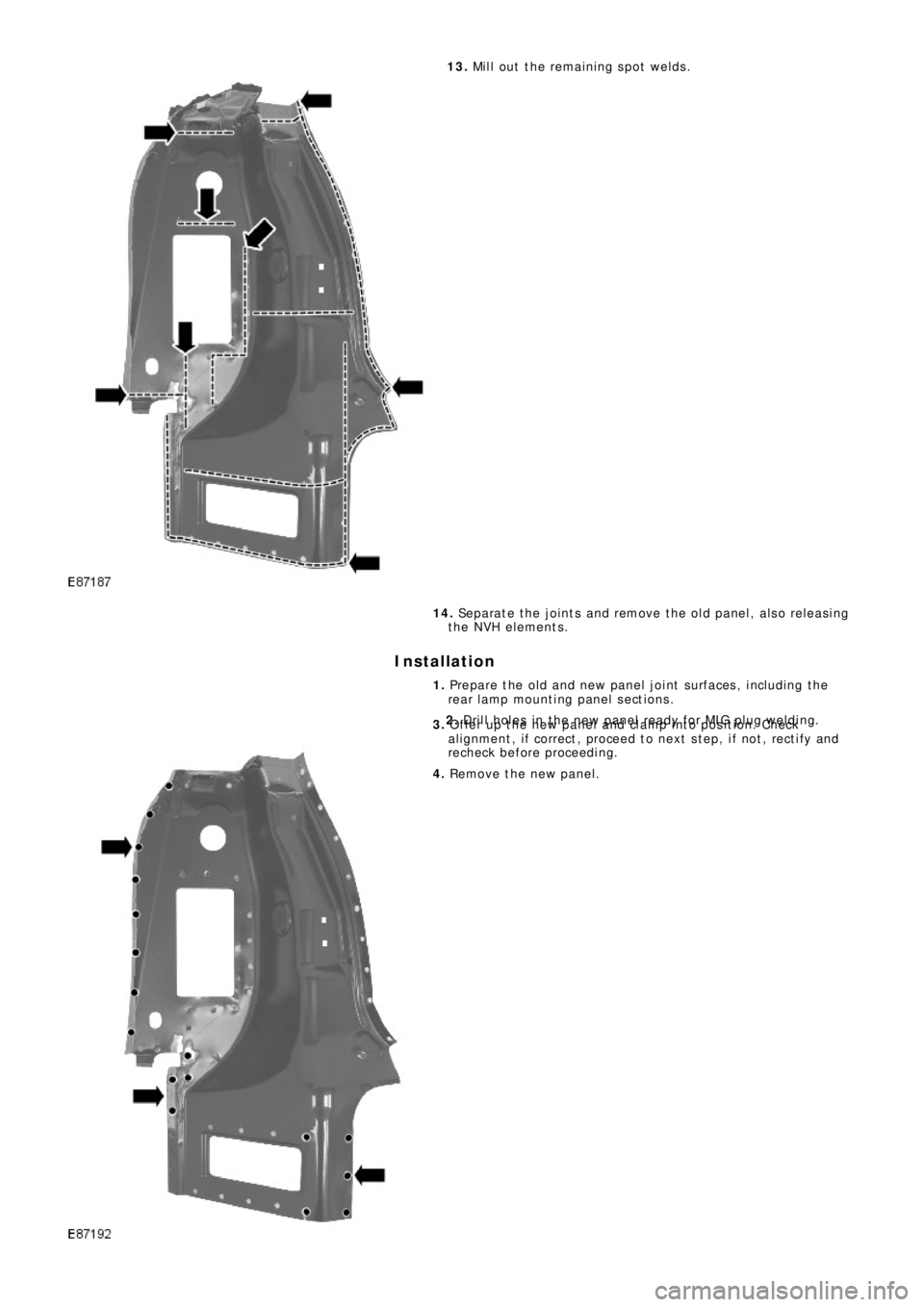

LAND ROVER FRELANDER 2 2006 Repair Manual 13. Mill out the remaining spot welds. 14. Se p a ra t e t he j o i nt s a nd re mo ve t he o l d p a ne l , a l s o re l e a s i ng the NVH elements. Installation 1. Prepare the old and new

Page 2666 of 3229

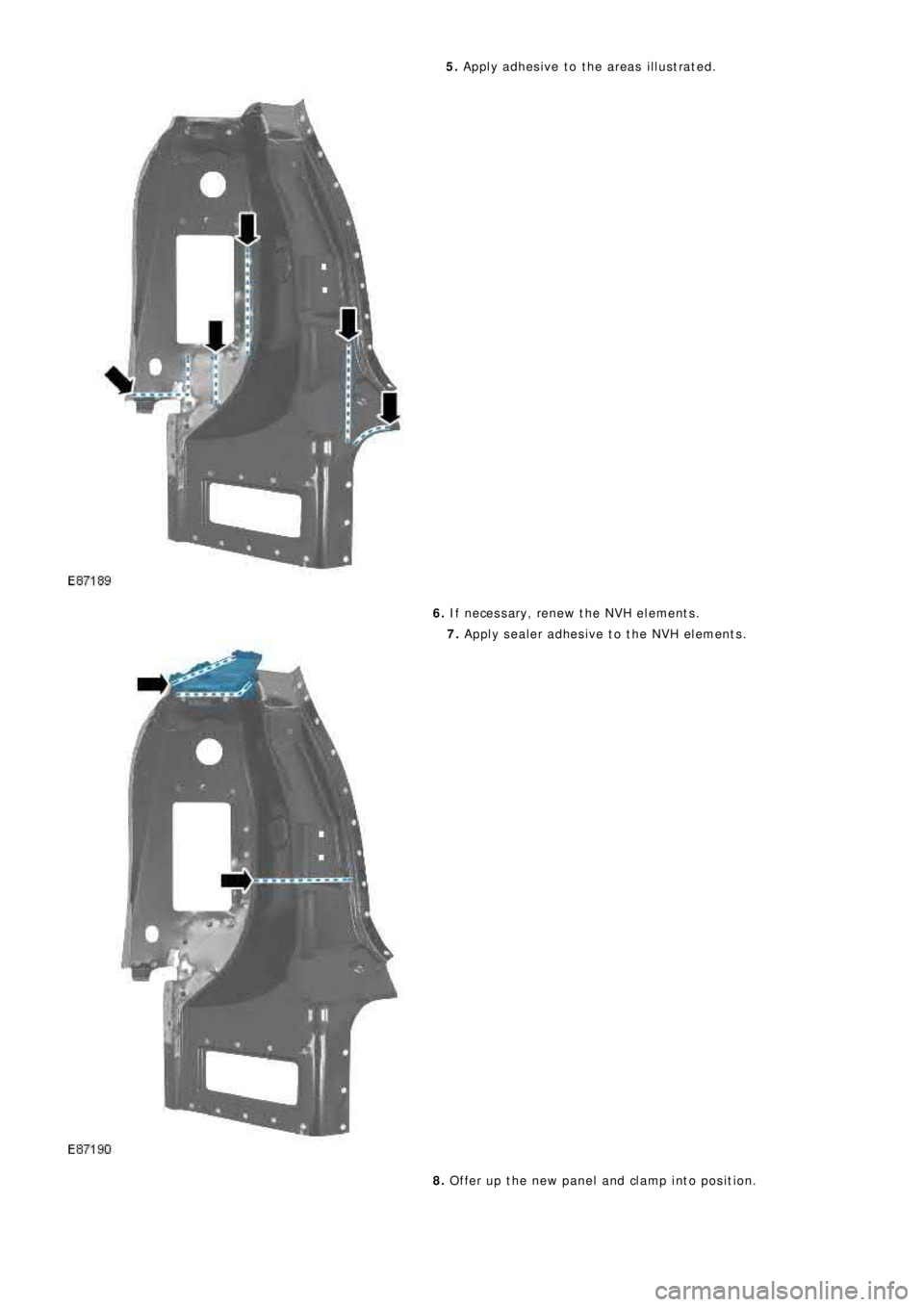

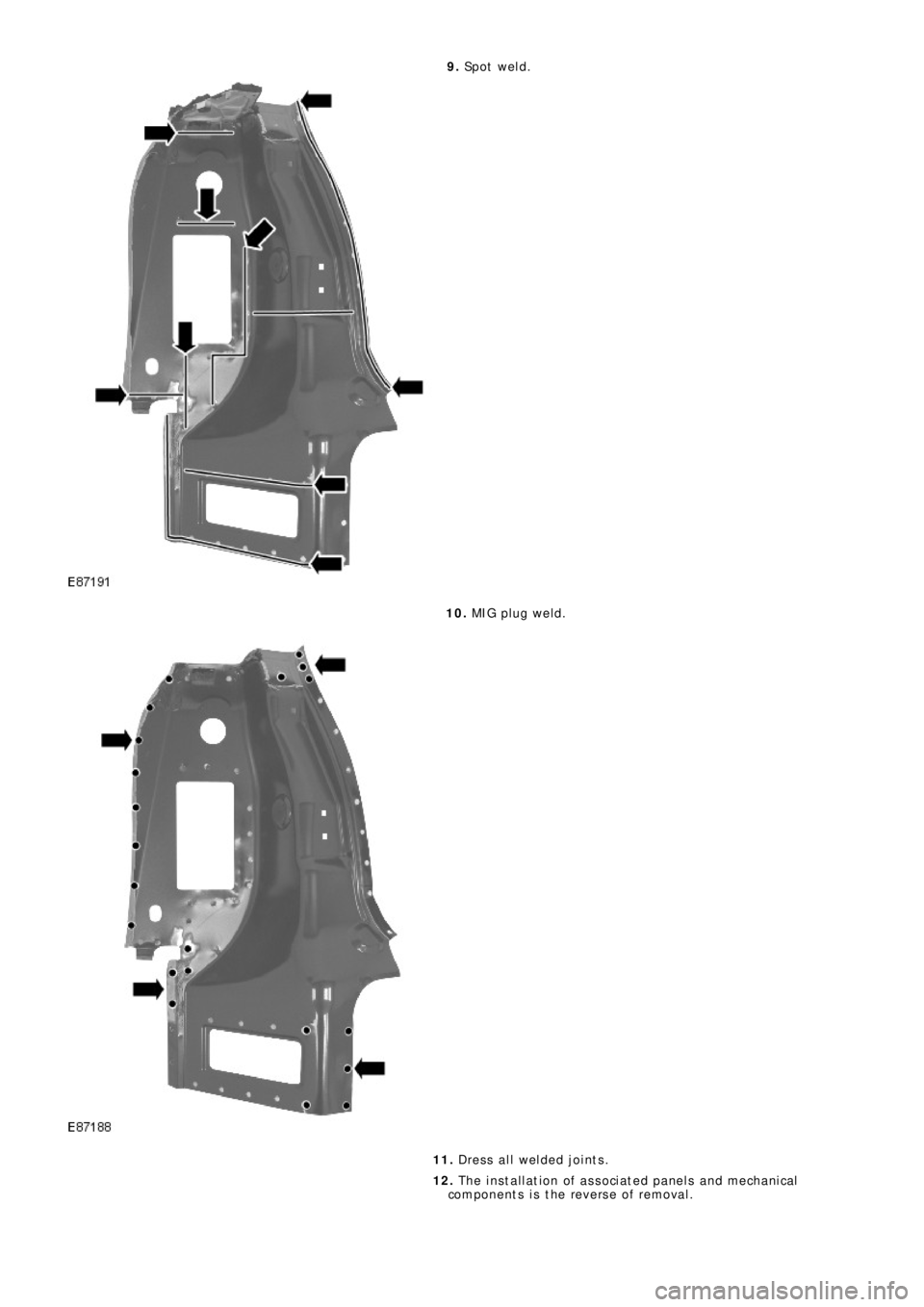

LAND ROVER FRELANDER 2 2006 Repair Manual 5. Apply adhesive to the areas illustrated. 6. If necessary, renew the NVH elements. 7. Apply sealer adhesive to the NVH elements. 8. Offer up the new panel and clamp into position.

Page 2667 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual 9. Sp o t we l d . 10. MIG pl ug we l d. 11. Dress all welded joints. 12. The installation of associated panels and mechanical components is the reverse of removal.

Page 2668 of 3229

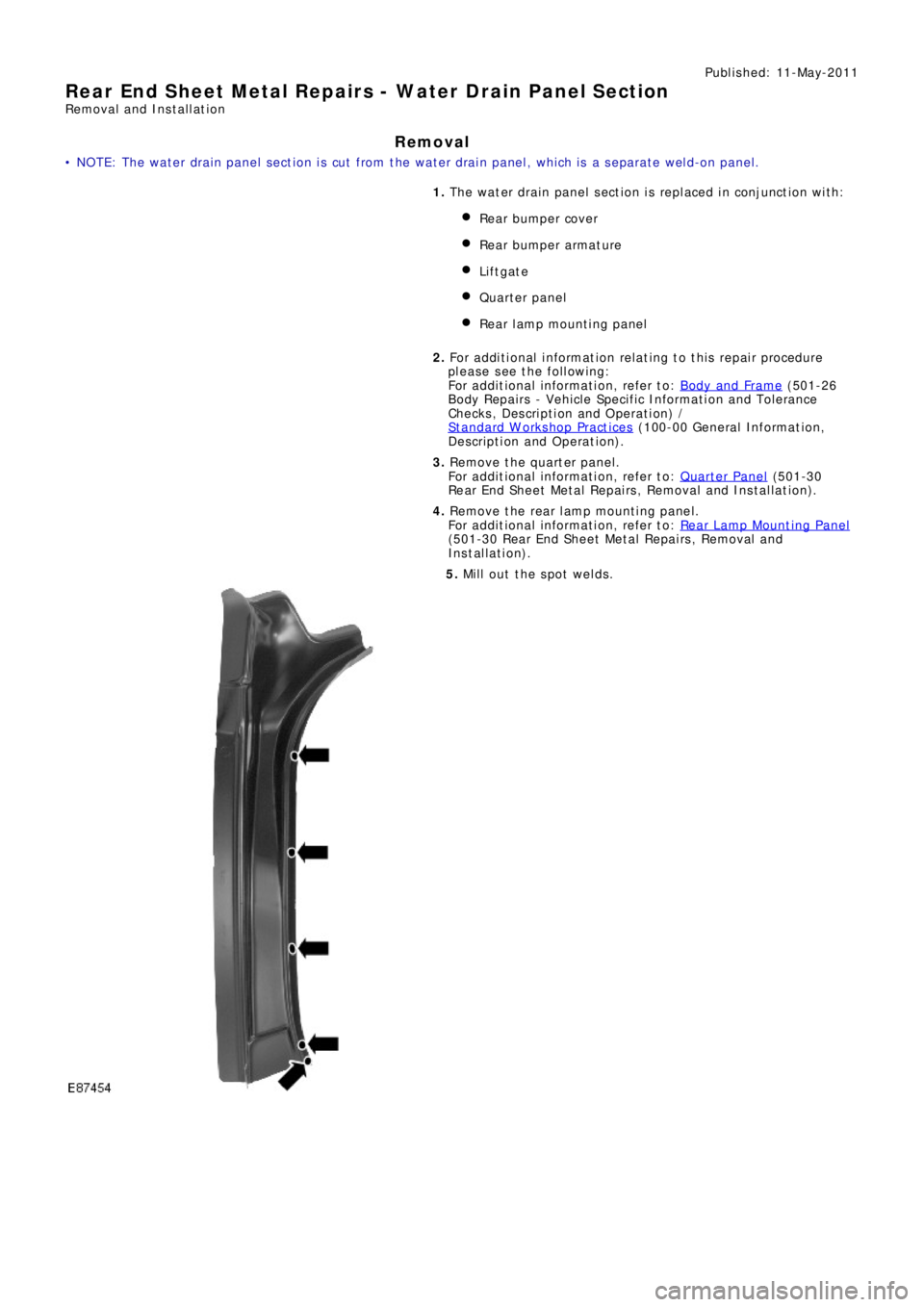

LAND ROVER FRELANDER 2 2006 Repair Manual Publ is hed: 11-May-2011 Rear End Sheet Metal Repairs - Water Drain Panel Section Removal and Installation Removal • NOTE: The wat er drai n panel s ect ion i s cut from t he wat er drai n panel,

Page 2669 of 3229

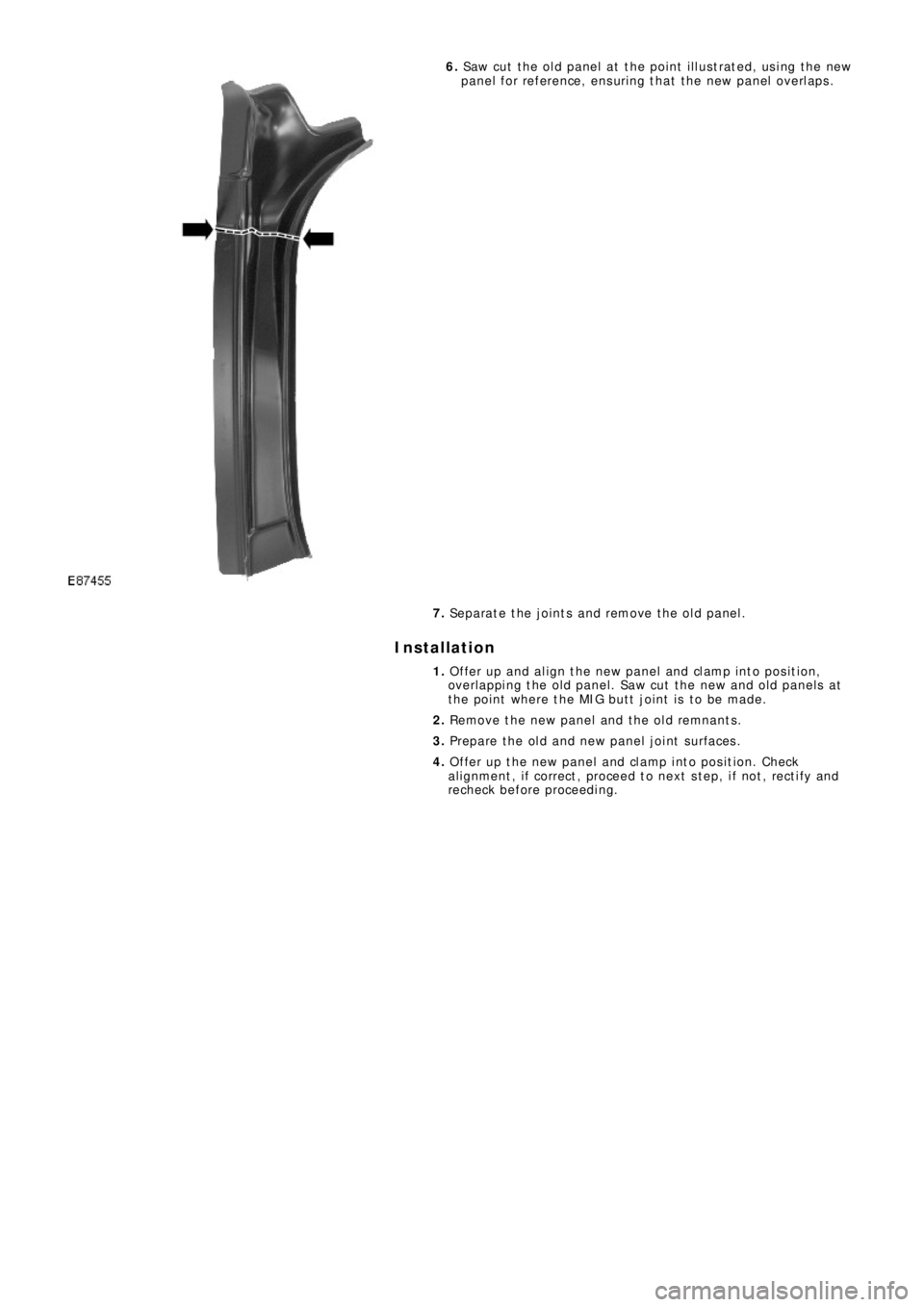

LAND ROVER FRELANDER 2 2006 Repair Manual 6. Saw cut the old panel at the point illustrated, using the new p a ne l f o r re f e re nce , e ns uri ng t ha t t he ne w p a ne l o ve rl a p s . 7. Separate the joints and remove the old p

Page 2670 of 3229

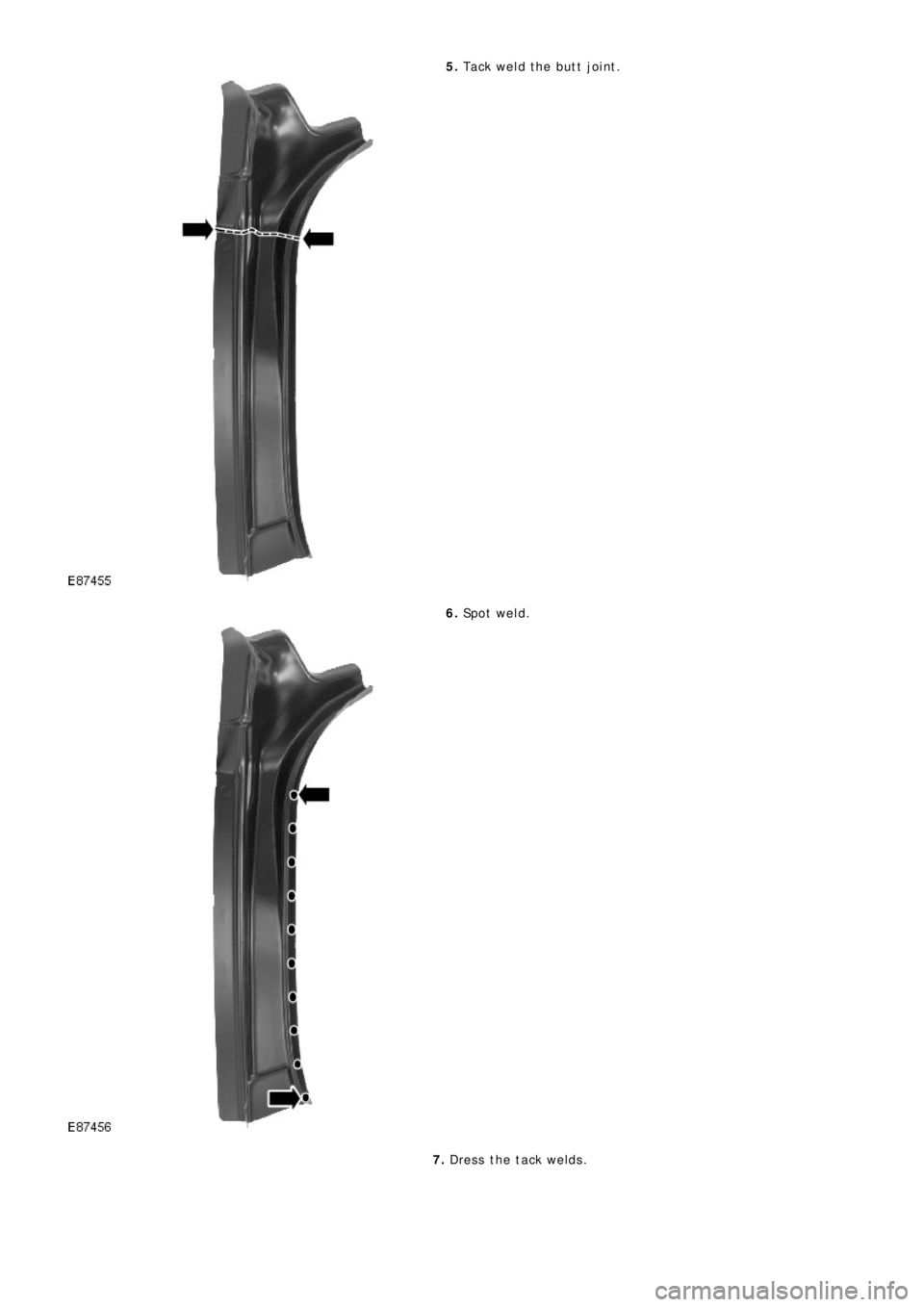

LAND ROVER FRELANDER 2 2006 Repair Manual 5. Tack weld the butt joint. 6. Sp o t w e l d . 7. Dress the tack welds.

Page 2671 of 3229

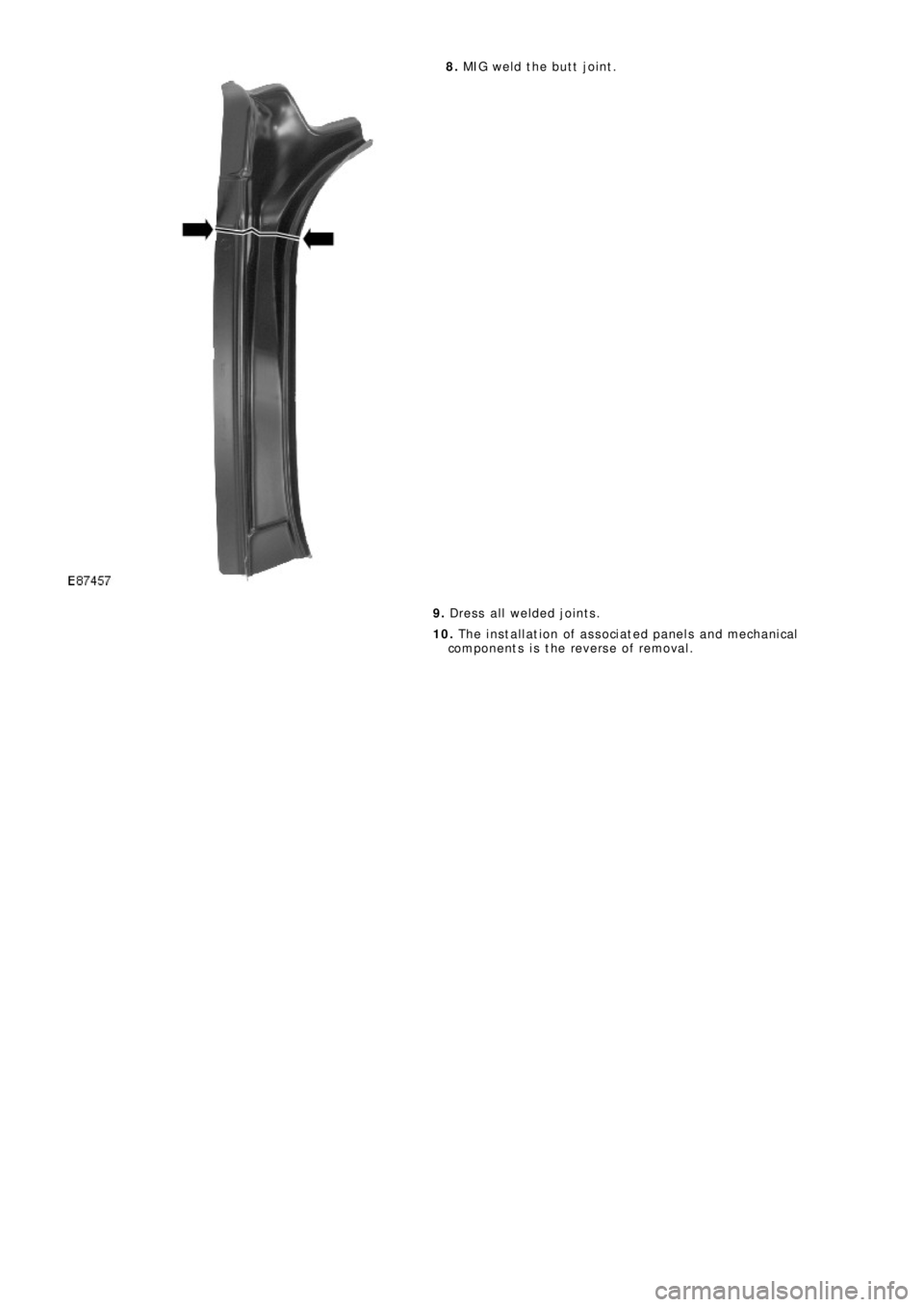

LAND ROVER FRELANDER 2 2006 Repair Manual 8. MIG weld the butt joint. 9. Dress all welded joints. 10. The installation of associated panels and mechanical components is the reverse of removal.

Page 2672 of 3229

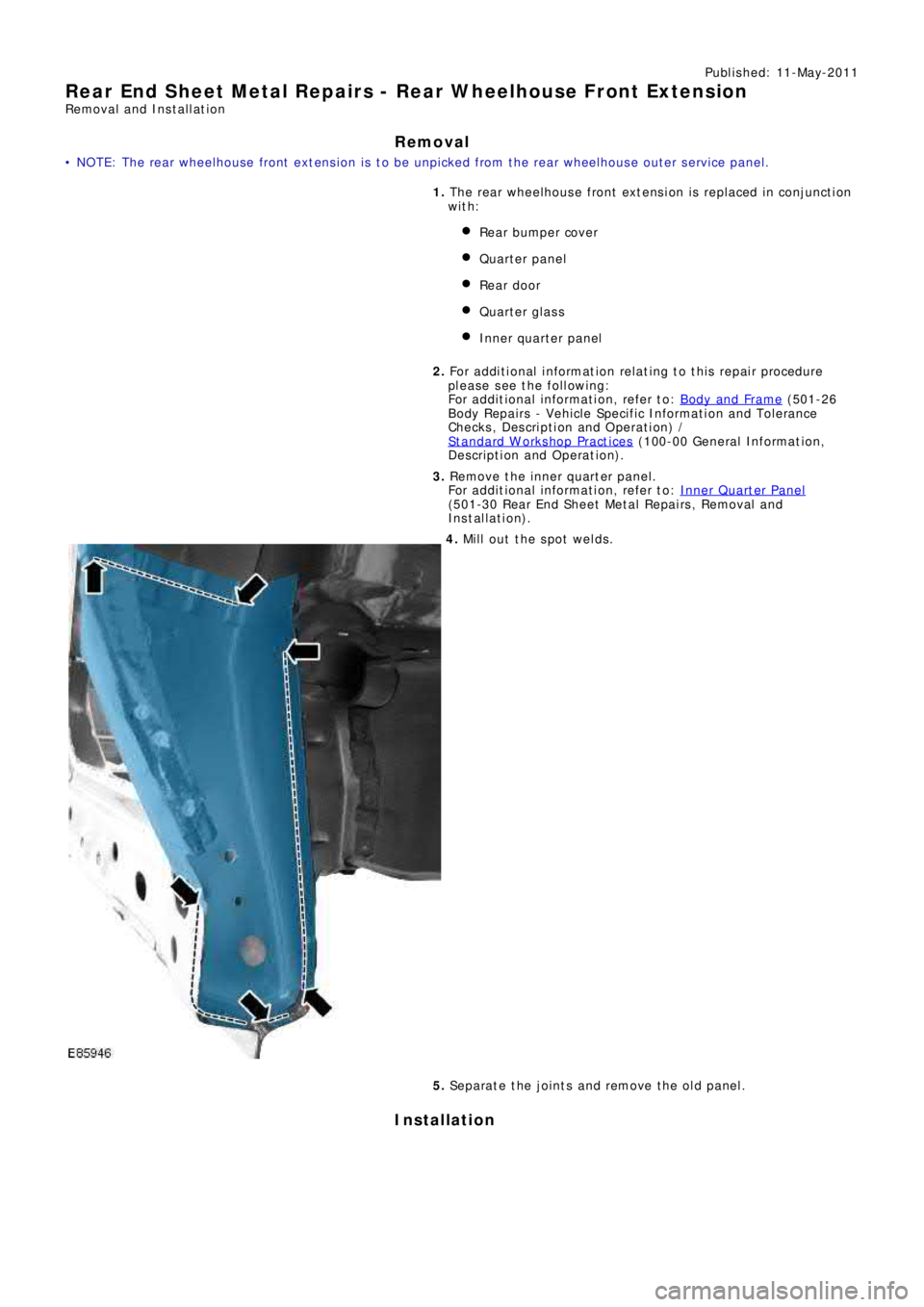

LAND ROVER FRELANDER 2 2006 Repair Manual Publ is hed: 11-May-2011 Rear End Sheet Metal Repairs - Rear Wheelhouse Front Extension Removal and Installation Removal • NOTE: The rear wheelhouse front extension is to be unpicked from the rear w
