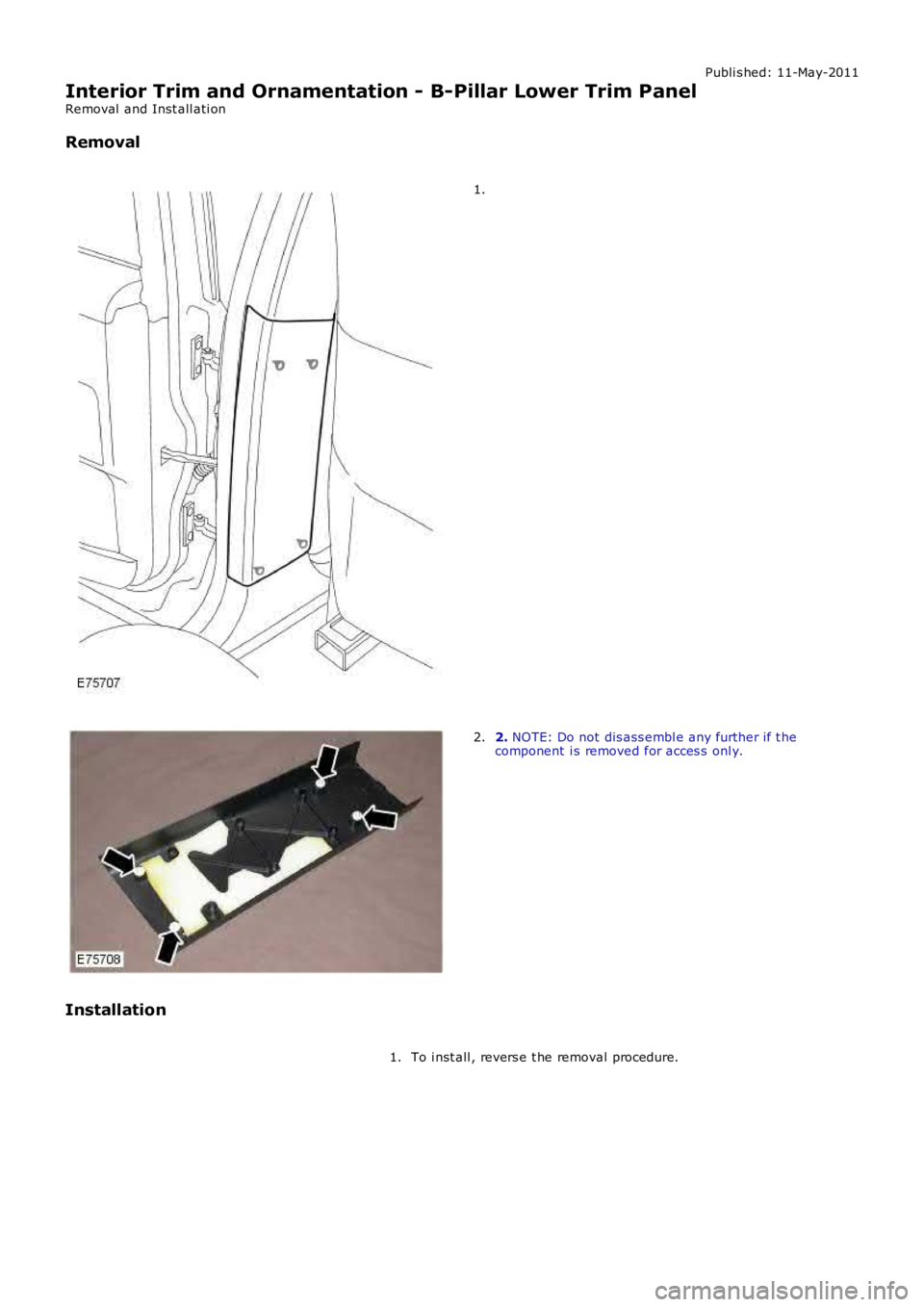

Page 2113 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Interior Trim and Ornamentation - B-Pillar Lower Trim Panel Removal and Inst all ati on Removal 1. 2. NOTE: Do not dis ass embl e any further if t hecomponent i s removed fo

Page 2114 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Interior Trim and Ornamentation - C-Pillar Trim Panel Removal and Inst all ati on Removal • NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ai

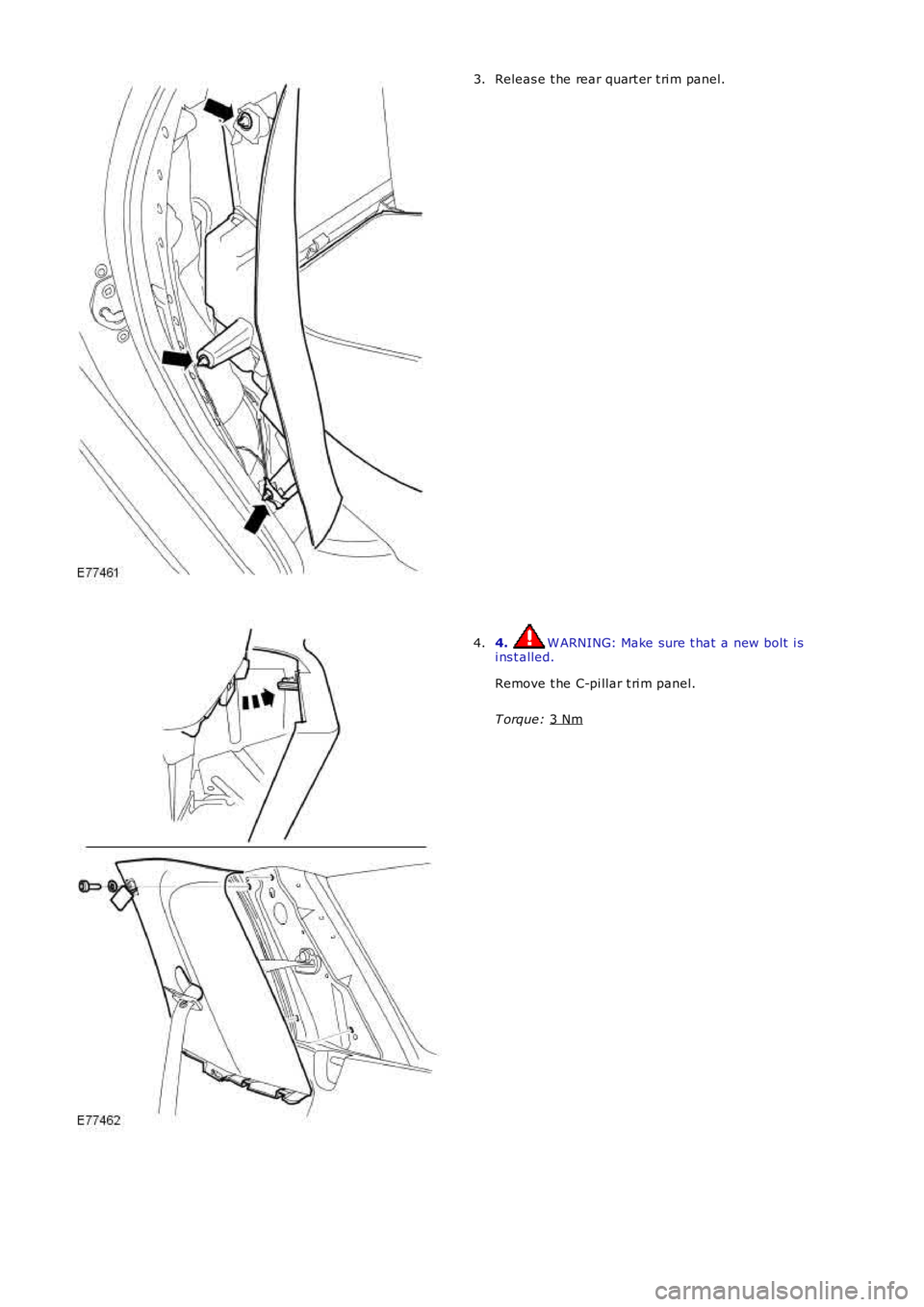

Page 2115 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Releas e t he rear quart er t ri m panel. 3. 4. W ARNING: Make sure t hat a new bolt i s i ns t alled. Remove t he C-pi llar t ri m panel. T orque: 3 Nm 4.

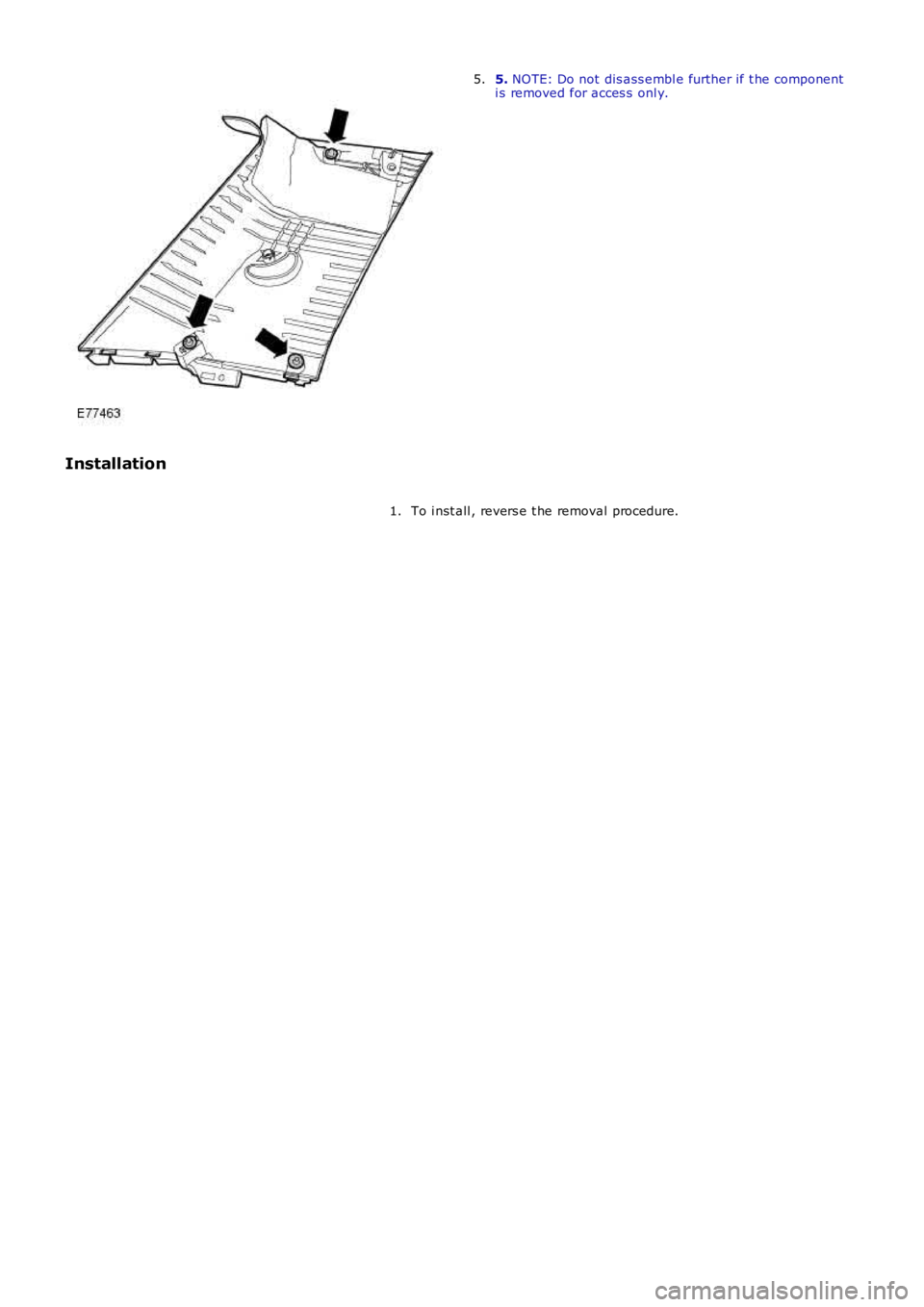

Page 2116 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual 5. NOTE: Do not dis ass embl e further if t he componenti s removed for acces s onl y.5. Installation To i nst all , revers e t he removal procedure.1.

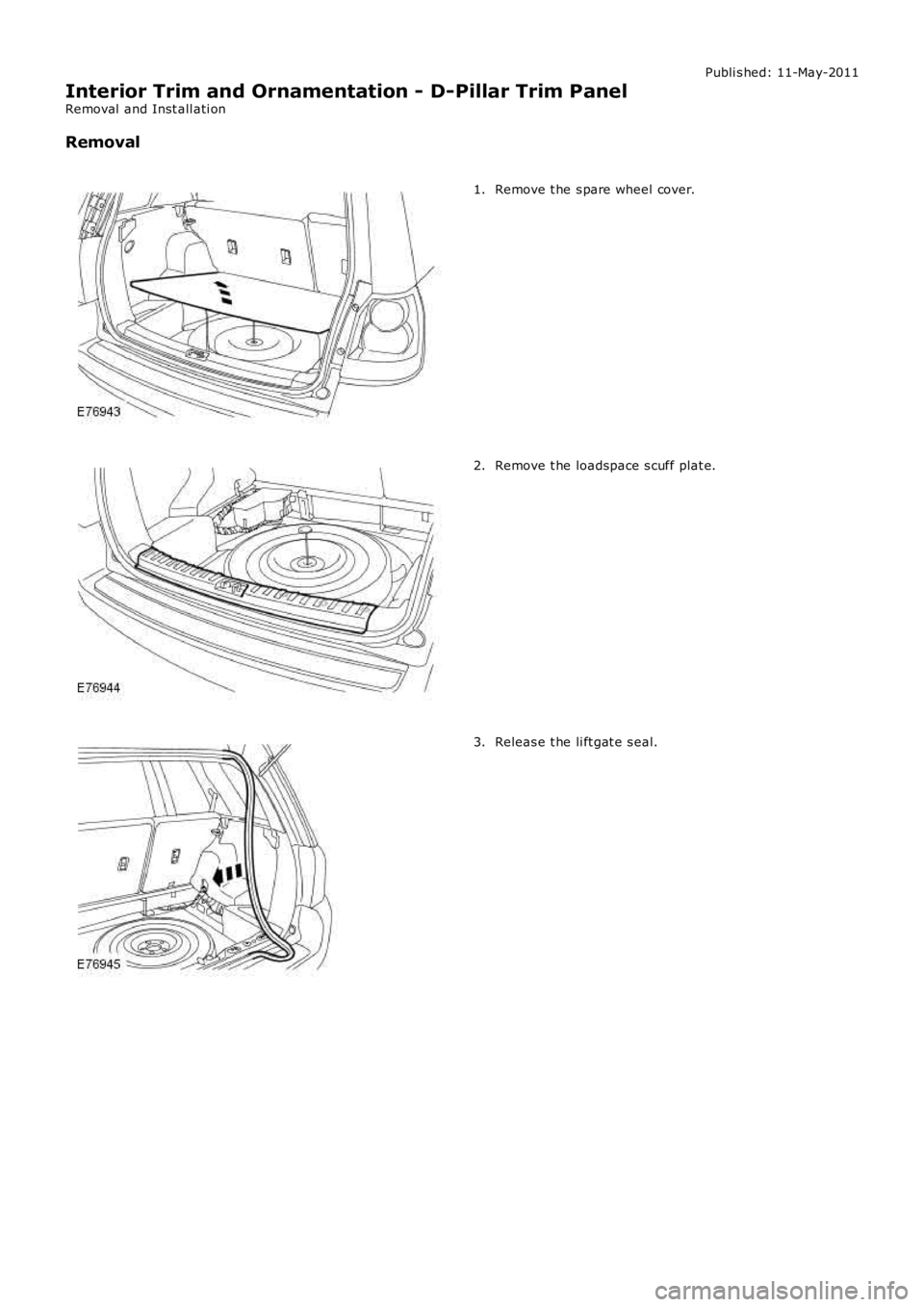

Page 2117 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Interior Trim and Ornamentation - D-Pillar Trim Panel Removal and Inst all ati on Removal Remove t he s pare wheel cover.1. Remove t he loadspace s cuff plat e.2. Releas e t

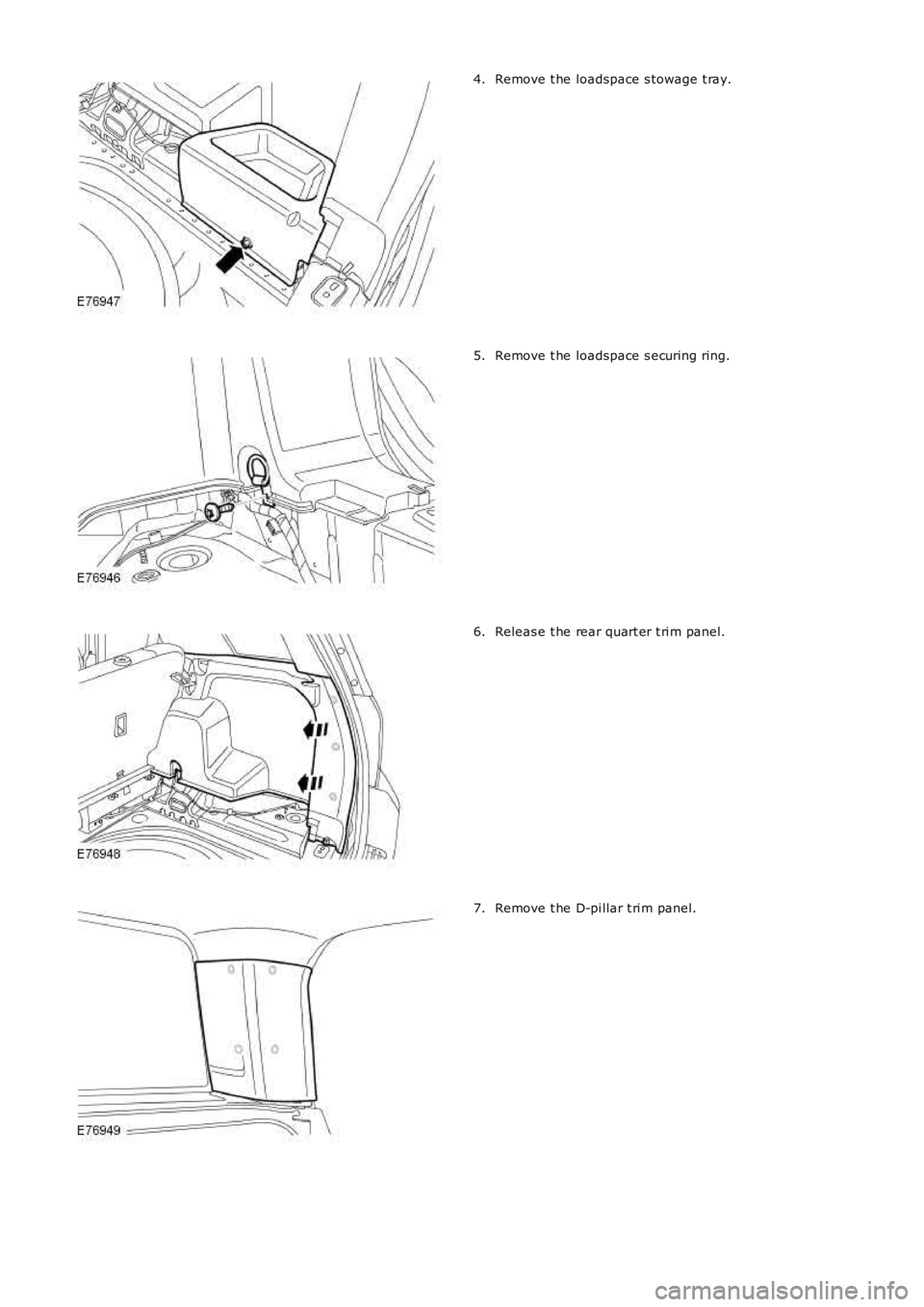

Page 2118 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Remove t he loadspace s towage t ray.4. Remove t he loadspace s ecuring ring.5. Releas e t he rear quart er t ri m panel.6. Remove t he D-pi llar t ri m panel.7.

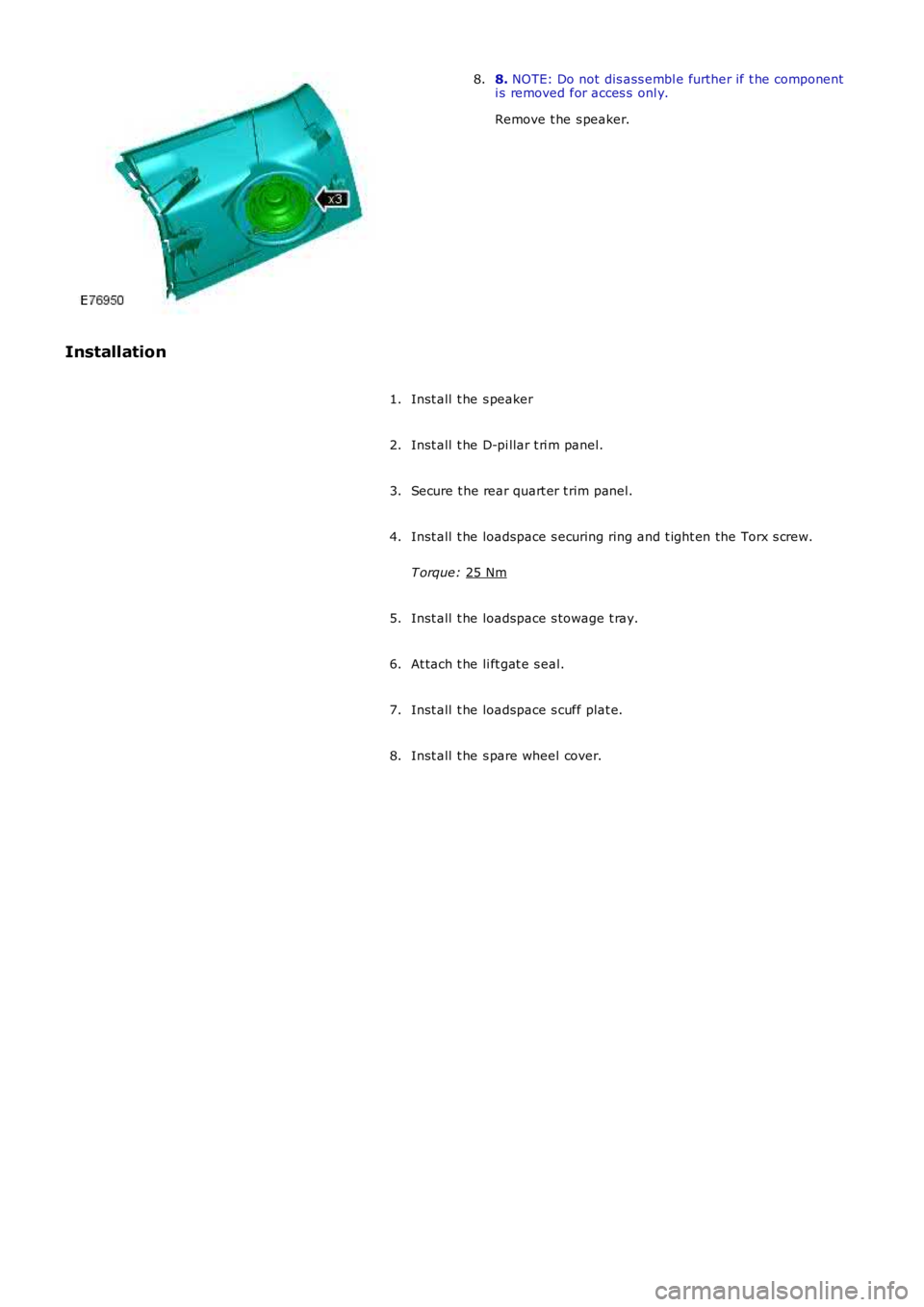

Page 2119 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual 8. NOTE: Do not dis ass embl e further if t he component i s removed for acces s onl y. Remove t he s peaker. 8. Installation Inst all t he s peaker 1. Inst all t he D-pi llar t ri m panel. 2. Sec

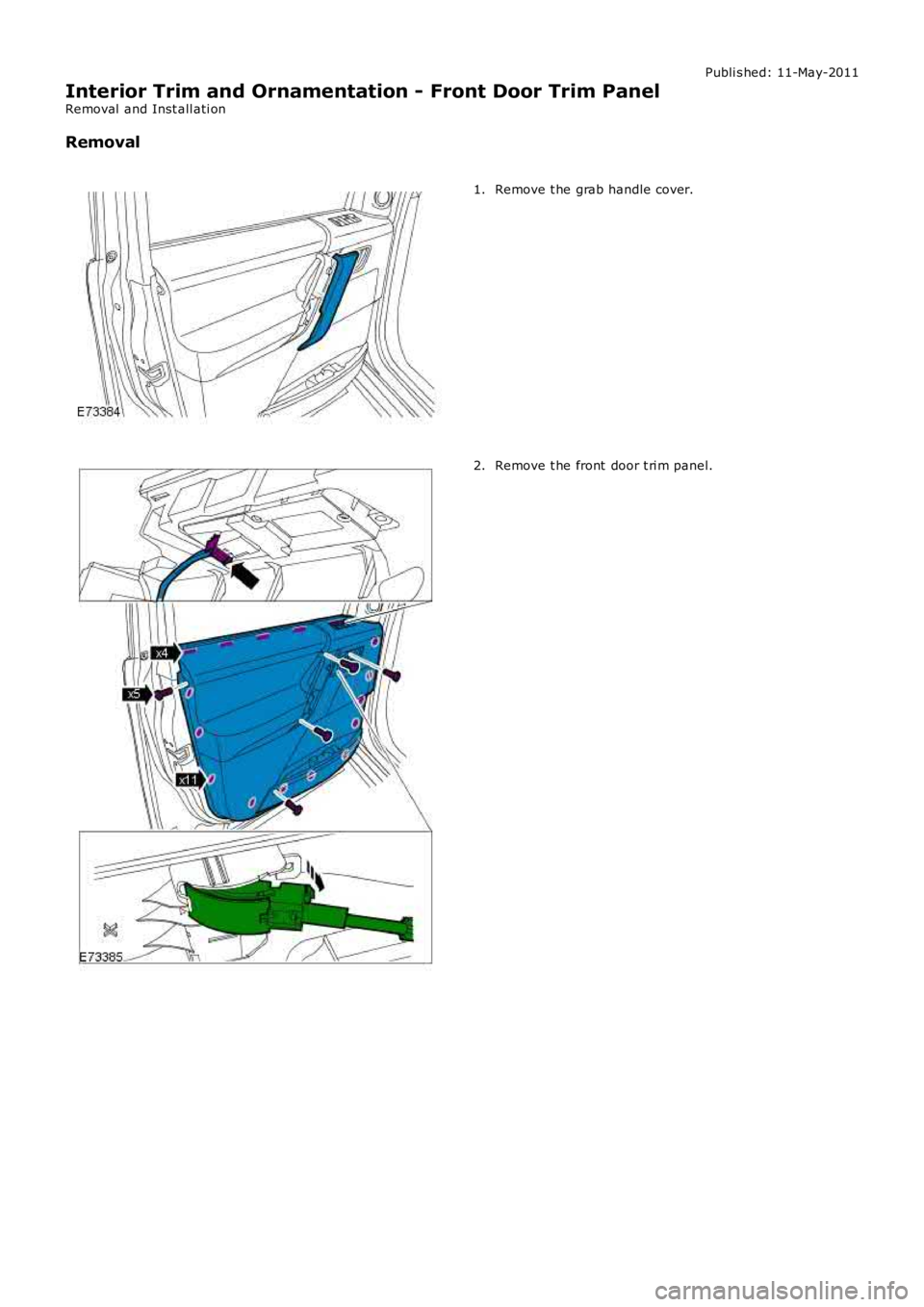

Page 2120 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Interior Trim and Ornamentation - Front Door Trim Panel Removal and Inst all ati on Removal Remove t he grab handle cover.1. Remove t he front door t ri m panel.2.
