Page 2097 of 3229

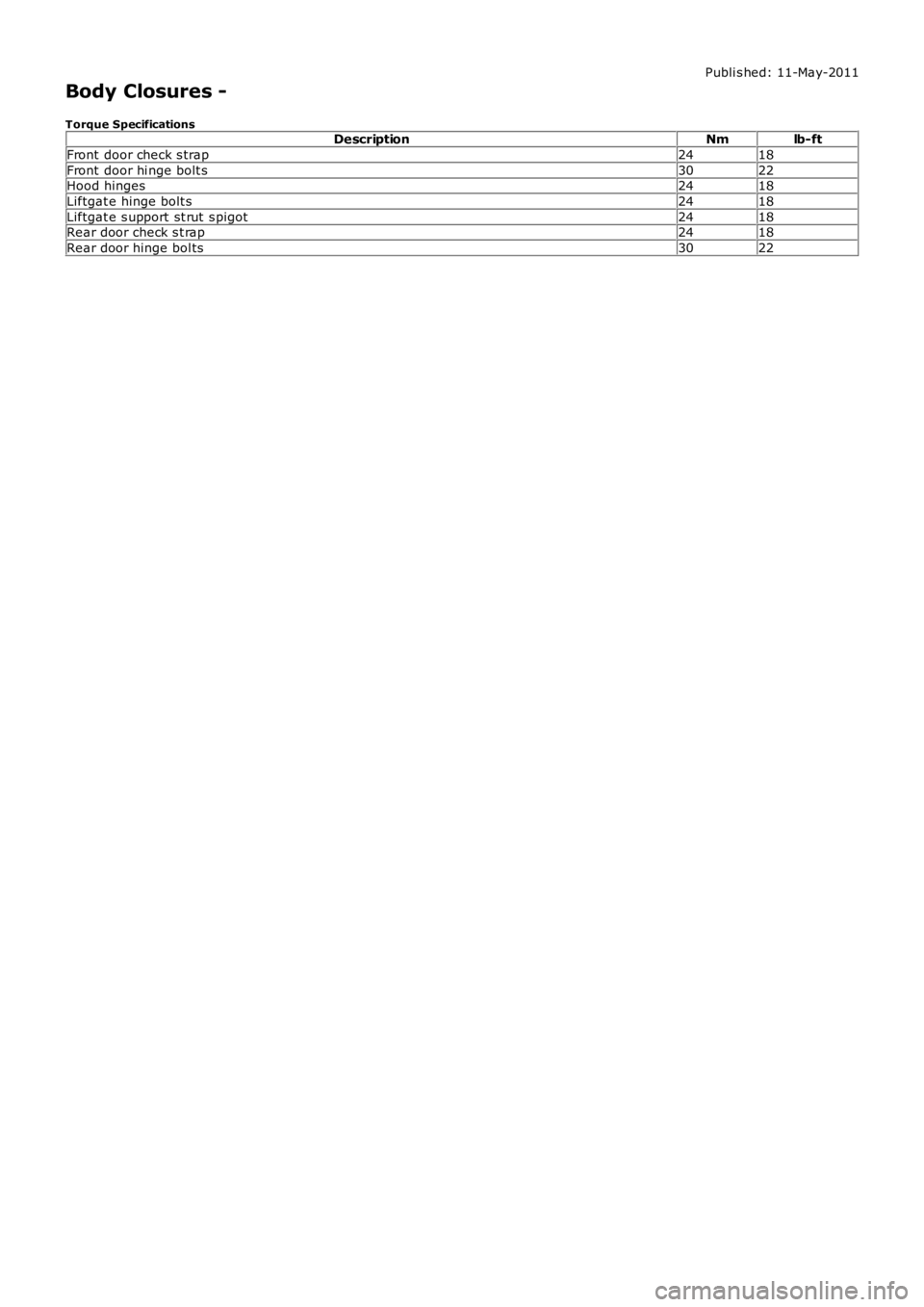

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Body Closures - Torque SpecificationsDescriptionNmlb-ft Front door check s trap2418 Front door hi nge bolt s3022Hood hinges2418 Liftgat e hinge bolt s2418 Liftgat e s upport

Page 2098 of 3229

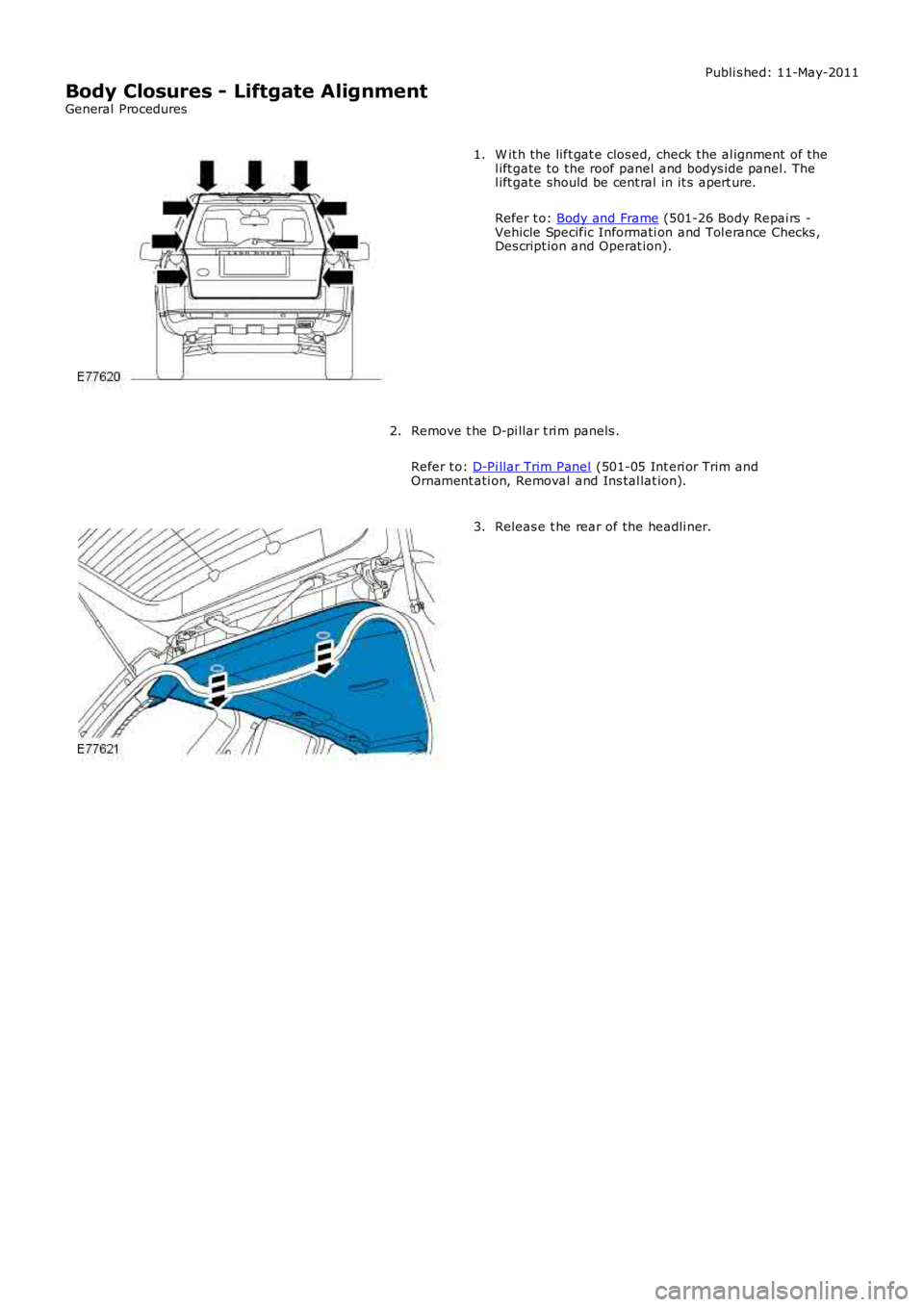

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Body Closures - Liftgate Alignment General Procedures W it h the lift gat e clos ed, check the al ignment of thel ift gate to the roof panel and bodys ide panel. Thel ift gate

Page 2099 of 3229

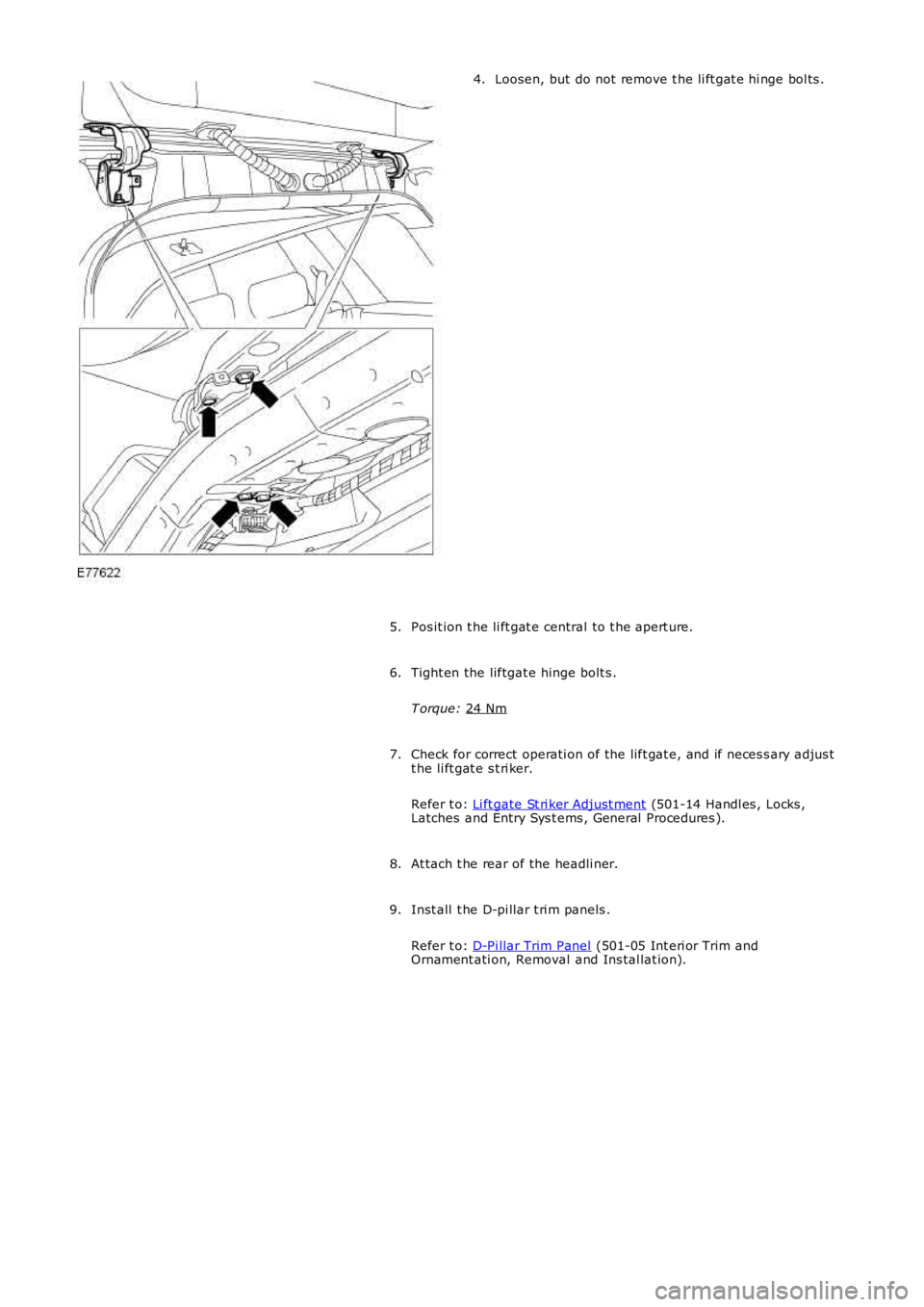

LAND ROVER FRELANDER 2 2006 Repair Manual Loosen, but do not remove t he li ft gat e hi nge bol ts . 4. Pos it ion t he li ft gat e central to t he apert ure. 5. Tight en the liftgat e hinge bolt s . T orque: 24 Nm 6. Check for correct oper

Page 2100 of 3229

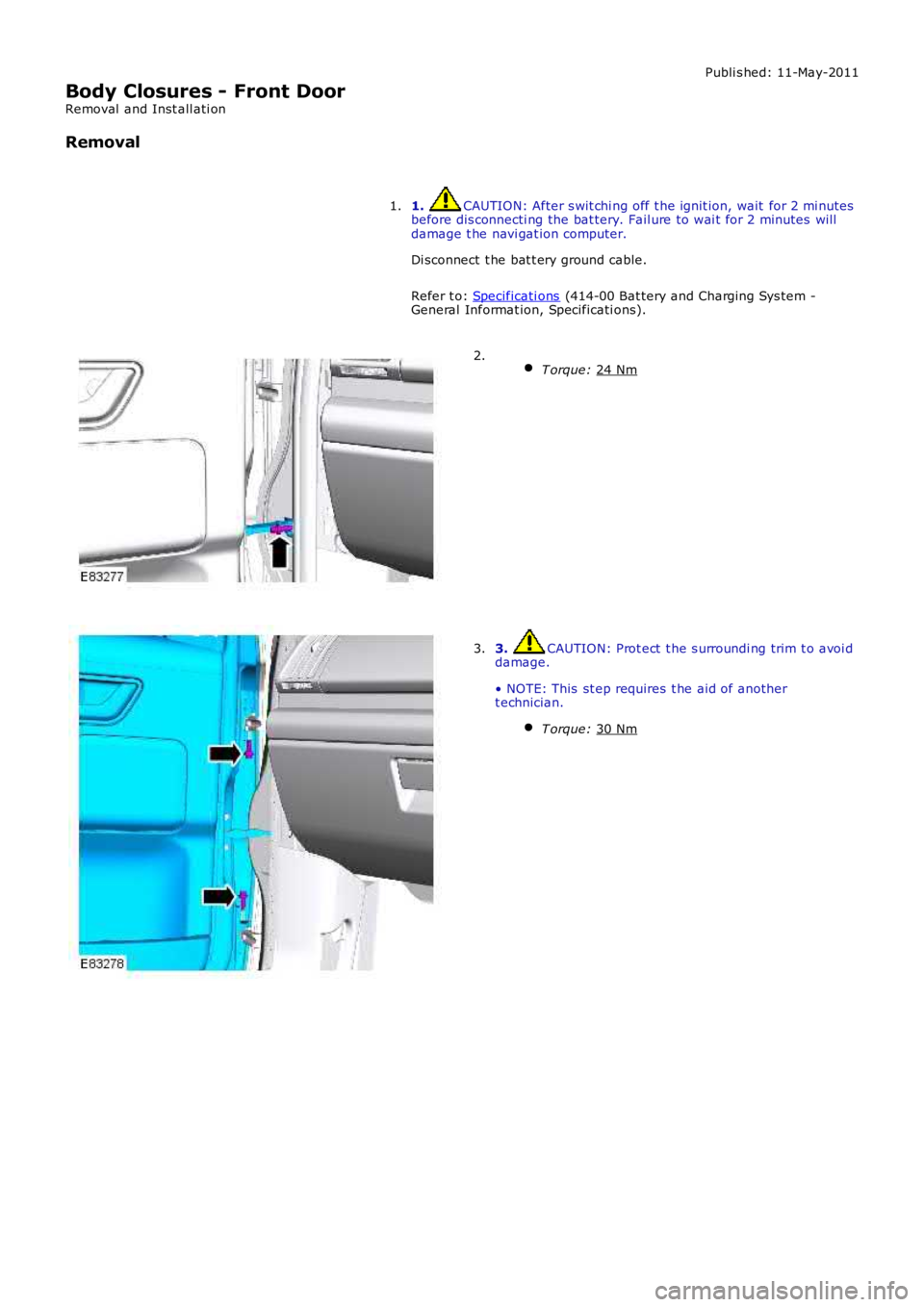

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Body Closures - Front Door Removal and Inst all ati on Removal 1. CAUTION: After s wit chi ng off t he ignit ion, wait for 2 mi nutes before dis connecti ng the bat tery. F

Page 2101 of 3229

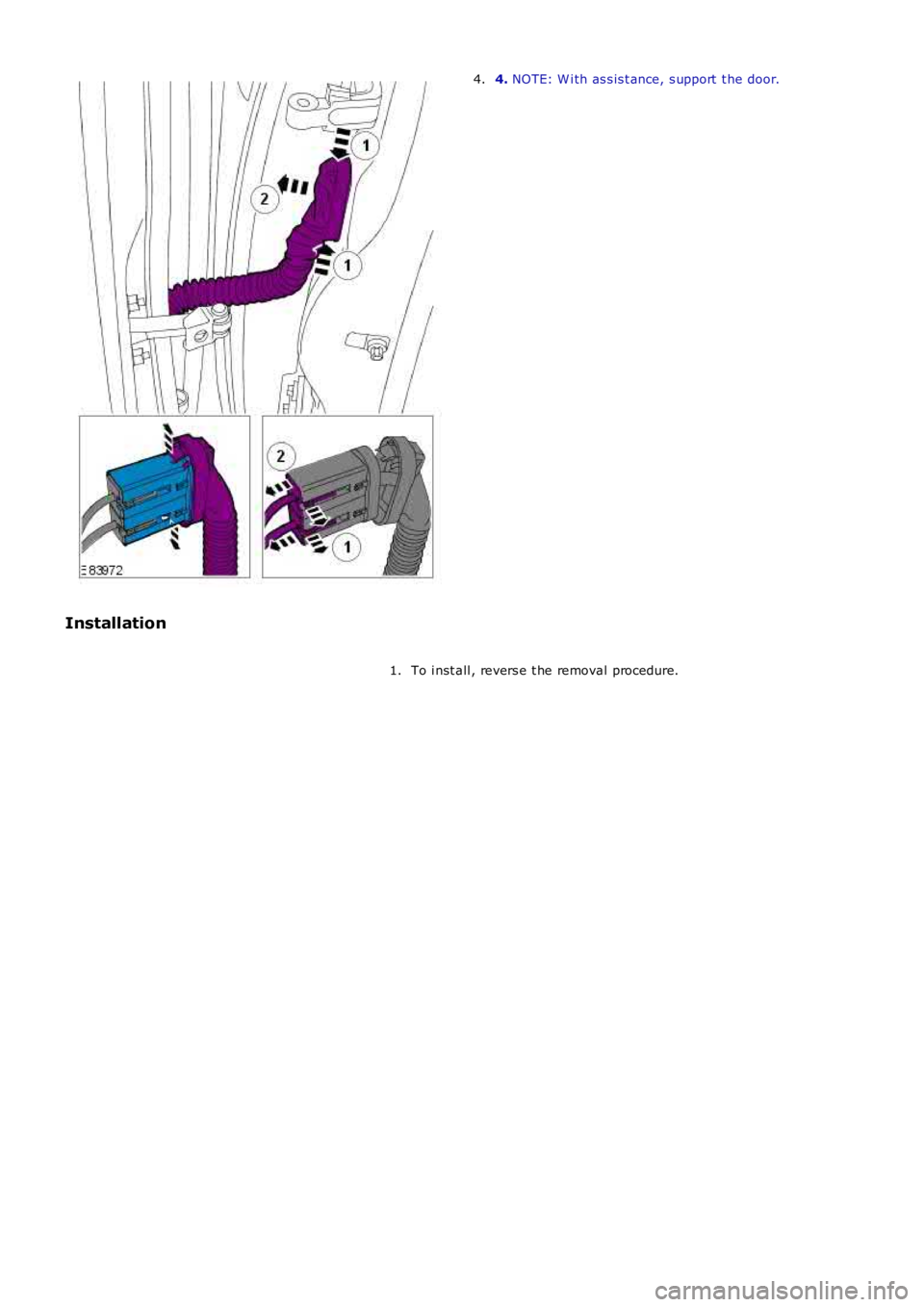

LAND ROVER FRELANDER 2 2006 Repair Manual 4. NOTE: W i th as s is t ance, s upport t he door.4. Installation To i nst all , revers e t he removal procedure.1.

Page 2102 of 3229

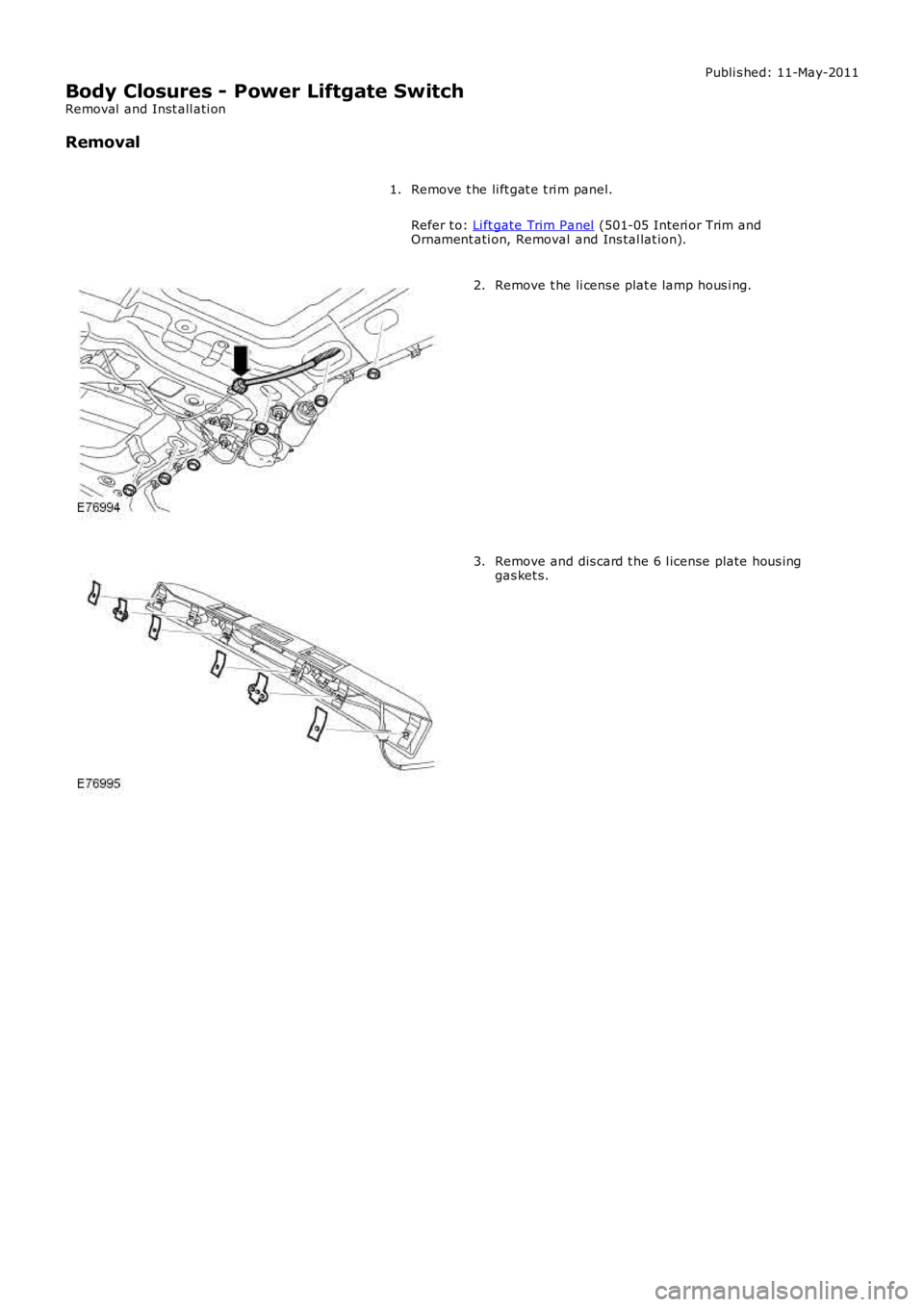

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Body Closures - Power Liftgate Switch Removal and Inst all ati on Removal Remove t he li ft gat e t ri m panel. Refer t o: Li ft gate Trim Panel (501-05 Interi or Trim andOrn

Page 2103 of 3229

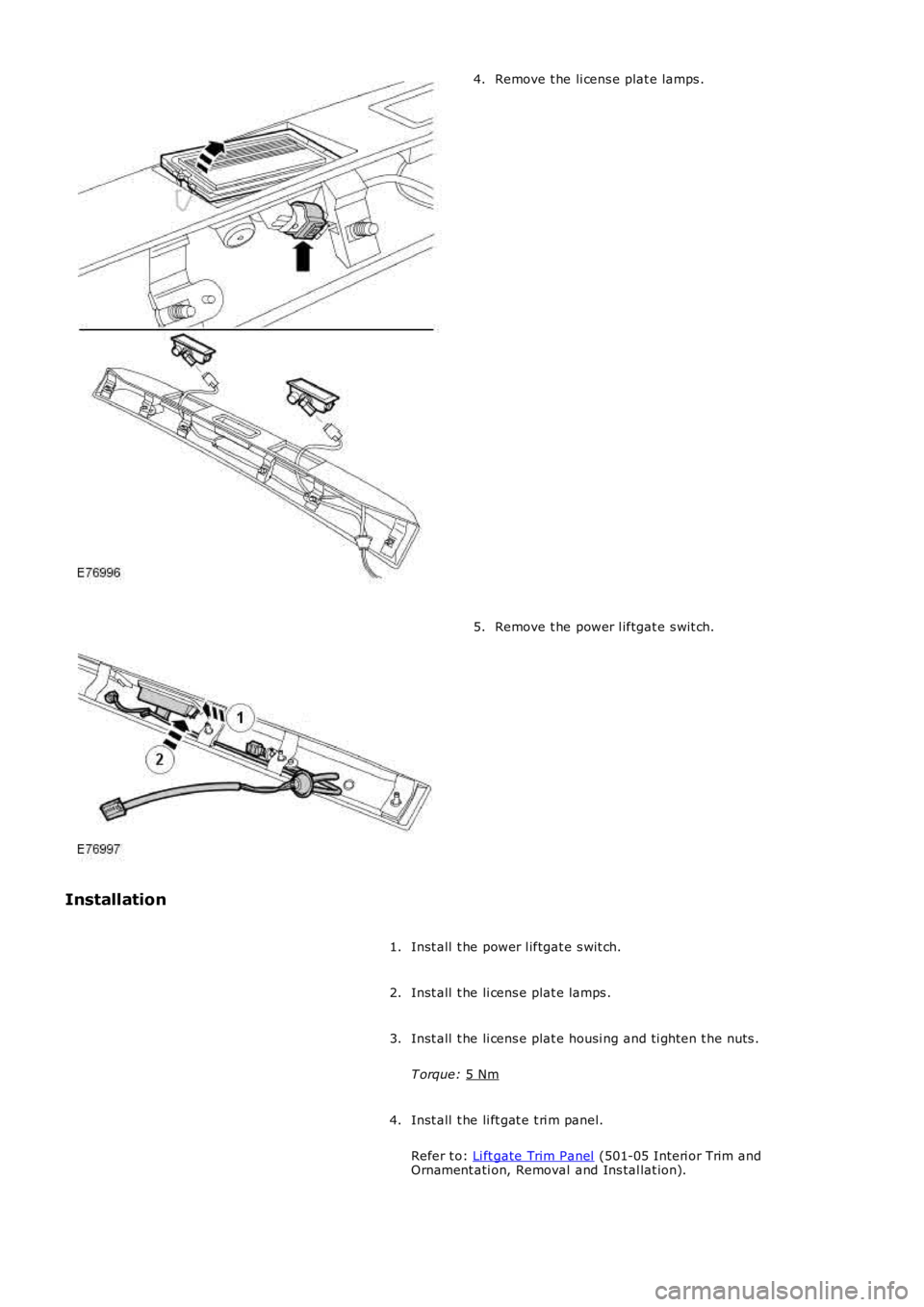

LAND ROVER FRELANDER 2 2006 Repair Manual Remove t he li cens e plat e lamps . 4. Remove t he power l iftgat e s wit ch. 5. Installation Inst all t he power l iftgat e s wit ch. 1. Inst all t he li cens e plat e lamps . 2. Inst all t he li

Page 2104 of 3229

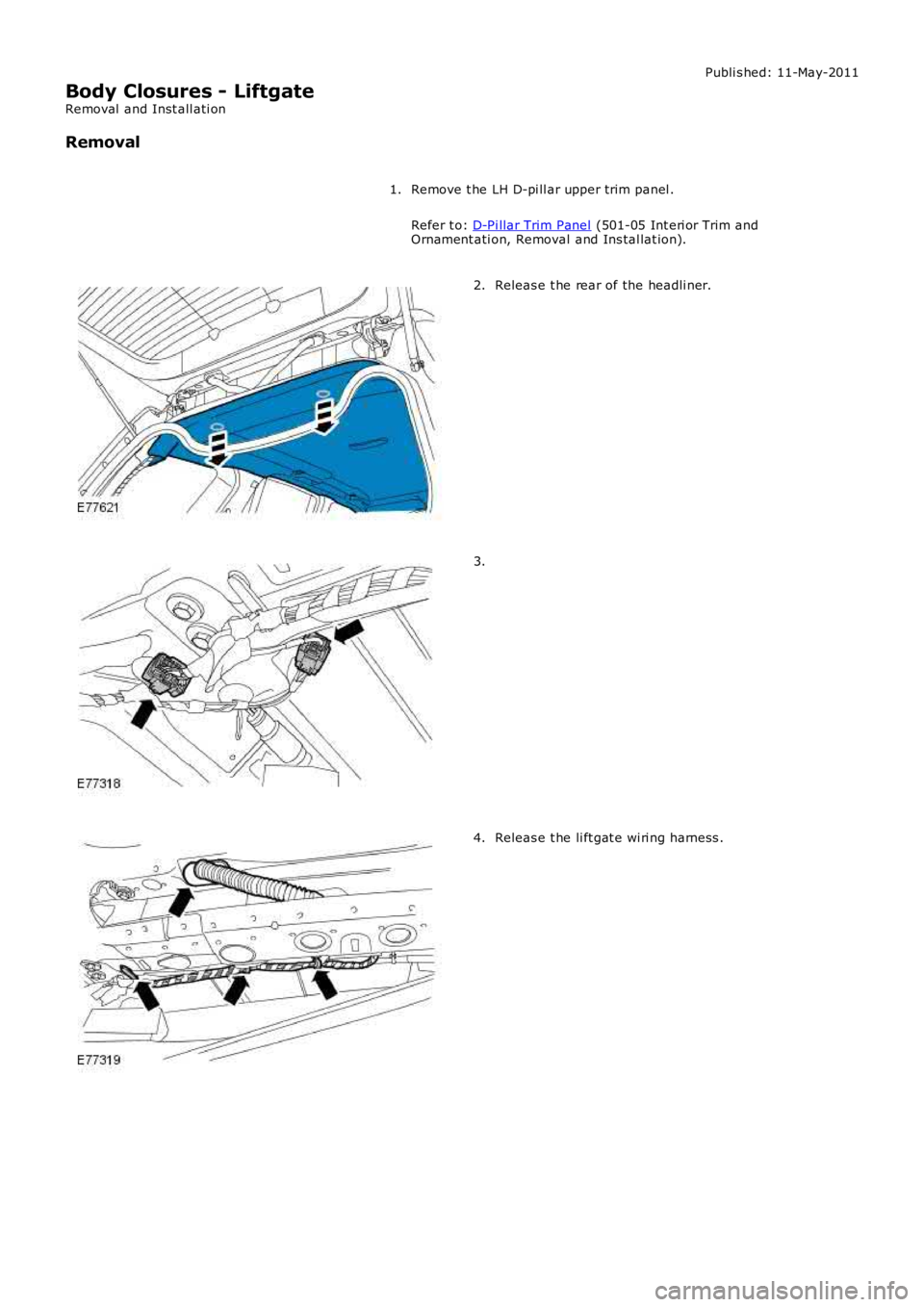

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Body Closures - Liftgate Removal and Inst all ati on Removal Remove t he LH D-pi ll ar upper trim panel . Refer t o: D-Pi llar Trim Panel (501-05 Int eri or Trim andOrnament
