LAND ROVER FRELANDER 2 2006 Repair Manual 169
Maintenance
R
TECHNICAL SPECIFICATIONS
Lubricants and fluids
¹ If Shell DOT4 ESL is not available, a low
viscosity DOT4 brake fl uid that meets ISO 4925
class 6 and Land Rover LRES22BF03

Page 2890 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Maintenance
170
L
Capacities
The quoted capacities are approximate and
provided as a guide only. All oil levels must be
checked using the dipsti ck or level plugs as
applicable. Item Variant

Page 2891 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual 171
Vehicle battery
R
Vehicle batteryBATTERY WARNING SYMBOLS
Do not allow any naked flames, or
other sources of ignition near the
battery as the battery may emit
explosive gasses.
Ensure that wh

171
Vehicle battery
R
Vehicle batteryBATTERY WARNING SYMBOLS
Do not allow any naked flames, or
other sources of ignition near the
battery as the battery may emit
explosive gasses.
Ensure that when working near, or
handling the battery, suitable eye
protection is worn. This will reduce
the risk of eye dama ge caused by acid
splashes.
To prevent risk of injury, do not allow
children near the battery.
Be aware that the battery may emit
explosive gasses.
The battery contains acid which is
extremely corrosive, and toxic.
BATTERY CARE
WARNINGS
Do not allow the battery electrolyte
(fluid) come into contact with your skin
or eyes. It is both corrosive and toxic, and the
resulting injuries can be severe. If any
electrolyte does come into contact with your
skin or eyes, immediately rinse the affected
area with clean, cold water. Immediate medical
advice will be required.
If battery electrolyte comes into contact
with your skin and/or clothes you
should remove the affect ed clothing and flush
the skin with copious am ounts of water. Seek
medical assistance immediately.
If battery electrolyte comes into contact
with your eyes, flush with copious
amounts of clean cold water. Seek medical
assistance immediately, and continue to flush
with water.
If swallowed, battery electrolyte can be
fatal. If electrolyte is swallowed seek
medical assistance immediately.
Do not connect any 12 volt equipment
directly to the battery terminals. Doing
so may cause a spark, which can result in an
explosion.
The cell plugs and vent pipe must be in
place at all times when the battery is
connected to the vehicle. Ensure that the vent
pipe is clear of obstr uctions and not kinked.
Failure to do so may cause a pressure build up
in the battery, resulting in an explosion.
Do not expose the battery to a naked
flame or spark as the battery produces
explosive, flammable gas.
Never jump start (boost) or charge, a
frozen battery. Doing so can result in an
explosion.

Page 2892 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Vehicle battery
172
L
Your vehicle is fitted with a low maintenance
battery.
In hot climates more frequent checks of the
battery electrolyte le vel and condition are
required. If necessary, th

Page 2893 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual 173
Vehicle battery
R
USING BOOSTER CABLES
Note: Before connecting boos ter cables ensure
that the battery connections on the disabled
vehicle are correct, and that all electrical
equipment has

Page 2894 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Vehicle battery
174
L
CHARGING THE VEHICLE BATTERY
1. Disconnect the battery and remove it from
the vehicle.
2. Connect the battery charger in accordance
with the charger manufacturers
instr

Vehicle battery
174
L
CHARGING THE VEHICLE BATTERY
1. Disconnect the battery and remove it from
the vehicle.
2. Connect the battery charger in accordance
with the charger manufacturer's
instructions.
3. Once the charge is complete switch off the
power to the charger.
4. Disconnect the charger cables from the
battery.
5. Allow the battery to stand for an hour
before connecting to the vehicle. This will
allow any explosive gasses to dissipate,
and reduce the risk of explosion.

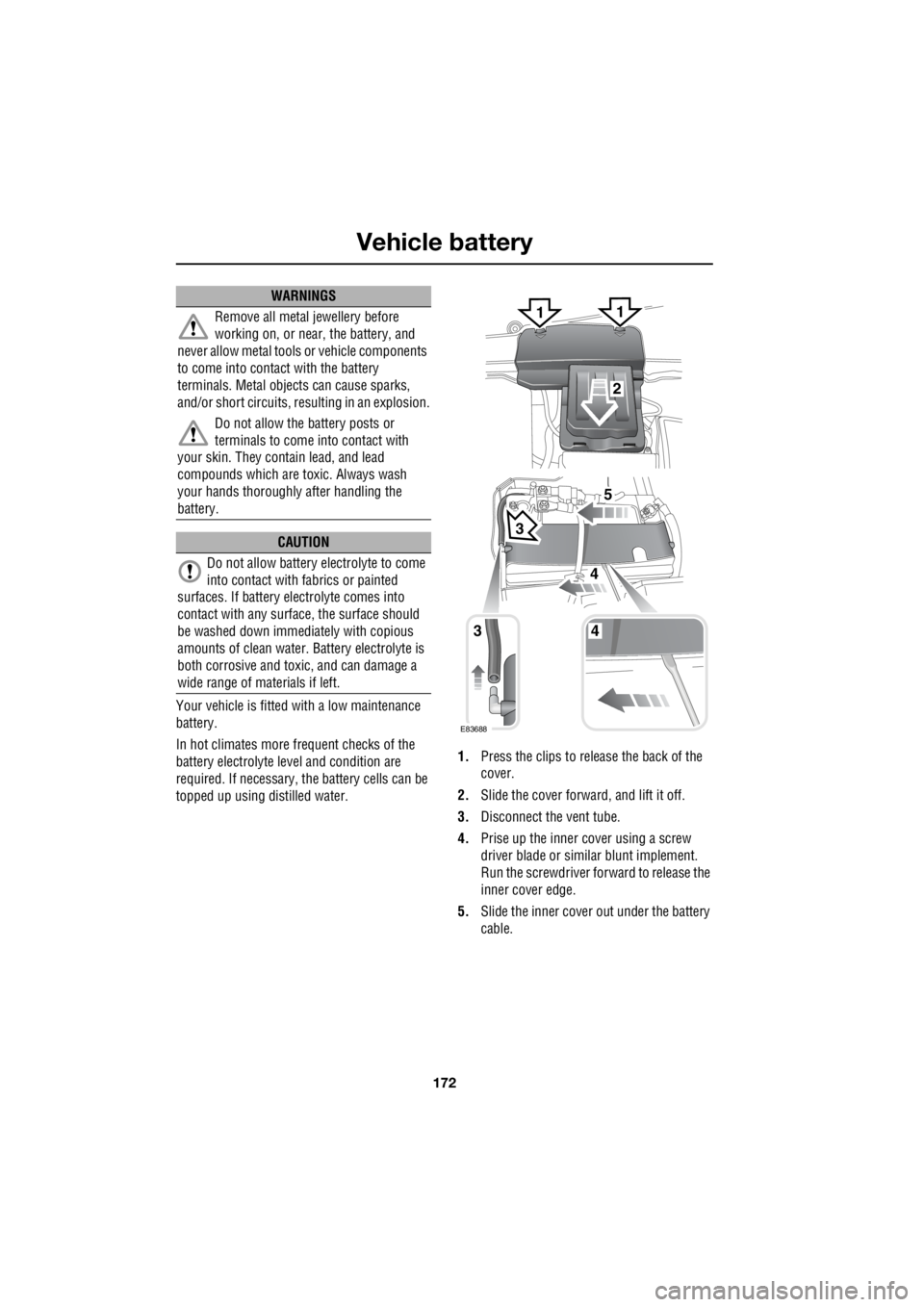

CHANGING THE VEHICLE BATTERY
Disconnecting
1. Ensure that all electrical circuits are
switched off, all windows are closed, and
the alarm is disarmed.
2. Remove the remote control from the
vehicle and wait two minutes to allow the
systems to power down fully.
3. Undo the negative clam p, and lift the cable
and clamp clear of th e battery terminal.
4. Undo the positive clamp, and lift the cable
and clamp clear of th e battery terminal.
5. Undo the battery clamp and lift the battery
clear of the vehicle.
WARNINGS
Ensure that the charger used is of the
correct type and rating for the battery.
Using an unsuitable charger may damage the
battery, and could cause the battery to
explode.
Always charge the battery in a well
ventilated area away from any naked
flames, sparks or ot her ignition sources.
During charging the battery can produce a
highly explosive a nd flammable gas.
CAUTIONS
The battery must be disconnected and
removed from the vehicle before
charging. Failure to do so could result in
damage to the vehicle's electrical system.
Always follow the instructions supplied
with the battery charger. Failure to do so
may result in damage to the battery.
WARNINGS
Use caution when lifting the battery out
of, or into, the vehicl e. It is heavy, and
may cause injury when lifting, or if dropped.
Do not tip the battery when lifting or
moving as tilting the battery more than
45 degrees may damage the battery, and may
cause the electrolyte to leak out. Battery
electrolyte is highly corrosive, and toxic.
CAUTIONS
Do not rest the battery on any part of the
vehicle as it may ca use damage due to
it's weight.
Do not run the engine with the battery
disconnected. Doing so may damage the
charging system.

Page 2895 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual 175
Vehicle battery
R
Effects of disconnecting
Disconnecting the battery can affect a number
of vehicle systems, especially if there is
insufficient battery power prior to
disconnection. For exa

175
Vehicle battery
R
Effects of disconnecting
Disconnecting the battery can affect a number
of vehicle systems, especially if there is
insufficient battery power prior to
disconnection. For example, the alarm may
trigger depending on it's state when the battery
was disconnected. If the alarm does sound,
use the remote control in the normal way to
disarm the security system. The windows may
need resetting to enable the one-shot feature to
operate correctly. See ELECTRIC WINDOWS
(page 93).
Replacement batteries
Battery disposal
Note: Used batteries must be disposed of
correctly as they contain a number of harmful
substances. Seek advice on disposal from your
Land Rover Dealer/Authoris ed Repairer, and/or
your local authority.
Refitting
A new battery should be supplied with plastic
terminal covers. Leave the covers in place
when fitting the battery, and remove them one
at a time to fit the battery cable clamps.
Refitting is an exact reversal of the removal
procedure. If you are in any doubt about fitting
a battery seek qualified assistance before
attempting to fit the battery.
WARNING
Only fit a battery of the correct type and
rating. Fitting an in correct battery may
result in a fire, or damage to the electrical
system. If you are in any doubt when fitting a
battery seek qualified assistance.
WARNING
When refitting the battery ensure that
no metal objects , or vehicle
components, come into contact with the
battery terminals. Metal objects can cause a
spark or short circuit, both of which may result
in an explosion.
CAUTIONS
Ensure that when fitting a battery to the
vehicle, the terminals and battery clamps
are clean, and lightly coated with petroleum
jelly. This will ensure good electrical
connections are made, and help to prevent
corrosion.
Always follow the battery manufacturers
instructions. Failure to do so may result
in damage to the vehicl e and/or the electrical
system.

Page 2896 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Wheels and tyres
176
L
Wheels and tyresGENERAL INFORMATION
Tyre markings
1. P indicates that the tyre is for passenger
vehicle use.
2. The width of the tyre fr om sidewall edge to
sidewall edge
