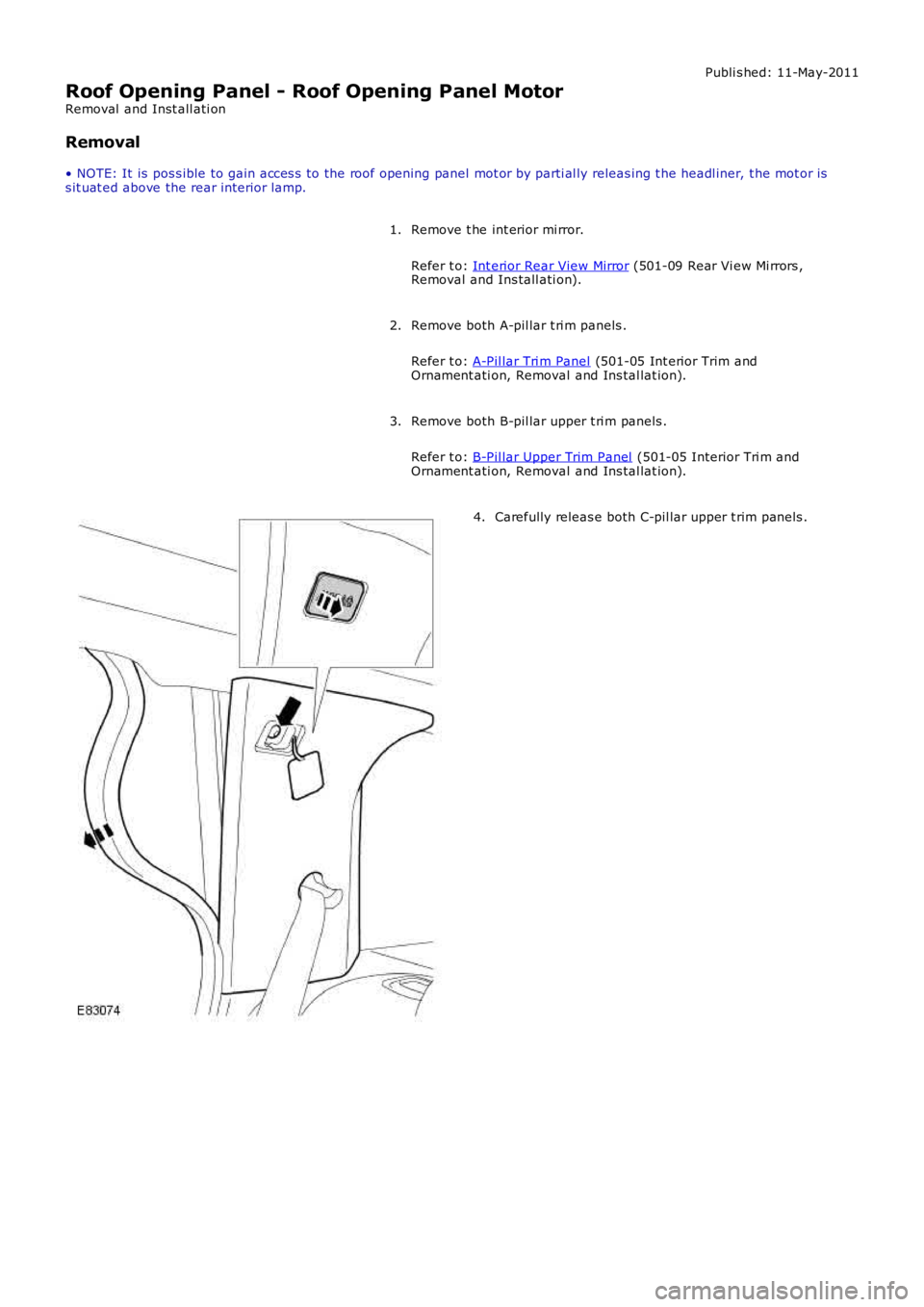

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Roof Opening Panel - Roof Opening Panel Motor Removal and Inst all ati on Removal • NOTE: It is pos s ible to gai n acces s to the roof opening panel mot or by parti al ly

Page 2418 of 3229

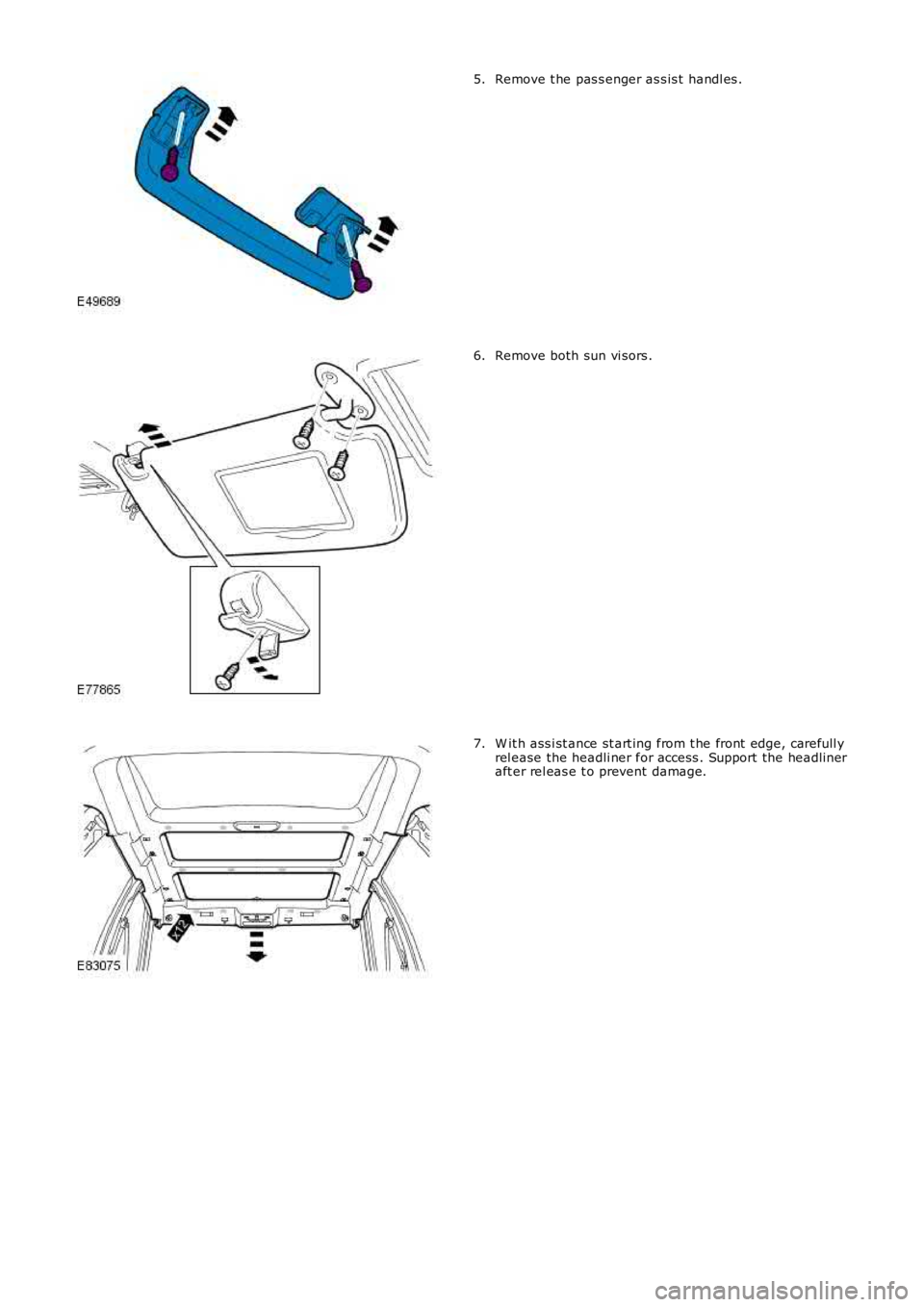

LAND ROVER FRELANDER 2 2006 Repair Manual Remove t he pas s enger as s is t handl es .5. Remove both sun vi sors .6. W it h ass i st ance st art ing from t he front edge, carefull yrel ease the headli ner for access . Support the headli nera

Page 2419 of 3229

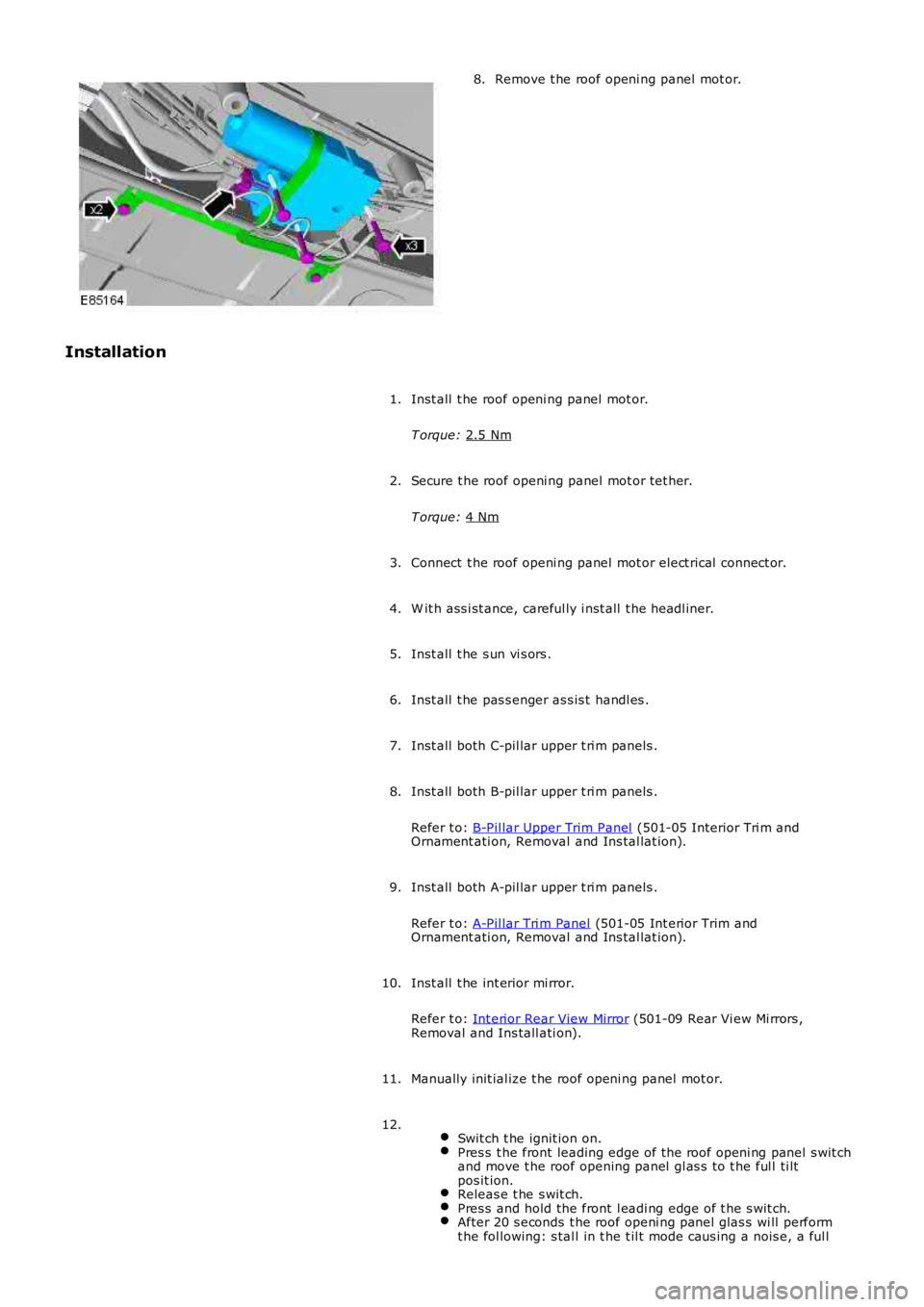

LAND ROVER FRELANDER 2 2006 Repair Manual Remove t he roof openi ng panel mot or. 8. Installation Inst all t he roof openi ng panel mot or. T orque: 2.5 Nm 1. Secure t he roof openi ng panel mot or tet her. T orque: 4 Nm 2. Connect t h

Page 2420 of 3229

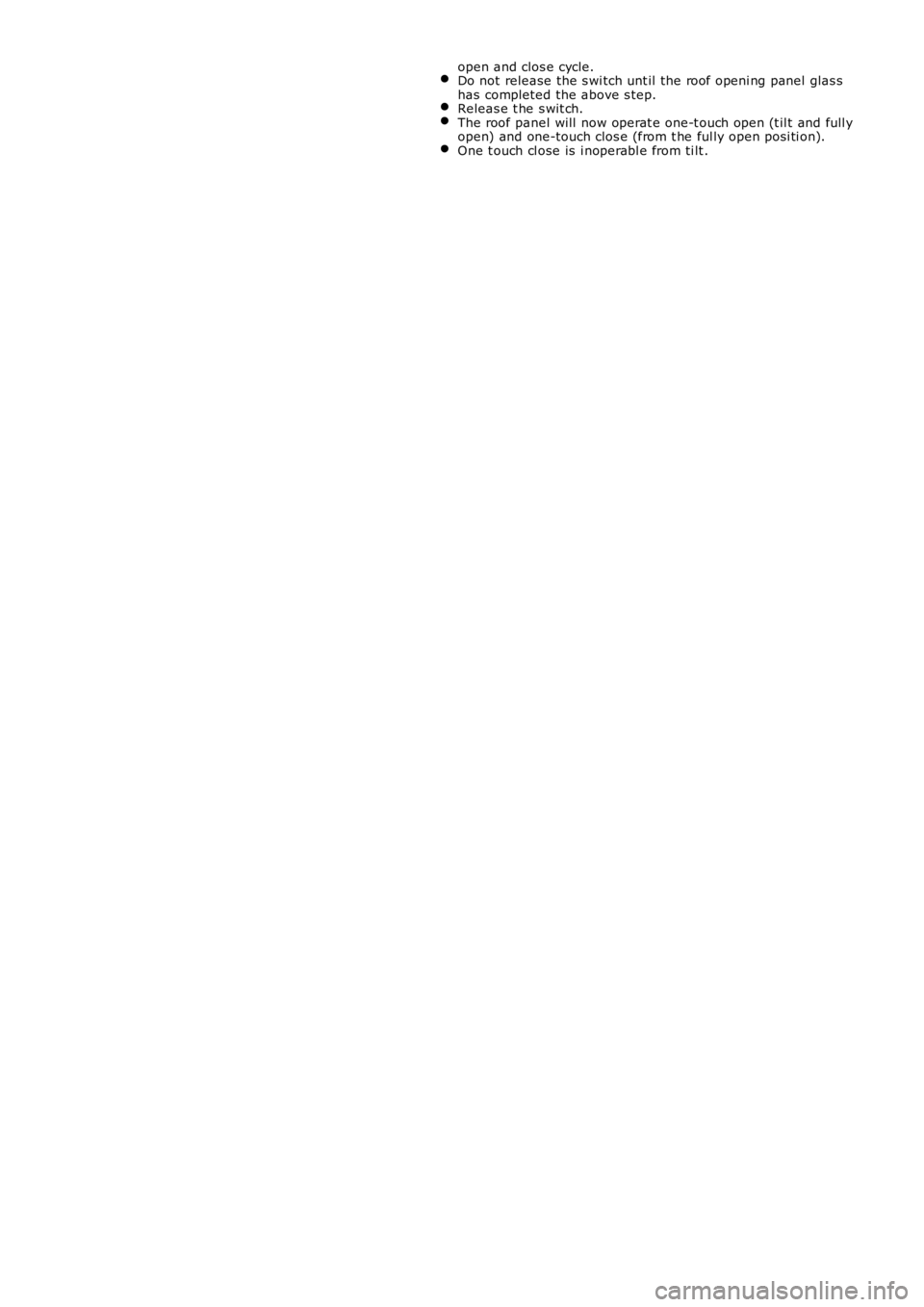

LAND ROVER FRELANDER 2 2006 Repair Manual open and clos e cycle.Do not release the s wi tch unt il the roof openi ng panel glas shas completed the above s tep.Releas e t he s wit ch.The roof panel will now operat e one-t ouch open (t il t

Page 2421 of 3229

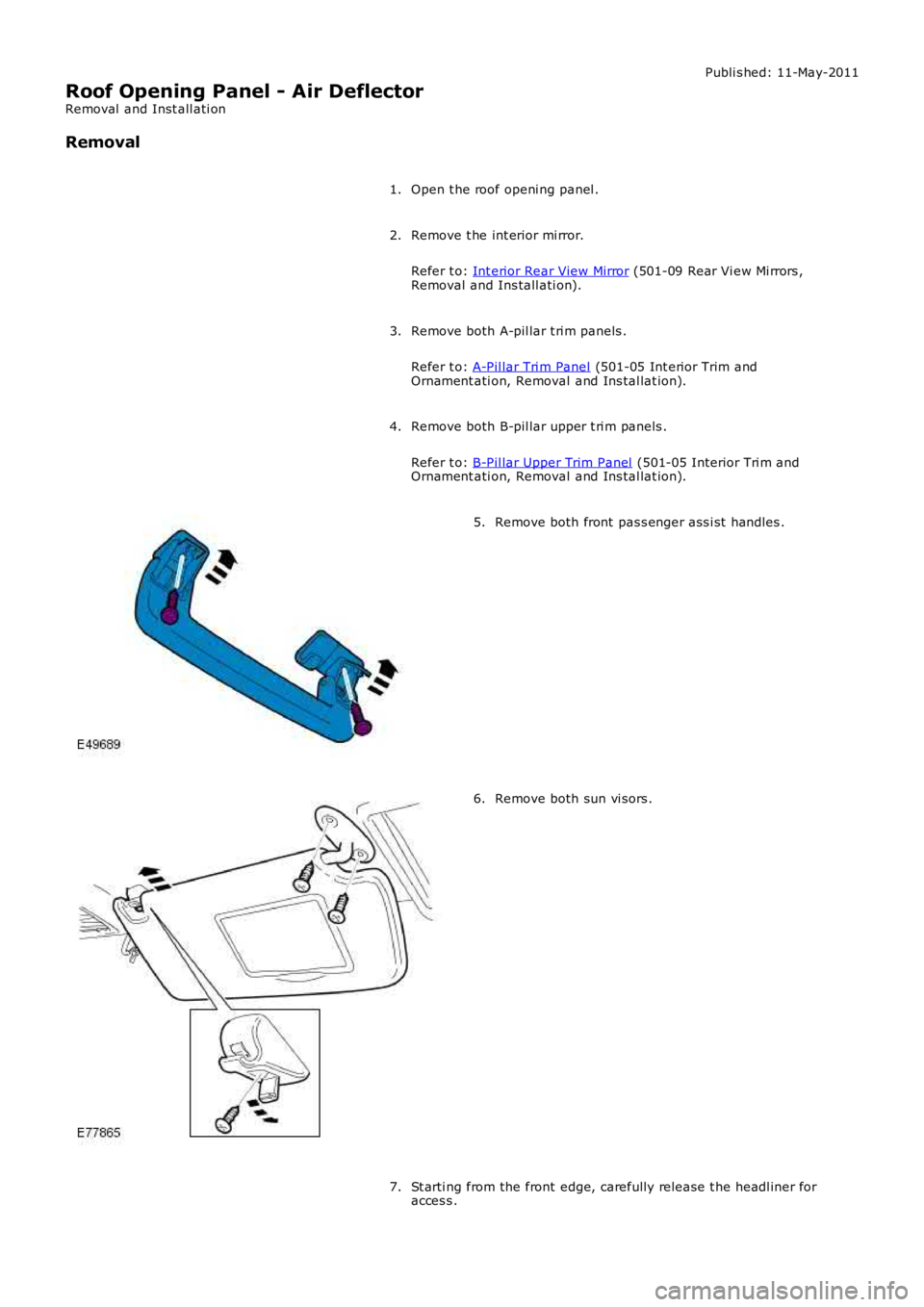

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Roof Opening Panel - Air Deflector Removal and Inst all ati on Removal Open t he roof openi ng panel .1. Remove t he int erior mi rror. Refer t o: Int erior Rear View Mirror

Page 2422 of 3229

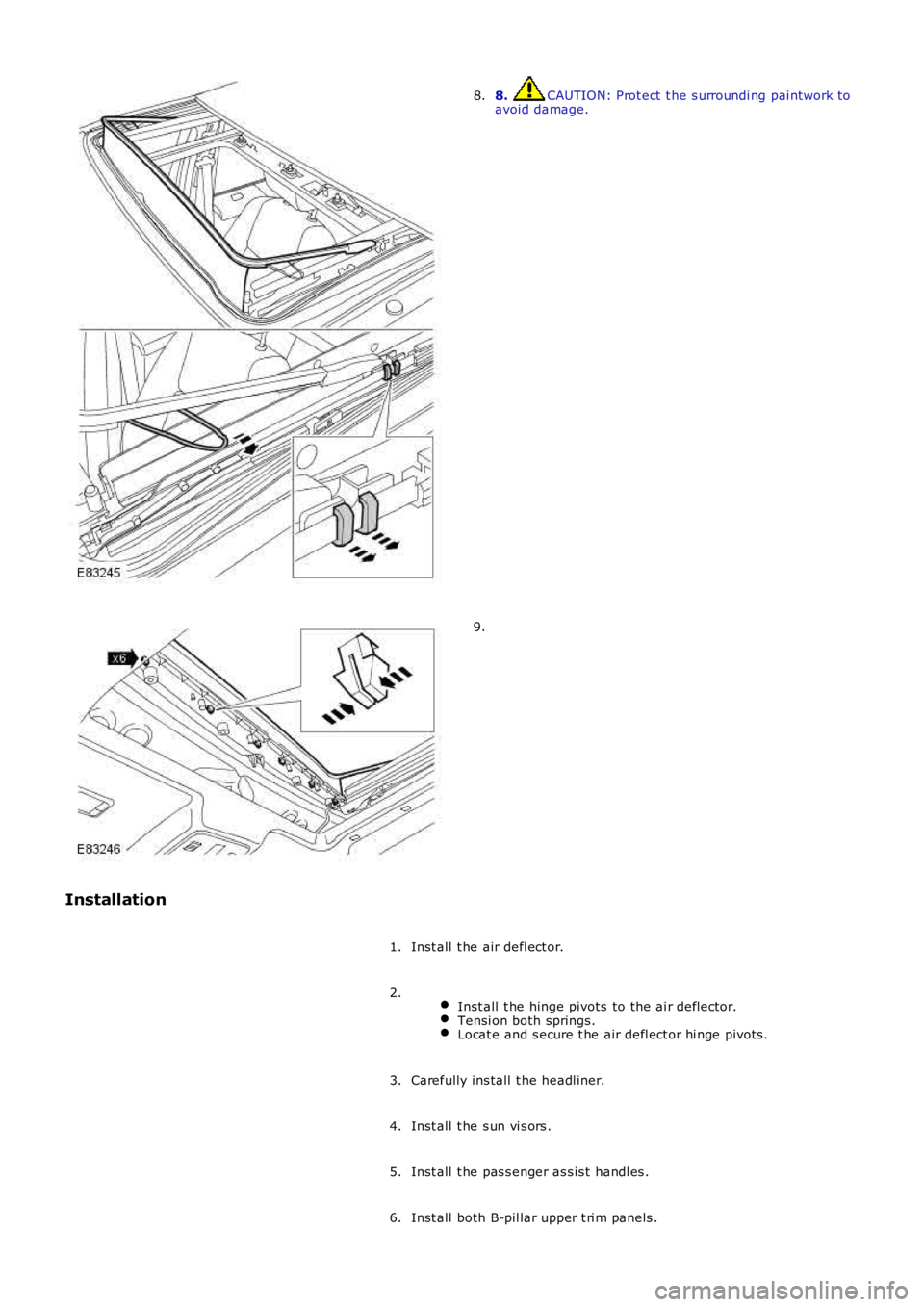

LAND ROVER FRELANDER 2 2006 Repair Manual 8. CAUTION: Prot ect t he s urroundi ng pai ntwork toavoid damage.8. 9. Installation Inst all t he air defl ect or.1. Inst all t he hinge pivots to the ai r deflector.Tensi on both springs.Locat

Page 2423 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Refer t o: B-Pil lar Upper Trim Panel (501-05 Interior Tri m andOrnament ati on, Removal and Ins tal lat ion). Inst all both A-pil lar upper t ri m panels . Refer t o: A-Pil lar Tri m Panel (501-05 I

Page 2424 of 3229

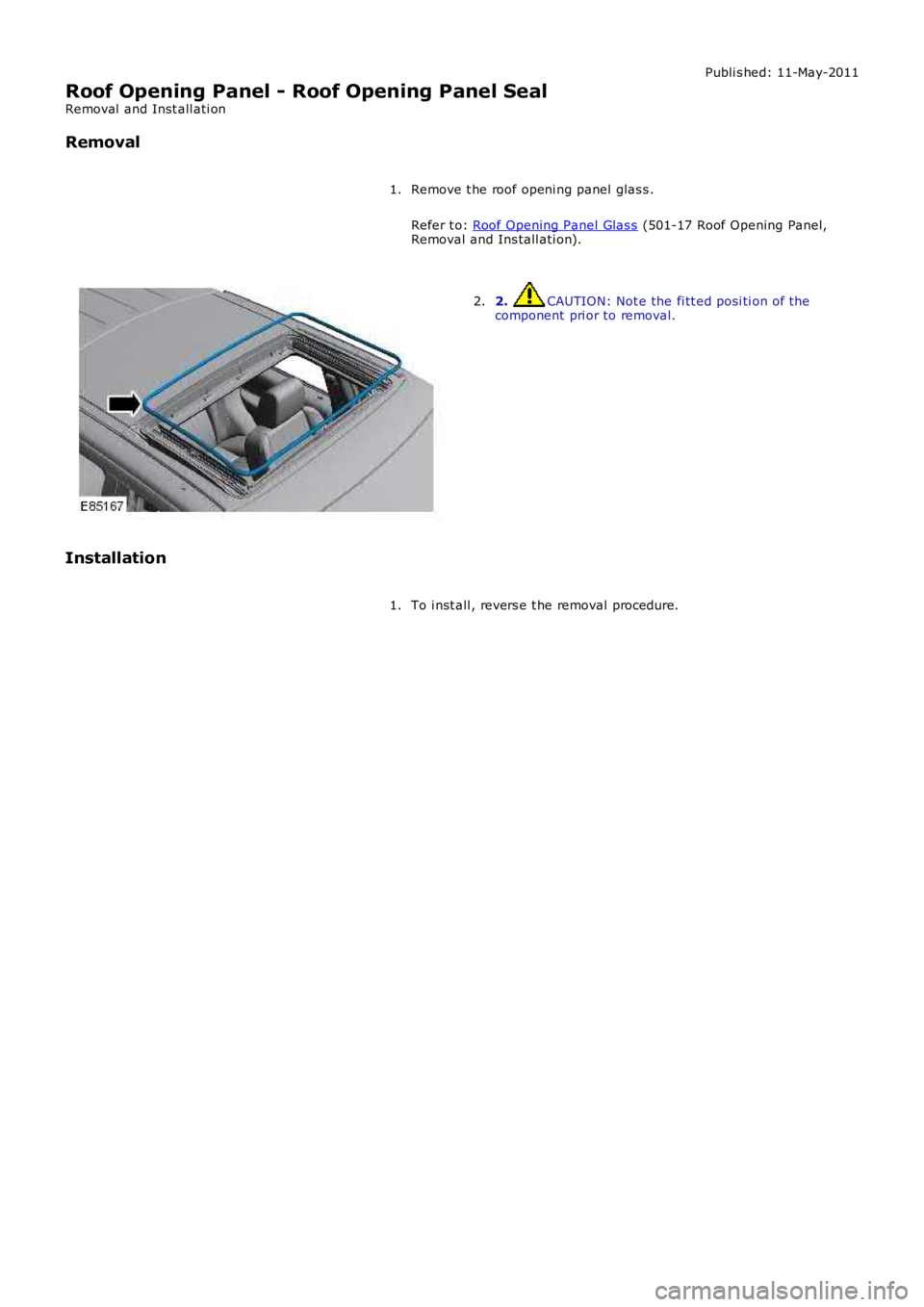

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Roof Opening Panel - Roof Opening Panel Seal Removal and Inst all ati on Removal Remove t he roof openi ng panel glas s . Refer t o: Roof Opening Panel Glas s (501-17 Roof O
