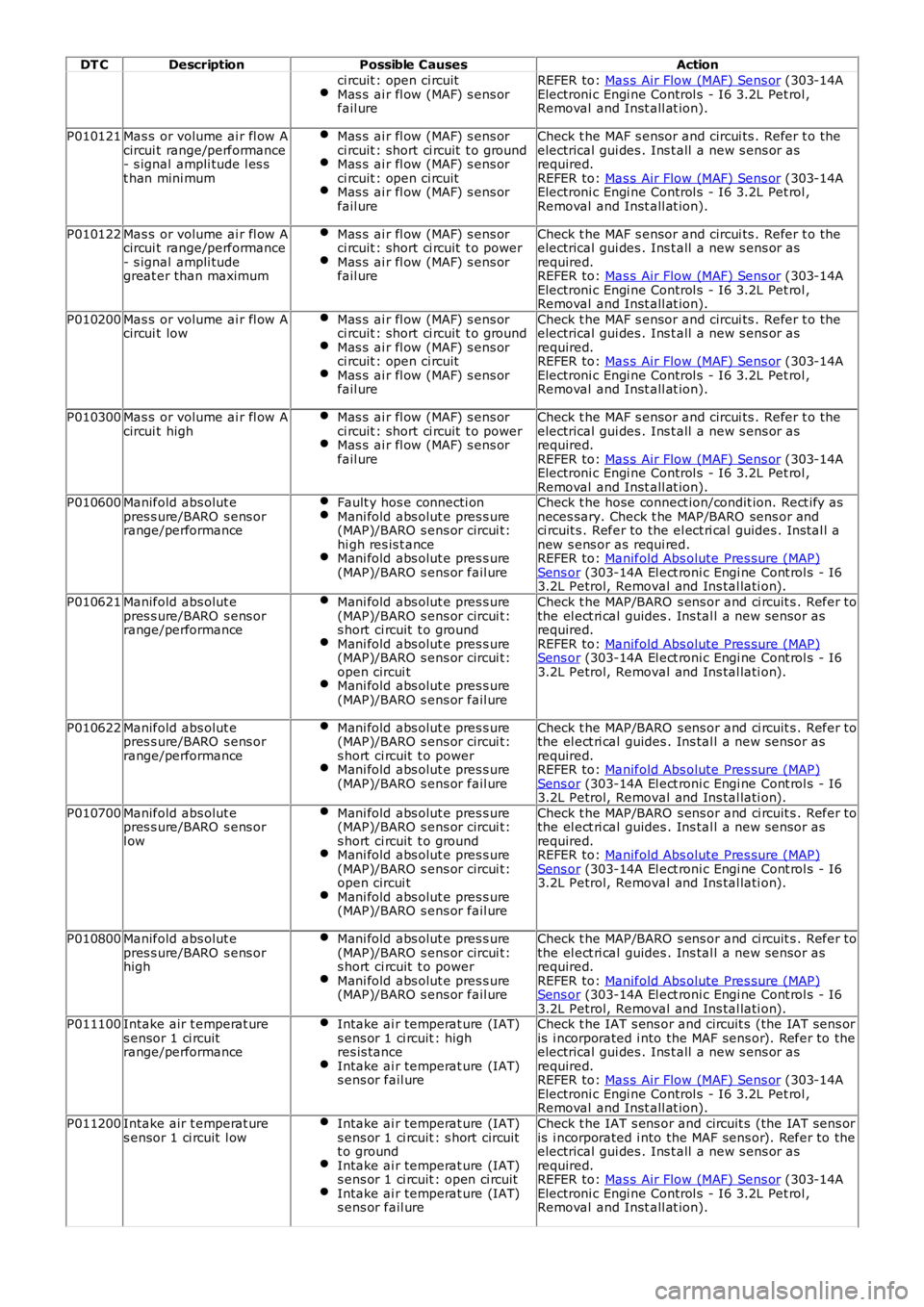

Page 1161 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual DT C
Description Possible Causes Action
ci rcuit : open ci rcuit
Mas s ai r fl ow (MAF) s ens or
fail ure REFER to:
Mas s Air Flow (MAF) Sens or (303-14A
Electroni c Engi ne Control s - I6 3.2L Pe

DT C
Description Possible Causes Action
ci rcuit : open ci rcuit
Mas s ai r fl ow (MAF) s ens or
fail ure REFER to:
Mas s Air Flow (MAF) Sens or (303-14A
Electroni c Engi ne Control s - I6 3.2L Pet rol ,
Removal and Inst all at ion).
P010121 Mas s or volume ai r fl ow A
circui t range/performance
- s ignal ampli tude l es s
t han mini mum Mas s ai r fl ow (MAF) s ens or
ci rcuit : short ci rcuit t o ground Mas s ai r fl ow (MAF) s ens or
ci rcuit : open ci rcuit Mas s ai r fl ow (MAF) s ens or
fail ure Check t he MAF s ensor and circui ts . Refer t o t he
electrical gui des . Ins t all a new s ens or as
required.
REFER to: Mas s Air Flow (MAF) Sens or (303-14A
Electroni c Engi ne Control s - I6 3.2L Pet rol ,
Removal and Inst all at ion).
P010122 Mas s or volume ai r fl ow A
circui t range/performance
- s ignal ampli tude
great er than maximum Mas s ai r fl ow (MAF) s ens or
ci rcuit : short ci rcuit t o power Mas s ai r fl ow (MAF) s ens or
fail ure Check t he MAF s ensor and circui ts . Refer t o t he
electrical gui des . Ins t all a new s ens or as
required.
REFER to: Mas s Air Flow (MAF) Sens or (303-14A
Electroni c Engi ne Control s - I6 3.2L Pet rol ,
Removal and Inst all at ion).
P010200 Mas s or volume ai r fl ow A
circui t low Mas s ai r fl ow (MAF) s ens or
ci rcuit : short ci rcuit t o ground Mas s ai r fl ow (MAF) s ens or
ci rcuit : open ci rcuit Mas s ai r fl ow (MAF) s ens or
fail ure Check t he MAF s ensor and circui ts . Refer t o t he
electrical gui des . Ins t all a new s ens or as
required.
REFER to: Mas s Air Flow (MAF) Sens or (303-14A
Electroni c Engi ne Control s - I6 3.2L Pet rol ,
Removal and Inst all at ion).
P010300 Mas s or volume ai r fl ow A
circui t high Mas s ai r fl ow (MAF) s ens or
ci rcuit : short ci rcuit t o power Mas s ai r fl ow (MAF) s ens or
fail ure Check t he MAF s ensor and circui ts . Refer t o t he
electrical gui des . Ins t all a new s ens or as
required.
REFER to: Mas s Air Flow (MAF) Sens or (303-14A
Electroni c Engi ne Control s - I6 3.2L Pet rol ,
Removal and Inst all at ion).
P010600 Manifold abs olut e
pres s ure/BARO s ens or
range/performance Fault y hos e connecti on Mani fold abs olut e pres s ure
(MAP)/BARO s ens or circui t:
hi gh res is t ance Mani fold abs olut e pres s ure
(MAP)/BARO s ens or fail ure Check t he hose connect ion/condit ion. Rect ify as
neces sary. Check t he MAP/BARO sens or and
ci rcuit s . Refer to the el ect ri cal guides . Ins tal l a
new s ens or as requi red.
REFER to: Manifold Abs olute Pres sure (MAP) Sens or (303-14A El ect roni c Engi ne Cont rol s - I6
3.2L Petrol, Removal and Ins tal lati on).
P010621 Manifold abs olut e
pres s ure/BARO s ens or
range/performance Mani fold abs olut e pres s ure
(MAP)/BARO s ens or circui t:
s hort ci rcuit t o ground Mani fold abs olut e pres s ure
(MAP)/BARO s ens or circui t:
open circui t Mani fold abs olut e pres s ure
(MAP)/BARO s ens or fail ure Check t he MAP/BARO s ens or and ci rcuit s . Refer to
the el ect ri cal guides . Ins tal l a new s ensor as
required.
REFER to: Manifold Abs olute Pres sure (MAP) Sens or (303-14A El ect roni c Engi ne Cont rol s - I6
3.2L Petrol, Removal and Ins tal lati on).
P010622 Manifold abs olut e
pres s ure/BARO s ens or
range/performance Mani fold abs olut e pres s ure
(MAP)/BARO s ens or circui t:
s hort ci rcuit t o power Mani fold abs olut e pres s ure
(MAP)/BARO s ens or fail ure Check t he MAP/BARO s ens or and ci rcuit s . Refer to
the el ect ri cal guides . Ins tal l a new s ensor as
required.
REFER to: Manifold Abs olute Pres sure (MAP) Sens or (303-14A El ect roni c Engi ne Cont rol s - I6
3.2L Petrol, Removal and Ins tal lati on).
P010700 Manifold abs olut e
pres s ure/BARO s ens or
l ow Mani fold abs olut e pres s ure
(MAP)/BARO s ens or circui t:
s hort ci rcuit t o ground Mani fold abs olut e pres s ure
(MAP)/BARO s ens or circui t:
open circui t Mani fold abs olut e pres s ure
(MAP)/BARO s ens or fail ure Check t he MAP/BARO s ens or and ci rcuit s . Refer to
the el ect ri cal guides . Ins tal l a new s ensor as
required.
REFER to: Manifold Abs olute Pres sure (MAP) Sens or (303-14A El ect roni c Engi ne Cont rol s - I6
3.2L Petrol, Removal and Ins tal lati on).
P010800 Manifold abs olut e
pres s ure/BARO s ens or
high Mani fold abs olut e pres s ure
(MAP)/BARO s ens or circui t:
s hort ci rcuit t o power Mani fold abs olut e pres s ure
(MAP)/BARO s ens or fail ure Check t he MAP/BARO s ens or and ci rcuit s . Refer to
the el ect ri cal guides . Ins tal l a new s ensor as
required.
REFER to: Manifold Abs olute Pres sure (MAP) Sens or (303-14A El ect roni c Engi ne Cont rol s - I6
3.2L Petrol, Removal and Ins tal lati on).
P011100 Intake air t emperat ure
s ensor 1 ci rcuit
range/performance Intake ai r temperat ure (IAT)
s ens or 1 ci rcuit : high
res is tance Intake ai r temperat ure (IAT)
s ens or fail ure Check t he IAT s ens or and circuit s (the IAT s ens or
is i ncorporated i nto the MAF sens or). Refer to the
electrical gui des . Ins t all a new s ens or as
required.
REFER to: Mas s Air Flow (MAF) Sens or (303-14A
Electroni c Engi ne Control s - I6 3.2L Pet rol ,
Removal and Inst all at ion).
P011200 Intake air t emperat ure
s ensor 1 ci rcuit l ow Intake ai r temperat ure (IAT)
s ens or 1 ci rcuit : s hort circuit
t o ground Intake ai r temperat ure (IAT)
s ens or 1 ci rcuit : open ci rcuit Intake ai r temperat ure (IAT)
s ens or fail ure Check t he IAT s ens or and circuit s (the IAT s ens or
is i ncorporated i nto the MAF sens or). Refer to the
electrical gui des . Ins t all a new s ens or as
required.
REFER to: Mas s Air Flow (MAF) Sens or (303-14A
Electroni c Engi ne Control s - I6 3.2L Pet rol ,
Removal and Inst all at ion).

Page 1162 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual DT C
Description Possible Causes Action
P011300 Intake air t emperat ure
s ensor 1 ci rcuit high Intake ai r temperat ure (IAT)
s ens or 1 ci rcuit : s hort circuit
t o power Intake ai r temperat ure

DT C
Description Possible Causes Action
P011300 Intake air t emperat ure
s ensor 1 ci rcuit high Intake ai r temperat ure (IAT)
s ens or 1 ci rcuit : s hort circuit
t o power Intake ai r temperat ure (IAT)
s ens or 1 ci rcuit : open ci rcuit Intake ai r temperat ure (IAT)
s ens or fail ure Check t he IAT s ens or and circuit s (the IAT s ens or
is i ncorporated i nto the MAF sens or). Refer to the
electrical gui des . Ins t all a new s ens or as
required.
REFER to: Mas s Air Flow (MAF) Sens or (303-14A
Electroni c Engi ne Control s - I6 3.2L Pet rol ,
Removal and Inst all at ion).
P011400 Intake air t emperat ure
s ensor 1 ci rcuit
i nt ermit tent/errati c Intake ai r temperat ure (IAT)
s ens or 1 ci rcuit : high
res is tance Intake ai r temperat ure (IAT)
s ens or fail ure Check t he IAT s ens or and circuit s (the IAT s ens or
is i ncorporated i nto the MAF sens or). Refer to the
electrical gui des . Ins t all a new s ens or as
required.
REFER to: Mas s Air Flow (MAF) Sens or (303-14A
Electroni c Engi ne Control s - I6 3.2L Pet rol ,
Removal and Inst all at ion).
P017100 Sys tem too l ean (bank 1) Intake ai r leak
- Bet ween MAF s ensor and
cyli nder head Fuel s ys t em rest ri ct ion
MAF sens or fault
- Low int ake flow Exhaust l eak, before catalyt ic
converter Check for intake ai r leaks . Check for low fuel
pres sure and MAF s ens or DTCs . Rect ify as
neces sary. Check for exhaus t l eaks before t he
cat alyti c convert er
P017200 Sys tem too rich (bank 1) Res t rict ed air filt er O il cont aminat ed wit h fuel
- Too many col d s tarts wit h
vehicle subs equent ly not
get ti ng hot enough for l ong
enough Leaking fuel i njectors
MAF sens or fault
- High i nt ake fl ow Leaking evaporati ve emis s ion
s ys tem purge valve Check t he condi ti on of the ai r cl eaner element :
REFER to: Air Cl eaner (303-12A Int ake Air
Dis t ribut ion and Fil tering - I6 3.2L Pet rol ,
Removal and Inst all at ion).
Check engine t he oil condi ti on. Check for l eaki ng
inject ors . Check for MAF s ens or, i njector and
evaporat ive emi s si on s ys t em DTCs .
P017400 Sys tem too l ean (bank 2) Intake ai r leak
- Bet ween MAF s ensor and
cyli nder head Fuel s ys t em rest ri ct ion
MAF sens or fault
- Low int ake flow Exhaust l eak, before catalyt ic
converter Check for intake ai r leaks . Check for low fuel
pres sure and MAF s ens or DTCs . Rect ify as
neces sary. Check for exhaus t l eaks before t he
cat alyti c convert er
P017500 Sys tem too rich (bank 2) Res t rict ed air filt er O il cont aminat ed wit h fuel
- Too many col d s tarts wit h
vehicle subs equent ly not
get ti ng hot enough for l ong
enough Leaking fuel i njectors
MAF sens or fault
- High i nt ake fl ow Leaking evaporati ve emis s ion
s ys tem purge valve Check t he condi ti on of the ai r cl eaner element :
REFER to: Air Cl eaner (303-12A Int ake Air
Dis t ribut ion and Fil tering - I6 3.2L Pet rol ,
Removal and Inst all at ion).
Check engine t he oil condi ti on. Check for l eaki ng
inject ors . Check for MAF s ens or, i njector and
evaporat ive emi s si on s ys t em DTCs .
P050600 Idle ai r cont rol s ys t em
RPM lower than expect ed Intake ai r res tricti on Res t rict ed/Contami nat ed
i njector/fuel s ys tem Access ory drive overl oad
(defecti ve/s ei zed component) Variable intake s ys tem (VIS)
fault Throt t le body faul t Check t he int ake air s yst em, air cleaner, et c.
Check t he fuel s yst em for
res trict ion/contami nat ion. Check the acces s ory
dri ve driven component s for exces s ive res is tance
to turni ng/s eizure. Rect ify as neces s ary. Check
for DTCs i ndi cat ing a VIS or t hrot tl e body fault .
P050700 Idle ai r cont rol s ys t em
RPM hi gher t han
expect ed Intake ai r leakage Variable intake s ys tem (VIS)
fault Throt t le body faul t Check t he int ake air s yst em for leakage. Recti fy
as neces s ary. Check for DTCs i ndicat ing a VIS or
thrott le body faul t.
P050B00 Cold st art i gnit ion t imi ng
performance Bl ocked i nt ake s ys t em St icking/s l ow t hrott le
Poor engi ne condi ti on Check t he int ake air s yst em, including the ai r
cl eaner element . Carry out a compl ete vehicl e
read for relat ed DTCs. Recti fy as neces sary.
P061A00 Internal cont rol module
t orque performance Ai r leakage in t he i nt ake
s ys tem aft er the MAF sens or
and t hrot tl e body Throt t le body faul t
Mas s ai r fl ow (MAF) s ens or
fault Engine coolant t emperature
(ECT) sens or fault Fl ywheel s ens or fault Retrieve t he fl ight recorder dat a and cus tomer
s tat ement for ret urn t o engineeri ng for analysi s .
Check t he int ake s ys t em for leakage. Check for
DTCs indicati ng a t hrot tl e body, s ensor or VVT
fault . Rect ify as neces s ary. Refer t o t he warrant y
pol icy and procedures manual if a modul e is
s us pect .

Page 1163 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual DT C
Description Possible Causes Action
Mani fold air pres s ure (MAP)
s ens or fault Cams haft res et valve fault
Variable val e ti mi ng (VVT)
fault ECM fault
P061A62
Internal cont rol module
t

DT C
Description Possible Causes Action
Mani fold air pres s ure (MAP)
s ens or fault Cams haft res et valve fault
Variable val e ti mi ng (VVT)
fault ECM fault
P061A62
Internal cont rol module
t orque performance -
s ignal compare fai lure Ai r leakage in t he i nt ake
s ys tem aft er the MAF sens or
and t hrot tl e body Throt t le body faul t
Mas s ai r fl ow (MAF) s ens or
fault Engine coolant t emperature
(ECT) sens or fault Fl ywheel s ens or fault
Mani fold air pres s ure (MAP)
s ens or fault Cams haft res et valve fault
Variable val e ti mi ng (VVT)
fault ECM fault Retrieve t he fl ight recorder dat a and cus tomer
s tat ement for ret urn t o engineeri ng for analysi s .
Check t he int ake s ys t em for leakage. Check for
DTCs indicati ng a t hrot tl e body, s ensor or VVT
fault . Rect ify as neces s ary. Refer t o t he warrant y
pol icy and procedures manual if a modul e is
s us pect .
P061B64 Internal cont rol module
t orque performance -
s ignal plausi bil it y fai lure Ai r leakage in t he i nt ake
s ys tem aft er the MAF sens or
and t hrot tl e body Throt t le body faul t
Mas s ai r fl ow (MAF) s ens or
fault Engine coolant t emperature
(ECT) sens or fault Fl ywheel s ens or fault
Mani fold air pres s ure (MAP)
s ens or fault Cams haft res et valve fault
Variable val ve ti ming (VVT)
fault ECM fault Retrieve t he fl ight recorder dat a and cus tomer
s tat ement for ret urn t o engineeri ng for analysi s .
Check t he int ake s ys t em for leakage. Check for
DTCs indicati ng a t hrot tl e body, s ensor or VVT
fault . Rect ify as neces s ary. Refer t o t he warrant y
pol icy and procedures manual if a modul e is
s us pect .
P222700 Baromet ri c pres s ure
circui t -
range/performance BARO s ens or fai lure
- the BARO sens or is
i nternal t o t he ECM Refer to the warrant y policy and procedures
manual i f a module is s us pect.
P222721 Baromet ri c pres s ure
circui t range/performance
- s ignal ampli tude l es s
t han mini mum BARO s ens or fai lure
- the BARO sens or is
i nternal t o t he ECM Refer to the warrant y policy and procedures
manual i f a module is s us pect.
P222722 Baromet ri c pres s ure
circui t range/performance
- s ignal ampli tude
great er than maximum BARO s ens or fai lure
- the BARO sens or is
i nternal t o t he ECM Refer to the warrant y policy and procedures
manual i f a module is s us pect.
P222800 Baromet ri c pres s ure
circui t low BARO s ens or fai lure
- the BARO sens or is
i nternal t o t he ECM Refer to the warrant y policy and procedures
manual i f a module is s us pect.
P222900 Baromet ri c pres s ure
circui t high BARO s ens or fai lure
- the BARO sens or is
i nternal t o t he ECM Refer to the warrant y policy and procedures
manual i f a module is s us pect.

Page 1164 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011

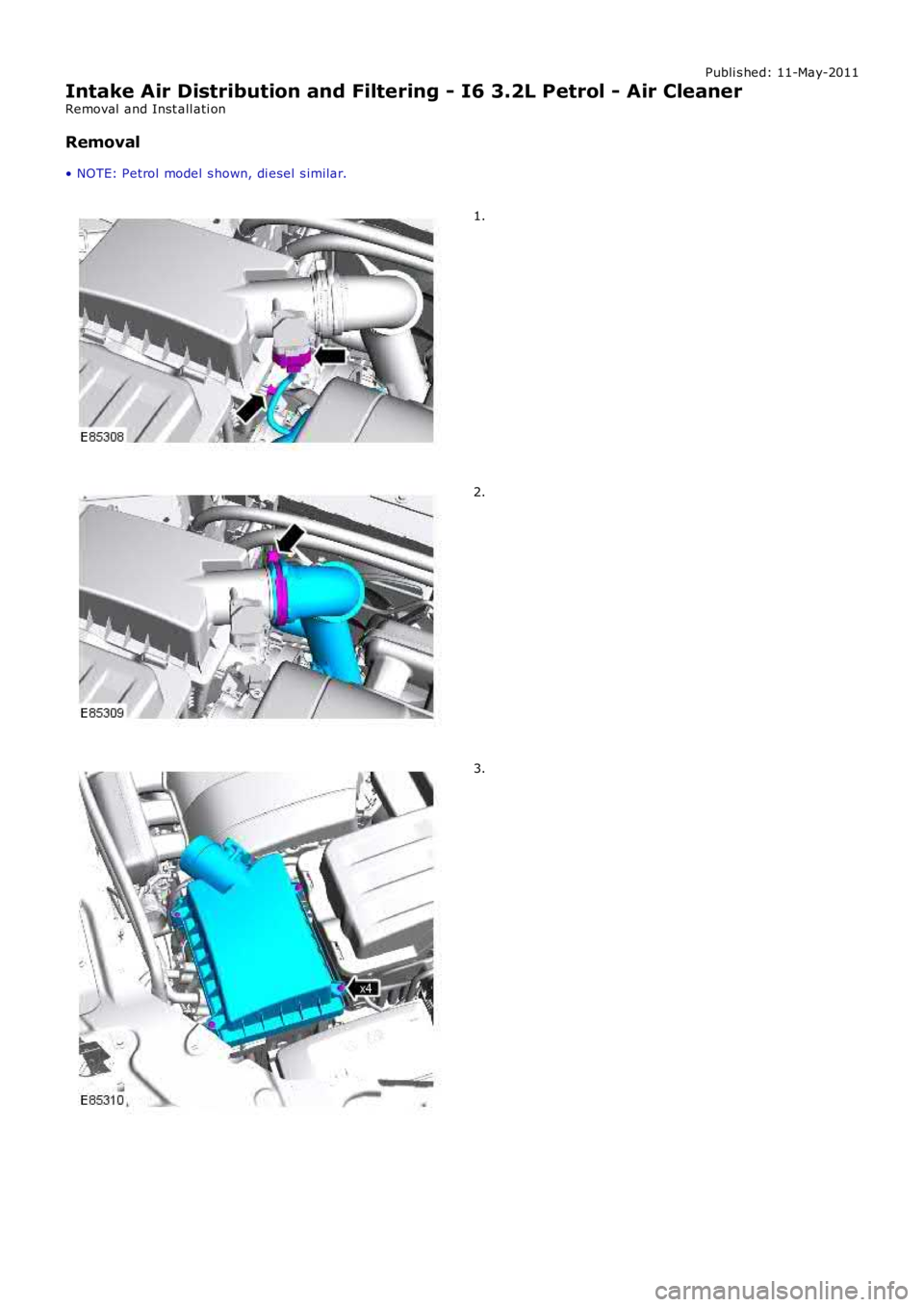

Intake Air Distribution and Filtering - I6 3.2L Petrol - Air Cleaner
Removal and Inst all ati on
Removal
• NOTE: Petrol model s hown, di esel s imilar.
1.
2.
3.

Page 1165 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual 4.
5. NOTE: Note the fit ted pos it ion.5.
6. NOTE: Do not dis ass embl e further if t he componenti s removed for acces s onl y.6.
Installation
Inst all t he air cleaner el ement .1.
Inst all t he

Page 1166 of 3229

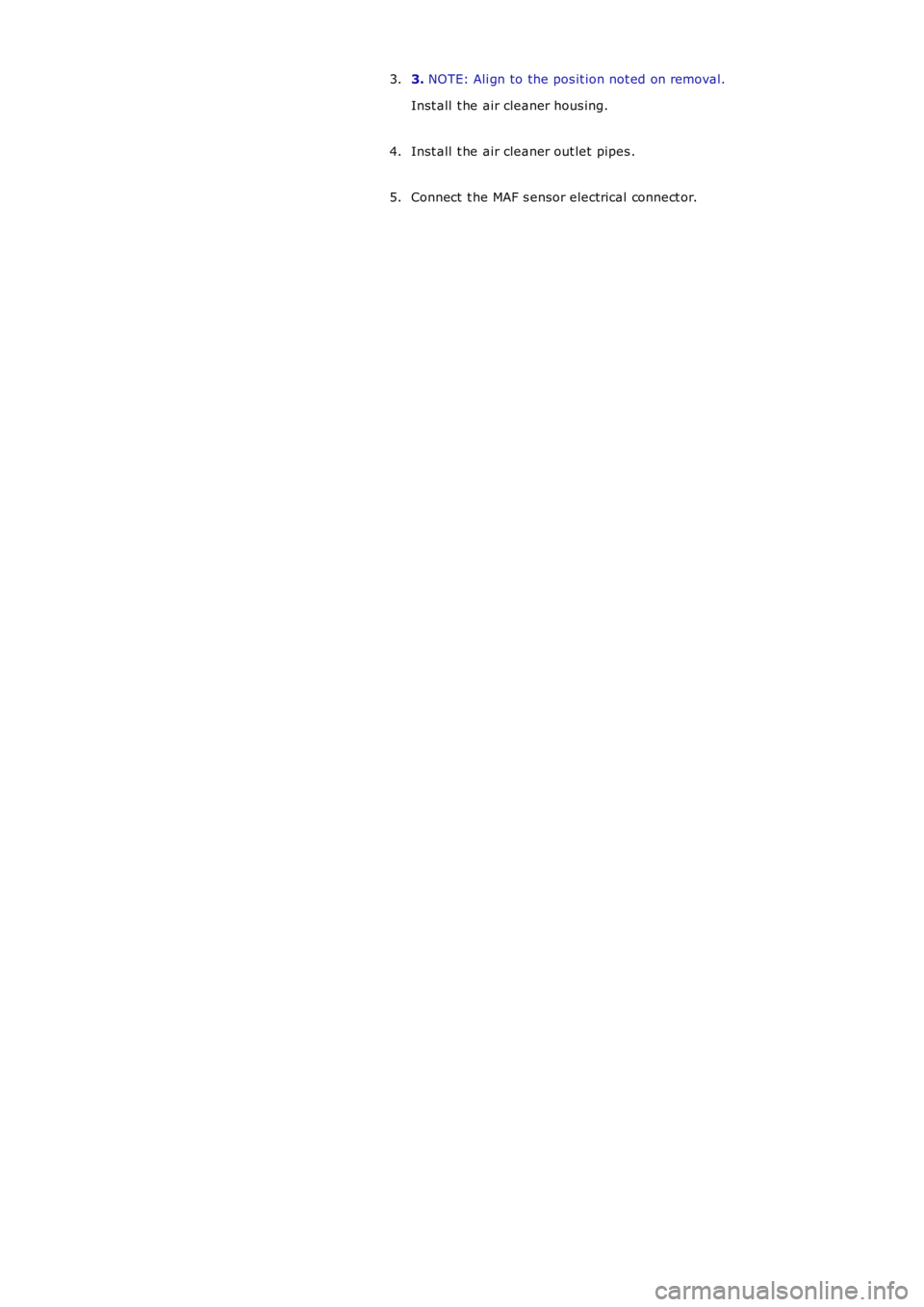

LAND ROVER FRELANDER 2 2006 Repair Manual 3. NOTE: Ali gn to the pos it ion not ed on removal.
Inst all t he air cleaner hous ing.
3.
Inst all t he air cleaner out let pipes .4.
Connect t he MAF s ensor electrical connect or.5.

Page 1167 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011

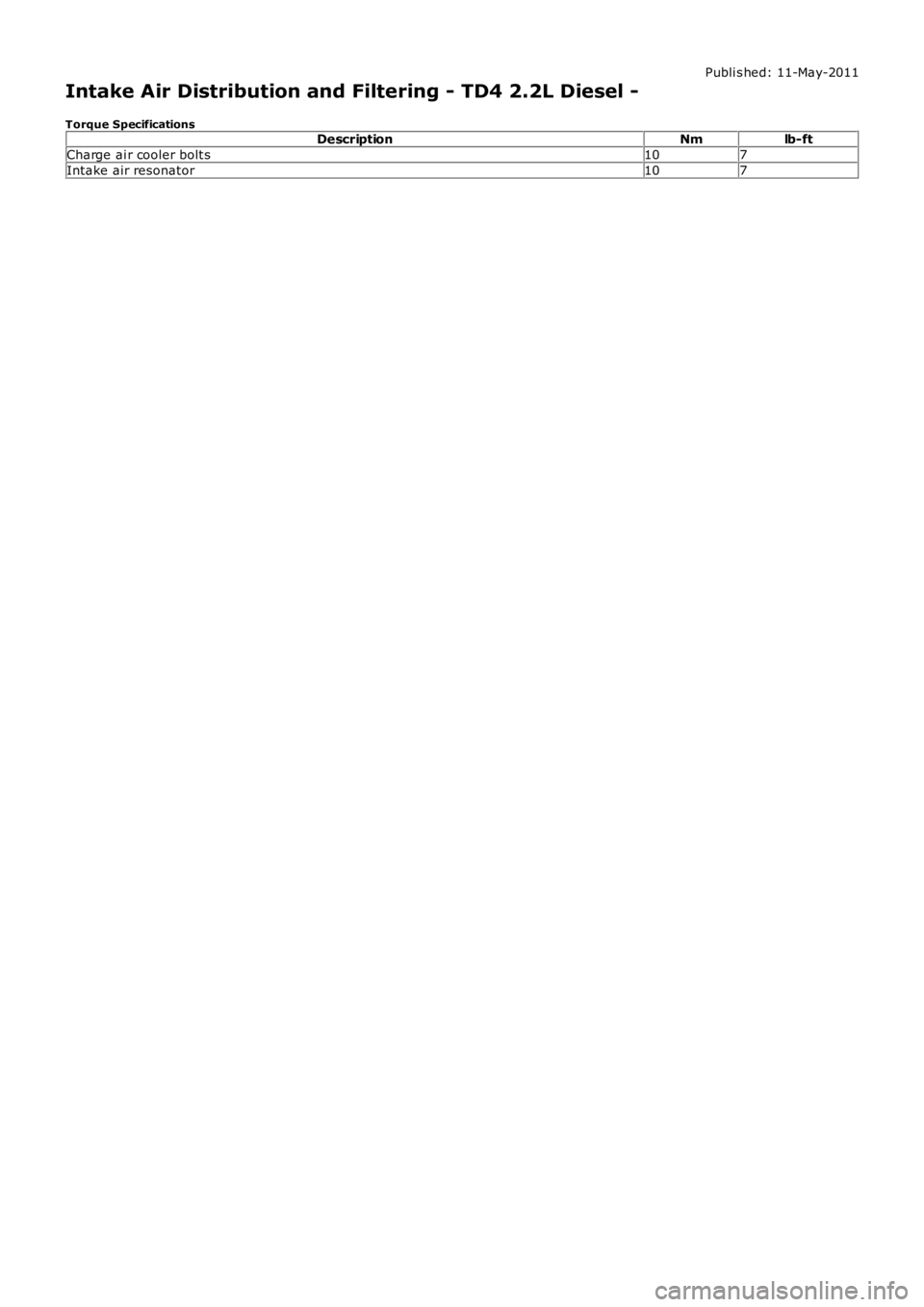

Intake Air Distribution and Filtering - TD4 2.2L Diesel -
Torque SpecificationsDescriptionNmlb-ft
Charge ai r cooler bolt s107
Intake air resonator107

Page 1168 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011

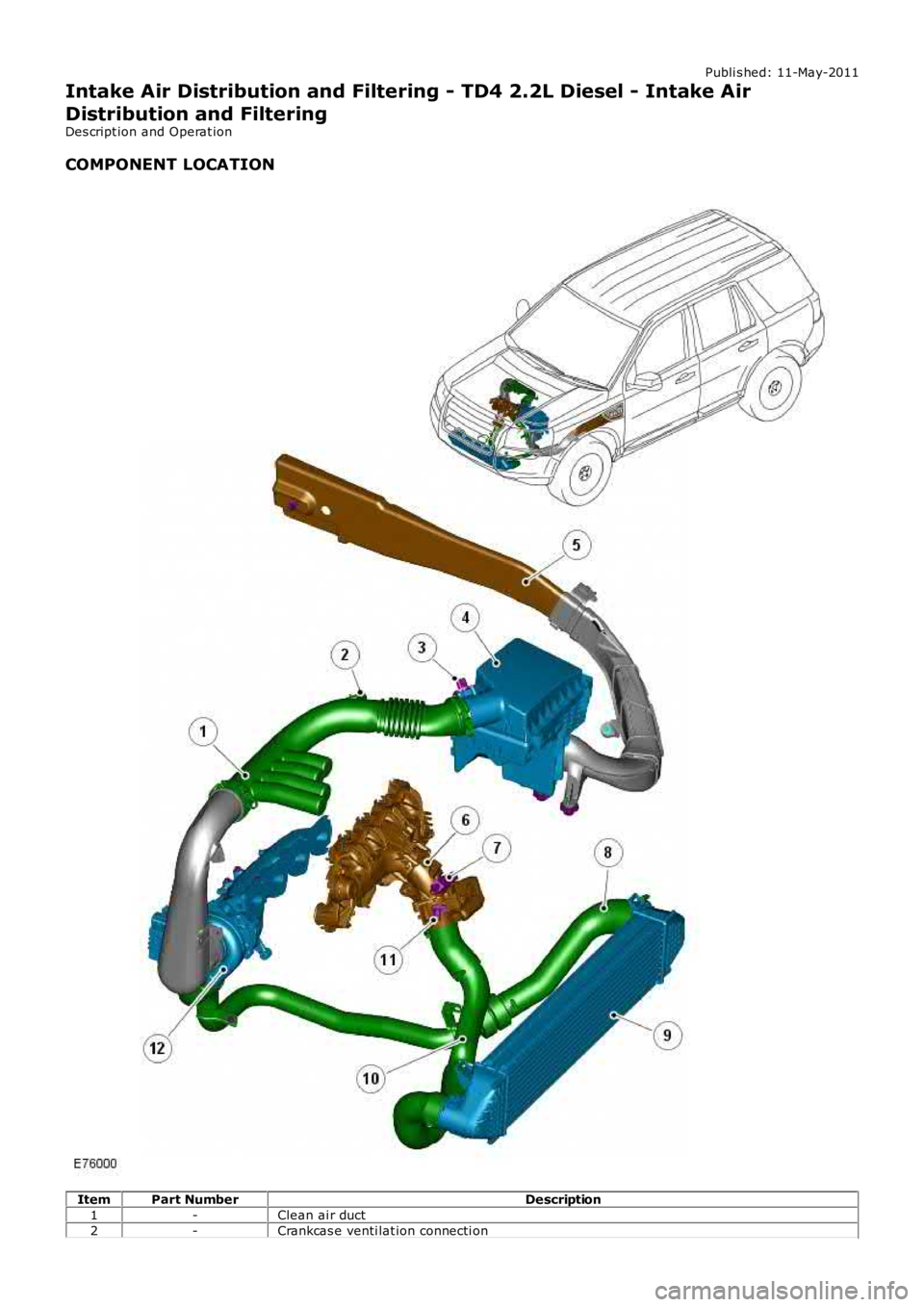

Intake Air Distribution and Filtering - TD4 2.2L Diesel - Intake Air
Distribution and Filtering
Des cript ion and Operat ion
COMPONENT LOCATION
ItemPart NumberDescription
1-Cl

Load next 8 pages

Page: < prev 1-10 ... 1129-1136 1137-1144 1145-1152 1153-1160 1161-1168 1169-1176 1177-1184 1185-1192 1193-1200 ... 3232 next >

charging glove box CD changer gas type ad blue fold seats
