LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011
Handles, Locks, Latches and Entry Systems -

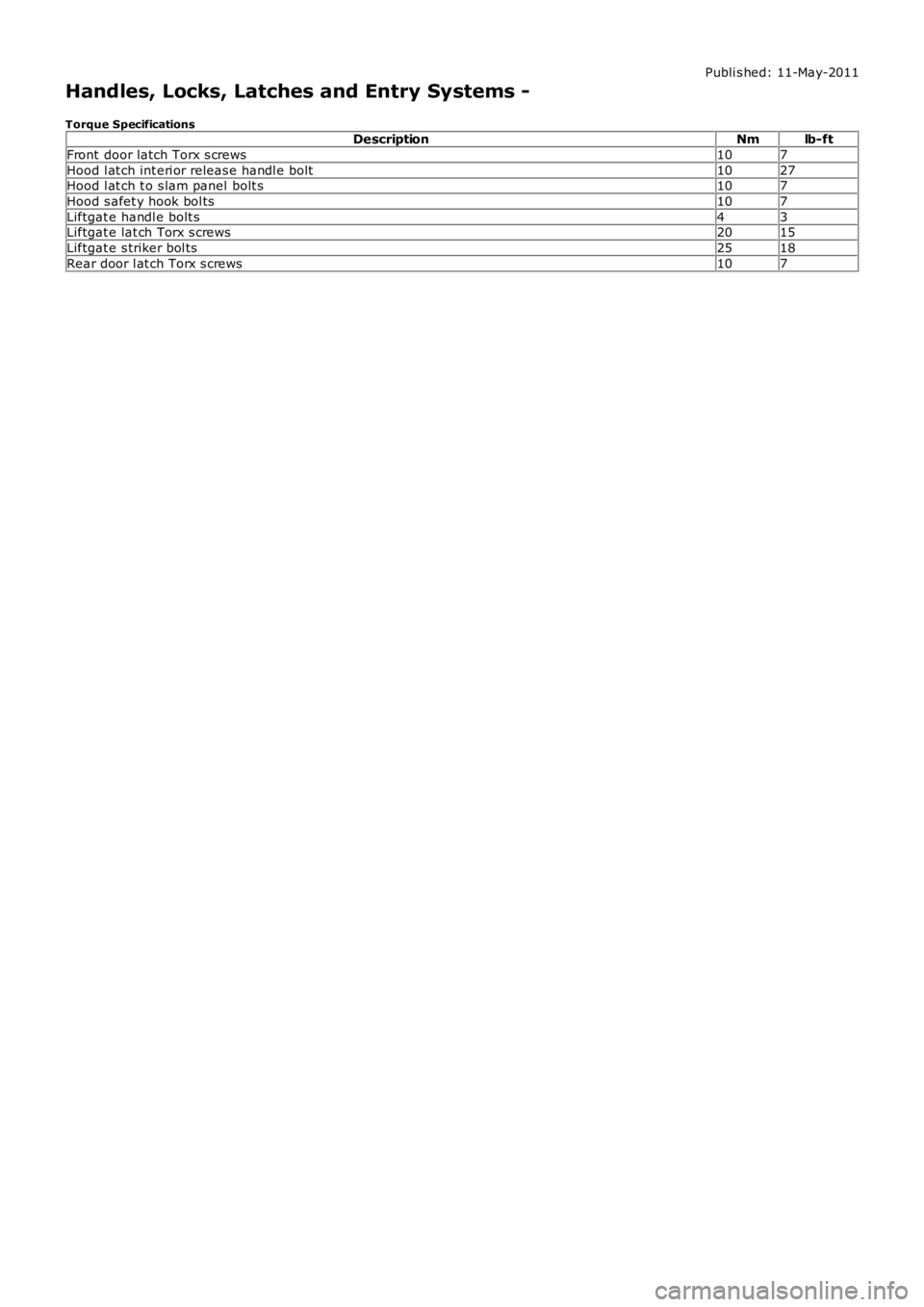

Torque SpecificationsDescriptionNmlb-ft
Front door latch Torx s crews107
Hood l at ch int eri or releas e handl e bolt1027Hood l a

Page 2306 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publ ished: 11-May-2011
Handles, Locks, Latches and Entry Systems - Handles, Locks, Latches and
Entry Systems
Descripti on and Operation

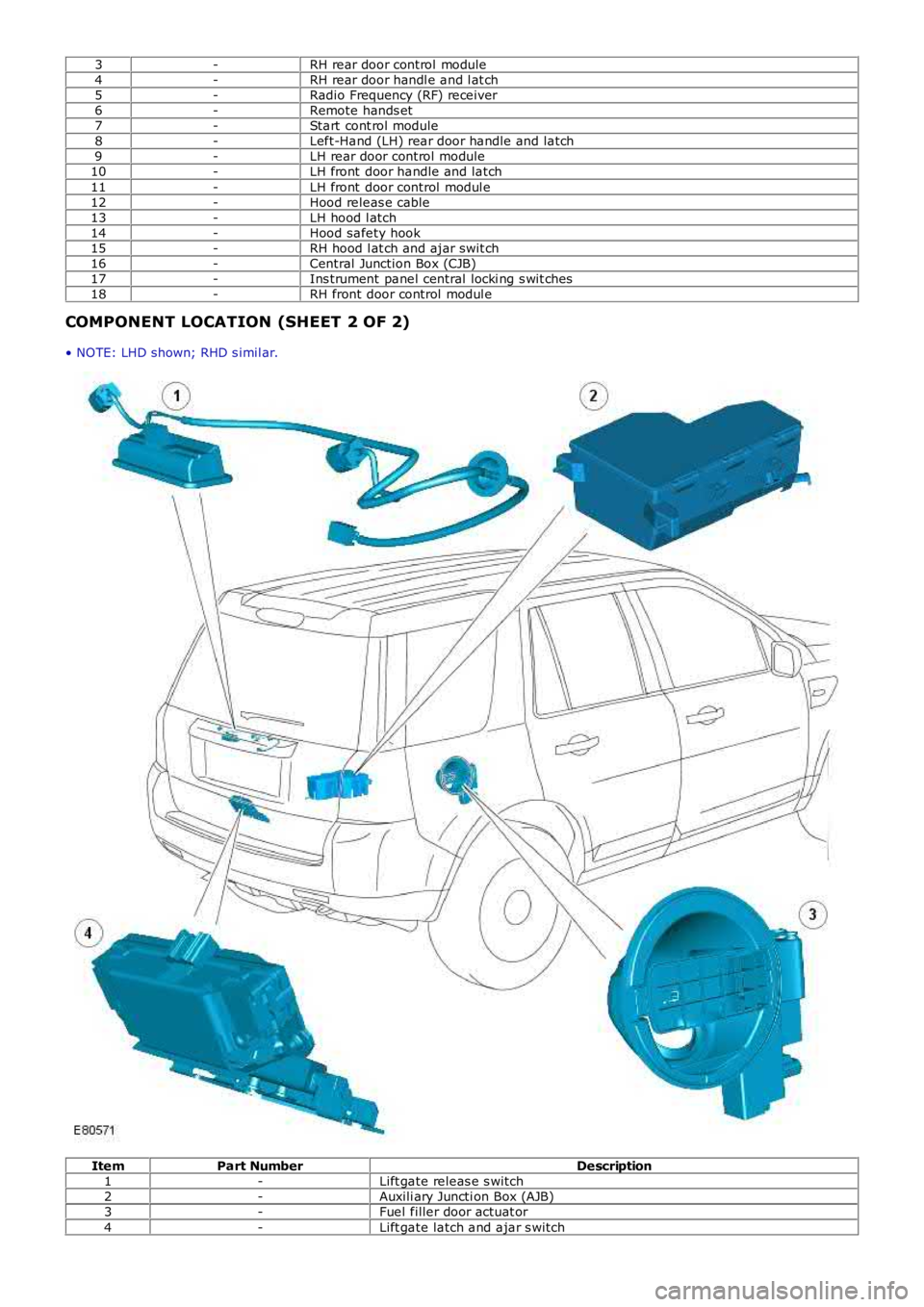

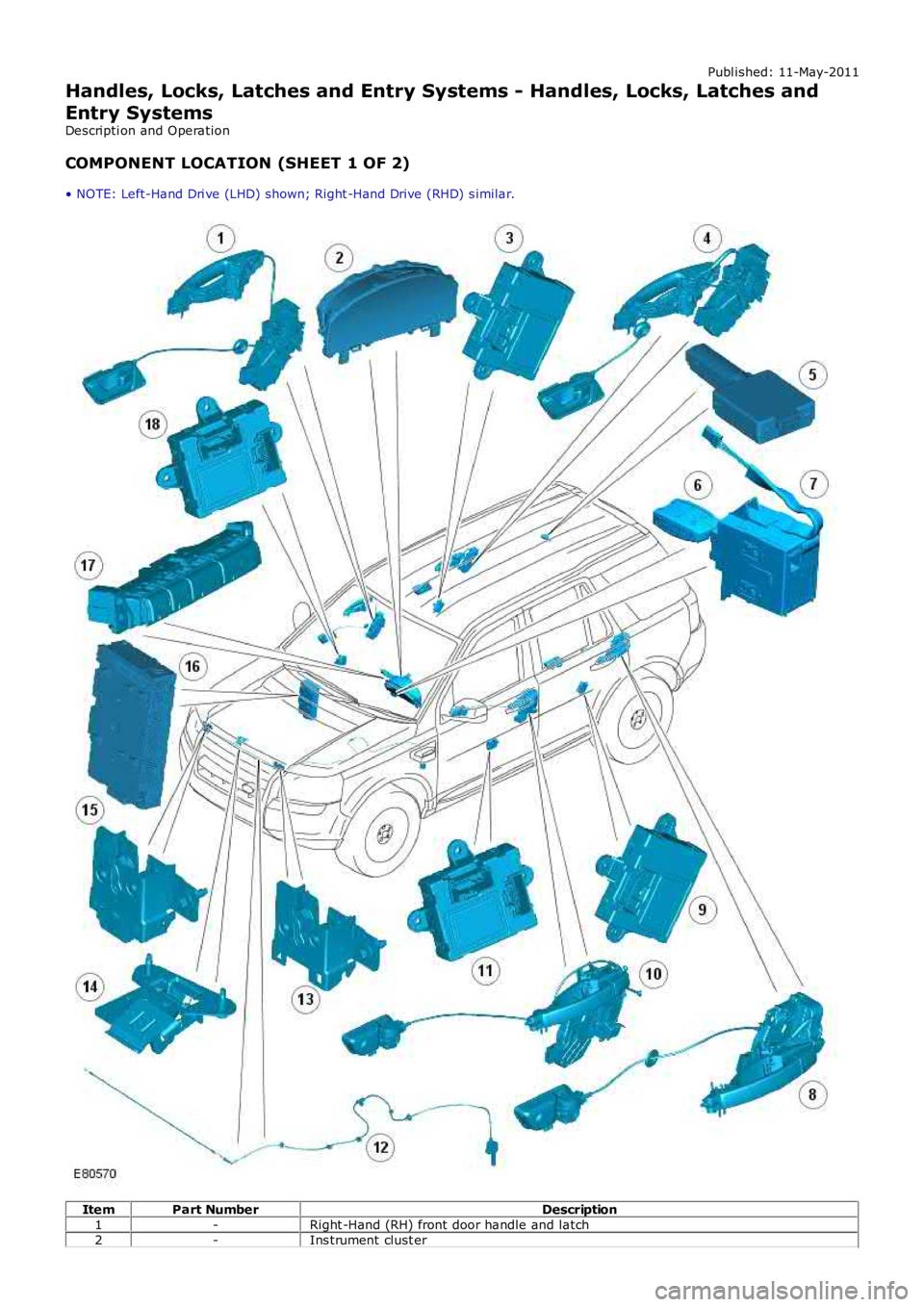

COMPONENT LOCATION (SHEET 1 OF 2)
• NOTE: Left-Hand Dri ve (L

Page 2307 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual 3-RH rear door control module4-RH rear door handl e and l at ch5-Radio Frequency (RF) receiver6-Remote hands et7-Start cont rol module8-Left-Hand (LH) rear door handle and latch9-LH rear door control

Page 2308 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual OVERVIEW
Al l the vehi cle hinged panels are secured by lat ches with mating st rikers. The lat ches incorporat e panel ajar s wi tches t hatwi ll i nform the dri ver of an open acces s point .
The

OVERVIEW
Al l the vehi cle hinged panels are secured by lat ches with mating st rikers. The lat ches incorporat e panel ajar s wi tches t hatwi ll i nform the dri ver of an open acces s point .
The central locking s ys tem is operat ed by eit her t he remot e handset, front door central locking but tons or t he inst rumentpanel central locki ng s wi tches . The central locking s ys tem cont rols the automatic locking and unlocki ng of t he vehicl e ent rypoints. The soft ware used to cont rol t he cent ral l ocking syst em is i ncorporat ed within t he CJB.
The central locking s ys tem is al so integrat ed with t he interior l ighti ng functi on. The i nt eri or light s and exterior mirror lampsare i lluminated via t he RF recei ver and CJB following a val id unlock reques t from the remote hands et .For addit ional informat ion, refer t o: Interior Light ing (417-02 Interior Lighting, Des cri pt ion and Operation).
If configured by the deal er, the exterior door mirror power fold function is al so operat ed by the central locki ng s yst em.
A concealed mechanical door lock is provided in t he front LH door exteri or handle, and i s used to gain acces s to the vehicle ifthe battery is discharged or t he central l ocking syst em fail s.

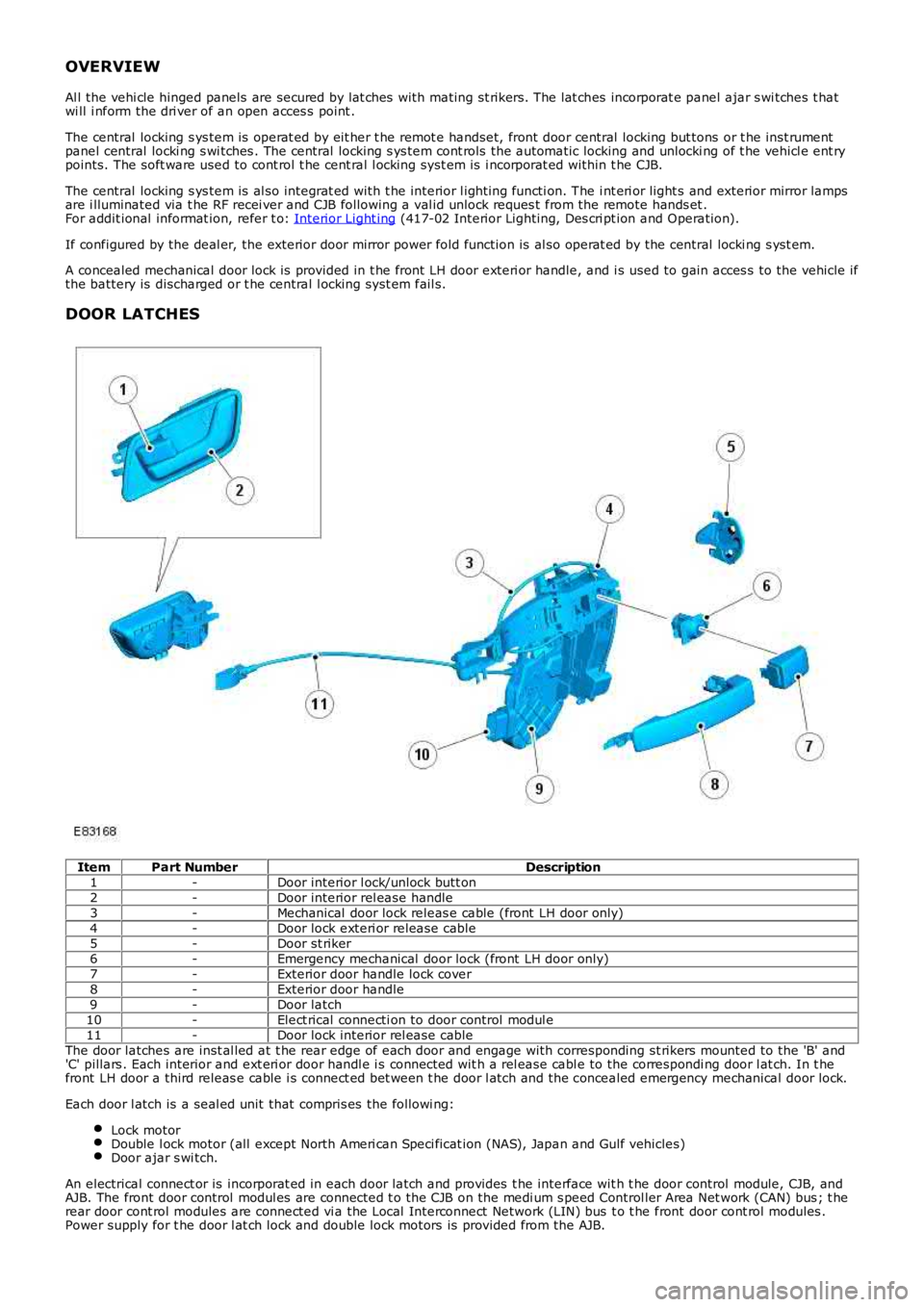

DOOR LATCHES
ItemPart NumberDescription1-Door interior l ock/unlock butt on2-Door interior rel ease handle3-Mechanical door lock releas e cable (front LH door only)4-Door lock exteri or release cable5-Door st riker6-Emergency mechanical door lock (front LH door only)7-Exterior door handle lock cover8-Exterior door handle9-Door latch10-Elect rical connecti on to door control modul e11-Door lock interior rel ease cableThe door latches are inst al led at t he rear edge of each door and engage with corresponding st rikers mounted to the 'B' and'C' pillars . Each interior and ext eri or door handl e i s connected wit h a rel ease cable to the correspondi ng door l at ch. In t hefront LH door a third releas e cable i s connect ed bet ween t he door l atch and the concealed emergency mechanical door lock.
Each door l atch is a seal ed unit that compris es the followi ng:
Lock motorDouble l ock motor (all except North Ameri can Speci ficat ion (NAS), Japan and Gulf vehicles)Door ajar s wi tch.
An electrical connect or is incorporat ed in each door latch and provides t he interface wit h t he door control module, CJB, andAJB. The front door control modul es are connected t o the CJB on the medi um s peed Control ler Area Net work (CAN) bus ; t herear door cont rol modules are connected vi a the Local Interconnect Network (LIN) bus t o t he front door cont rol modules .Power supply for t he door l at ch lock and double lock motors is provided from the AJB.

Page 2309 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual The lock and double lock mot ors control the engagement of t he door lat ches with t he releas e cables to lock and unlock thevehicle. W hen t he vehicl e i s l ocked, the lock mot ors disengage the

The lock and double lock mot ors control the engagement of t he door lat ches with t he releas e cables to lock and unlock thevehicle. W hen t he vehicl e i s l ocked, the lock mot ors disengage the door latches from the exterior rel ease cabl es . W hen t hevehicle is doubl e l ocked, the double lock mot ors als o dis engage t he door l at ches from t he interior rel ease cables . W hen t hevehicle is s ubsequentl y unl ocked, the int erior and ext eri or releas e cables are re-engaged wi th the door latches.
Al l the door interior release handl es incorporate a locking button. W hen a front door central locking but ton is press ed/pulled,all the vehi cle doors will cent rally lock/unlock. W hen a rear door locki ng butt on is press ed/pull ed, t he locking button will onlylock/unlock the activat ed rear door.
W hen the door locki ng butt on is press ed, t he interior release cable is pus hed and causes the exterior releas e cabl e t o bedis engaged from t he door l at ch. On the rear doors, pres sing the locki ng butt on will also disengage the interior handl e fromthe i nt eri or releas e cable.
W hen the door locki ng butt on is pul led away from t he door, the door int erior releas e handle is re-engaged wit h the i nt eri orrelease cable. As the i nt eri or releas e cable is re-engaged it i s pulled, caus ing the door lat ch to re-engage with t he ext eri orrelease cable.
Rear Door Child Locks
The rear door latches i ncorporat e child locks that provide addit ional rear occupancy safety. The chi ld locks are manuallyoperat ed us ing the emergency key blade within the remote hands et . Setti ng the child lock t o t he l ocked pos it ion wil ldis engage the door lat ch interior rel ease cable from the door latch, and prevent opening of the rear door us ing t he interiorrelease handl e.
For further informati on on chi ld locks, refer to t he Owners Handbook.
Door Ajar Switch
An ajar s wi tch i s i ns talled in each door l atch and is hardwi red t o the CJB. If the igniti on is i n power modes 4 (Access ory) or 6(Igni tion) and a door i s opened or is not fully clos ed, the corresponding door ajar s wi tch i s opened to disconnect t he groundfrom the CJB. A mes sage is t ransmi tted by the CJB vi a t he medium speed CAN bus to t he inst rument clus ter, to inform t hedriver t hat a door is ajar.
On vehicl es with a low-li ne inst rument clus ter t he door ajar symbol is il luminated.For addit ional informat ion, refer t o: Inst rument Clus ter (413-01 Ins trument Clust er, Des cription and Operat ion).On vehicl es with a high-l ine i ns trument clust er, t he door ajar s ymbol is ill uminat ed and a mes sage is also dis played in themess age cent er.For addit ional informat ion, refer t o: Informat ion and Mes sage Center (413-08 Informati on and Mes sage Center, Descriptionand Operat ion).
The door ajar swit ch is also i ntegrat ed wit h t he vehicl e securit y s ys tem and is us ed as the detecti on devi ce for unauthorizedvehicle ent ry.For addit ional informat ion, refer t o: Anti -Theft - Act ive (419-01A Anti-Theft - Act ive, Description and Operat ion).
Emergency Mechanical Door Lock
ItemPart NumberDescription1-Conceal ed mechani cal lock

Page 2310 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual 2-Emergency key blade3-LH front door handl eThe remote hands et cont ai ns an emergency key blade, conceal ed in t he key fob. The front LH exterior door handleincorporates a mechanical operated do

Page 2311 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Hood Ajar Switch
The RH hood lat ch incorporat es the hood ajar s wi tch t hat is hardwired t o t he CJB. If t he i gniti on is in power modes 4(Acces sory) or 6 (Ignit ion) and the hood is opened

Hood Ajar Switch
The RH hood lat ch incorporat es the hood ajar s wi tch t hat is hardwired t o t he CJB. If t he i gniti on is in power modes 4(Acces sory) or 6 (Ignit ion) and the hood is opened or is not ful ly closed, t he hood ajar switch is opened t o dis connect theground from t he CJB. A mess age i s trans mitt ed by t he CJB via the medi um s peed CAN bus t o the i ns trument clust er, toinform the dri ver t hat the hood is ajar.
On vehicl es with a low-li ne inst rument clus ter t he hood ajar symbol is i llumi nated.For addit ional informat ion, refer t o: Inst rument Clus ter (413-01 Ins trument Clust er, Des cription and Operat ion).On vehicl es with a high-l ine i ns trument clust er, t he hood ajar s ymbol is il luminat ed and a mes sage i s als o dis pl ayed in t hemess age cent er.For addit ional informat ion, refer t o: Informat ion and Mes sage Center (413-08 Informati on and Mes sage Center, Descriptionand Operat ion).
The hood ajar s wi tch i s als o i nt egrated wit h the vehicle securit y system and is used as the detecti on device for unauthorizedvehicle ent ry.For addit ional informat ion, refer t o: Anti -Theft - Act ive (419-01A Anti-Theft - Act ive, Description and Operat ion).

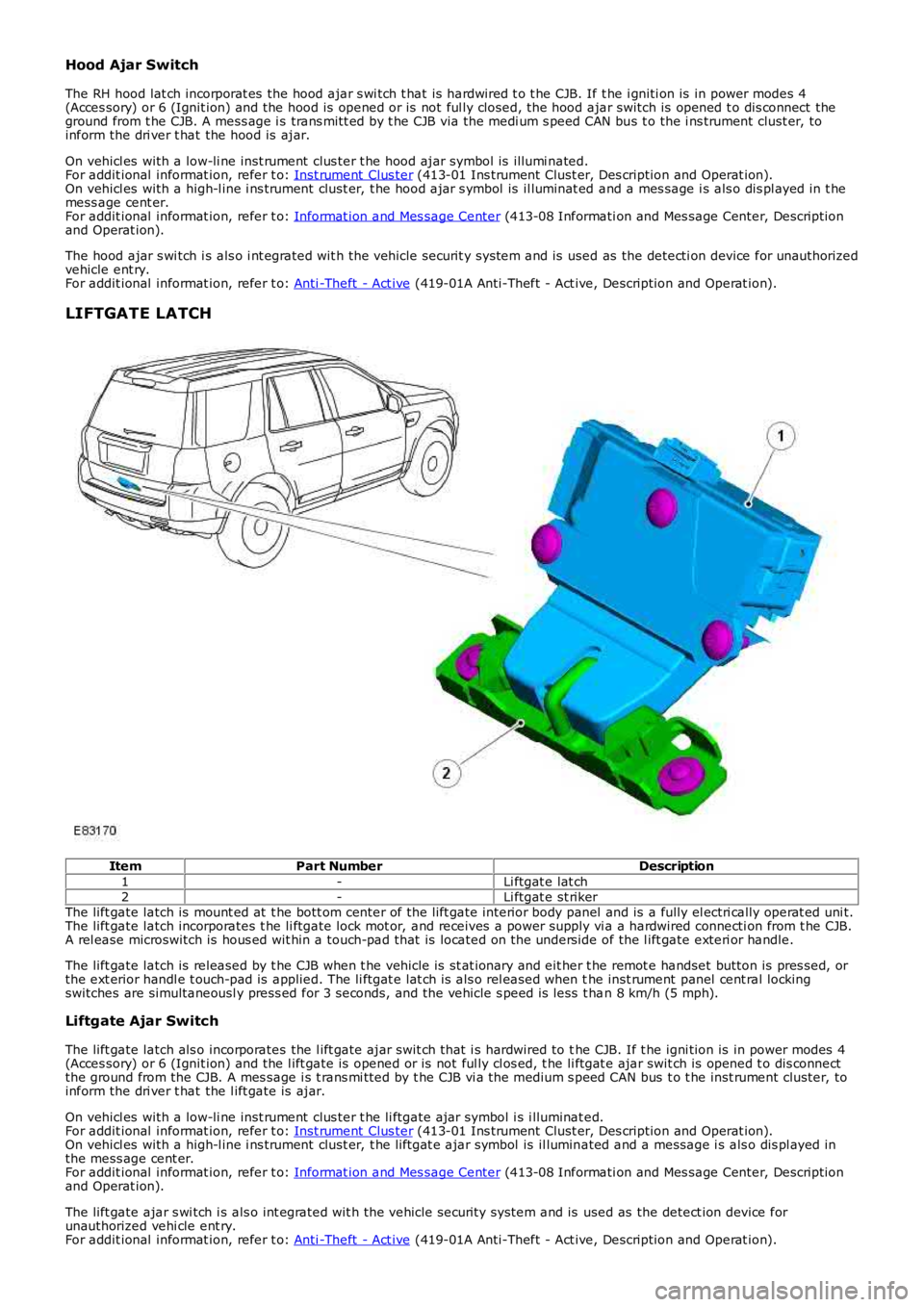

LIFTGATE LATCH
ItemPart NumberDescription
1-Li ftgat e lat ch2-Li ftgat e st rikerThe lift gate latch is mount ed at t he bott om center of the lift gate interior body panel and is a fully el ectri cally operat ed uni t.The lift gate latch incorporates t he li ftgate lock mot or, and receives a power supply vi a a hardwired connecti on from t he CJB.A rel ease microswitch is hous ed wit hin a touch-pad that is located on the unders ide of the l ift gate exteri or handle.
The lift gate latch is released by t he CJB when t he vehicle is st at ionary and eit her t he remot e handset button is pres sed, orthe ext erior handl e t ouch-pad is applied. The li ftgat e lat ch is als o rel eased when the inst rument panel cent ral lockingswitches are simultaneousl y press ed for 3 seconds, and the vehicle s peed is less t han 8 km/h (5 mph).
Liftgate Ajar Switch
The lift gate latch als o incorporates the l ift gate ajar swit ch that i s hardwired to the CJB. If t he igni tion is in power modes 4(Acces sory) or 6 (Ignit ion) and the l ift gate is opened or is not ful ly cl os ed, t he li ftgat e ajar swit ch is opened t o dis connectthe ground from the CJB. A mes sage i s t rans mi tted by t he CJB vi a t he medium s peed CAN bus t o t he inst rument cluster, toinform the dri ver t hat the l ift gate is ajar.
On vehicl es with a low-li ne inst rument clus ter t he li ftgate ajar symbol i s i lluminated.For addit ional informat ion, refer t o: Inst rument Clus ter (413-01 Ins trument Clust er, Des cription and Operat ion).On vehicl es with a high-l ine i ns trument clust er, t he liftgat e ajar symbol is il luminated and a message i s als o dis pl ayed inthe mess age cent er.For addit ional informat ion, refer t o: Informat ion and Mes sage Center (413-08 Informati on and Mes sage Center, Descriptionand Operat ion).
The lift gate ajar s wi tch i s als o int egrated wit h the vehicle securit y system and is used as the detect ion device forunauthorized vehi cle ent ry.For addit ional informat ion, refer t o: Anti -Theft - Act ive (419-01A Anti-Theft - Act ive, Description and Operat ion).

Page 2312 of 3229

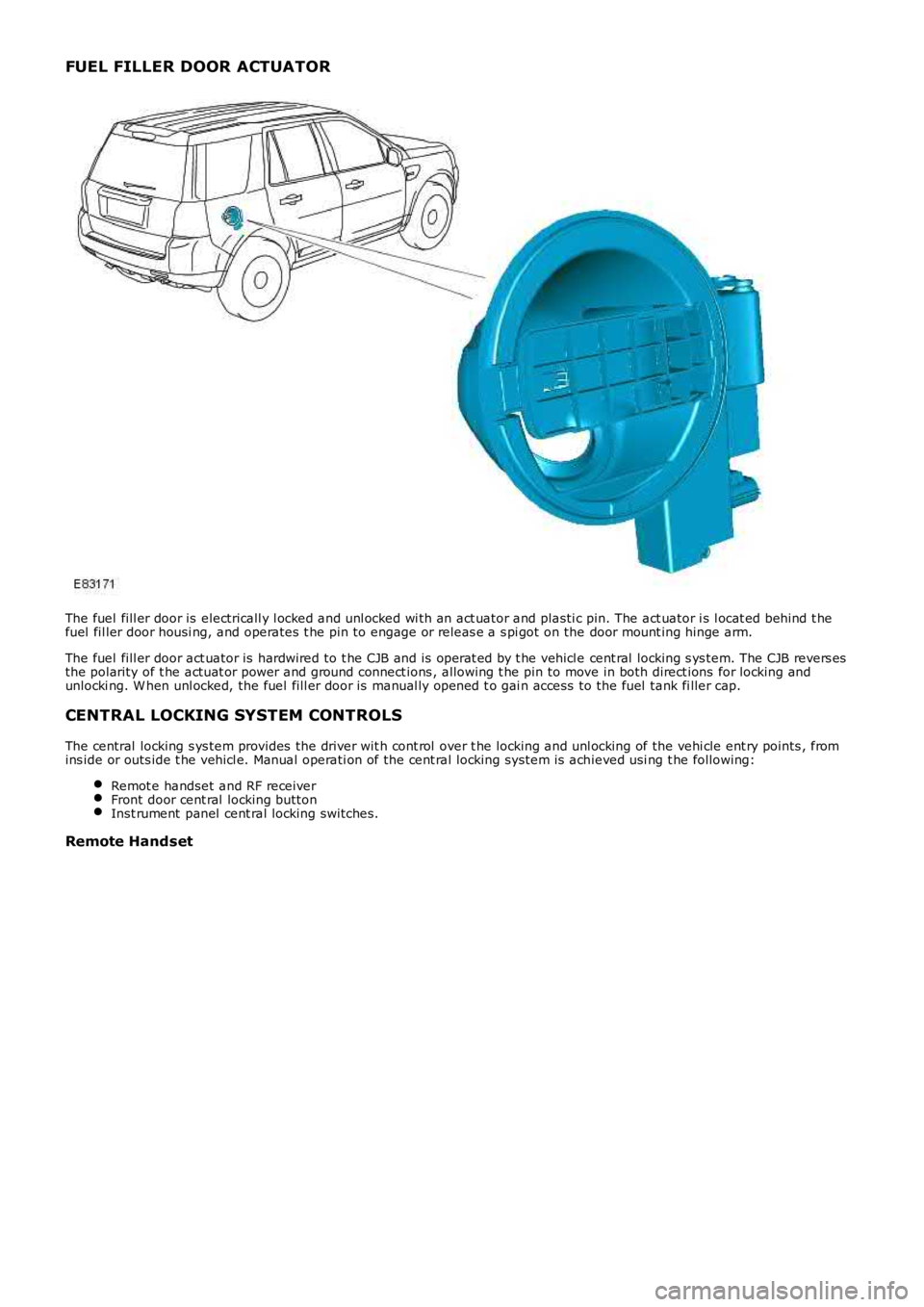

LAND ROVER FRELANDER 2 2006 Repair Manual FUEL FILLER DOOR ACTUATOR
The fuel fill er door is electricall y l ocked and unl ocked wi th an act uator and plastic pin. The act uator i s l ocat ed behind t hefuel fil ler door housi ng, and opera
