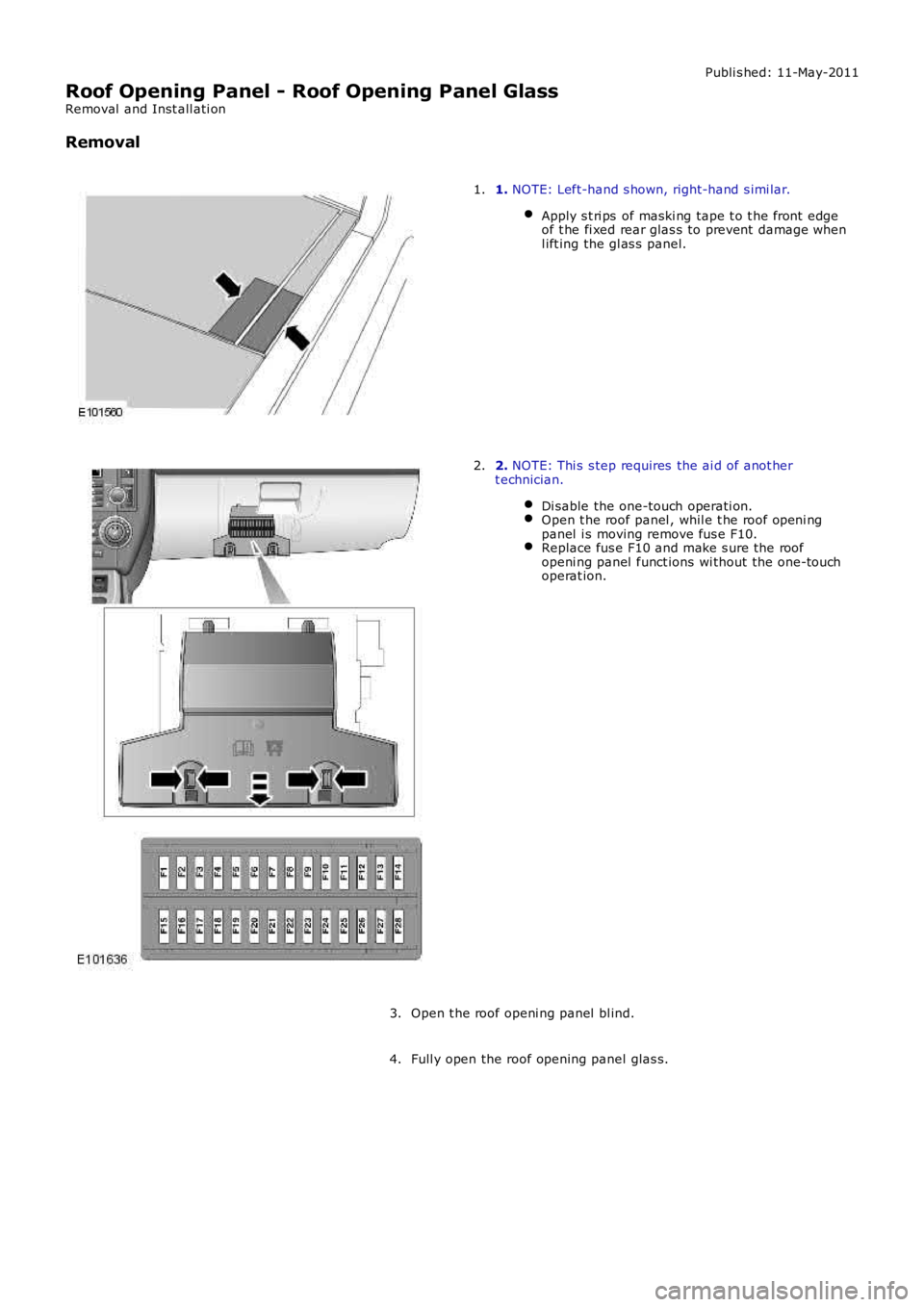

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Roof Opening Panel - Roof Opening Panel Glass Removal and Inst all ati on Removal 1. NOTE: Left-hand s hown, right-hand s imi lar. Apply s t ri ps of maski ng tape t o t he

Page 2410 of 3229

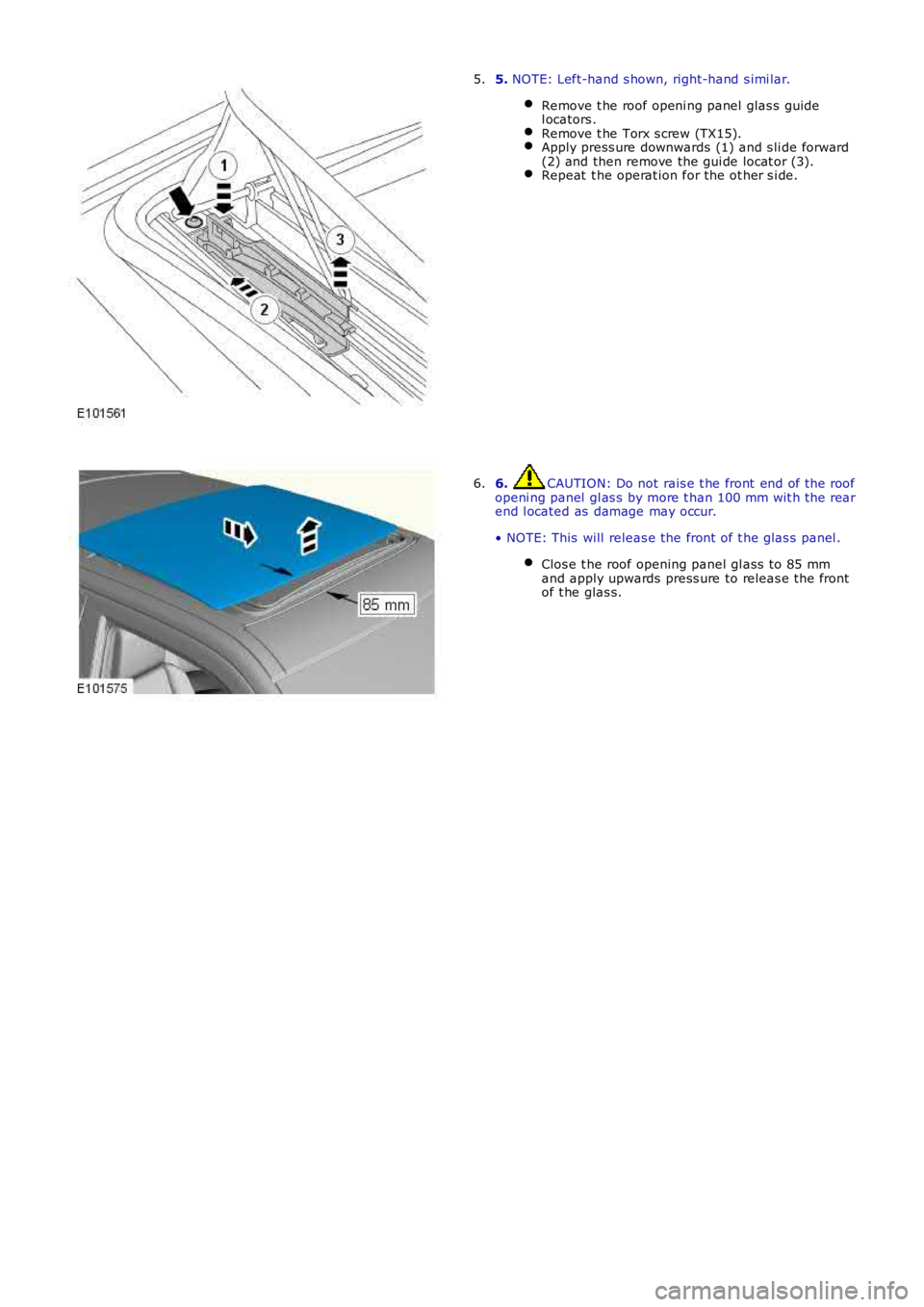

LAND ROVER FRELANDER 2 2006 Repair Manual 5. NOTE: Left-hand s hown, right-hand s imi lar. Remove t he roof openi ng panel glas s guidel ocators .Remove t he Torx s crew (TX15).Apply press ure downwards (1) and s li de forward(2) and then r

Page 2411 of 3229

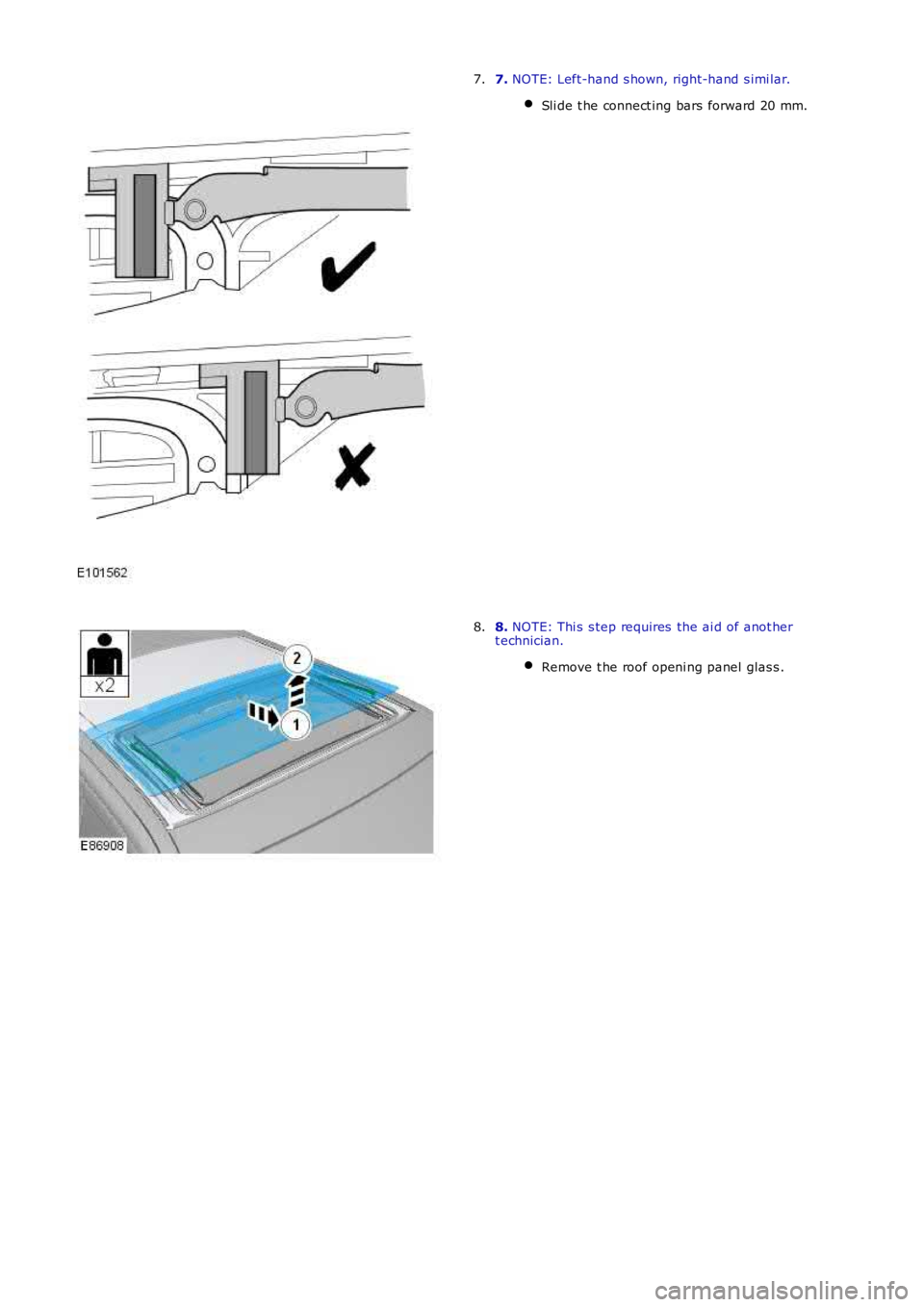

LAND ROVER FRELANDER 2 2006 Repair Manual 7. NOTE: Left-hand s hown, right-hand s imi lar. Sli de t he connect ing bars forward 20 mm. 7. 8. NOTE: Thi s s tep requires the ai d of anot hert echnician. Remove t he roof openi ng panel glas s

Page 2412 of 3229

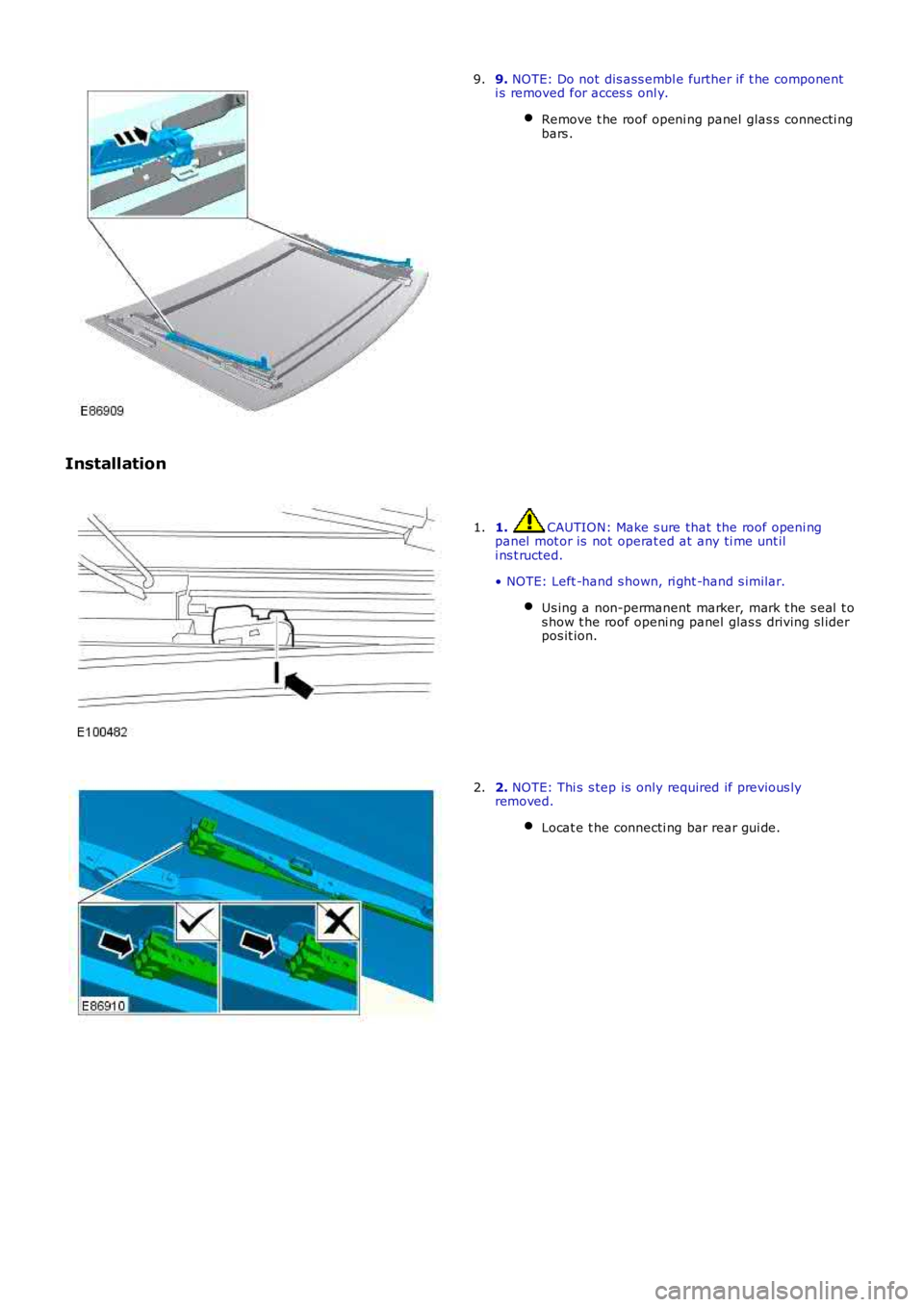

LAND ROVER FRELANDER 2 2006 Repair Manual 9. NOTE: Do not dis ass embl e further if t he componenti s removed for acces s onl y. Remove t he roof openi ng panel glas s connecti ngbars . 9. Installation 1. CAUTION: Make s ure that the roof

Page 2413 of 3229

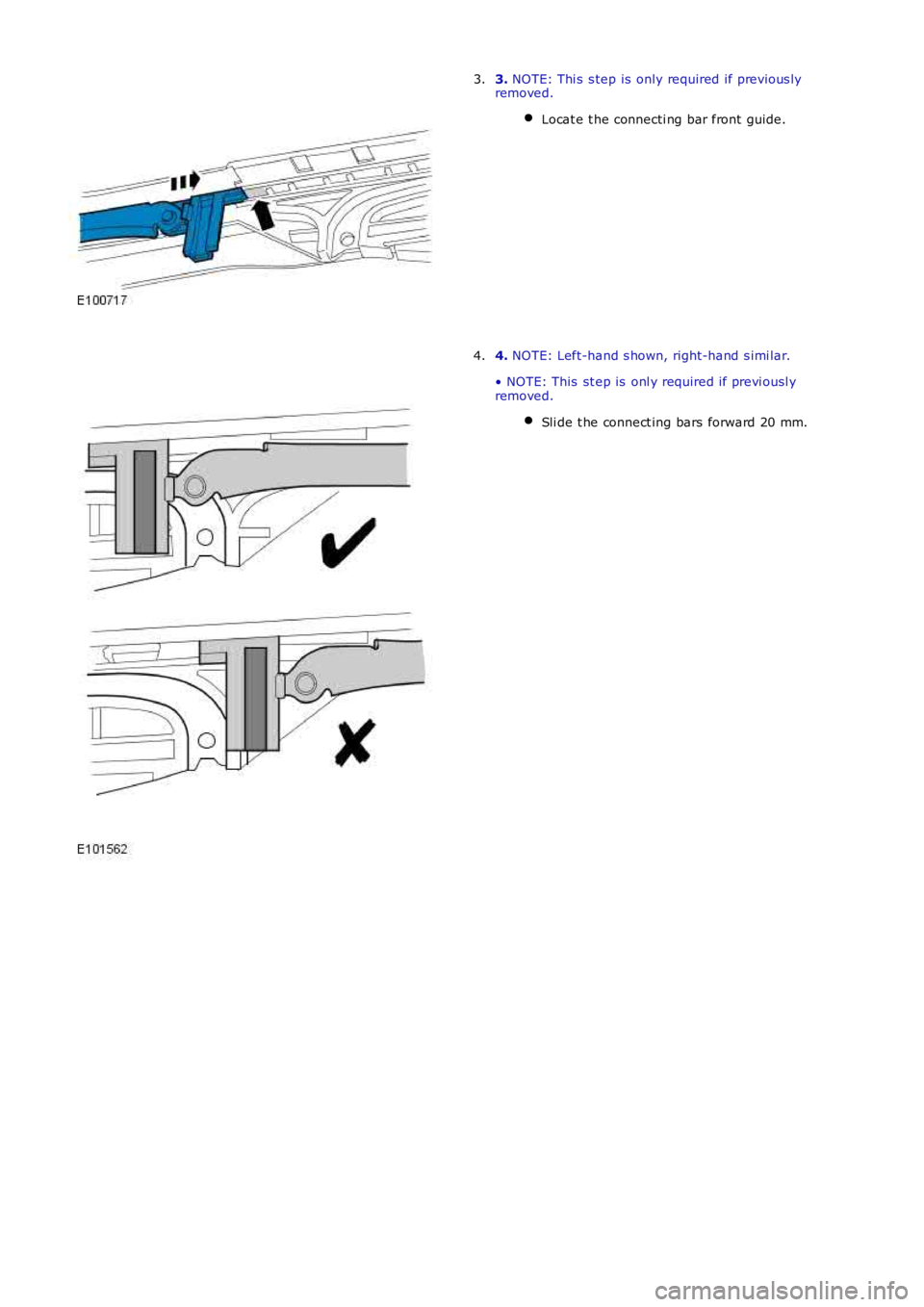

LAND ROVER FRELANDER 2 2006 Repair Manual 3. NOTE: Thi s s tep is only required if previous lyremoved. Locat e t he connecti ng bar front guide. 3. 4. NOTE: Left-hand s hown, right-hand s imi lar. • NOTE: This st ep is onl y required i

Page 2414 of 3229

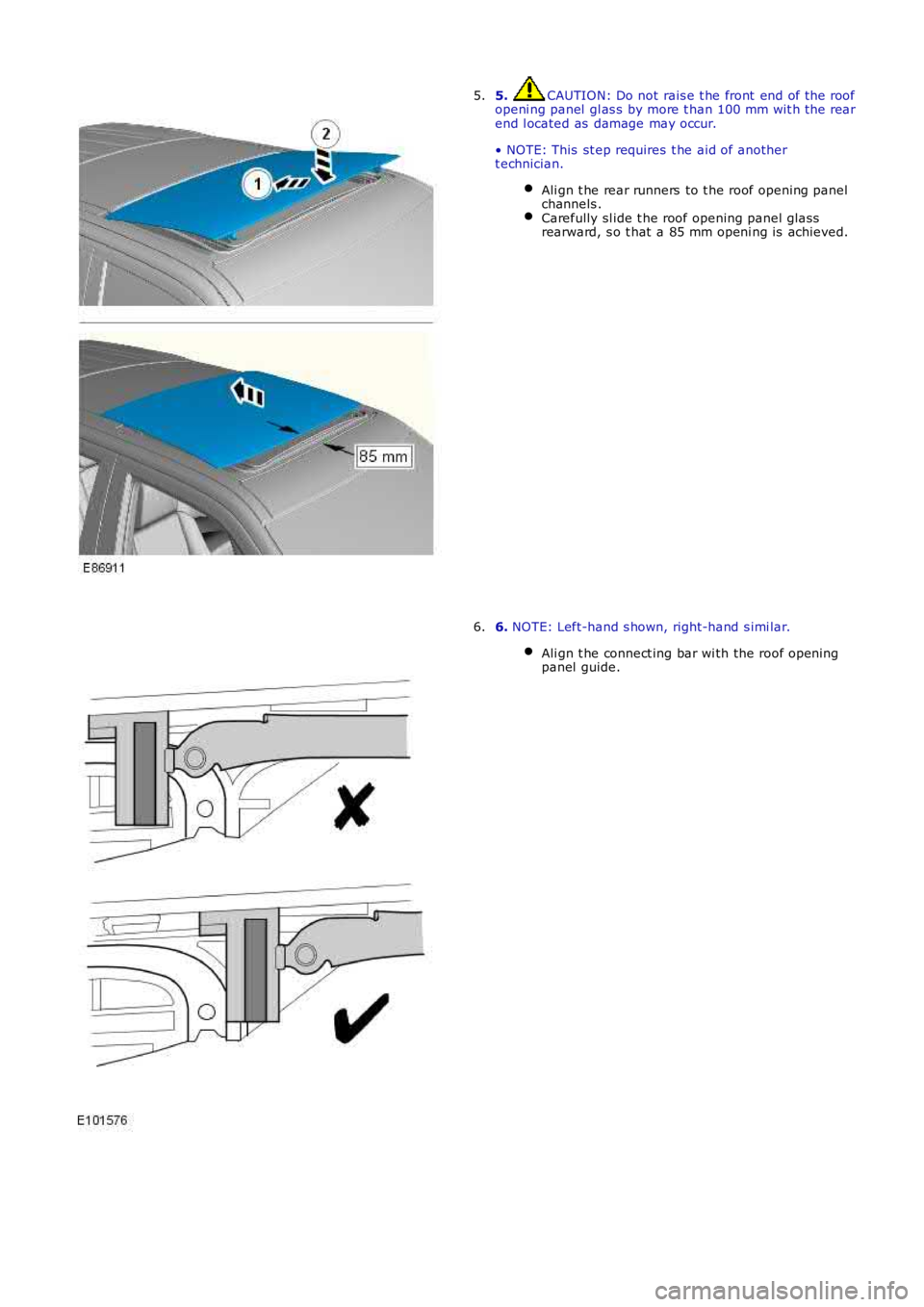

LAND ROVER FRELANDER 2 2006 Repair Manual 5. CAUTION: Do not rais e t he front end of t he roofopeni ng panel gl as s by more t han 100 mm wit h t he rearend l ocated as damage may occur. • NOTE: This st ep requires t he aid of anoth

Page 2415 of 3229

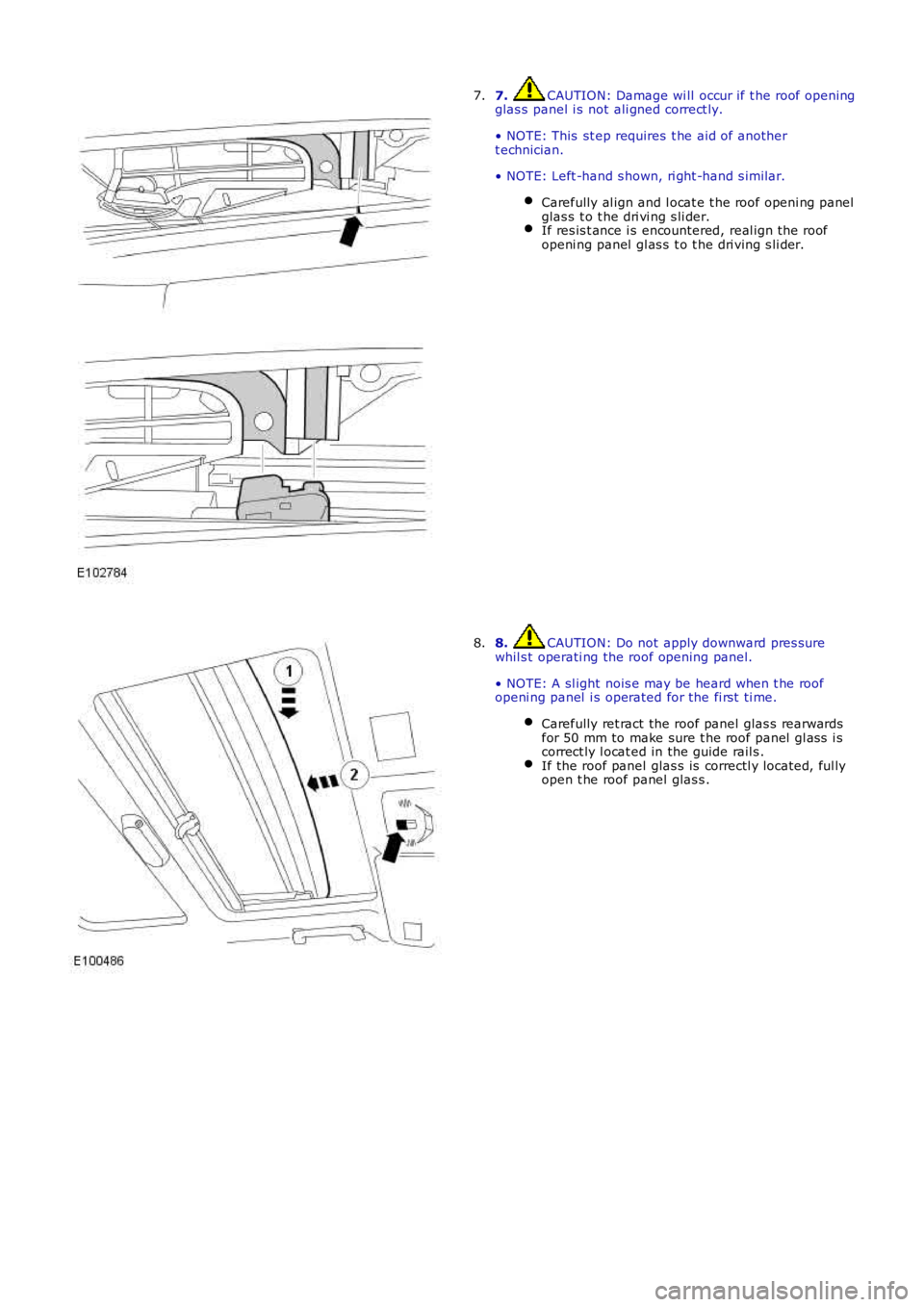

LAND ROVER FRELANDER 2 2006 Repair Manual 7. CAUTION: Damage wi ll occur if t he roof openingglas s panel i s not ali gned correct ly. • NOTE: This st ep requires t he aid of anothert echnician. • NOTE: Left -hand s hown, ri ght -han

Page 2416 of 3229

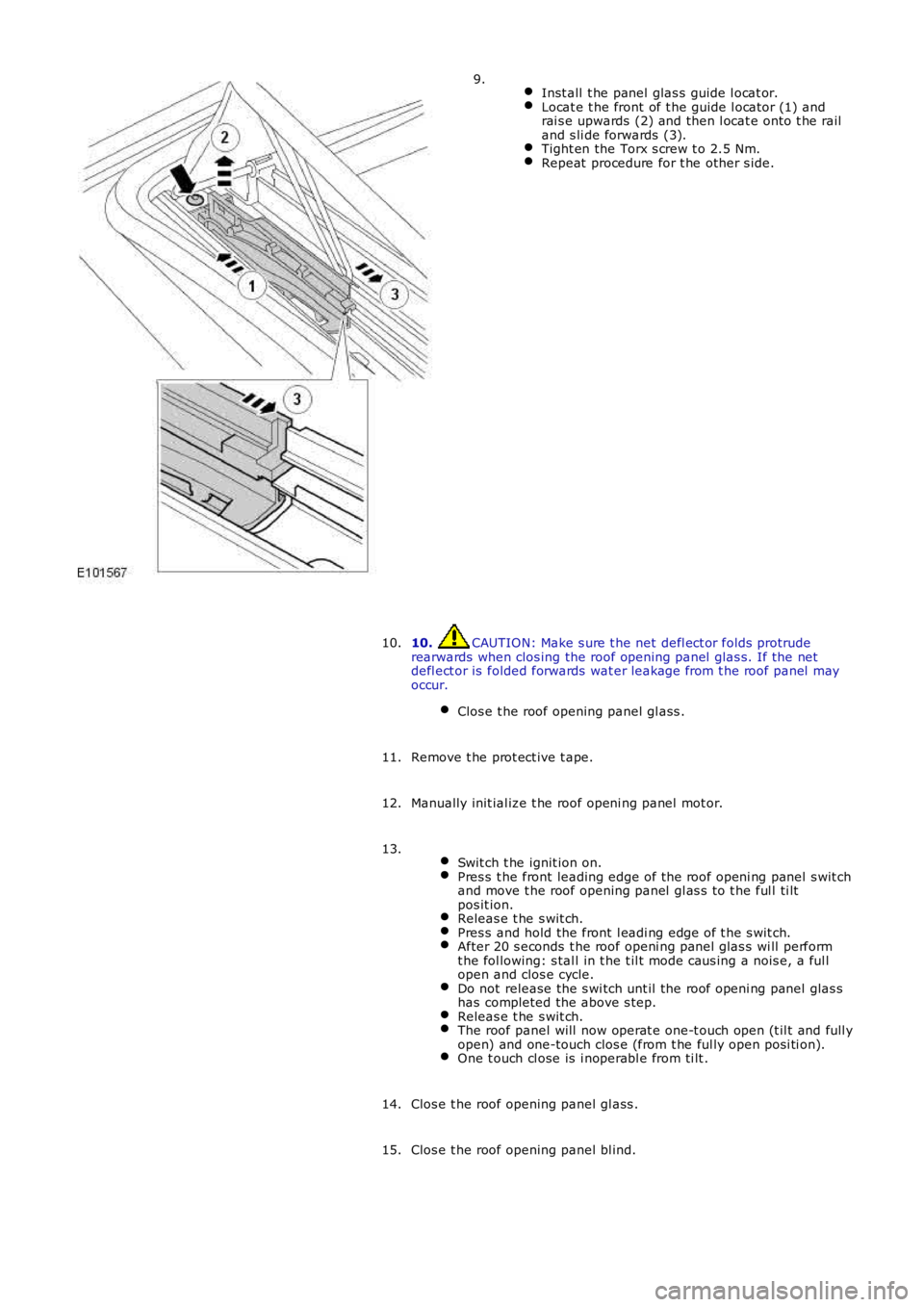

LAND ROVER FRELANDER 2 2006 Repair Manual Inst all t he panel glas s guide l ocat or.Locat e t he front of t he guide l ocat or (1) andrai s e upwards (2) and then l ocat e onto t he railand s li de forwards (3).Tight en the Torx s crew
