Page 1329 of 3229

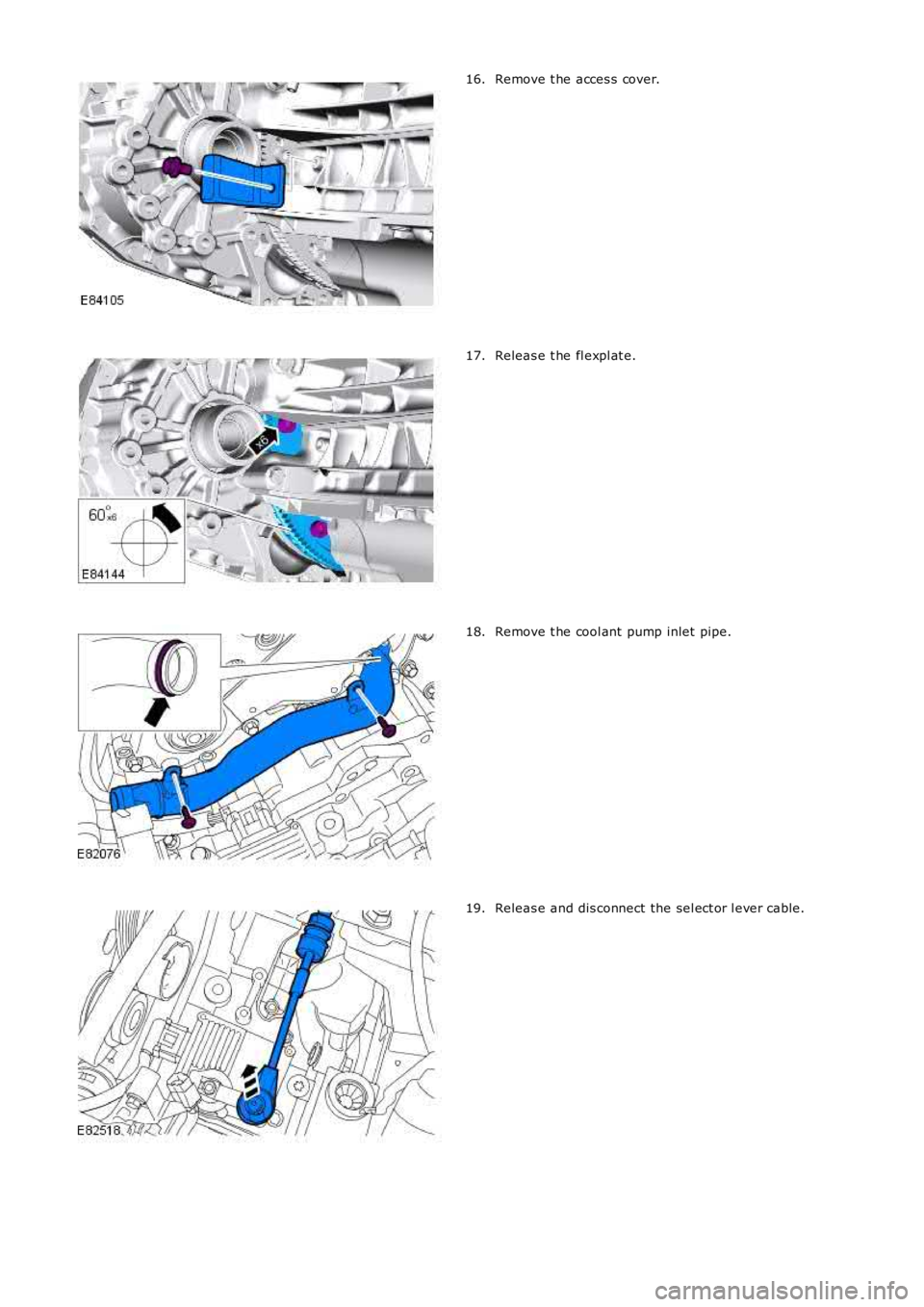

LAND ROVER FRELANDER 2 2006 Repair Manual Remove t he acces s cover. 16. Releas e t he fl expl at e. 17. Remove t he cool ant pump inlet pipe. 18. Releas e and dis connect the sel ect or l ever cable. 19.

Page 1330 of 3229

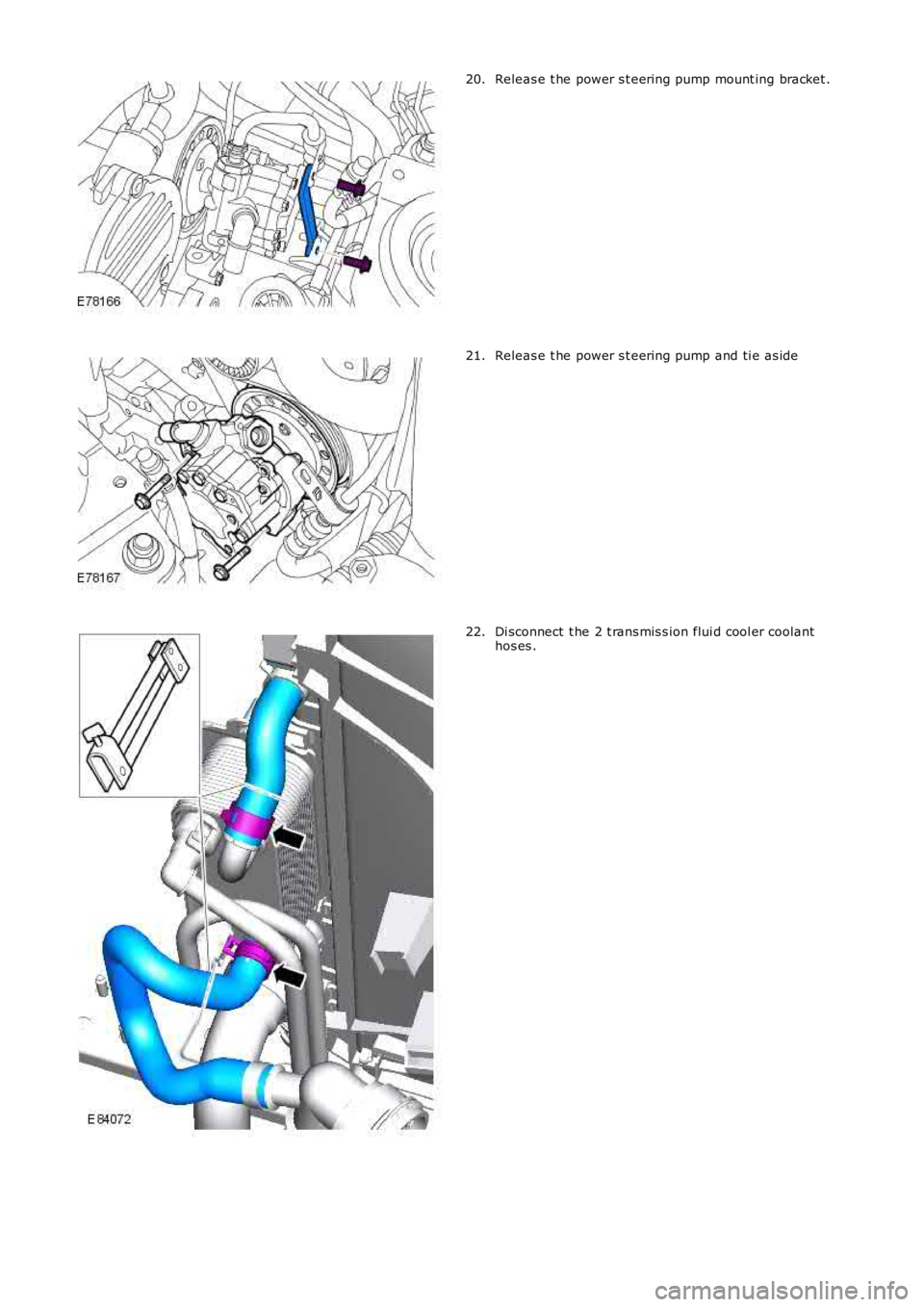

LAND ROVER FRELANDER 2 2006 Repair Manual Releas e t he power s t eering pump mount ing bracket . 20. Releas e t he power s t eering pump and ti e as ide 21. Di sconnect t he 2 t rans mis s ion flui d cool er coolant hos es . 22.

Page 1331 of 3229

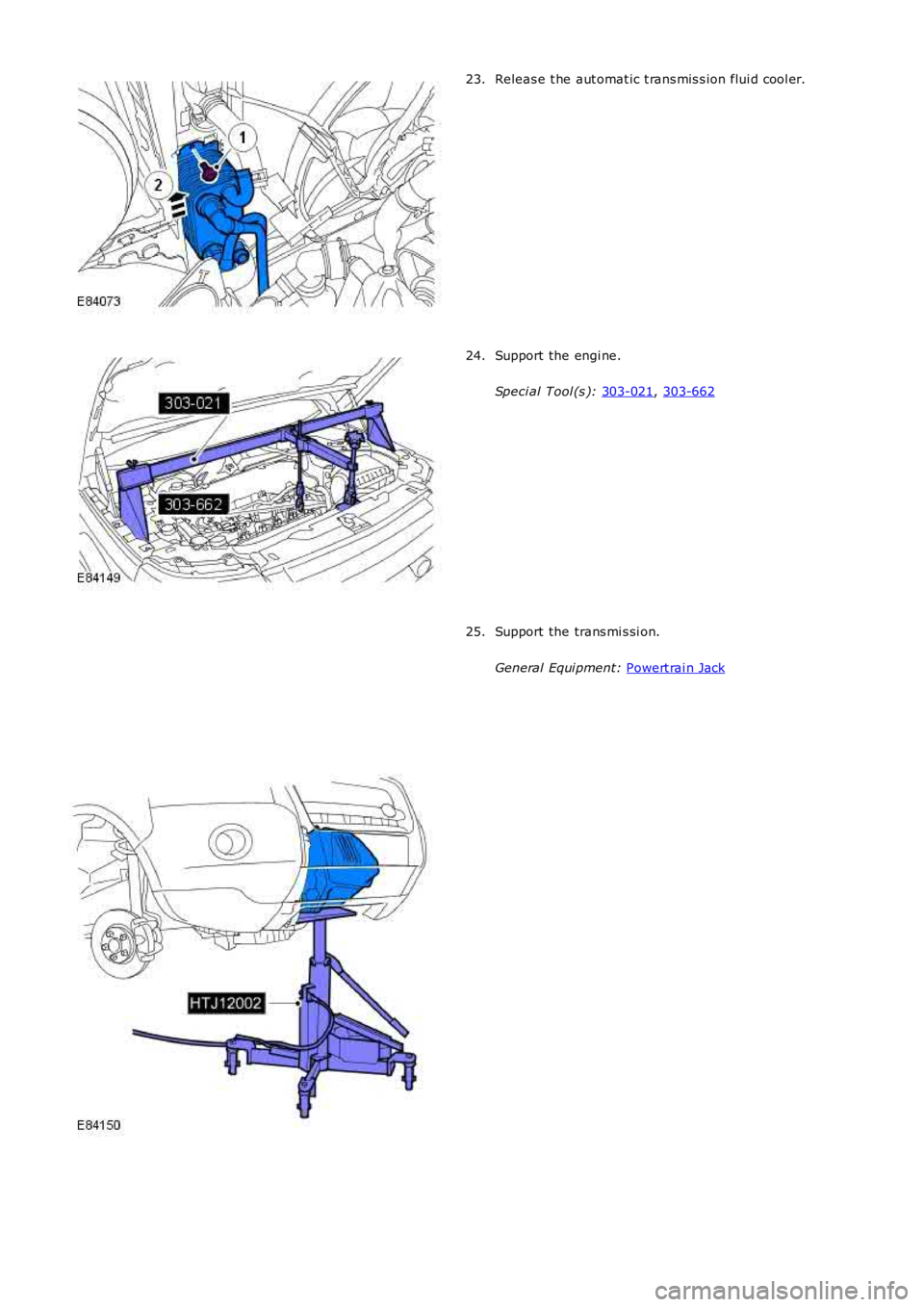

LAND ROVER FRELANDER 2 2006 Repair Manual Releas e t he aut omat ic t rans mis s ion flui d cool er. 23. Support the engi ne. Speci al Tool (s ): 303-021 , 303-662 24. Support the trans mi s si on. General Equi pment: Powert rai n Jack 25.

Page 1332 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual 26. W ARNING: Make sure t hat new nut s are i ns t alled. • NOTE: Vehicles wi th aut omat ic t rans mis s ion have a breat her pi pe att ached t o t he mounti ng. Remove t he bracket . 26. Remov

Page 1333 of 3229

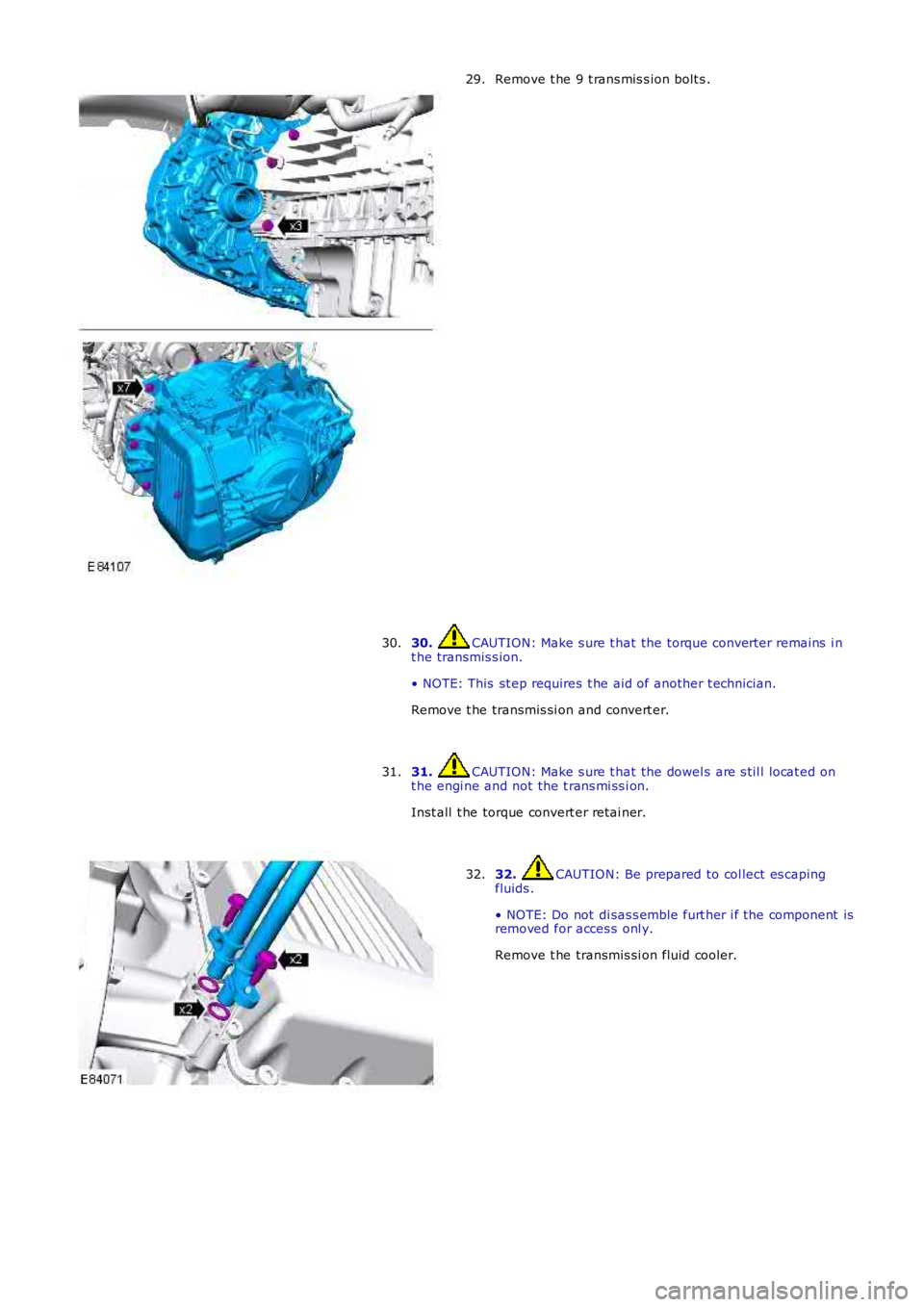

LAND ROVER FRELANDER 2 2006 Repair Manual Remove t he 9 t rans mis s ion bolt s . 29. 30. CAUTION: Make s ure t hat the torque converter remains i n t he transmis s ion. • NOTE: This st ep requires t he aid of another t echnician. Remov

Page 1334 of 3229

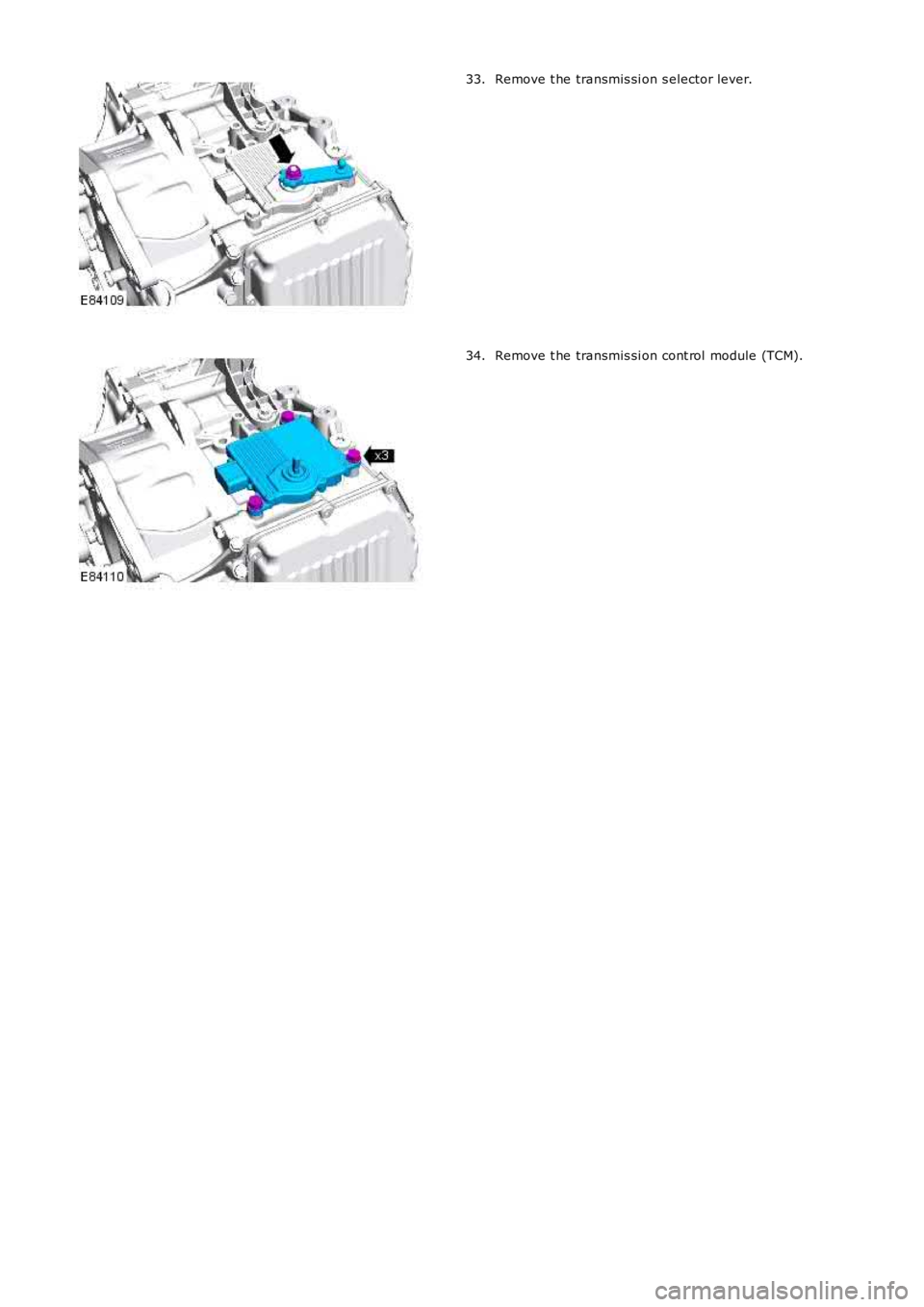

LAND ROVER FRELANDER 2 2006 Repair Manual Remove t he transmis si on s elector lever. 33. Remove t he transmis si on cont rol module (TCM). 34.

Page 1335 of 3229

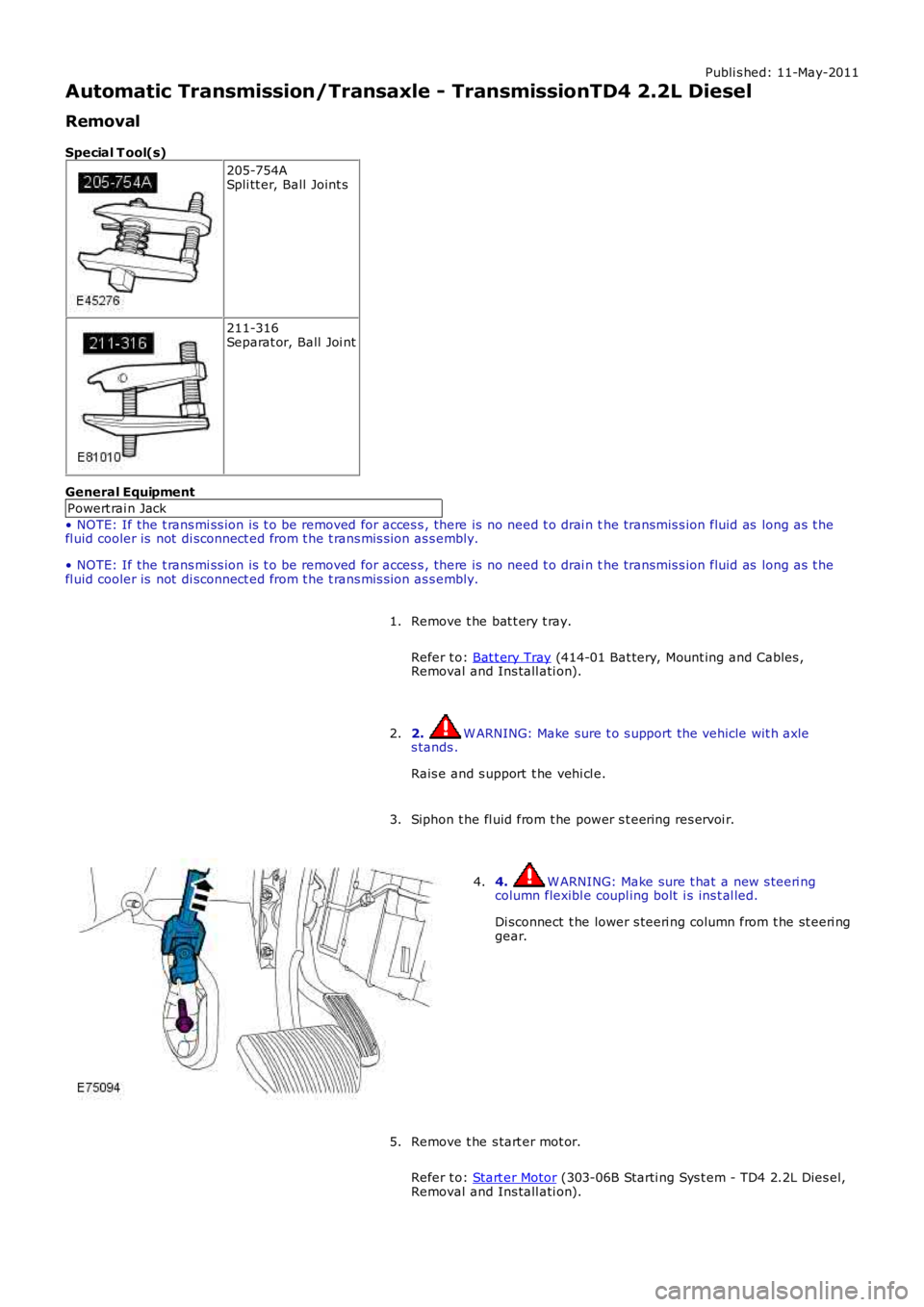

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Automatic Transmission/Transaxle - TransmissionTD4 2.2L Diesel Removal Special T ool(s) 205-754A Spli tt er, Ball Joint s 211-316 Separat or, Ball Joi nt General Equipment Po

Page 1336 of 3229

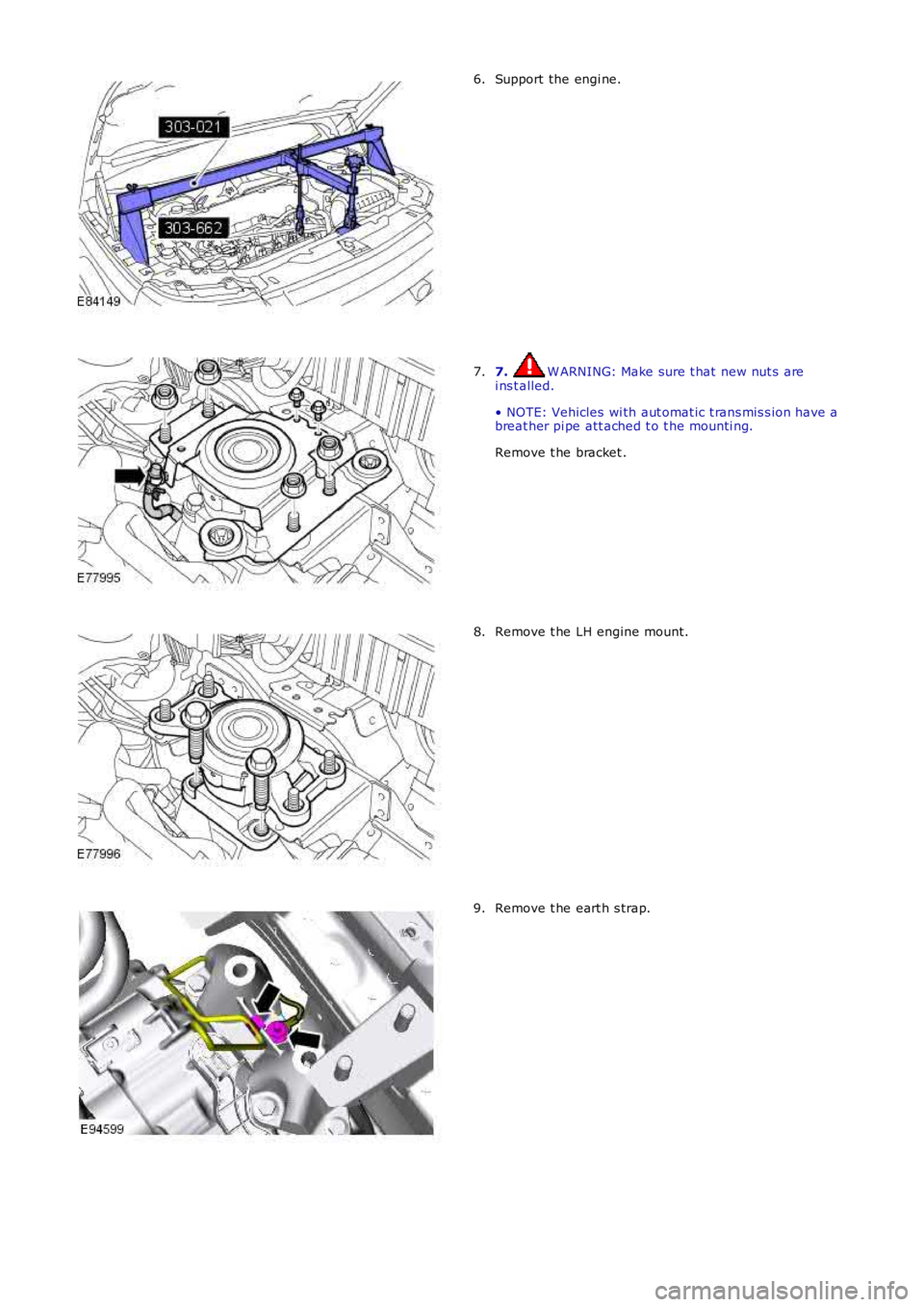

LAND ROVER FRELANDER 2 2006 Repair Manual Support the engi ne. 6. 7. W ARNING: Make sure t hat new nut s are i ns t alled. • NOTE: Vehicles wi th aut omat ic t rans mis s ion have a breat her pi pe att ached t o t he mounti ng. Remove t
