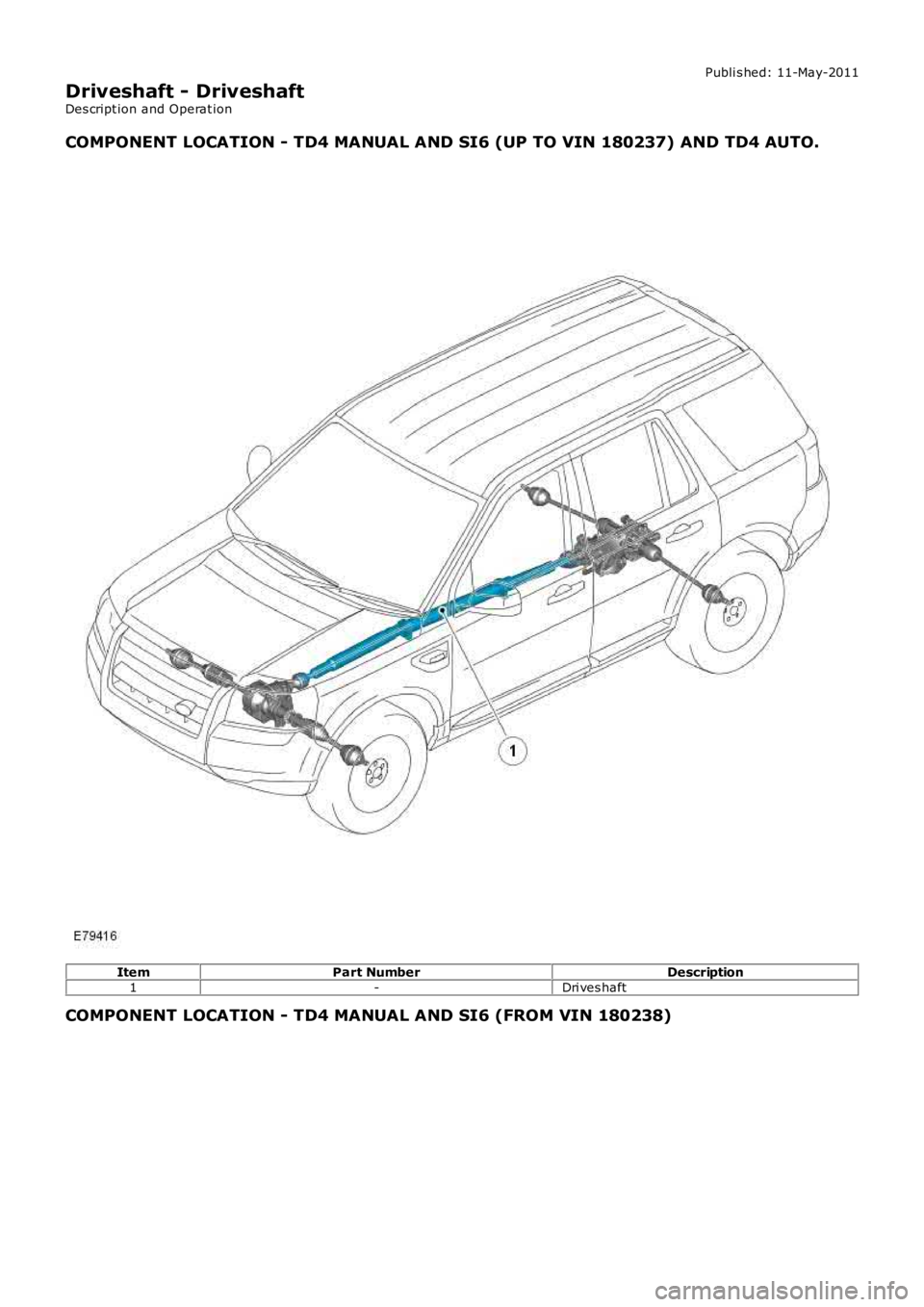

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Driveshaft - Driveshaft Des cript ion and Operat ion COMPONENT LOCATION - TD4 MANUAL AND SI6 (UP TO VIN 180237) AND TD4 AUTO. ItemPart NumberDescription1-Dri ves haft COMPONEN

Page 306 of 3229

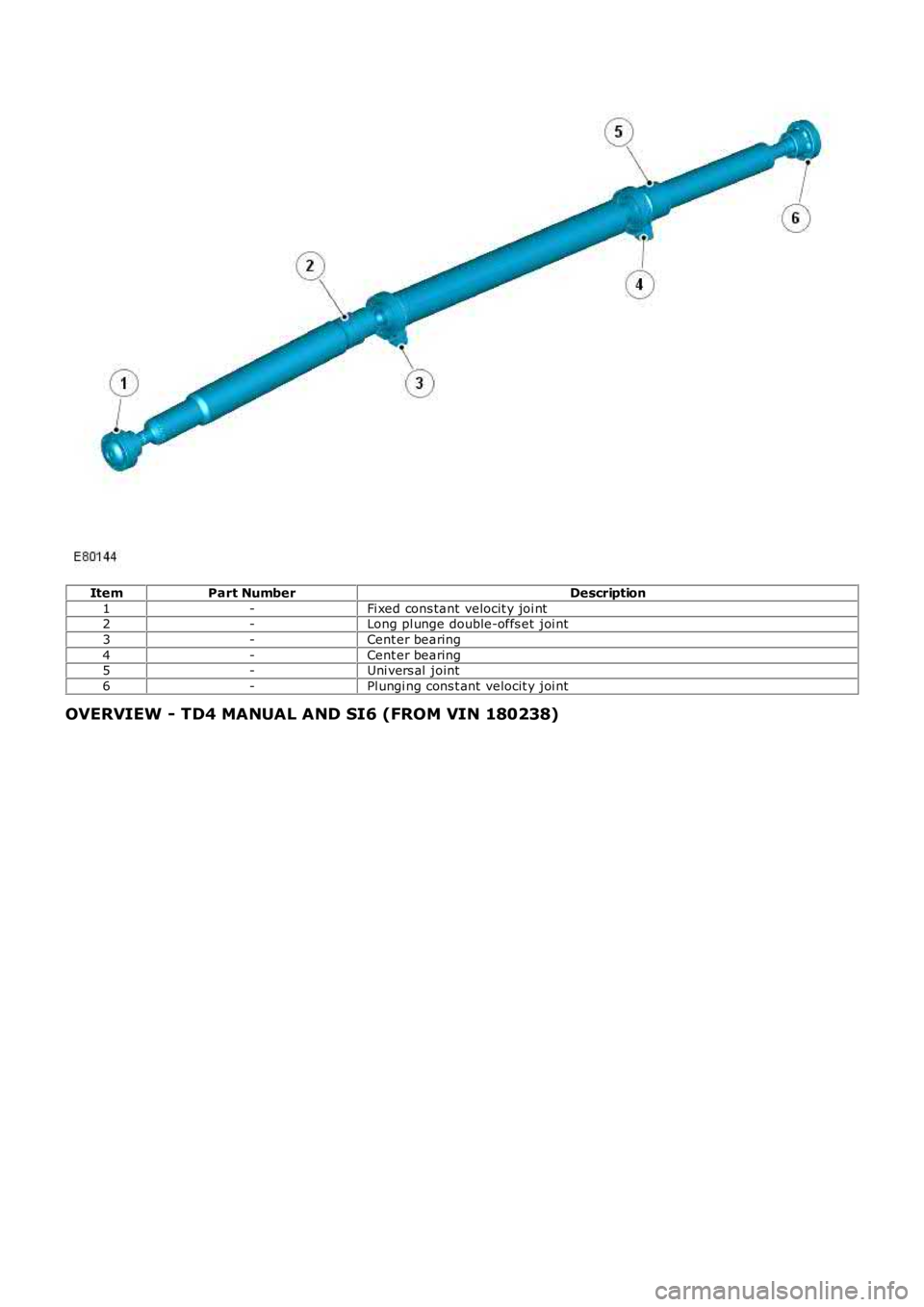

LAND ROVER FRELANDER 2 2006 Repair Manual ItemPart NumberDescription 1-Dri ves haft OVERVIEW - TD4 MANUAL AND SI6 (UP TO VIN 180237) AND TD4 AUTO.

Page 307 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual ItemPart NumberDescription 1-Fi xed cons tant velocit y joi nt2-Long pl unge double-offs et joi nt 3-Cent er bearing 4-Cent er bearing5-Uni vers al joint 6-Pl ungi ng cons t ant velocit y joi nt O

Page 308 of 3229

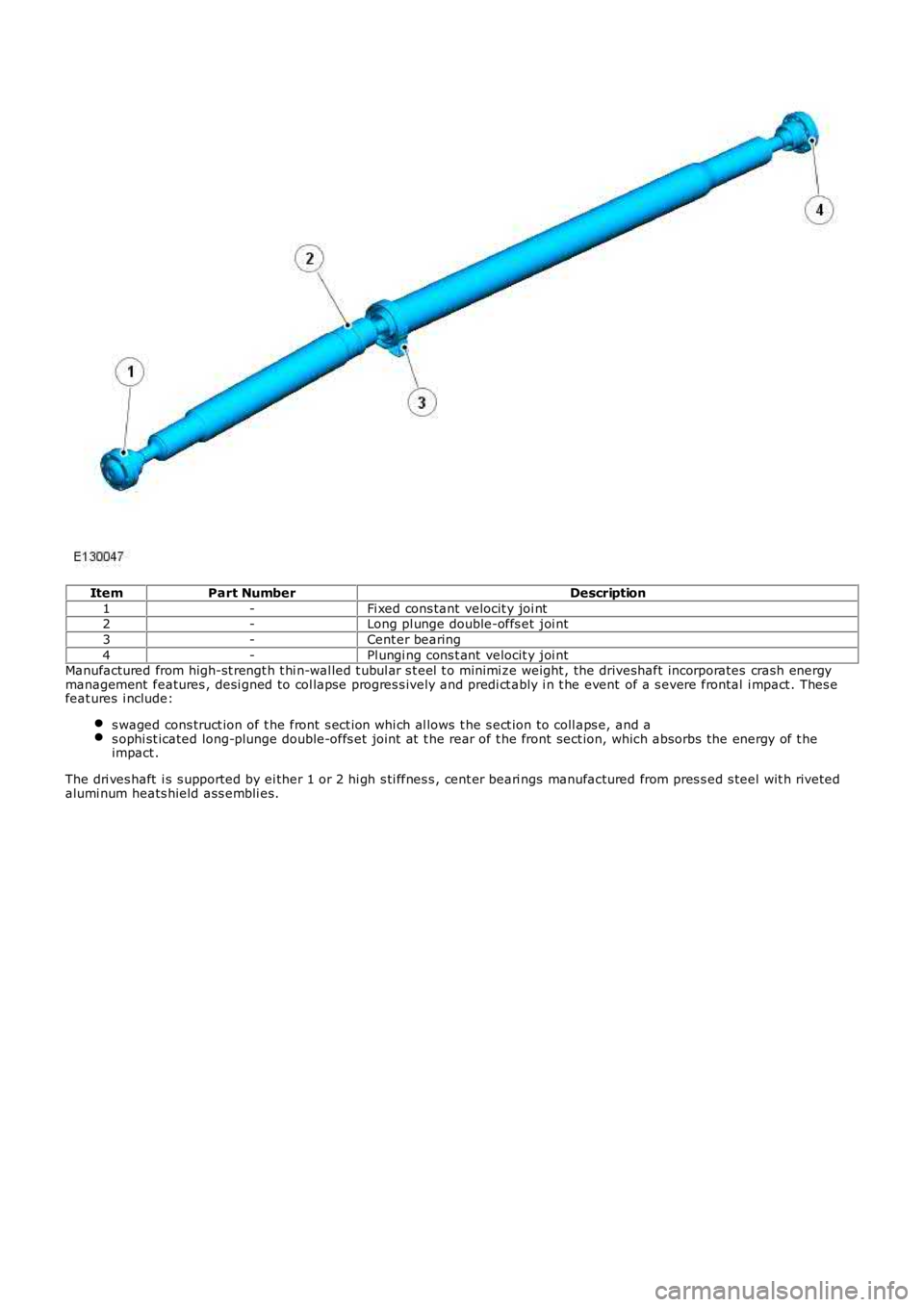

LAND ROVER FRELANDER 2 2006 Repair Manual ItemPart NumberDescription 1-Fi xed cons tant velocit y joi nt2-Long pl unge double-offs et joi nt 3-Cent er bearing 4-Pl ungi ng cons t ant velocit y joi ntManufactured from high-st rengt h t hi n

Page 309 of 3229

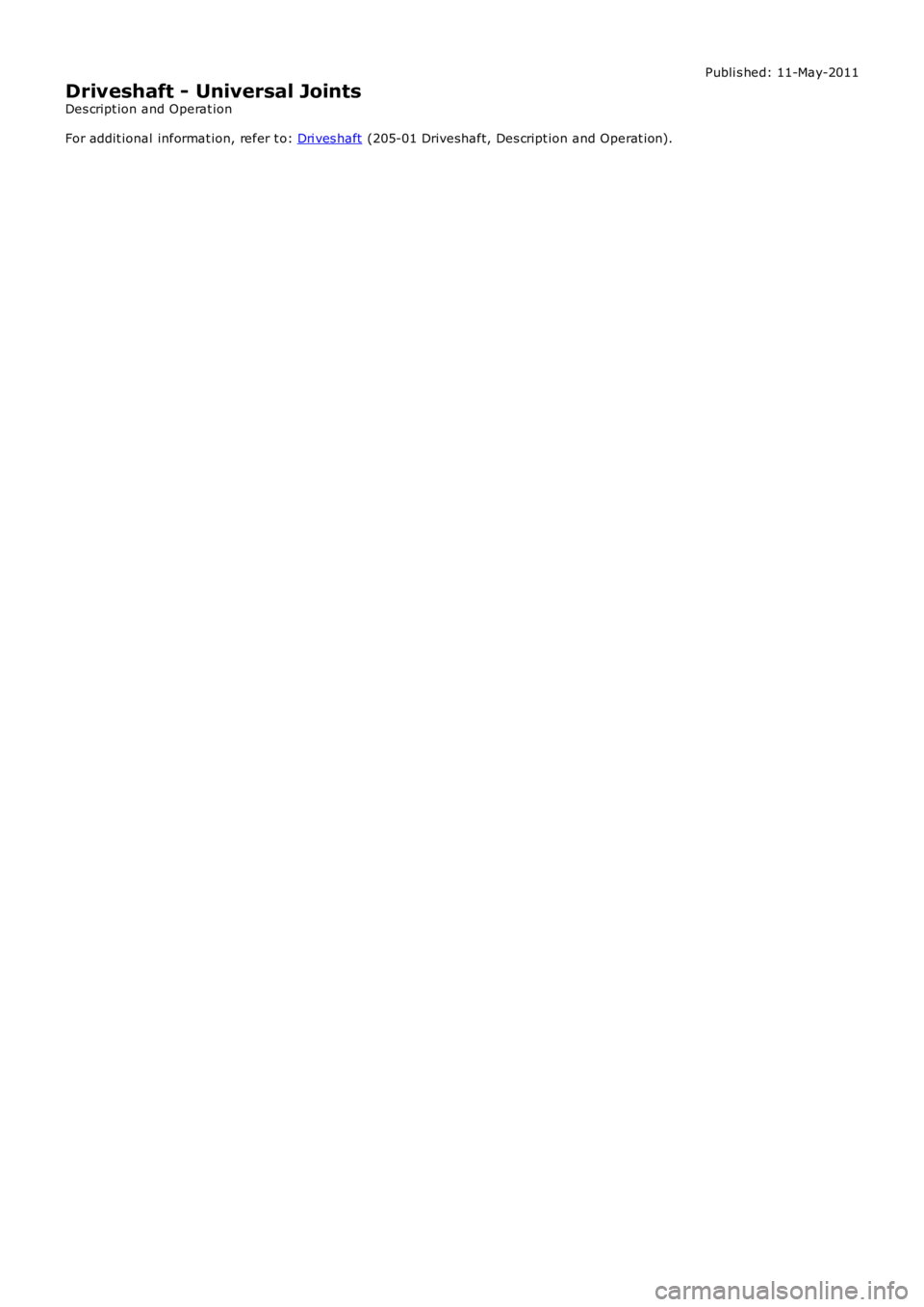

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Driveshaft - Universal Joints Des cript ion and Operat ion For addit ional informat ion, refer t o: Dri ves haft (205-01 Driveshaft, Des cript ion and Operat ion).

Page 310 of 3229

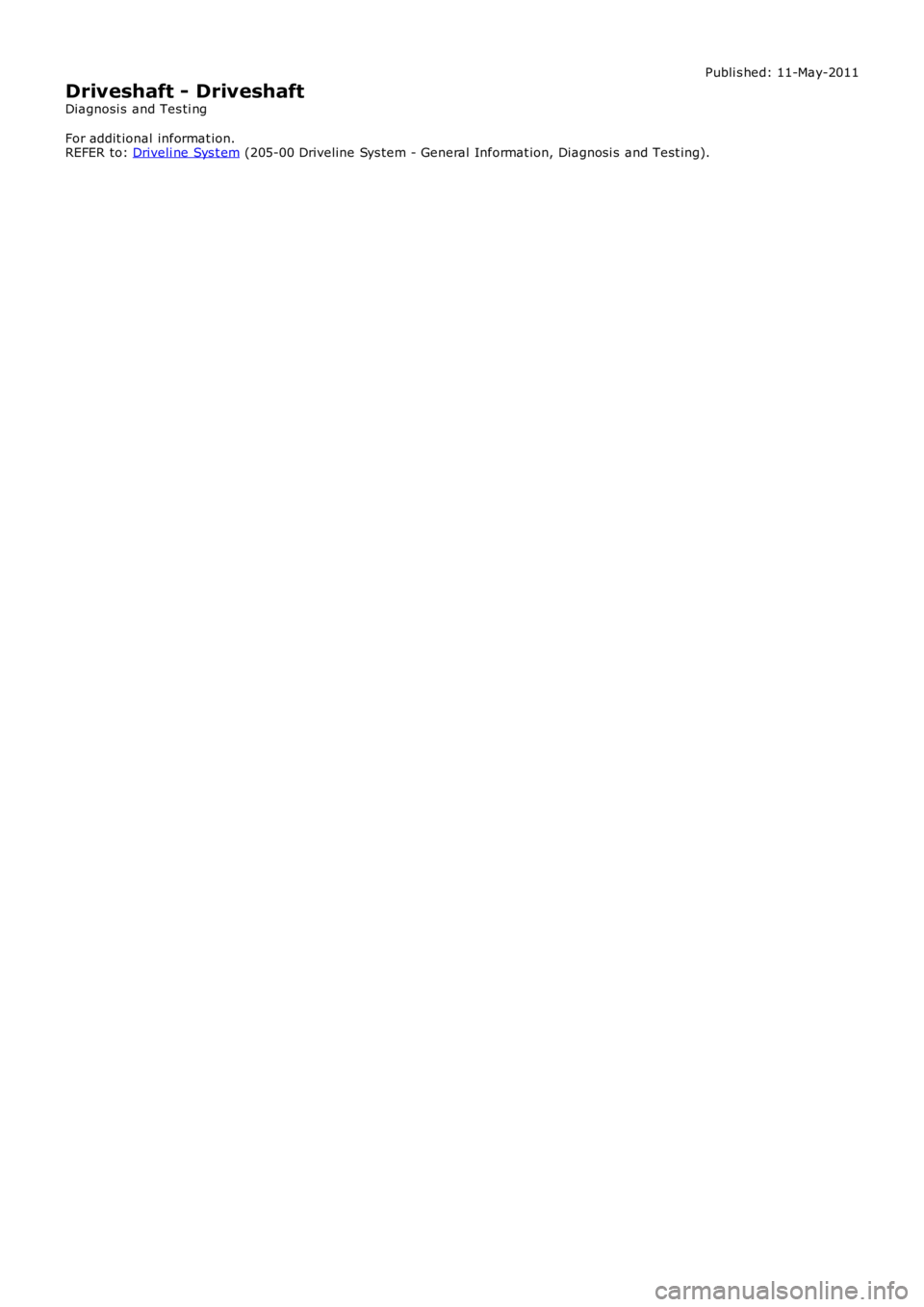

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Driveshaft - Driveshaft Diagnosi s and Tes ti ng For addit ional informat ion.REFER to: Driveli ne Sys t em (205-00 Driveline Sys tem - General Informat ion, Diagnosi s and

Page 311 of 3229

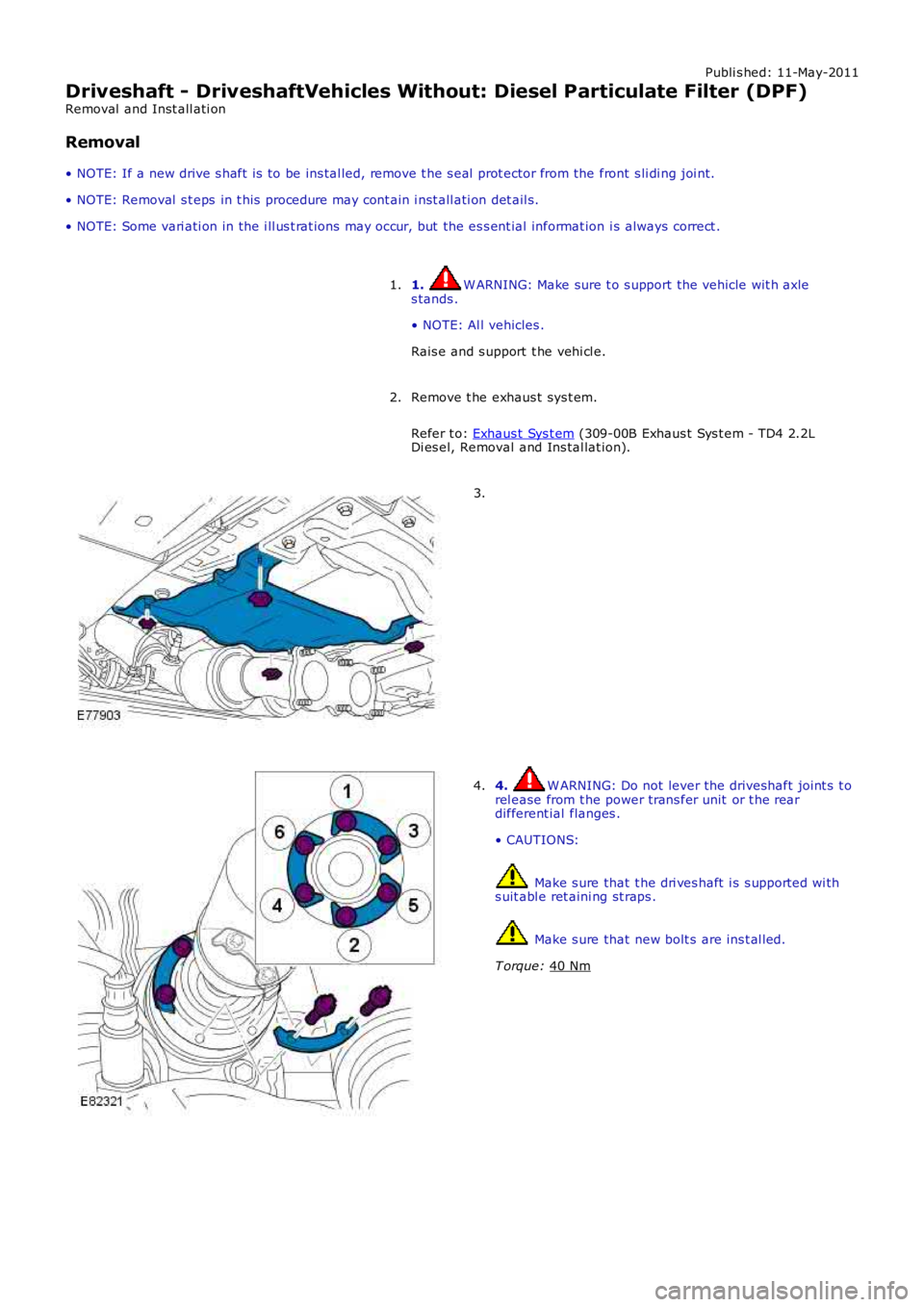

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Driveshaft - DriveshaftVehicles Without: Diesel Particulate Filter (DPF) Removal and Inst all ati on Removal • NOTE: If a new drive s haft is to be ins tal led, remove t

Page 312 of 3229

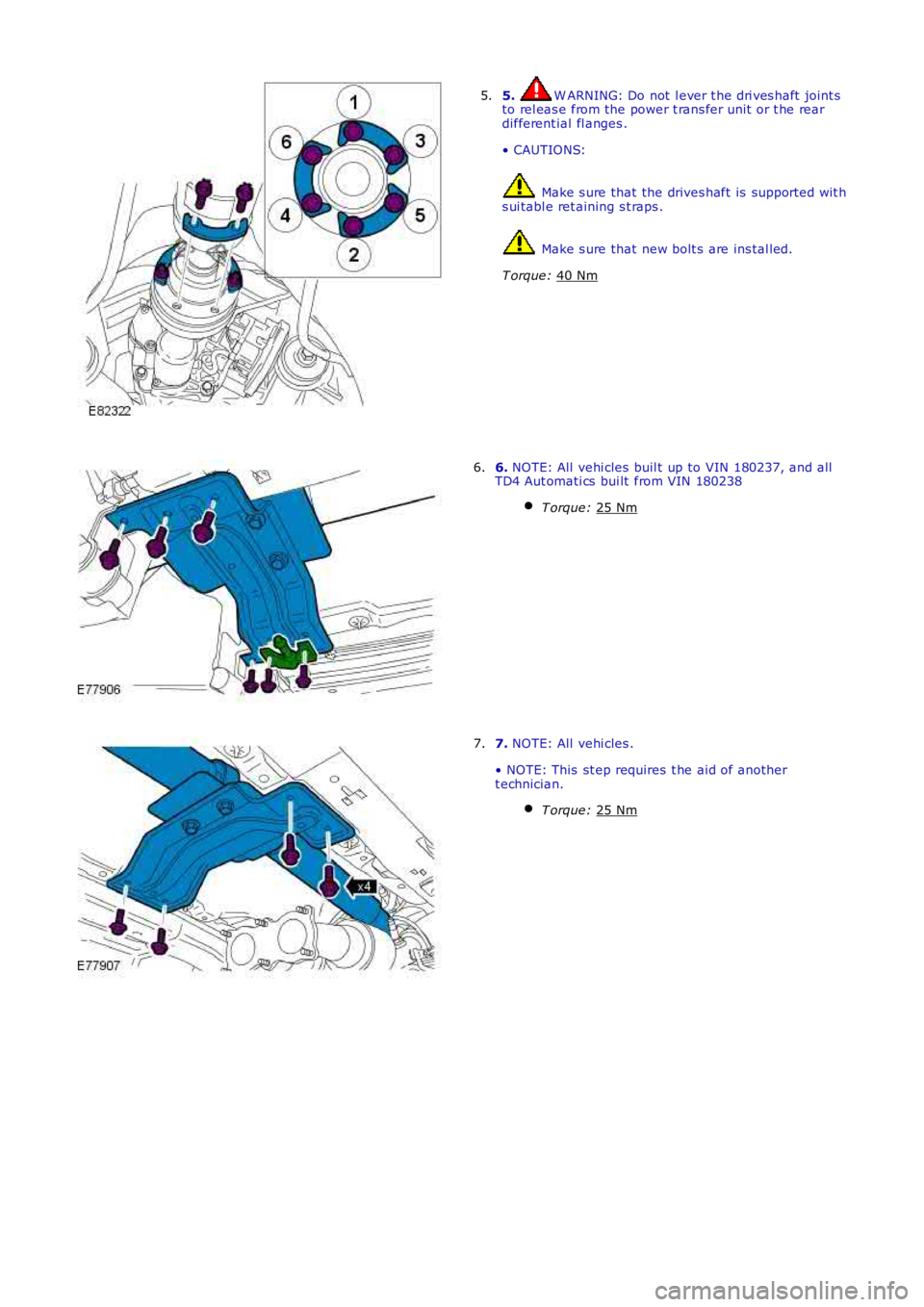

LAND ROVER FRELANDER 2 2006 Repair Manual 5. W ARNING: Do not l ever t he dri ves haft joint s to rel eas e from the power t rans fer unit or t he rear different ial fl anges . • CAUTIONS: Make s ure that the drives haft is support ed
