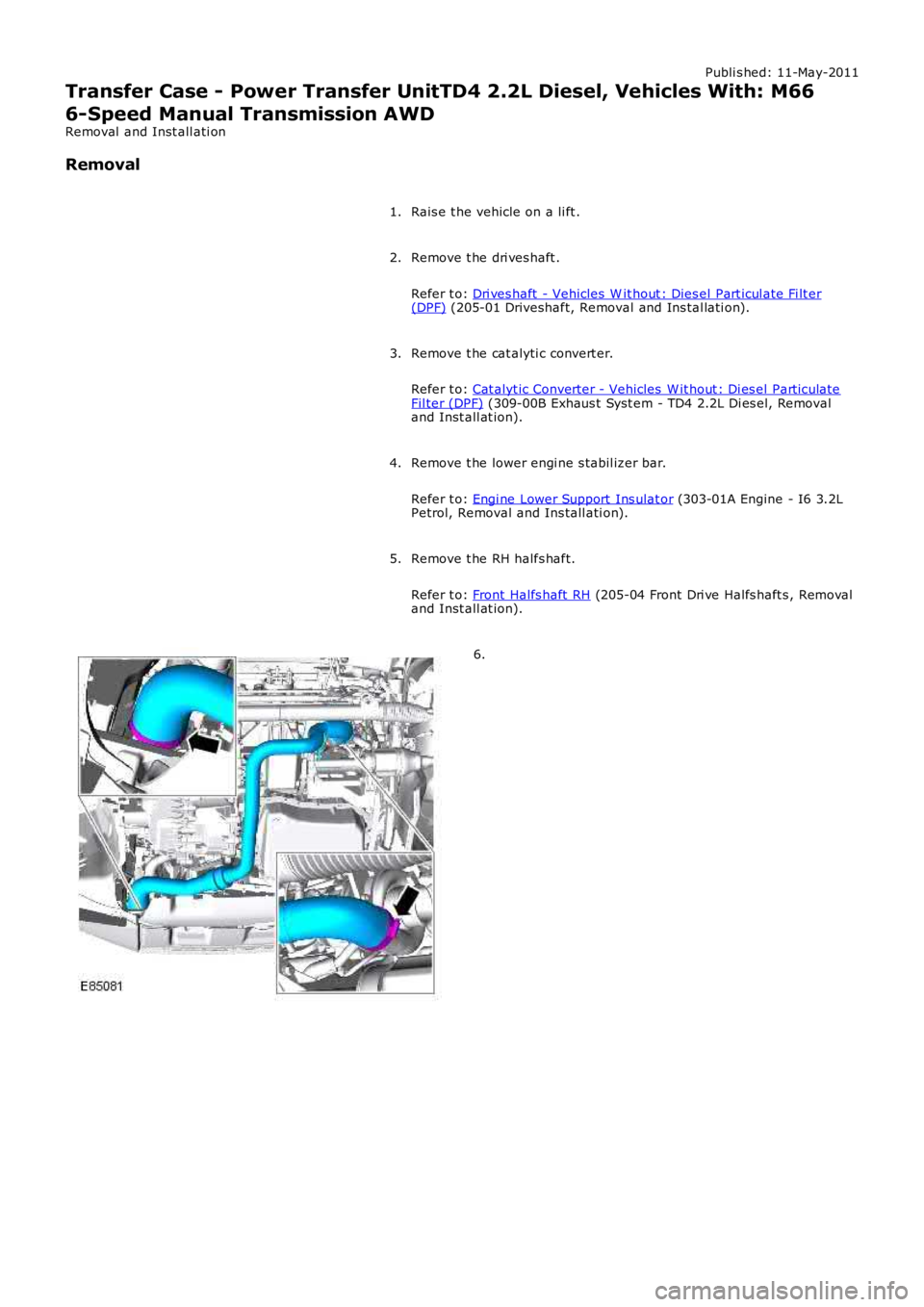

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Transfer Case - Power Transfer UnitTD4 2.2L Diesel, Vehicles With: M66 6-Speed Manual Transmission AWD Removal and Inst all ati on Removal Rais e t he vehicle on a li ft . 1.

Page 1498 of 3229

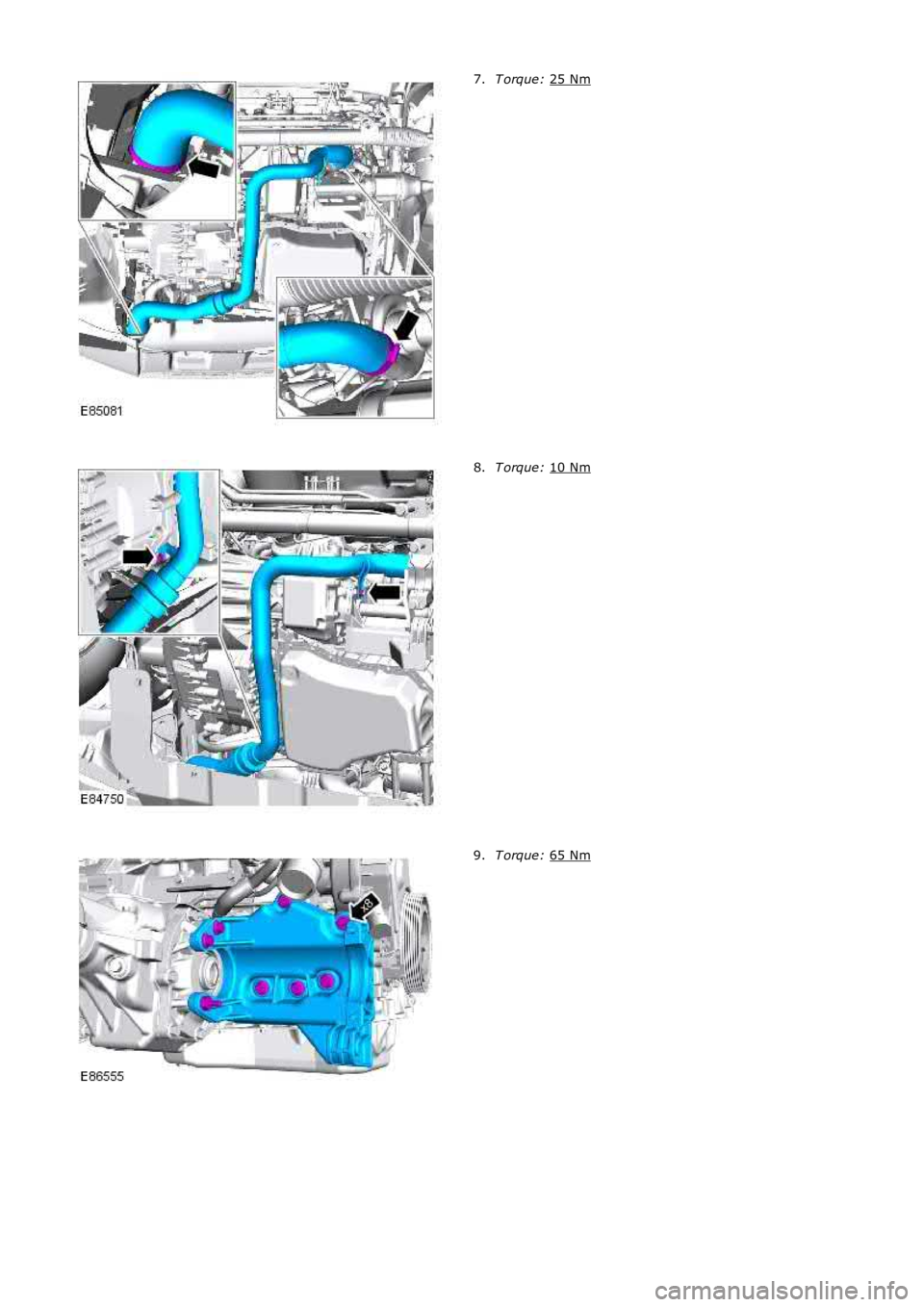

LAND ROVER FRELANDER 2 2006 Repair Manual T orque: 25 Nm 7. T orque: 10 Nm 8. T orque: 65 Nm 9.

Page 1499 of 3229

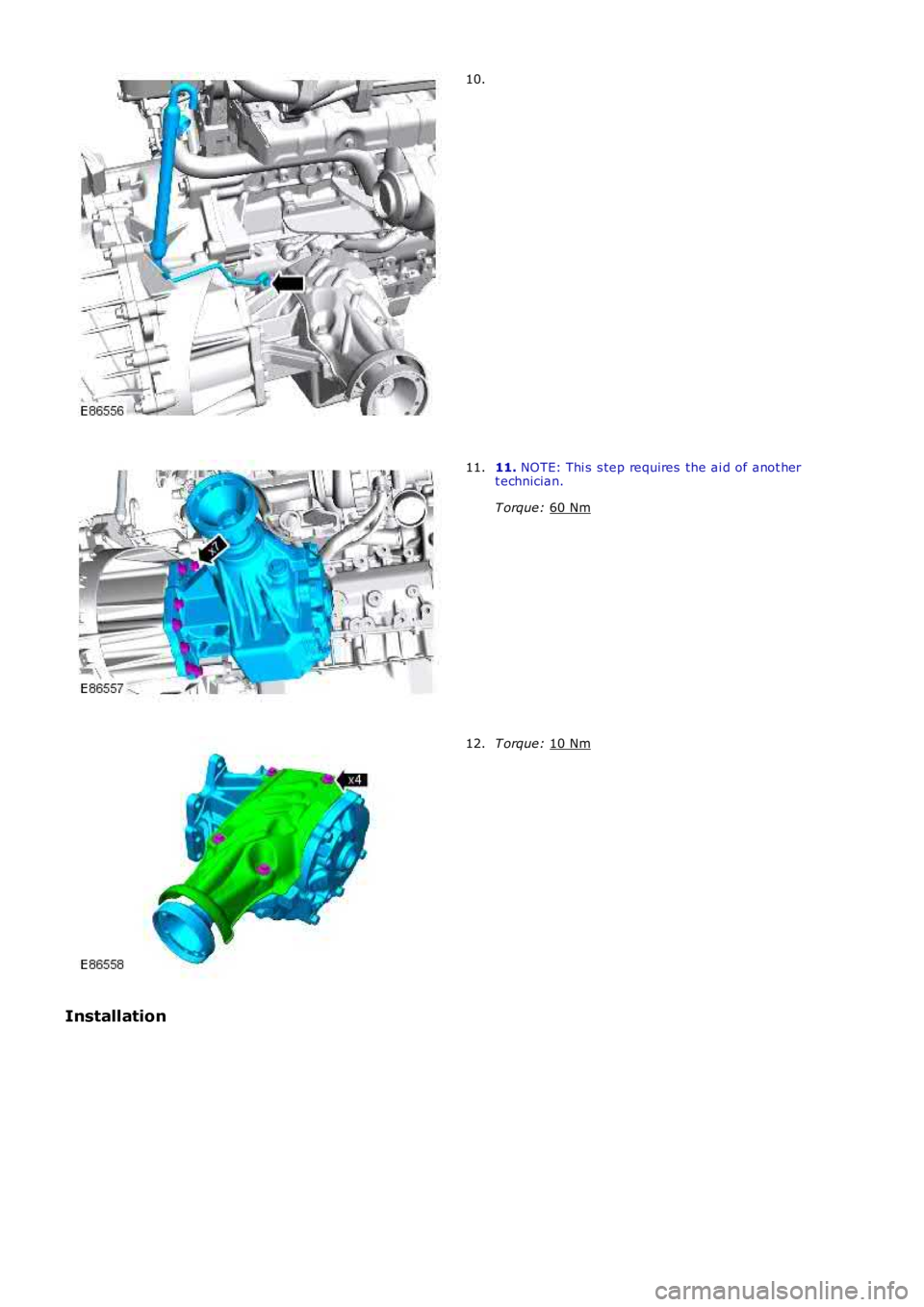

LAND ROVER FRELANDER 2 2006 Repair Manual 10. 11. NOTE: Thi s s tep requires the ai d of anot her t echnician. T orque: 60 Nm 11. T orque: 10 Nm 12. Installation

Page 1500 of 3229

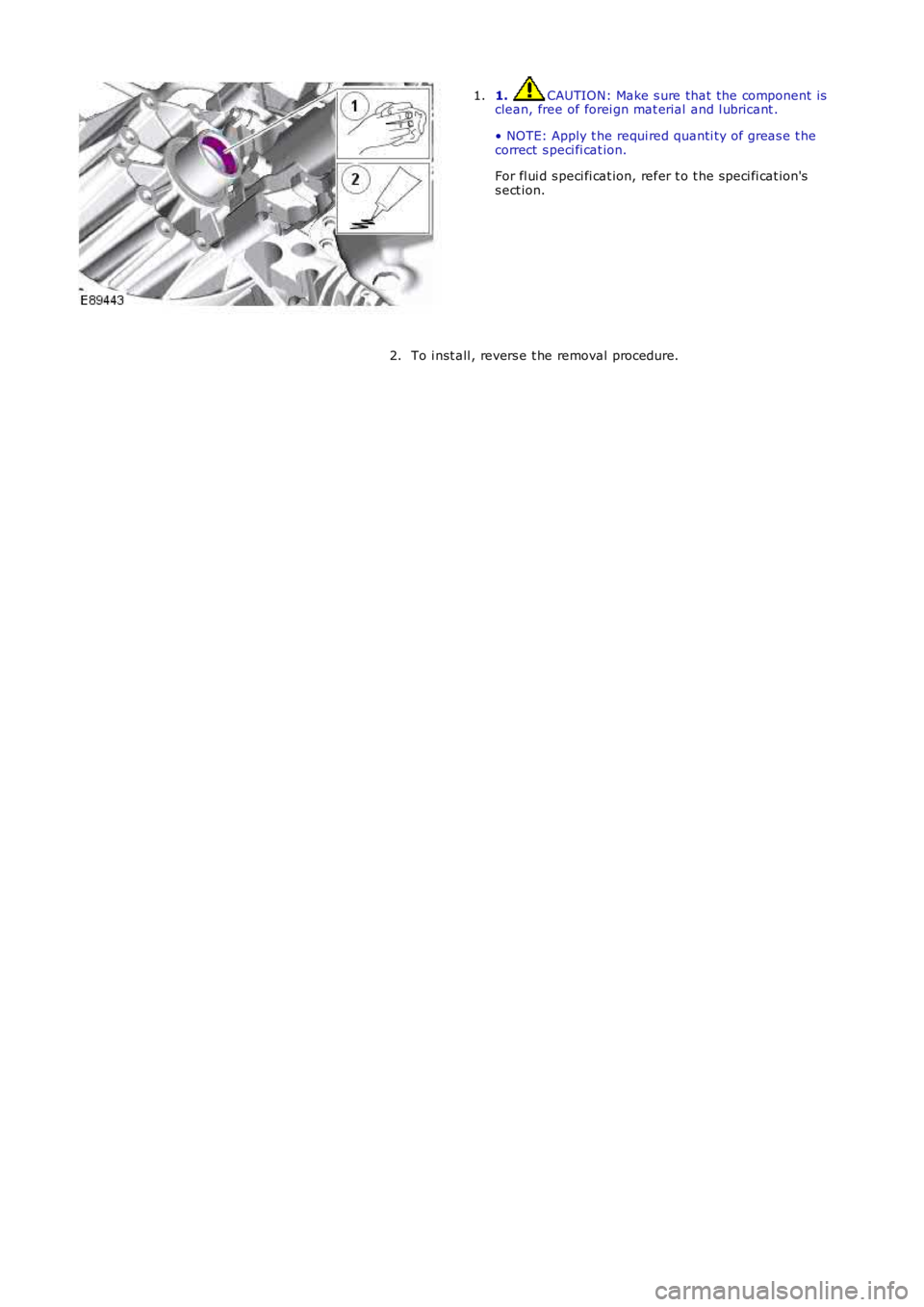

LAND ROVER FRELANDER 2 2006 Repair Manual 1. CAUTION: Make s ure that the component is clean, free of forei gn mat erial and l ubricant . • NOTE: Apply t he requi red quanti ty of greas e t he correct s peci fi cat ion. For fl ui d s pec

Page 1501 of 3229

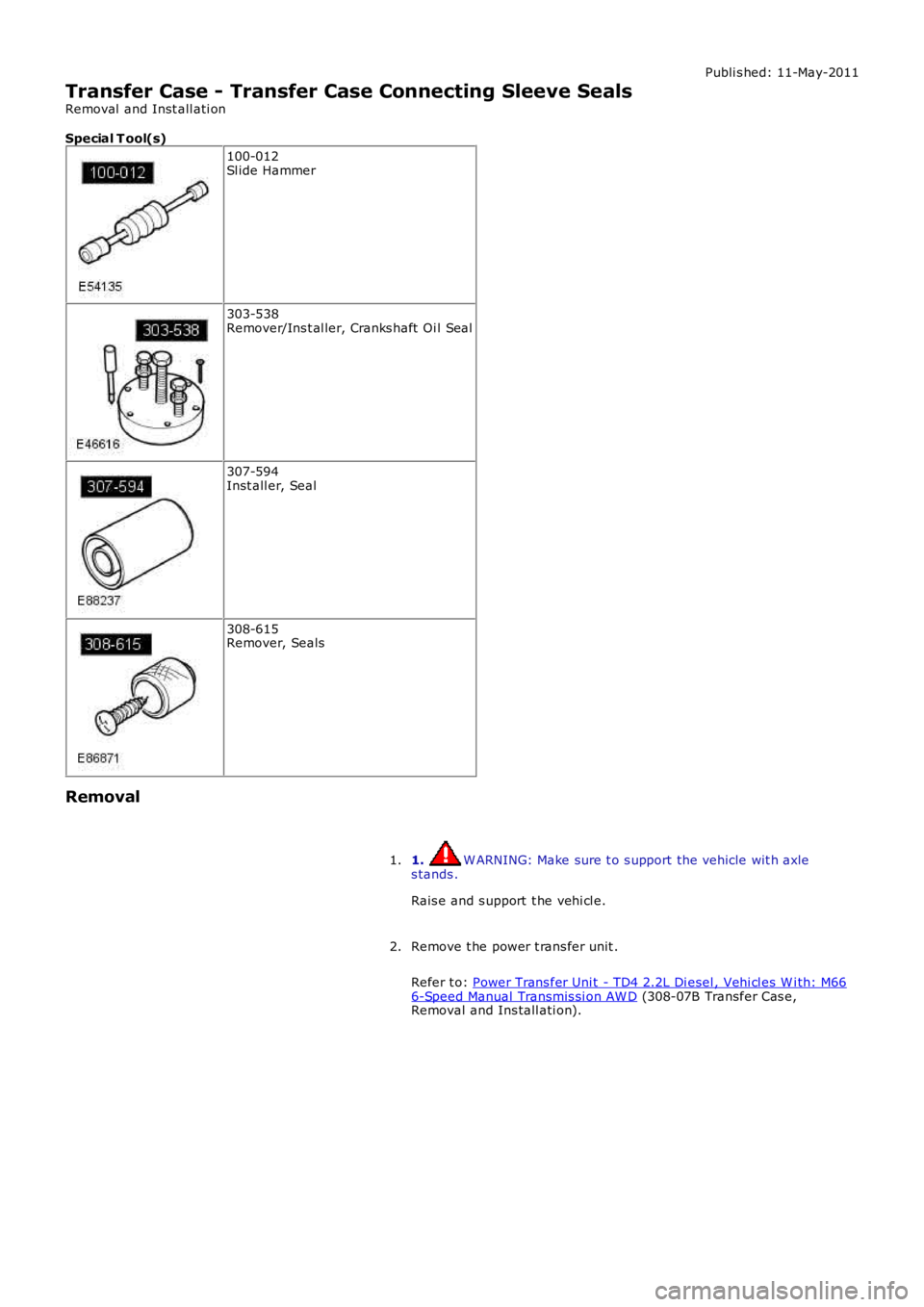

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Transfer Case - Transfer Case Connecting Sleeve Seals Removal and Inst all ati on Special T ool(s) 100-012Sl ide Hammer 303-538Remover/Ins t al ler, Cranks haft Oi l Seal 30

Page 1502 of 3229

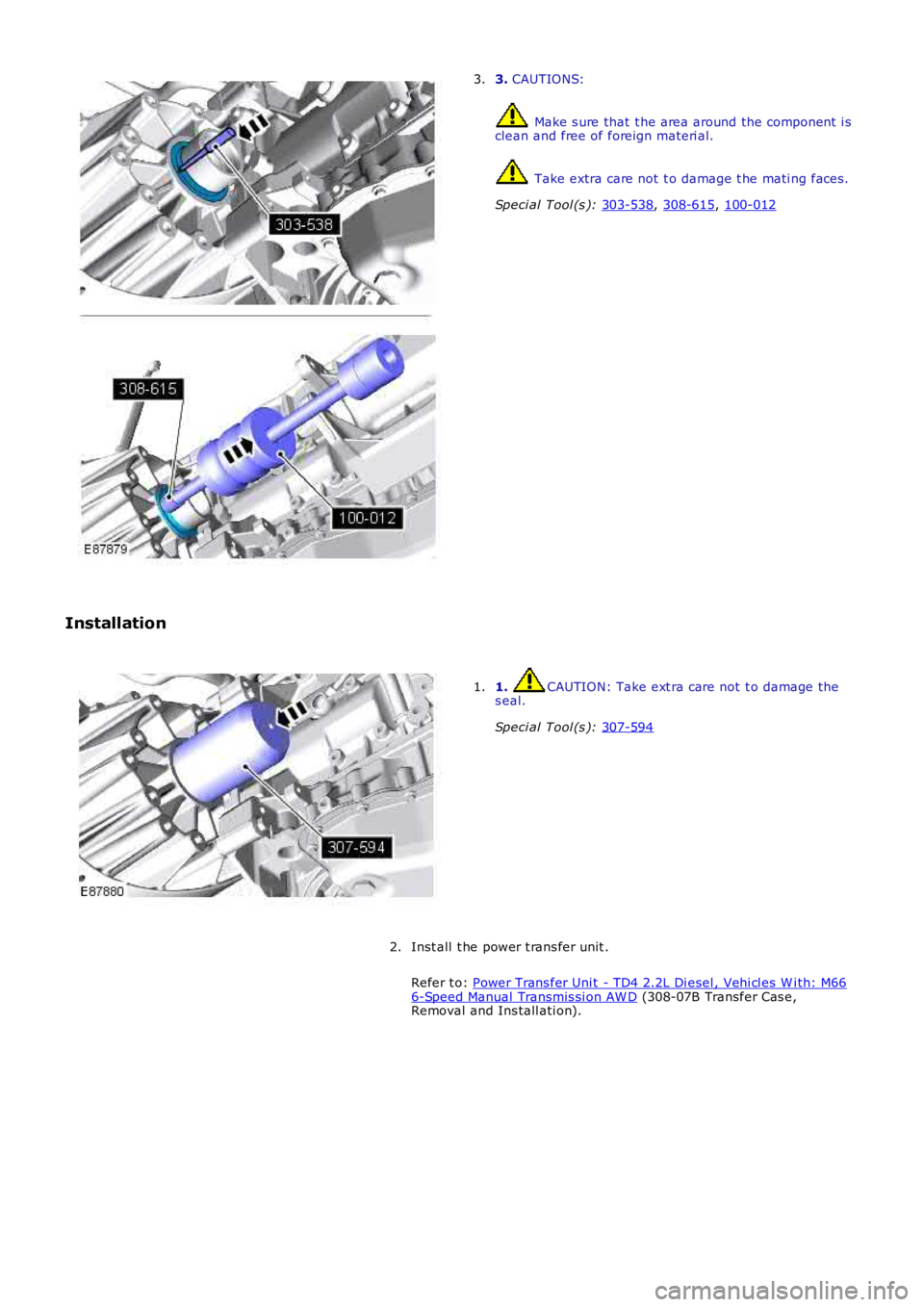

LAND ROVER FRELANDER 2 2006 Repair Manual 3. CAUTIONS: Make s ure that t he area around the component i s clean and free of foreign materi al. Take extra care not t o damage t he mati ng faces . Speci al Tool (s ): 303-538 , 308-615 ,

Page 1503 of 3229

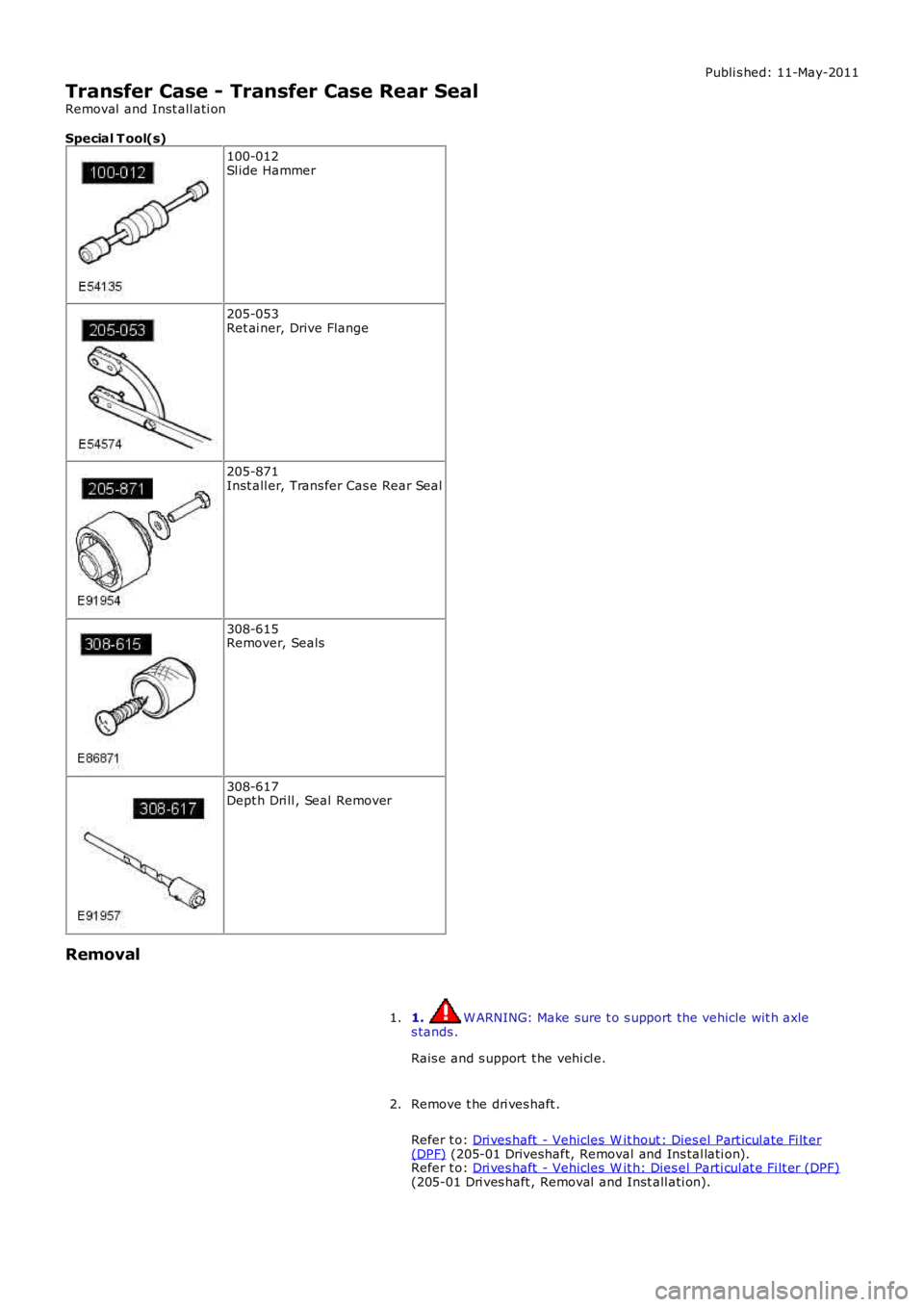

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Transfer Case - Transfer Case Rear Seal Removal and Inst all ati on Special T ool(s) 100-012Sl ide Hammer 205-053Ret ai ner, Drive Flange 205-871Inst all er, Trans fer Cas e

Page 1504 of 3229

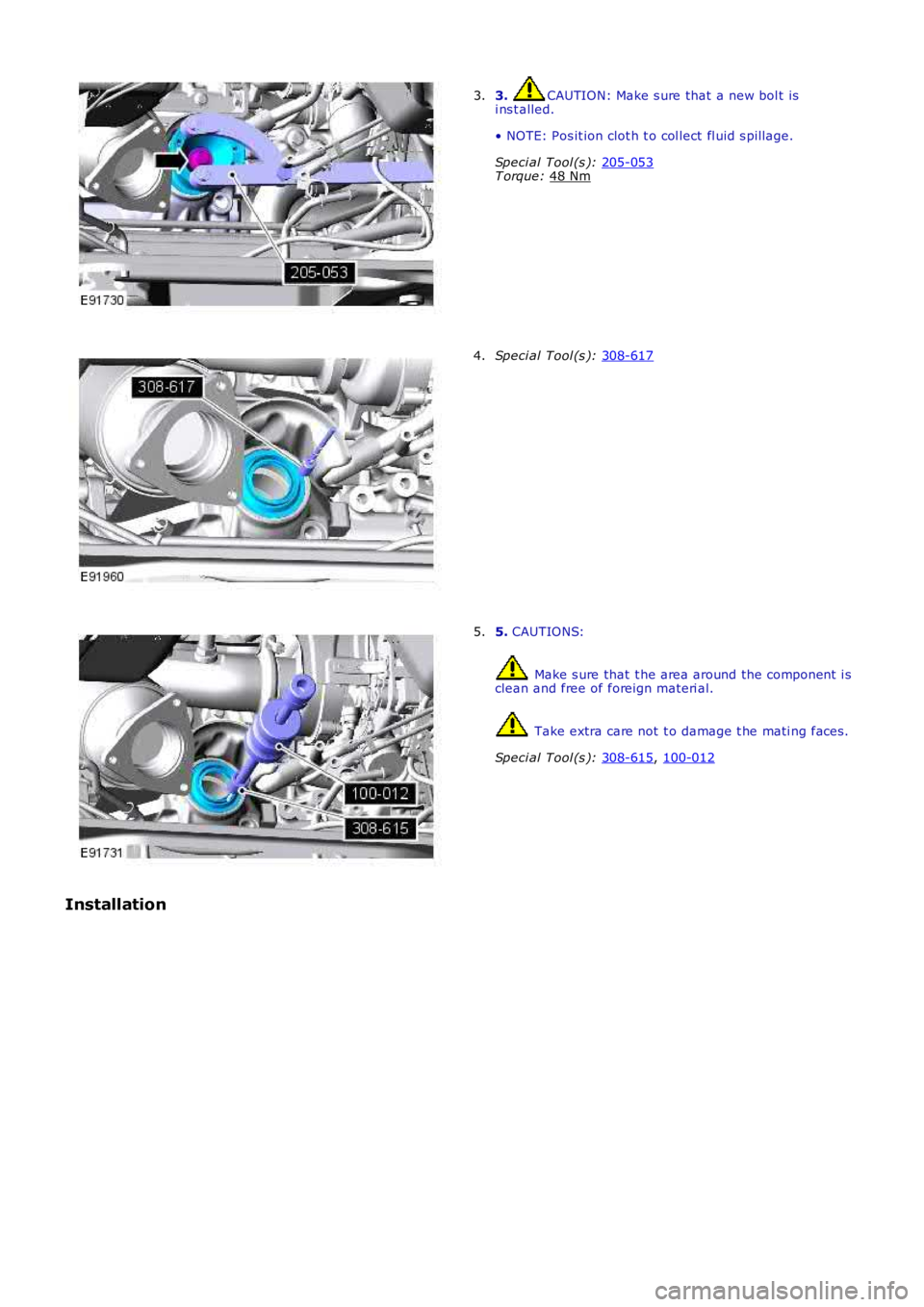

LAND ROVER FRELANDER 2 2006 Repair Manual 3. CAUTION: Make s ure that a new bol t is i ns t alled. • NOTE: Pos it ion clot h t o col lect fl uid s pil lage. Speci al Tool (s ): 205-053 T orque: 48 Nm 3. Speci al Tool (s ): 308-617 4. 5.
