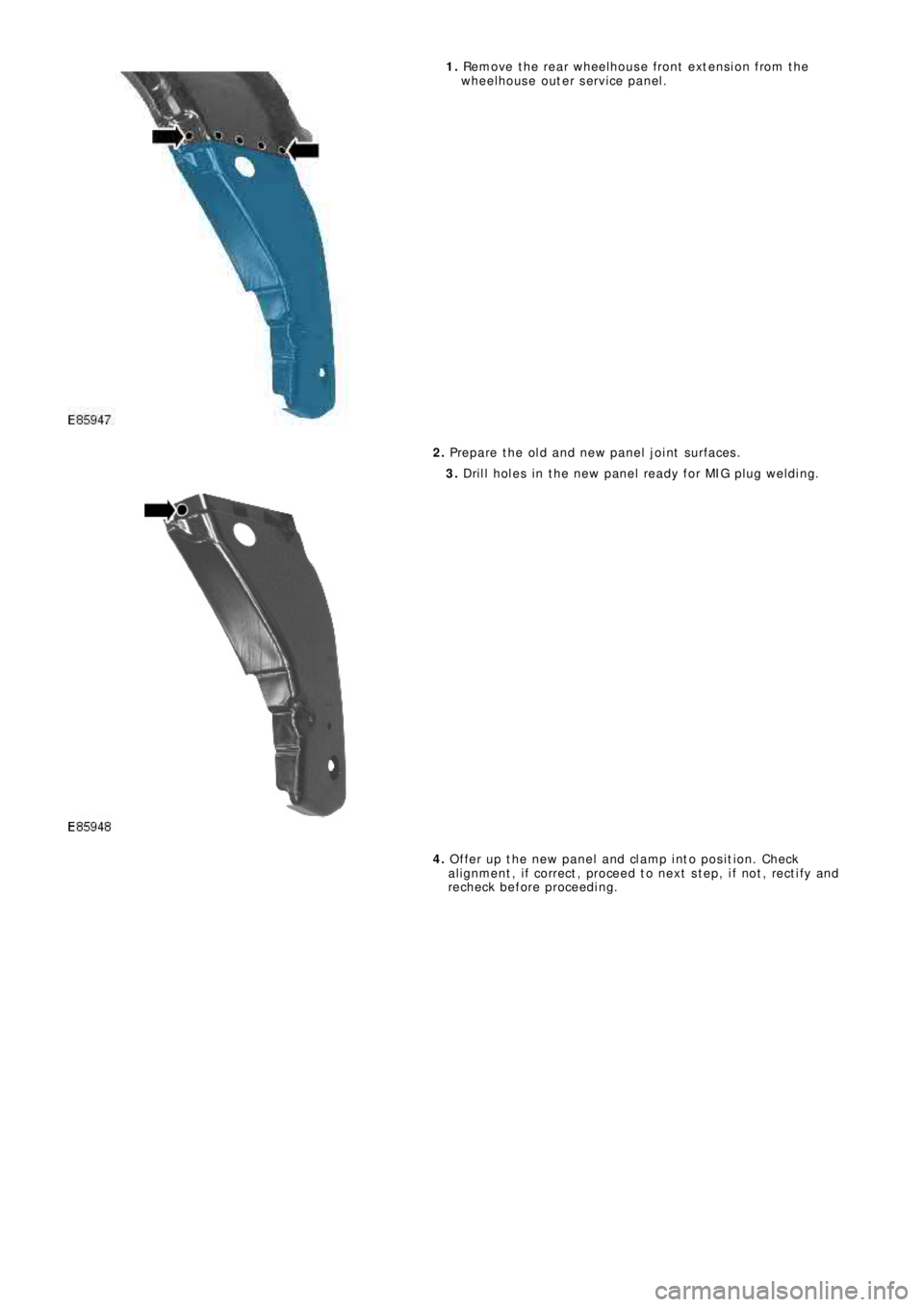

LAND ROVER FRELANDER 2 2006 Repair Manual 1. Remove the rear wheelhouse front extension from the wheelhouse outer service panel. 2. Prepare the old and new panel joint surfaces. 3. Drill holes in the new panel ready for MIG plug welding. 4. O

Page 2674 of 3229

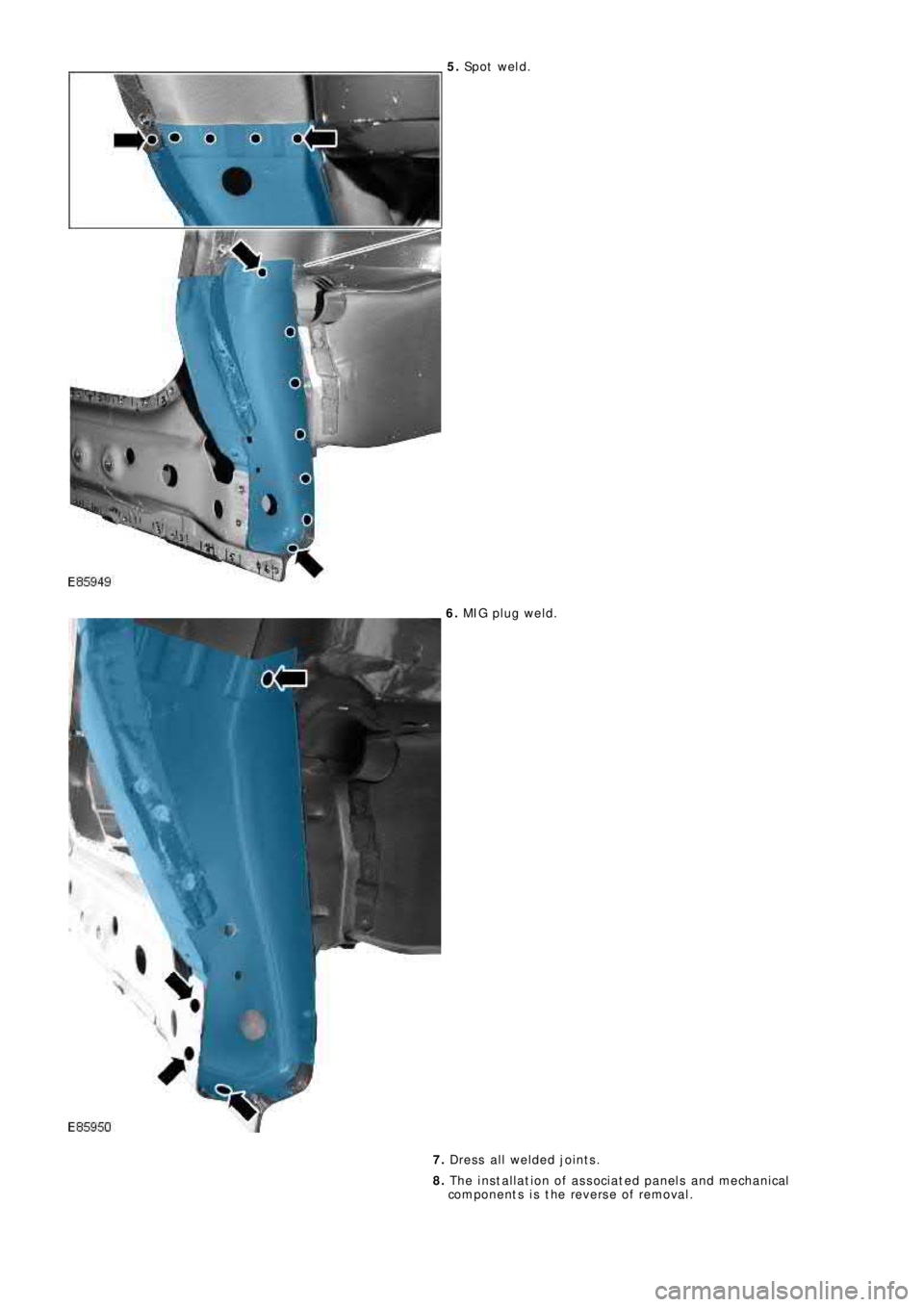

LAND ROVER FRELANDER 2 2006 Repair Manual 5. Sp o t we l d . 6. MIG pl ug we l d. 7. Dress all welded joints. 8. The installation of associated panels and mechanical components is the reverse of removal.

Page 2675 of 3229

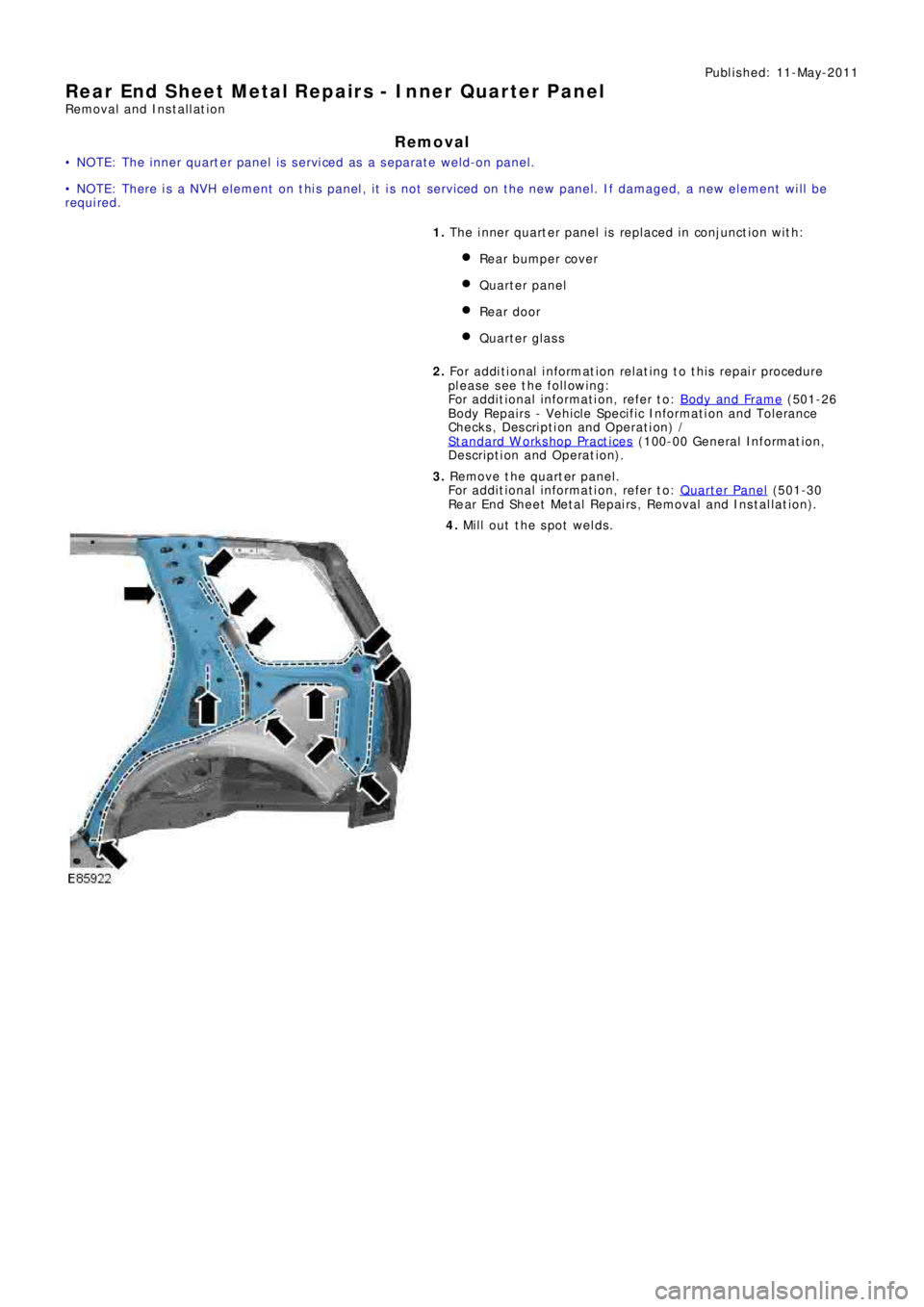

LAND ROVER FRELANDER 2 2006 Repair Manual Publ is hed: 11-May-2011 Rear End Sheet Metal Repairs - Inner Quarter Panel Removal and Installation Removal • N O T E: T he i nne r q ua rt e r p a ne l i s s e rvi ce d a s a s e p a ra t e

Page 2676 of 3229

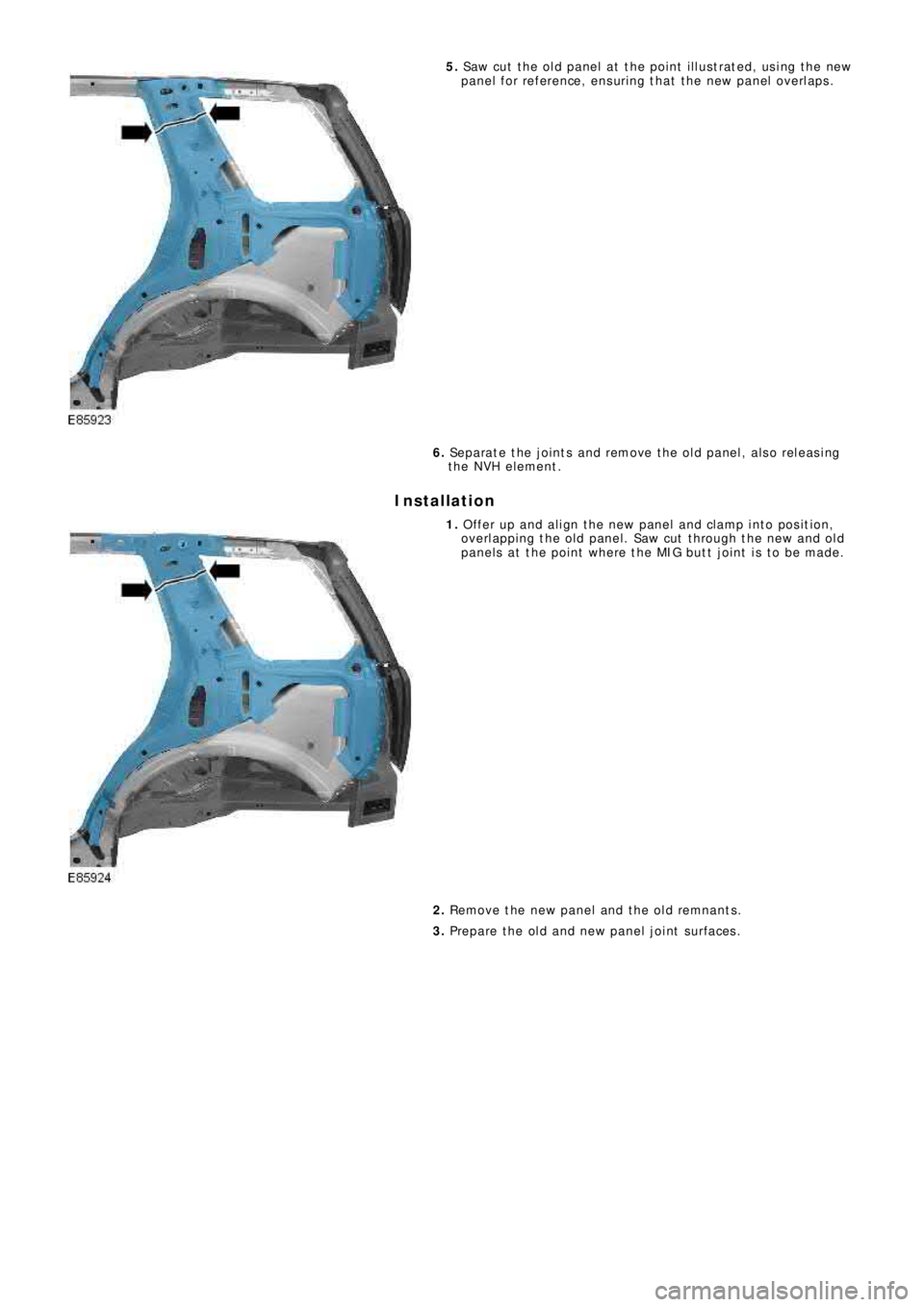

LAND ROVER FRELANDER 2 2006 Repair Manual 5. Saw cut the old panel at the point illustrated, using the new p a ne l f o r re f e re nce , e ns uri ng t ha t t he ne w p a ne l o ve rl a p s . 6. Separate the joints and remove the old p

Page 2677 of 3229

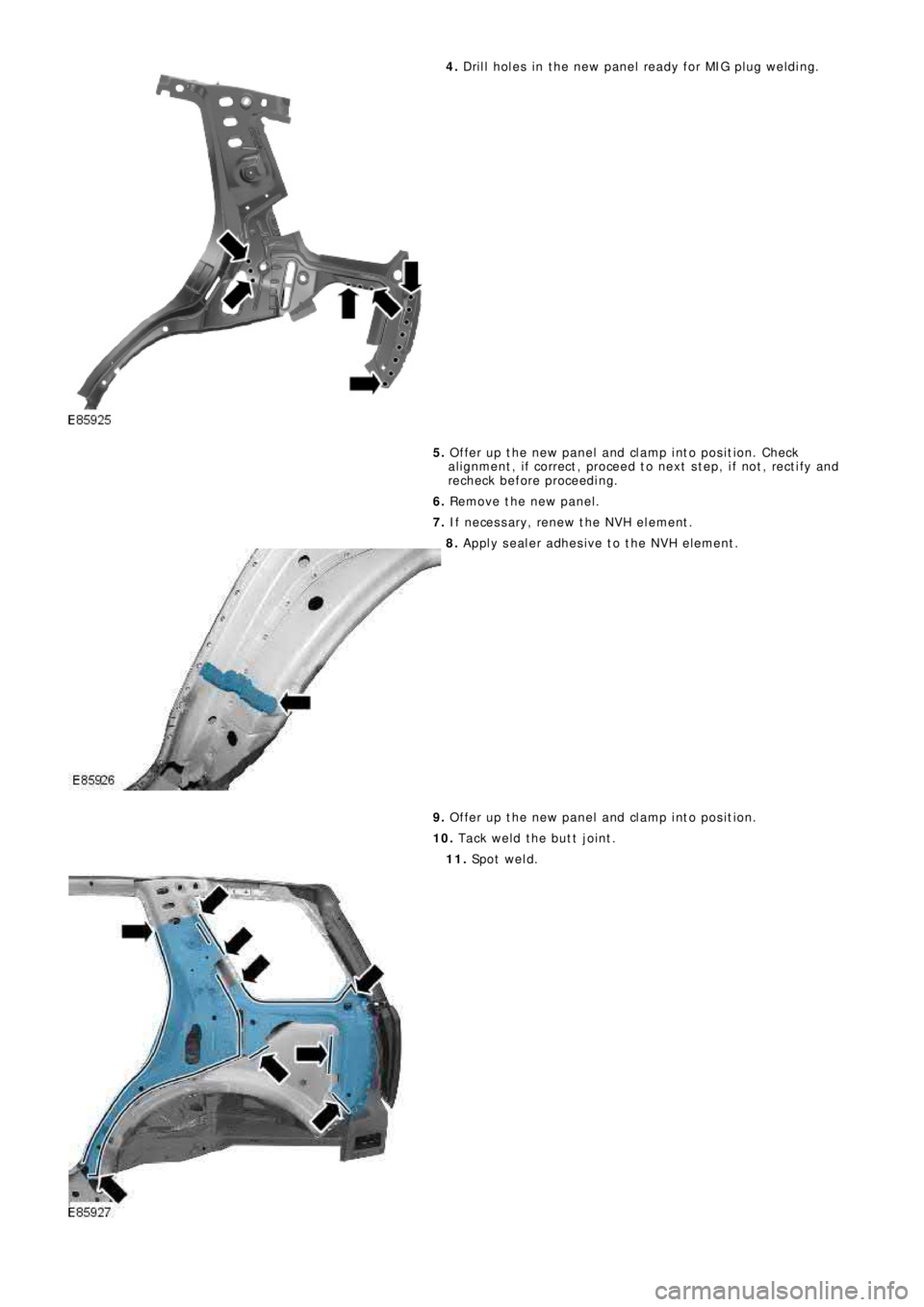

LAND ROVER FRELANDER 2 2006 Repair Manual 4. Drill holes in the new panel ready for MIG plug welding. 5. Offer up the new panel and clamp into position. Check al ignment , i f correct , proceed t o next s t ep, i f not , rect i fy and rechec

Page 2678 of 3229

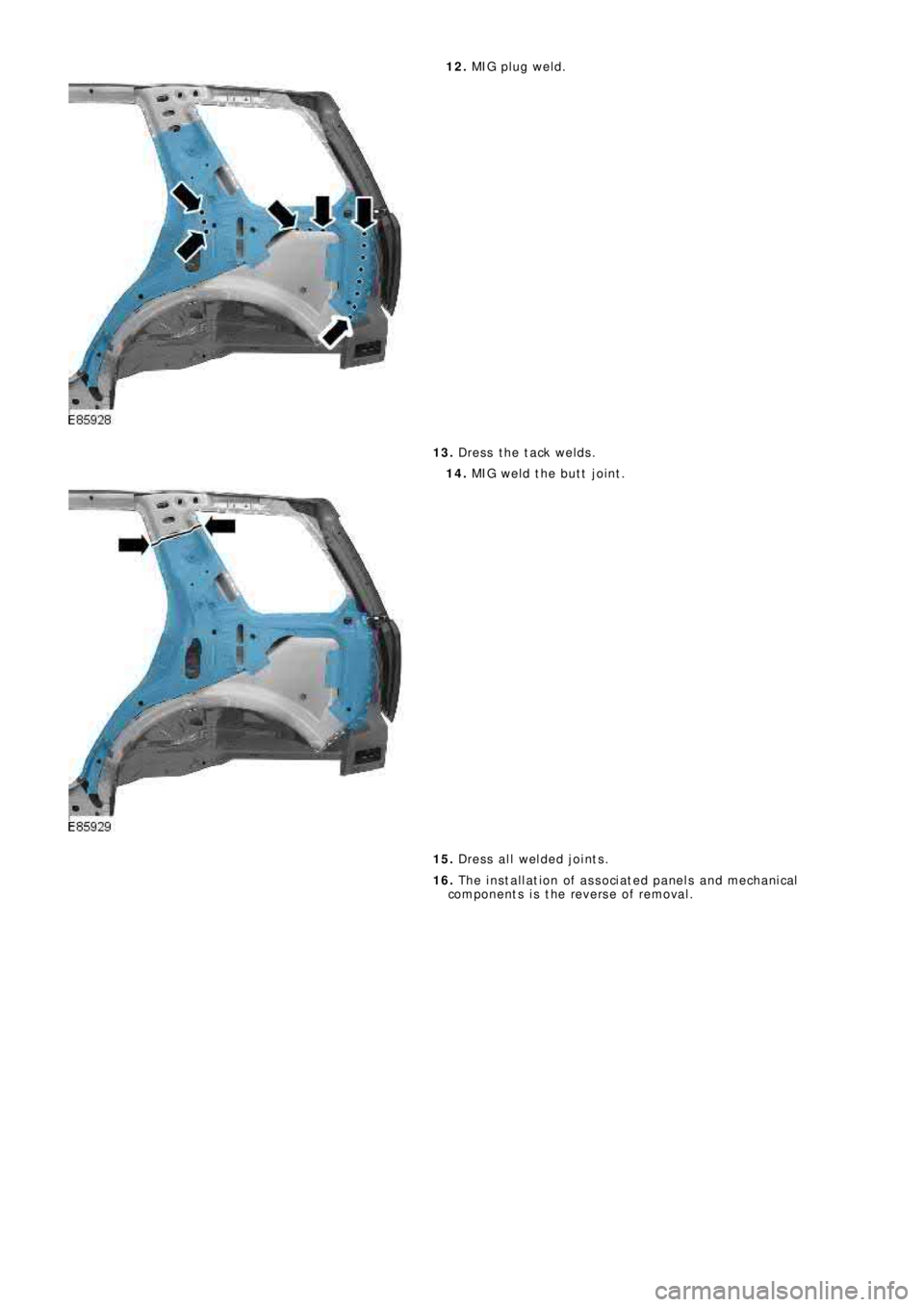

LAND ROVER FRELANDER 2 2006 Repair Manual 12. MIG pl ug we l d. 13. Dress the tack welds. 14. MIG weld the butt joint. 15. Dress all welded joints. 16. The installation of associated panels and mechanical components is the reverse of removal.

Page 2679 of 3229

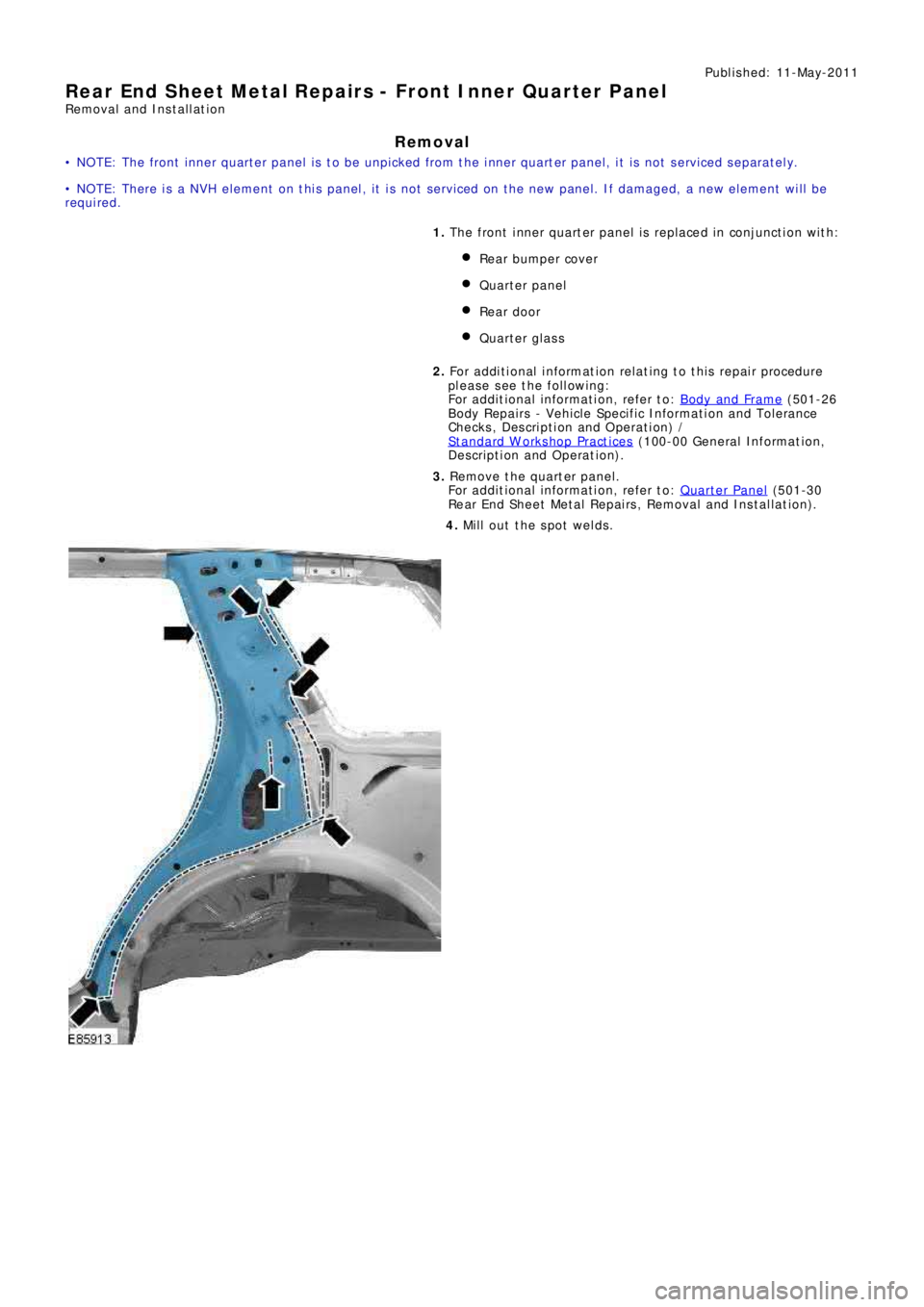

LAND ROVER FRELANDER 2 2006 Repair Manual Publ is hed: 11-May-2011 Rear End Sheet Metal Repairs - Front Inner Quarter Panel Removal and Installation Removal • NOTE: The front inner quarter panel is to be unpicked from the inner quarter pane

Page 2680 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual 5. Saw cut the old panel at the point illustrated, using the new p a ne l f o r re f e re nce , e ns uri ng t ha t t he ne w p a ne l o ve rl a p s . 6. Separate the joints and remove the
