Page 2041 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual 23.
24.
25.
26.

Page 2042 of 3229

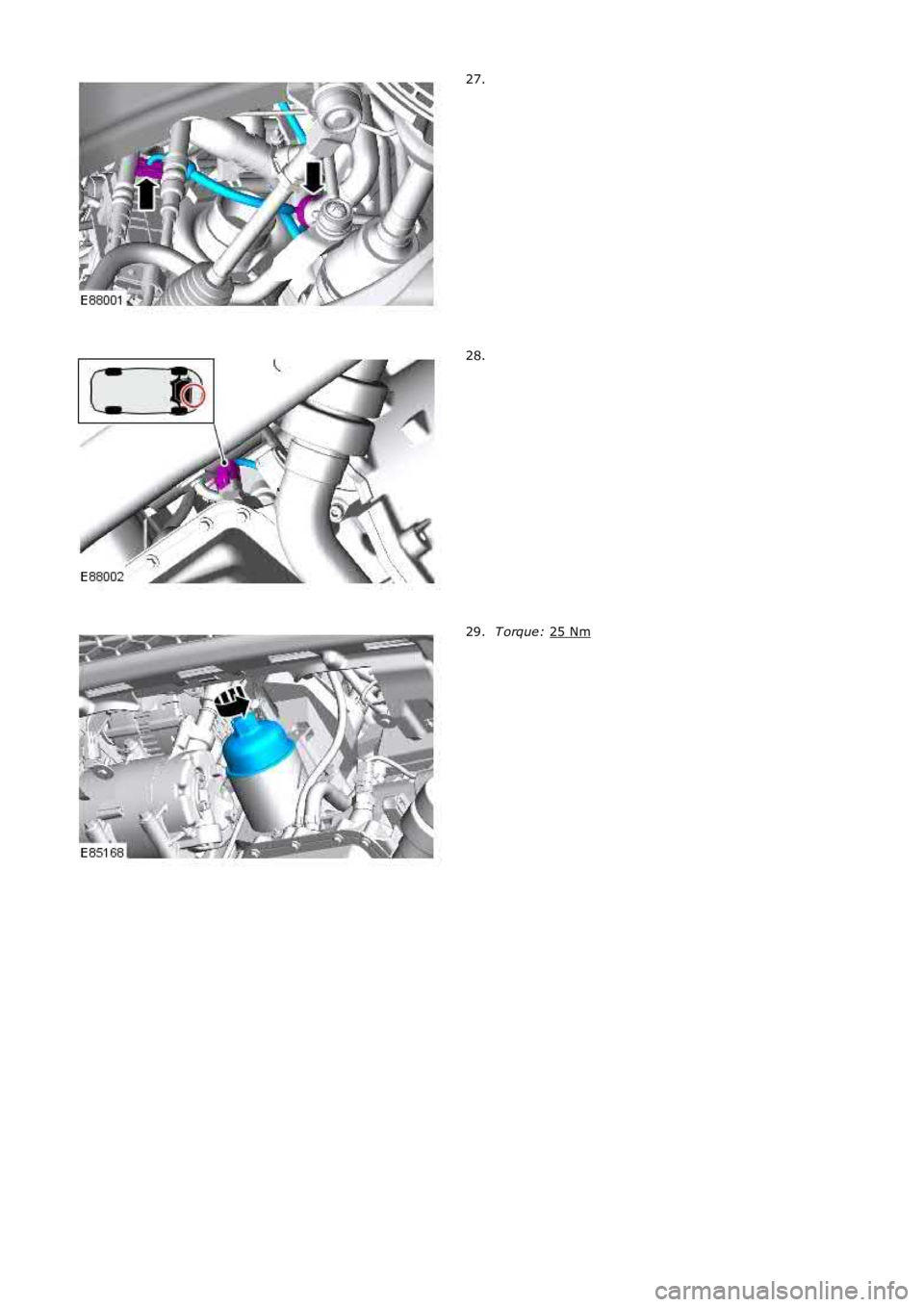

LAND ROVER FRELANDER 2 2006 Repair Manual 27.
28.
T orque:
25 Nm 29.

Page 2043 of 3229

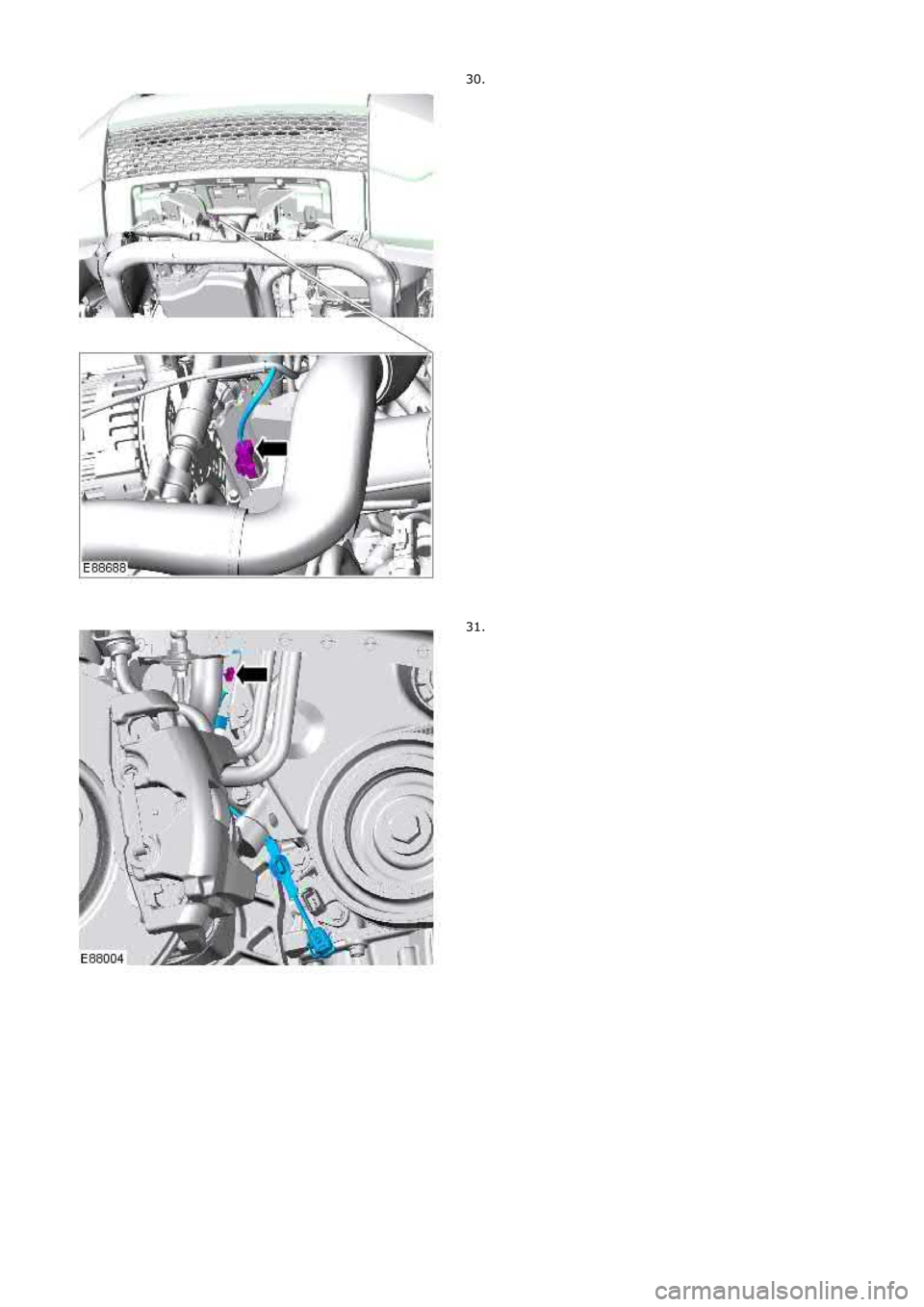

LAND ROVER FRELANDER 2 2006 Repair Manual 30.
31.

Page 2044 of 3229

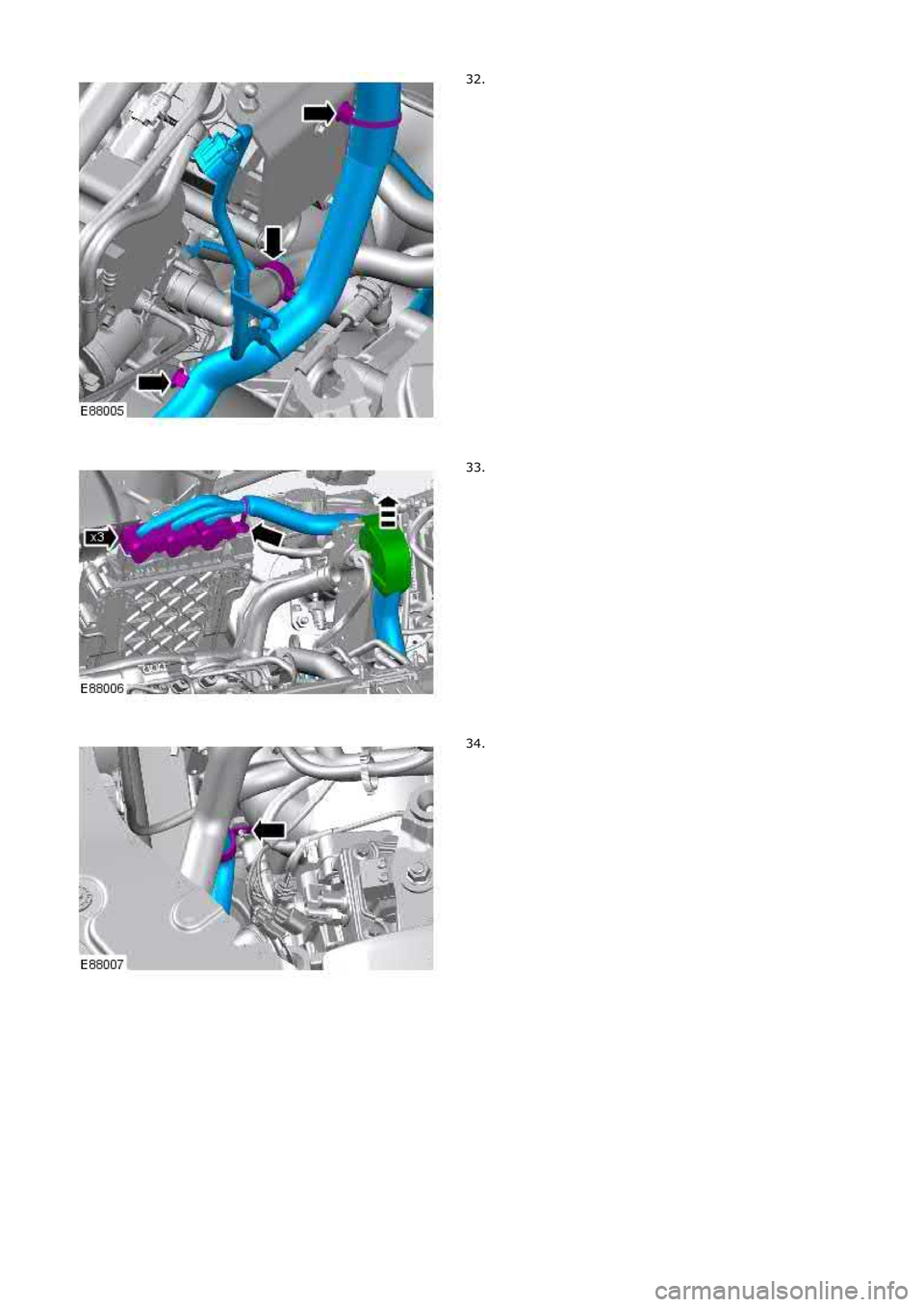

LAND ROVER FRELANDER 2 2006 Repair Manual 32.
33.
34.

Page 2045 of 3229

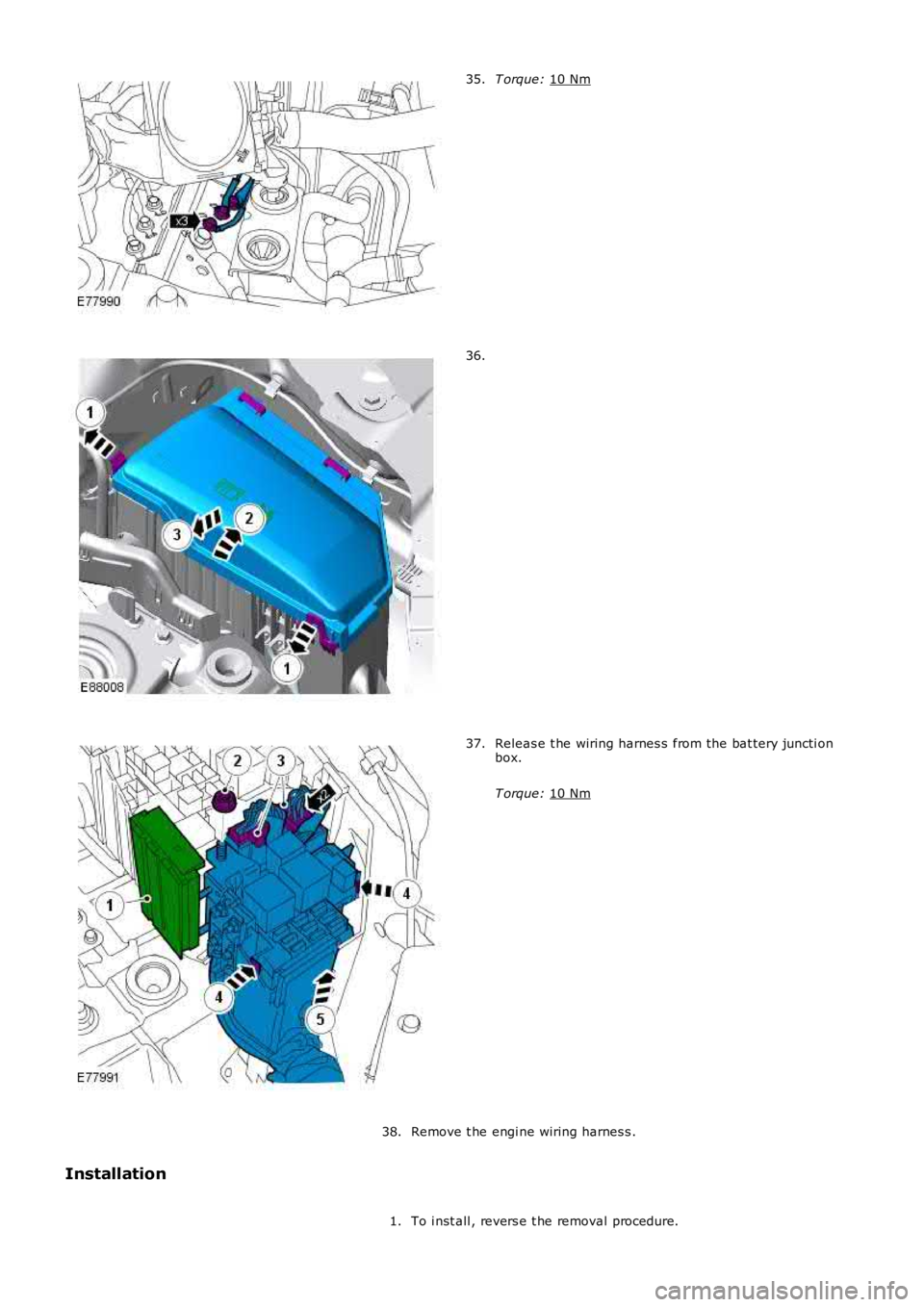

LAND ROVER FRELANDER 2 2006 Repair Manual T orque:
10 Nm 35.
36.
Releas e t he wiring harnes s from the bat tery juncti on
box.
T orque: 10 Nm 37.
Remove t he engi ne wiring harnes s .
38.
Installation
To i nst all , revers e t he removal

Page 2046 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011

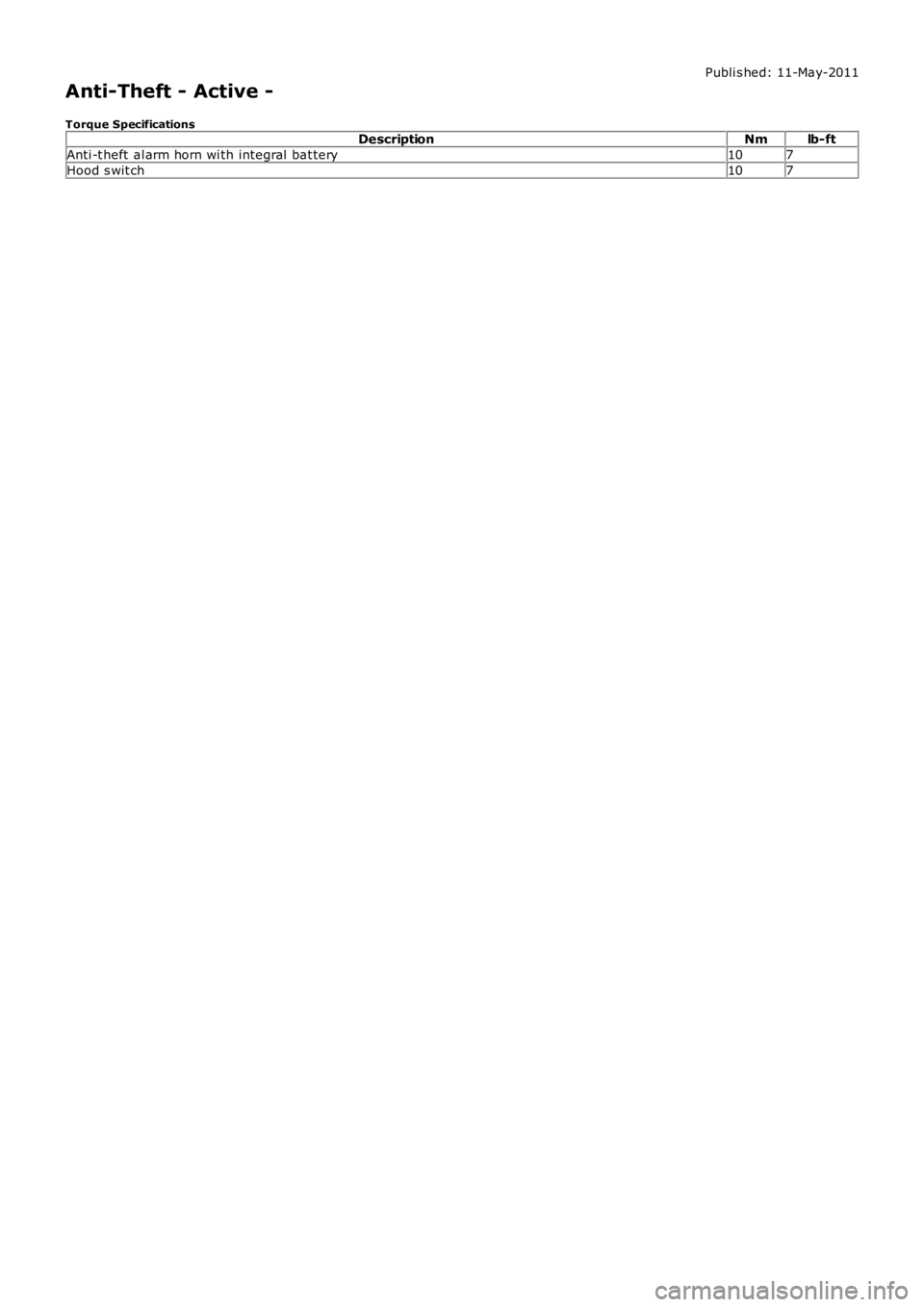

Anti-Theft - Active -
Torque SpecificationsDescriptionNmlb-ft
Anti -t heft al arm horn wi th integral bat tery107
Hood s wit ch107

Page 2047 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011
Anti-Theft - Active - Anti-Theft - Active

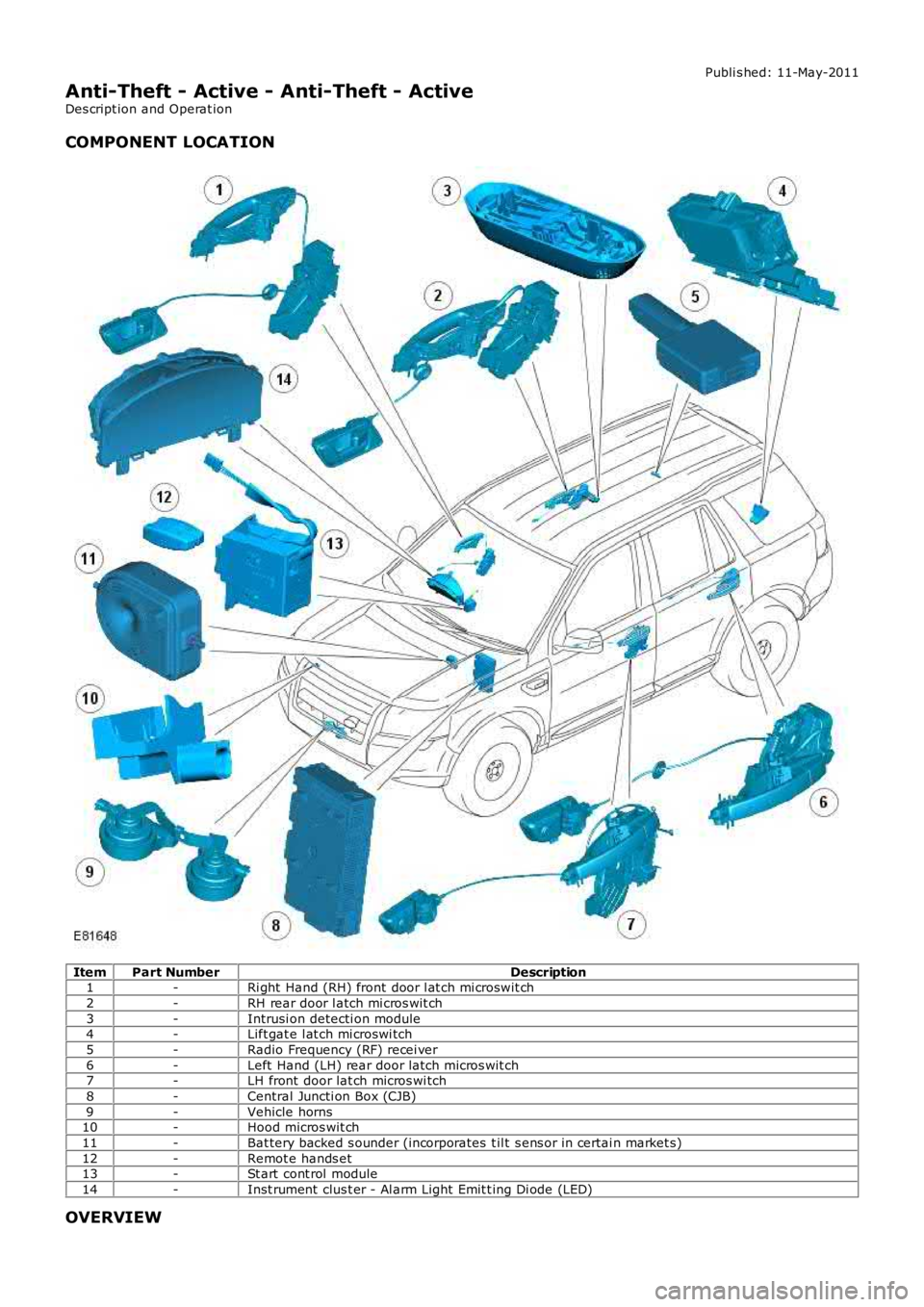

Des cript ion and Operat ion
COMPONENT LOCATION
ItemPart NumberDescription1-Ri ght Hand (RH) front door l at ch mi croswit ch
2-RH r

Page 2048 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual The act ive ant i-theft sys tem monit ors the hi nged panels for unaut horized openi ng. In s ome markets the ant i-theft s ys temals o i ncorporates moni tori ng of the vehicl e int erior and ve

The act ive ant i-theft sys tem monit ors the hi nged panels for unaut horized openi ng. In s ome markets the ant i-theft s ys temals o i ncorporates moni tori ng of the vehicl e int erior and vehicle ti lt s ens i ng.
The act ive ant i-theft al arm s ys t em i s cont rol led by t he fol lowi ng body sys tem cont rol modules :
CJBLeft Hand (LH) and Ri ght Hand (RH) front and rear door modul esIns t rument clus ter.
The CJB is the mai n cont rol ler in the sys tem. The CJB controls t he fol lowi ng securi ty funct ions , in addit ion to ot her vehicl efuncti ons :
Locking, doubl e l ocking and unlockingMonit oring of hi nged panel micros wi tches and panel ajar s t at esInt rus ion det ect ion modul eBatt ery backed sounder or vehicle hornsPass i ve armi ng and dis armi ngPani c alarm funct ionRemote hands et trans ponder readi ngInt eri or light ing.
Two l evels of vehicle ant i-t heft alarm are avai lable; peri meter mode moni tors all openi ng panel s and volumet ric mode (i ffi tt ed) monit ors t he vehi cle i nteri or for int rus ion and, in certai n market s, i t als o i ncorporates a ti lt s ens or t o monit or if t hevehi cl e i s being moved.
• NOTE: Volumet ri c mode and t ilt sens ing are not avai lable i n cert ain market s .
• NOTE: Volumet ri c mode is cancelled if t he vehi cl e is locked wit h any window or roof opening panel not clos ed t o avoi dinadvert ent al arm act ivati on.
The remot e handset provi des the followi ng functi onal it y:
Unlock (central unl ock or s i ngl e point entry)Lock and double lockLiftgate rel eas eApproach li ght ingPani c alarm.
The unlock and lock butt ons als o cont rol a 'lazy' l ock and unl ock feature which wi ll automat icall y cl ose or open t he wi ndowswit h an ext ended press of t he applicable but ton. This feature is onl y avai lable i n cert ain markets and i s cont rol led i nconjuct ion wit h the door modules .
W ARNING: Never doubl e l ock t he vehi cle wi th any pers on or ani mal ins ide.
• NOTE: Double l ocking is only avail abl e i n cert ai n market s .
The remot e handset contains an emergency access key. This can be us ed in the event of fail ure of t he remot e handset ort he vehi cl e batt ery t o unlock t he vehi cl e. The LH door handle contai ns a concealed mechanical key barrel which can beus ed wit h t he emergency key to acces s t he vehicle. This wi ll not dis able t he peri meter or int eri or al arm sys t ems which wi llbe acti vat ed when t he door i s opened. To cancel the al arm, t he remote hands et must be ins ert ed in t he s lot i n t he s tartcont rol module and the s t op/s tart but t on mus t be pres sed.
The remot e handset i s fi tt ed wi th an int egral vanadium lit hium rechargeabl e batt ery. The batt ery i s charged when it isins ert ed int o t he s lot in the st art control modul e.
CONTROL DIAGRAM
• NOTE: A = Hardwi red; F = RF Trans mis s ion; N = Medium Speed CAN bus; O = LIN bus ; W = LF Trans mi s si on
