NISSAN ALMERA N16 2003  Electronic Repair Manual TROUBLE DIAGNOSIS
EC-103
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

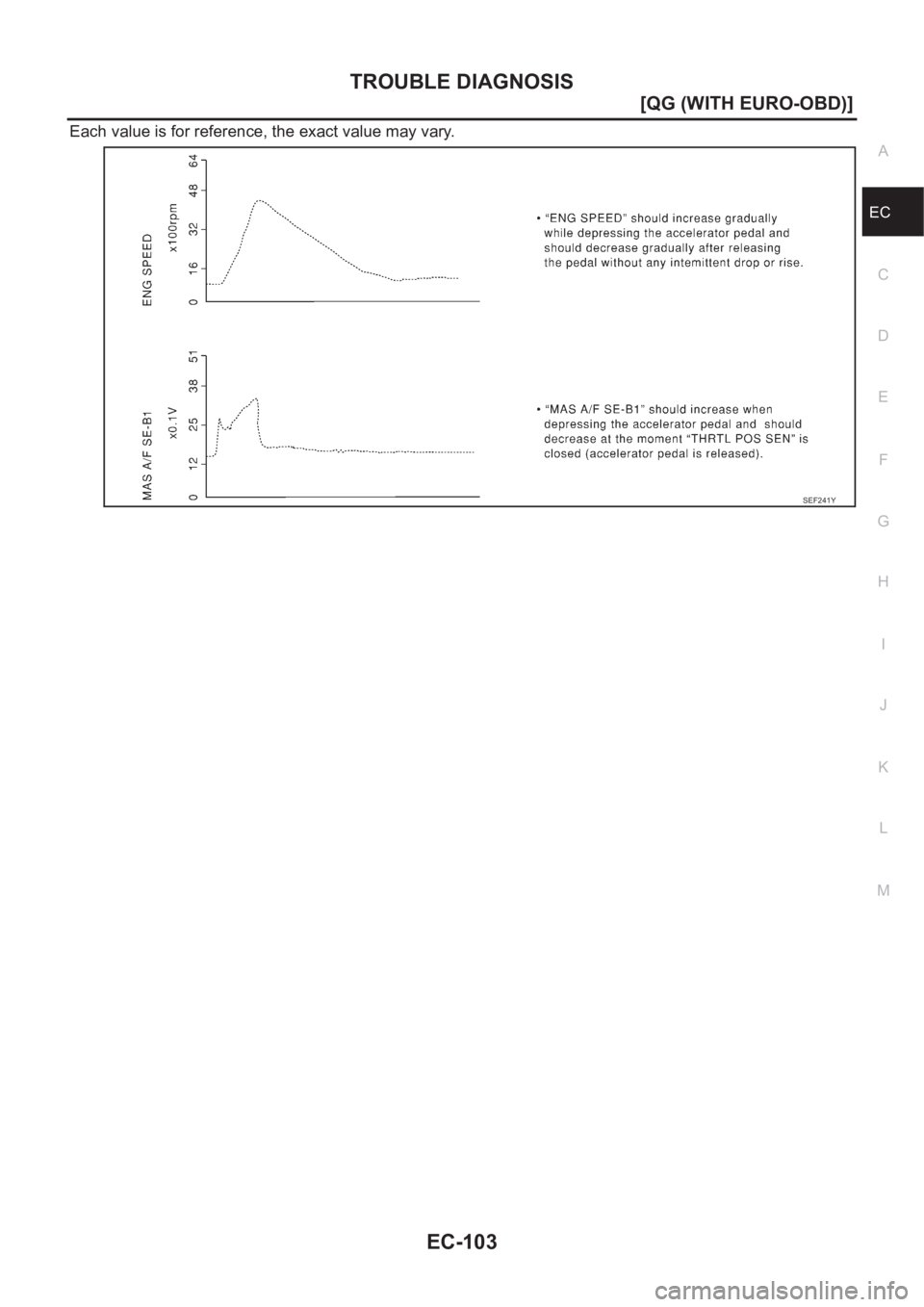

Each value is for reference, the exact value may vary.
SEF241Y

Page 434 of 3189

NISSAN ALMERA N16 2003  Electronic Repair Manual EC-104
[QG (WITH EURO-OBD)]
TROUBLE DIAGNOSIS

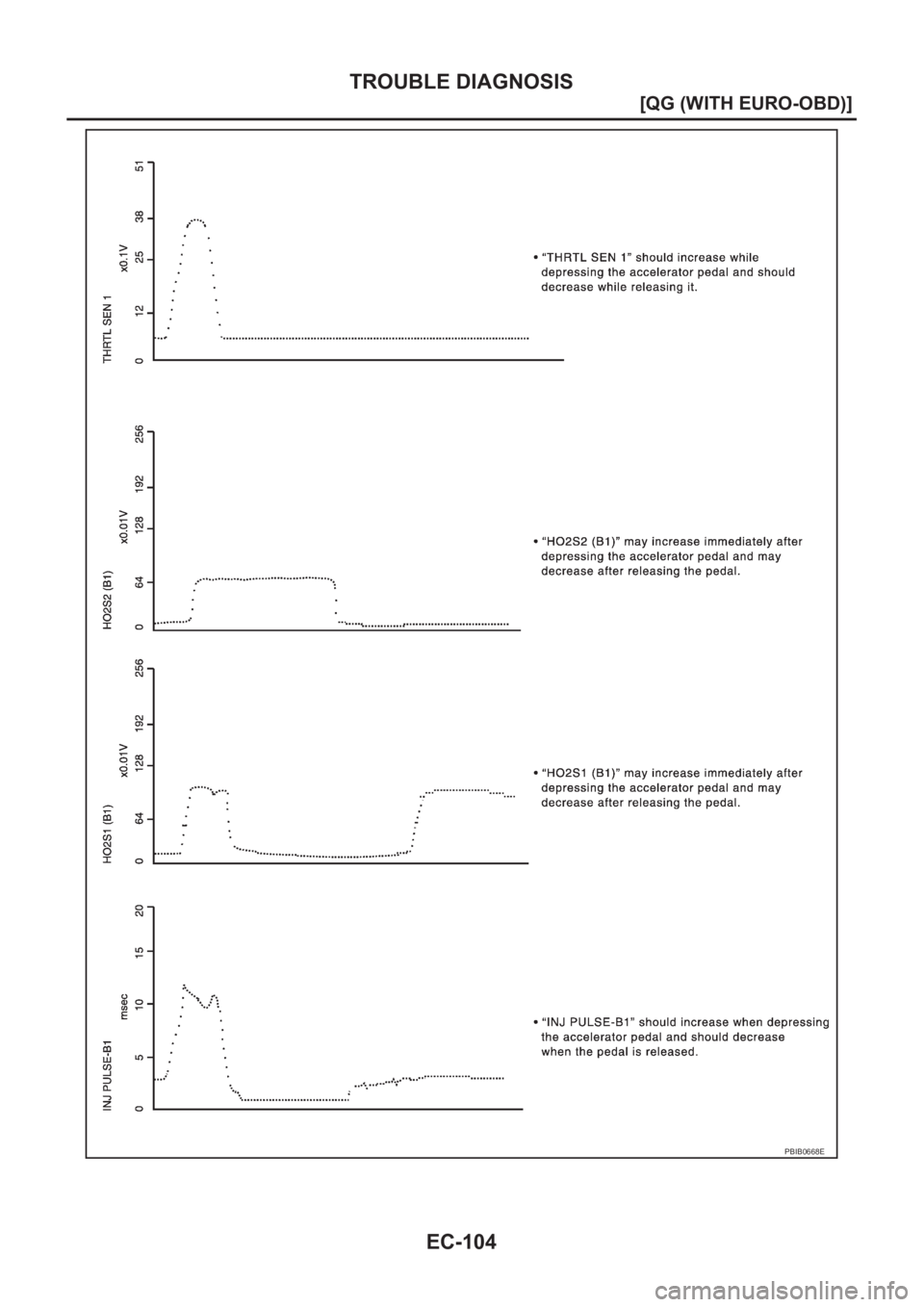

PBIB0668E

Page 435 of 3189

NISSAN ALMERA N16 2003  Electronic Repair Manual TROUBLE DIAGNOSIS - SPECIFICATION VALUE
EC-105
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
TROUBLE DIAGNOSIS - SPECIFICATION VALUEPFP:00031
DescriptionEBS00K3Y
The specification (SP) value indicate

Page 436 of 3189

NISSAN ALMERA N16 2003  Electronic Repair Manual EC-106
[QG (WITH EURO-OBD)]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE

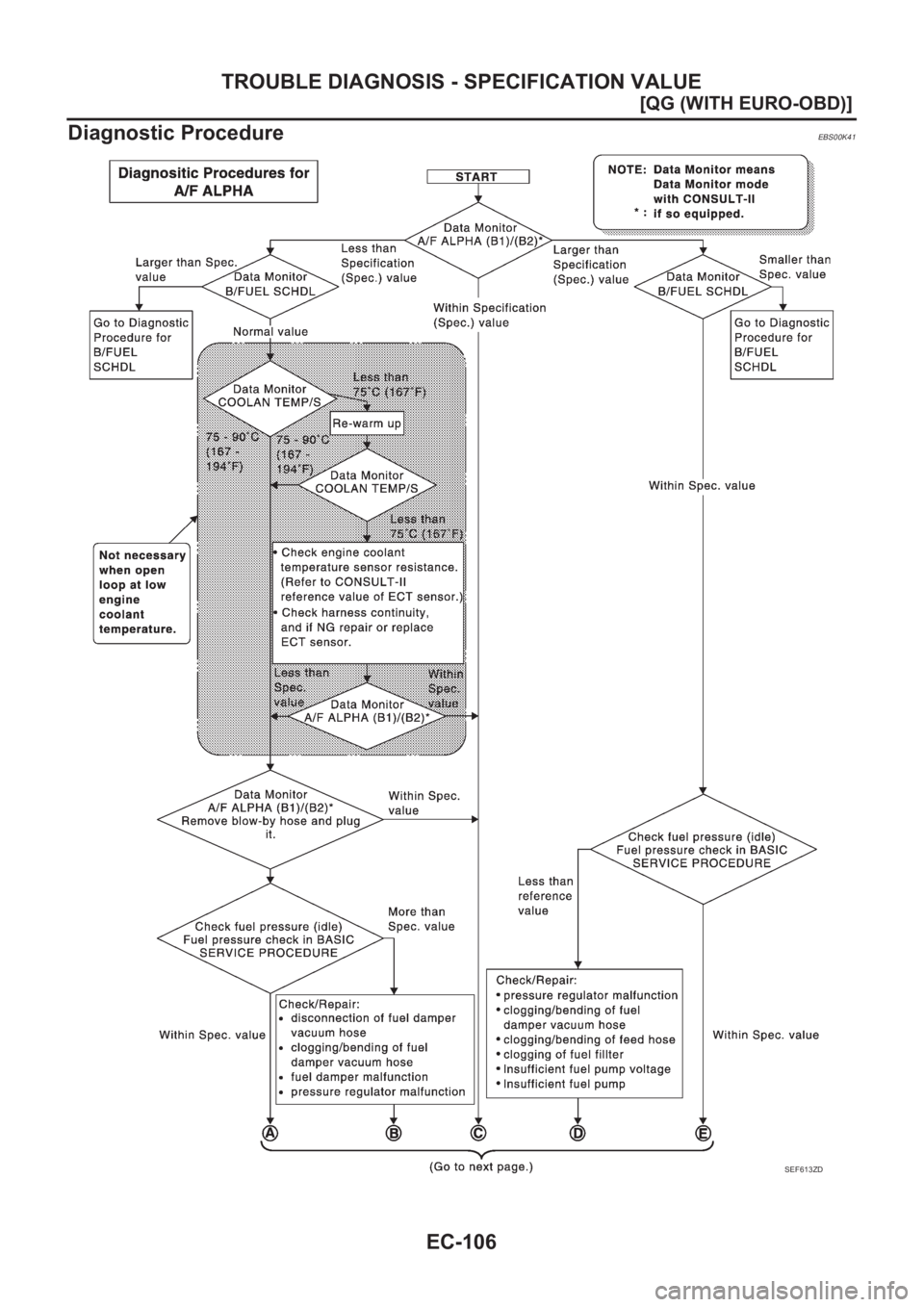

Diagnostic Procedure
EBS00K41
SEF613ZD

Page 437 of 3189

NISSAN ALMERA N16 2003  Electronic Repair Manual TROUBLE DIAGNOSIS - SPECIFICATION VALUE
EC-107
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

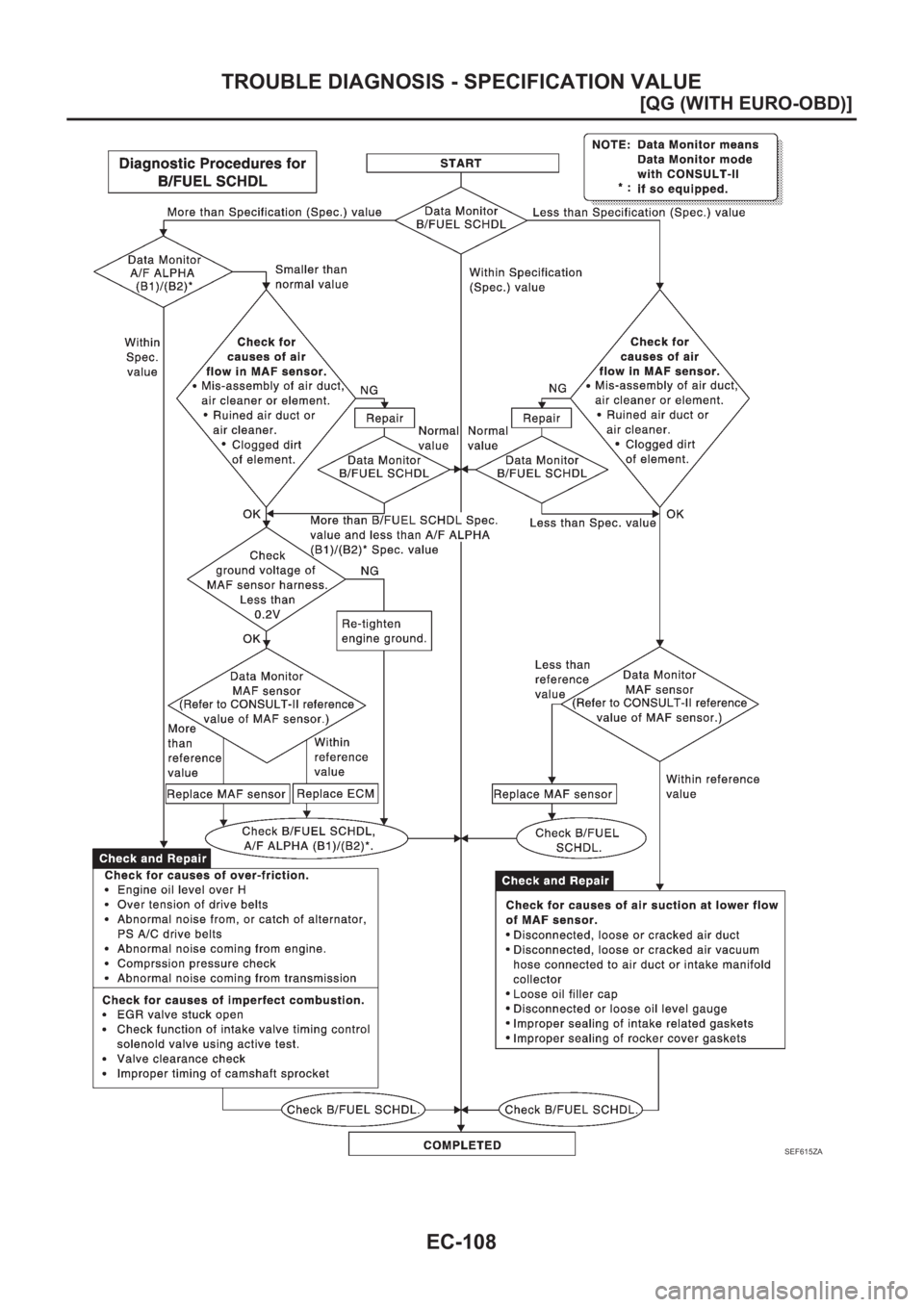

SEF768Z

Page 438 of 3189

NISSAN ALMERA N16 2003  Electronic Repair Manual EC-108
[QG (WITH EURO-OBD)]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE

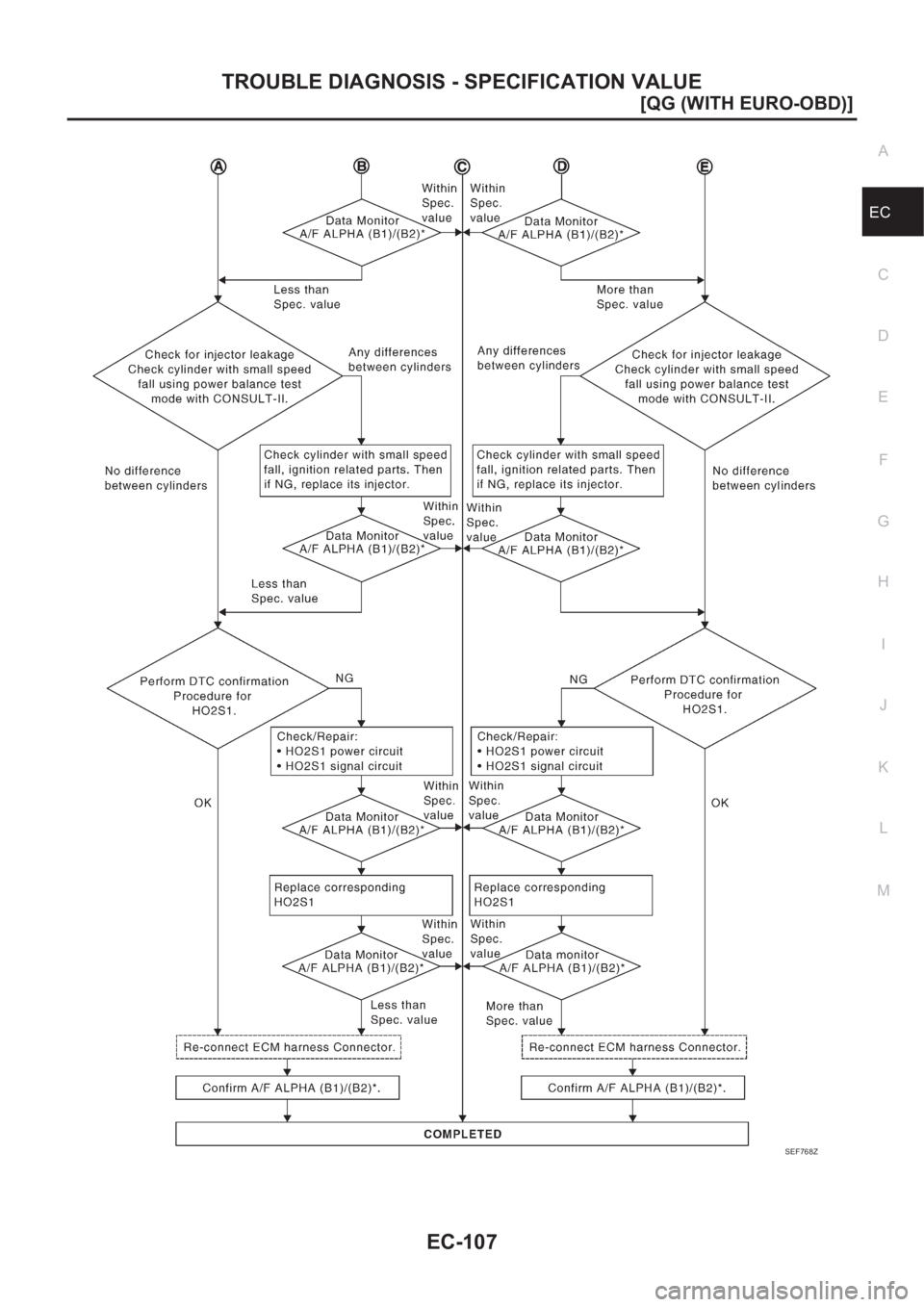

SEF615ZA

Page 439 of 3189

NISSAN ALMERA N16 2003  Electronic Repair Manual TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT
EC-109
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTPFP:00006
DescriptionEBS00K42
Intermittent incidents (I/I)

Page 440 of 3189

NISSAN ALMERA N16 2003  Electronic Repair Manual EC-110
[QG (WITH EURO-OBD)]
POWER SUPPLY CIRCUIT FOR ECM
POWER SUPPLY CIRCUIT FOR ECM
PFP:24110
Wiring DiagramEBS00K44
YEC276A
