Page 1633 of 3189

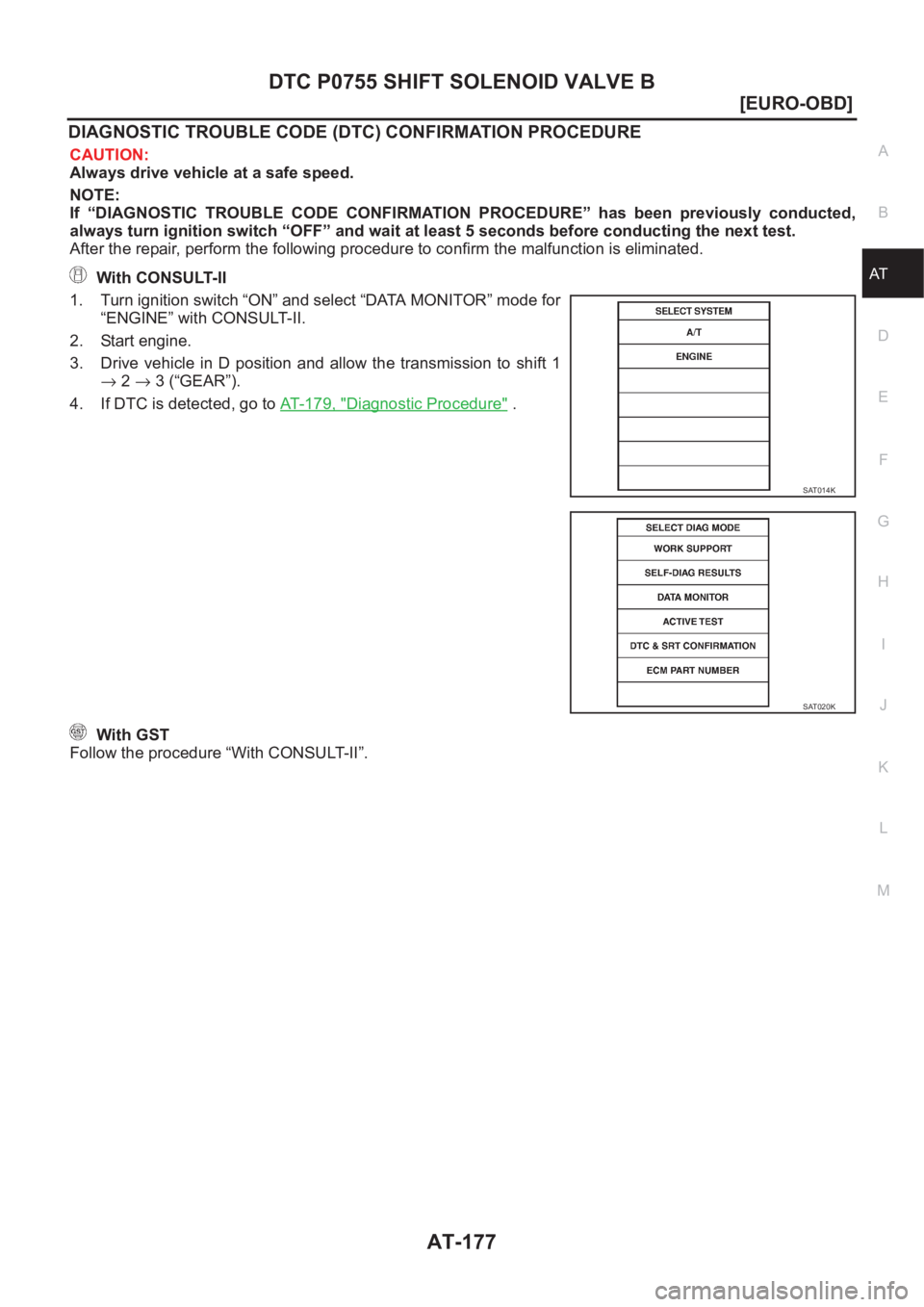

NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0755 SHIFT SOLENOID VALVE B AT-177 [EURO-OBD] D E F G H I J K L MA B AT DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE CAUTION: Always drive vehicle at a safe speed. NOTE: If “DIAGNOSTIC

Page 1634 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-178 [EURO-OBD] DTC P0755 SHIFT SOLENOID VALVE B Wiring Diagram — AT — SSV/B ECS007PB YAT 2 4 2

Page 1635 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0755 SHIFT SOLENOID VALVE B AT-179 [EURO-OBD] D E F G H I J K L MA B AT Diagnostic ProcedureECS007PC 1.CHECK VALVE RESISTANCE 1. Turn ignition switch to “OFF” position. 2. Disconnect terminal

Page 1636 of 3189

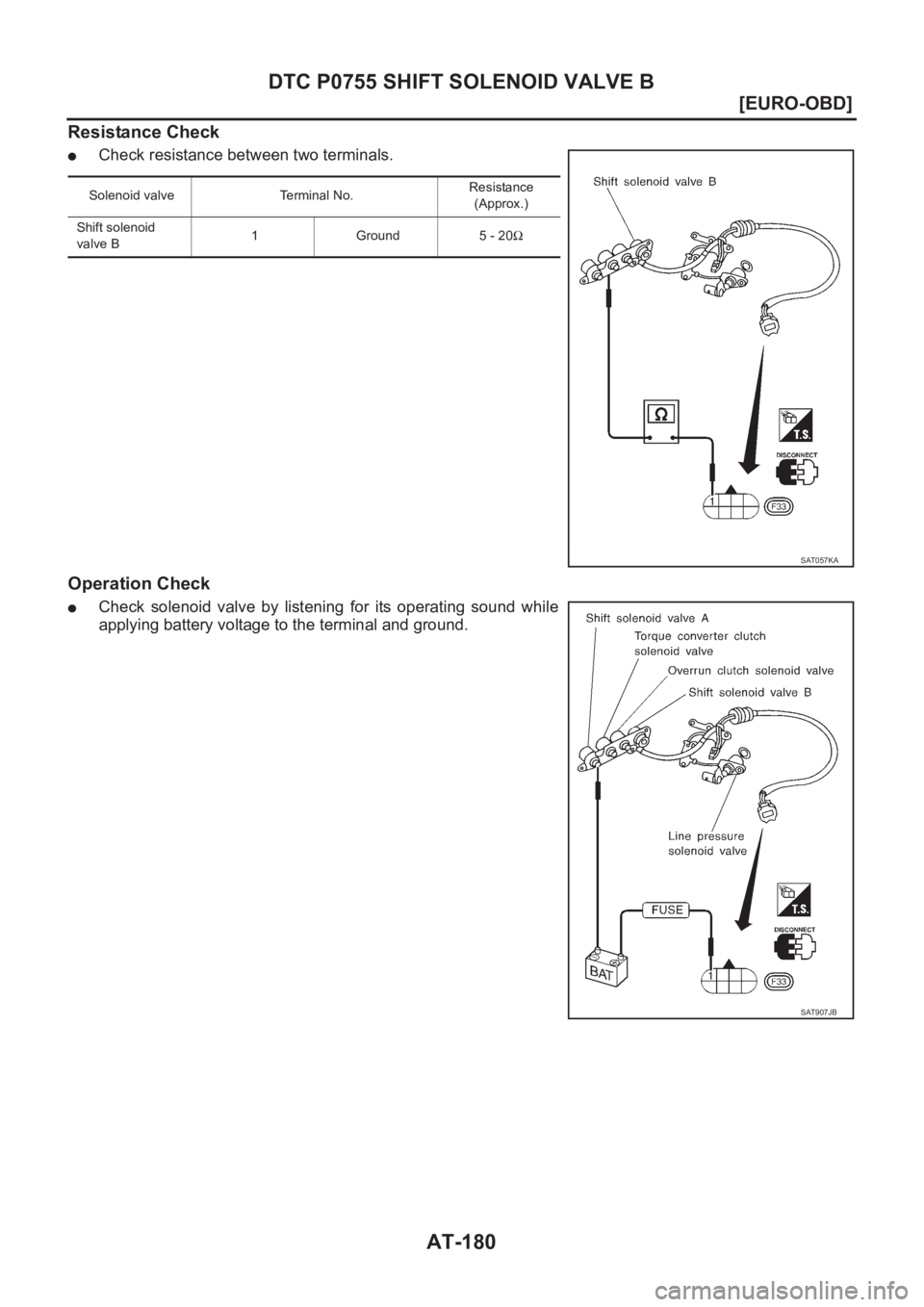

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-180 [EURO-OBD] DTC P0755 SHIFT SOLENOID VALVE B Resistance Check ●Check resistance between two terminals. Operation Check ●Check solenoid valve by listening for its operating sound whi

Page 1637 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P1705 ACCELERATOR PEDAL POSITION (APP) SENSOR AT-181 [EURO-OBD] D E F G H I J K L MA B AT DTC P1705 ACCELERATOR PEDAL POSITION (APP) SENSORPFP:22620 DescriptionECS007PE ●Accelerator pedal positi

Page 1638 of 3189

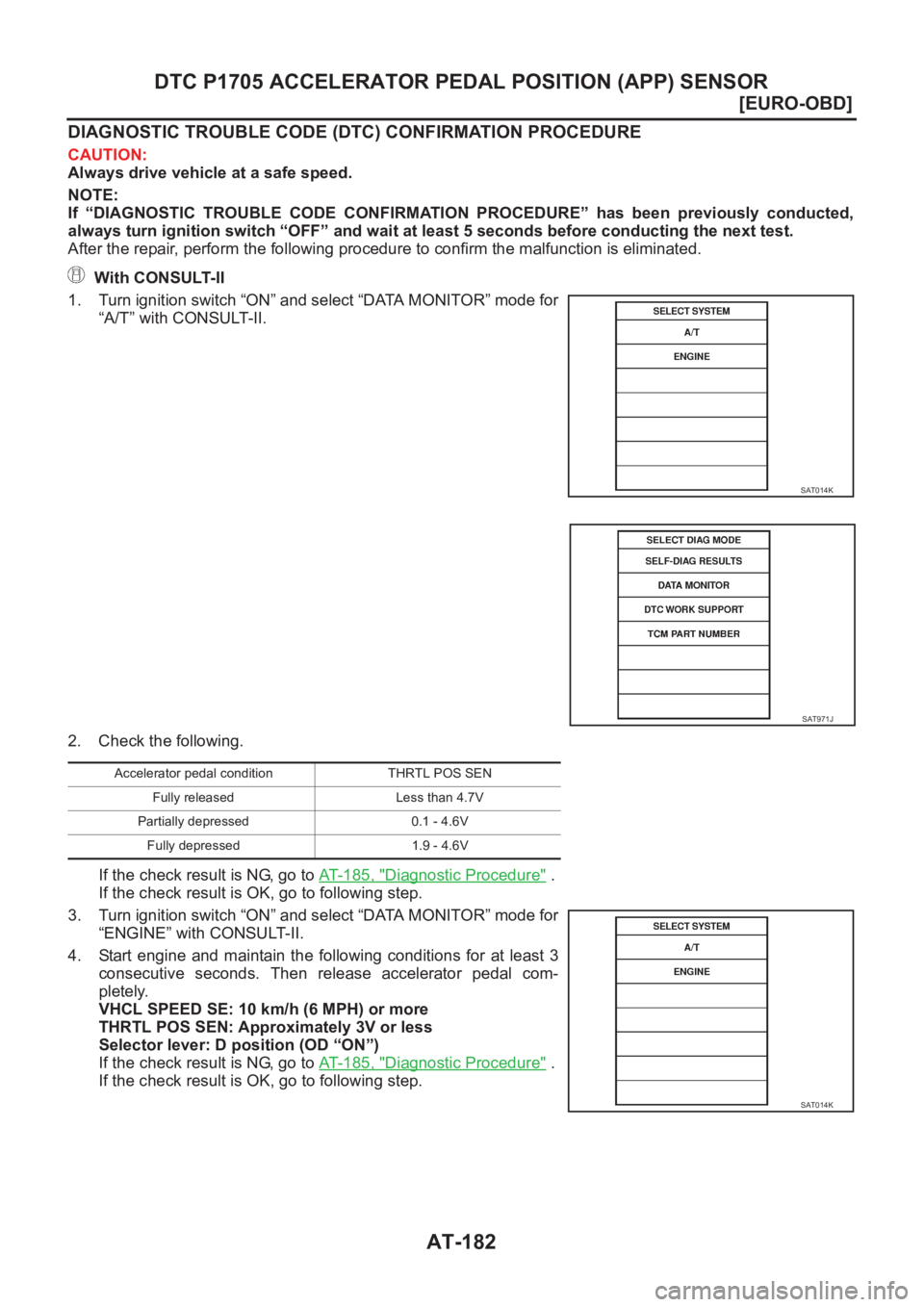

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-182 [EURO-OBD] DTC P1705 ACCELERATOR PEDAL POSITION (APP) SENSOR DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE CAUTION: Always drive vehicle at a safe speed. NOTE: If “DIAGNOSTIC TROUBLE

Page 1639 of 3189

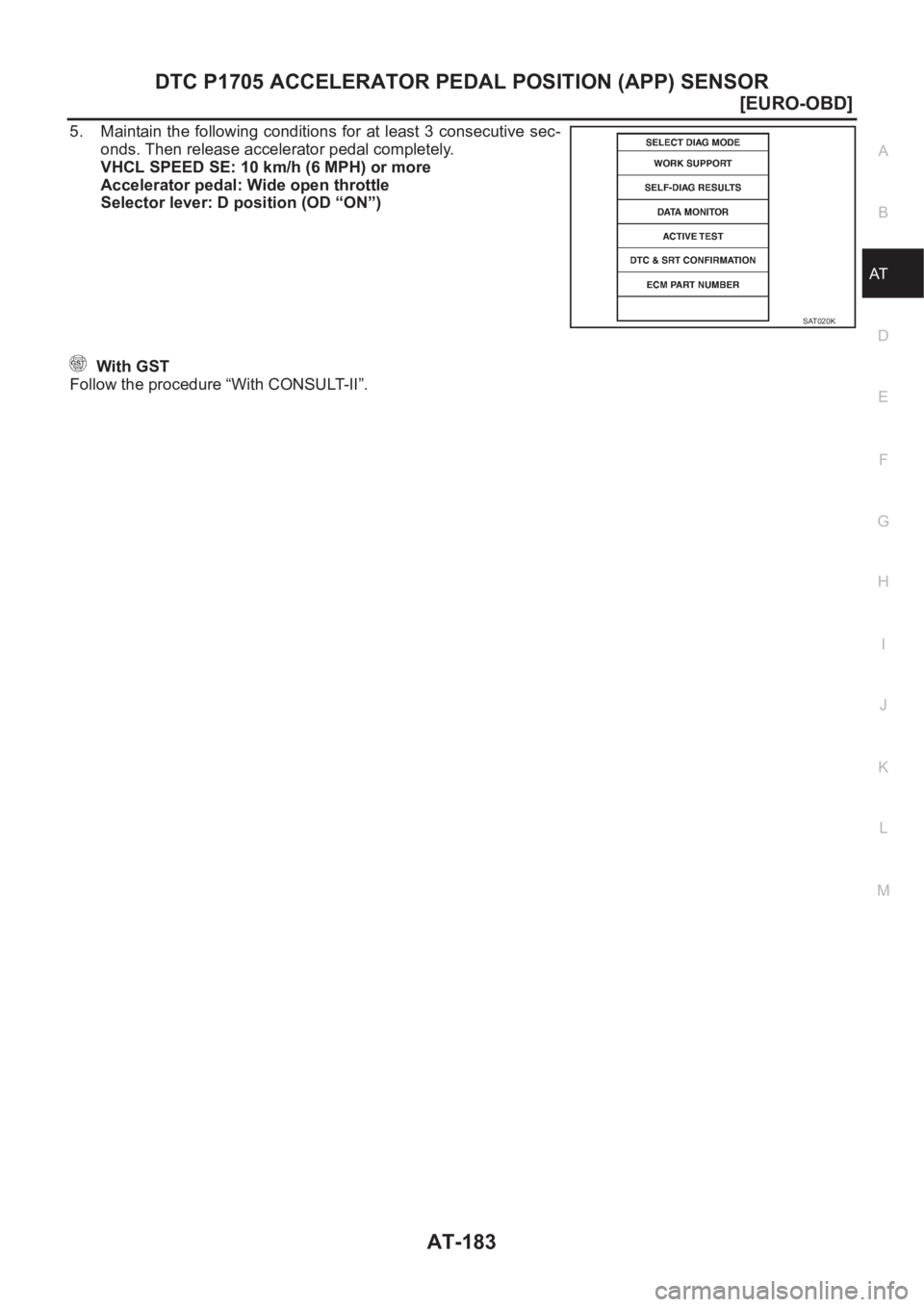

NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P1705 ACCELERATOR PEDAL POSITION (APP) SENSOR AT-183 [EURO-OBD] D E F G H I J K L MA B AT 5. Maintain the following conditions for at least 3 consecutive sec- onds. Then release accelerator pedal

Page 1640 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-184 [EURO-OBD] DTC P1705 ACCELERATOR PEDAL POSITION (APP) SENSOR Wiring Diagram — AT — TPS ECS007PF YAT 3 6 1
