2003 NISSAN ALMERA N16 Electronic Repair Manual

change wheel wiring diagram heating adblue reset high beam fog light

Page 2161 of 3189

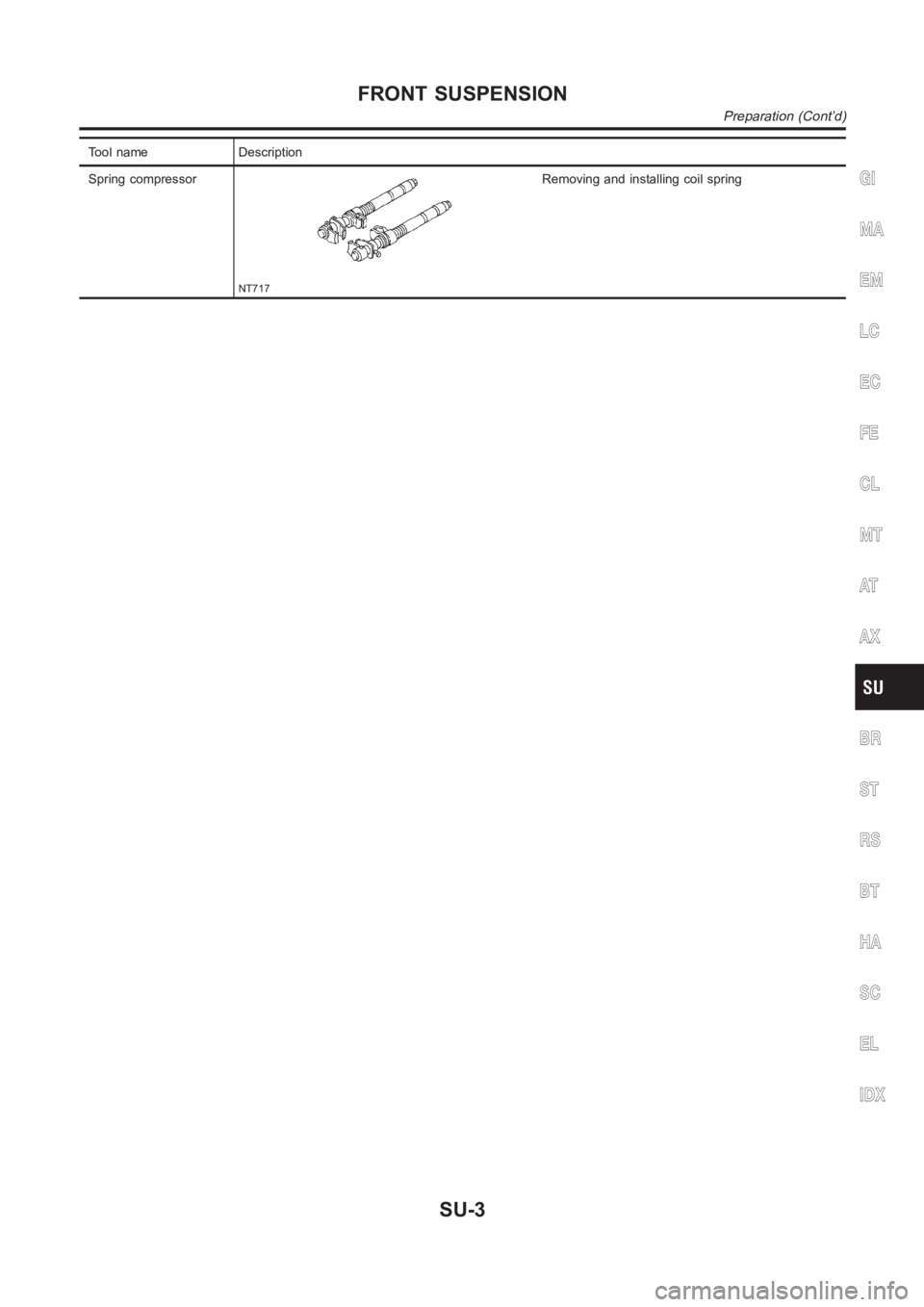

NISSAN ALMERA N16 2003 Electronic Repair Manual Tool name Description
Spring compressor
NT717
Removing and installing coil springGI
MA
EM
LC
EC
FE
CL
MT
AT
AX
BR
ST
RS
BT
HA
SC
EL
IDX
FRONT SUSPENSION
Preparation (Cont’d)
SU-3

Page 2162 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Noise, Vibration and Harshness (NVH)
Troubleshooting
=NJSU0004NVH TROUBLESHOOTING CHARTNJSU0004S01Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these p

Noise, Vibration and Harshness (NVH)
Troubleshooting
=NJSU0004NVH TROUBLESHOOTING CHARTNJSU0004S01Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.
Reference page
SU-5, 17
SU-10, 21
—
—
—
SU-9, 20
SU-7
SU-11
SU-7
—
—
—
—
—
—
AX-3
AX-3
Refer to SUSPENSION
in this chart.
Refer to TIRES
in this chart.
Refer to ROAD WHEEL
in this chart.
BR-6
ST-5
Possible Cause and
SUSPECTED PARTS
Improper installation, looseness
Shock absorber deformation,
damage or deflection
Bushing or mounting deterioration
Parts interference
Spring fatigue
Suspension looseness
Incorrect wheel alignment
Stabilizer bar fatigue
Out-of-round
Imbalance
Incorrect air pressure
Uneven tire wear
Deformation or damage
Non-uniformity
Incorrect tire size
DRIVE SHAFT
AXLE
SUSPENSION
TIRES
ROAD WHEEL
BRAKES
STEERING Symptom
SUSPENSION
Noise× × ××××—————————××—××××
Shake××××—×—————————××—××××
Vibration× × ×××——————————××—×——×
Shimmy××××——×—————————×—××××
Judder×××—————————————×—××××
Poor quality
ride or han-
dling× × ×××—××————————×—××——
TIRES
Noise×— ——————××××××—×× ×—×××
Shake×— ——————×××××—××× ×—×××
Vibration — — ————————×———××× ×———×
Shimmy×— ——————×××××××—××—×××
Judder×— ——————×××××—×—××—×××
Poor quality
ride or han-
dling×— ——————×××××—×—××—×——
ROAD WHEEL
Noise×— ——————××——×——×× × ×—××
Shake×— ——————××——×——×× × ×—××
Shimmy,
Judder×— ——————××——×———×× ×—××
Poor quality
ride or han-
dling×— ——————××——×———×× ×———
×: Applicable
—: Not applicable
FRONT SUSPENSION
Noise, Vibration and Harshness (NVH) Troubleshooting
SU-4

Page 2163 of 3189

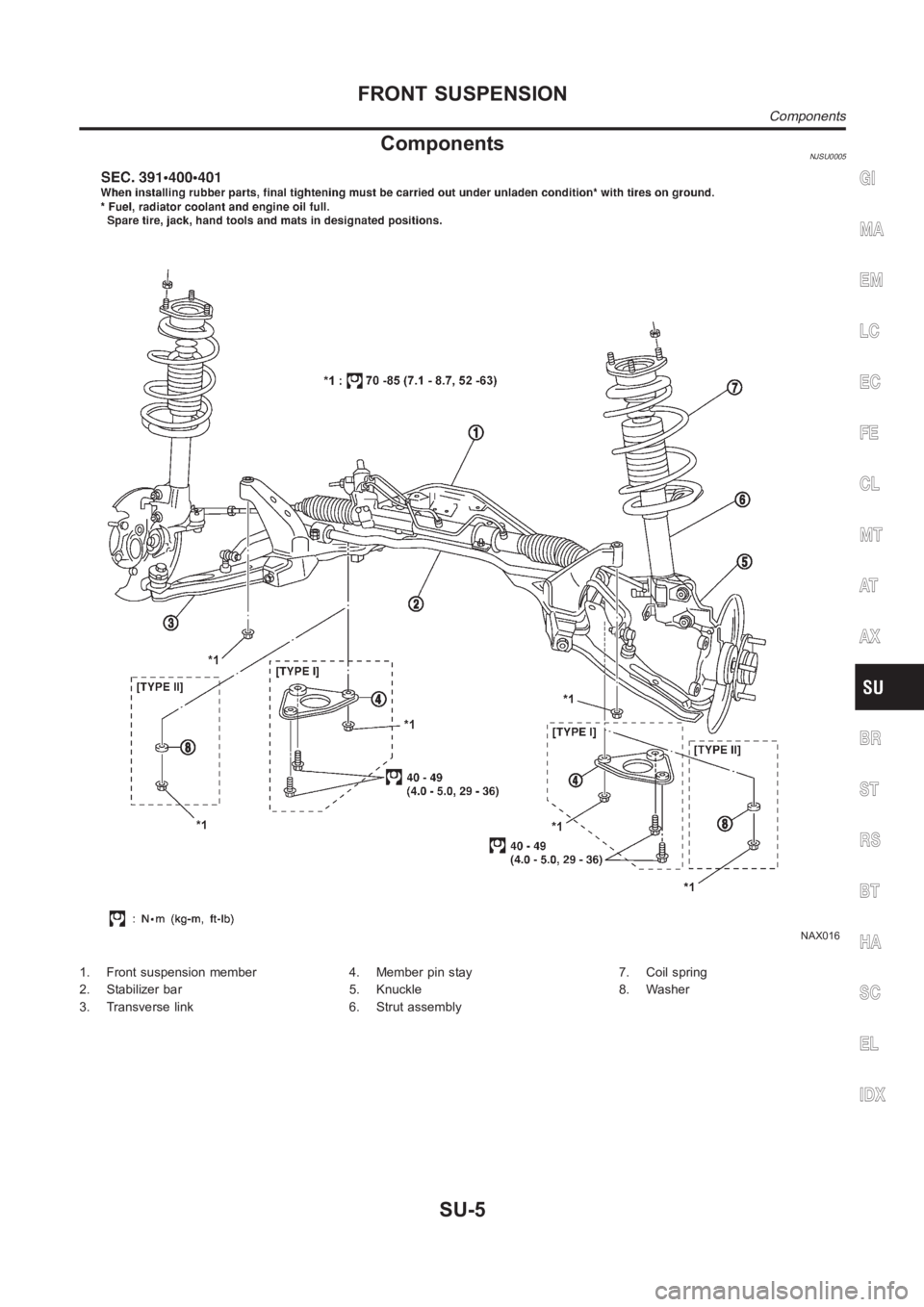

NISSAN ALMERA N16 2003 Electronic Repair Manual ComponentsNJSU0005
NAX016
1. Front suspension member
2. Stabilizer bar
3. Transverse link4. Member pin stay
5. Knuckle
6. Strut assembly7. Coil spring
8. Washer
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
BR
ST
RS

Page 2164 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SMA525A
On-vehicle Service
FRONT SUSPENSION PARTSNJSU0006Check front axle and front suspension parts for excessive play,
cracks, wear or other damage.
Shake each front wheel to check for excessive pla

Page 2165 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SFA975B
BALANCING WHEELSNJSU0042Preliminary InspectionNJSU0042S011. Check tires for wear and improper inflation.
2. Check wheels for deformation, cracks and other damage.
If deformed, remove wheel and

Page 2166 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AFA050
To e - i nNJSU0045S02Measure toe-in using the following procedure.
WARNING:
Always perform the following procedure on a flat surface.
Make sure that no person is in front of the vehicle before

Page 2167 of 3189

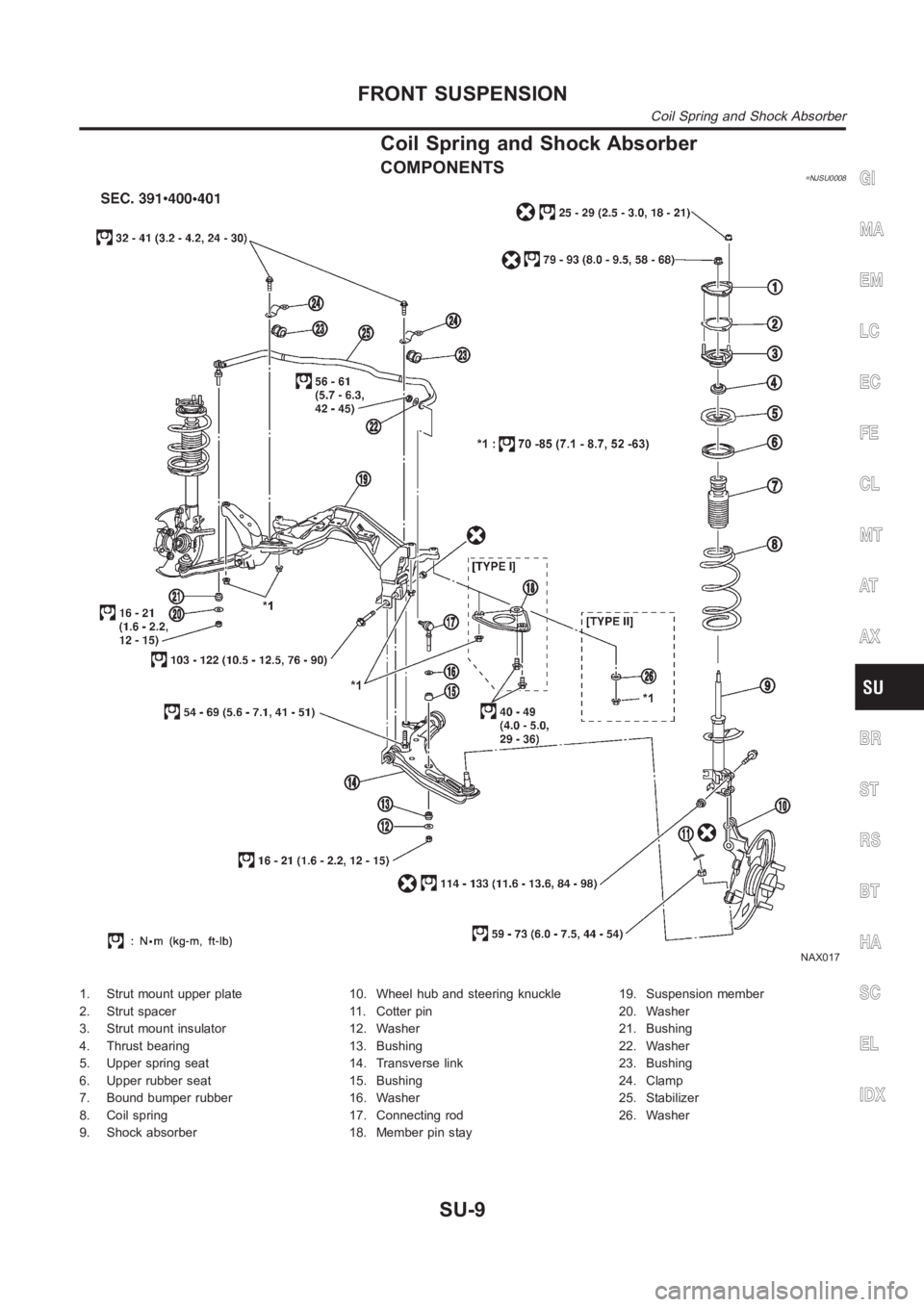

NISSAN ALMERA N16 2003 Electronic Repair Manual Coil Spring and Shock Absorber
COMPONENTS=NJSU0008
NAX017
1. Strut mount upper plate
2. Strut spacer
3. Strut mount insulator
4. Thrust bearing
5. Upper spring seat
6. Upper rubber seat
7. Bound bumpe

Page 2168 of 3189

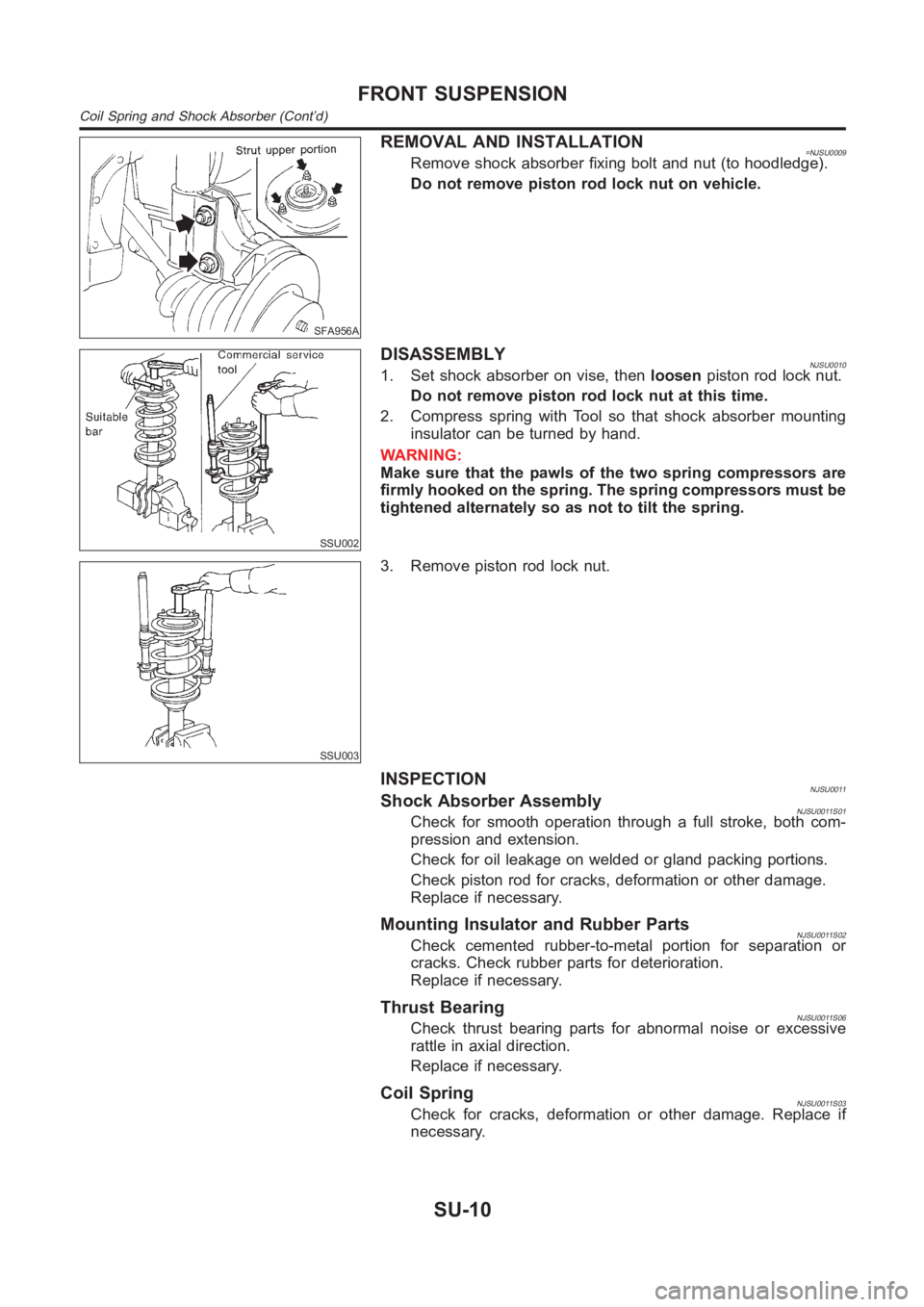

NISSAN ALMERA N16 2003 Electronic Repair Manual SFA956A
REMOVAL AND INSTALLATION=NJSU0009Remove shock absorber fixing bolt and nut (to hoodledge).
Do not remove piston rod lock nut on vehicle.
SSU002
DISASSEMBLYNJSU00101. Set shock absorber on vise
