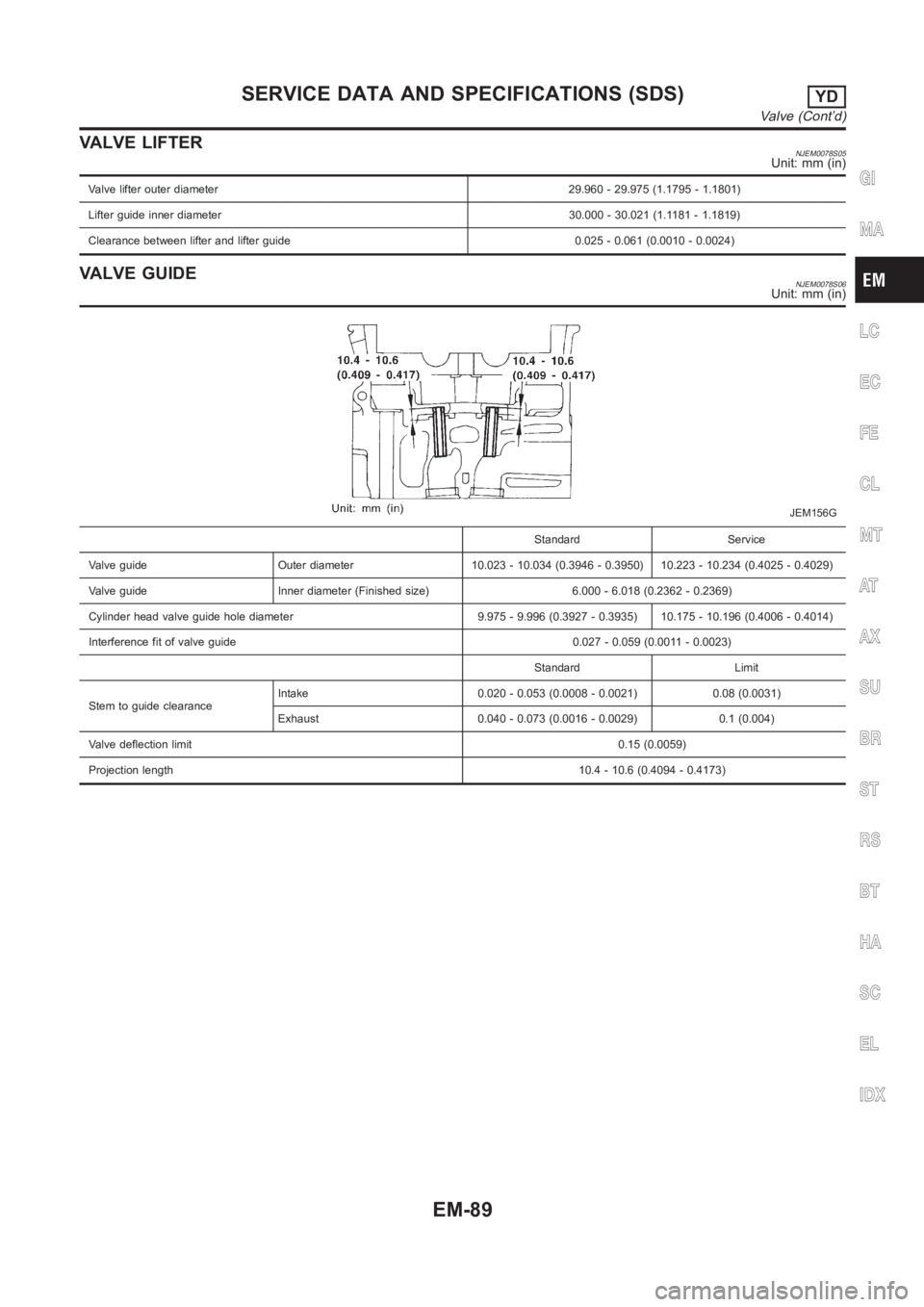

NISSAN ALMERA N16 2003 Electronic Repair Manual VALVE LIFTERNJEM0078S05Unit: mm (in) Valve lifter outer diameter 29.960 - 29.975 (1.1795 - 1.1801) Lifter guide inner diameter 30.000 - 30.021 (1.1181 - 1.1819) Clearance between lifter and lifter gui

Page 274 of 3189

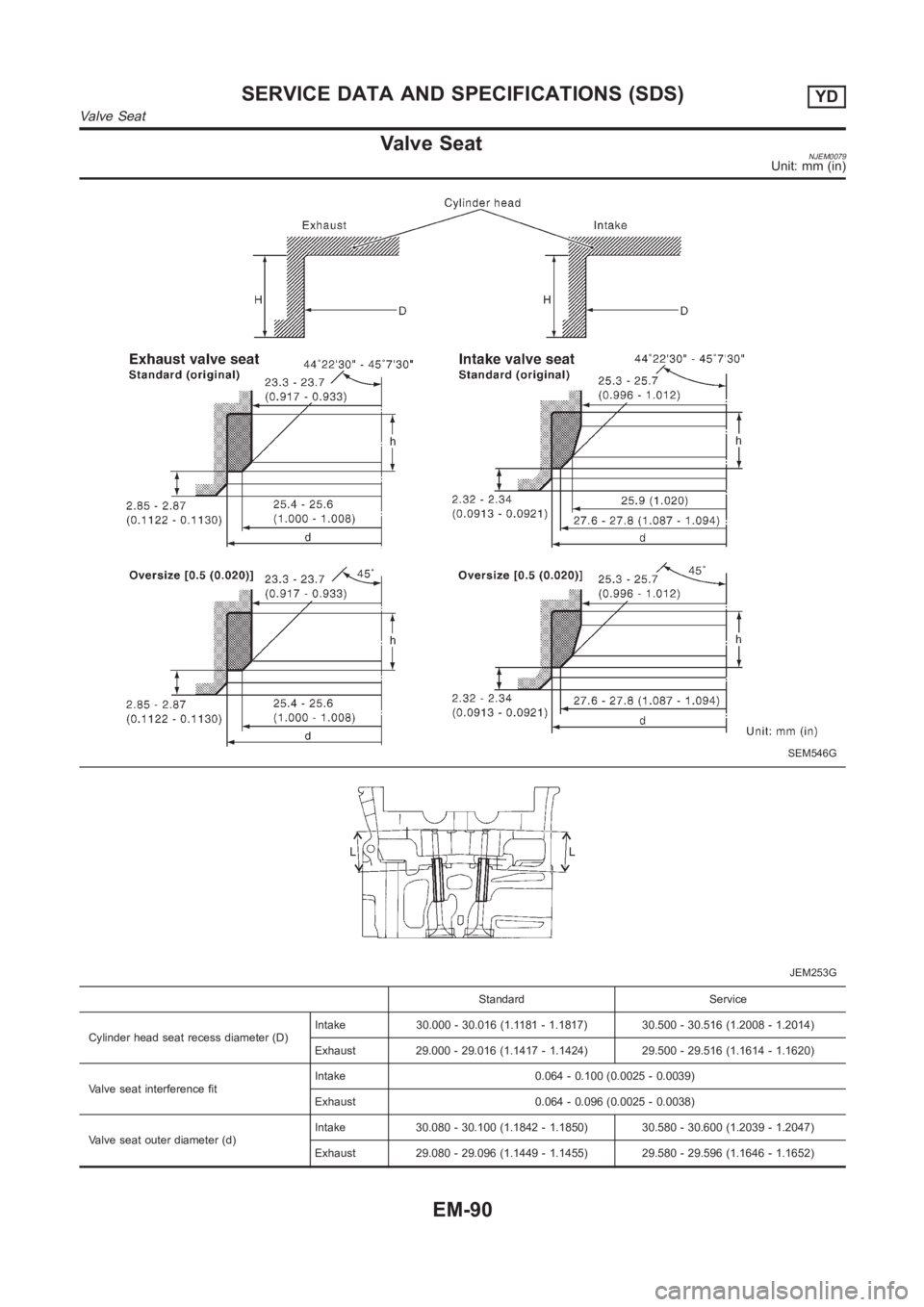

NISSAN ALMERA N16 2003 Electronic Repair Manual Valve SeatNJEM0079Unit: mm (in) SEM546G JEM253G Standard Service Cylinder head seat recess diameter (D)Intake 30.000 - 30.016 (1.1181 - 1.1817) 30.500 - 30.516 (1.2008 - 1.2014) Exhaust 29.000 - 29.01

Page 275 of 3189

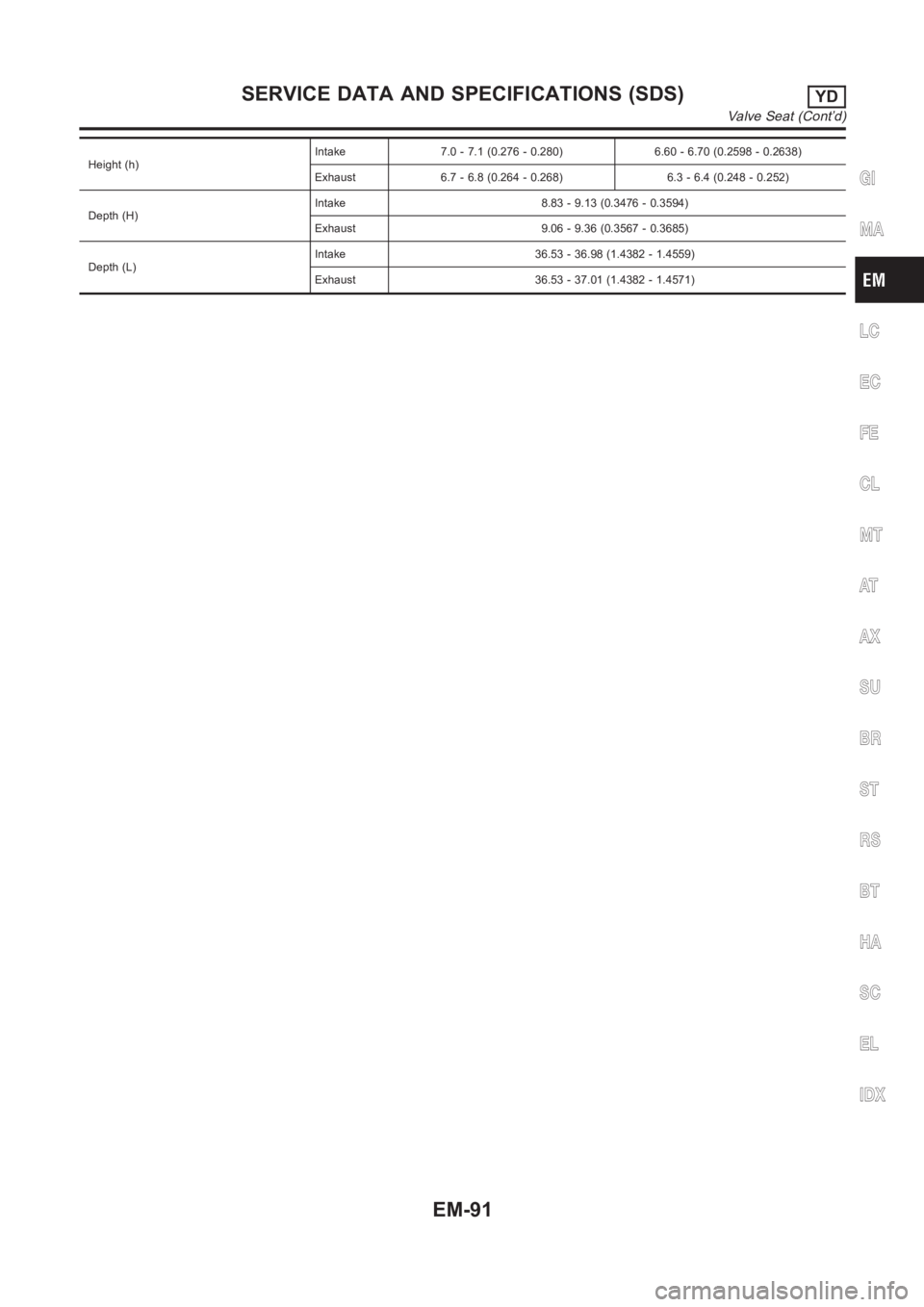

NISSAN ALMERA N16 2003 Electronic Repair Manual Height (h)Intake 7.0 - 7.1 (0.276 - 0.280) 6.60 - 6.70 (0.2598 - 0.2638) Exhaust 6.7 - 6.8 (0.264 - 0.268) 6.3 - 6.4 (0.248 - 0.252) Depth (H)Intake 8.83 - 9.13 (0.3476 - 0.3594) Exhaust 9.06 - 9.36 (

Page 276 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Camshaft and Camshaft Bearing=NJEM0080Unit: mm (in) Standard Limit Camshaft journal to bearing clearance 0.045 - 0.086 (0.0018 - 0.0034) 0.045 - 0.086 (0.0018 - 0.0034) Inner diameter of camshaft bear

Page 277 of 3189

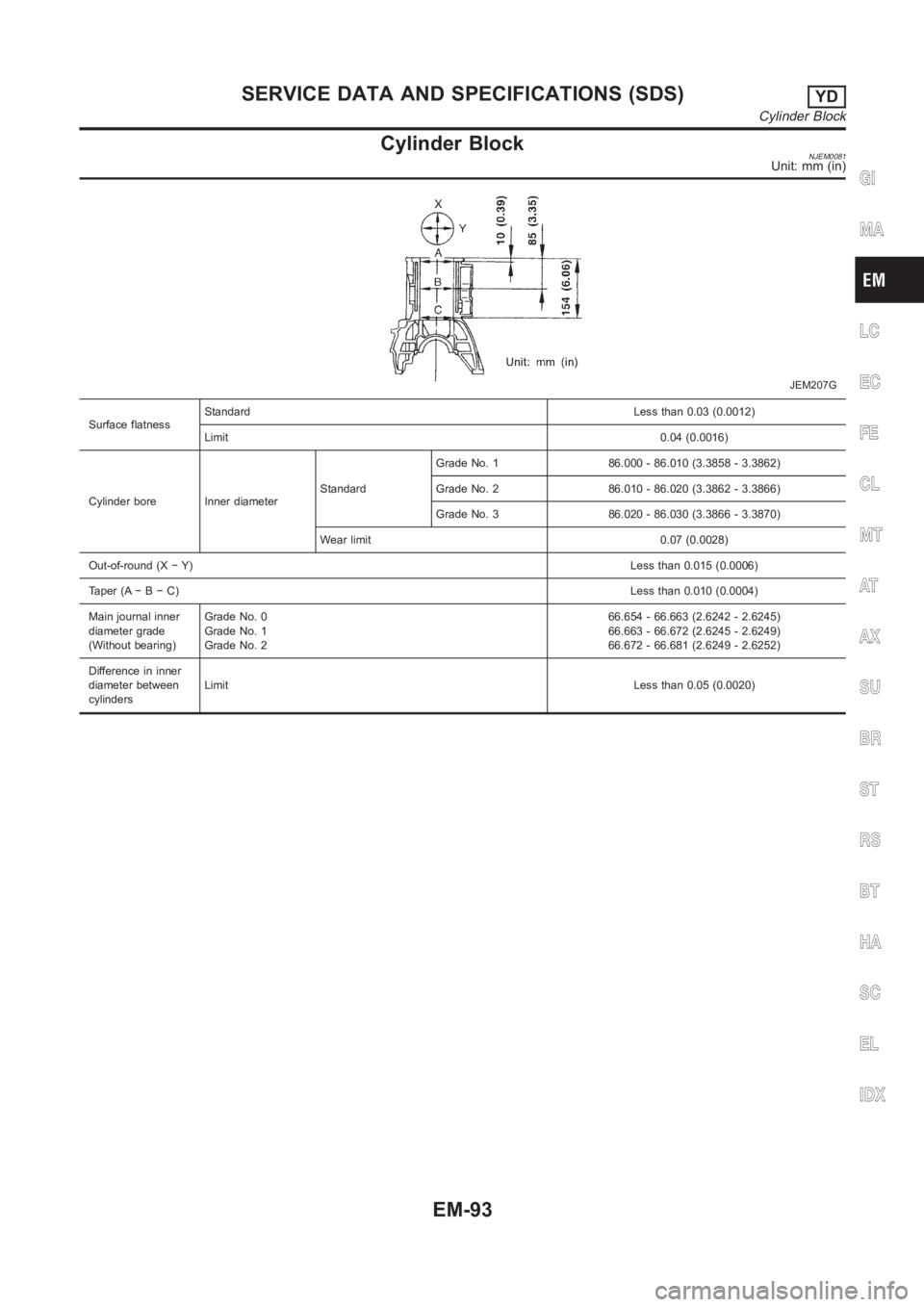

NISSAN ALMERA N16 2003 Electronic Repair Manual Cylinder BlockNJEM0081Unit: mm (in) JEM207G Surface flatnessStandardLess than 0.03 (0.0012) Limit0.04 (0.0016) Cylinder bore Inner diameterStandardGrade No. 1 86.000 - 86.010 (3.3858 - 3.3862) Grade N

Page 278 of 3189

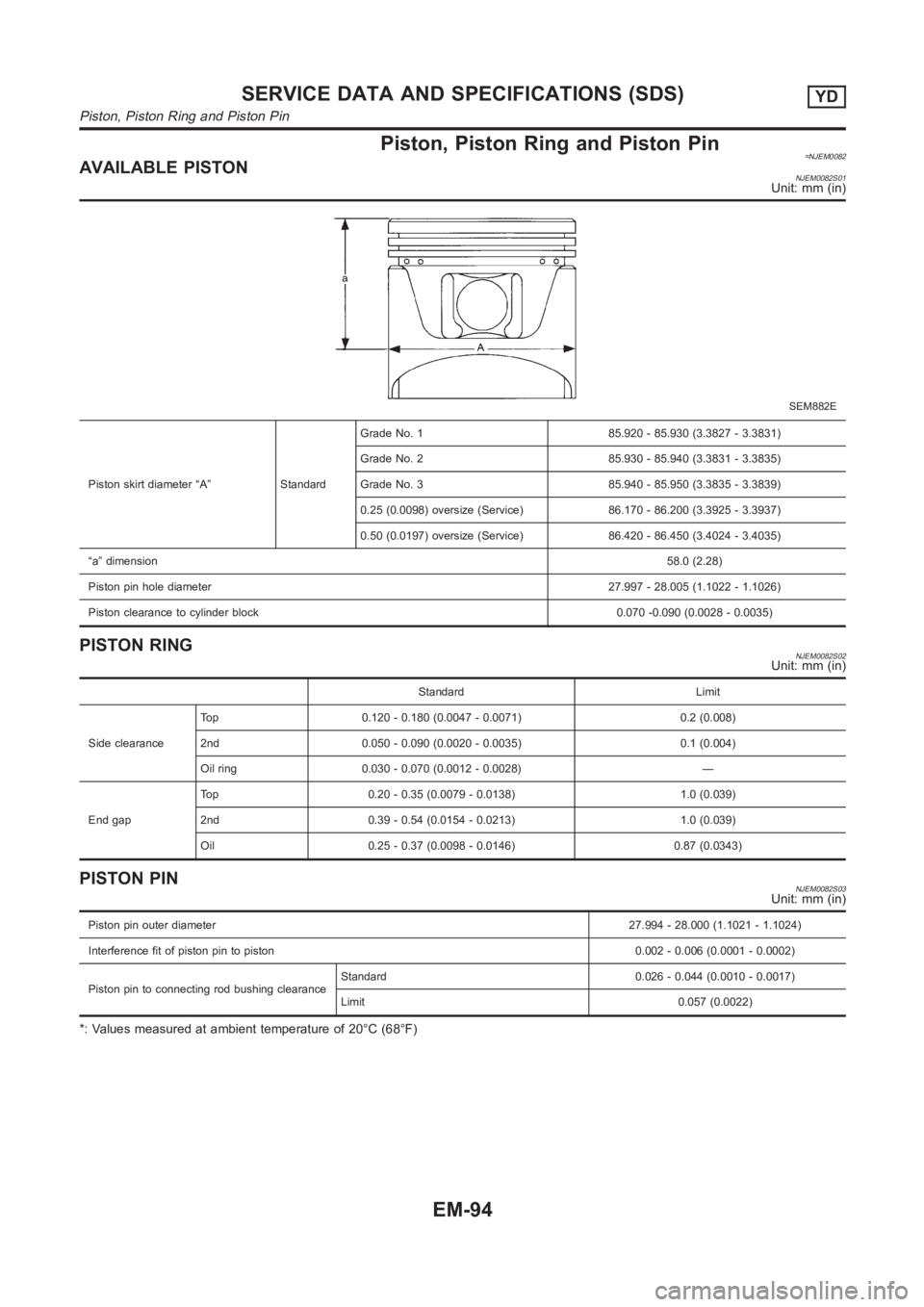

NISSAN ALMERA N16 2003 Electronic Repair Manual Piston, Piston Ring and Piston Pin=NJEM0082AVAILABLE PISTONNJEM0082S01Unit: mm (in) SEM882E Piston skirt diameter “A” StandardGrade No. 1 85.920 - 85.930 (3.3827 - 3.3831) Grade No. 2 85.930 - 85.

Page 279 of 3189

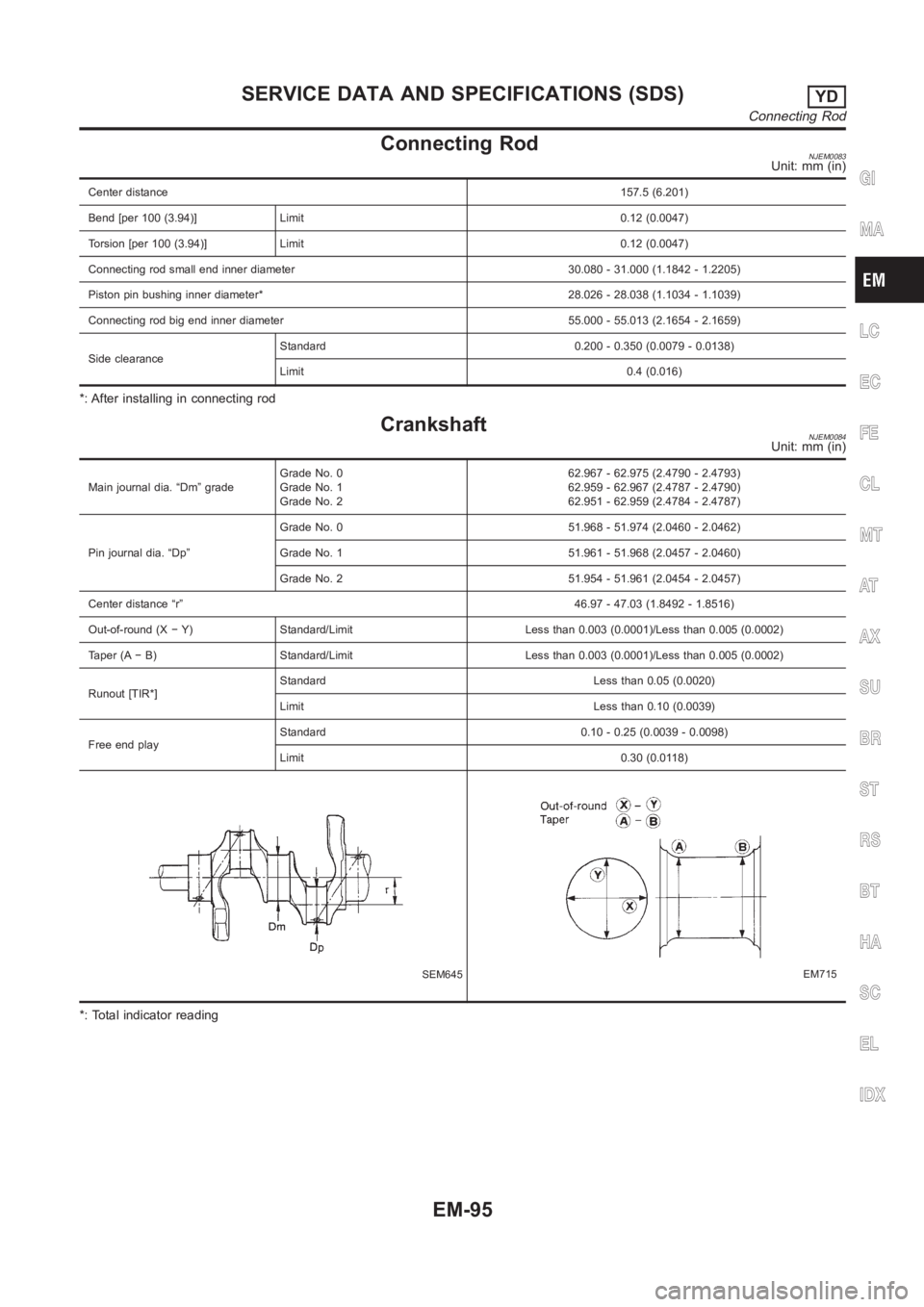

NISSAN ALMERA N16 2003 Electronic Repair Manual Connecting RodNJEM0083Unit: mm (in) Center distance157.5 (6.201) Bend [per 100 (3.94)] Limit 0.12 (0.0047) Torsion [per 100 (3.94)] Limit 0.12 (0.0047) Connecting rod small end inner diameter 30.080 -

Page 280 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Available Main BearingNJEM0085 SEM255G Grade number Thickness “T” mm (in) Width “W” mm (in) Identification color 0 1.816 - 1.820 (0.0715 - 0.0717) 19.9 - 20.1 (0.783 - 0.791)Black 1 1.820 - 1.
