NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P1227, P1228 APP SENSOR
EC-351
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

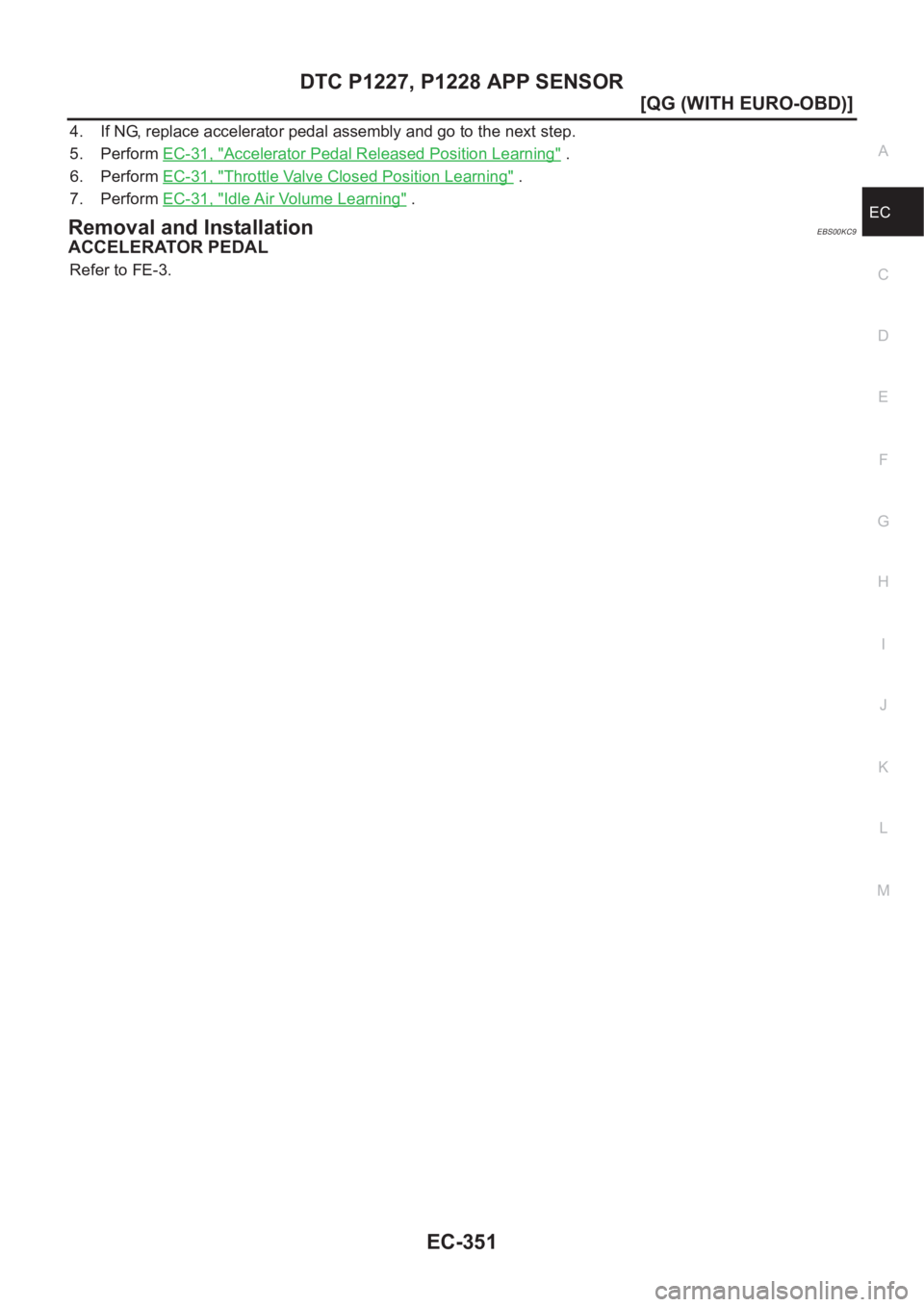

4. If NG, replace accelerator pedal assembly and go to the next step.
5. Perform EC-31, "
Accelerator Pedal Releas

Page 682 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-352
[QG (WITH EURO-OBD)]
DTC P1229 SENSOR POWER SUPPLY
DTC P1229 SENSOR POWER SUPPLY
PFP:16119
On Board Diagnosis LogicEBS00KCA
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE

Page 683 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P1229 SENSOR POWER SUPPLY
EC-353
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Wiring DiagramEBS00KCC
YEC303A

Page 684 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-354
[QG (WITH EURO-OBD)]
DTC P1229 SENSOR POWER SUPPLY
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measu

Page 685 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P1229 SENSOR POWER SUPPLY
EC-355
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

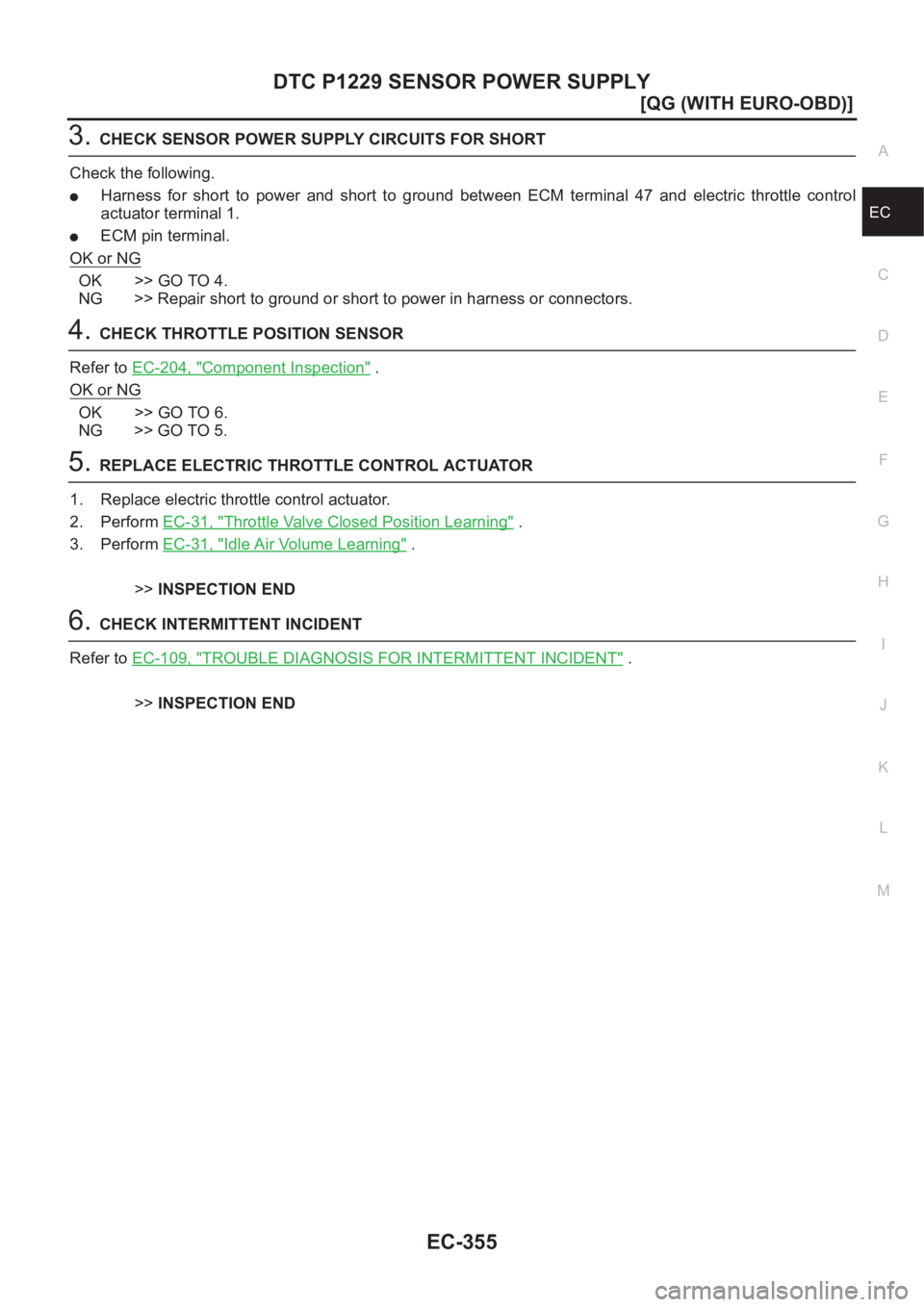

3.CHECK SENSOR POWER SUPPLY CIRCUITS FOR SHORT
Check the following.
●Harness for short to power and short t

Page 686 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-356
[QG (WITH EURO-OBD)]

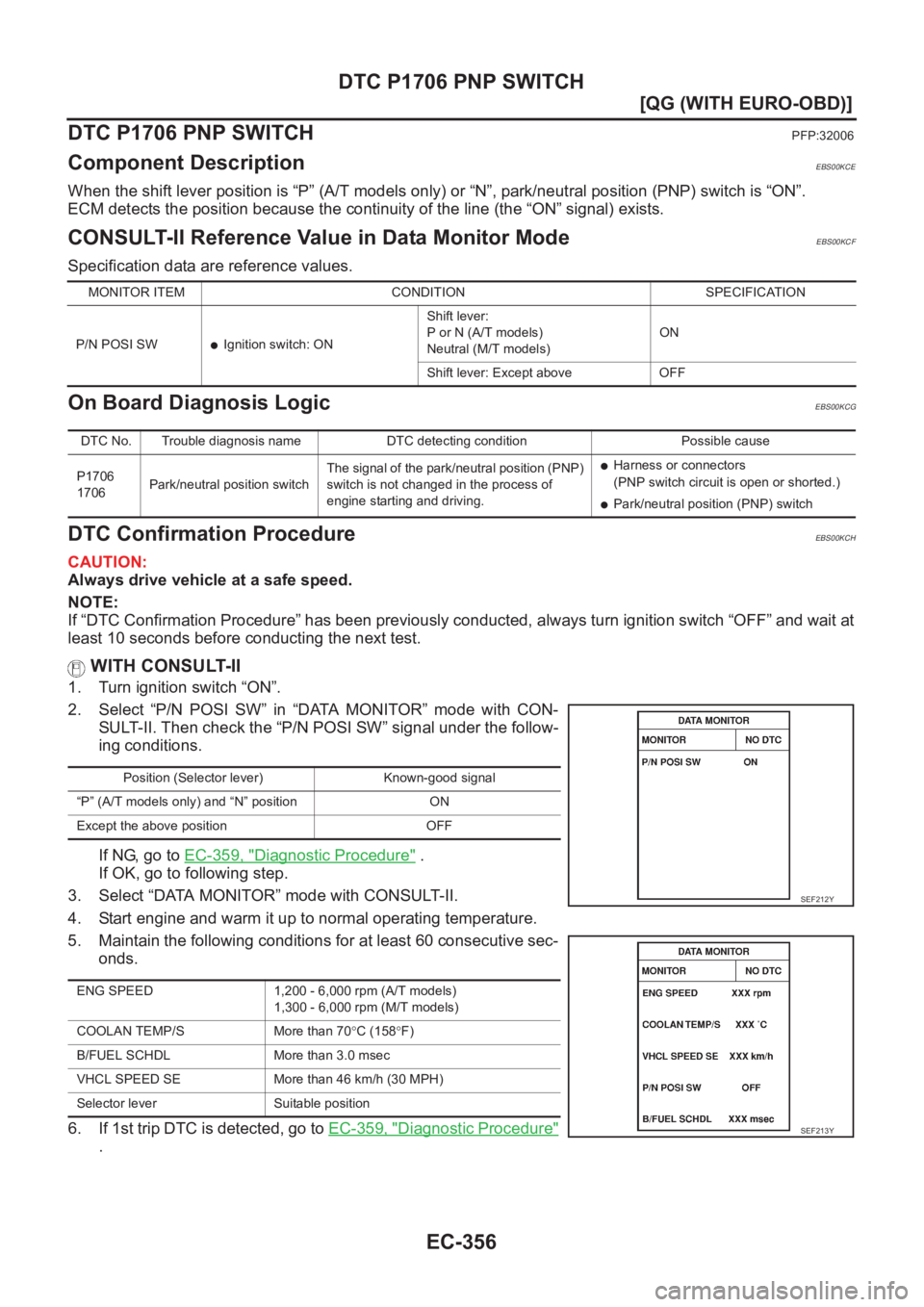

DTC P1706 PNP SWITCH
DTC P1706 PNP SWITCH
PFP:32006
Component DescriptionEBS00KCE
When the shift lever position is “P” (A/T models only) or “N”, park/neutral positi

EC-356
[QG (WITH EURO-OBD)]
DTC P1706 PNP SWITCH
DTC P1706 PNP SWITCH
PFP:32006
Component DescriptionEBS00KCE
When the shift lever position is “P” (A/T models only) or “N”, park/neutral position (PNP) switch is “ON”.
ECM detects the position because the continuity of the line (the “ON” signal) exists.
CONSULT-II Reference Value in Data Monitor ModeEBS00KCF
Specification data are reference values.
On Board Diagnosis LogicEBS00KCG
DTC Confirmation ProcedureEBS00KCH
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “P/N POSI SW” in “DATA MONITOR” mode with CON-
SULT-II. Then check the “P/N POSI SW” signal under the follow-
ing conditions.
If NG, go to EC-359, "
Diagnostic Procedure" .
If OK, go to following step.
3. Select “DATA MONITOR” mode with CONSULT-II.
4. Start engine and warm it up to normal operating temperature.
5. Maintain the following conditions for at least 60 consecutive sec-
onds.
6. If 1st trip DTC is detected, go to EC-359, "
Diagnostic Procedure"
.
MONITOR ITEM CONDITION SPECIFICATION
P/N POSI SW
●Ignition switch: ONShift lever:
P or N (A/T models)
Neutral (M/T models)ON
Shift lever: Except above OFF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1706
1706Park/neutral position switchThe signal of the park/neutral position (PNP)
switch is not changed in the process of
engine starting and driving.
●Harness or connectors
(PNP switch circuit is open or shorted.)
●Park/neutral position (PNP) switch
Position (Selector lever) Known-good signal
“P” (A/T models only) and “N” position ON
Except the above position OFF
ENG SPEED 1,200 - 6,000 rpm (A/T models)
1,300 - 6,000 rpm (M/T models)
COOLAN TEMP/S More than 70°C (158°F)
B/FUEL SCHDL More than 3.0 msec
VHCL SPEED SE More than 46 km/h (30 MPH)
Selector lever Suitable position
SEF212Y
SEF213Y

Page 687 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P1706 PNP SWITCH
EC-357
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

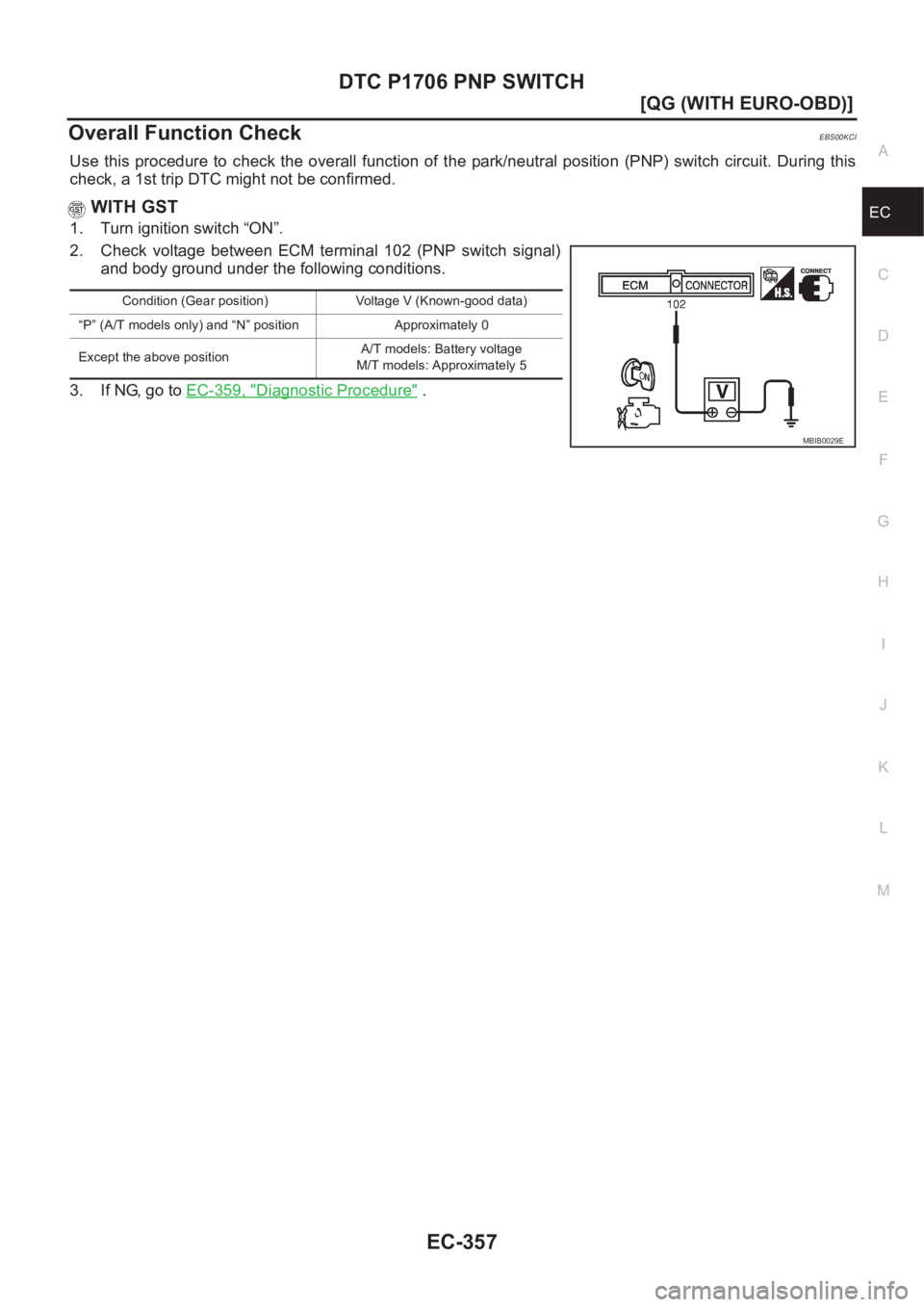

Overall Function CheckEBS00KCI
Use this procedure to check the overall function of the park/neutral position (PNP) sw

Page 688 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-358
[QG (WITH EURO-OBD)]
DTC P1706 PNP SWITCH
Wiring Diagram
EBS00KCJ
YEC304A
