2003 NISSAN ALMERA N16 Electronic Repair Manual

deactivate passenger airbag interior lights ECO mode fog light bulb air condition clock

Load previous 8 pages

Page 1641 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P1705 ACCELERATOR PEDAL POSITION (APP) SENSOR
AT-185
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Diagnostic ProcedureECS007PG
1.CHECK DTC WITH ECM
Refer to EC-37, "
Emission-related Diagnostic Inform

Page 1642 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-186
[EURO-OBD]
DTC P1705 ACCELERATOR PEDAL POSITION (APP) SENSOR
3. CHECK INPUT SIGNAL (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2

Page 1643 of 3189

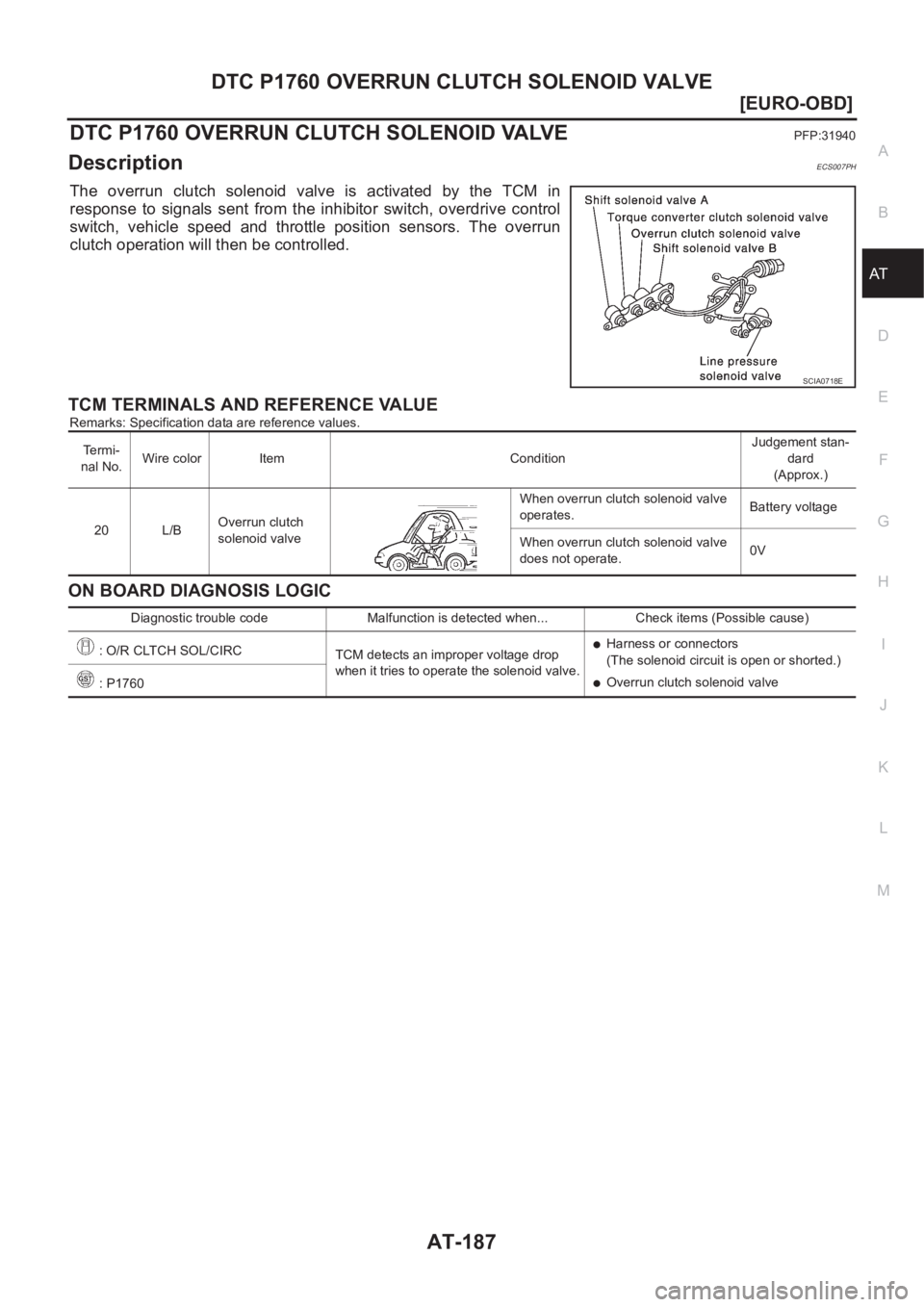

NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P1760 OVERRUN CLUTCH SOLENOID VALVE
AT-187
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P1760 OVERRUN CLUTCH SOLENOID VALVEPFP:31940
DescriptionECS007PH
The overrun clutch solenoid valve is acti

Page 1644 of 3189

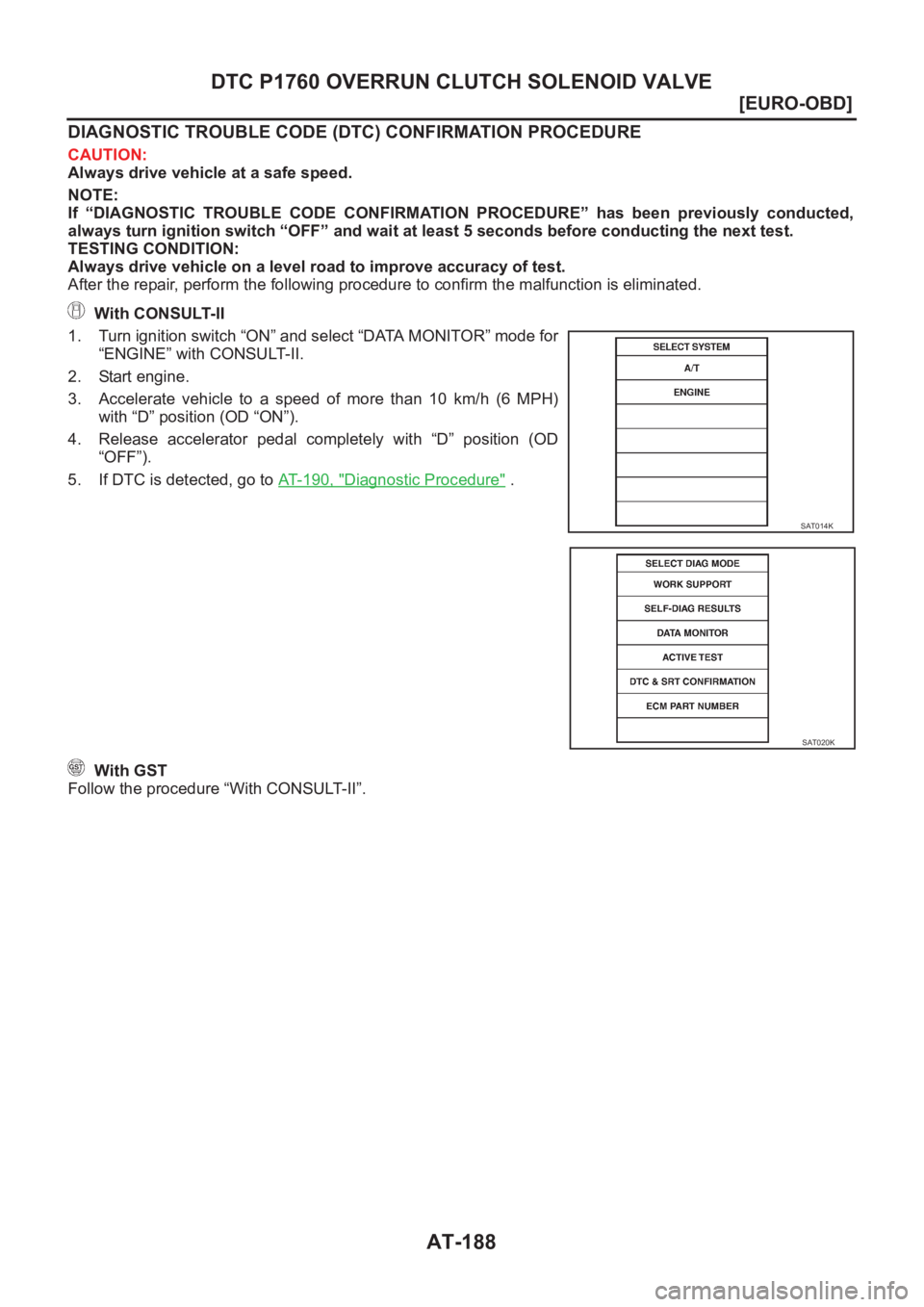

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-188
[EURO-OBD]
DTC P1760 OVERRUN CLUTCH SOLENOID VALVE
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DIAGNOSTIC TROUBLE CODE CO

Page 1645 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P1760 OVERRUN CLUTCH SOLENOID VALVE
AT-189
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Wiring Diagram — AT — OVRCSVECS007PI
YAT 2 4 4

Page 1646 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-190
[EURO-OBD]
DTC P1760 OVERRUN CLUTCH SOLENOID VALVE
Diagnostic Procedure
ECS007PJ
1. CHECK VALVE RESISTANCE
1. Turn ignition switch to “OFF” position.
2. Disconnect terminal cord assembly co

Page 1647 of 3189

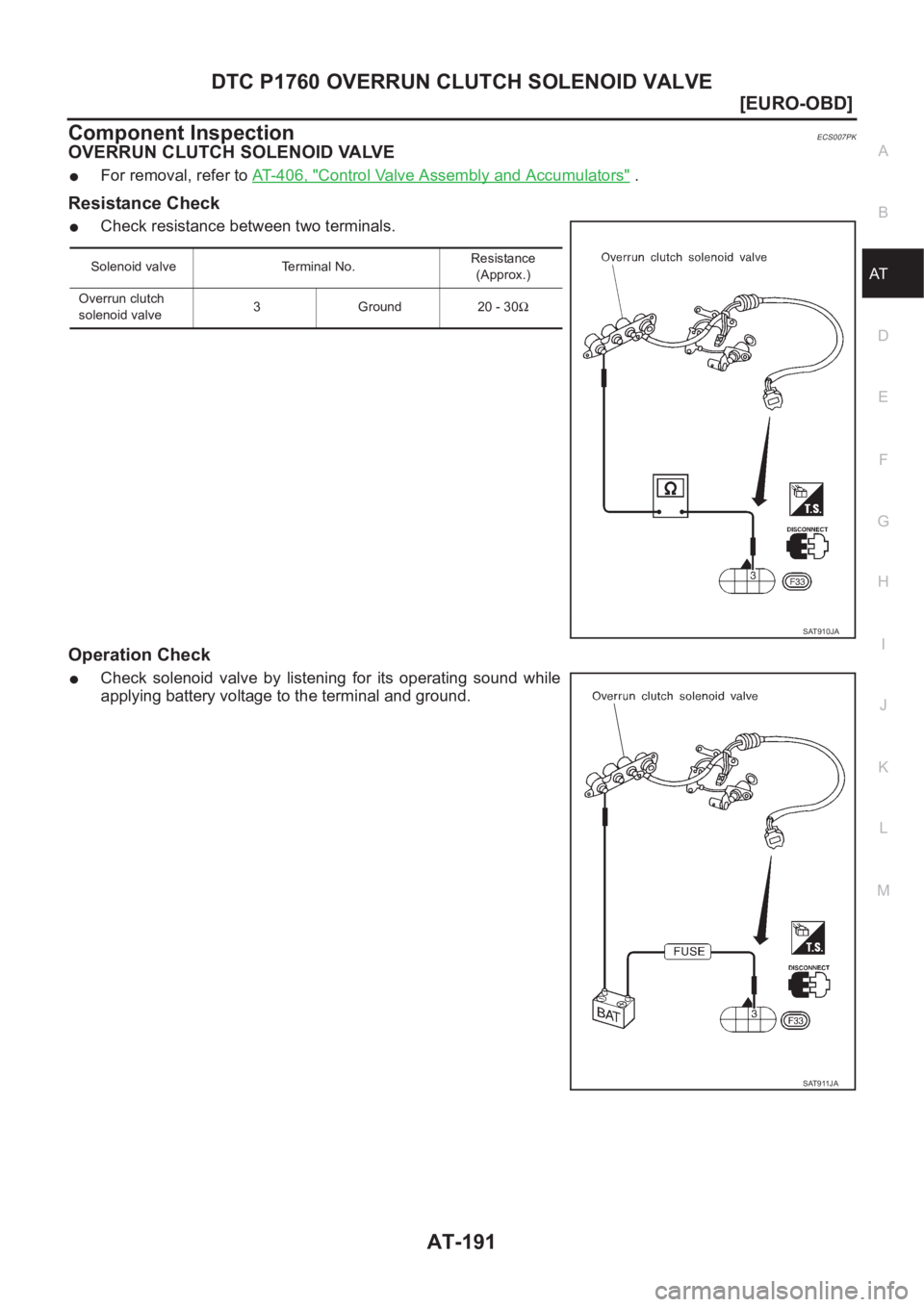

NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P1760 OVERRUN CLUTCH SOLENOID VALVE
AT-191
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Component InspectionECS007PK
OVERRUN CLUTCH SOLENOID VALVE
●For removal, refer to AT-406, "Control Valve Assem

Page 1648 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-192
[EURO-OBD]
DTC U1000 CAN COMMUNICATION LINE
DTC U1000 CAN COMMUNICATION LINE
PFP:31940
DescriptionECS007PL
CAN (Controller Area Network) is a serial communication line for real time application

AT-192
[EURO-OBD]
DTC U1000 CAN COMMUNICATION LINE
DTC U1000 CAN COMMUNICATION LINE
PFP:31940
DescriptionECS007PL
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
*: This terminal is connected to the ECM.
On Board Diagnosis LogicECS007PM
**:A/T COMMLINE means DTC U1000 CAN communication line.
DTC Confirmation ProcedureECS007PN
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode for “ENGINE” with CONSULT-II.
3. Wait at least 6 seconds or start engine and wait for at least 6
seconds.
4. If DTC is detected, go to AT- 1 9 4 , "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Turn ignition switch “ON”.
2. Wait at least 6 seconds or start engine and wait at least 6 sec-
onds.
3. Perform self-diagnosis.
Refer to AT- 5 1 , "
TCM SELF-DIAGNOSTIC PROCEDURE (NO
TOOLS)" .
4. If DTC is detected, go to AT- 1 9 4 , "
Diagnostic Procedure" .
Te r m i -
nal No.Wire color Item ConditionJudgement
standard
(Approx.)
5 L CAN(H) — — —
6 R CAN(L) — — —
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
:A/T COMM LINE**
The ECM-AT communication line is open
or shorted.
●Harness or connectors
(The solenoid circuit is open or shorted.)
●Overrun clutch solenoid valve :Judgement flicker
SAT014K
MCIB9035E
