IVT CONTROL SOLENOID VALVE
EC-687
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2.CHECK IVT CONTROL SOLENOID VALVE POWER SUPPLY CIRCIUT
1. Turn ignition switch “OFF”.
2. Disconnect intake valve timing control solenoid valve harness
connector.
3. Turn ignition switch “ON”.
4. Check voltage between intake valve timing control solenoid
valve terminal 1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3.DETECT MALFUNCTION PART
Check the following.
●Harness connectors E225, F43
●Harness for open or short between intake valve timing control solenoid valve and ECM relay
>> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK IVT CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 62 and intake valve timing control solenoid valve termi-
nal 2. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE
Refer to EC-688, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace intake valve timing control solenoid valve.
MBIB0106E
Voltage: Battery voltage
PBIB0285E
Continuity should exist.
Page 1018 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual EC-688
[QG (WITHOUT EURO-OBD)]
IVT CONTROL SOLENOID VALVE
6. CHECK CRANKSHAFT POSITION SENSOR (POS)
Refer to EC-559, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace crankshaft NISSAN ALMERA N16 2003 Electronic Repair Manual EC-688
[QG (WITHOUT EURO-OBD)]
IVT CONTROL SOLENOID VALVE
6. CHECK CRANKSHAFT POSITION SENSOR (POS)
Refer to EC-559, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace crankshaft](/manual-img/5/57350/w960_57350-1017.png)
EC-688
[QG (WITHOUT EURO-OBD)]
IVT CONTROL SOLENOID VALVE
6. CHECK CRANKSHAFT POSITION SENSOR (POS)
Refer to EC-559, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace crankshaft position sensor (POS).
7. CHECK CAMSHAFT POSITION SENSOR (PHASE)
Refer to EC-566, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace camshaft position sensor (PHASE).
8. CHECK CAMSHAFT (INTAKE)
Check the following.
●Accumulation of debris to the signal plate of camshaft rear end
●Chipping signal plate of camshaft rear end
OK or NG
OK >> GO TO 9.
NG >> Remove debris and clean the signal plate of camshaft
rear end or replace camshaft.
9. CHECK INTERMITTENT INCIDENT
Refer to EC-485, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS00KLP
INTAKE VALVE TIMING CONTROL SOLENOID VALVE
1. Disconnect intake valve timing control solenoid valve harness connector.
2. Check resistance between intake valve timing control solenoid
valve terminals 1 and 2.
Removal and InstallationEBS00KLQ
INTAKE VALVE TIMING CONTROL SOLENOID VALVE
Refer to EM-47, "TIMING CHAIN" .
PBIB0565E
Terminals Resistance
1 and 2 Approximately 8Ω at 20°C (68°F)
1 or 2 and ground∞Ω
(Continuity should not exist)
PBIB0574E
Page 1019 of 3189

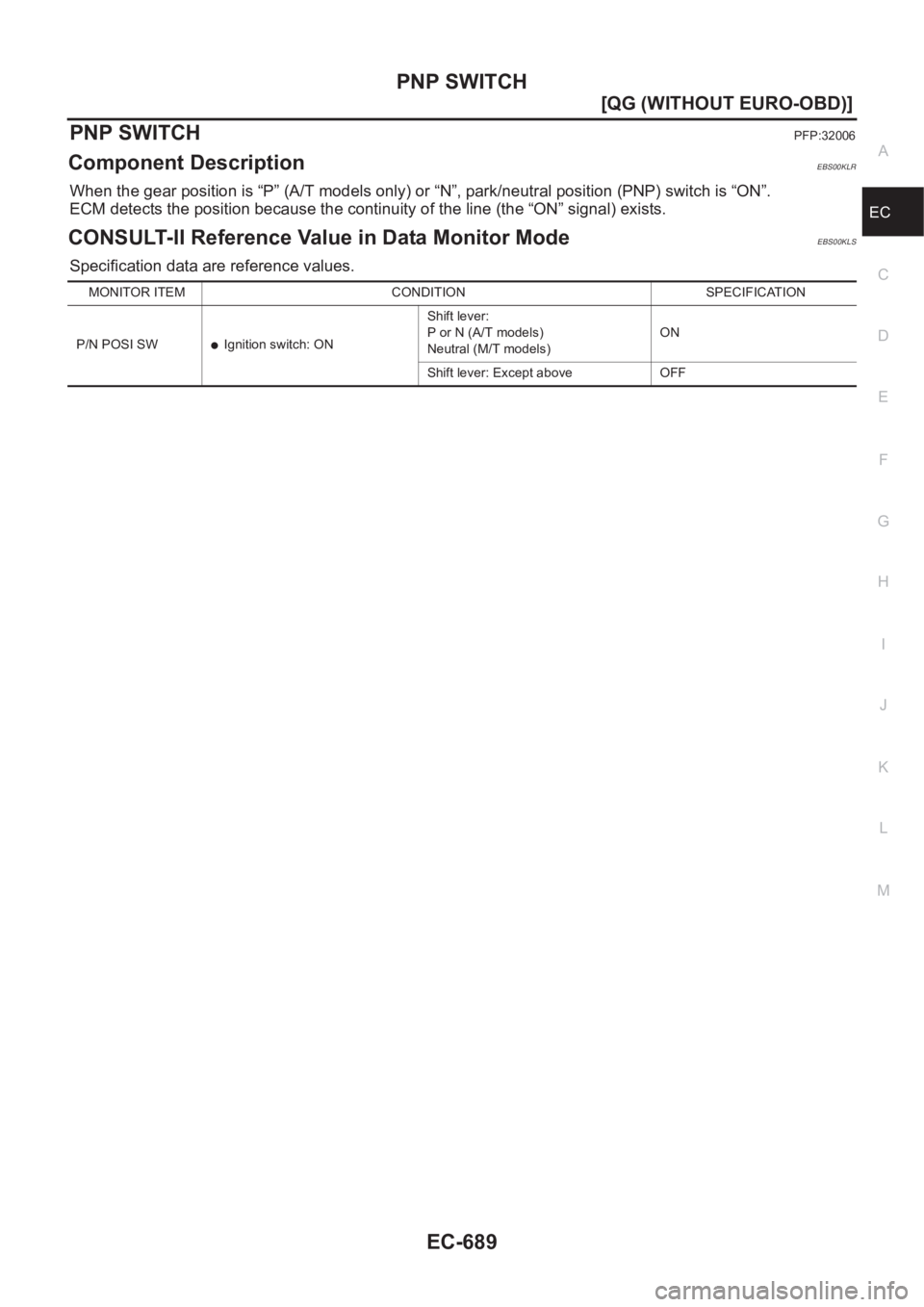

PNP SWITCH
EC-689
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
PNP SWITCHPFP:32006
Component DescriptionEBS00KLR
When the gear position is “P” (A/T models only) or “N”, park/neutral position (PNP) switch is “ON”.
ECM detects the position because the continuity of the line (the “ON” signal) exists.
CONSULT-II Reference Value in Data Monitor ModeEBS00KLS
Specification data are reference values.
MONITOR ITEM CONDITION SPECIFICATION
P/N POSI SW
●Ignition switch: ONShift lever:
P or N (A/T models)
Neutral (M/T models)ON
Shift lever: Except above OFF
Page 1020 of 3189
EC-690
[QG (WITHOUT EURO-OBD)]
PNP SWITCH
Wiring Diagram
EBS00KLT
YEC319A
Page 1021 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual PNP SWITCH
EC-691
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals NISSAN ALMERA N16 2003 Electronic Repair Manual PNP SWITCH
EC-691
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals](/manual-img/5/57350/w960_57350-1020.png)
PNP SWITCH
EC-691
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS00KLU
1.CHECK OVERALL FUNCTION
With CONSULT-II
1. Turn ignition switch “ON”.
2. Select “P/N POSI SW” in “DATA MONITOR” mode with CON-
SULT-II.
3. Check the “P/N POSI SW” signal under the following conditions.
Without CONSULT-II
1. Turn ignition switch “ON”.
2. Check voltage between ECM terminal 102 and ground under the
following conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
102P (A/T)
G/OR (M/T)PNP switch[Ignition switch “ON”]
●Shift lever position is “P” or “N” (A/T models).
●Shift lever position is Neutral (M/T models).Approximately 0V
[Ignition switch “ON”]
●Except the above gear positionA/T models
BATTERY VOLTAGE
(11 - 14V)
M/T models
Approximately 5V
Selector lever position P/N POSI SW signal
“P” (A/T models only) and “N” posi-
tionON
Except the above position OFF
PBIB0102E
Selector lever position Voltage
“P” (A/T models only) and “N” posi-
tionApproximately 0V
Except the above positionA/T models: Battery voltage
M/T models: Approximately 5V
MBIB0043E
Page 1022 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual EC-692
[QG (WITHOUT EURO-OBD)]
PNP SWITCH
2. CHECK PNP SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect PNP switch harness connector.
3. Check harness contin NISSAN ALMERA N16 2003 Electronic Repair Manual EC-692
[QG (WITHOUT EURO-OBD)]
PNP SWITCH
2. CHECK PNP SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect PNP switch harness connector.
3. Check harness contin](/manual-img/5/57350/w960_57350-1021.png)
EC-692
[QG (WITHOUT EURO-OBD)]
PNP SWITCH
2. CHECK PNP SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect PNP switch harness connector.
3. Check harness continuity between PNP switch terminal 2 and
body ground. Refer to Wiring Diagram.
4. Also check harness for short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to power in harness or con-
nectors.
3. CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 102 and PNP switch terminal 1.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK PNP SWITCH
Refer to AT-406, "
ON-VEHICLE SERVICE" (A/T models) or MT-21 (M/T models).
OK or NG
OK >> GO TO 5.
NG >> Replace PNP switch.
5. CHECK INTERMITTENT INCIDENT
Refer to EC-485, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
MBIB0253E
Continuity should exist.
Page 1023 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual INJECTOR CIRCUIT
EC-693
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
INJECTOR CIRCUITPFP:16600
Component DescriptionEBS00KLV
The fuel injector is a small, precise solenoid valve. When t NISSAN ALMERA N16 2003 Electronic Repair Manual INJECTOR CIRCUIT
EC-693
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
INJECTOR CIRCUITPFP:16600
Component DescriptionEBS00KLV
The fuel injector is a small, precise solenoid valve. When t](/manual-img/5/57350/w960_57350-1022.png)
INJECTOR CIRCUIT
EC-693
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
INJECTOR CIRCUITPFP:16600
Component DescriptionEBS00KLV
The fuel injector is a small, precise solenoid valve. When the ECM
supplies a ground to the injector circuit, the coil in the injector is
energized. The energized coil pulls the needle valve back and allows
fuel to flow through the injector into the intake manifold. The amount
of fuel injected depends upon the injection pulse duration. Pulse
duration is the length of time the injector remains open. The ECM
controls the injection pulse duration based on engine fuel needs.
CONSULT-II Reference Value in Data Monitor ModeEBS00KLW
Specification data are reference values.
*: This item is displayed with QG18DE engine models.
SEF375Z
MONITOR ITEM CONDITION SPECIFICATION
B/FUEL SCHDL
●Engine: After warming up
●Shift lever:
N (A/T models)
Neutral (M/T models)
●Air conditioner switch: OFF
●No-loadIdle 1.5 - 3.0 msec
2,000 rpm 1.2 - 3.0 msec
INJ PULSE-B1
●Engine: After warming up
●Shift lever:
N (A/T models)
Neutral (M/T models)
●Air conditioner switch: OFF
●No-loadIdle 2.0 - 3.5 msec
2,000 rpm 1.5 - 3.5 msec
Page 1024 of 3189
EC-694
[QG (WITHOUT EURO-OBD)]
INJECTOR CIRCUIT
Wiring Diagram
EBS00KLX
YEC308A
