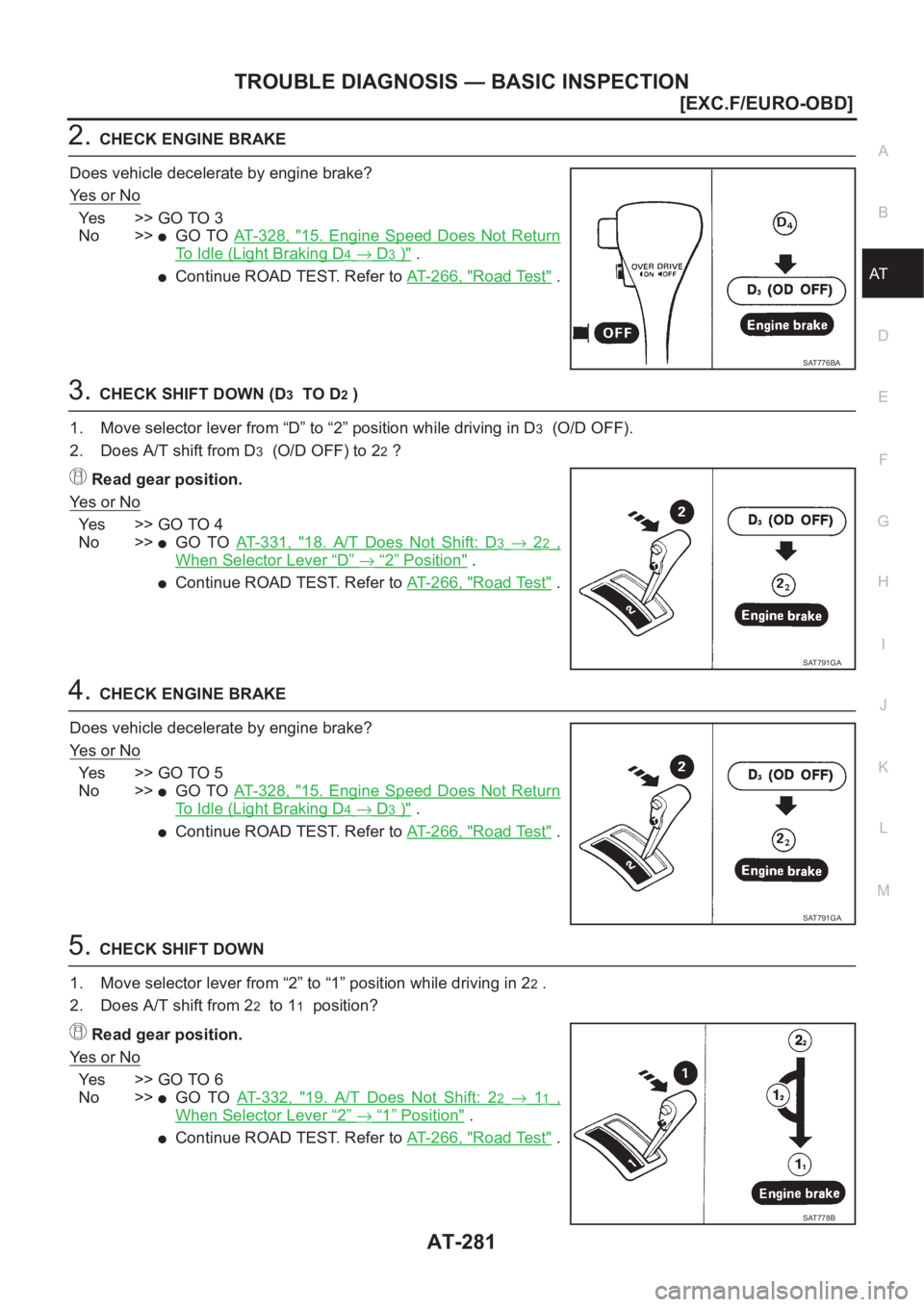

Page 1737 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSIS — BASIC INSPECTION
AT-281
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
2.CHECK ENGINE BRAKE
Does vehicle decelerate by engine brake?
Ye s o r N o
Ye s > > G O T O 3
No >>
●

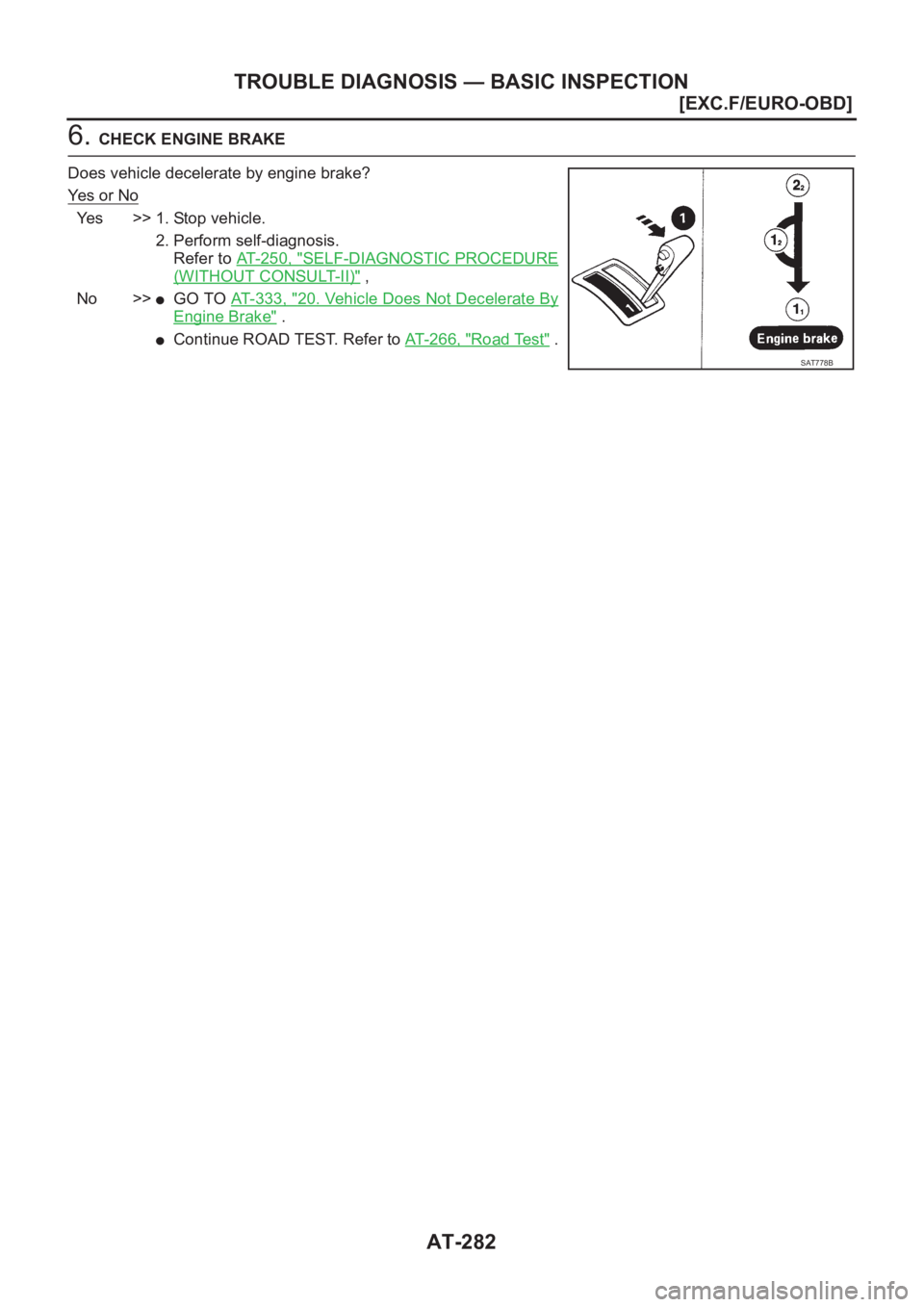

Page 1738 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-282
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — BASIC INSPECTION
6. CHECK ENGINE BRAKE
Does vehicle decelerate by engine brake?
Ye s o r N o
Yes >> 1. Stop vehicle.
2. Perform self-diagnosis.
Refer

Page 1739 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
AT-283
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
TROUBLE DIAGNOSIS — GENERAL DESCRIPTIONPFP:00000
Symptom ChartECS007QV
Numbers are arranged in order of in

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
AT-283
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
TROUBLE DIAGNOSIS — GENERAL DESCRIPTIONPFP:00000
Symptom ChartECS007QV
Numbers are arranged in order of inspection.
Perform inspections starting with number one and work up.
Symptom Condition Diagnostic Item Reference Page
Engine cannot start in “P” and “N”
positions.
AT-309, "
2. Engine Cannot Be Started
In “P” and “N” Position"
ON vehicle1. Ignition switch and starterEL-11, "POWER SUP-
PLY ROUTING",
SC-13, "STARTING SYS-
TEM"
2. Control cable adjustmentAT- 4 0 8 , "Control Cable
Adjustment"
3. PNP switch adjustmentAT- 4 0 8 , "
Park/Neutral
Position (PNP) Switch
Adjustment"
Engine starts in position other than
“N” and “P” positions.
AT-309, "
2. Engine Cannot Be Started
In “P” and “N” Position"
ON vehicle1. Control cable adjustmentAT- 4 0 8 , "
Control Cable
Adjustment"
2. PNP switch adjustmentAT- 4 0 8 , "
Park/Neutral
Position (PNP) Switch
Adjustment"
Transaxle noise in “P” and “N” posi-
tions.ON vehicle1. Fluid levelAT- 2 6 1 , "
FLUID LEVEL
CHECK"
2. Line pressure testAT- 2 6 5 , "Line Pressure
Te s t"
3. Throttle position sensor (Accelerator
pedal position (APP) sensor)AT- 3 5 2 , "ACCELE
RATOR PEDAL POSI-
TION (APP) SENSOR"
4. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT- 3 4 3 , "
VEHICLE
SPEED SENSOR - A/T
(REVOLUTION SEN-
SOR)"
AT- 3 4 8 , "DTC VEHICLE
SPEED SENSOR MTR"
5. Engine speed signalAT- 3 8 3 , "ENGINE SPEED
SIGNAL"
OFF vehicle6. Oil pumpAT- 4 3 5 , "
Oil Pump"
7. Torque converterAT- 4 1 7 , "
Locations of
Adjusting Shims, Needle
Bearings, Thrust Washers
and Snap Rings"
Vehicle moves when changing into “P”
position, or parking gear does not dis-
engage when shifted out of “P” posi-
tion.
AT-310, "
3. In “P” Position, Vehicle
Moves Forward Or Backward When
Pushed"
ON vehicle 1. Control cable adjustmentAT- 4 0 8 , "Control Cable
Adjustment"
OFF vehicle 2. Parking componentsAT- 4 7 8 , "
Output Shaft,
Idler Gear, Reduction Pin-
ion Gear and Bearing
Retainer"
Vehicle runs in “N” position.
AT- 3 11 , "
4. In “N” Position, Vehicle
Moves"
ON vehicle 1. Control cable adjustmentAT- 4 0 8 , "Control Cable
Adjustment"
OFF vehicle2. Forward clutchAT- 4 6 4 , "
Forward and
Overrun Clutches"
3. Reverse clutchAT- 4 5 5 , "Reverse Clutch"
4. Overrun clutchAT- 4 6 4 , "Forward and
Overrun Clutches"

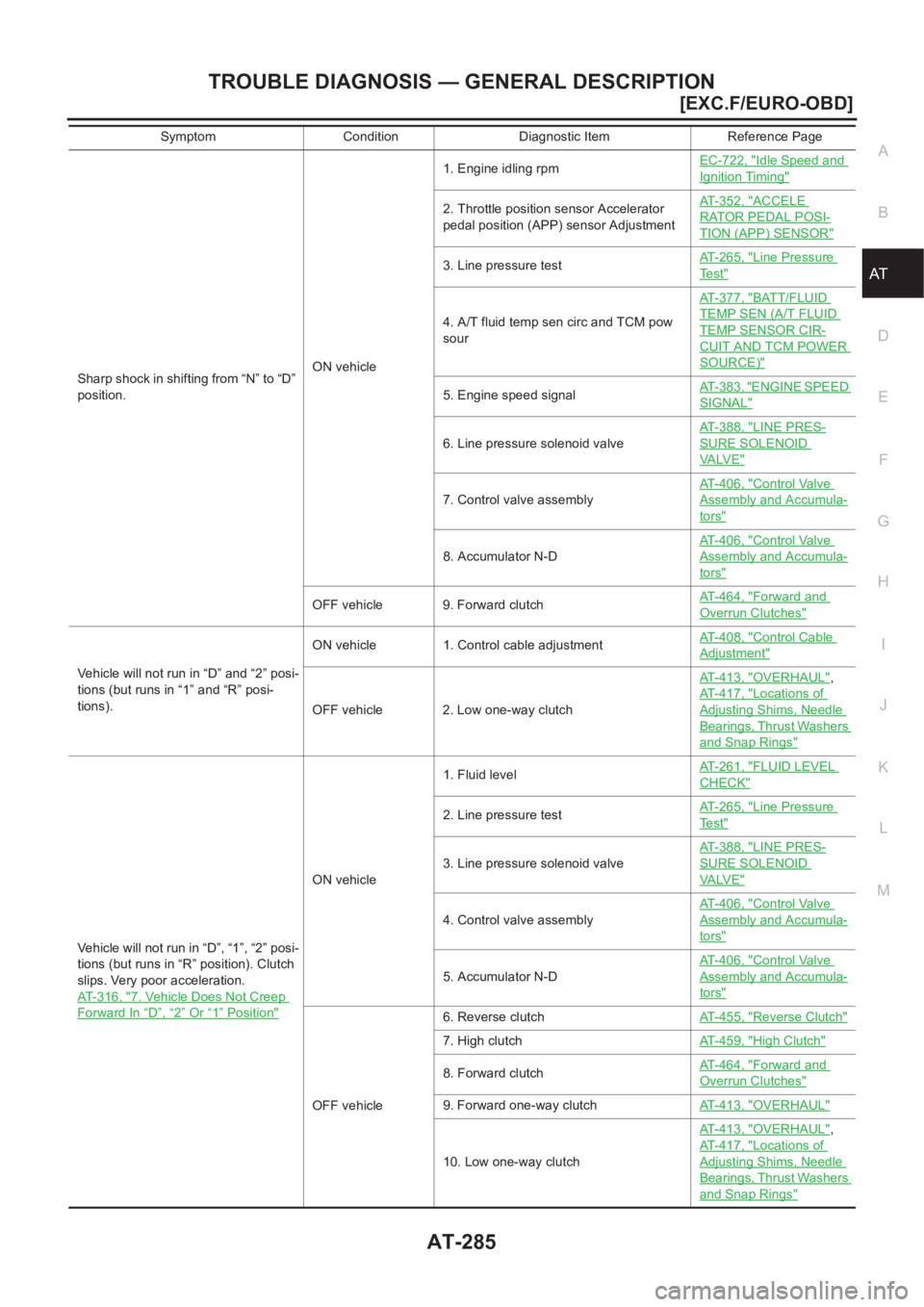

Page 1740 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-284
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Vehicle will not run in “R” position (but
runs in “D”, “2” and “1” positions).
Clutch slips.
Very poor acceleration.

Page 1741 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
AT-285
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Sharp shock in shifting from “N” to “D”
position.ON vehicle1. Engine idling rpmEC-722, "
Idle S

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
AT-285
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Sharp shock in shifting from “N” to “D”
position.ON vehicle1. Engine idling rpmEC-722, "
Idle Speed and
Ignition Timing"
2. Throttle position sensor Accelerator
pedal position (APP) sensor AdjustmentAT- 3 5 2 , "ACCELE
RATOR PEDAL POSI-
TION (APP) SENSOR"
3. Line pressure testAT- 2 6 5 , "Line Pressure
Te s t"
4. A/T fluid temp sen circ and TCM pow
sourAT- 3 7 7 , "
BATT/FLUID
TEMP SEN (A/T FLUID
TEMP SENSOR CIR-
CUIT AND TCM POWER
SOURCE)"
5. Engine speed signalAT- 3 8 3 , "ENGINE SPEED
SIGNAL"
6. Line pressure solenoid valveAT- 3 8 8 , "
LINE PRES-
SURE SOLENOID
VA LV E"
7. Control valve assemblyAT- 4 0 6 , "
Control Valve
Assembly and Accumula-
tors"
8. Accumulator N-DAT- 4 0 6 , "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle 9. Forward clutchAT- 4 6 4 , "Forward and
Overrun Clutches"
Vehicle will not run in “D” and “2” posi-
tions (but runs in “1” and “R” posi-
tions).ON vehicle 1. Control cable adjustmentAT- 4 0 8 , "
Control Cable
Adjustment"
OFF vehicle 2. Low one-way clutchAT- 4 1 3 , "
OVERHAUL",
AT- 4 1 7 , "
Locations of
Adjusting Shims, Needle
Bearings, Thrust Washers
and Snap Rings"
Vehicle will not run in “D”, “1”, “2” posi-
tions (but runs in “R” position). Clutch
slips. Very poor acceleration.
AT-316, "
7. Vehicle Does Not Creep
Forward In “D”,“2” Or “1” Position"
ON vehicle1. Fluid levelAT- 2 6 1 , "
FLUID LEVEL
CHECK"
2. Line pressure testAT- 2 6 5 , "Line Pressure
Te s t"
3. Line pressure solenoid valveAT- 3 8 8 , "
LINE PRES-
SURE SOLENOID
VA LV E"
4. Control valve assemblyAT- 4 0 6 , "
Control Valve
Assembly and Accumula-
tors"
5. Accumulator N-DAT- 4 0 6 , "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle6. Reverse clutch AT- 4 5 5 , "
Reverse Clutch"
7. High clutchAT- 4 5 9 , "High Clutch"
8. Forward clutchAT- 4 6 4 , "Forward and
Overrun Clutches"
9. Forward one-way clutchAT- 4 1 3 , "OVERHAUL"
10. Low one-way clutchAT- 4 1 3 , "
OVERHAUL",
AT- 4 1 7 , "
Locations of
Adjusting Shims, Needle
Bearings, Thrust Washers
and Snap Rings"
Symptom Condition Diagnostic Item Reference Page

Page 1742 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-286
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Clutches or brakes slip somewhat in
starting.ON vehicle1. Fluid levelAT-261, "
FLUID LEVEL
CHECK"
2. Control cable adjustmen

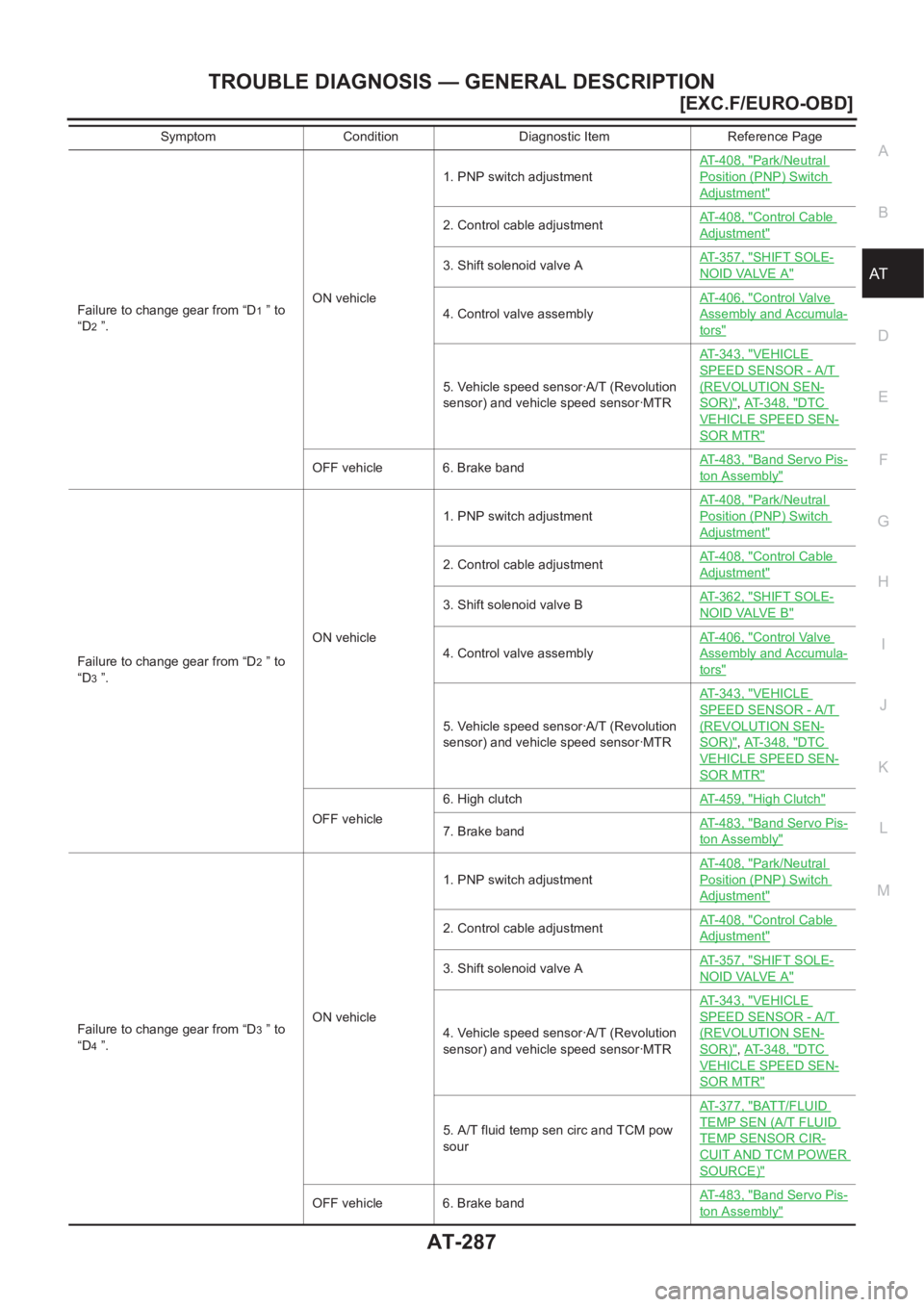

Page 1743 of 3189
