5.CHECK CKP SENSOR (POS) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 13 NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0335 CKP SENSOR (POS)
EC-559
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
5.CHECK CKP SENSOR (POS) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 13](/manual-img/5/57350/w960_57350-888.png)
DTC P0335 CKP SENSOR (POS)
EC-559
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
5.CHECK CKP SENSOR (POS) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 13 and CKP sensor (POS) terminal 2.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK CRANKSHAFT POSITION SENSOR (POS)
Refer to EC-559, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace crankshaft position sensor (POS).
7.CHECK GEAR TOOTH
Visually check for chipping signal plate gear tooth.
OK or NG
OK >> GO TO 8.
NG >> Replace the signal plate.
8.CHECK INTERMITTENT INCIDENT
Refer to EC-485, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS00KHT
CRANKSHAFT POSITION SENSOR (POS)
1. Loosen the fixing bolt of the sensor.
2. Disconnect crankshaft position sensor (POS) harness connector.
3. Remove the sensor.
4. Visually check the sensor for chipping.Continuity should exist.
PBIB0563E
Page 890 of 3189

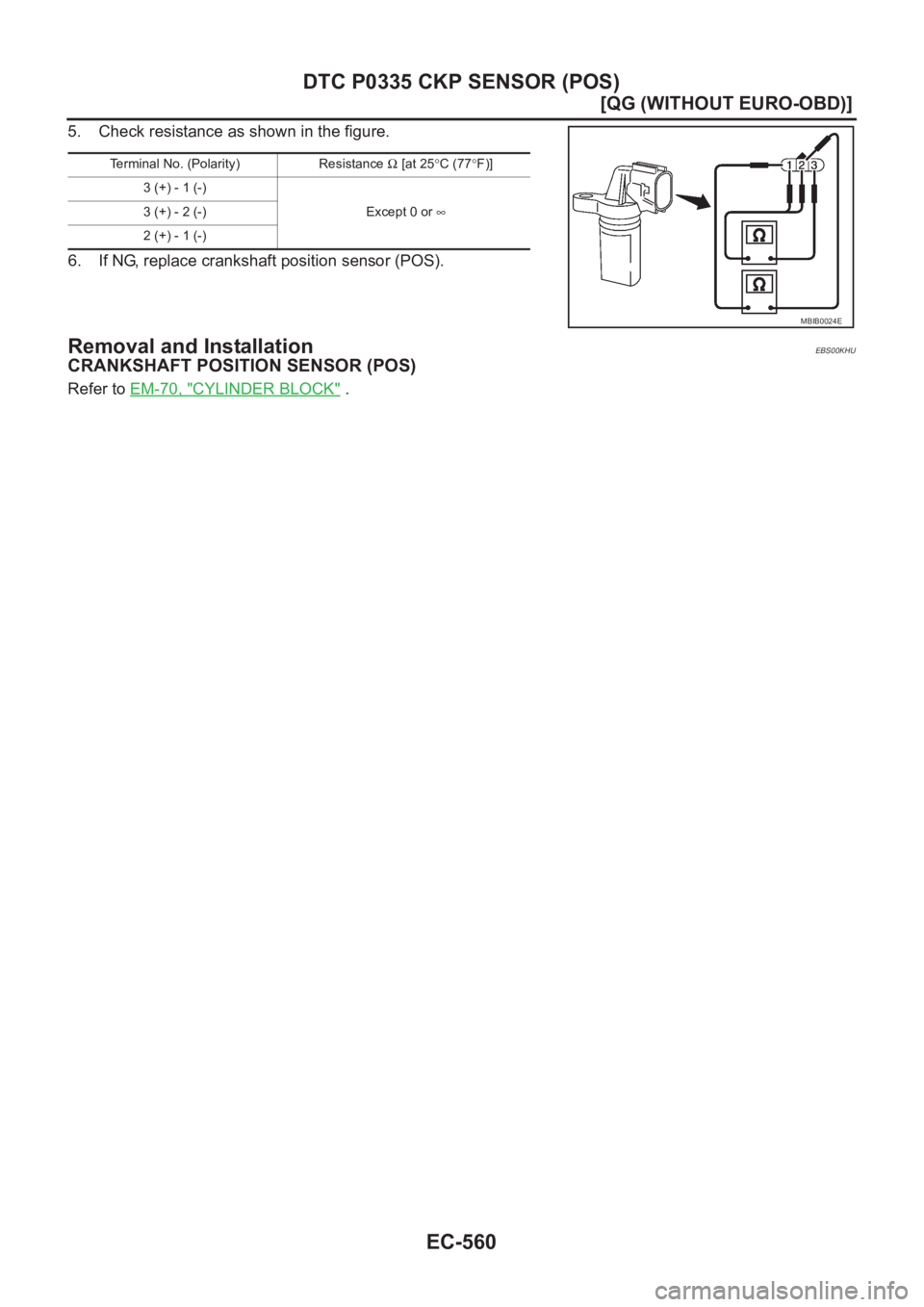

EC-560
[QG (WITHOUT EURO-OBD)]
DTC P0335 CKP SENSOR (POS)
5. Check resistance as shown in the figure.
6. If NG, replace crankshaft position sensor (POS).
Removal and InstallationEBS00KHU
CRANKSHAFT POSITION SENSOR (POS)
Refer to EM-70, "CYLINDER BLOCK" .
Terminal No. (Polarity) Resistance Ω [at 25°C (77°F)]
3 (+) - 1 (-)
Except 0 or ∞ 3 (+) - 2 (-)
2 (+) - 1 (-)
MBIB0024E
Page 891 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0340 CMP SENSOR (PHASE)
EC-561
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

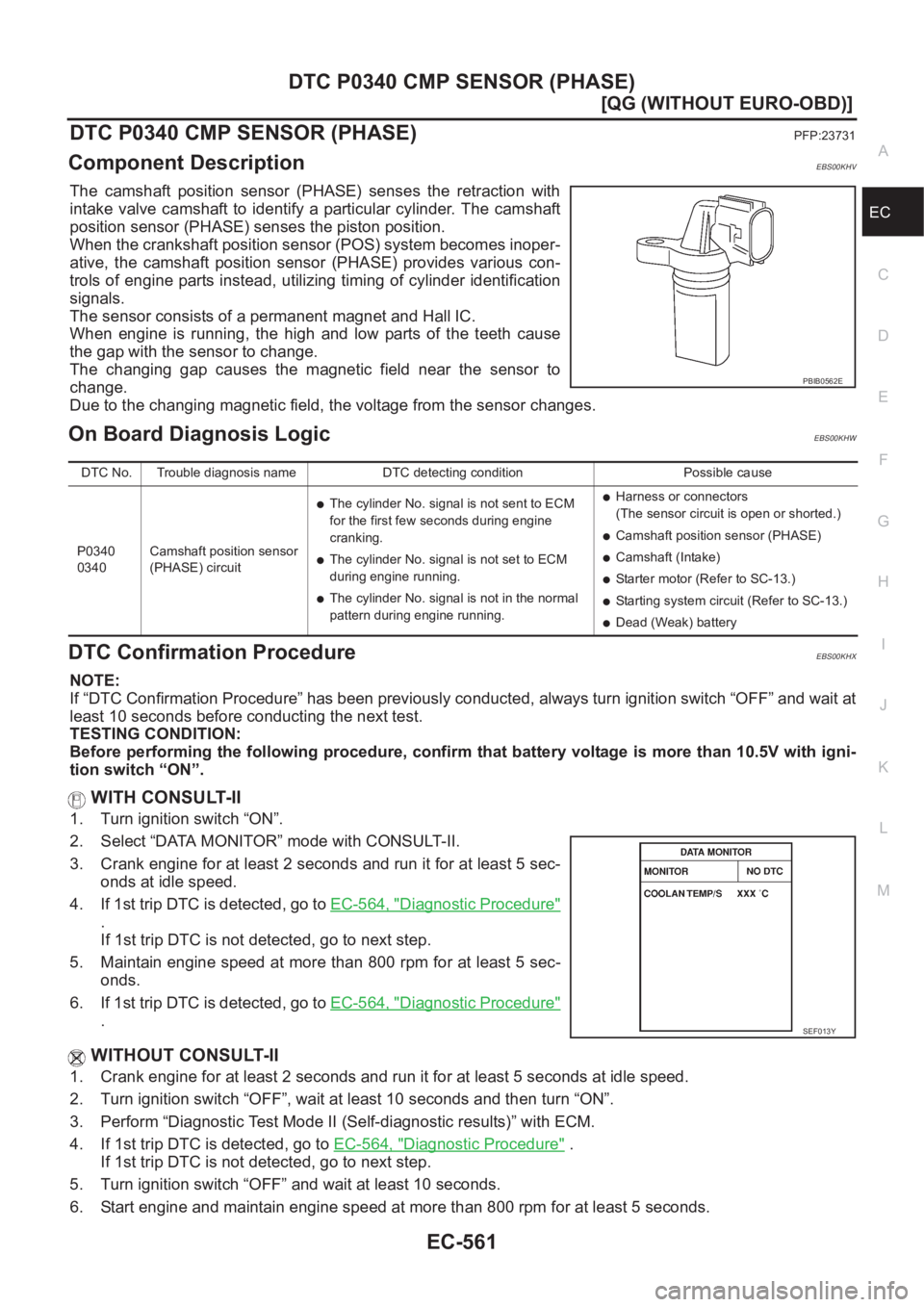

DTC P0340 CMP SENSOR (PHASE)PFP:23731
Component DescriptionEBS00KHV
The camshaft position sensor (PHASE) sens NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0340 CMP SENSOR (PHASE)
EC-561
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0340 CMP SENSOR (PHASE)PFP:23731
Component DescriptionEBS00KHV
The camshaft position sensor (PHASE) sens](/manual-img/5/57350/w960_57350-890.png)
DTC P0340 CMP SENSOR (PHASE)
EC-561
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0340 CMP SENSOR (PHASE)PFP:23731
Component DescriptionEBS00KHV
The camshaft position sensor (PHASE) senses the retraction with
intake valve camshaft to identify a particular cylinder. The camshaft
position sensor (PHASE) senses the piston position.
When the crankshaft position sensor (POS) system becomes inoper-
ative, the camshaft position sensor (PHASE) provides various con-
trols of engine parts instead, utilizing timing of cylinder identification
signals.
The sensor consists of a permanent magnet and Hall IC.
When engine is running, the high and low parts of the teeth cause
the gap with the sensor to change.
The changing gap causes the magnetic field near the sensor to
change.
Due to the changing magnetic field, the voltage from the sensor changes.
On Board Diagnosis LogicEBS00KHW
DTC Confirmation ProcedureEBS00KHX
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V with igni-
tion switch “ON”.
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Crank engine for at least 2 seconds and run it for at least 5 sec-
onds at idle speed.
4. If 1st trip DTC is detected, go to EC-564, "
Diagnostic Procedure"
.
If 1st trip DTC is not detected, go to next step.
5. Maintain engine speed at more than 800 rpm for at least 5 sec-
onds.
6. If 1st trip DTC is detected, go to EC-564, "
Diagnostic Procedure"
.
WITHOUT CONSULT-II
1. Crank engine for at least 2 seconds and run it for at least 5 seconds at idle speed.
2. Turn ignition switch “OFF”, wait at least 10 seconds and then turn “ON”.
3. Perform “Diagnostic Test Mode II (Self-diagnostic results)” with ECM.
4. If 1st trip DTC is detected, go to EC-564, "
Diagnostic Procedure" .
If 1st trip DTC is not detected, go to next step.
5. Turn ignition switch “OFF” and wait at least 10 seconds.
6. Start engine and maintain engine speed at more than 800 rpm for at least 5 seconds.
PBIB0562E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0340
0340Camshaft position sensor
(PHASE) circuit
●The cylinder No. signal is not sent to ECM
for the first few seconds during engine
cranking.
●The cylinder No. signal is not set to ECM
during engine running.
●The cylinder No. signal is not in the normal
pattern during engine running.
●Harness or connectors
(The sensor circuit is open or shorted.)
●Camshaft position sensor (PHASE)
●Camshaft (Intake)
●Starter motor (Refer to SC-13.)
●Starting system circuit (Refer to SC-13.)
●Dead (Weak) battery
SEF013Y
Page 892 of 3189

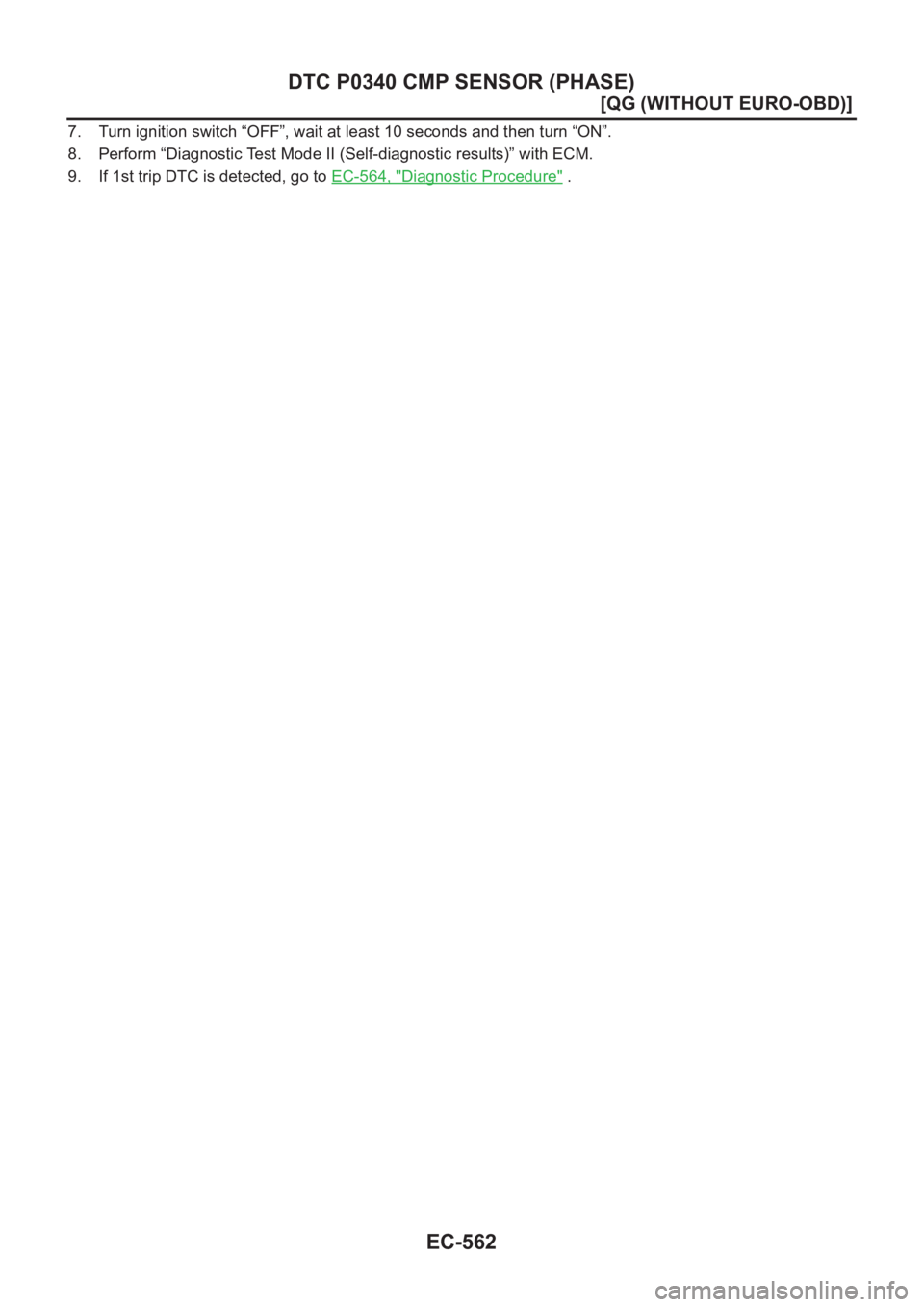

EC-562
[QG (WITHOUT EURO-OBD)]
DTC P0340 CMP SENSOR (PHASE)
7. Turn ignition switch “OFF”, wait at least 10 seconds and then turn “ON”.
8. Perform “Diagnostic Test Mode II (Self-diagnostic results)” with ECM.
9. If 1st trip DTC is detected, go to EC-564, "
Diagnostic Procedure" .
Page 893 of 3189
DTC P0340 CMP SENSOR (PHASE)
EC-563
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Wiring DiagramEBS00KHY
YEC292A
Page 894 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual EC-564
[QG (WITHOUT EURO-OBD)]
DTC P0340 CMP SENSOR (PHASE)
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when mea NISSAN ALMERA N16 2003 Electronic Repair Manual EC-564
[QG (WITHOUT EURO-OBD)]
DTC P0340 CMP SENSOR (PHASE)
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when mea](/manual-img/5/57350/w960_57350-893.png)

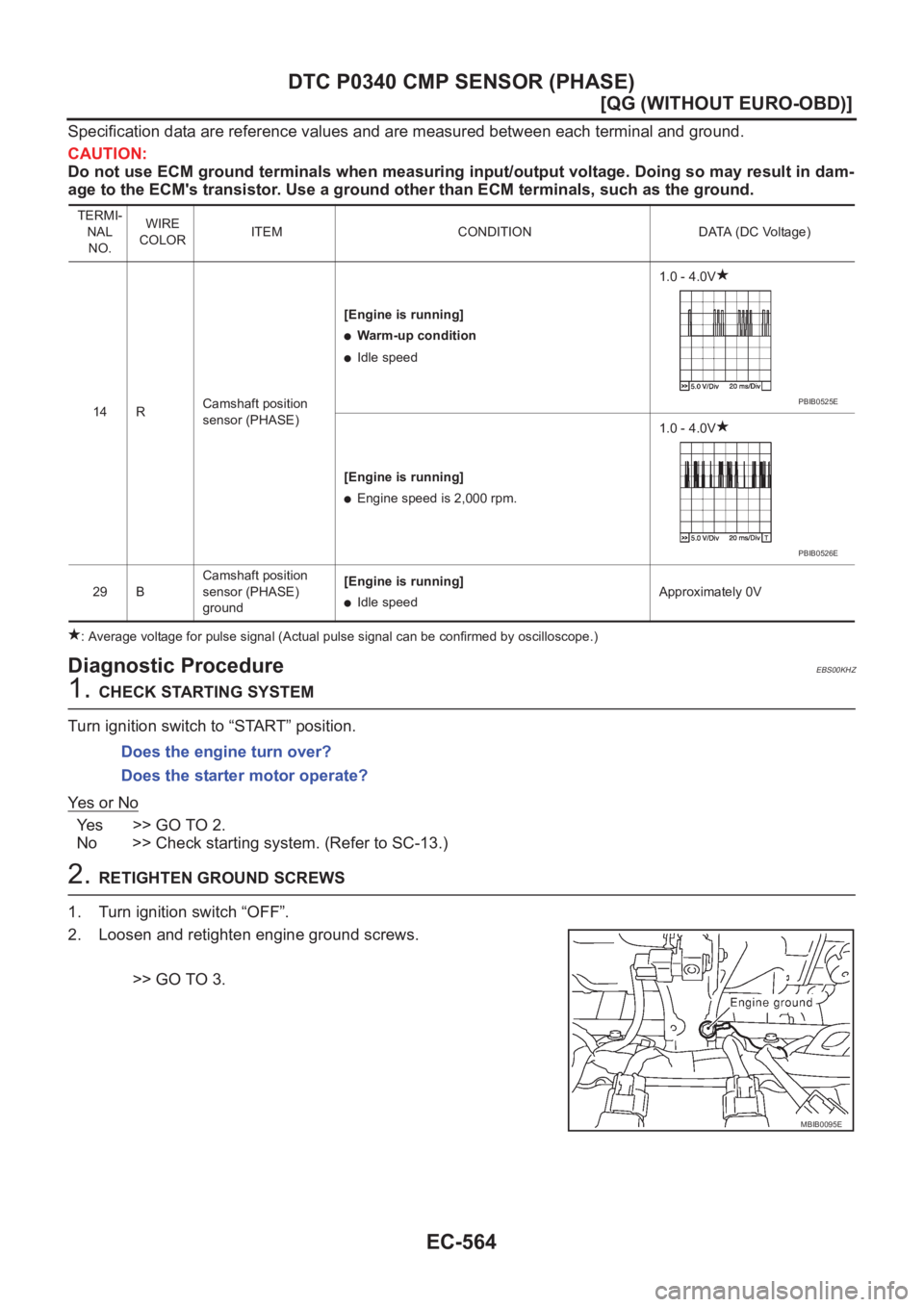

EC-564
[QG (WITHOUT EURO-OBD)]
DTC P0340 CMP SENSOR (PHASE)
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureEBS00KHZ
1. CHECK STARTING SYSTEM
Turn ignition switch to “START” position.
Ye s o r N o
Yes >> GO TO 2.
No >> Check starting system. (Refer to SC-13.)
2. RETIGHTEN GROUND SCREWS
1. Turn ignition switch “OFF”.
2. Loosen and retighten engine ground screws.
>> GO TO 3.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
14 RCamshaft position
sensor (PHASE)[Engine is running]
●Warm-up condition
●Idle speed1.0 - 4.0V
[Engine is running]
●Engine speed is 2,000 rpm.1.0 - 4.0V
29 BCamshaft position
sensor (PHASE)
ground[Engine is running]
●Idle speedApproximately 0V
PBIB0525E
PBIB0526E
Does the engine turn over?
Does the starter motor operate?
MBIB0095E
Page 895 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0340 CMP SENSOR (PHASE)
EC-565
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
3.CHECK CMP SENSOR (PHASE) POWER SUPPLY CIRCUIT
1. Disconnect camshaft position (CMP) sensor (PHASE) harness NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0340 CMP SENSOR (PHASE)
EC-565
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
3.CHECK CMP SENSOR (PHASE) POWER SUPPLY CIRCUIT
1. Disconnect camshaft position (CMP) sensor (PHASE) harness](/manual-img/5/57350/w960_57350-894.png)
DTC P0340 CMP SENSOR (PHASE)
EC-565
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
3.CHECK CMP SENSOR (PHASE) POWER SUPPLY CIRCUIT
1. Disconnect camshaft position (CMP) sensor (PHASE) harness
connector.
2. Turn ignition switch “ON”.
3. Check voltage between CMP sensor (PHASE) terminal 3 and
ground with CONSULT-II or tester.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E225, F43
●Harness for open or short between camshaft position sensor (PHASE) and ECM
●Harness for open or short between camshaft position sensor (PHASE) and ECM relay
>> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK CMP SENSOR (PHASE) GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 29 and CMP sensor (PHASE) terminal 1.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK CMP SENSOR (PHASE) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 14 and CMP sensor (PHASE) terminal 2.
Refer to Wiring Diagram.
2. Also check harness for short to ground or short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
MBIB0104E
Voltage: Battery voltage
SEF509Y
Continuity should exist.
Continuity should exist.
Page 896 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual EC-566
[QG (WITHOUT EURO-OBD)]
DTC P0340 CMP SENSOR (PHASE)
7. CHECK CAMSHAFT POSITION SENSOR (PHASE)
Refer to EC-566, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace camshaft NISSAN ALMERA N16 2003 Electronic Repair Manual EC-566
[QG (WITHOUT EURO-OBD)]
DTC P0340 CMP SENSOR (PHASE)
7. CHECK CAMSHAFT POSITION SENSOR (PHASE)
Refer to EC-566, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace camshaft](/manual-img/5/57350/w960_57350-895.png)

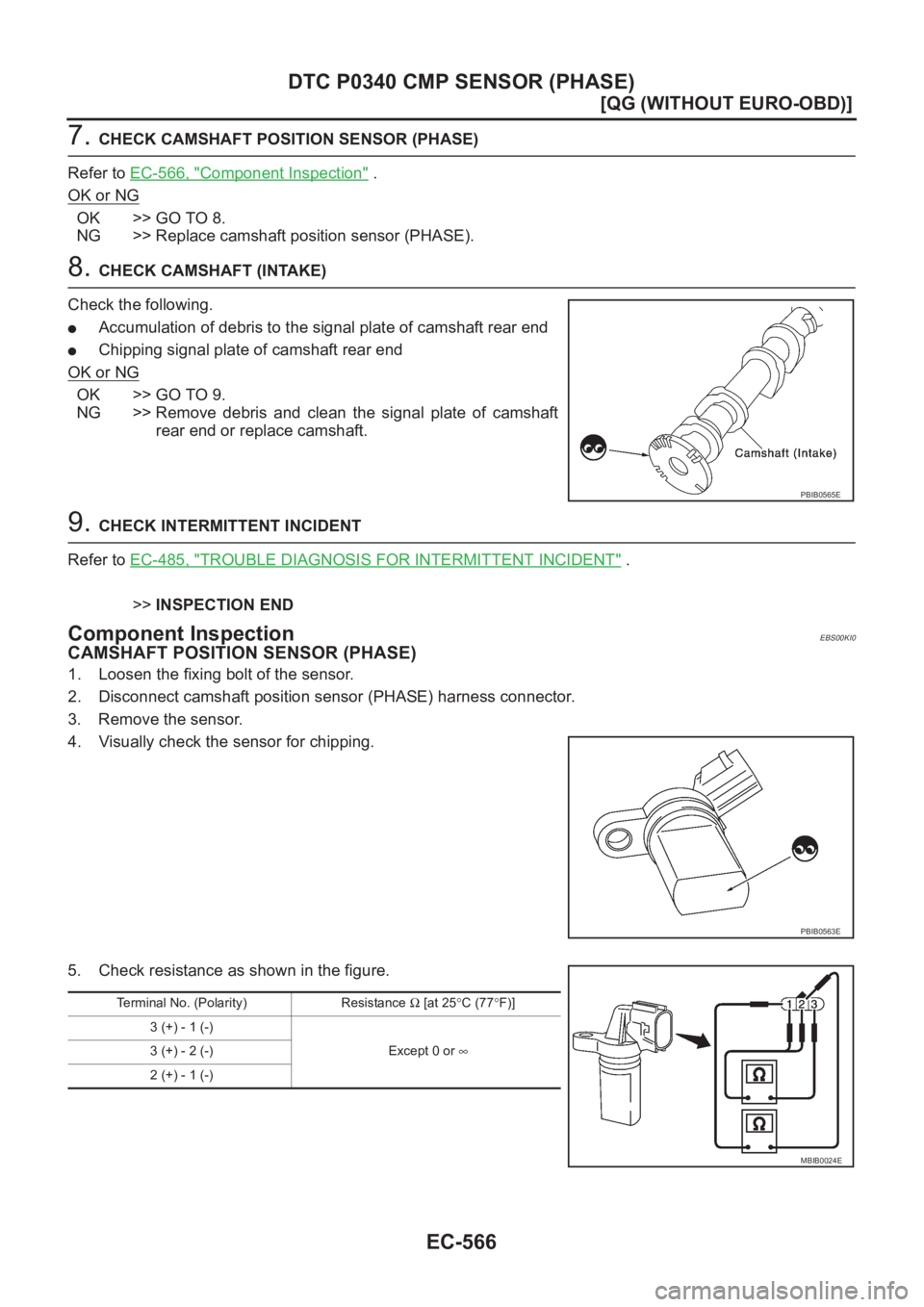

EC-566
[QG (WITHOUT EURO-OBD)]
DTC P0340 CMP SENSOR (PHASE)
7. CHECK CAMSHAFT POSITION SENSOR (PHASE)
Refer to EC-566, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace camshaft position sensor (PHASE).
8. CHECK CAMSHAFT (INTAKE)
Check the following.
●Accumulation of debris to the signal plate of camshaft rear end
●Chipping signal plate of camshaft rear end
OK or NG
OK >> GO TO 9.
NG >> Remove debris and clean the signal plate of camshaft
rear end or replace camshaft.
9. CHECK INTERMITTENT INCIDENT
Refer to EC-485, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS00KI0
CAMSHAFT POSITION SENSOR (PHASE)
1. Loosen the fixing bolt of the sensor.
2. Disconnect camshaft position sensor (PHASE) harness connector.
3. Remove the sensor.
4. Visually check the sensor for chipping.
5. Check resistance as shown in the figure.
PBIB0565E
PBIB0563E
Terminal No. (Polarity) Resistance Ω [at 25°C (77°F)]
3 (+) - 1 (-)
Except 0 or ∞ 3 (+) - 2 (-)
2 (+) - 1 (-)
MBIB0024E
