TIMING CHAIN
EM-51
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
30. Remove timing chain, timing chain slack guide and tension guide.
31. Remove crankshaft sprocket.
INSPECTION AFTER REMOVAL
Timing Chain
Check timing chain for cracks or serious wear. If a malfunction is
detected, replace it.
INSTALLATION
CAUTION:
●Use a scraper to completely remove all liquid gasket adhering to mounting surface. De-grease and
clean with white gasoline.
●After installation, wipe off any protruding liquid gasket.
1. Install timing chain and its related parts with the following procedure:
●For aligning positions for each sprocket and timing chain, and
installed condition of their related parts, refer to figure.
●Install each sprocket with its mating mark facing engine front
side.
a. Install timing chain and crankshaft sprocket.
●Make sure that crankshaft key points straight up (No.1 cylin-
der is at TDC).
●Hook timing chain on front end of camshaft so that it will not
fall off.
b. Install timing chain slack guide and tension guide.
c. Install camshaft sprocket. Refer to EM-35, "
INSTALLATION" .
d. Install chain tensioner. Refer to EM-35, "
INSTALLATION" .
e. Make sure again that mating marks are properly aligned.
f. Temporarily install oil pump drive spacer, crankshaft pulley, and crankshaft pulley mounting bolt so that
crankshaft can be rotated.
g. Rotate crankshaft clockwise several times to make sure it rotates normally. Refer to EM-35, "
INSTALLA-
TION" .
h. Rotate crankshaft clockwise several times, and check that there is no unusual condition.
i. Remove parts temporarily installed in step f.
PBIC0282E
KBIA1398E
Page 130 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual EM-52
[QG]
TIMING CHAIN
2. Install front oil seal to front cover.
●Install it so that identification letters on oil seal will face toward
front side of the engine.
●Using an oil seal drift (commer NISSAN ALMERA N16 2003 Electronic Repair Manual EM-52
[QG]
TIMING CHAIN
2. Install front oil seal to front cover.
●Install it so that identification letters on oil seal will face toward
front side of the engine.
●Using an oil seal drift (commer](/manual-img/5/57350/w960_57350-129.png)
EM-52
[QG]
TIMING CHAIN
2. Install front oil seal to front cover.
●Install it so that identification letters on oil seal will face toward
front side of the engine.
●Using an oil seal drift (commercial service tool), press oil seal
in until it is flush with end surface of mounting position.
●Make sure that oil seal outer circumference is free from dam-
age and burr.
3. Install front cover with the following procedure:
a. Install O-ring to cylinder block.
b. Using a flat-bladed screwdriver, apply a continuous bead of liq-
uid gasket to contact surface between cylinder head gasket
lower surface and cylinder block (2 locations shown in figure).
Use Genuine Liquid Gasket or equivalent.
c. Apply a continuous bead of liquid gasket to back surface of front
cover (location shown in figure).
CAUTION:
●Do not apply liquid gasket to groove A shown in figure.
●Especially for locations indicated by * mark in figure,
strictly observe application range of liquid gasket.
d. Apply liquid gasket to top surface of front cover lightly and
evenly.
Use Genuine Liquid Gasket or equivalent.
e. Install O-ring to back surface of front cover.
f. With socket of oil pump inner rotor placed on crankshaft top sur-
face (clearance between front cover top surface and cylinder
head gasket lower surface is secured), move front cover close to
cylinder block. (Right side in figure)
g. Lift front cover at an angle and install it to mounting position so
that front cover will come in contact with both cylinder head gas-
ket lower surface and cylinder block front surface at the same
time. (Right side in figure)
CAUTION:
●During work, be sure not to damage cylinder head gas-
ket.
●When installing, avoid discontinuous bead of liquid gas-
ket caused by allowing it to adhere to an unnecessary area.
PBIC0530E
PBIC0561E
PBIC0562E
PBIC0563E
Page 131 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual TIMING CHAIN
EM-53
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM

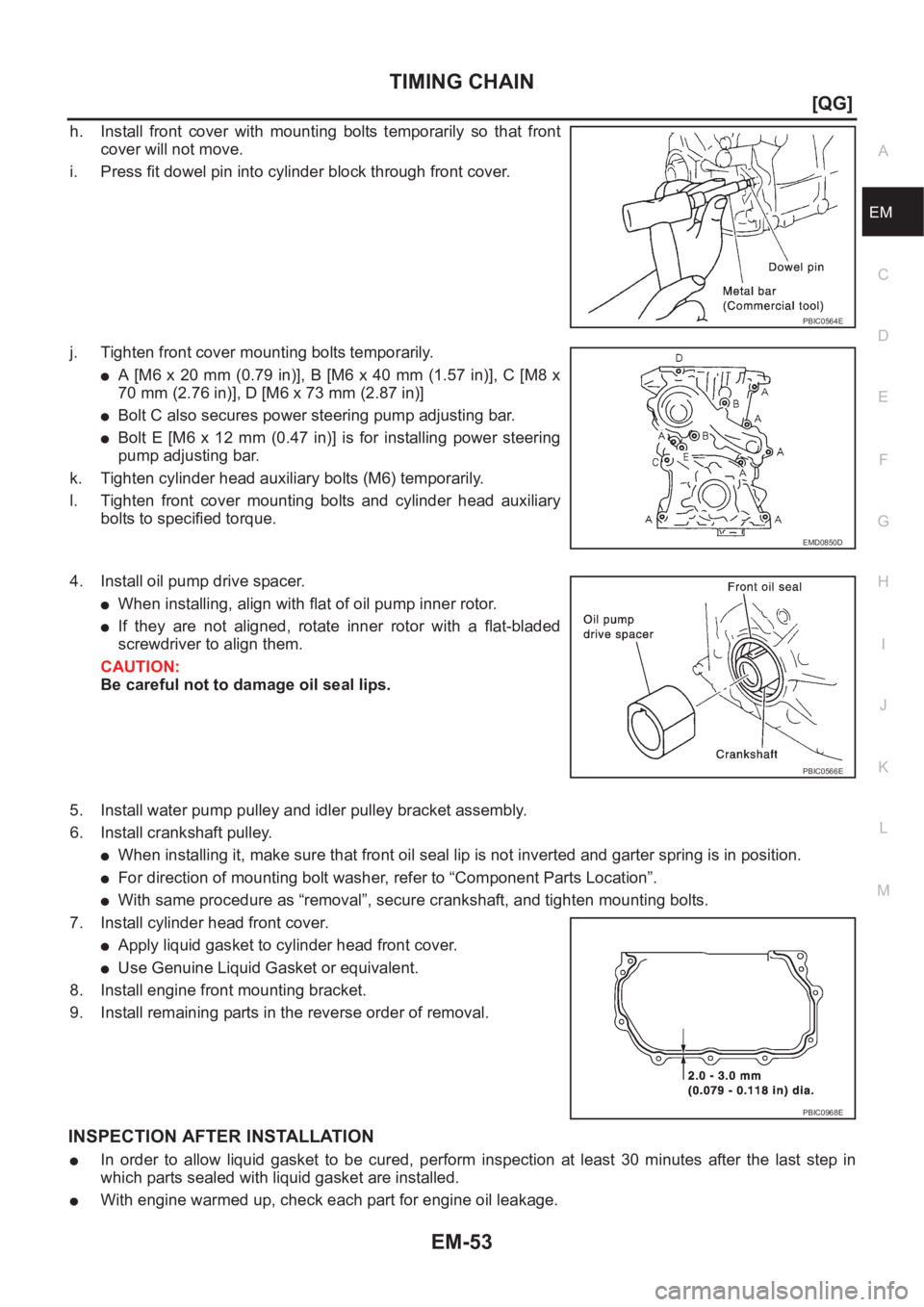

h. Install front cover with mounting bolts temporarily so that front
cover will not move.
i. Press fit dowel pin into cylinder block through NISSAN ALMERA N16 2003 Electronic Repair Manual TIMING CHAIN
EM-53
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
h. Install front cover with mounting bolts temporarily so that front
cover will not move.
i. Press fit dowel pin into cylinder block through](/manual-img/5/57350/w960_57350-130.png)
TIMING CHAIN
EM-53
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
h. Install front cover with mounting bolts temporarily so that front
cover will not move.
i. Press fit dowel pin into cylinder block through front cover.
j. Tighten front cover mounting bolts temporarily.
●A [M6 x 20 mm (0.79 in)], B [M6 x 40 mm (1.57 in)], C [M8 x
70 mm (2.76 in)], D [M6 x 73 mm (2.87 in)]
●Bolt C also secures power steering pump adjusting bar.
●Bolt E [M6 x 12 mm (0.47 in)] is for installing power steering
pump adjusting bar.
k. Tighten cylinder head auxiliary bolts (M6) temporarily.
l. Tighten front cover mounting bolts and cylinder head auxiliary
bolts to specified torque.
4. Install oil pump drive spacer.
●When installing, align with flat of oil pump inner rotor.
●If they are not aligned, rotate inner rotor with a flat-bladed
screwdriver to align them.
CAUTION:
Be careful not to damage oil seal lips.
5. Install water pump pulley and idler pulley bracket assembly.
6. Install crankshaft pulley.
●When installing it, make sure that front oil seal lip is not inverted and garter spring is in position.
●For direction of mounting bolt washer, refer to “Component Parts Location”.
●With same procedure as “removal”, secure crankshaft, and tighten mounting bolts.
7. Install cylinder head front cover.
●Apply liquid gasket to cylinder head front cover.
●Use Genuine Liquid Gasket or equivalent.
8. Install engine front mounting bracket.
9. Install remaining parts in the reverse order of removal.
INSPECTION AFTER INSTALLATION
●In order to allow liquid gasket to be cured, perform inspection at least 30 minutes after the last step in
which parts sealed with liquid gasket are installed.
●With engine warmed up, check each part for engine oil leakage.
PBIC0564E
EMD0850D
PBIC0566E
PBIC0968E
Page 132 of 3189
EM-54
[QG]
OIL SEAL
OIL SEAL
PFP:00100
Removal and Installation of Valve Oil SealEBS00LQE
REMOVAL
1. Remove camshaft. Refer to EM-32, "CAMSHAFT" .
2. Remove adjusting shim (if so equipped) and valve lifters. Refer
to EM-32, "
CAMSHAFT" .
3. To prevent valve from falling inside cylinder, turn crankshaft until
cylinder with oil seal to be removed is at top dead center.
CAUTION:
When rotating crankshaft, be careful that timing chain is not
caught by front cover.
4. Using valve spring compressor (special service tool), remove valve collet. Then remove valve spring and
valve spring retainer.
5. Remove valve oil seal using valve oil seal puller (special service
tool).
INSTALLATION
1. Apply engine oil on new valve oil seal joint and seal lip.
2. Using valve oil seal drift (special service tool), press fit valve oil
seal to height shown in figure.
3. Perform steps in the reverse order of removal for the following
operations.
SEM914F
SEM909F
SEM910F
Page 133 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual OIL SEAL
EM-55
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
Removal and Installation of Front Oil SealEBS00LQF
REMOVAL
1. Remove the following parts:
●Undercover (with splash cover)
●Drive belt; Refer to EM-11, NISSAN ALMERA N16 2003 Electronic Repair Manual OIL SEAL
EM-55
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
Removal and Installation of Front Oil SealEBS00LQF
REMOVAL
1. Remove the following parts:
●Undercover (with splash cover)
●Drive belt; Refer to EM-11,](/manual-img/5/57350/w960_57350-132.png)
OIL SEAL
EM-55
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM

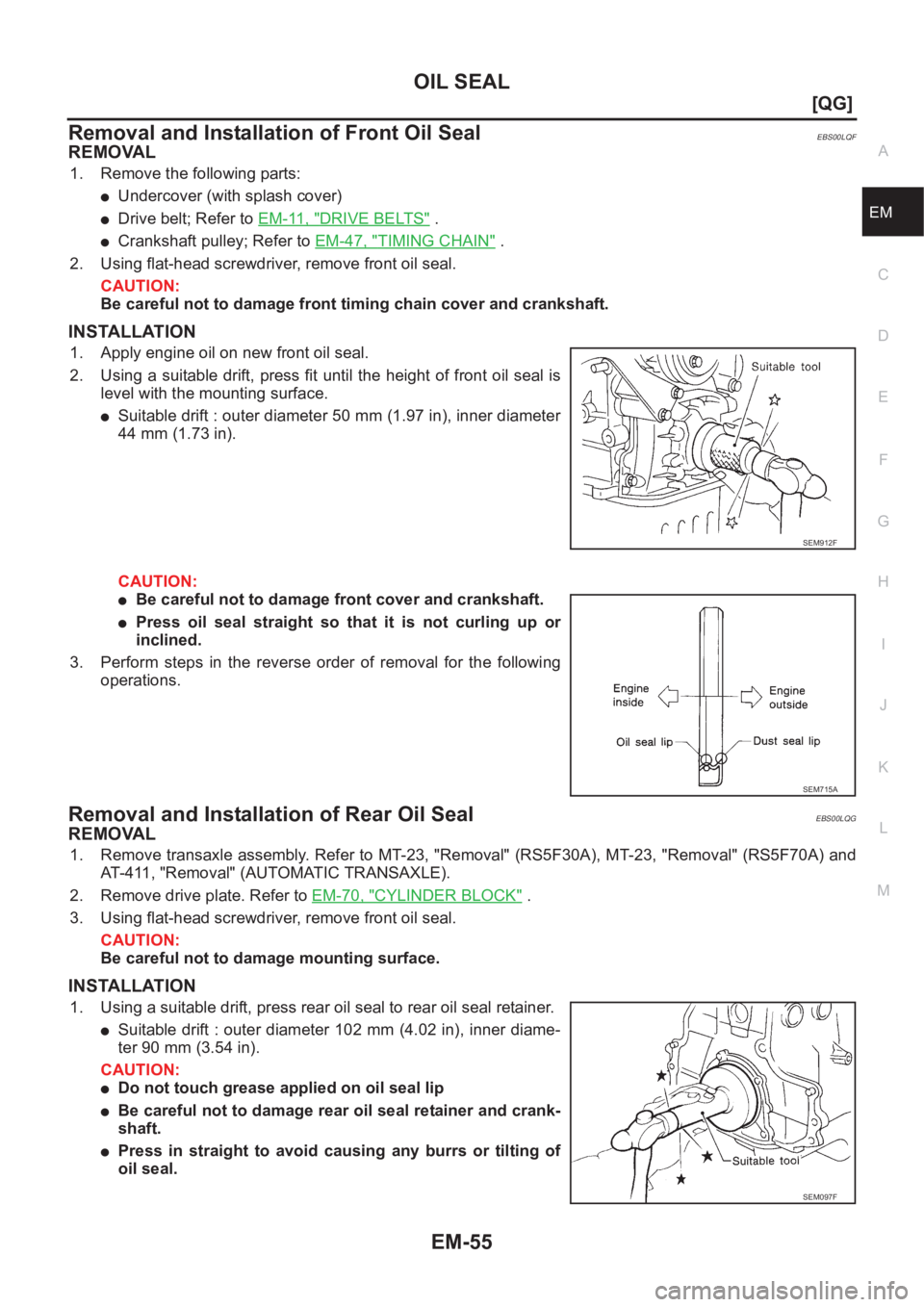

Removal and Installation of Front Oil SealEBS00LQF
REMOVAL
1. Remove the following parts:
●Undercover (with splash cover)
●Drive belt; Refer to EM-11, "DRIVE BELTS" .
●Crankshaft pulley; Refer to EM-47, "TIMING CHAIN" .
2. Using flat-head screwdriver, remove front oil seal.
CAUTION:
Be careful not to damage front timing chain cover and crankshaft.
INSTALLATION
1. Apply engine oil on new front oil seal.
2. Using a suitable drift, press fit until the height of front oil seal is
level with the mounting surface.
●Suitable drift : outer diameter 50 mm (1.97 in), inner diameter
44 mm (1.73 in).
CAUTION:
●Be careful not to damage front cover and crankshaft.
●Press oil seal straight so that it is not curling up or
inclined.
3. Perform steps in the reverse order of removal for the following
operations.
Removal and Installation of Rear Oil SealEBS00LQG
REMOVAL
1. Remove transaxle assembly. Refer to MT-23, "Removal" (RS5F30A), MT-23, "Removal" (RS5F70A) and
AT-411, "Removal" (AUTOMATIC TRANSAXLE).
2. Remove drive plate. Refer to EM-70, "
CYLINDER BLOCK" .
3. Using flat-head screwdriver, remove front oil seal.
CAUTION:
Be careful not to damage mounting surface.
INSTALLATION
1. Using a suitable drift, press rear oil seal to rear oil seal retainer.
●Suitable drift : outer diameter 102 mm (4.02 in), inner diame-
ter 90 mm (3.54 in).
CAUTION:
●Do not touch grease applied on oil seal lip
●Be careful not to damage rear oil seal retainer and crank-
shaft.
●Press in straight to avoid causing any burrs or tilting of
oil seal.
SEM912F
SEM715A
SEM097F
Page 134 of 3189
EM-56
[QG]
OIL SEAL
●Press rear oil seal into rear oil seal retainer so that is
does not project from the end.
2. Perform steps in the reverse order of removal for the following operations.
KBIA1401E
Page 135 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual CYLINDER HEAD
EM-57
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
CYLINDER HEADPFP:11041
On-Vehicle ServiceEBS00LQH
CHECKING COMPRESSION PRESSURE
1. Warm up engine thoroughly. Then, stop it.
2. Release fuel pressu NISSAN ALMERA N16 2003 Electronic Repair Manual CYLINDER HEAD
EM-57
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
CYLINDER HEADPFP:11041
On-Vehicle ServiceEBS00LQH
CHECKING COMPRESSION PRESSURE
1. Warm up engine thoroughly. Then, stop it.
2. Release fuel pressu](/manual-img/5/57350/w960_57350-134.png)
CYLINDER HEAD
EM-57
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
CYLINDER HEADPFP:11041
On-Vehicle ServiceEBS00LQH
CHECKING COMPRESSION PRESSURE
1. Warm up engine thoroughly. Then, stop it.
2. Release fuel pressure. Refer to EC-34, "
FUEL PRESSURE RELEASE" (WITH EURO-OBD), EC-427,
"FUEL PRESSURE RELEASE" (WITHOUT EURO-OBD).
3. Remove ignition coil and spark plug from each cylinder.
Refer to IGNITION COIL EM-24, "
Removal and Installation" and SPARK PLUG EM-25, "Removal and
Installation" .
4. Connect engine tachometer (not required in use of CONSULT-II).
5. Disconnect fuel injector harness connector so that no fuel is injected.
6. Install compression tester with adapter onto spark plug hole.
●Use compression gauge whose picking up end inserted to spark
plug hole is smaller than 20 mm (0.79 in) in diameter. Otherwise,
it may be caught by cylinder head during removal.
7. With accelerator pedal fully depressed, turn ignition switch to
“START” for cranking. When the gauge pointer stabilizes, read
the compression pressure and engine rpm. Perform these steps
to check each cylinder.
Compression pressure
[kPa (bar, kg/cm2 , psi)/rpm]
CAUTION:
Always use a fully changed battery to obtain specified engine speed.
●If the engine speed is out of specified range, check battery liquid for proper gravity. Check engine speed
again with normal battery gravity.
●If compression pressure is below minimum value, check valve clearances and parts associated with com-
bustion chamber (Valve, valve seat, piston, piston ring, cylinder bore, cylinder head, cylinder head gas-
ket). After the checking, measure compression pressure again.
●If some cylinders have low compression pressure, pour small amount of engine oil into the spark plug hole
of the cylinder to re-check it for compression.
–If the added engine oil improves the compression, the piston rings may be worn out or damaged. Check
the piston rings and replace if necessary.
–If the compression pressure remains at low level despite the addition of engine oil, the valves may be mal-
functioning. Check the valves for damage. Replace the valve or valve seat accordingly.
●If two adjacent cylinders have respectively low compression pressure and their compression remains low
even after the addition of engine oil, the gaskets are leaking. In such a case, replace the cylinder head
gaskets.
KBIA1402E
Engine type QG15DE QG18DE
Standard1,372 (13.72, 13.99,
198.9)1,324 (13.24, 13.5, 192)
Limit 1,176 (11.76, 12.0, 170.5) 1,128 (11.28, 11.5, 164)
Difference limit among
cylinders98 (0.98, 1.0, 14) 98 (0.98, 1.0, 14)SEM387C
Page 136 of 3189
EM-58
[QG]
CYLINDER HEAD
8. Install spark plug, ignition coil and harness connectors.
Removal and InstallationEBS00LQI
REMOVAL
1. Release fuel pressure. Refer to EC-34, "FUEL PRESSURE RELEASE" (WITH EURO-OBD), EC-427,
"FUEL PRESSURE RELEASE" (WITHOUT EURO-OBD).
2. Remove undercover.
3. Drain engine coolant. Refer to LC-17, "Changing Engine Coolant".
4. Remove the following components and related parts:
●Intake manifold and intake manifold collector. Refer to EM-16, "INTAKE MANIFOLD" .
●Exhaust manifold and catalytic converter. Refer to EM-19, "EXHAUST MANIFOLD AND CATALYTIC
CONVERTER" .
●Ignition coil. Refer to EM-24, "IGNITION COIL" .
●Rocker cover. Refer to EM-29, "ROCKER COVER" .
●Camshaft. Refer to EM-32, "CAMSHAFT" .
●Alternator bracket. Refer to SC-33, "Removal and Installation".
PBIC0972E
1. Rear engine slinger 2. Cylinder head bolt 3. Washer
4. Auxiliary bolt of cylinder head 5. Cylinder head gasket 6. Cylinder head assembly
