NISSAN ALMERA N16 2003 Electronic Repair Manual SMT649D 11. Install transaxle case onto clutch housing, and tighten mount- ing bolts with specified torque. Tightening torque: Refer to MT-54. SMT648D 12. Apply Three Bond TB1215, Loctite Part No. 518

Page 1410 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SMT747D a. Using dial gauge as shown in the figure, measure dimension “P1” between transaxle case end face and mainshaft rear bearing. SMT748D b. Using dial gauge as shown in the figure, measure d

Page 1411 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SMT644D 21. Install selected snap ring. CAUTION: Do not reuse snap ring. 22. Apply gear oil to rear cover O-ring, and install rear cover, side cover gasket, and side cover. Then tighten mounting bolts

Page 1412 of 3189

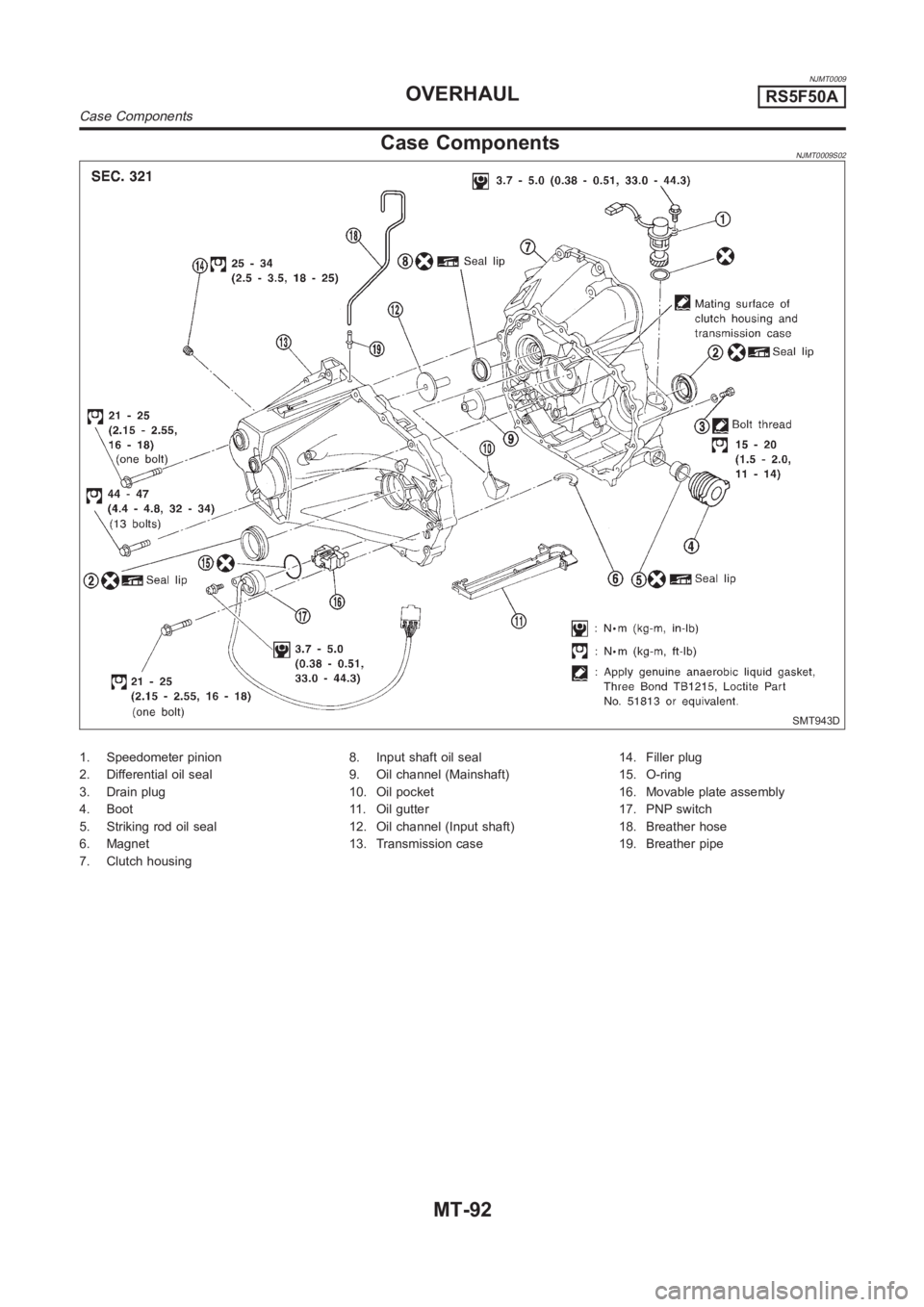

NISSAN ALMERA N16 2003 Electronic Repair Manual NJMT0009 Case ComponentsNJMT0009S02 SMT943D 1. Speedometer pinion 2. Differential oil seal 3. Drain plug 4. Boot 5. Striking rod oil seal 6. Magnet 7. Clutch housing8. Input shaft oil seal 9. Oil chan

Page 1413 of 3189

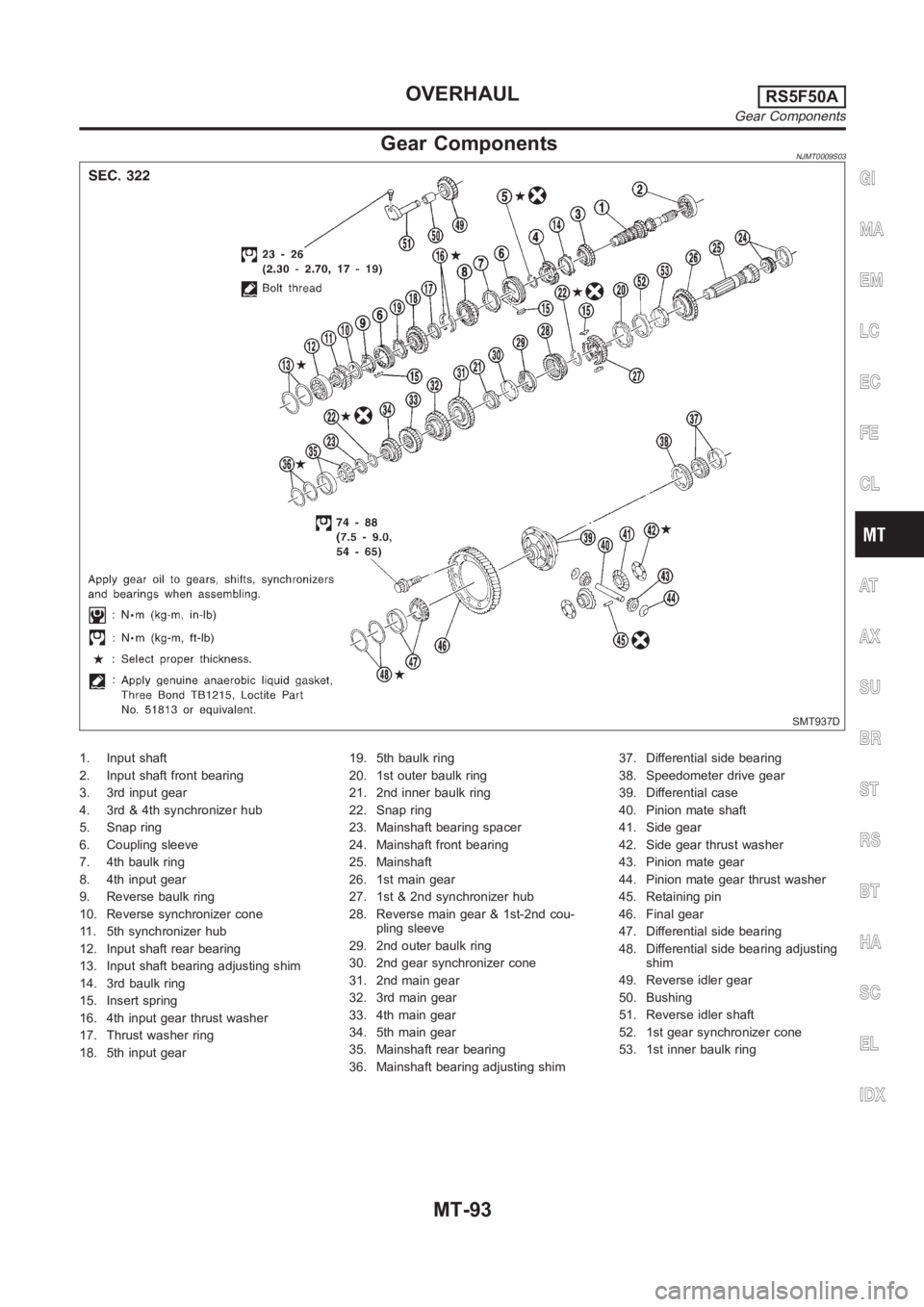

NISSAN ALMERA N16 2003 Electronic Repair Manual Gear ComponentsNJMT0009S03 SMT937D 1. Input shaft 2. Input shaft front bearing 3. 3rd input gear 4. 3rd & 4th synchronizer hub 5. Snap ring 6. Coupling sleeve 7. 4th baulk ring 8. 4th input gear 9. Re

Page 1414 of 3189

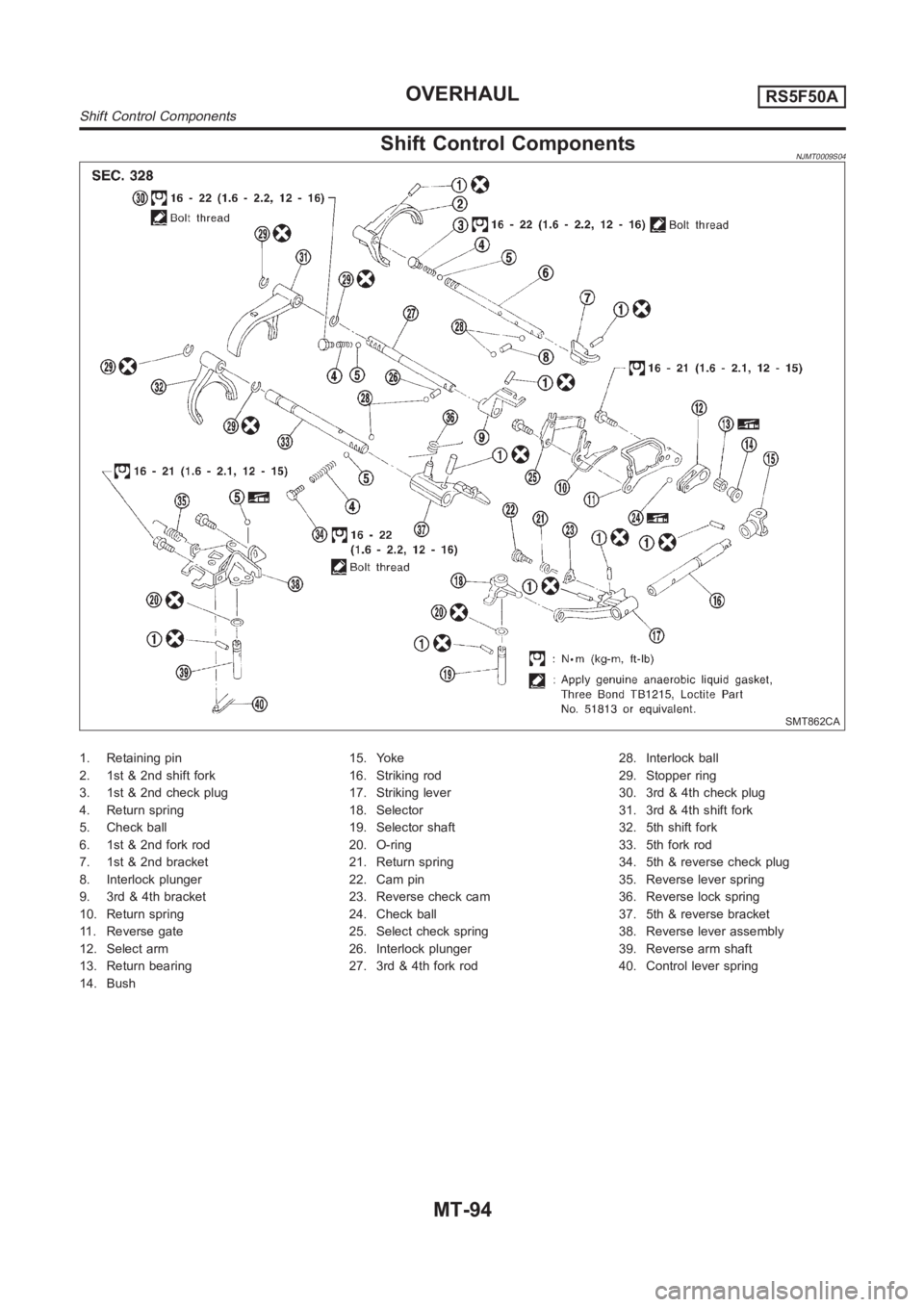

NISSAN ALMERA N16 2003 Electronic Repair Manual Shift Control ComponentsNJMT0009S04 SMT862CA 1. Retaining pin 2. 1st & 2nd shift fork 3. 1st & 2nd check plug 4. Return spring 5. Check ball 6. 1st & 2nd fork rod 7. 1st & 2nd bracket 8. Interlock plu

Page 1415 of 3189

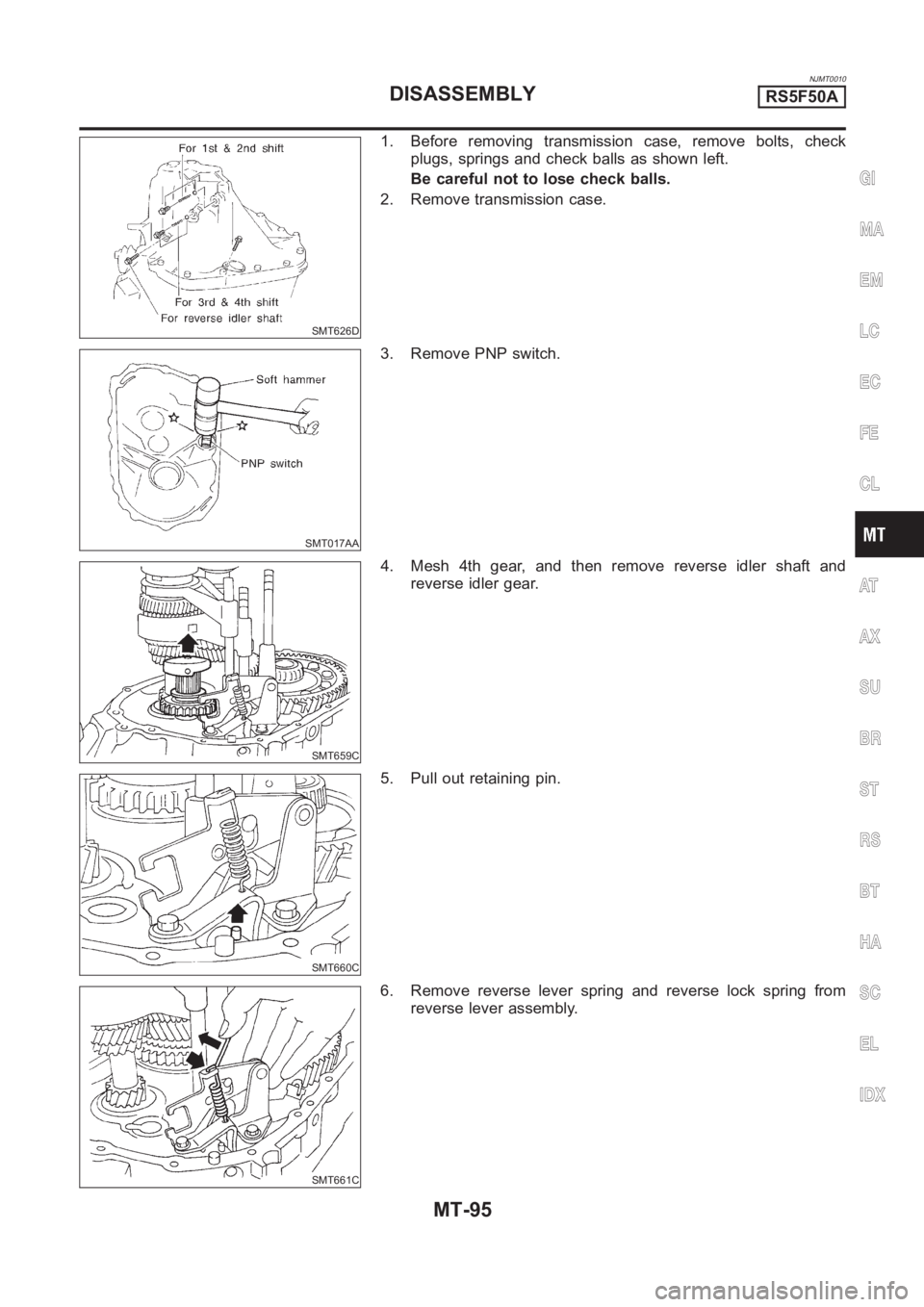

NISSAN ALMERA N16 2003 Electronic Repair Manual NJMT0010 SMT626D 1. Before removing transmission case, remove bolts, check plugs, springs and check balls as shown left. Be careful not to lose check balls. 2. Remove transmission case. SMT017AA 3. Re

Page 1416 of 3189

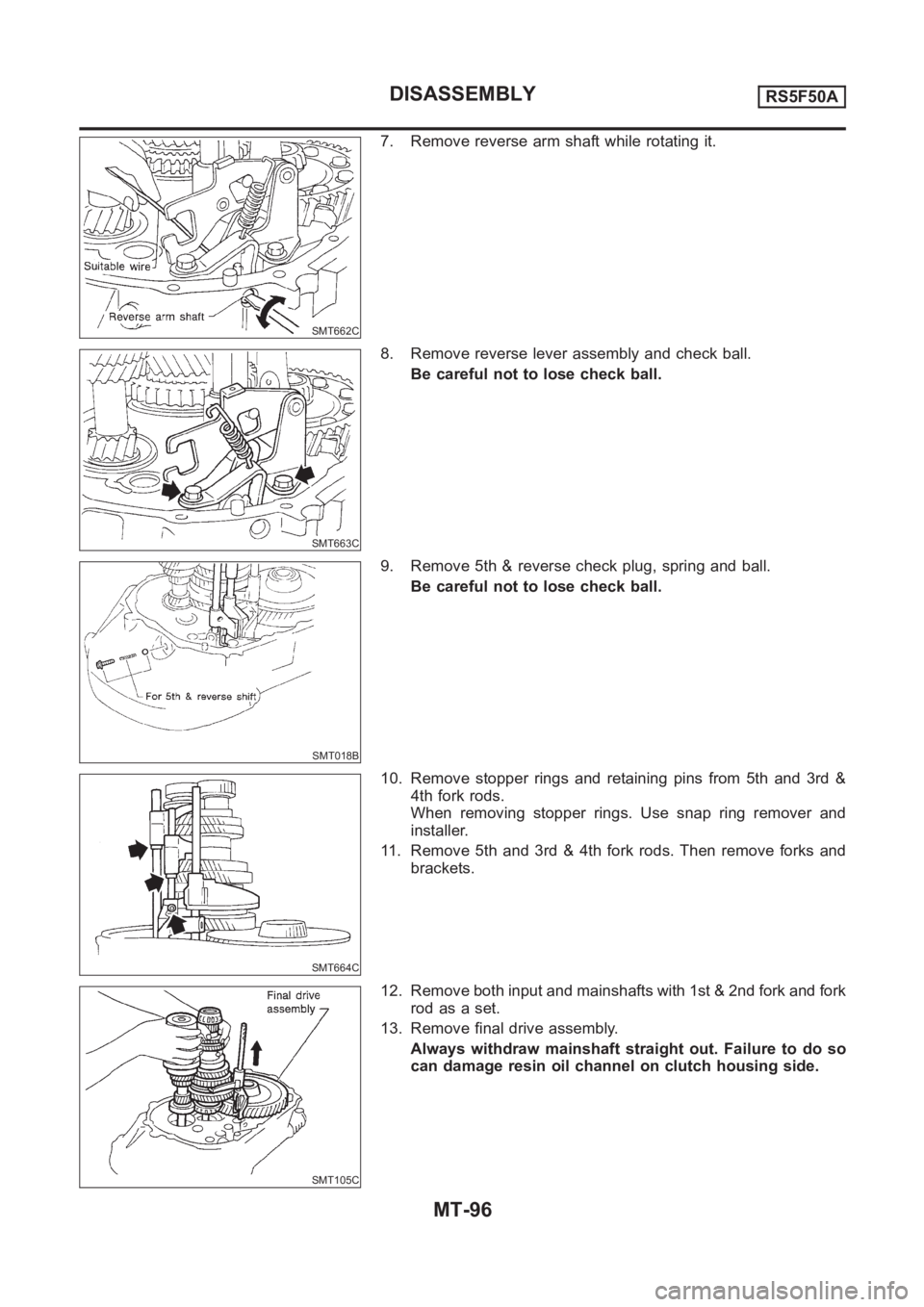

NISSAN ALMERA N16 2003 Electronic Repair Manual SMT662C 7. Remove reverse arm shaft while rotating it. SMT663C 8. Remove reverse lever assembly and check ball. Be careful not to lose check ball. SMT018B 9. Remove 5th & reverse check plug, spring an
