2003 NISSAN ALMERA N16 Electronic Repair Manual

garage door opener lane assist flat tire tire type buttons gas tank size

Page 2473 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual from key switch terminal 2
to smart entrance control unit terminal 5.
Ground is supplied
from body grounds B9, B21 and D96 (Hatchback) or B308 (Sedan)
through front door switch (driver side) terminal

from key switch terminal 2
to smart entrance control unit terminal 5.
Ground is supplied
from body grounds B9, B21 and D96 (Hatchback) or B308 (Sedan)
through front door switch (driver side) terminal 3 and 2
to smart entrance control unit terminal 43.
And, then smart entrance control unit receives any door lock signal.
LIGHT WARNING CHIMENJEL0453S02With ignition switch OFF, driver’s door open, and lighting switch in 1ST or2ND position, warning chime will
sound. Power is supplied.
from lighting switch terminal 12
through daytime light control unit terminals 11 and 10 (with daytime lightsystem)
to smart entrance control unit terminal 17
Ground is supplied
from front door switch (driver side) terminal 2
to smart entrance control unit terminal 43.
Front door switch (driver side) terminal 3 is grounded through body grounds B9, B21 and D96 (Hatchback) or
B308 (Sedan).
System Description/YD Engine Models without
Common Rail and K9K Engine Models
NJEL0550The warning chime is controlled by the time control unit.
The warning chime is located in the time control unit.
Power is supplied at all times
through 15A fuse [No. 5, located in fuse block (J/B)]
to time control unit terminal 9.
through 10A fuse [No. 12, located in the fuse block (J/B)]
to key switch terminal 1.
through 10A fuse (No. 38, located in the fuse and fusible link box)
to lighting switch terminal 11.
With the ignition switch in the ON or START position, power is supplied
through 10A fuse [No. 10, located in the fuse block (J/B)]
to time control unit terminal 1.
Ground is supplied to time control unit terminal 16 through body grounds M28 and M67.
When a signal, or combination of signals, is received by the time control unit, the warning chime will sound.
IGNITION KEY WARNING CHIMENJEL0550S01With the key in the ignition switch in the OFF position, the driver’s door open and driver’s door locked, the
warning chime will sound. Power is supplied
from key switch terminal 2
to time control unit terminal 22.
Ground is supplied
from body grounds B9, B21 and D96 (Hatchback) or B308 (Sedan)
through front door switch (driver side) terminal 3 and 2
to time control unit terminal 6, and
Ground is interrupted,
from body grounds M28 and M67
to time control unit terminal 35
LIGHT WARNING CHIMENJEL0550S02With ignition switch OFF, driver’s door open, and lighting switch in 1ST or2ND position, warning chime will
sound. Power is supplied.
from lighting switch terminal 12
to time control unit terminal 10
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
WARNING CHIME
System Description/QG Engine Models and YD Engine Models with Common Rail(Cont’d)
EL-137

Page 2474 of 3189

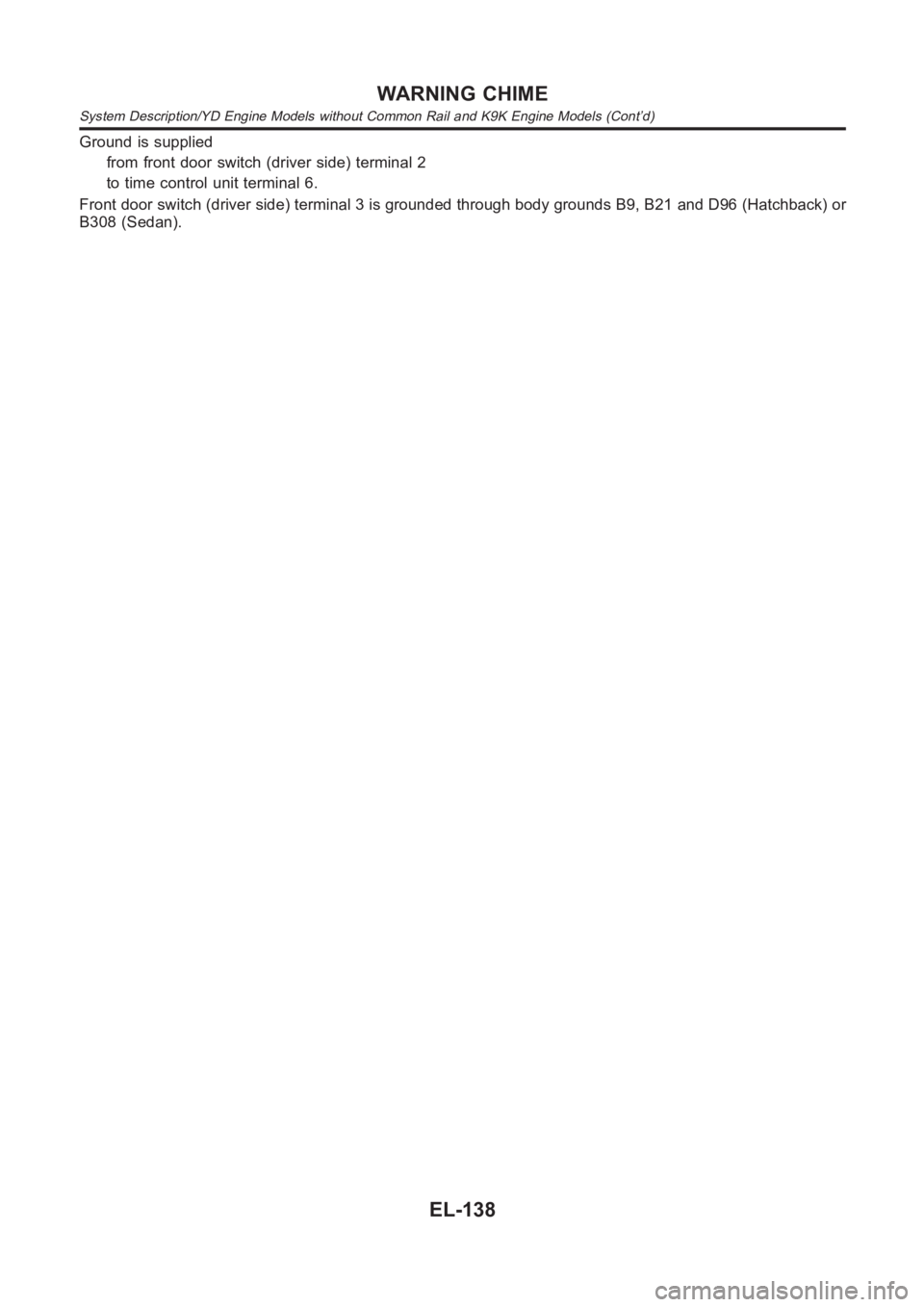

NISSAN ALMERA N16 2003 Electronic Repair Manual Ground is supplied
from front door switch (driver side) terminal 2
to time control unit terminal 6.
Front door switch (driver side) terminal 3 is grounded through body grounds B9, B21 and D96 (Hatchba

Page 2475 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Wiring Diagram — CHIME —NJEL0454
YEL707D
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
WARNING CHIME
Wiring Diagram — CHIME —
EL-139

Page 2476 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual YEL708D
WARNING CHIME
Wiring Diagram — CHIME — (Cont’d)
EL-140

Page 2477 of 3189

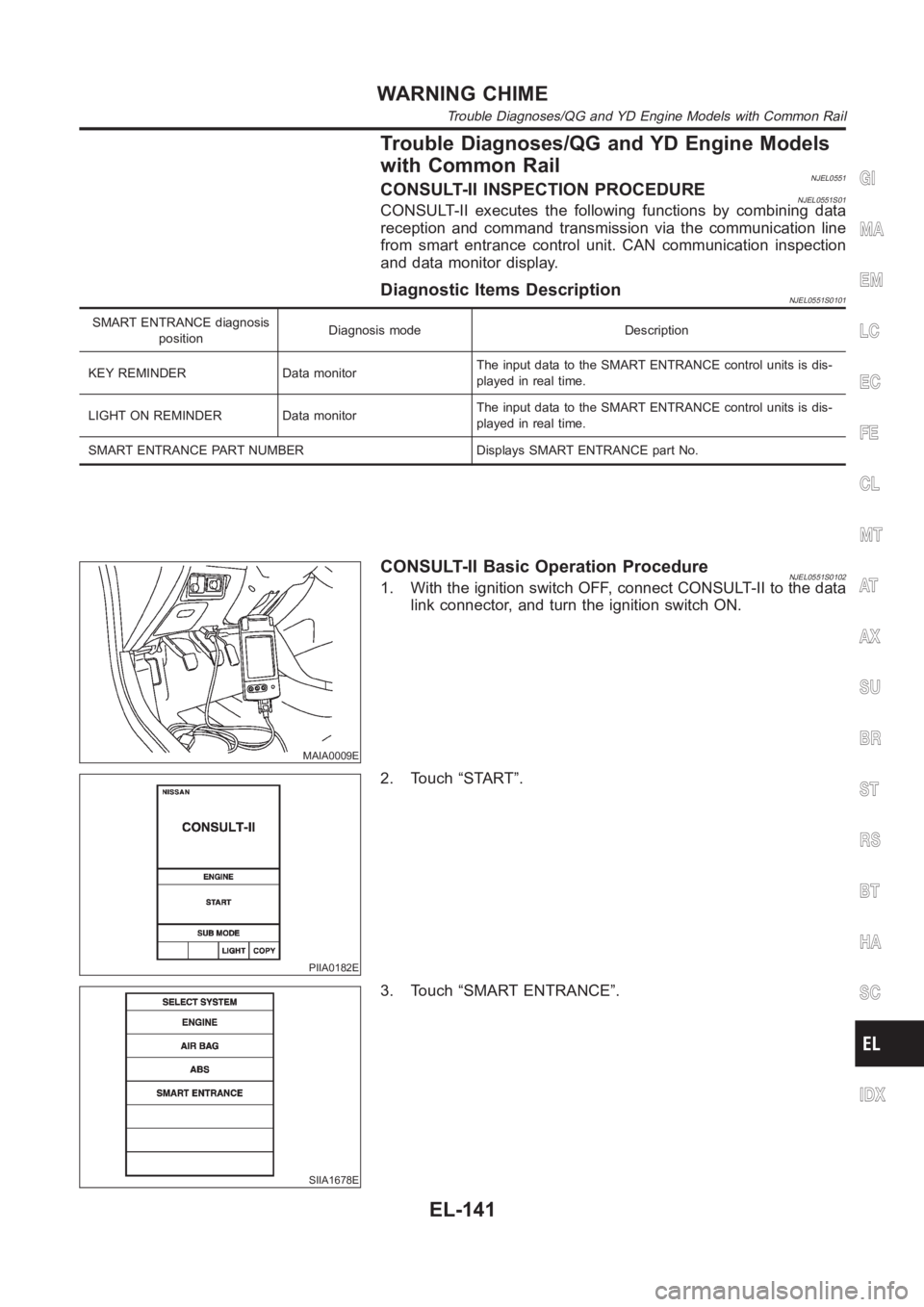

NISSAN ALMERA N16 2003 Electronic Repair Manual Trouble Diagnoses/QG and YD Engine Models
with Common Rail
NJEL0551CONSULT-II INSPECTION PROCEDURENJEL0551S01CONSULT-II executes the following functions by combining data
reception and command transmi

Page 2478 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual 4. Select the desired part to be diagnosed on the “SELECT TES-
T ITEM” screen.
Data monitor item (KEY REMINDER)
Monitored item Description
IGNITION SW Indicates [ON/OFF] condition of ignition swit

Page 2479 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual POWER SUPPLY AND GROUND CIRCUIT CHECKNJEL0551S03
1 POWER SUPPLY CIRCUIT CHECK
1. Disconnect smart entrance control unit connector.
2. Check the following.
MKIB0013E
MTBL1438
OK or NG
OK GO TO 2.
NGChe

Page 2480 of 3189

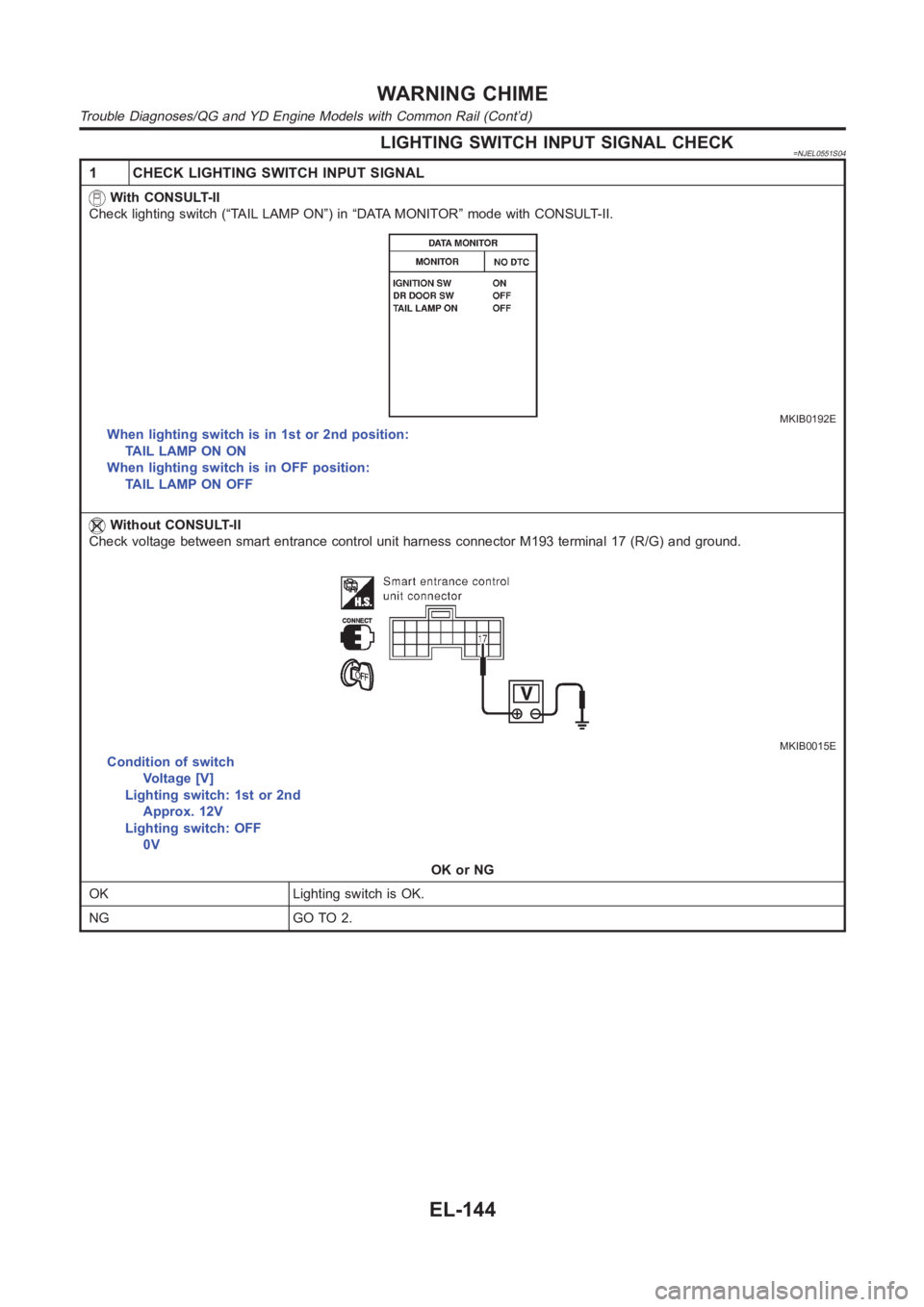

NISSAN ALMERA N16 2003 Electronic Repair Manual LIGHTING SWITCH INPUT SIGNAL CHECK=NJEL0551S04
1 CHECK LIGHTING SWITCH INPUT SIGNAL
With CONSULT-II
Check lighting switch (“TAIL LAMP ON”) in “DATA MONITOR” mode with CONSULT-II.
MKIB0192E
Whe
