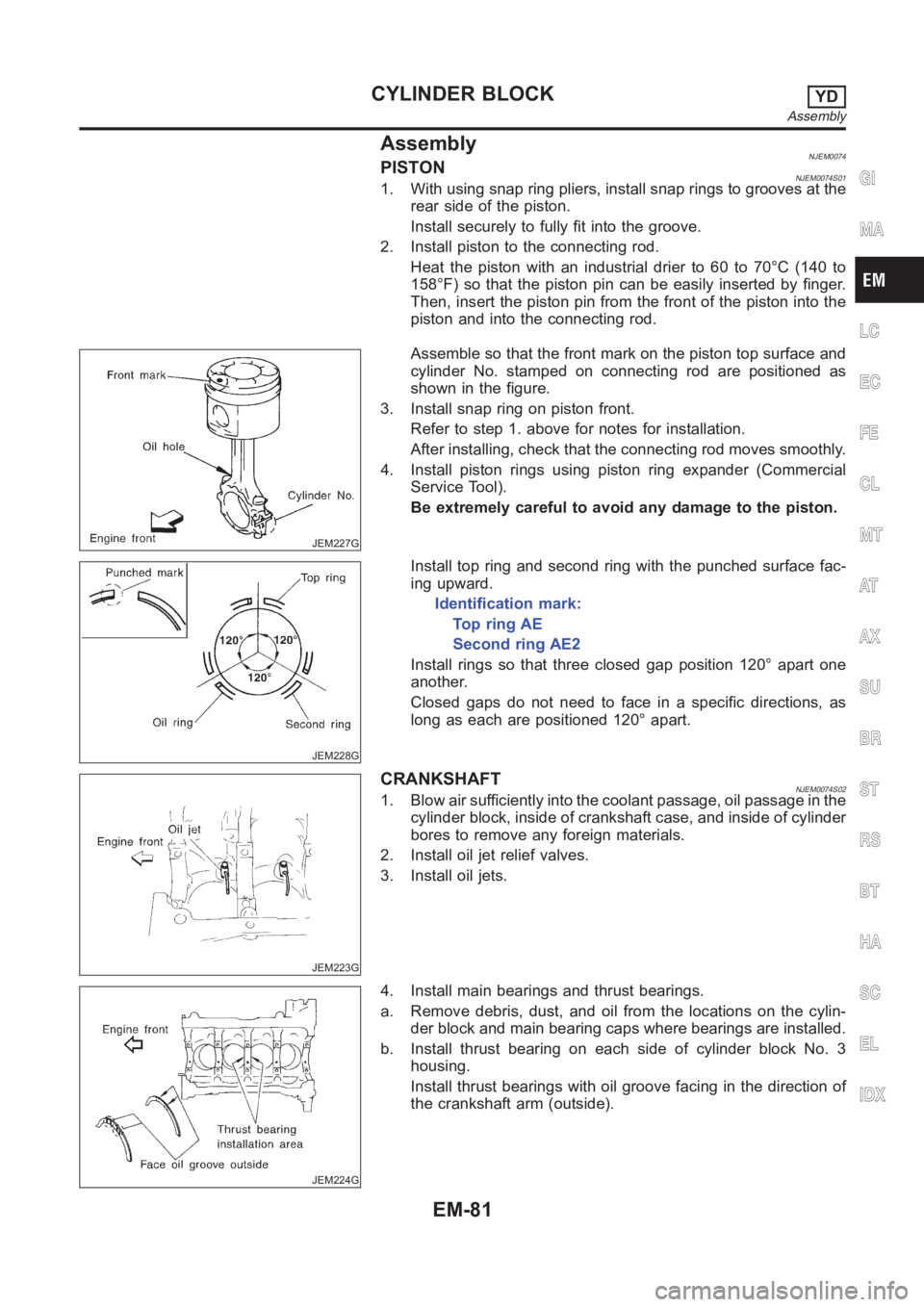

NISSAN ALMERA N16 2003 Electronic Repair Manual AssemblyNJEM0074PISTONNJEM0074S011. With using snap ring pliers, install snap rings to grooves at the
rear side of the piston.
Install securely to fully fit into the groove.
2. Install piston to the c

Page 266 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual JEM213G
c. Be sure to install main bearings in the correct direction.
Make sure those with oil holes or oil grooves are mounted on
the cylinder block side, and those without oil holes or oil
grooves a

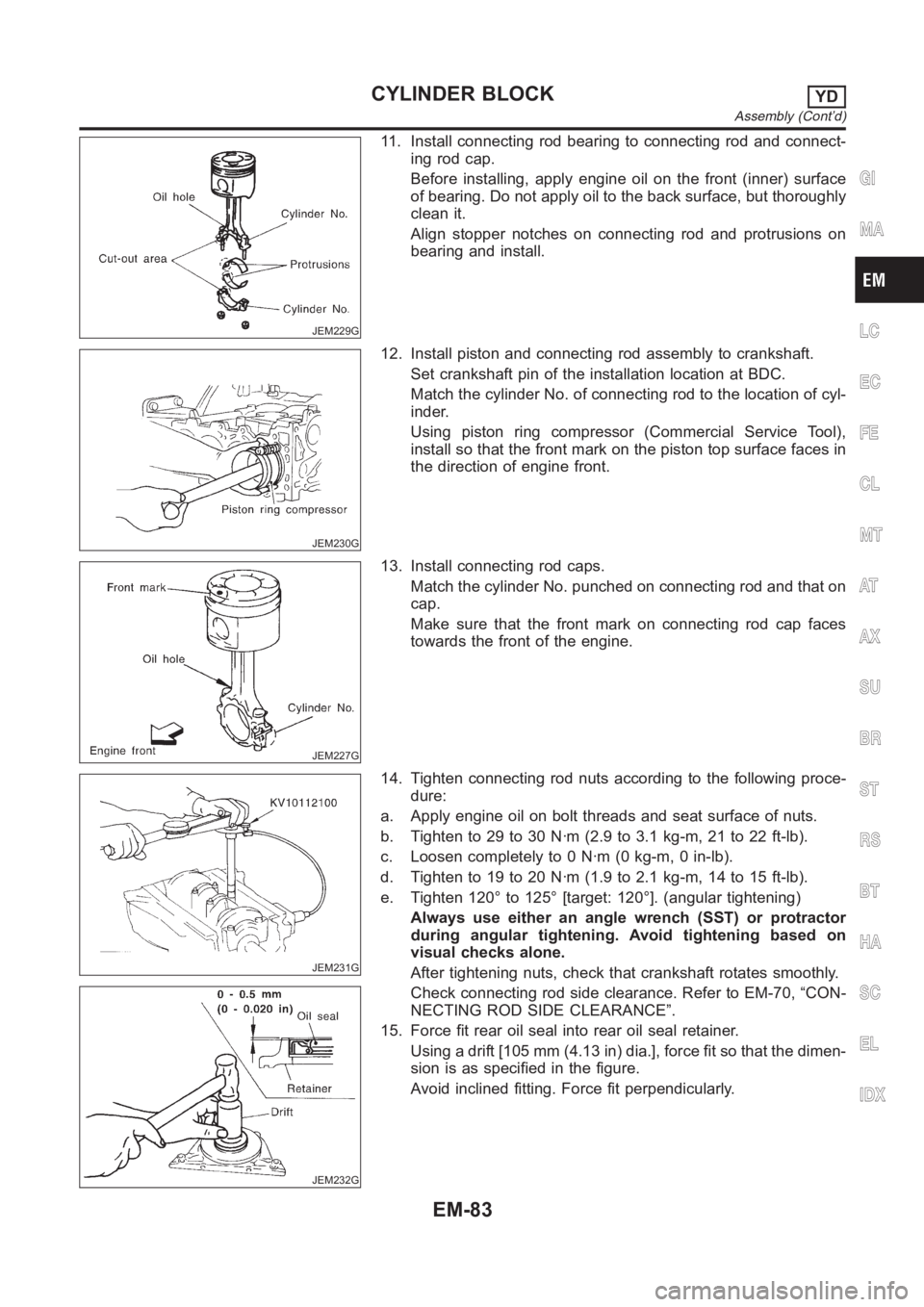

Page 267 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual JEM229G
11. Install connecting rod bearing to connecting rod and connect-
ing rod cap.
Before installing, apply engine oil on the front (inner) surface
of bearing. Do not apply oil to the back surface

Page 268 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual JEM233G
16. Install rear oil seal retainer.
Apply a continuous bead of specified liquid gasket (Refer to
EM-3, “Liquid Gasket Application Procedure”.) on locations
shown in the figure.
JEM234G
17.

Page 269 of 3189

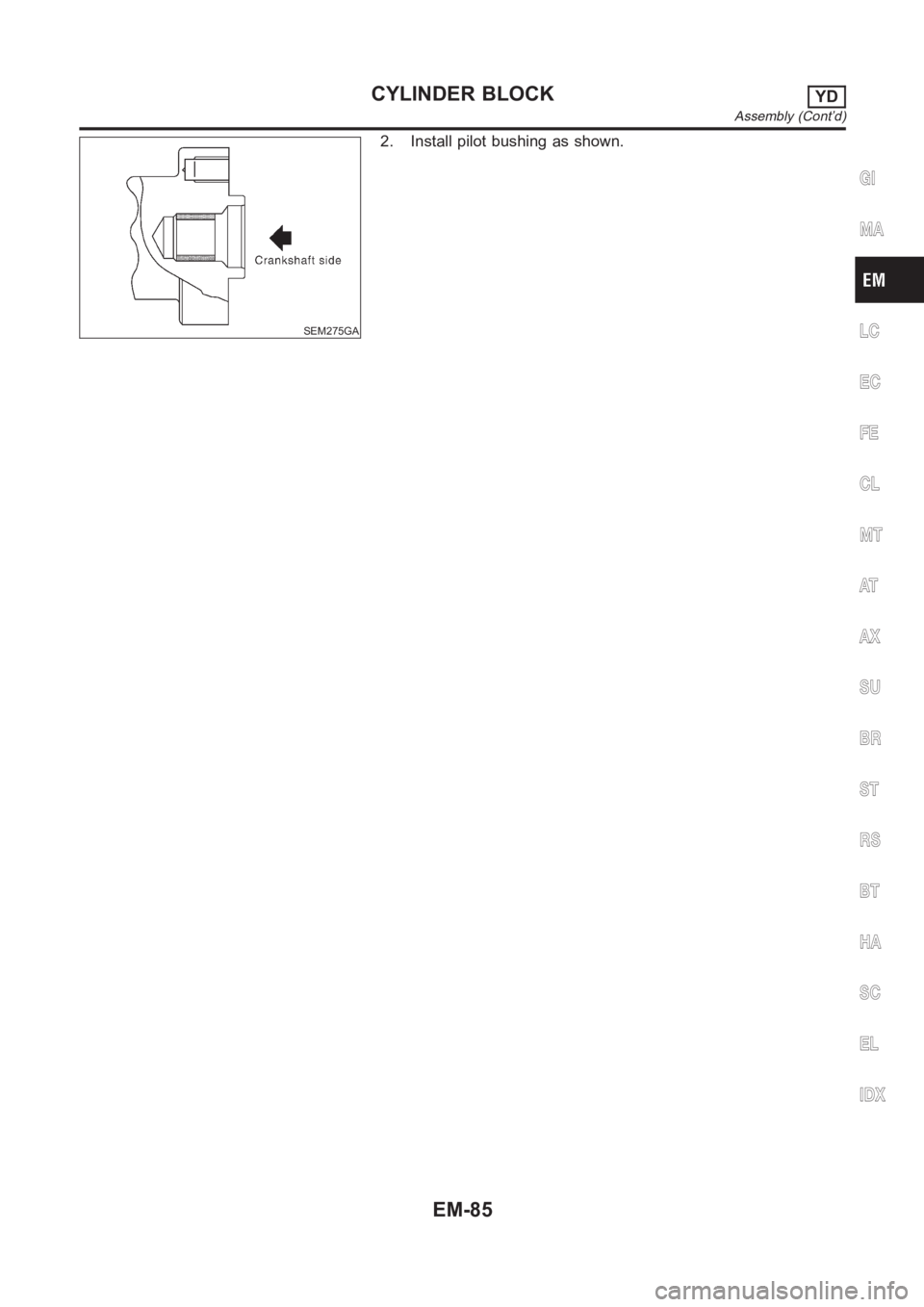

NISSAN ALMERA N16 2003 Electronic Repair Manual SEM275GA
2. Install pilot bushing as shown.
GI
MA
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
CYLINDER BLOCKYD
Assembly (Cont’d)
EM-85

Page 270 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual General SpecificationsNJEM0075
Cylinder arrangementIn-line 4
Displacement cm
3(cu in)2,184 (133.27)
Bore and stroke mm (in)86 x 94 (3.39 x 3.70)
Valve arrangementDOHC
Firing order1-3-4-2
Number of pis

Page 271 of 3189

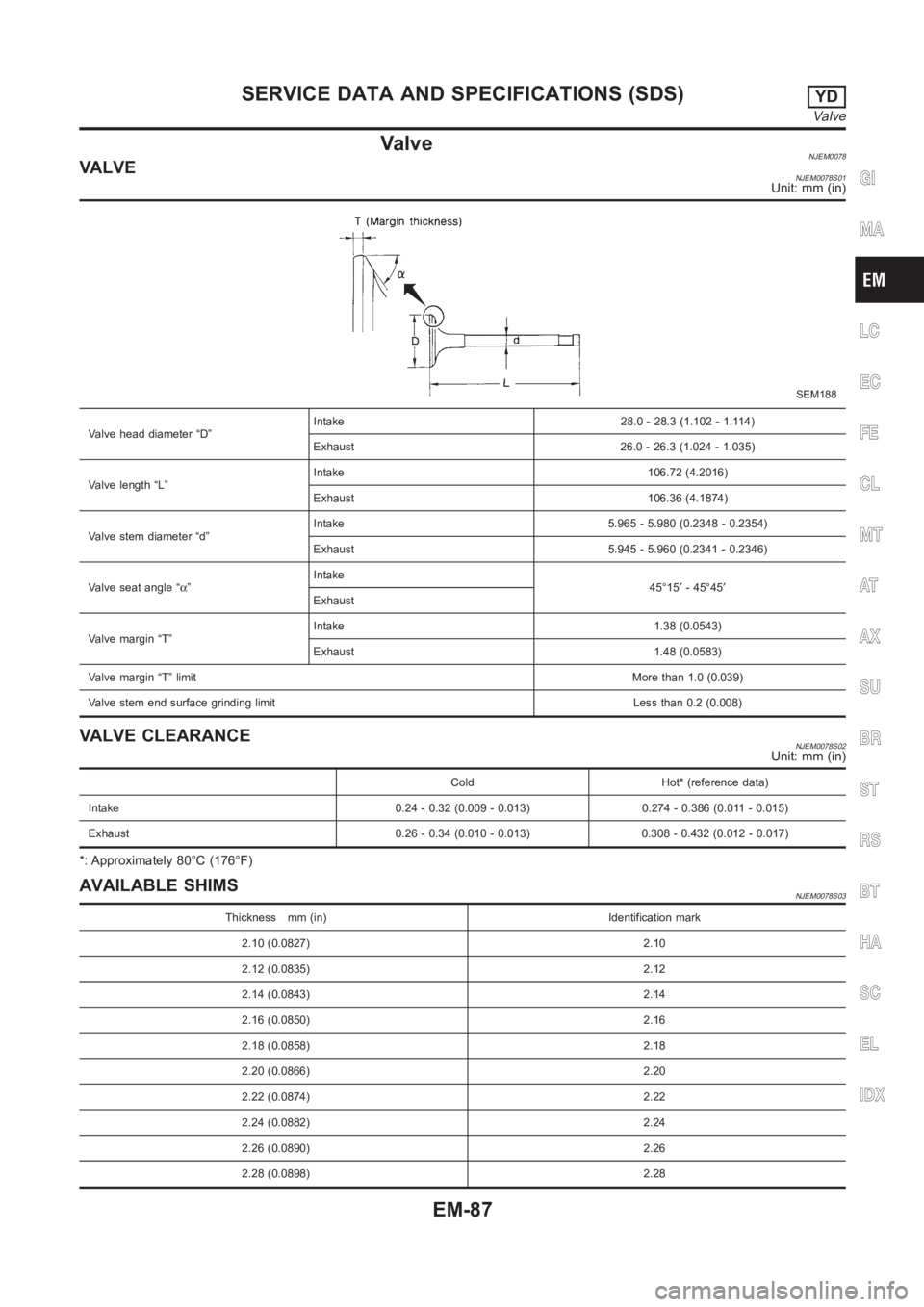

NISSAN ALMERA N16 2003 Electronic Repair Manual Va l v eNJEM0078VA L V ENJEM0078S01Unit: mm (in)
SEM188
Valve head diameter “D”Intake 28.0 - 28.3 (1.102 - 1.114)
Exhaust 26.0 - 26.3 (1.024 - 1.035)
Valve length “L”Intake 106.72 (4.2016)
Exh

Page 272 of 3189

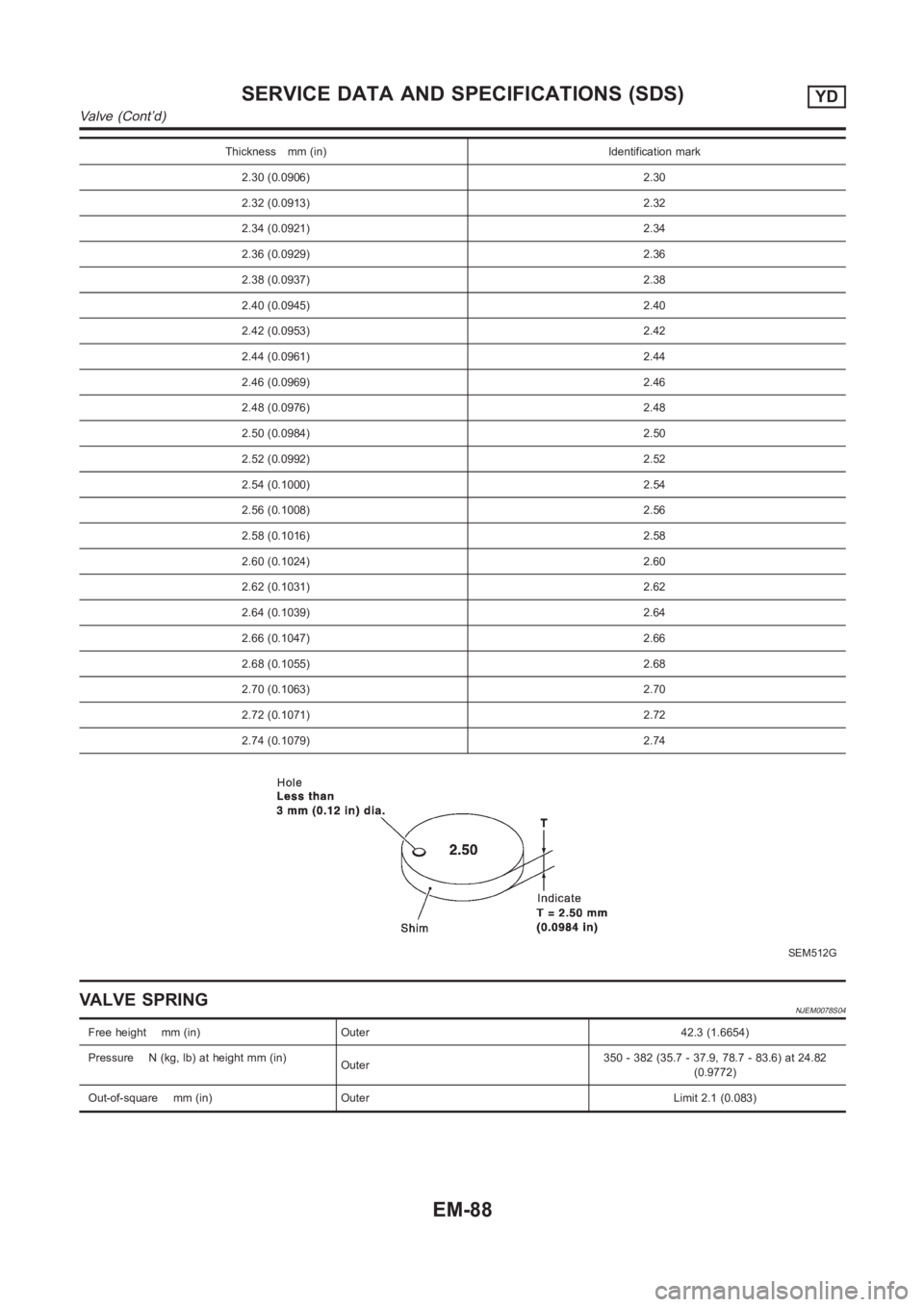

NISSAN ALMERA N16 2003 Electronic Repair Manual Thickness mm (in) Identification mark
2.30 (0.0906) 2.30
2.32 (0.0913) 2.32
2.34 (0.0921) 2.34
2.36 (0.0929) 2.36
2.38 (0.0937) 2.38
2.40 (0.0945) 2.40
2.42 (0.0953) 2.42
2.44 (0.0961) 2.44
2.46 (0.09
